2ARRE-2020GA10walkie talkie

(2)(1)(3) (5)(6)(7)(4) CONTROL BUTTONS RADIO LED INDICATORS VIEW SOFTWARE VERSION NUMBER 1.The intercom and the computer are connected by a data cable. 2.Open the GPS software on the computer, select the correct port, and click "Online". 3.After successful connection, in the parameter setting interface, you can view the current software version number, such as V001.11. TURN ON / OFF THE RADIO 1.In shutdown mode, press and hold the front switch of the body for 2 seconds to turn on and broadcast "power on". 2.In pairing mode or connection mode, press and hold the switch for 5 seconds to turn off and broadcast "power off". Menu Up Down Lanyard Hole Light Indicator Power On/off Push-to-Talk Micro USB Charging Port Audiojack Charging Indicator Antenna Standby stateGreen Slow Flash Transmit (TX)Solid Red Receive (RX)Solid Green Programming Mode (Read from Radio) Red Fast Flash Programming Mode (Write to Radio) Red Fast Flash Rev.1 START MANUAL Walkie-Talkie + SAFETY AND GENERAL INFORMATION RF Exposure and Product Safety Instructions for Portable Two-Way Radios General Populated and Uncontrolled Environments. ATTENTION: Before using this radio, refer to the important operating instructions for safe usage and RF energy awareness and control for compliance with applicable Standards and Regulations. Compliance with RF Exposure Standards Your Two-Way radio complies with the following RF energy exposure standard and guidelines: · United States Federal Communications Commission, Code of Federal Regulations; 47 CFR et seq. & FCC. · Institute of Electrical and Electronic Engineers (IEEE) C95.1. · Ministry of Health (Canada) Safety Code 6 & Industry Canada RSS-102. Transmit and Receive Procedure Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population /uncontrolled environment exposure limits, always adhere to the following procedure: · Transmit no more than 50% of the time. · To receive calls, release the PTT button. · To transmit (talk), press the Push-to-Talk (PTT) button in front of the face. · Hold the radio in a vertical position with the microphone (and other parts of the radio including the antenna) at least one inch (2.5 centimeters) away from the nose or lips. Keeping the radio at a proper distance is important to ensure compliance. Note: RF exposure decreases with increasing distance from the antenna. · Body Worn Operation. When worn on the body, always place the radio in a approved clip for this product. Two-way Radio Operation · Use only approved supplied or replacement antennas and audio accessories. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ISEDC RSS warning This product meets the applicable Industry Canada technical specifications. / Le présent matériel est conforme aux specifications techniques applicables d’Industrie Canada. This device complies with ISEDC license-exempt RSSstandard (s). Operation is subject to the following two conditions: (1) this device may not cause interference,and (2) this device must accept any interference,including interference that may cause undesiredoperation of the device. Le présent appareil est conforme aux CNR d'ISEDCapplica- bles aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditionssuivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. ISEDC Radiation Exposure Statement: For face up operation, this model device has been tested and meets the ISED RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that Contains no metal and that positions the handset a minimum of 25mm from the face. For body worn operation, this model device has been tested and meets the ISED RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that Contains no metal. Pour une utilisation face vers le haut, ce modèle d'appareil a été testé et répond aux directives d'exposition RF ISED lorsqu'il est utilisé avec unaccessoire désigné pour ce produit ou lorsqu'il est utilisé avec unaccessoire qui ne contient pas de métal et qui positionne le combiné à au moins 25 mm du visage. Pour une utilisation sur le corps, ce modèle d'appareil a été testé et répond aux directives d'exposition RF de la ISED lorsqu'il est utilisé avec unaccessoire désigné pour ce pr…

Text truncated - open the document above for the full version.

GOCOM Technology Co.,Ltd. UNIT12, 14/F, LIPPO SUN PLAZA,28 CANTON ROAD,TSIM SHA TSUI, KOWLOON, Hong Kong, China Tel: +8618750555801 Email: [email protected] Fax: 0085223744662 FCC Confidential Authorization 2021/01/14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARRE-2020GA10 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, GOCOM Technology Co.,Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Snow Huang Sales Executive

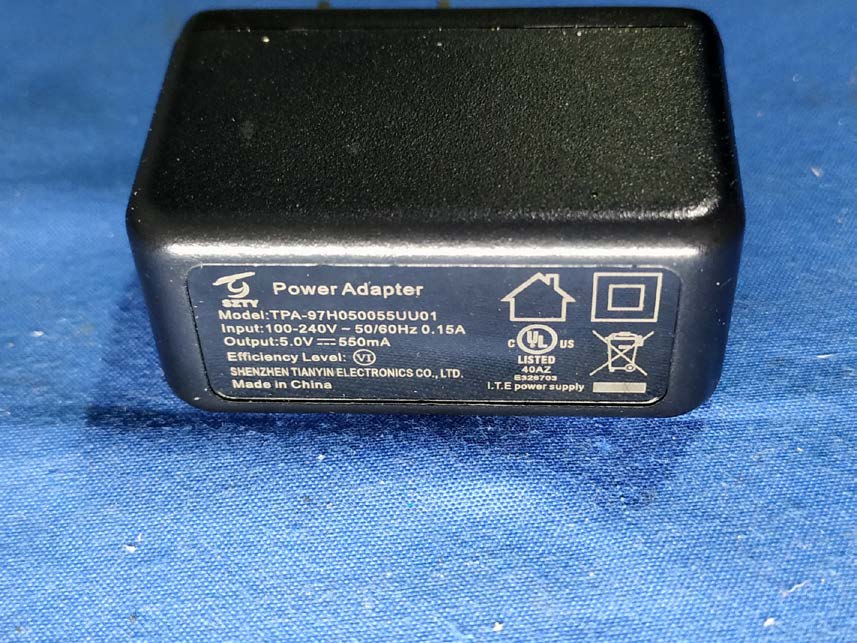

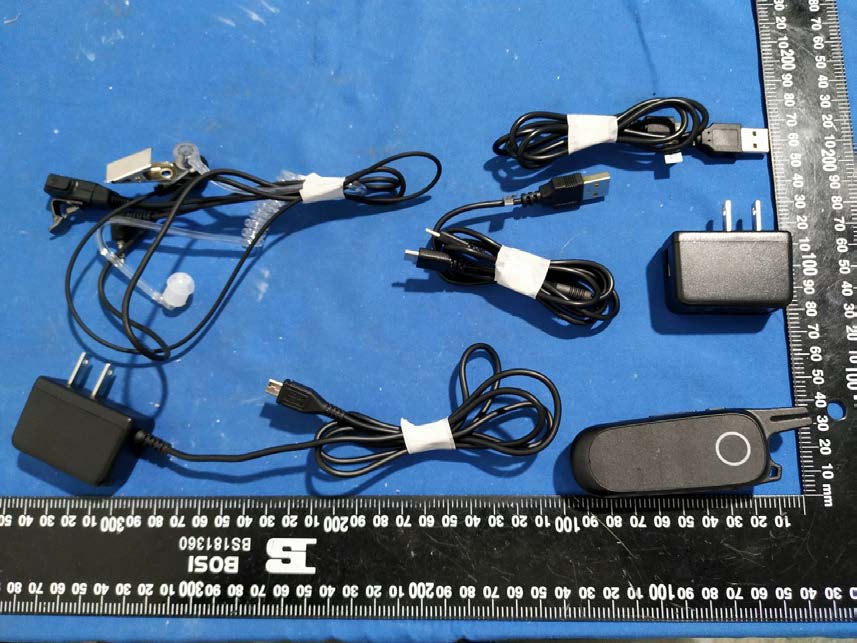

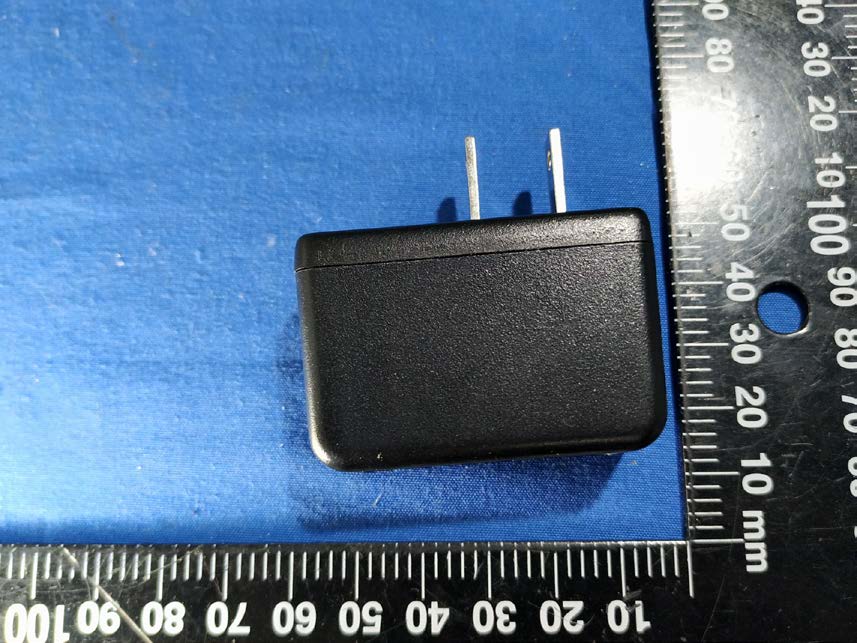

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Adapter 1# Adapter 2#

Size: 28*15 200% mm

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For GOCOM Technology Co., Ltd. UNIT12, 14/F, LIPPO SUN PLAZA,28 CANTON ROAD TSIM SHA TSUI, KOWLOON, Hong Kong, China FCC ID: 2ARRE-2020GA10 Report Type: Original Report Product Type: walkie talkie Report Number: RSZ201222009-20A Report Date: 2021-01-21 Reviewed By: Brave Lu SAR Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ201222009-20A SAR Evaluation Report 2 of 36 Attestation of Test Results EUT Information EUT Description walkie talkie Tested Model GA10 FCC ID 2ARRE-2020GA10 Serial Number RSZ201222009-SA-S1 Test Date 2020-12-07 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) PTT 1g Head SA R (Face Up) 0.06 1.6 1g Body SAR (Body Back) 0.10 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techni ques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 643646 D01 SAR Test for PTT Radios v01r03 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ201222009-20A SAR Evaluation Report 3 of 36 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ............................................................................................................................ 4 EUT DESCRIPTION ........................................................................................................................................................ 5 TECHNICAL SPECIFICATION............................................................................................................................................. 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................... 6 SAR LIMITS ..................................................................................................................................................................... 7 FACILITIES ...................................................................................................................................................................... 8 DESCRIPTION OF TEST SYSTEM ............................................................................................................................. 9 EQUIPMENT LIST AND CALIBRATION ................................................................................................................ 14 EQUIPMENTS LIST & CALIBRATION INFORMATION ...................................................................................................... 14 SAR MEASUREMENT SYSTEM VERIFICATION ................................................................................................ 15 LIQUID VERIFICATION ................................................................................................................................................... 15 SYSTEM ACCURACY VERIFICATION .............................................................................................................................. 16 SAR SYSTEM VALIDATION DATA ........................................................................................................................ 17 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................... 18 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ......................................................................... 18 CHEEK/TOUCH POSITION .............................................................................................................................................. 19 EAR/TILT POSITION ....................................................................................................................................................... 19 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................................................ 20 TEST DISTANCE FOR SAR EVALUATION ....................................................................................................................... 20 SAR EVALUATION PROCEDURE .................................................................................................................................... 21 OUTPUT POWER MEASUREMENT ...............................................................................…

Text truncated - open the document above for the full version.

Report No.: RSZ201222009-20A Page 1 of 2 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Report No.: RSZ201222009-20A Page 2 of 2 Face Up Setup Photo(25mm) Body Back Setup Photo(0mm) 29mm 12mm 25mm

APPENDIX C PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

FCC PART 95 MEASUREMENT AND TEST REPORT For GOCOM Technology Co., Ltd. UNIT12, 14/F, LIPPO SUN PLAZA,28 CANTON ROAD TSIM SHA TSUI, KOWLOON, Hong Kong, China FCC ID: 24523-2020GA10 Report Type: Original Report Product Type: walkie talkie Report Number: RSZ201222009-00A Report Date: 2021-01-19 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ201222009-00A Page 2 of 24 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 DECLARATIONS ............................................................................................................................................................ 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §2.1093 - RF EXPOSURE INFORMATION ..................................................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST RESULT ............................................................................................................................................................... 8 FCC §2.1046, §95.567 - RF OUTPUT POWER .......................................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 TEST DATA ................................................................................................................................................................ 10 FCC §2.1047 & §95.575 - MODULATION CHARACTERISTIC .......................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049,§95.573, §95.579 - AUTHOURIZED BANDWIDTH AND EMISSION MASK ............................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 16 FCC §2.1053 & §95.579 - RADIATED SPURIOUS EMISSION ............................................................................ 19 APPLICABLE STANDARD ............................................................................................................................................ 19 TEST PROCEDURE ......................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission -View (Below 1GHz) Radiated Emission -View (Above 1GHz)
