2ARVRWC073Q i Wireless Charging Pad

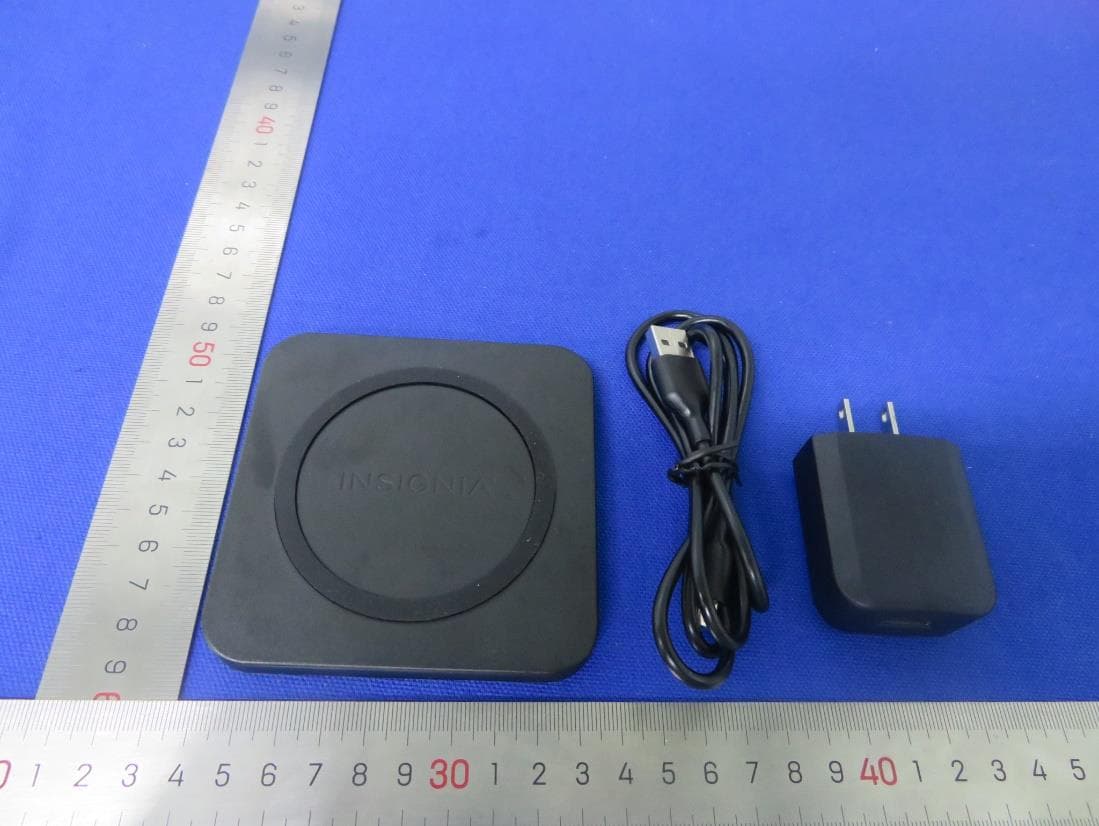

PACKAGE CONTENTS NS-MWPC5K / NS-MWPC5K-C • 5 W Qi Certied Wireless Charging Pad (1) • 4 ft. (1.2 m) charging cable (1) • USB power adapter (1) • Quick Setup Guide NS-MWPC5KTP • 5 W Qi Certied Wireless Charging Pad (2) • 4 ft. (1.2 m) charging cable (2) • USB power adapter (2) • Quick Setup Guide FEATURES • Low-prole design for easy placement and reliable charging • Wireless design charges without cumbersome cords • 5 W output provides standard charging speeds to Qi-compatible devices • Blue LED shows that your device is charging Before using your new product, please read these instructions to prevent any damage. PRODUCT OVERVIEW USING YOUR CHARGING PAD 1 Connect the micro charging cable to the micro USB port on your charging pad. 2 Plug the other end of the USB cable into a USB wall charger, car charger, laptop, or desktop. 3 Place your Qi-enabled device on the center of your charging pad with the screen facing up. The LED is blue when your device is charging. Note: If the LED is red, your device is not charging. See “TROUBLESHOOTING” for more information . QUICK SETUP GUIDE 5 Watt Wireless Charging Pad NS-MWPC5K/ NS-MWPC5KTP / NS-MWPC5K-C Device charges slowly • Your device may charge more slowly with the charging pad than a charging cable. This is normal behavior. • Make sure that your device is positioned in the center of your charging pad. CAUTION: Only use the cable with the attached power adapter that came with your charger. Using a dierent cable and adapter can decrease charging performance or damage your charger. SPECIFICATIONS Qi wireless charging pad Input: Micro USB 5 V/2 A Wireless output: 5 W Dimensions: 3.937 x 3.937 x 0.417 in. (95 x 95 x 10.6 mm) AC power adapter: Input: 100-240 V 50/60 HZ Output: DC 5 V/2.4 A Charging cable: 4 ft. (1.2 m) LEGAL NOTICES FCC Information FCC Caution: Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipement into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RSS-Gen statement: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:(1) This device may not cause interference; and(2) This device must accept any interference, including interference that may cause undesired operation of the device. RF exposure statement: This equipment complies with radio frequency exposure limits set forth by the FCC for an uncontrolled environment.This equipment should be installed and operated with a minimum distance of 20 cm between the device and the user or bystanders. This device must not be co-located or operating in conjunction with any other antenna or transmitter.This equipment complies with radio frequency exposure limits set forth by the Innovation, Science and Economic Development Canada for an uncontrolled environment . This equipment should be installed and operated with a minimum distance of 20 cm between the device and the user or bystanders. This device must not be co-located or operating in conjunction with any other antenna or transmitter. SAFETY INFORMATION 1 Do not attempt to disassemble the product. It may result in short-circuit or damage. 2 The product should be kept in a dry and ventilated environment. Do not store it in an area of high humidity and high temperature. 3 Do not use an organic solvent to clean the product. ONEYEAR LIMITED WARRANTY Visit www.insigniaproducts.com for details. CONTACT INSIGNIA: 1-877-467-4289 (U.S. and Canada) 1-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its aliated companies Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richeld, MN 55423 U.S.A. ©2020 Best Buy. All rights reserved. LED INDICATOR STATUS TROUBLESHOOTING Device not charging/LED is red • Make sure that your device is Qi-enabled. • Make sure that your charging pad is connected to a working power outlet. • Make sure that your device is positioned correctly on your charging pad. • Make sure that there are no other objects on the charging pad. • Remove your device’s case. It may be blocking the wireless signal. Flat size (W×H): 12 × 2.75 in. (304.8 x 69.85 mm) Final folded size: 3 × 2.75 in. (76.2 x 69.85 mm) COMPATIBILITY Any Qi-enabled devices up to 5 W, including smartphones, headphones, smart watches. This includes the latest iPhone, Samsung Galaxy, and Note devices. LED indicator Back Front USB power adapter Micro USB port Charging cable OR PACKAGE CONTENTS NS-MWPC5K / NS-MWPC5K-C • 5 W Qi Certied Wireless Charging Pad (1) • 4 ft. (1.2 m) ch…

Text truncated - open the document above for the full version.

QF094234 Page 1 of 1 Revision 0 Authority to Act as Agent Date: 15 May 2020 TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint TUV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with SHENZHEN DBK ELECTRONICS CO.,LTD. / No.8 Qinghua Road, Zhu Viliage, Fucheng New Community, Guanlan Street, Longhua District, Shenzhen City, Guangdong Province, China. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 6 months By : Xiang Xue (Print Name) Title : Vice GM of Sales Te le phone : +86- 13537699324 On be half of : SHENZHEN DBK ELECTRONICS CO.,LTD. (Company Name)

Confidentiality Letter Date: 2020-04-10 Subject: Confidentiality Request for FCC ID: 2ARVRWC073 and IC ID: 25947-WC073 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual SHENZHEN DBK ELECTRONICS CO.,LTD. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, By: Xiang Xue (Signature/Title) (Print name)

Any reproduction of this document must be done in f ull. No single part of this document may be reproduced w ithout permission f rom STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen ST S Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China T EL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] MPE TEST REPORT Report No.:STS2003246H01 Issued for SHENZHEN DBK ELECTRONICS CO.,LTD. No.8 Qinghua Road, Zhu Viliage, Fucheng New Community, Guanlan Street, Longhua District, Shenzhen City, Guangdong Province, China Product Name: Qi Wireless Charging Pad Brand Name: INSIGNIA, MODAL, Platinum, DYNEX, Rocketfish Model Name: NS-MWPC5K, NS-MWPC5K-C, NS-MWPC5KTP, NS-xxxxxxxxxx, MD-xxxxxxxxxx, PT-xxxxxxxxxx, DX-xxxxxxxxxx, RF-xxxxxxxxxx ("X" = 0-9, A-Z, a-z, "-" or blank for market purpose) Series Model: N/A FCC ID: 2ARVRWC073 Test Standard: FCC CFR 47 part 1, 1.1310 S T L A B S Page 2 of 10 Report No.: STS2003246H01 TEST RESULT CERTIFICATION Applicant’s Name................... : SHENZHEN DBK ELECTRONICS CO.,LTD. Address ................................. : No.8 Qinghua Road, Zhu Viliage, Fucheng New Community, Guanlan Street, Longhua District, Shenzhen City, Guangdong Province, China Manufacture's Name .............. : SHENZHEN DBK ELECTRONICS CO.,LTD. Address ................................. : No.8 Qinghua Road, Zhu Viliage, Fucheng New Community, Guanlan Street, Longhua District, Shenzhen City, Guangdong Province, China Product Description Product Name ....................... : Qi Wireless Charging Pad Brand Name ........................ : INSIGNIA, MODAL, Platinum, DYNEX, Rocketfish Model Name .......................... : NS-MWPC5K Series Model ......................... : NS-MWPC5K-C, NS-MWPC5KT P, NS-xxxxxxxxxx, MD-xxxxxxxxxx, PT-xxxxxxxxxx, DX-xxxxxxxxxx, RF-xxxxxxxxxx ("X" = 0-9, A-Z, a-z, "-" or blank for market purpose) Standards.............................. : FCC CFR 47 part 1, 1.1310 Test Procedure ...................... : 680106 D01 RF Exposure Wireless Charging Apps v03 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC/IC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of receipt of test item ..... : 19 Mar. 2020 Date of performance of tests .. : 19 Mar. 2020 ~ 26 Mar. 2020 Date of Issue ......................... : 26 Mar. 2020 Test Result ............................ : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 10 Report No.: STS2003246H01 Table of Contents Page 1. SUMM ARY OF TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 1.3 GENERAL DESCRIPTION OF THE EUT 6 1.4 EQUIPMENTS LIST FOR ALL TEST ITEMS 7 2. M AXIM UM PERM ISSIBLE EXPOSURE 8 2.1 MAXIMUM PERMISSIBLE EXPOSURE 8 2.2 TEST PROCEDURE 8 2.3 TEST SETUP 8 2.4 RESULT OF MAXIMUM PERMISSIBLE EXPOSURE 9 Page 4 of 10 Report No.: STS2003246H01 Re v ision History Rev. Issue Date Report NO. Effect Page Contents 00 26 Mar. 2020 STS2003246H01 ALL Initial Issue Page 5 of 10 Report No.: STS2003246H01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC KDB 680106 D01 RF Exposure Wireless Charging Apps v03 FCC CFR 47 Standard Section Test Item Judgment Remark FCC KDB 680106 D01 RF Exposure Wireless Charging Apps v03 Electric Field Strength (E) (V/m) PASS --- Magnetic Field Strength (H) (A/m) PASS --- 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainly 1 H-filed ±1.2μT 2 E-filed ±16% Page 6 of 10 Report No.: STS2003246H01 1.3 GENERAL DESCRIPTION OF THE EUT Product Name Qi Wireless Charging Pad Trade Name INSIGNIA, MODAL, Platinum, DYNEX, Rocketfish Model Name NS-MWPC5K Series Model NS-MWPC5K-C, NS-MWPC5KTP, NS-xxxxxxxxxx, MD-xxxxxxxxxx, PT-xxxxxxxxxx, DX-xxxxxxxxxx, RF-xxxxxxxxxx ("X" = 0-9, A-Z, a-z, "-" or blank for market purpose) Model Difference 1) All the models are identical except the model name and/or color. 2) The model NS-MWPC5K was select to test as master device. Equipemnt Category Non-ISM frequency Operating frequency 110-205KHz Modulation Type FSK Antenna Type Coil Antenna Antenna number 1 Wireless Charger output power Max. 5W Adapter: AC/DC Operated, Model: USB-159US Input: 100-240Vac, 50/60Hz, Output: 5Vdc, 2.4A Note: Equipment Approval Considerations Power transfer frequency is less than 1 MHz. Yes Output power from each primary coil is less than or equal to 15 watts. Yes The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes Client device is placed directly in contact with the transmitter. Yes Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes Page 7 of 10 Report No.: STS2003246H01 1.4 …

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht-Nr.: Test report No.: 60355911 001 Auftrags-Nr.: Order No.: 168156061 Seite 1 von 22 Page 1 of 22 Kunden-Referenz-Nr.: Client reference No.: N/A Auftragsdatum: Order date.: 13.03.2020 Auftraggeber: Client: SHENZHEN DBK ELECTRONICS CO.,LTD. No.8 Qinghua Road, Zhu Viliage, Fucheng New Community, Guanlan Street, Longhua District, Shenzhen City, Guangdong Province, China Prüfgegenstand: Test item: Qi Wireless Charging Pad Bezeichnung / Typ-Nr.: Identification / Type No.: NS-MWPC5K, NS-MWPC5K-C, NS-MWPC5KTP, NS-xxxxxxxxxx, MD-xxxxxxxxxx, PT-xxxxxxxxxx, DX-xxxxxxxxxx, RF-xxxxxxxxxx ("X" = 0-9, A-Z, a-z, "-" or blank for market purpose) (Trademark: INSIGNIA, MODAL, Platinum, DYNEX, Rocketfish) Auftrags-Inhalt: Order content: FCC Certification approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 Wareneingangsdatum: Date of receipt: 17.03.2020 Refer to photos document Prüfmuster-Nr.: Test sample No.: A001072446-026 A001072446-027 Prüfzeitraum: Testing period: 18.03.2020 - 01.04.2020 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: kontrolliert von / reviewed by: 06.04.2020 Lin Lin / Senior Project Manager 06.04.2020 Winnie Hou / Technical Certif ier Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges / Other: FCC ID: 2ARVRWC073 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = bef riedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = v ery good 2 = good 3 = satisfactory 4 = suf ficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = f ailed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfm uster und darf ohne Genehm igung der Prüfstelle nicht auszugsw eise vervielfältigt w erden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V04 duplicated in extracts. This test report does not entitle to carry any test mark. T ÜV Rheinland (Shenzhen) Co., Ltd., 1F East & 2-4F, Cybio T echnology Building No.1, No.16 Langshan 2nd Road, High-Tech Industrial Park North Nanshan District, 518057, Shenzhen, China http://www.tuv.com Produkte Products Prüfbericht - Nr.: Test Report No. 60355911 001 Seite 2 von 22 Page 2 of 22 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.3 CONDUCTED EMISSIONS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 60355911 001 Seite 3 von 22 Page 3 of 22 Contents 1 GENERAL REMARKS .......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................. 4 2 TEST SITES ..................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ..................................................................... 5 2.3 TRACEABILITY.................................................................................................................. 6 2.4 CALIBRATION................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY ............................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................... 6 3 GENERAL PRODUCT INFORMATION........................................................................................ 7 3.1 PRODUCT FUNCTION AND INTENDED USE................................................................................ 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ........................................................................................ 7 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS............................................................... 7 3.5 SUBMITTED DOCUMENTS .................................................................................................... 7 4 TEST SET-UP AND OPERATION MODES................................................................................... 8 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................................. 8 4.2 TEST OPERATION AND TEST SOFTWARE................................................................................. 8 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................................. 8 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ............................................................... 8 4.5 TEST SETUP DIAGRAM ....................................................................................................... 9 5 TEST RESULTS ............................................................................................................... 10 5.1 TRANSMITTER REQUI…

Text truncated - open the document above for the full version.

Page 10 of 10 Report No.: STS2003246H01 MPE SETUP PHOTO ※※※※※END OF THE REPORT※※※※※

Produkte Products Appendix A 60355911 001 Page 1 of 3 Appendix A: Photographs of the Test Set-Up APPENDIX A: PHOTOGRAPHS OF THE TEST SET-UP.................................................................................................................. 1 PHOTOGRAPH 1: SET-UP PHOTO FOR RADIATED SPURIOUS EMISSION, 9KHZ - 30MHZ.......................................................................... 2 PHOTOGRAPH 2: SET-UP PHOTO FOR RADIATED SPURIOUS EMISSION, 30MHZ - 1GHZ ......................................................................... 2 PHOTOGRAPH 3: SET-UP PHOTO FOR CONDUCTED EMISSION ON AC MAINS ......................................................................................... 3 Produkte Products Appendix A 60355911 001 Page 2 of 3 Photograph 1: Set-up photo for Radiated Spurious Emission, 9KHz - 30MHz Photograph 2: Set-up photo for Radiated Spurious Emission, 30MHz - 1GHz Produkte Products Appendix A 60355911 001 Page 3 of 3 Photograph 3: Set-up photo for Conducted Emission on AC Mains
