2AS8AF1703TBlood Pressure Monitor

英文成册，材质： 封面光面128g铜版纸，内页普通80g书写纸，尺寸： 100×140mm Model Number: F1703T USER’S MANUAL Blood Pressure Monitor Shanghai International Holding Corp. GmbH (Europe) Eiffestrasse 80, 20537 Hamburg, Germany [email protected] Version Number:1.0 Published Date:2024/5/27 Shenzhen Jamr Technology Co., Ltd. A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road, Guixiang Community, Guanlan Street, Longhua District, 518100 Shenzhen, PEOPLE'S REPUBLIC OF CHINA 1 1 Introduction and Intended Use............................................................ 2 2 Important Information on Blood Pressure and its Measurement...... 5 . 3 Components of Your Blood Pressure Monitor.................................... 6 4 Using Your Monitor for the First Time................................................. 8 5 Measurement Procedure...................................................................... 11 6 Care and Maintenance..........................................................................16 7 Warranty/Service..................................................................................17 8 Certifications.........................................................................................17 9 FCC Statement.......................................................................................18 10 Technical Specifications.....................................................................19 11 EMC Declaration..................................................................................20 CONTENTS 32 1 Introduction and Intended Use The device is a fully automatic digital blood pressure measuring device using oscillometric technique to measure systolic and diastolic blood pressure as well as the pulse for adults that ages are more than 12 years old by wrapping around the upper arm with cuff circumference ranging from 22 cm to 42 cm. The device can be used in medical facilities or at home, and only for indoor use. Contraindication: The device is not used for patients under dialysis therapy or on anticoagulant, antiplatelets, or steroids. The device is provide accurate blood pressure measurement values that are effective and suitable for clinical and home use. Before using, please read this instruction manual carefully and then keep it in a safe place. 1.1 Remember... • Only a health-care professional is qualified to interpret blood pressure measurements. • This device is NOT intended to replace regular medical checkups. • The device is intended for use by adults only and not intended for use on children and pregnant patient. The effectiveness has not been established in pregnant (including pre-eclamptic) patients. • In cases of irregular heartbeat, measurements made with this instrument should only be evaluated after consultation with a physician. • The products, including accessories, shall be processed in accordance with local regulations after reaching the life cycle. • Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established. Warning: Do not use the AC adapter if the unit or the power cord is damaged. Turn off the power and unplug the power cord immediately. Warning: The device is not suitable for use in the presence of flammable anesthetic mixtures with air or with oxygen or nitrous oxide. Warning: If the patient is an intended operator, the functions of monitoring blood pressure and pulse rate can be safely used by patient. The routine clean and changing batteries can be performed by the patient. Warning: The device provides a DC input port connected to external ac adapter. It is recommended that use the adapter specified by the manufacturer. The adapter should meet the following conditions: class II equipment, output voltage: DC 5V, current: ≥1A, and comply with IEC 60950, IEC 60601-1 or IEC 62368-1, provide at least two MOOP insulation between ac input and dc output. External adapter connected to medical electrical equipment through the DC input port must comply with the respective IEC or ISO standards (e.g. IEC 60950 or IEC 62368-1 for data processing equipment). Further more all configurations shall comply with the requirements for medical electrical systems (see IEC 60601-1-1 or clause 16 of the 3Ed. of IEC 60601-1, 60601-1-2, respectively). Anybody connecting external adapter to medical electrical equipment configurations a medical system and is therefore responsible that the system complies with the requirements for medical electrical systems. Attention is drawn to the fact that local laws take priority over the above mentioned requirements. If in doubt, consult your local representative or the technical service department. Warning: Too frequent measurements can cause injury to the PATIENT due to blood flow interference. Warning: Don’t place the cuff over wound part. Warning: Pressurization of the CUFF can temporarily cause loss of function of simultaneously used monitoring ME EQUIPMENT on the same limb. Warning: Regularly checking the operation of the blood pressure monitor to ensure that it does not cause long-term damage to the patient's blood circulation. 1.2 Warnings and Precautions 54 Warning: Apply CUFF and its pressurization on the side of the patient's mastectomy or lymph node removal can cause injury. Warning: To avoid any possibility of accidental strangulation, keep this device away from children and do not drape tubing around your neck. Caution: The user must check that the equipment functions safely and see that it is in proper working condition before being used. Caution: To avoid damaging the device, keep this unit away from children and pets. Caution: The standard material used for the bladder and tubing is latex-free. Caution: The device is intended to monitor, not to diagnose. Unusual values have to be always discussed with a physician. Under any circumstance, you should not alter the dosages of any drugs presc…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Shenzhen Jamr Technology Co., Ltd FCC Registration Number (FRN): 0028450880 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08.19, 2024 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AS8AF1703T [Shenzhen Jamr Technology Co., Ltd] certifies that, as of the date of the filing of the application, Performance International,Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. xufeng.chen accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Performance International,Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Performance International,Inc. Address: 2816 Sunset Ave.,Rocky Mount,NC 27804,USA Contact Person: xufeng.chen Tel.: 001-919-859-0478 Email: [email protected] FCC Registration Number (FRN): 0033538125 Sincerely, Fusheng Luo xufeng.chen Shenzhen Jamr Technology Co., Ltd Performance International,Inc.

ShenzhenJamrTechnologyCo.,Ltd 08-13-2024 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2AS8AF1703T) [ShenzhenJamrTechnologyCo.,Ltd](“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, FushengLuo ShenzhenJamrTechnologyCo.,Ltd 08-13-2024 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID:2AS8AF1703T) [ShenzhenJamrTechnologyCo.,Ltd](“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasan entityproducing“covered”equipment. Sincerely, FushengLuo

ShenzhenJamrTechnologyCo.,Ltd AgentAuthorizationLetter 2024-08.13 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeShenzhenMostTechnologyServiceCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuse Actof1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Name:FushengLuo Position:RAManager CompanyName:ShenzhenJamrTechnologyCo.,Ltd Address:A101-301,D101-201,JamrScience&TechnologPark,No.2Guiyuan Road,GuanlanStreet,LonghuaDistrict,China Tel/Fax86-755-85292057/86-755-27980758 E-Mail:[email protected]

ShenzhenJamrTechnologyCo.,Ltd LongTermConfidentialityRequestLetter 2024.08.13 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:CONFIDENTIALITYREQUESTFOR(FCCID:2AS8AF1703T) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459of CFR47.Wehaverequestedthatthe -e.g.Blockdiagram -e.g.SCH -e.g.OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublicreview. Theabovedocumentsarecompanyproprietaryinformationthatcouldnevergetinto thepossessionofyourcompetition. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Name:FushengLuo Position:RAManager CompanyName:ShenzhenJamrTechnologyCo.,Ltd Address:A101-301,D101-201,JamrScience&TechnologPark,No.2Guiyuan Road,GuanlanStreet,LonghuaDistrict,China Tel/Fax86-755-85292057/86-755-27980758 E-Mail:[email protected]

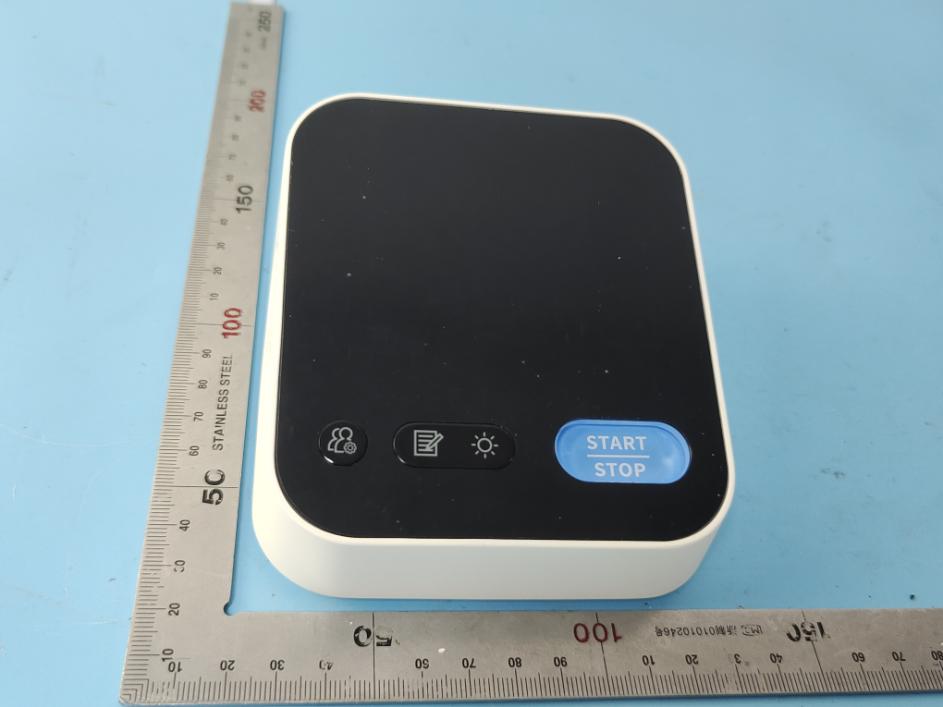

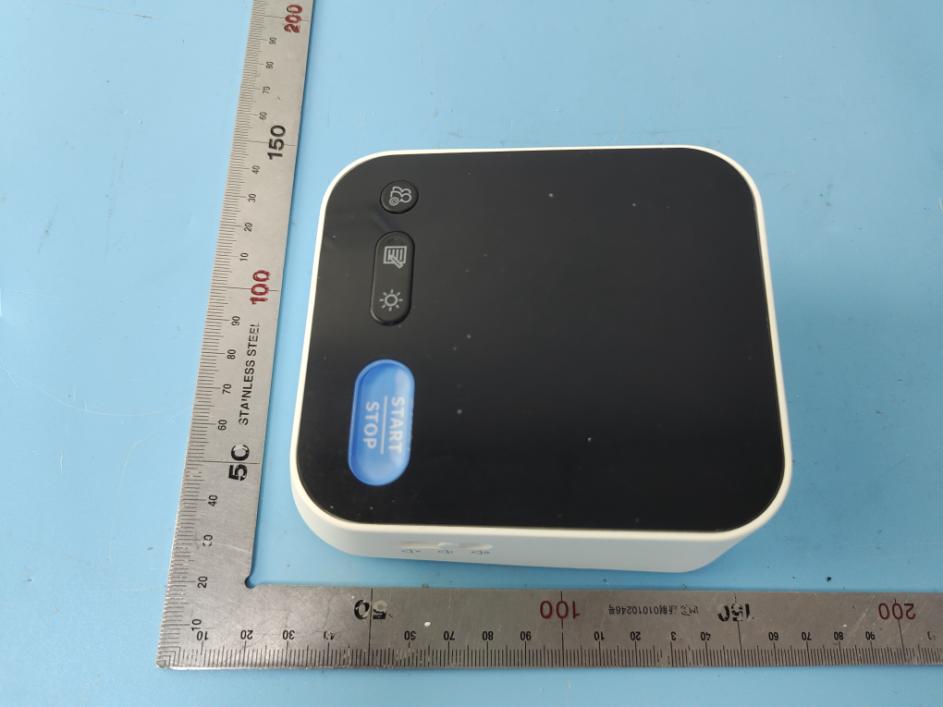

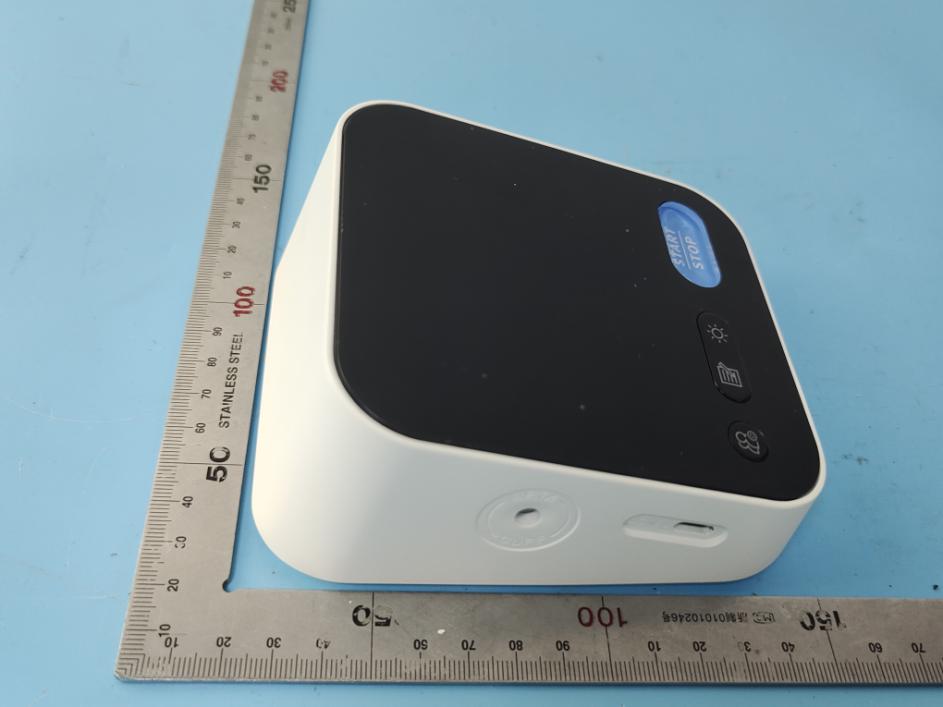

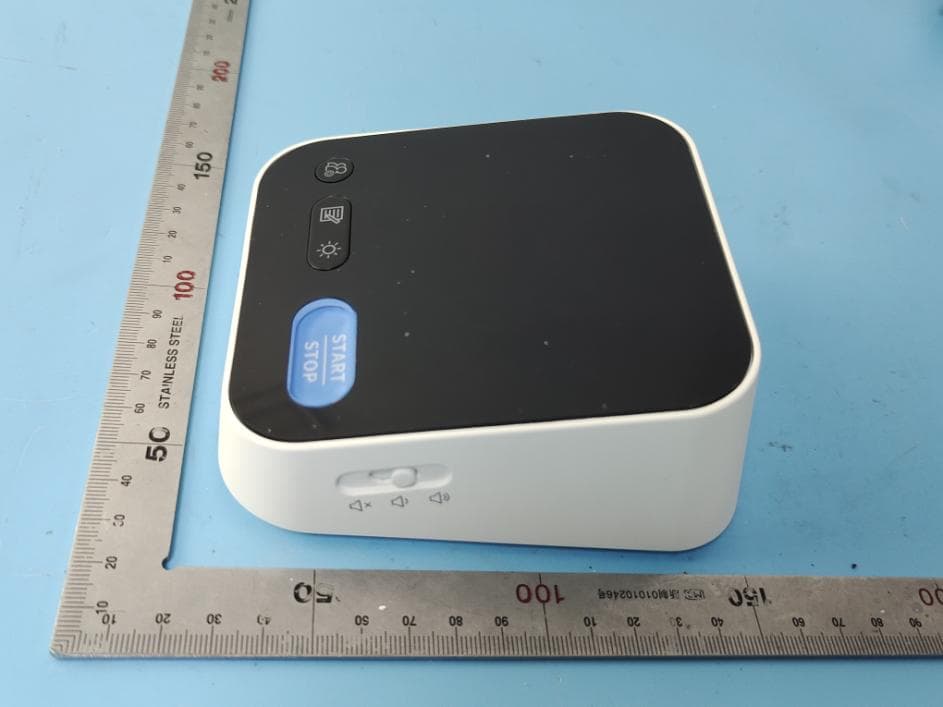

Model No.: F1703T FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: F1703T LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: F1703T TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: F1703T

Label+Labellocation FCC: IC:

ModelNo.:F1703T Page1of3 INTERNALPHOTOOFSAMPLE INTERNALPHOTOOFSAMPLEPCB ModelNo.:F1703T Page2of3 INTERNALPHOTOOFSAMPLEPCB ModelNo.:F1703T Page3of3 BTantenna

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. RF Exposure Evaluation Report Report Reference No. ..................... : FCC ID.. ........................................... : MTEB24070191-H 2AS8AF1703T Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : July 12,2024 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Shenzhen Jamr Technology Co., Ltd. Address ............................................ : A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road, Guixiang Community,Guanlan Street, Longhua District, 518100 Shenzhen, PEOPLE'S REPUBLIC OF CHINA Test specification/ Standard ..........: 47 CFR Part 1.1307 47 CFR Part 2.1093 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Blood Pressure Monitor Trade Mark ....................................... : N/A Model/Type reference....................... : F1703T Listed Models .................................. : N/A Modulation Type ............................... : GFSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version .............................. JMR_PCB_F1703_AC621B_A_V1.0 Software Version ............................... V1 Rating ............................................... : DC 5V by USB Port DC 4.5V by Batteries Result................................................ : PASS Report No.: MTEB24070191-H Page 2 of 5 T E S T R E P O R T Equipment under Test : Blood Pressure Monitor Model /Type : F1703T Listed Models : N/A Remark N/A Applicant : Shenzhen Jamr Technology Co., Ltd. Address : A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road, Guixiang Community,Guanlan Street, Longhua District, 518100 Shenzhen, PEOPLE'S REPUBLIC OF CHINA Manufacturer : Shenzhen Jamr Technology Co., Ltd. Address : A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road, Guixiang Community,Guanlan Street, Longhua District, 518100 Shenzhen, PEOPLE'S REPUBLIC OF CHINA Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB24070191-H Page 3 of 5 1. R e v i s i o n H i s t o r y Revision Issue Date Revisions Revised By 00 2024.07.12 Initial Issue Alisa Luo Report No.: MTEB24070191-H Page 4 of 5 2. S A R E v a l u a t i o n 2.1 RF Exposure Compliance Requirement 2.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 2.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion Report No.: MTEB24070191-H Page 5 of 5 2.1.3 EUT RF Exposure Measurement Data BLE GFSK Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2402MHz) 1.284 1.284±1 2.284 Middle(2440MHz) 1.146 1.146±1 2.146 Highest(2480MHz) 1.887 1.887±1 2.887 Worst case: GFSK Channel Maximum Peak Conducted Output Power (dBm) Maximum tune-up Power Calculated value Exclusion threshold SAR Test Exclusion (dBm) (mW) Highest(2480MHz) 1.887 2.887 1.94 0.61 3.0 Yes .......................THE END OF REPORT.........................

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. TEST REPORT FCC Rules Part 15.247 Report Reference No. .................. : FCC ID.. ....................................... : MTEB24070191-R 2AS8AF1703T Compiled by ( position+printed name+signature): File administrators Alisa Luo Supervised by ( position+printed name+signature): Test Engineer Sunny Deng Approved by ( position+printed name+signature): Manager Yvette Zhou Date of issue .................................. : July 12,2024 Representative Laboratory Name ....................................................... : Shenzhen Most Technology Service Co., Ltd. Address ......................................... : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ......................... : Shenzhen Jamr Technology Co., Ltd. Address ......................................... : A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road, Guixiang Community,Guanlan Street, Longhua District, 518100 Shenzhen, PEOPLE'S REPUBLIC OF CHINA Test specification/ Standard ........ : FCC Rules Part 15.247 TRF Originator ............................... : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................. : Blood Pressure Monitor Trade Mark ...........................: N/A Model/Type reference .................... : F1703T Listed Models ............................... : N/A Modulation Type ............................ : GFSK Operation Frequency ..................... : From 2402MHz to 2480MHz Hardware Version ........................... JMR_PCB_F1703_AC621B_A_V1.0 Software Version ............................ V1 Rating ............................................ : DC 5V by USB Port DC 4.5V by Batteries Result............................................. : PASS Report No.: MTEB24070191-R Page 2 of 41 T E S T R E P O R T Equipment under Test : Blood Pressure Monitor Model /Type : F1703T Listed Models : N/A Remark N/A Applicant : Shenzhen Jamr Technology Co., Ltd. Address : A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road, Guixiang Community,Guanlan Street, Longhua District, 518100 Shenzhen, PEOPLE'S REPUBLIC OF CHINA Manufacturer : Shenzhen Jamr Technology Co., Ltd. Address : A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road, Guixiang Community,Guanlan Street, Longhua District, 518100 Shenzhen, PEOPLE'S REPUBLIC OF CHINA Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB24070191-R Page 3 of 41 Contents 1. R E V I S I O N H I S T O R Y ................................................................ 4 2. T E S T S T A N D A R D S ................................................................. 5 3. S U M M A R Y ............................................................................ 6 3.1. General Remarks 6 3.2. Product Description 6 3.3. Equipment Under Test 6 3.4. Short description of the Equipment under Test (EUT) 6 3.5. EUT operation mode 7 3.6. Block Diagram of Test Setup 7 3.7. Test Item (Equipment Under Test) Description* 7 3.8. Auxiliary Equipment (AE) Description 7 3.9. Antenna Information* 8 3.10. EUT configuration 8 3.11. Modifications 8 4. T E S T E N V I R O N M E N T .............................................................. 9 4.1. Address of the test laboratory 9 4.2. Environmental conditions 9 4.3. Test Description 10 4.4. Statement of the measurement uncertainty 10 4.5. Equipments Used during the Test 11 5. T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 12 5.1. AC Power Conducted Emission 12 5.2. Radiated Emission 15 5.3. Maximum Peak Output Power 22 5.4. Power Spectral Density 23 5.5. 6dB Bandwidth and 99% Bandwidth 24 5.6. Band Edge Compliance of RF Emission 25 5.7. Spurious RF Conducted Emission 30 5.8. Antenna Requirement 31 6. T E S T S E T U P P H O T O S O F T H E E U T ......................................... 32 7. E X T E R N A L A N D I N T E R N AL P H O T O S O F T H E E U T ...................... 33 APPENDIX I.Conducted Peak Output Power 34 APPENDIX II.99% Bandwidth 35 APPENDIX III.6dB Bandwidth 36 APPENDIX IV.Conducted Out Of Band Emission 37 APPENDIX V.Duty Cycle 39 APPENDIX VI.Power Spectral Density 41 Report No.: MTEB24070191-R Page 4 of 41 1. R e v i s i o n H i s t o r y Revision Issue Date Revisions Revised By 00 2024.07.12 Initial Issue Alisa Luo Report No.: MTEB24070191-R Page 5 of 41 2. T E S T S T A N D A R D S The tests were performed according to following standards: The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: MTEB24070191-R Page 6 of 41 3. S U M M A R Y 3.1. General Remarks Date of receipt of test sample : 2024.07.08 Testing commenced on : 2024.07.09 Testing concluded on : 2024.07.12 3.2. Product Description Product Name: Blood Pressure Monitor Model/Type reference: F1703T Power Supply： DC 5V by USB Port DC 4.5V by Batteries Testing sample ID： MTYP05980 Bluetooth : Supported Type: BLE Modulation: GFSK O…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -5.25 -2.46 -1.86 MAX. Gain PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture Antenna Photo & Length (mm) Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.68 -5.25 -2.46 -1.86 MAX. Gain -0.6 8dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Sh enzhen Jamr Technology Co., Ltd. Manufacture Antenna Photo & Length (mm) Address Address A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road, Guixiang Community, Guanlan Street, Longhua District, 518100 Shenzhen Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500 -0.685582 -22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Model No.: F1703T CE TEST SETUP RE TEST SETUP Model No.: F1703T RE TEST SETUP
