2AS9T-ASUNBMUNIT ASSY-UWB&BLE MASTER

USER MANUAL (Part Name : ASUNBM00 or/and ASUNBM01) CONTENTS 1. Description --------------------- 2 2. Specification -------------------- 2 3. Drawing ------------------------- 3 4. Pin map ------------------------- 3 5. Label information --------------- 4 6. Install Guide -------------------------- 4 2022. 11. 1 AMOSENSE 2 / 6 1. Description It is a module that relays wired/wireless communication between the BDC(Body domain controller) installed in the vehicle and the user's mobile phone for the vehicle owner authentication and location detection. 2. Specification Rated voltage DC 12V Operating Voltage DC 9V~16V Operating Temp. -40°C ~ 95°C Storage Temp. -40°C ~ 95°C Idle Current 2.0mA Max RF Freq. BLE : 2 402 ~ 2 480 MHz, UWB : 6 240~6 739 MHz, 7 737~8 237 MHz Max Power(E.I.R.P)* BLE 5.03 dBm UWB -42.98 dBm/MHz(6 489.6 MHz) -43.10 dBm/MHz(7 987.2 MHz) * Max Power(E.I.R.P) is EU measured power. 3 / 6 3. Dimemsion 4. PIN MAP 4 / 6 5. Label information 1 – Part Name 2 – Customer Part Number 3 – Model name 4 – Customer information 5 – Date of manufacture + serial number 6 – Certification Number 7 - Manufacture 8 – Origin 5 / 6 6. Installation Guide This product is installed in the headlining position of the car if the user chooses the digital key option when purchasing the vehicle. FCC warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. 6 / 6 IC Warning This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions : (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

AMOSENSE 19-1BL, 90, 4Sandan 5 gil, Jiksan-e up Cheonan-Si,Chungcheongnam-Do South Korea Date: 12/07/2022 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Declaration Letter FCC ID: 2AS9T-ASUNBM To W hom It May Concern: Bas ic Model Name Family Model Name ASUNBM00 ASUNBM01 We declare hereby that below ; -Since the mounting location is different, the name of the derived model is added by adding a plate of the same material. -Simple derivative model name added for marketing purposes. Sincerely, Contact Name: Taik Jin Yang Title: Chief Researcher

AMOSENSE 19-1BL, 90, 4Sandan 5 gil, Jiksan-e up Cheonan-Si,Chungcheongnam-Do South Korea Request of Confidentiality Date: 12/07/2022 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AS9T-ASUNBM To Whom It may Con cern: Pu rsuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, AMOSENSE. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We ar e also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give AMOSENSE. temporary confidentiality of commercially sensitive information prior to product release. Th e requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description 5 NA SHORT-TERM 6 Internal Photos 7 External Photos 8 Test-Setup Photos 9 User Manual Th e Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Si ncerely, Contact Name: Taik Jin Yang Title: Chief Researcher

AMOSENSE 19-1BL, 90, 4Sandan 5 gil, Jiksan-eup Cheonan-Si,Chungcheongnam-Do South Korea Date: 12/07/2022 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We , the undersigned, hereby authorize Geunki Son of Dt&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AS9T-ASUNBM including signing of all documents relating to these matters. An y and all acts carried out by Geunki Son of Dt&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from AMOSENSE. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Contact Name: Taik Jin Yang Title: Chief Researcher

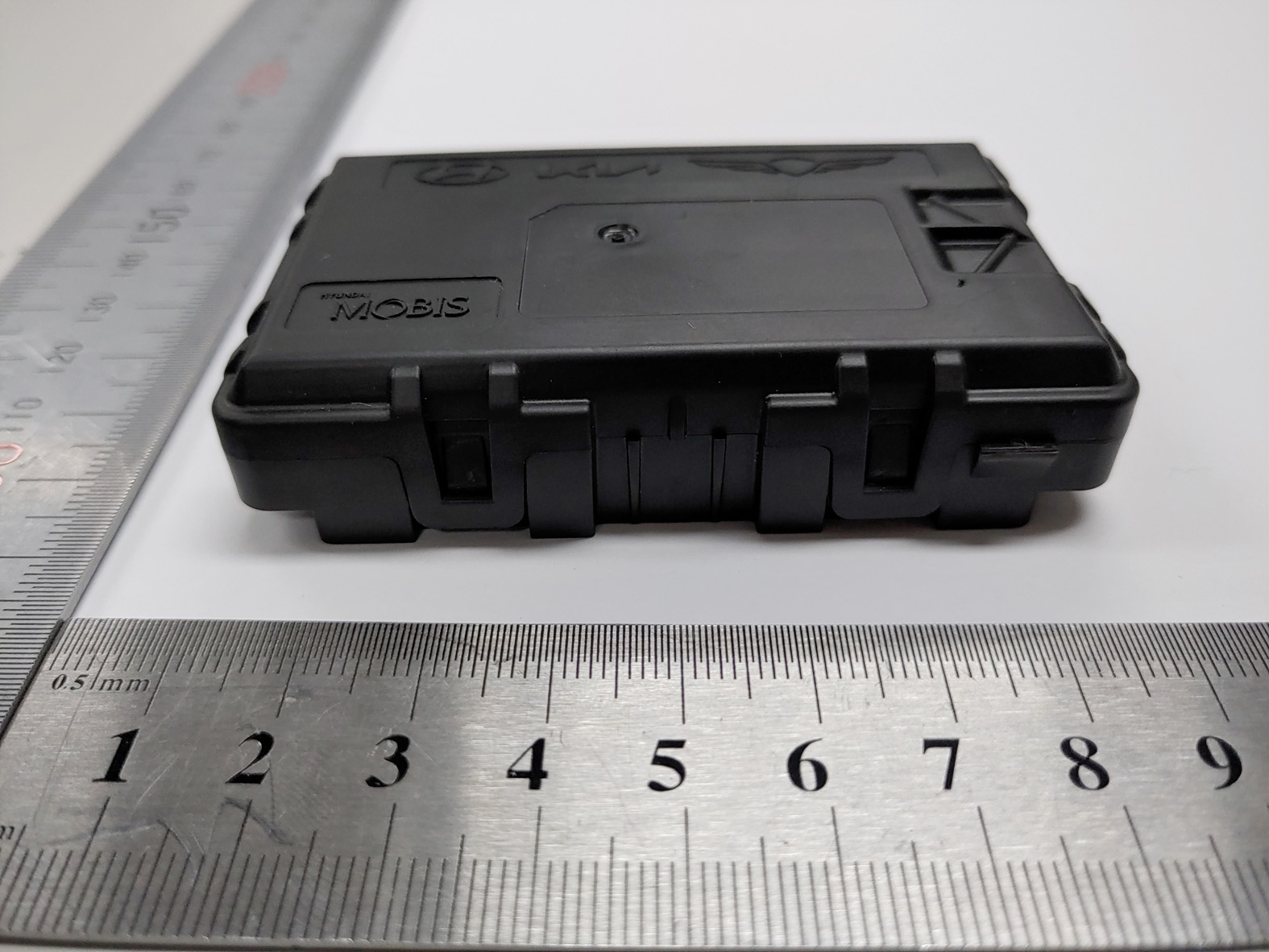

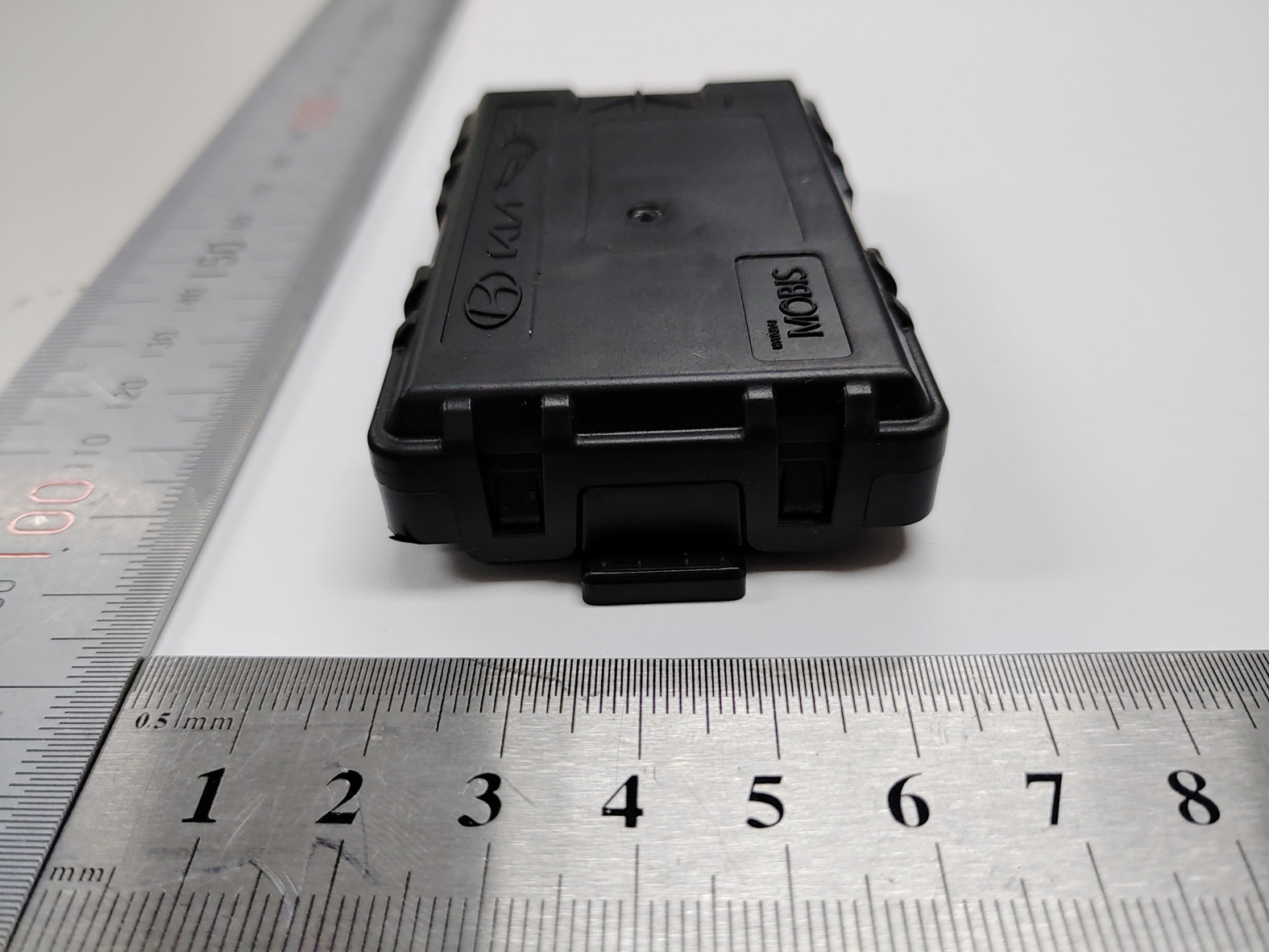

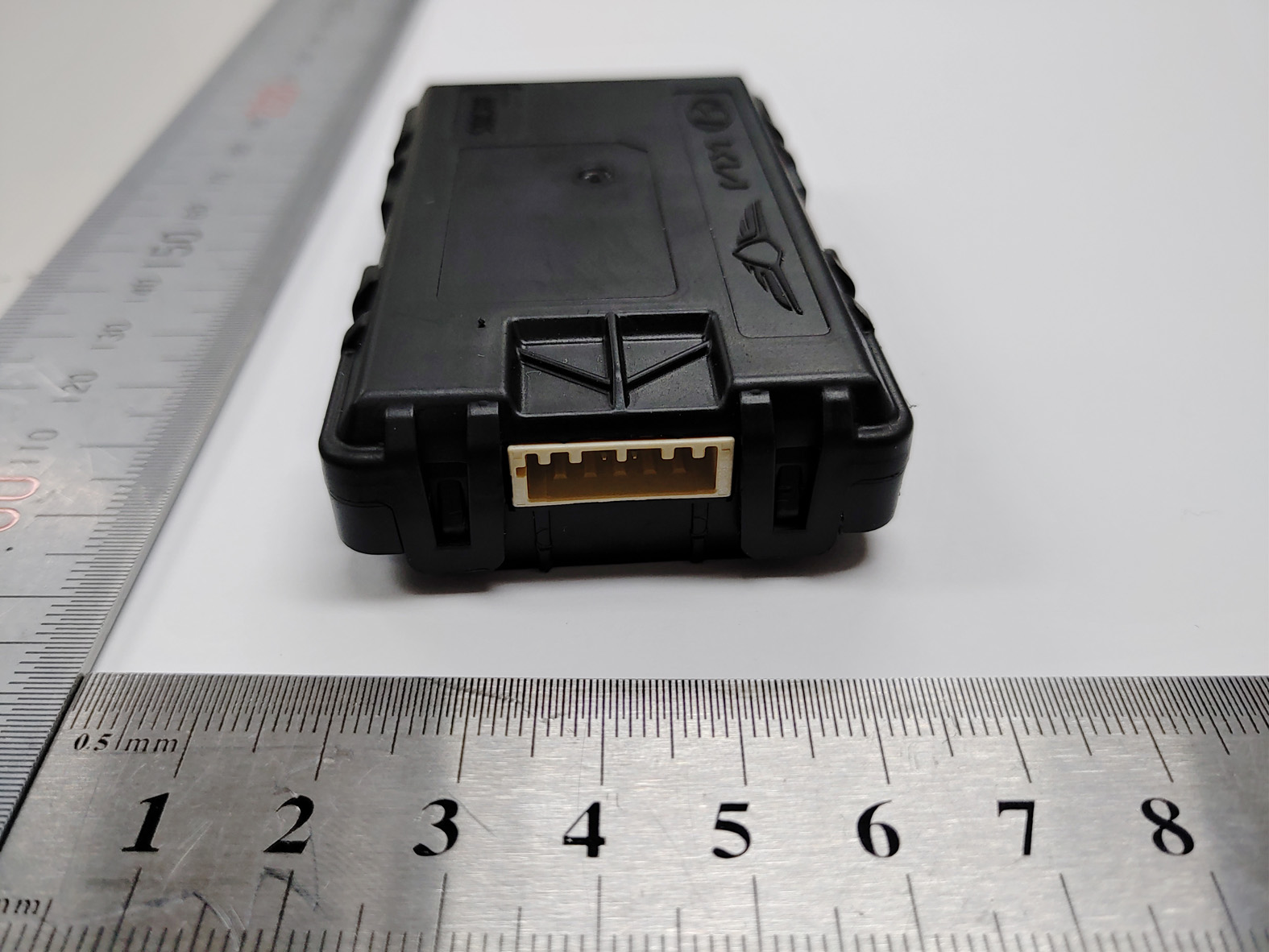

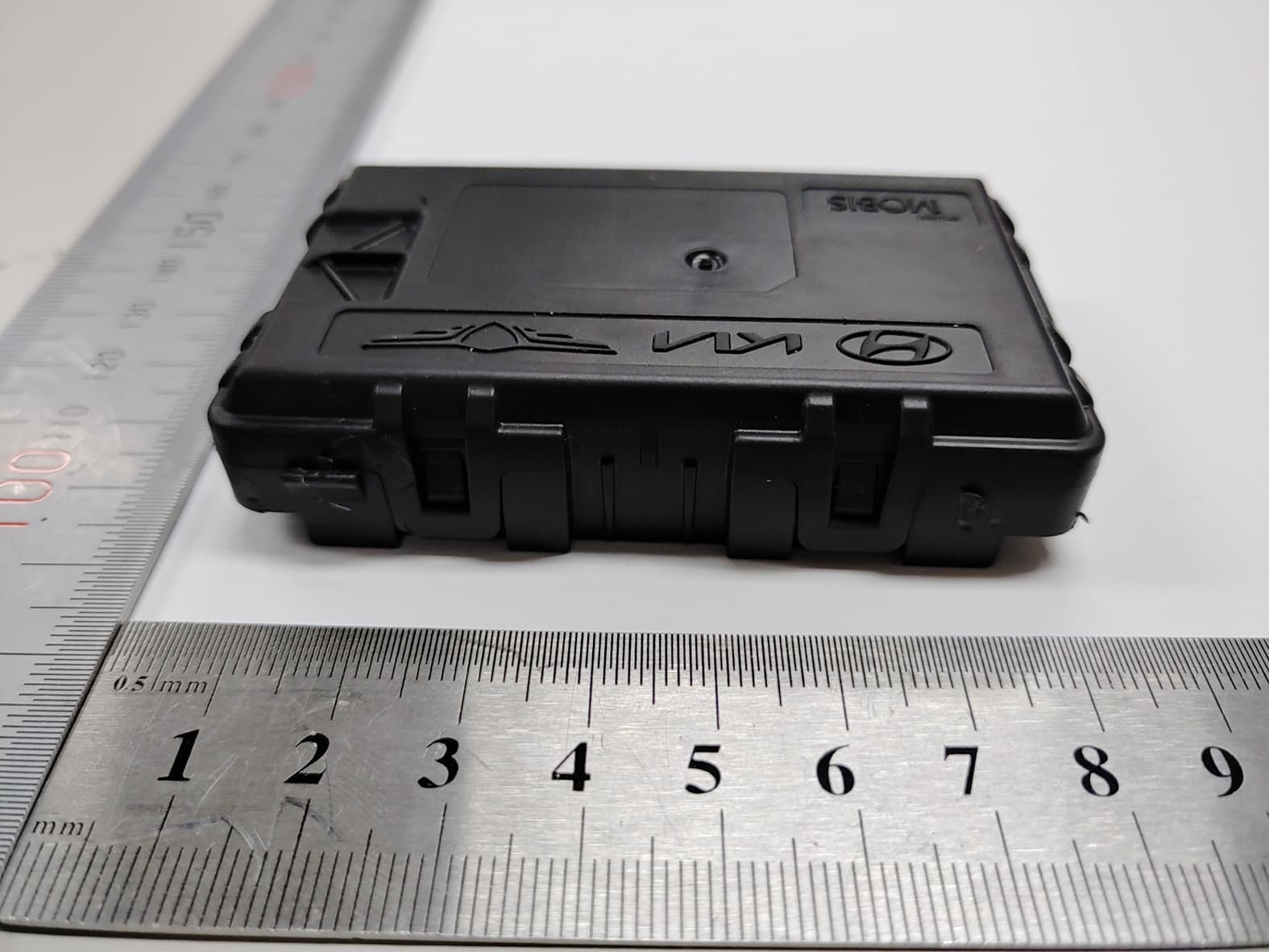

FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. View 1 FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. View 2 FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. View 3 FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. View 4 <Port>

SAMPLE LABEL & LOCATION FCC ID : 2AS9T-ASUNBMIC : 27298-ASUNBM (ASUNBM00)

FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. View 1 FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. View 2 FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. View 3 <BLE Antenna 1> <BLE Antenna 2> FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. View 4 <UWB Antenna>

FCC ID: RF feature(Mode) Measured Max. Average Power(dBm) Note2 Max Tune-up Power(dBm) Note1 ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Maximum power density (mW/cm 2 ) Requirement (mW/cm 2 ) Bluetooth LE(1Mbps) 2 402.00 ~ 2 480.00 2.67 3.00 2.36 5.36 3.436 0.000 7 1.000 0 ~~~~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) S= Maximum power density(mW/cm 2 ) = mW/cm 2 EIRP= Equivalent Isotropic Radiated Power(mW) ▪ Limits for Maximum Permissible Exposure (MPE) Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averaging time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : Frequency range (MHz) The exposure condition of this device is compliant with FCC R= Distance to the center of the radiation of the antenna(20cm) Note2: The Max.average power was measured using a wideband gate d RF power meter and gate paramet ers was adjusted such that pow er is measured only then the EUT is transmitting at its maximum power. EIRP / ( 4 R 2 π ) 3.436 0.0007 2AS9T-ASUNBM MPE Calculation Frequency range (MHz) Note1: Please refer to the operation description for Max tune-u p power. The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. FCC ID: RF feature(Mode) Measured Max. Average Power(dBm) Note2 Max Tune-up Power(dBm) Note1 ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Maximum power density (mW/cm 2 ) Requirement (mW/cm 2 ) UWB 6 489.60 ~ 7 987.20 -11.00 -10.00 3.25 -6.75 0.212 0.000 1 1.000 0 ~~~~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) S= Maximum power density(mW/cm 2 ) = mW/cm 2 EIRP= Equivalent Isotropic Radiated Power(mW) ▪ Limits for Maximum Permissible Exposure (MPE) Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averaging time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : 2AS9T-ASUNBM MPE Calculation Frequency range (MHz) Note1: Please refer to the operation description for Max tune-u p power. The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. The exposure condition of this device is compliant with FCC Note2: The Max.average power was measured using a wideband gate d RF power meter and gate paramet ers was adjusted such that pow er is measured only then the EUT is transmitting at its maximum power. EIRP / ( 4 R 2 π ) 0.212 0.0001 R= Distance to the center of the radiation of the antenna(20cm) Frequency range (MHz) ▪▪ - 2AS9T-ASUNBM FCC ID: RF Exposure Compliance for simultaneous operations - The exposure condition of this device is compliant with FCC rul es. Conclusion : Σ of MPE ratios ≤ 1 ▪ Requirment = - - 0.000 8 -- 0.000 1 Worst case for simultaneous operations - Requirement (mW/cm2) - 1.000 0 - - Worst case(MPE ratio) - -- - -- 0.000 70.000 7 MPE ratio (Power Density/Requirement) ---- - Σ of MPE ratios - - 2.4GHz 0.000 7 - - -- 0.000 1 - -- RF feature or mode BLE + UWB 1.000 0 UWB BLE Power Density (mW/cm2) 0.000 1 - Band(Worst case)

FCC ID: 2AS9T-ASUNBM Report No.: DRTFCC2212-0190 IC: 27298-ASUNBM This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-238(06)210316 Pages: 2 / 43 Test Report Version Test Report No. Date Description Revised by Reviewed by DRTFCC2212-0190 Dec, 07. 2022 Initial issue SeungMin Gil JaeJin Lee FCC ID: 2AS9T-ASUNBM Report No.: DRTFCC2212-0190 IC: 27298-ASUNBM This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-238(06)210316 Pages: 3 / 43 Table of Contents 1. General Information .................................................................................... 4 1.1. Description of EUT .......................................................................................................... 4 1.2. Declaration by the applicant / manufacturer ................................................................ 4 1.3. Testing Laboratory .......................................................................................................... 5 1.4. Testing Environment ....................................................................................................... 5 1.5. Measurement Uncertainty............................................................................................... 5 1.6. Test Equipment List ........................................................................................................ 6 2. Test Methodology ........................................................................................ 7 2.1. EUT Configuration ........................................................................................................... 7 2.2. EUT Exercise .................................................................................................................... 7 2.3. General Test Procedures ................................................................................................ 7 2.4. Instrument Calibration .................................................................................................... 7 2.5. Description of Test Modes.............................................................................................. 7 3. Antenna Requirements ............................................................................... 8 4. Summary of Test Results ........................................................................... 9 5. Test Result ................................................................................................. 10 5.1. Maximum Peak Conducted Output Power .................................................................. 10 5.1.1. Test Setup .................................................................................................................. 10 5.1.2. Test Procedures ........................................................................................................ 10 5.1.3. Test Results ............................................................................................................... 10 5.2. 6 dB Bandwidth ............................................................................................................. 13 5.2.1. Test Setup .................................................................................................................. 13 5.2.2. Test Procedures ........................................................................................................ 13 5.2.3. Test Results ............................................................................................................... 13 5.3. Power Spectral Density ................................................................................................. 16 5.3.1. Test Setup .................................................................................................................. 16 5.3.2. Test Procedures ........................................................................................................ 16 5.3.3. Test Results ............................................................................................................... 16 5.4. Unwanted Emissions (Conducted) .............................................................................. 19 5.4.1. Test Setup .................................................................................................................. 19 5.4.2. Test Procedures ........................................................................................................ 19 5.4.3. Test Results ............................................................................................................... 20 5.5. Unwanted Emissions (Radiated) .................................................................................. 28 5.5.1. Test Setup .................................................................................................................. 30 5.5.2. Test Procedures ........................................................................................................ 30 5.5.3. Test Results ............................................................................................................... 31 5.6. AC Power-Line Conducted Emissions ........................................................................ 33 5.6.1. Test Setup .................................................................................................................. 33 5.6.2. Test Procedures ........................................................................................................ 33 5.6.3. Test Results ............................................................................................................... 33 5.7. Occupied Bandwidth ..................................................................................................... 34 5.7.1. Test Setup .................................................................................................................. 34 5.7.2. Test Procedures ................…

Text truncated - open the document above for the full version.

Application Bluetooth Zigbee WLAN (IEEE 802.11 b/g) ISM 2.4GHz Wireless Devices Features Helical Structure Small Size (3.2*1.6*1.2mm 3 ) Easy Optimizing with external lumped matching components SMT Available under Pb-free Condition RoHS Compliant AEC-Q200 Qualified DATASHEET DocumentDatasheet TypeMultilayer Chip Antenna Application2.4GHz Part No.ALA321C3 Revision9.0 Notes The contents of this datasheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. AMOTECH Datasheet / Multilayer Chip Antenna / 2.4GHz ALA321C3 (Rev 9.0) 2 Rev. NoDateTitleContentsPage 7’09.04.07FormatChangeddocument format 8‘14.06.18Added “StorageTemperature”3 9‘16.10.31 Revised “Radiation pattern” Added “Cautions” Table of Content Revision History 1.Specifications 3 1.1 Electrical Specifications 3 1.2 Mechanical Specifications 3 1.3 Appearance and Material 3 2. PCB Design for Test 4 2.1 Evaluation BoardDimension 4 2.2 PCB Design Guide 4 3. Measurement Result 5 3.1 Typical Measurement Result (VSWR/RL,Smithchart) 5 3.2 Typical Measurement Result(Gain, Radiation Pattern) 6 4. Reliability 7 5. Cautions (Recommendations) 6. Soldering Reflow Profile 7 7. Packing 8 7.1 Carrier Tape Dimension 8 7.2 PackagingQuantity 8 7.3 Packaging Label 8 Datasheet / Multilayer Chip Antenna / 2.4GHz ALA321C3 (Rev 9.0) 3 NoItemSpec.Remark 1Frequency Range [MHz]2400 ~2485 2VSWRMax 3.0:1 3Peak Gain [dBi]typ. 2.3 4Total Avg. Gain [dBi]typ. -1.6 5Efficiency [%]typ. 70 6PolarizationLinear 7Impedance [Ω]Nominal 50 The results are measured on the 10x43mm 2 evaluation board(EVB). See Page 6. for more detail gain parameter NoItemSpec.Remark 1Dimensions (LxWxH)3.2 x 1.6 x 1.2 mm 3 2Unit Weighttyp. 20 mg 3Operating Temperature -40 ~ +105 °C 1.1 Electrical Specifications 1.2 Mechanical Specifications NoItemFunctionMaterial ①External ElectrodeSoldering, Input PortAg/Ni/Sn ② Direction indexIndication of Ceramic ③Ceramic Body-Ceramic ④Model No. index-Ceramic ⑤External ElectrodeSolderingAg/Ni/Sn 1.3 Appearance & Material 1. Specifications ⑤ ④ ③ ② ① 0.4±0.2 3.2±0.3 1.6±0.2 Side 1.2±0.2 (unit : mm) A3 Datasheet / Multilayer Chip Antenna / 2.4GHz ALA321C3 (Rev 9.0) 4 2.1 Evaluation Board Dimension 2.2 PCB Design Guide 2. PCB Design for Test Matching Component [unit : mm] Evaluation board size ~ 10x43 Fill Cut Area (GND Clearance) ~ 10x13 [PCB Solder Land] C h i p A n t e n n a M a t c h i n g S t a g e S M A C o n n e c t o r G N D [ U n i t : m m ] 4.0 0.8 1.8 2.4 50 Ohm Feeding Line NoPin Assignment ① Feeding ②N.C ① ② Datasheet / Multilayer Chip Antenna / 2.4GHz ALA321C3 (Rev 9.0) 5 3.1 Typical Measurement Result (VSWR/RL, Smithchart) 3. Measurement Result The results are measured on the 10x43mm 2 evaluation board(EVB). NoMatching Value ①N.C ②4.7 nH ③ 1.8 nH ③ ① ② Datasheet / Multilayer Chip Antenna / 2.4GHz ALA321C3 (Rev 9.0) 6 [Azimuth plane @2.45GHz ] [Elevation1 plane @2.45GHz ] [Elevation2 plane @2.45GHz ] [3D Radiation Pattern @2450MHz] 3.2 Typical Measurement Result (Gain, Radiation Pattern) Freq. [MHz] Peak Gain [dBi] Avg. Gain [dBi] Efficiency [%] 2400 2.33-1.5470.19 24502.36-1.5969.40 2500 1.61-2.6055.01 Datasheet / Multilayer Chip Antenna / 2.4GHz ALA321C3 (Rev 9.0) 7 NoItemTest ConditionTest Requirements 1 Adhesive Strength of Termination 1.Applied force on SMT chip till detached point from PCB. 1. No mechanical damage by applied force 2. Strength (F) > 3 kgf 2 Thermal Shock (Cycle) 1. Step 1 : -40 ±3°C, 30 min Step 2 : +125 ±3°C, 30 min 2. Number of cycle : 30 1. No visual damage 2. Within electric spec (VSWR) 3 High Temperature Resistance 1. Temperature : +125 ±5°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) 4 Low Temperature Resistance 1. Temperature : -40 ±5°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) 5Humidity 1. Humidity : 85 % RH Temperature : +85 ±3°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) F SMD PAD PCB 4. Reliability 6. Soldering Reflow Profile 5. Cautions (Recommendations ) Storage environment of parts must be at ambient temperatures of 5 to 40°C and maximum 60%RH humidity The parts should be used within 6 months from the time of delivery. If stored for over 6 months, check for solder-ability before use. Datasheet / Multilayer Chip Antenna / 2.4GHz ALA321C3 (Rev 9.0) 8 ItemSpec.ItemSpec.ItemSpec. A01.90±0.10P04.00 ±0.10E1.75±0.10 B03.50±0.10P14.00 ±0.10F7.50±0.10 K01.50±0.10P22.00 ±0.10W16.00±0.30 D01.55±0.05--t0.30±0.05 Item QuantityDimension Reel2,000eaΦ7” * 12mm Inner Box6,000ea (3 reel)185 * 185 * 68 (mm 3 ) Outer Box130,000ea (5 Inner Box)375 * 200 * 205 (mm 3 ) Outer Box260,000ea (10 Inner Box)390 * 375 * 205 (mm 3 ) 7.1 Carrier Tape Dimension 7.2 Packing Quantity 7.3 Packing Label 7. Packing AMOTECH Co., Ltd. 5BL-1Lot, 617, Namchon-Dong, Namdong-Gu, Incheon, Korea Multilayer Chip Antenna P/N : ALA321C3 Lot No : Quantity : 2,000 pcs Date : 2010/01/19

FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. Test Setup Photo of Radiated Measurement (Below 1GHz) FCC ID: 2AS9T-ASUNBM IC: 27298-ASUNBM Copyright Ⓒ 2022, Dt&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz)
