2AS9T-ASUWBMUNIT ASSY-ULTRA WIDEBAND

AMOSENSE
UNIT ASSY-ULTRA WIDEBAND - FCC ID 2AS9T-ASUWBM - AMOSENSE
Click to zoom

Application Details

Equipment Class
UWB - Ultra Wideband Transmitter
Date of Grant
Aug 26, 2021
Application Purpose
Original Equipment
Date of Application
Aug 23, 2021
Equipment Note
UNIT ASSY-ULTRA WIDEBAND
Frequency Range
6489.60000000 - 7987.20000000
Company
AMOSENSE
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

 UWB Module  SPECIFICATION Standards UWB(Ultra Wide Band) - CCC Digital Key Phase3 Specification - IEEE 802.15.4-2015 - IEEE 802.15.4z UWB Ranging Distance Max. 10m(LOS/Line of Sight conditions, between Devices) Power voltage 12V Dimension(mm) 92.70 x 50.83 x 18.15  Dimension  PIN MAP No. PIN NAME 1 CAN_L 2 CAN_H 3 SUB_ID2 4 SUB_ID1 5 GND 6 GND 7 SUB_ID0 8 B+_POWER  Electrical Characteristic Min Typ. Max UNTI Supply Voltage 9 12 16 V Operating Temperature -40 - 85 °C Storage Temperature -40 - 95 °C  Product Specification Name of company AMOSENSE CO.,LTD. Equipment / Model Name UNIT ASSY-ULTRA WIDEBAND / ASUWBM00 Identification Code Amo Year of manufacture Separate mark Manufacturer / Country AMOSENSE CO.,LTD. / KOREA Operation Frequency 6.4896GHz / 7.9872GHz This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device should be installed and operated with minimum 20 cm between the radiator and your body. This device contains licence-exempt transmitter(s)/receiver that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:(1) This device may not cause interference.(2) This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil contient des emetteurs / recepteurs exempts de licence qui sont conformes aux RSS exempts de licence d'Innovation, Sciences et Developpement economique Canada. Son fonctionnement est soumis aux deux conditions suivantes:(1) Cet appareil ne doit pas provoquer d'interferences.(2) Cet appareil doit accepter toute interference, y compris les interferences qui peuvent provoquer un fonctionnement indesirable de l'appareil. This equipment should be installed and operated with minimum 20 cm between the radiator and your body. Cet appareil doit etre installe et utilise avec un minimum de 20 cm entre le radiateur et votre corps.

Cover Letter(s)

AMOSENSE Co., Ltd. 19-1BL, 90, 4sandan 5-gil, Jiksan-eup, Cheonan-si, Seobuk-gu, Chungcheongnam-do, South Korea Date: 08/11/2021 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Request of Confidentiality FCC ID: 2AS9T-ASUWBM To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, AMOSENSE Co., Ltd.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give AMOSENSE Co., Ltd.. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description 5 NA SHORT-TERM 6 Internal Photos 7 External Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Contact Name: Taik Jin Yang Title: Chief Researcher

Cover Letter(s)

AMOSENSE Co., Ltd. 19-1BL, 90, 4sandan 5-gil, Jiksan-eup, Cheonan-si, Seobuk-gu, Chungcheongnam-do, South Korea Date: 08/11/2021 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We, the undersigned, hereby authorize Geunki Son of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AS9T-ASUWBM including signing of all documents relating to these matters. Any and all acts carried out by Geunki Son of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from AMOSENSE Co., Ltd.. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Contact Name: Taik Jin Yang Title: Chief Researcher

External Photos

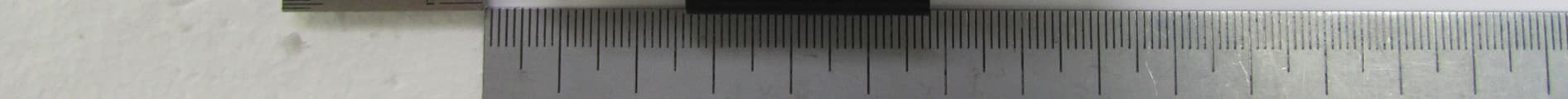

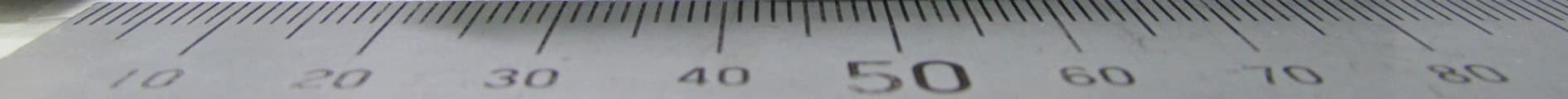

FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. View 1 FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. View 2 FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. View 3

ID Label/Location Info

Label location Sample label

Internal Photos

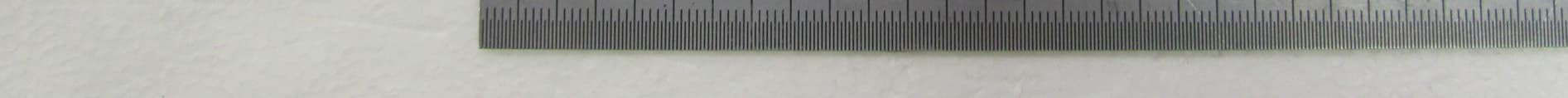

FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. View 1 FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. View 2 FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. View 3 <Antenna>

RF Exposure Info

FCC ID : 2AS9T-ASUWBM SAR test exclusion considerations FCC Regulation(s): Part 1.1307, KDB 447498 D01v06 Guidance Applied: KDB 447498 D01v06, RF Exposure Policy Updates(TCB workshop November 2019) Part 1.1307(b)(3) (3) Determination of exemption. (i) For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); The output power of the EUT is as below; Tested Frequency (MHz) Conducted average power(dBm) Conducted average power(mW) Requirement (mW) 6 489.6 -11.56 0.070 1.000 7 987.2 -10.93 0.081 1.000 Note1: The conducted average power was measured using a wideband gated RF power meter and gate parameters was adjusted such that the power is measured only when the EUT is transmitting at its maximum power. Note2: The device will be installed in vehicle by vehicle manufacturer and maximum 8 devices are installed in vehicle. The aggregate output power for 8 UBW transmitters, assuming simultaneous transmission conditions, would be 0.081 mW x 8 = 0.648 mW. Conclusion: The output power of EUT is no more than 1mW, regardless of separation distance. Therefore, this EUT is exempt from SAR test.

Test Report

FCC ID: 2AS9T-ASUWBM Report No.: DRTFCC2108-0085 IC: 27298-ASUWBM This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd. TRF-RF-247(00)210810 Pages: 2 / 26 Test Report Version Test Report No. Date Description Revised by Reviewed by DRTFCC2108-0085 Aug, 11. 2021 Initial issue JaeHyeok Bang JaeJin Lee FCC ID: 2AS9T-ASUWBM Report No.: DRTFCC2108-0085 IC: 27298-ASUWBM This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd. TRF-RF-247(00)210810 Pages: 3 / 26 Table of Contents 1. General Information .................................................................................... 4 1.1. Description of EUT .......................................................................................................... 4 1.2. Declaration by the applicant / manufacturer ................................................................ 4 1.3. Testing Laboratory .......................................................................................................... 5 1.4. Testing Environment ....................................................................................................... 5 1.5. Measurement Uncertainty............................................................................................... 5 1.6. Test Equipment List ........................................................................................................ 6 2. Test Methodology ........................................................................................ 7 2.1. EUT Configuration ........................................................................................................... 7 2.2. EUT Exercise .................................................................................................................... 7 2.3. General Test Procedures ................................................................................................ 7 2.4. Instrument Calibration .................................................................................................... 7 2.5. Description of Test Modes.............................................................................................. 7 3. Antenna Requirements ............................................................................... 8 4. Summary of Test Result ............................................................................. 9 5. Test Result ................................................................................................. 10 5.1. - 10dB Bandwidth .......................................................................................................... 10 5.2. EIRP (Equivalent Isotropicilly Radiated Power) ......................................................... 12 5.3. Unwanted Emissions .................................................................................................... 14 5.3.1. Unwanted Emissions(Below 960 MHz) ................................................................... 14 5.3.2. Unwanted Emissions(Above 960 MHz) ................................................................... 17 5.4. AC Power-Line Conducted Emissions ........................................................................ 21 5.5. Cease Transmission Time ............................................................................................ 22 5.6. Occupied Bandwidth ..................................................................................................... 24 APPENDIX I .................................................................................................... 26 FCC ID: 2AS9T-ASUWBM Report No.: DRTFCC2108-0085 IC: 27298-ASUWBM This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd. TRF-RF-247(00)210810 Pages: 4 / 26 1. General Information 1.1. Description of EUT Equipment Class Ultra Wideband Transmitter (UWB) Product Name UNIT ASSY-ULTRA WIDEBAND Model Name ASUWBM00 Add Model Name ASUWBM01, ASUWBM02, ASUWBM03 Firmware Version Identification Number B.02 EUT Serial Number No specified Power Supply DC 12 V Frequency Range 6.489 6 GHz ~ 7.9872 GHz Max. RF Output Power -10.52 dBm (Peak) / 40 MHz Modulation Technique BPM-BPSK Antenna Specification PCB embedded Antenna Gain: 2.47 dBi (PK) 1.2. Declaration by the applicant / manufacturer N/A FCC ID: 2AS9T-ASUWBM Report No.: DRTFCC2108-0085 IC: 27298-ASUWBM This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd. TRF-RF-247(00)210810 Pages: 5 / 26 1.3. Testing Laboratory DT&C Co., Ltd. The 3 m test site and conducted measurement facility used to collect the radiated data are located at the 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 17042. The site is constructed in conformance with the requirements. - FCC & IC MRA Designation No. : KR0034 - ISED #: 5740A www.dtnc.net Telephone : + 82-31-321-2664 FAX : + 82-31-321-1664 1.4. Testing Environment Ambient Condition ▪ Temperature +20 °C ~ +23 °C ▪ Relative Humidity +40 % ~ +43 % 1.5. Measurement Uncertainty The measurement uncertainties shown below were calculated in accordance with requirements of ANSI C63.4-2014 and ANSI C63.10-2013. All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a 95 % level of confidence. Parameter Measurement uncertainty AC power-line conducted emission 3.4 dB (The confidence level is about 95 %, k = 2) Radiated emission (1 GHz Below) 4.9 dB (The confidence level is about 95 %, k = 2) Radiated emission (1 GHz ~ 18 GHz) 5.0 dB (The confidence level is about 95 %, k = 2) Radiated emission (18 GHz Above) 5.3 dB (The confidence level is about 95 %, k = 2) FCC ID: 2AS9T-ASUWBM Report No.: DRTFCC2108-0085 IC: 27298-ASUWBM This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd. TRF-RF-247(00)210810 Pages: 6 / 26 1.6. Test Equipment List Type Manufacturer …

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Below 1GHz) FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz) FCC ID: 2AS9T-ASUWBM IC: 27298-ASUWBM Copyright Ⓒ 2021, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 18GHz)
