2ASK3VL-6000RPA1003 HD Streaming Video Drone

Made in China C001-CA-V1.0 17 INSTRUCTION BOOKLET WARNING: Never leave product charging unattended for extended periods of time. Always disconnect the battery from charger immediately after the battery is fully charged. Please refer to enclosed safety instructions. PACKAGE CONTAINS: Colors and styles may vary slightly . Instruction Manual Spare Parts Battery PA-1003 USB Charger 2.4G Wireless Controller ON BOARD HD VIDEO ON BOARD HD CAMERA 1280 x 720 pixel 25 frames per second Phone Holder CHOKING HAZARD - Small parts. Not suitable for children under 3 years. WARNING! HD STREAMING VIDEO DRONE PA-1003 FCC RF exposure statementsThis Transmitter must not be co located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body or nearby persons.IC Radiation Exposure Statement:This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Conforms to safety requirements of FCC. Voyage Aeronuatics™ is the registered trademark of AMAX Industrial Group LTD. AMAX Group USA Address: 12645 Memorial Dr Suite F1 #388 Houston, TX 77024 © 2020 All Rights Reserved. Visit us at www.amaxbrands.com Requires Speed Class 6 or higher microSD ormicroSDHC card(not included) microSDHC Logo is a trademark of SD-3C, LLC. FCC Part 15 C NoticeCAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:s2EORIENTORRELOCATETHERECEIVINGANTENNAs)NCREASETHESEPARATIONBETWEENTHEEQUIPMENTANDRECEIVER  s#ONNECTTHEEQUIPMENTINTOANOUTLETONACIRCUITDIFFEREN TFROMTHATTOWHICHTHERECEIVERIS connected.s#ONSULTTHEDEALEROREXPERIENCEDRADIO46TECHNICIANFOR HELP This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. TABLE OF CONTENTSFeatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Remote Control Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Charging the PA-1003 Li-Poly Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Install The PA-1003 Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2How to Expand and Fold Your PA-1003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2PA-1003 Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Control Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Flight Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Syncing Your PA-1003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Now You Are Ready To Fly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Recognizing The Front & Rear Of The PA-1003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53TARTING3TOPPING4HE2OTORS    -ANUAL3TART3TOP    !UTO3TART,AND    Speed Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5T (Training)Mode & Obstacle Avoidance Training Feature . . . . . . . . . . . . . . . . . . . . . 5Flight Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Flight Practice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Adjusting The Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Calibrating The PA-1003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8How To Perform 360º Stunt Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Using Your On-board Camera And Video Recorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Live Video Streaming Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10PA-1003 WiFi APP Installation . …

Text truncated - open the document above for the full version.

AMAX INDUSTRIAL GROUP CHINA CO., LTD Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2ASK3VL-6000R To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: AMAX INDUSTRIAL GROUP CHINA CO., LTD Contact Name: Nancy Chen Title of Person：QA Manager Address: OFFICE NO.3 10/F WITTY COMMERCIAL BUILDING 1A-1L TUNG CHOI STREET MONGKOK KOWLOON HONG KONG Date:6/09/2020

AMAX INDUSTRIAL GROUP CHIN A CO., LTD Address: OFFICE NO.3 10/F WITTY COMMERCIAL BUILDING 1A- 1L TUNG CHOI STREET MONGKOK KOWLOON HONG KONG Confirmation Letter We, AMAX INDUSTRIAL GROUP CHIN A CO., LTD The product: PA1003 HD Streaming Video Drone FCC ID: 2ASK3VL-6000R FCC ID: 2ASK3VL-6000T And model No.: VL-6 000, VL-6 001, VL-6002 VL-6 001, VL-6002 have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with V L-6 000.T he difference lies only the model number and color. (Signature) ___________

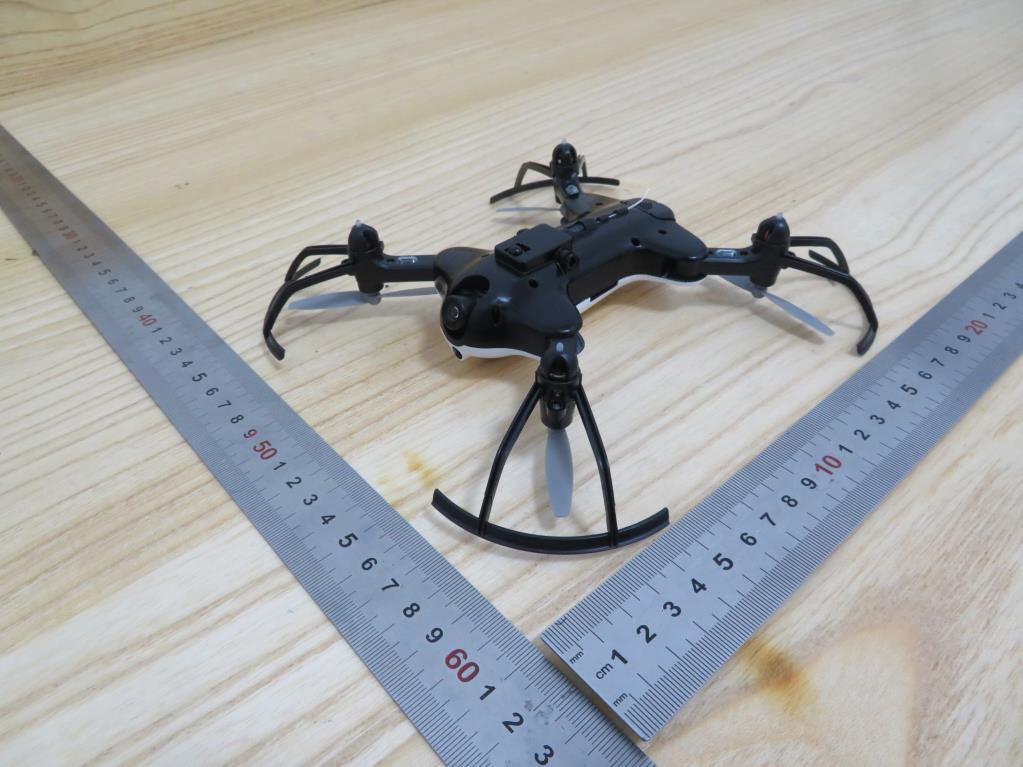

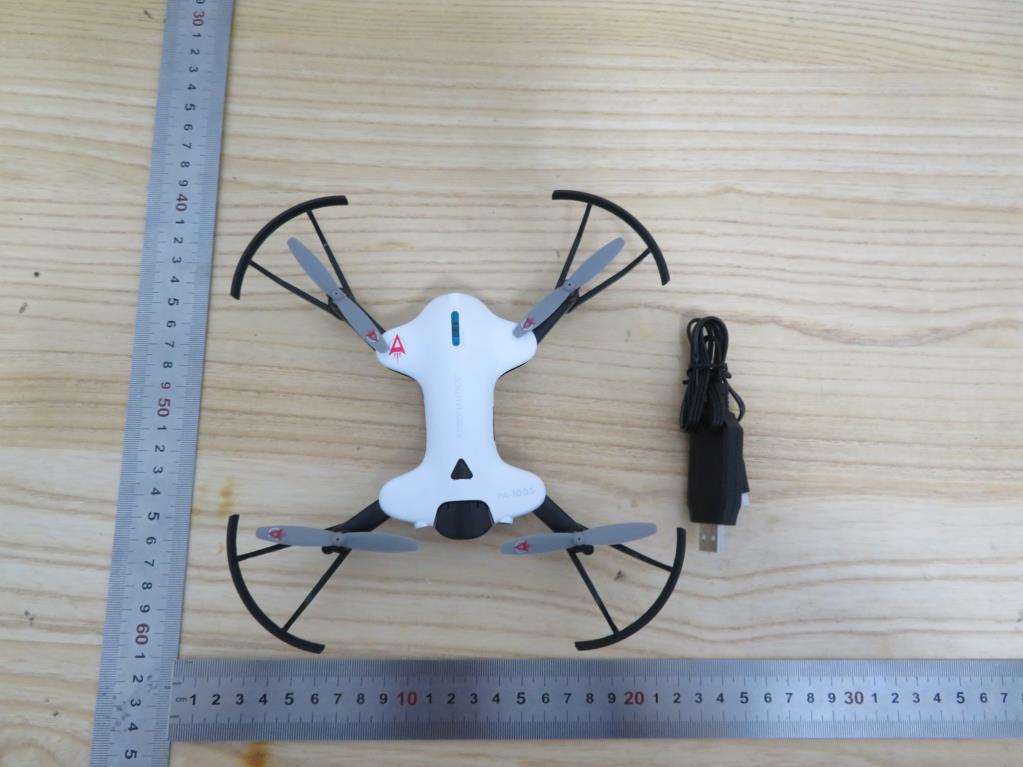

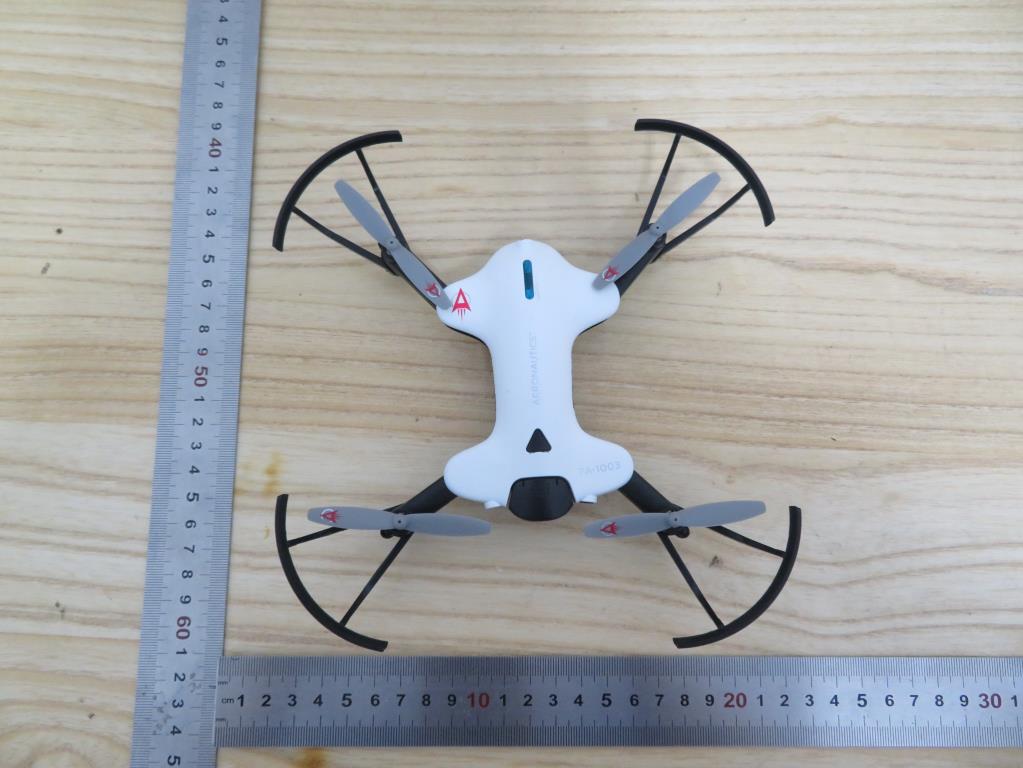

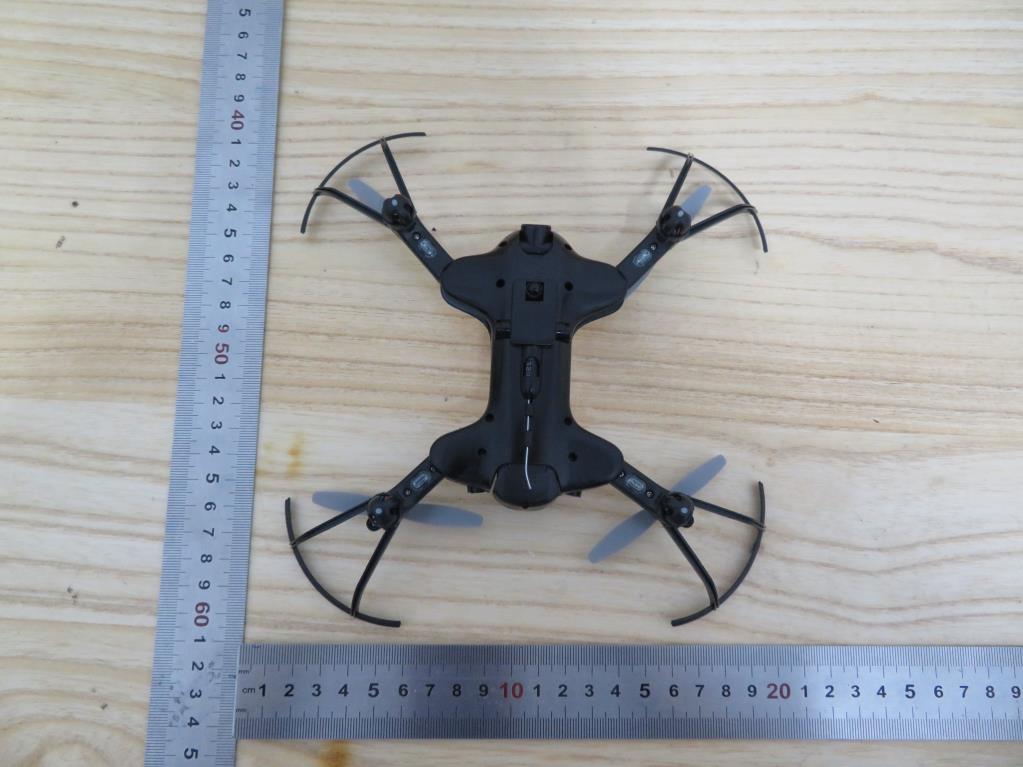

External Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-1 View of EUT-2 Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-3 View of EUT-4 Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-5

FCC ID: 2ASK3VL-6000R

Internal Photographs Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-3 Internal View of EUT-4 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-5 Internal View of EUT-6 2.4G Antenna Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-7 Internal View of EUT-8 WIFI Antenna Page 6 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-9

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For PA1003 HD Streaming Video Drone MODEL NUMBER: VL-6000/VL-6001/VL-6002 FCC ID: 2ASK3VL-6000R REPORT NUMBER: 4789510507.1-5 ISSUE DATE: June 22, 2020 Prepared for AMAX INDUSTRIAL GROUP CHINA CO.,LTD OFFICE NO.3 10/F WITTY COMMERCIAL BUILDING 1A-1L TUNG CHOI STREET MONGKOK KOWLOON HONG KONG Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone, Dongguan, People’s Republic of China Tel: +86 769-22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789510507.1-5 Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 3 2. TEST METHODOLOGY ........................................................................................................ 3 3. FACILITIES AND ACCREDITATION .................................................................................... 4 4. REQUIREMENT .................................................................................................................... 5 REPORT No.: 4789510507.1-5 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: AMAX INDUSTRIAL GROUP CHINA CO.,LTD Address: OFFICE NO.3 10/F WITTY COMMERCIAL BUILDING 1A-1L TUNG CHOI STREET MONGKOK KOWLOON HONG KONG Manufacturer Information Company Name: AMAX INDUSTRIAL GROUP CHINA CO.,LTD Address: OFFICE NO.3 10/F WITTY COMMERCIAL BUILDING 1A-1L TUNG CHOI STREET MONGKOK KOWLOON HONG KONG EUT Information EUT Name: PA1003 HD Streaming Video Drone Model Name VL-6000/VL-6001/VL-6002 Sample Status Normal Sample ID 3106822 Sample Received date May 25, 2020 Date Tested May 25 2020~June 10, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 KDB-447498 D01 V06 PASS Prepared By: Checked By: Mick Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT No.: 4789510507.1-5 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED(Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with Industry Canada. The Company Number is 21320. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note 1: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30MHz had been correlated to measurements performed on an OFS. REPORT No.: 4789510507.1-5 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. CFR 47 FCC PART 15 SUBPART C TEST REPORT For PA1003 HD Streaming Video Drone MODEL NUMBER: VL-6000/VL-6001/VL-6002 FCC ID: 2ASK3VL-6000R REPORT NUMBER: 4789510507.1-4 ISSUE DATE: June 12, 2020 Prepared for AMAX INDUSTRIAL GROUP CHINA CO.,LTD OFFICE NO.3 10/F WITTY COMMERCIAL BUILDING 1A-1L TUNG CHOI STREET MONGKOK KOWLOON HONG KONG Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone Dongguan, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789510507.1-4 Page 2 of 142 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev.Issue Date RevisionsRevised By V006/12/2020 Initial Issue REPORT No.: 4789510507.1-4 Page 3 of 142 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results ClauseTest ItemsFCC RulesTest Results 1 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a) (2) Pass 2Peak Conducted Output Power FCC Part 15.247 (b) (3) Pass 3Power Spectral Density FCCPart15.247(e) Pass 4 Conducted Bandedge and Spurious Emission FCC Part 15.247 (d) Pass 5 Radiated Bandedge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 Pass 6 Conducted Emission Test For AC Power Port FCC Part 15.207 Not Applicable 7Antenna Requirement FCC Part 15.203 Pass Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. 3. The EUT only employ battery power for operation and which do not operate from the AC power lines. REPORT No.: 4789510507.1-4 Page 4 of 142 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS....................................................................................6 2. TEST METHODOLOGY........................................................................................................7 3. FACILITIES AND ACCREDITATION....................................................................................7 4. CALIBRATION AND UNCERTAINTY ..................................................................................8 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................8 4.2. MEASUREMENT UNCERTAINTY .................................................................................8 5. EQUIPMENT UNDER TEST .................................................................................................9 5.1. DESCRIPTION OF EUT .................................................................................................9 5.2. MAXIMUM AVERAGE OUTPUT POWER......................................................................9 5.3. CHANNEL LIST ..............................................................................................................9 5.4. TEST CHANNEL CONFIGURATION ...........................................................................10 5.5. THE WORSE CASE CONFIGURATIONS....................................................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ..............................................................10 5.7. TEST ENVIRONMENT .................................................................................................11 5.8. DESCRIPTION OF TEST SETUP ................................................................................12 6. MEASURING INSTRUMENT AND SOFTWARE USED.....................................................13 7. ANTENNA PORT TEST RESULTS....................................................................................14 7.1. ON TIME AND DUTY CYCLE ......................................................................................14 7.2. 6 dB DTS BANDWIDTH AND 99% OCCUPIED BANDWIDTH....................................17 7.3. CONDUCTED OUTPUT POWER ................................................................................19 7.4. POWER SPECTRAL DENSITY ...................................................................................20 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................21 8. RADIATED TEST RESULTS..............................................................................................23 8.1. RESTRICTED BANDEDGE .........................................................................................30 8.1.1. 802.11b MODE......................................................................................................30 8.1.2. 802.11g MODE......................................................................................................36 8.1.3. 802.11n HT20 MODE........................................................................................…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs 2.4G Module RADIATED RF MEASUREMENT SETUP (30MHz ~ 1 GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) RADIATED RF MEASUREMENT SETUP (Above 1G – X axis) RADIATED RF MEASUREMENT SETUP (Above 1G – X axis) RADIATED RF MEASUREMENT SETUP (Above 1G – Y axis) RADIATED RF MEASUREMENT SETUP (Above 1G – Z axis) WIFI Module RADIATED RF MEASUREMENT SETUP (30MHz ~ 1 GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) RADIATED RF MEASUREMENT SETUP (Above 1G – X axis) RADIATED RF MEASUREMENT SETUP (Above 1G – Y axis) RADIATED RF MEASUREMENT SETUP (Above 1G – Z axis)
