2ASLT-DBK03TWS Bluetooth headset

Connected successfully light flashes in red and Status Indicators Turn on Blue indicators stay one second Turn off Red indicators stay one second Searching mode The indicator lights will flash red and blue Music-play mode No light Battery low Red indicators flash Charging mode Red indicators stay solid Fully charged Red indicators turn off AD AD AD DBK03 User Manual Product overview √ × DBK03 DBK03 JP EN CH 商品図面 左耳 右耳 取扱説明書 信号伝送距離のご注意（下の図参照） ≤10m接続安定 10m接続不安定 本製品はリチウム電池を内蔵して います。爆発を防ぐため、日当 たり や火のもとなどから離れて 置いてく ださい。 バッテリーについて！ 欢迎使用本公司的无线电子产品，为了 让您拥有更好的使用体验，请在使用本产品 前仔细阅读操作指南，为避免不必要的伤害 事故发生，请不要自行拆卸本品，请使用标 准充电器。 使用说明书 信号传输距离注意（如下图） ≤10m信号正常 10m信号会间断 注意事项 此产品内置锂电池，请勿将产品暴露 在强烈的日晒下、火烤或扔入火中， 以免爆炸。 电池警告 ! 中 英 文 英 日 文 材质：128g铜版纸 尺寸：70*50mm 装订：风琴折，正反面 只做英日文 不防水 本产品抗汗，清洁可用湿布、湿纸抹擦干净！ 但不能泡水和淋雨(不请勿将本产品带入汗蒸 房以免蒸汽损坏）; 1.请不要用水和有腐蚀性的溶剂清洗该设备。 2.不小 心接触 到化学物品，请用 清水打湿布 擦干净。 3.不要将设备置于低 于-10°C或高于60°C的极端 环境温度下使用。 4.不要将设备投掷于火中，避免产生爆炸。 5.不要用尖锐物品触 碰耳机，否则易造 成刮伤 。 6.不要将任何杂物插 进耳机中，否则易 损伤电 子元件。 7.不要尝试拆解耳机。 8.不要长时间静置本 产品，如有超过一 个月未 使用，请及时充电保养以确保正常工作。 9.不要使用电流量 大于2A的电源适 配器给本产 品充电，电流量过大会对电池产生损坏。 本製品は湿布で掃除するとかの非浸水使用が大丈夫で すが、着用したまま、シャワーとか雨とかは対応できませ ん。（水蒸気が本製品を壊す恐れがありますので、風呂 とかに持ち運ばないでください。） シャワー、雨湿布拭き、防汗 防水しない 注意事項 1. 水と腐食性のある溶剤で洗わないでください。 2. 化学品に触れたら、水でぬれた布を拭いてください。 3. 本商品は-10～60°Cの環境でご使用ください。 4. 爆発を防ぐため、本品を火から離れて置いてください。 5. 傷、破損を防ぐために本製品を鋭利なものへ引っか からないようにご注意くださ い。 6. イヤホンの電子部品の損傷を防ぐため、小物をイヤホ ンの中に入れないでください。 7. お客様自らのご修理、ご解体などは絶対にやめてくだ さい。 8. 長時間使用する予定がない場合（１ヶ月以上）、本製 品の性能を保護するために時折充電をしてください。 9. 2A以上の過大な電流はバッテリーに損害を与える恐 れがあります。2A以上の充電アダプターのご使用は絶 対にやめてください。 There is a built-in lithium battery in this product. To avoid explosion, do NOT expose the product to strong sunlight, fire or throw it into fire. Battery Warning Attentions 1.Don't use water or corrosive solvent to rinse the device 2.If it comes into contact with chemicals, please rub it with a damp cloth wet with clean water. 3.Do not use this product under extreme circumstances for temperature below -10 degree Celsius or above 60 degree Celsius . 4.To avoid explosion, please do not throw this product into fire. 5.To avoid scratches, please do not touch the earbuds with sharp objects. 6.Do not insert objects int o the earbuds, otherwise it would cause damage to the internal components. 7.Do not disassemble the earbud. 8. Please keep regular charge to earbuds, don’t leave them become empty battery status to keep their lifetime. 9. Please do not charge products with power adapter over 2A current. Excessive current may cause the damage to battery. Signal transmission distance shown as below: ≤10m Signals is in normal transmission. 10m Signals will be interrupted. Non-waterproof √ × √ × 产品示意图 左耳右耳 MIC \ 耳机指示灯 MFB电源触摸按键 左耳或右耳 充电触点 本社のワイヤレス製品を購入いただき、誠 にありがとうございます。より良い使用感を得る ため、ご使用前にマニュアルをお読みください。 事故を避けるため、本製品の解体はご遠慮くだ さい。付属充電器で充電することをお願いします。 MFBタッチボタン rinse,soak and wash drenched Rub it with a damp cloth anti-sweat 冲泡洗、淋雨抹擦、抗汗 Thanks for using our wireless electronic products. For a good user experience, please read the manual carefully before using the products. Notice: To avoid unnecessary troubles please do not disassemble these products by yourself and use the standard charger to charge. The product is anti-sweat. Please rub it with wet cloth or paper to clean it! Don't let soaked in water or drenched in rain.( Don't take it to sweat steaming house in case that steam does damage to the product) Charging contacts MIC \ Indicator Light of earbuds 耳机操作 设置 蓝牙 DBK03 蓝牙 现在可被发现为”Qi的iPhone”。 我的设备 请前往Watch应用配对Apple Watch和iPhone。 Settings Bluetooth DBK03 Bluetooth Now discoverable as”Qi iPhone”. MYDEVICES To pair Apple Watch with your iPhone, go to the Watch app. イヤホンの使い方 Settings Bluetooth DBK03 Bluetooth Now discoverable as”Qi iPhone”. MYDEVICES To pair Apple Watch with your iPhone, go to the Watch app. Earbuds Manual LeftRight ケースインジケータ 充電接点 マイク 、 インジケータ 配对操作说明 1.首次使用时，请将耳机和充电仓充满电后 使用。 2.取出两个耳机，耳机 自动开机互 连并进入等 待配对模式(红/蓝灯交替闪烁）； 3.耳机自动完成配对，配对成功后副耳指示灯熄 灭，主耳指示灯红蓝灯交替闪烁 ； 4.打开手机蓝牙功能并搜索，找到【DBK03】 名称并点击连接即可； Pairing Manual 1. Please fully charge the earbuds and charging case before using it 2.Take out the two earbuds, they will automatically be turned on and connected, then they will enter the waiting for paring mode (red/blue lights flashing alternately). 3. The earbuds will be automatically paired. After the pairing is successful, the right earbud indicator turns off, and the left earbud indicator flashes red and blue alternately 4. Turn on the Bluetooth function of the mobile phone and search, find the device namedDBK03 and connect it. 両耳ペアリング操作説明 1.初めてご使用の際は、イヤホンと充電ケースを満タン まで充電してからご使用ください。 2.再度同時に両耳イヤホンを取り出しますとイヤホ ン が自動起動する上に左右ペアリングモードに入ります。 （赤青ランプが交互に点滅） 3.イヤホンは自動的にペアリングします。ペアリングが 完成後、副耳の指示ランプが消えます。主耳のランプ は赤と青で交互に点滅します。 4.スマホのブルートゥース機能をオンにし、デバイス一 覧から【DBK03】というデ バイスを選択して接続させてく ださい。 按键控制 开机 取出自动开机 关机 放回充电仓自动关机 音量- 左耳长按触摸MFB键 下一曲 右耳双击MFB键 上一曲 左耳双击MFB键 音量+ 右耳长按触摸MFB键 播放/暂停 左/右耳单击MFB键 接听电话 左/右耳单击MFB键 参数规格 版本 V5.2+EDR 支持 A2DP,AVRCP,HFP,HSP 传输距离 频率范围 2.402GHz~2.480GHz 喇叭 Φ10mm*2 阻抗 16Ω 待机时间 60小时 通话时间 5小时 音乐播放时间 5小时 耳机电池容量 40mAh 耳机充电时长 1小时 充电仓电池容量 300mAh 充电仓充电时长 约1小时 重量（单个耳机） 3.9g 挂断电话 左/右耳长按MFB键2秒 拒接来电 左/右耳长按MFB键2秒 语音助手激活 左/右耳机快速3击MFB键 充电仓指示灯 状态 灯光 充电仓充电 橙灯闪烁 充满 橙灯长亮 耳机充电中 橙灯闪烁 充电仓电量低 橙灯隔2秒闪烁1次 恢复出厂设置 请把手机蓝牙关掉，耳机红/蓝闪烁，快速 三击耳机电源键即可。 当耳机电量低时，耳机红灯闪烁，请及时充电。 1.将耳塞放入盒中，充电将自动进行。 2.耳机充满电后，充电盒将停止对耳机充电。 注：首次使用时，请将耳机放入充电仓内充满 电，充满后使用。 充电 耳机充电 充电仓充电 温馨提示 任意一个耳机，单机模试不支持上一曲\音量- 耳机指示灯 LED指示灯 状态 灯光 开机 蓝灯亮1秒 关机 红灯亮1秒 搜索耳机 红蓝交替闪烁 耳机连接成功 蓝灯5秒循环闪烁 音乐状态 无亮灯 电池电量低 红灯闪烁 充电中 红灯长亮 充满 红灯熄灭 从充电仓取出自动开机；或关机状态下触摸 触控按钮3秒蓝灯闪烁1次开机。 开机： 关机： 使用IOS系统手机及部分安卓系统手机连接上 耳机后，触摸左耳机或右耳机触控按钮3次打 开语音助手操作。 放入充电仓自动关机并进入充电状态或者断开 蓝牙连接5分钟后自动关机。 Siri与语音助手 充电仓电量低时，橙色指示灯闪烁，请及时 充电。将TYPE-C型电缆插入充电端口，盒子 将自动充电。大于5V 1A时，充电仓会自动适 配充电器限流。 Speaker Φ10mm*2 Power on Automatically turn on when take-out case Power off Automatically turn off when back into case Previous track Double-click the MFB button on the left ear Next track Double-click the MFB button on the right ear Volume - Hold and press left earbud MFB Button Volume + Hold and press right earbud MFB Bu…

Text truncated - open the document above for the full version.

SHENZHEN XIWXI TECHNOLOGY CO., LTD 2021.06.016 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: TWS Bluetooth headset Trademark: N/A MODEL : DBK03 FCC ID : 2ASLT-DBK03 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : LI HAIBO / Manager Contact information / address: No. 47, the 3rd Shabo Road, Shajing Town, Bao'an District, Shenzhen, China

SHENZHEN XIWXI TECHNOLOGY CO., LTD 2021.06.16 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : LI HAIBO / Manager Contact information / address: No. 47, the 3rd Shabo Road, Shajing Town, Bao'an District, Shenzhen, China

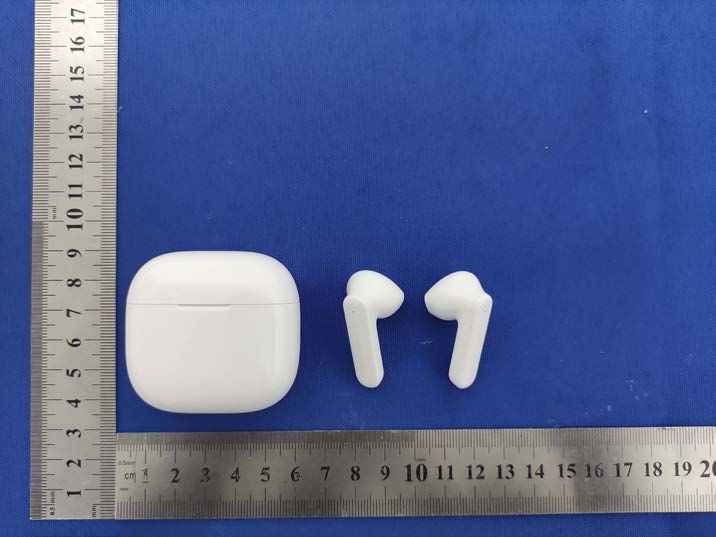

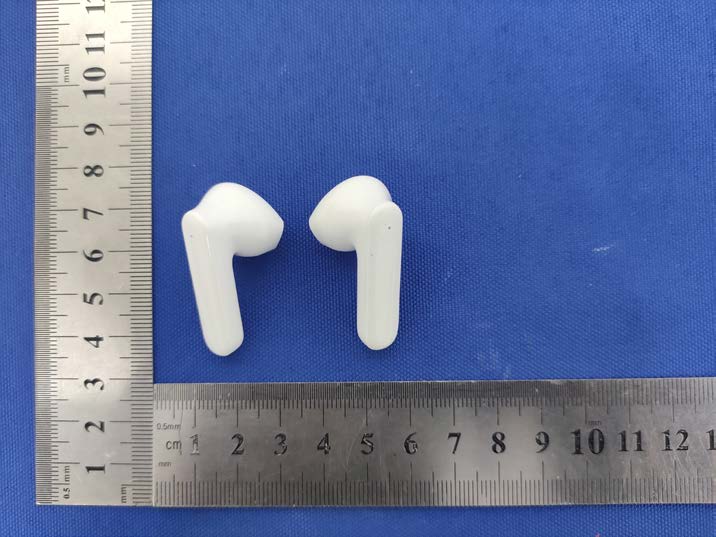

External Photos

Size:15*5mm TWS Bluetooth headset FCC ID: 2ASLT-DBK03 Label location Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2ASLT-DBK03 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT-EDR Modulation Test Channel Output Power (dBm) Limit (dBm) GFSK Low -1.484 21 GFSK Middle -0.88621 GFSK High -0.95821 Pi/4 DQPSK Low -0.51221 Pi/4 DQPSK Middle 0.011 21 Pi/4 DQPSK High -0.04821 max possible output power (PK,conducted)：0±1dBm 1.75dBi logarithmic terms convert to numeric result is nearly 1.496 1dBm=1.26mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=1.26/5*√2.402=0.391≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.26/5*√2.441=0.394≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.26/5*√2.48=0.397≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

No.：BCTC/RF-EMC-005 Page 1 of 61 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2105433866E Applicant: SHENZHEN XIWXI TECHNOLOGY CO., LTD Product Name: TWS Bluetooth headset Model/Type Ref.: DBK03 Tested Date: 2021-06-01 to 2021-06-23 Issued Date: 2021-07-13 Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 2 of 61 Edition：A.3 FCC ID : 2ASLT-DBK03 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: TWS Bluetooth headset Trademark: N/A Model/Type Ref.: DBK03 Prepared For: SHENZHEN XIWXI TECHNOLOGY CO., LTD Address: No. 47, the 3rd Shabo Road, Shajing Town, Bao'an District, Shenzhen, China Manufacturer: SHENZHEN XIWXI TECHNOLOGY CO., LTD Address: No. 47, the 3rd Shabo Road, Shajing Town, Bao'an District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-05-21 Sample tested Date: 2021-06-01 to 2021-06-23 Issue Date: 2021-07-13 Report No.: BCTC2105433866E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 3 of 61 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 5 2. TEST SUMMARY ..................................................... 6 3. MEASUREMENT UNCERTAINTY ....................................... 7 4. PRODUCT INFORMATION AND TEST SETUP............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 9 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 4.6 table of parameters of text software setting ................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................ 13 6.1 Block Diagram Of Test Setup ............................................ 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 EUT operating Conditions ............................................... 14 6.5 Test Result ........................................................... 15 7. RADIATED EMISSIONS .............................................. 17 7.1 Block Diagram Of Test Setup ............................................ 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 19 7.4 EUT operating Conditions ............................................... 20 7.5 Test Result ........................................................... 21 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION .................................................. 25 8.1 Block Diagram Of Test Setup ............................................ 25 8.2 Limit ................................................................. 25 8.3 Test procedure ........................................................ 26 8.4 EUT operating Conditions ............................................... 26 8.5 Test Result ........................................................... 27 9. CONDUCTED EMISSION ............................................. 28 9.1 Block Diagram Of Test Setup ............................................ 28 9.2 Limit ................................................................. 28 9.3 Test procedure ........................................................ 28 9.4 Test Result ........................................................... 29 10. 20 DB BANDWIDTH .................................................. 35 10.1 Block Diagram Of Test Setup .......................................... 35 Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 4 of 61 Edition：A.3 10.2 Limit ................................................................ 35 10.3 Test procedure ....................................................... 35 10.4 Test Result .......................................................... 36 11. MAXIMUM PEAK OUTPUT POWER .................................... 40 11.1 Block Diagram Of Test Setup .......................................... 40 11.2 Limit ................................................................ 40 11.3 Test procedure ....................................................... 40 11.4 Test Result .......................................................... 41 12. HOPPING CHANNEL SEPARATION ................................... 45 12.1 Block Diagram Of Test Setup .......................................... 45 12.2 Limit ................................................................ 45 12.3 Test procedure ....................................................... 45 12.4 Test Result .......................................................... 46 13. NUMBER OF HOPPING FREQUENCY .................................. 50 13.1 Block Diagram Of Test Setup .......................................... 50 13.2 Limit ................................................................ 50 13.3 Test pr…

Text truncated - open the document above for the full version.

Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 46 of 61 Edition：A.3 12.4 Test Result Modulation Test Channel Separation (MHz) Limit(MHz) Result GFSK Low 1.002 0.575 PASS GFSK Middle 1.002 0.583 PASS GFSK High 1.000 0.585 PASS Pi/4 DQPSK Low 1.000 0.838 PASS Pi/4 DQPSK Middle 0.998 0.837 PASS Pi/4 DQPSK High 1.002 0.839 PASS Test plots GFSK Low Channel Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 47 of 61 Edition：A.3 GFSK Middle Channel GFSK High Channel Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 48 of 61 Edition：A.3 Pi/4 DQPSK Low Channel Pi/4 DQPSK Middle Channel Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 49 of 61 Edition：A.3 Pi/4 DQPSK High Channel Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 50 of 61 Edition：A.3 13. NUMBER OF HOPPING FREQUENCY 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 51 of 61 Edition：A.3 13.4 Test Result Test Plots: 79 Channels in total GFSK Pi/4 DQPSK Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 52 of 61 Edition：A.3 14. DWELL TIME 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 53 of 61 Edition：A.3 14.4 Test Result DH5 Packet permit maximum 1600 / 79 / 6 hops per second in each channel (5 time slots RX, 1 time slot TX). DH3 Packet permit maximum 1600 / 79 / 4 hops per second in each channel (3 time slots RX, 1 time slot TX). DH1 Packet permit maximum 1600 / 79 /2 hops per second in each channel (1 time slot RX, 1 time slot TX). So, the Dwell Time can be calculated as follows: DH5:1600/79/6*0.4*79*(MkrDelta)/1000 DH3:1600/79/4*0.4*79*(MkrDelta)/1000 DH1:1600/79/2*0.4*79*(MkrDelta)/1000 Remark: Mkr Delta is once pulse time. Modulation Channel Data Packet pulse time(ms) Dwell Time(s) Limits(s) GFSK Middle DH1 0.384 0.123 0.4 DH3 1.650 0.264 0.4 DH5 2.900 0.309 0.4 Pi/4DQPSK Middle 2DH1 0.392 0.125 0.4 2DH3 1.656 0.265 0.4 2DH5 2.910 0.310 0.4 Test Plots GFSK DH1 Middle Channel Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 54 of 61 Edition：A.3 GFSK DH3 Middle Channel GFSK DH5 High Middle Channel Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 55 of 61 Edition：A.3 Pi/4DQPSK DH1 Middle Channel Pi/4DQPSK DH3 Middle Channel Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 56 of 61 Edition：A.3 Pi/4DQPSK DH5 Middle Channel Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 57 of 61 Edition：A.3 15. ANTENNA REQUIREMENT 15 .1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 15.2 Test Result The EUT antenna is chip antenna, fulfill the requirement of this section. Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 58 of 61 Edition：A.3 16. EUT PHOTOGRAPHS EUT Photo 1 EUT Photo 2 Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 59 of 61 Edition：A.3 17. EUT TEST SETUP PHOTOGRAPHS Conducted emissions Radiated Measurement Photos Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 60 of 61 Edition：A.3 Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 61 of 61 Edition：A.3 STATEMENT 1.The equipment lists are traceable to the national reference standards. 2.The test report can not be partially copied unless prior written approval is issued from our lab. 3.The test report is invalid without stamp of laboratory. 4.The test report is invalid without signature of person(s) testing and authorizing. 5.The test process and test result is only related to the Unit Under Test. 6.The quality system of our laboratory is in accordance with ISO/IEC17025. 7.If there is any objection to report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL：400-788-9558 P. C.: 518103 FAX：0755-33229357 Website：http://www.chnbctc.com E-Mail：[email protected] ※※※※※ END ※※※※※

Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 59 of 61 Edition：A.3 17. EUT TEST SETUP PHOTOGRAPHS Conducted emissions Radiated Measurement Photos Report No.: BCTC2105433866E No.：BCTC/RF-EMC-005 Page 60 of 61 Edition：A.3
