2ASLT-V6LTWS Bluetooth headset

FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SHENZHEN XIWXI TECHNOLOGY CO., LTD 2021.04.27 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: TWS Bluetooth headset Trademark: N/A MODEL : V6 FCC ID: 2ASLT-V6L To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : LI HAIBO /Manager Contact information / address: No. 47, the 3rd Shabo Road, Shajing Town, Bao'an District, Shenzhen, China

SHENZHEN XIWXI TECHNOLOGY CO., LTD 2021.04.27 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : LI HAIBO/Manager Contact information / address: No. 47, the 3rd Shabo Road, Shajing Town, Bao'an District, Shenzhen, China

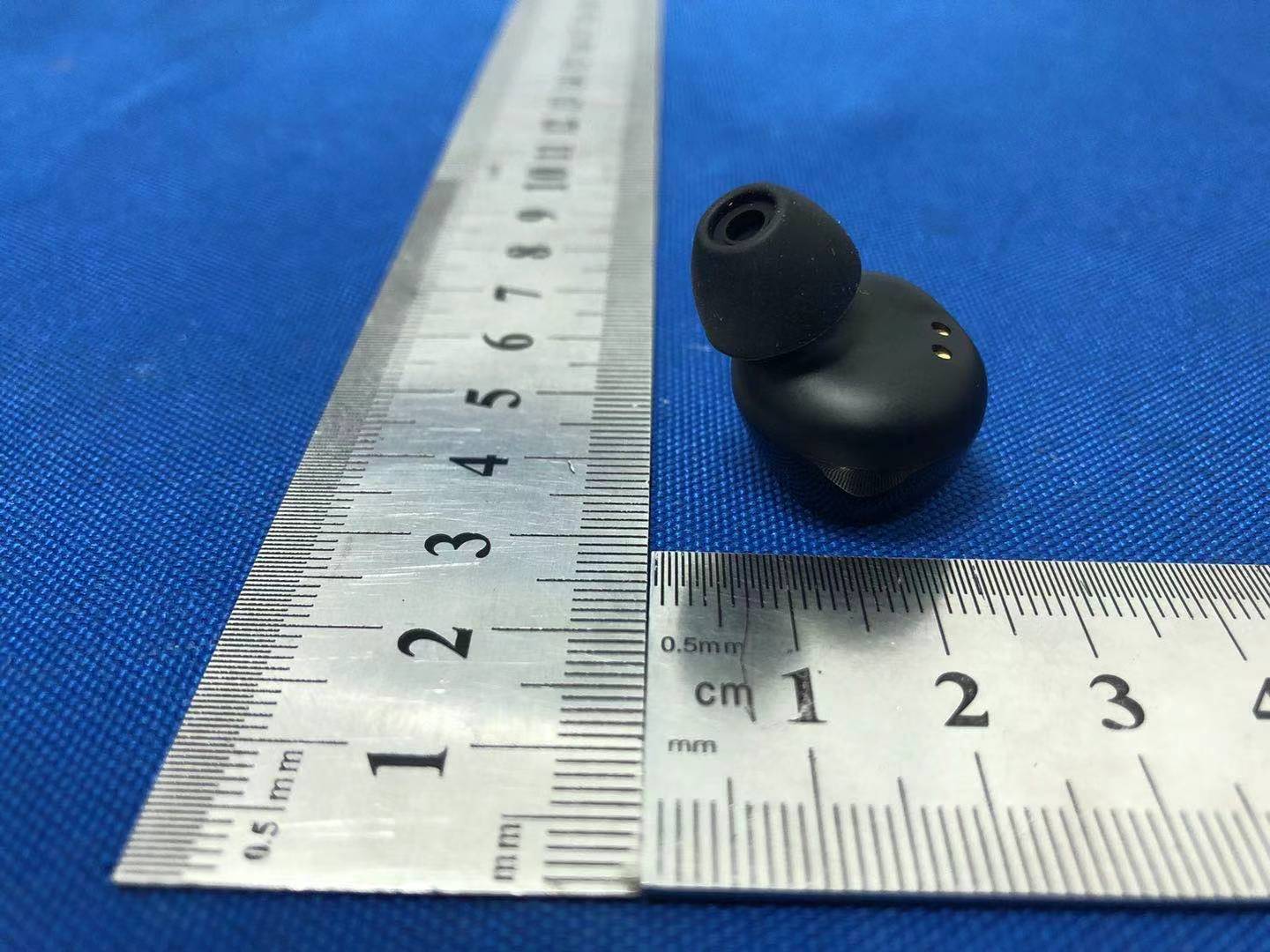

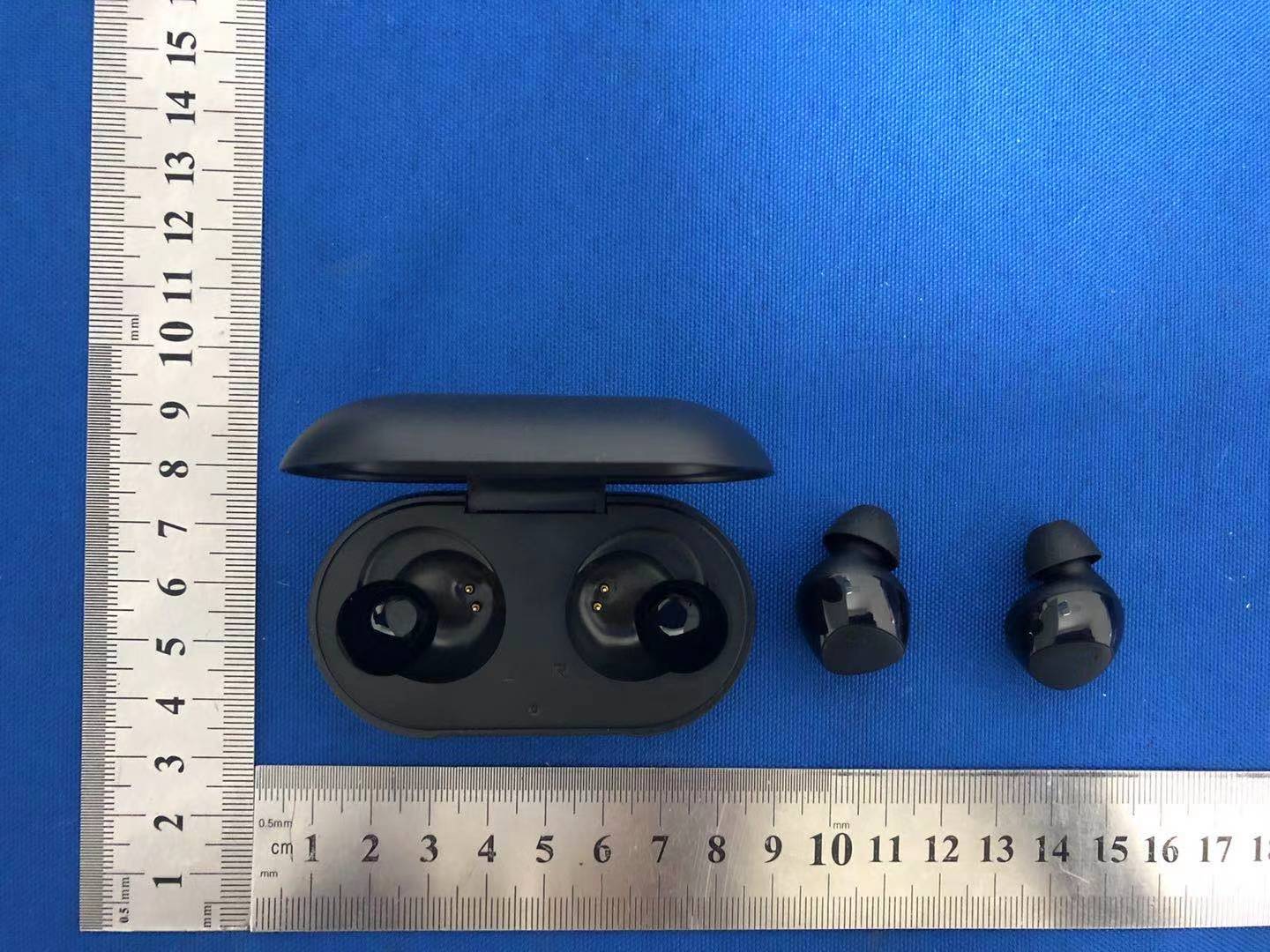

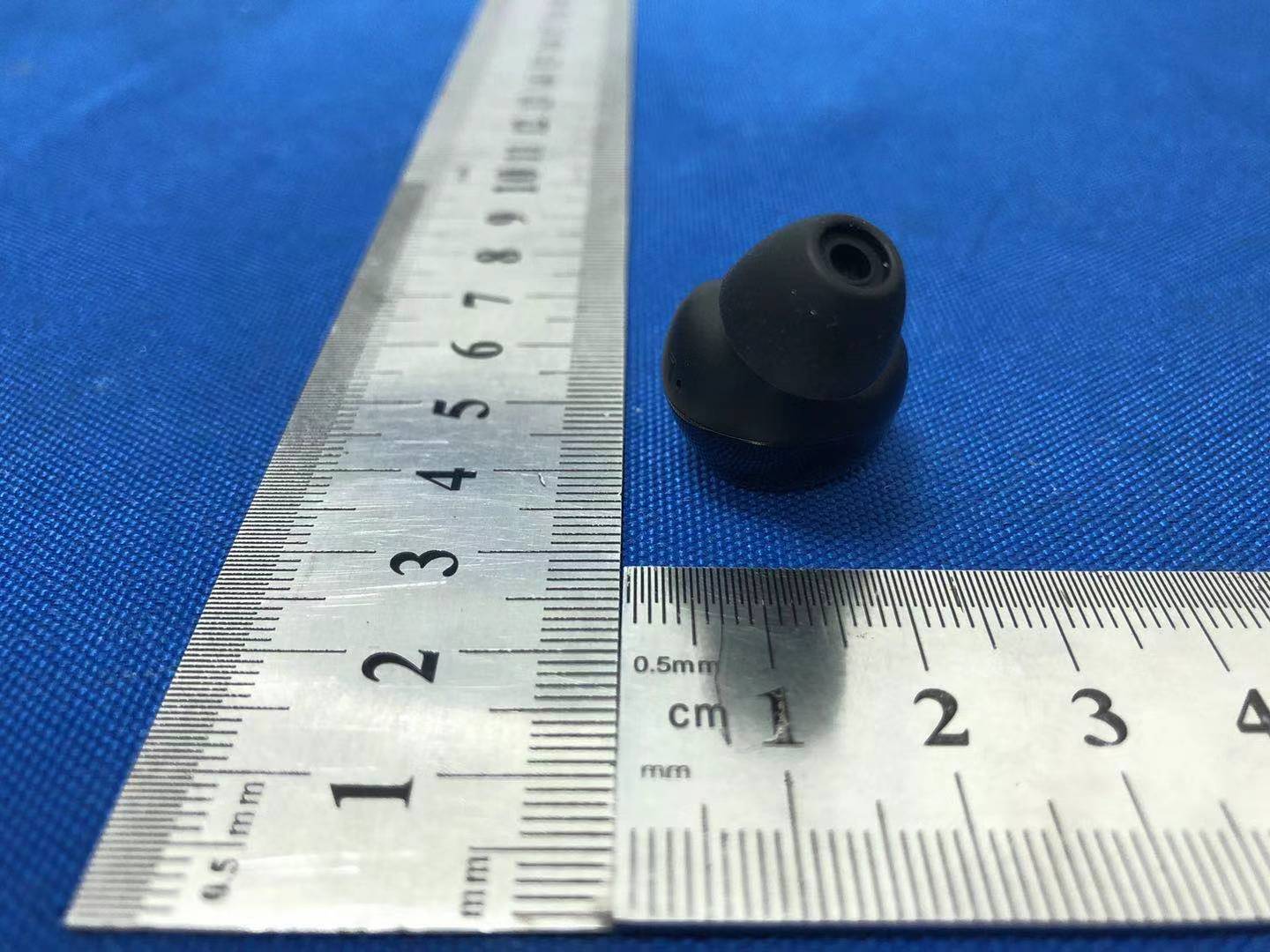

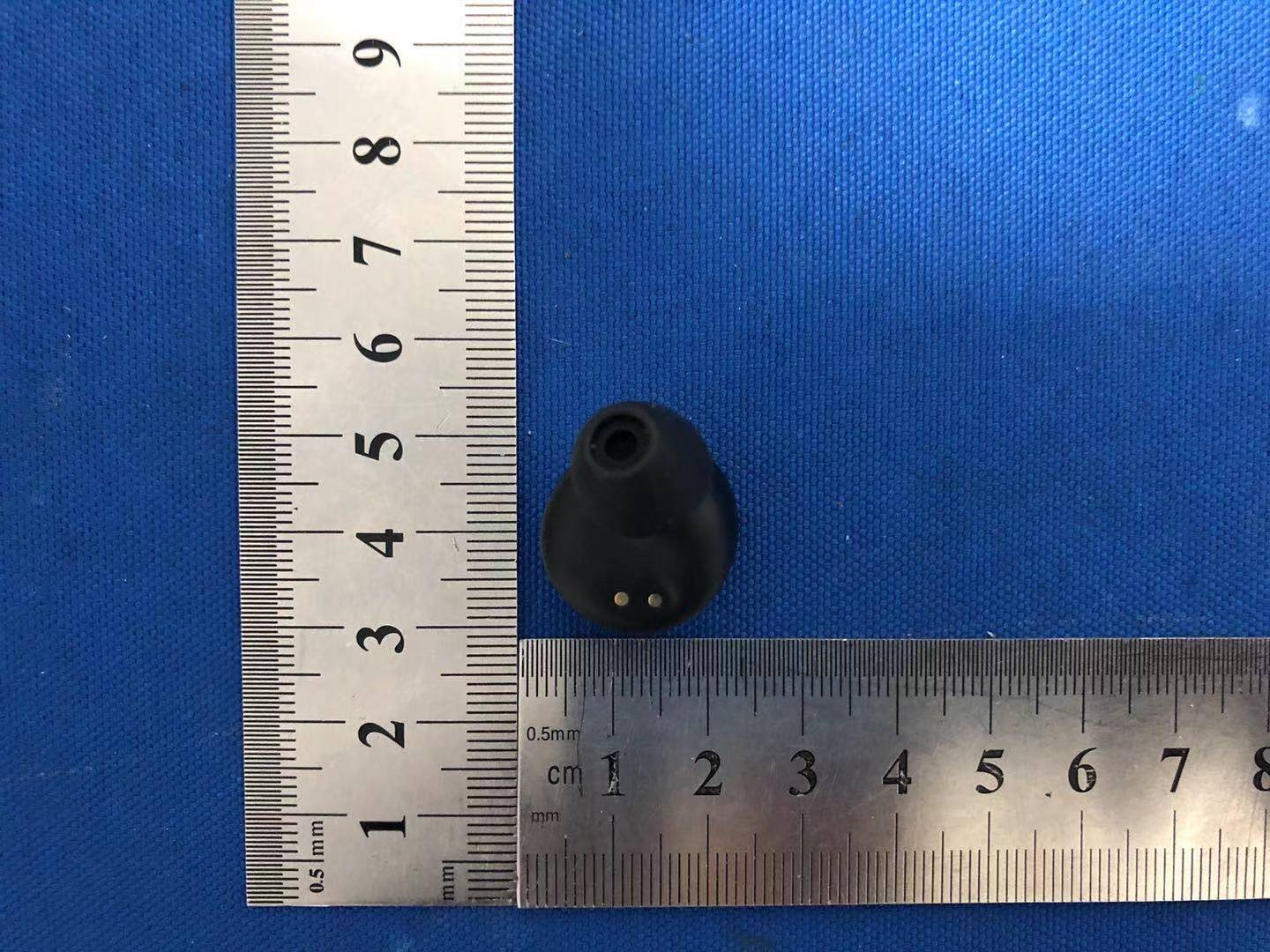

External Photos

Label & label location 10mm*5mm FCC ID: 2ASLT-V6L Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2ASLT-V6L SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT-EDR Left max possible output power (PK,conducted)：3±1dbm 3.12dBi logarithmic terms convert to numeric result is nearly 2.051 4dBm=2.51mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=2.51/5*√2.402=0.78≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Modulation Frequency (MHz) Output Power (dBm) Max Antenna Gain (dBi) GFSK 2402 -0.419 3.12 GFSK 2441 -0.354 3.12 GFSK 2480 -0.541 3.12 Pi/4 DQPSK 2402 2.021 3.12 Pi/4 DQPSK 2441 2.170 3.12 Pi/4 DQPSK 2480 1.987 3.12 8DPSK 2402 2.579 3.12 8DPSK 2441 2.717 3.12 8DPSK 2480 2.566 3.12 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=2.51/5*√2.441=0.78≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=2.51/5*√2.48=0.79≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

No.：BCTC/RF-EMC-007 Page: 1 of 69 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2103824879E Applicant: SHENZHEN XIWXI TECHNOLOGY CO., LTD Product Name: TWS Bluetooth headset Model/Type reference: V6 Tested Date: 2021-03-31 to 2021-04-13 Issued Date: 2021-04-13 Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 2 of 69 Edition：A.3 FCC ID: 2ASLT-V6L The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: TWS Bluetooth headset Trademark: N/A Model/Type reference: V6 Prepared For: SHENZHEN XIWXI TECHNOLOGY CO., LTD Address: No. 47, the 3rd Shabo Road, Shajing Town, Bao'an District, Shenzhen, China Manufacturer: SHENZHEN XIWXI TECHNOLOGY CO., LTD Address: No. 47, the 3rd Shabo Road, Shajing Town, Bao'an District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-03-31 Sample tested Date: 2021-03-31 to 2021-04-13 Issue Date: 2021-04-13 Report No.: BCTC2103824879E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Willem Wang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 3 of 69 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................. 5 2. TEST SUMMARY ...................................................... 6 3. MEASUREMENT UNCERTAINTY ........................................ 7 4. PRODUCT INFORMATION AND TEST SETUP ............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 9 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 4.6 table of parameters of text software setting ................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................. 13 6.1 Block Diagram Of Test Setup ............................................ 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 EUT operating Conditions ............................................... 13 6.5 Test Result ........................................................... 14 7. RADIATED EMISSIONS ............................................... 16 7.1 Block Diagram Of Test Setup ............................................ 16 7.2 Limit ................................................................. 17 7.3 Test procedure ........................................................ 18 7.4 EUT operating Conditions ............................................... 19 7.5 Test Result ........................................................... 20 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION ................................................... 24 8.1 Block Diagram Of Test Setup ............................................ 24 8.2 Limit ................................................................. 24 8.3 Test procedure ........................................................ 25 8.4 EUT operating Conditions ............................................... 25 8.5 Test Result ........................................................... 26 9. CONDUCTED EMISSION .............................................. 27 9.1 Block Diagram Of Test Setup ............................................ 27 9.2 Limit ................................................................. 27 9.3 Test procedure ........................................................ 27 9.4 Test Result ........................................................... 28 10. 20 DB BANDWIDTH .................................................. 37 10.1 Block Diagram Of Test Setup .......................................... 37 Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 4 of 69 Edition：A.3 10.2 Limit ................................................................ 37 10.3 Test procedure ....................................................... 37 10.4 Test Result .......................................................... 38 11. MAXIMUM PEAK OUTPUT POWER .................................... 43 11.1 Block Diagram Of Test Setup .......................................... 43 11.2 Limit ................................................................ 43 11.3 Test procedure ....................................................... 43 11.4 Test Result .......................................................... 44 12. HOPPING CHANNEL SEPARATION .................................... 49 12.1 Block Diagram Of Test Setup .......................................... 49 12.2 Limit ................................................................ 49 12.3 Test procedure ....................................................... 49 12.4 Test Result .......................................................... 50 13. NUMBER OF HOPPING FREQUENCY .................................. 55 13.1 Block Diagram Of Test Setup .......................................... 55 13.2 Limit ................................................................ 55…

Text truncated - open the document above for the full version.

Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 41 of 69 Edition：A.3 Pi/4 DQPSK High Channel 8DPSK Low Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 42 of 69 Edition：A.3 8DPSK Middle Channel 8DPSK High Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 43 of 69 Edition：A.3 11. MAXIMUM PEAK OUTPUT POWER 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 3MHz. VBW = 3MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 44 of 69 Edition：A.3 11.4 Test Result Temperature： 26°C Relative Humidity： 54% Test Voltage ： DC 3.7V Remark: N/A Modulation Test Channel Output Power (dBm) Limit (dBm) GFSK Low -0.419 21 GFSK Middle -0.354 21 GFSK High -0.541 21 Pi/4 DQPSK Low 2.021 21 Pi/4 DQPSK Middle 2.170 21 Pi/4 DQPSK High 1.987 21 8DPSK Low 2.579 21 8DPSK Middle 2.717 21 8DPSK High 2.566 21 Test plots GFSK Low Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 45 of 69 Edition：A.3 GFSK Middle Channel GFSK High Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 46 of 69 Edition：A.3 Pi/4 DQPSK Low Channel Pi/4 DQPSK Middle Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 47 of 69 Edition：A.3 Pi/4 DQPSK High Channel 8DPSK Low Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 48 of 69 Edition：A.3 8DPSK Middle Channel 8DPSK High Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 49 of 69 Edition：A.3 12. HOPPING CHANNEL SEPARATION 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 50 of 69 Edition：A.3 12.4 Test Result Modulation Test Channel Separation (MHz) Limit(MHz) Result GFSK Low 0.998 0.639 PASS GFSK Middle 1.000 0.637 PASS GFSK High 1.000 0.639 PASS Pi/4 DQPSK Low 1.000 0.859 PASS Pi/4 DQPSK Middle 1.002 0.859 PASS Pi/4 DQPSK High 1.000 0.865 PASS 8DPSK Low 0.998 0.869 PASS 8DPSK Middle 1.000 0.866 PASS 8DPSK High 1.000 0.868 PASS Test plots GFSK Low Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 51 of 69 Edition：A.3 GFSK Middle Channel GFSK High Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 52 of 69 Edition：A.3 Pi/4 DQPSK Low Channel Pi/4 DQPSK Middle Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 53 of 69 Edition：A.3 Pi/4 DQPSK High Channel 8DPSK Low Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 54 of 69 Edition：A.3 8DPSK Middle Channel 8DPSK High Channel Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 55 of 69 Edition：A.3 13. NUMBER OF HOPPING FREQUENCY 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 56 of 69 Edition：A.3 13.4 Test Result Test Plots: 79 Channels in total GFSK Pi/4 DQPSK Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 57 of 69 Edition：A.3 8DPSK Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 58 of 69 Edition：A.3 14. DWELL TIME 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). Report No…

Text truncated - open the document above for the full version.

Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 66 of 69 Edition：A.3 17. EUT TEST SETUP PHOTOGRAPHS Conducted emissions Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 67 of 69 Edition：A.3 Radiated Measurement Photos Report No.: BCTC2103824879E No.：BCTC/RF-EMC-007 Page: 68 of 69 Edition：A.3
