2ASQ8-F10Wi-Fi Digital Photo Frame

User Manual F10 Wi-Fi Digital Photo Frame 该文档是极速PDF编辑器生成， 如果想去掉该提示,请访问并下载： https://www.jisupdfeditor.com/ 1. Cautions 2. Precautions and maintenance For indoor use only. To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation. To avoid overheating, do not block the ventilation holes on the back of the Digital Photo Frame. Keep the Digital Photo Frame out of direct sunlight. Always use the eject buttons on the memory storage card slots to remove the storage cards. Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there are no user-serviceable parts inside. Dismantling the Digital Photo Frame will void your warranty. Cleaning the LCD Screen Treat the screen carefully. Because the screen of the Digital Photo Frame is made of glass and it would easily be broken or scratched. If fingerprints or dust accumulate on the LCD screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth to clean the LCD screen. Moisten the cleaning cloth with the cleaning solution and apply the cloth to the screen. 3. introduction: Thank you for your purchase of the Digital Photo Frame. It is designed to allow quick and easy view of photos taken from your digital camera, mobile phone, or from a memory storage card. Please read this User Manual carefully to learn the correct way to use the Digital Photo Frame. WARNING: Please power off the unit before inserting or removing a card or USB device. Failure to do so may cause damage to the card/USB and the unit. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. 1 Features: 1.10.1"(16:9) 1280x800 Pixels IPS Panel + Touch Screen 2.Android System with WIFI function Sharing Photos & Short video via APP/Email/PC Manager 3.16GB Memory+ Weather Station+Stereo Speaker 4.Our Own R&D Software&Phone APP Supported by World Famous Cloud System 5.10GB Online Cloud Storage 6.Support FHD 1080P Video Playback for Advertising 7.Newest Unique Design Packaging Check List: 1 piece 1 piece 1 piece 1.10.1” digital photo frame 2.AC/DC adapter 3.Service card 4.User Manual 5. Word protective film 1 piece 1 piece 2 该文档是极速PDF编辑器生成， 如果想去掉该提示,请访问并下载： https://www.jisupdfeditor.com/ Contents Contents. .......................................................................................................................3 1. Product Diagram ......................................................................................................... 4 1.1 Bottom of the frame ..........................................................................................4 2. Getting Started. .......................................................................................................... 4 3. Email &Cloud Photo APP Operating Instruction .......................................................... 5 3.1 Connect Wi-Fi. ....................................................................................................5 3.2 Download VPhoto APP ....................................................................................... 6 3.3 Link to Email, Cloud Frame APP . ........................................................................ 7 3.3.1 Email ........................................................................................................ 7 3.3.2 VPhoto APP ..............................................................................................7 4. General Operating Instruction ....................................................................................8 4.1 Pictures ............................................................................................................. 9 4.2 Music ............................................................................................................... 9 4.3 Videos ..............................................................................................................10 4.4 Clock ................................................................................................................10 4.5 Calendar...........................................................................................................11 4.6 Alarm .............................................................................................................. .11 4.7 Weather ......................................................................................................... ..11 5. Settings .................................................................................................................... .12 5.1 My Frame ....................................................................................................... . 12 5.2 Album Setting .................................................................................................12 5.3 Wi-Fi Setting .................................................................................................... 13 5.4 Factory date reset ........................................................................................... 13 5.5 Help ................................................................................................................. 13 5.6 About ............................................................................................................... 14 6. Suspended Ball .......................................................................................................... 15 7. Technical Specifications. ............................................................................................ 15 8. Troubleshooting Guide. .............................................................................................. 16 3 1.Product Diagram 1.1 Bottom of the frame 1. Reset Button 2.TF Card Slot 3.DC IN 4.Micro USB 2.Getting Started 2.1 Put the digital photo frame on a flat position steadily, then plug one end of the AC adapter into a standard 110-240V AC electrical outlet and the other end into the DC IN slot at the bottom of the frame. 2.2 Slowly r…

Text truncated - open the document above for the full version.

Shenzhen Mediafly Technology CO.,LTD Agent Authorization Company: Shenzhen Mediafly Technology CO.,LTD Address: 1F A bldg ,weixing Tech-park 268-3 Baoshi Road, Shuitian community Shiyan St, ShenZhen, China Product Name: Wi-Fi Digital Photo Frame Model Number(s): F10 Product Description: Wi-Fi Digital Photo Frame We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021/05/28 Name: ken.zhang Title: Manager Company: Shenzhen Mediafly Technology CO.,LTD

Shenzhen Mediafly Technology CO.,LTD Authorization Letter We, (the approval holder) Company name Shenzhen Mediafly Technology CO.,LTD Addresss 1F A bldg ,weixing Tech-park 268-3 Baoshi Road, Shuitian community Shiyan St, ShenZhen, China declare that the following representative (agent): Name (person) Bovey Yang Company name Shenzhen STS Test Services Co., Ltd. Addresss 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Micom Labs for product certification below Product Description Wi-Fi Digital Photo Frame Type or Model(s) F10 Tradename or Brand(s) HAOVM Attestation: City: Date: Name: (this must be a person) Function: Signature: (or official company stamp) China 2021/05/28 ken.zhang Manager

Shenzhen Mediafly Technology CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/05/28 Subject; Request for Confidentiality FCC ID: 2ASQ8-F10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: ken.zhang Title: Manager

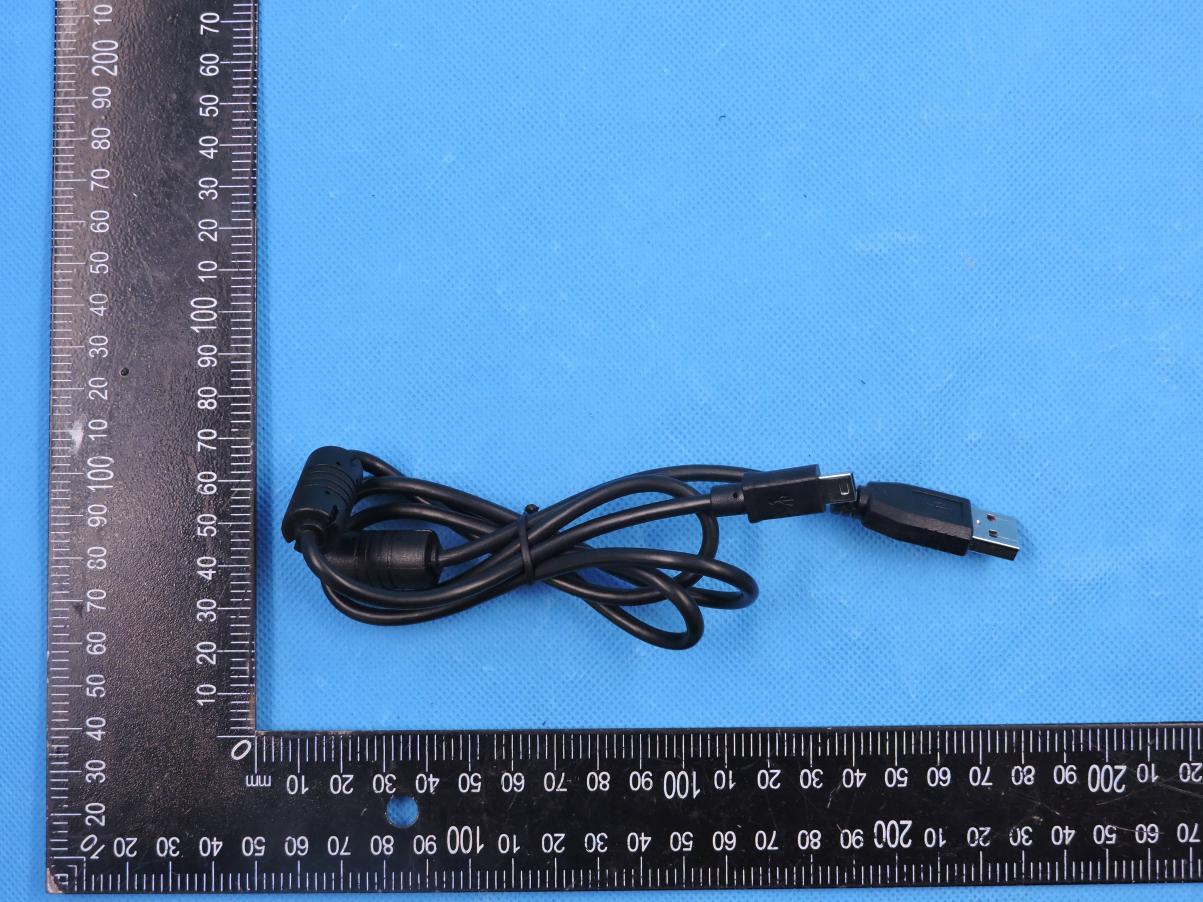

Page 1 of 5 Report No.: STS2105025 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: F10 Photo 1 Photo 2 Page 2 of 5 Report No.: STS2105025 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2105025 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2105025 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2105025 Photo 9 Photo 10

FCC Label

Page 1 of 3 Report No.: STS2105025 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: F10 Photo 1 Photo 2 WIFI Antenna Page 2 of 3 Report No.: STS2105025 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2105025 Photo 5 Photo 6

RF Exposure Report FCC ID: 2ASQ8-F10 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. 2.4G WIFI Mode 802.11b/g/n20:2412-2462MHz Detector PEAK 802.11b 16±1dBm 802.11g 20±1dBm 802.11n20 19±1dBm ANT Gain (G) Antenna gain : 0.5dBi (gain of antenna in linear scale=1.12) 802.11 b1.122412 17 50.12 0.01117 1 802.11 g1.122412 21 125.89 0.02807 1 802.11 n201.122412 20 100.00 0.02229 1 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequenc y (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) According to the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value 0.02807 distance 20cm. This is less than the limit 1, so Compliance the RF exposure requirement.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2105025W01 Issued for Shenzhen Mediafly Technology CO.,LTD 1F A bldg, weixing Tech-part 268-3 Baoshi Road, Shuitian community Shiyan St, ShenZhen, China Product Name: Wi-Fi Digital Photo Frame Brand Name: HAOVM Model Name: F10 Series Model: N/A FCC ID: 2ASQ8-F10 Test Standard: FCC Part 15.247 S T L A B S S T L A B S S T L A B S Page 2 of 62 Report No.:STS2105025W01 TEST RESULT CERTIFICATION Applicant’s Name ................. : Shenzhen Mediafly Technology CO.,LTD Address ................................. : 1F A bldg, weixing Tech-part 268-3 Baoshi Road, Shuitian community Shiyan St, ShenZhen, China Manufacturer's Name ........... : Shenzhen Mediafly Technology CO.,LTD Address ................................. : 1F A bldg, weixing Tech-part 268-3 Baoshi Road, Shuitian community Shiyan St, ShenZhen, China Product Description Product Name ........................ : Wi-Fi Digital Photo Frame Brand Name ........................... : HAOVM Model Name .......................... : F10 Series Model .......................... : N/A Test Standards ..................... : FCC Part 15.247 Test Procedure........................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ...................... : 10 May 2021 Date (s) of performance of tests ............. : 10 May 2021 ~ 26 May 2021 Date of Issue .......................................... : 26 May 2021 Test Result .............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 62 Report No.:STS2105025W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LISTS 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4.CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 DEVIATION FROM STANDARD 31 4.4 TEST SETUP 31 4.5 EUT OPERATION CONDITIONS 31 4.6 TEST RESULTS 32 5. POWER SPECTRAL DENSITY TEST 44 5.1 LIMIT 44 5.2 TEST PROCEDURE 44 5.3 DEVIATION FROM STANDARD 44 5.4 TEST SETUP 44 5.5 EUT OPERATION CONDITIONS 44 5.6 TEST RESULTS 45 6. BANDWIDTH TEST 51 6.1 LIMIT 51 6.2 TEST PROCEDURE 51 6.3 DEVIATION FROM STANDARD 51 6.4 TEST SETUP 51 6.5 EUT OPERATION CONDITIONS 51 Page 4 of 62 Report No.:STS2105025W01 Table of Contents Page 6.6 TEST RESULTS 52 7. PEAK OUTPUT POWER TEST 58 7.1 LIMIT 58 7.2 TEST PROCEDURE 58 7.3 DEVIATION FROM STANDARD 58 7.4 TEST SETUP 59 7.5 EUT OPERATION CONDITIONS 59 7.6 TEST RESULTS 60 8. ANTENNA REQUIREMENT 61 8.1 STANDARD REQUIREMENT 61 8.2 EUT ANTENNA 61 APPENDIX-PHOTOS OF TEST SETUP 62 Page 5 of 62 Report No.:STS2105025W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 26 May 2021 STS2105025W01 ALL Initial Issue Page 6 of 62 Report No.:STS2105025W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) “N/A” denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 62 Report No.:STS2105025W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.68dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Page 8 of 62 Report No.:STS2105025W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Wi-Fi Digital Photo Frame Trade Name HAOVM Model Name F10 Series Model N/A Model Difference N/A Product Description The EUT is a Wi-Fi Digital Photo Frame Operation Frequency: 802.11b/g/n 20: 24…
