2ASQ8-W10Tablet PC

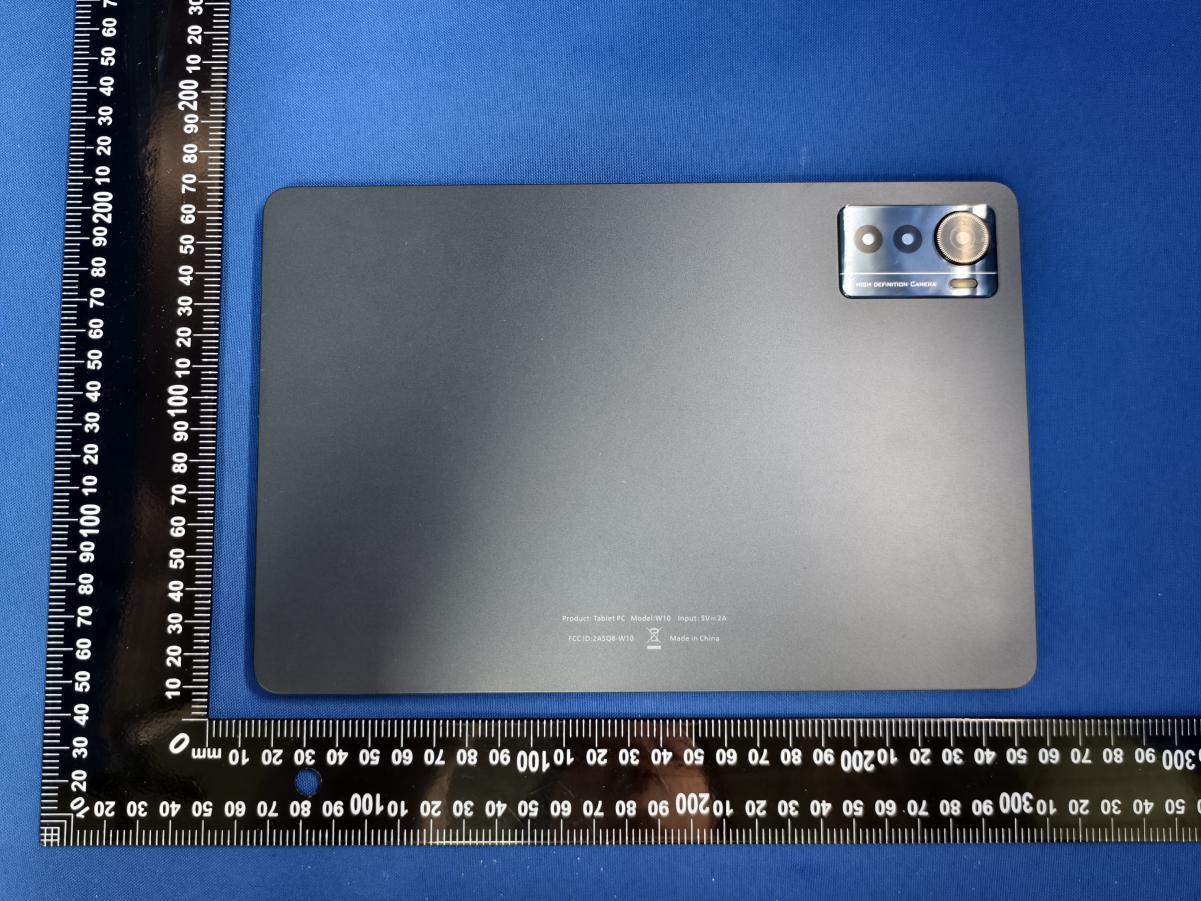

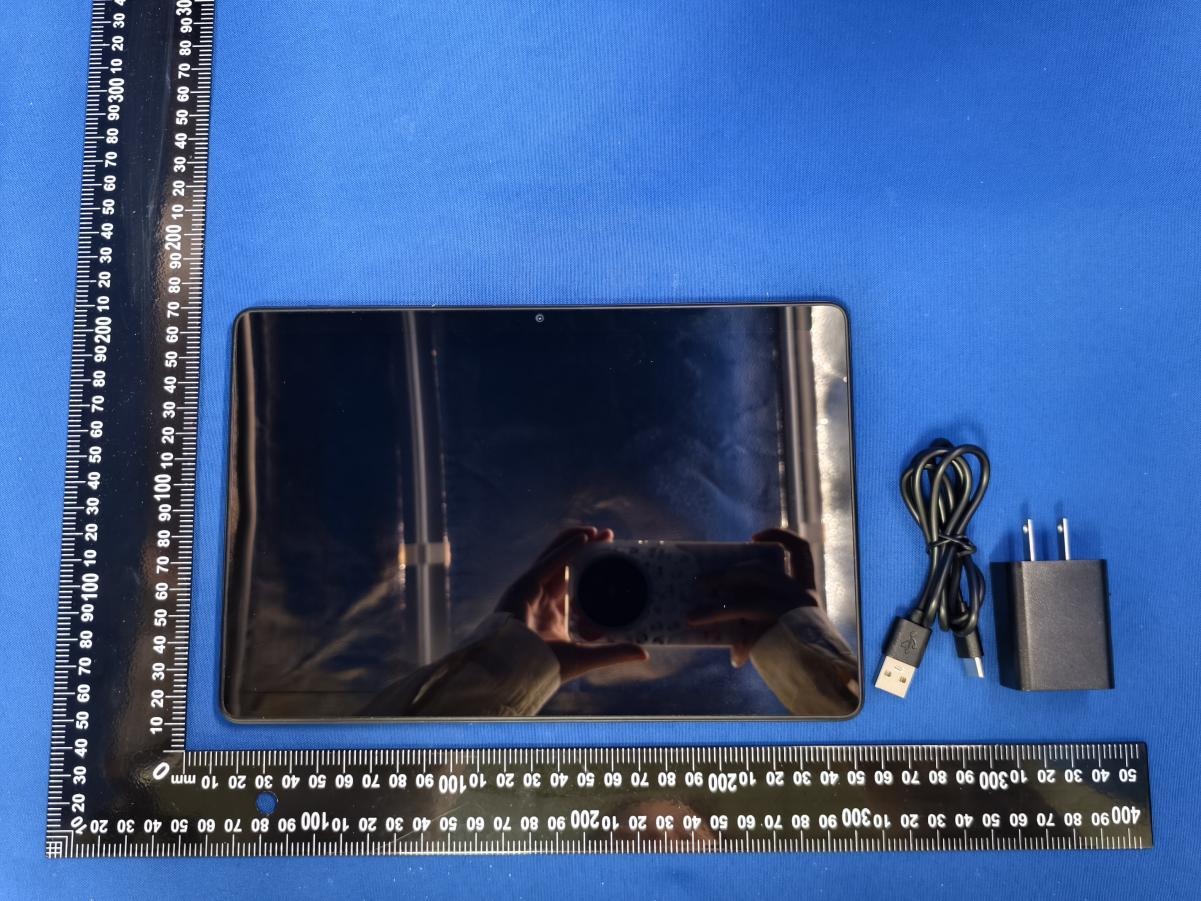

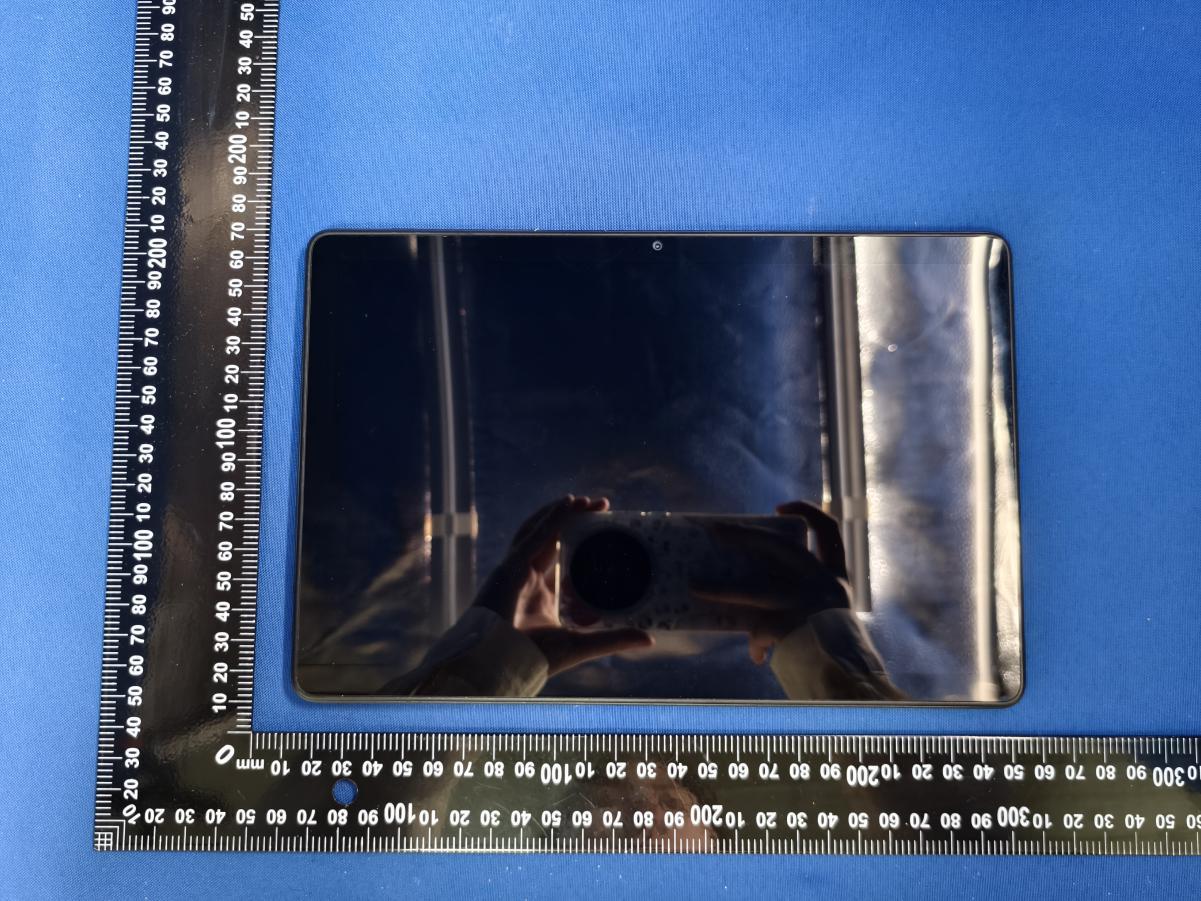

100 . 0 mm W 10说明书 尺寸： 风琴折后140 * 100 mm 材质：128 g铜版纸 双面单黑印刷,红色虚线为折线不印刷 140.00 mm USER MANUAL Please read this manual thoroughly before using and keep it for future reference 1. Hardware Overview 1 2 3 4 8 10 11 5 6 7 9 1 3.5mm Headphone Jack 5 TF card tray 9 Speakers 2 Power Button 6 USB 2.0 Type-C Port 10 Rear Camera 3 Volume Buttons+/- 7 Microphone 11 Flash light 4 Reset 8 Front Camera 2. Safety Warnings 1) Do not disassemble the product or accessories. 2) Do not use alcohol, thinner, or benzene to clean the surface of the device. 3) The device should be charged for about 4 hours during the first three charge cycles. 4) Do not store the device in places with high temperature, humidity,or dust. Avoid dropping or strong collision. 5) Use an appropriate volume setting. High volume may cause hearing damage when using headphones. 6) To charge the device, use the included USB cable and adapter. 7) When transferring data to/from a computer, do not suddenly disconnect the cable; this may cause the device to malfunction. Use a "Safely Remove Hardware" or "Eject" function on the computer. 8) Obey all local laws and regulations when using the device, such as when driving or aboard an aircraft. 9) The device and included accessories are not water resistant or water proof. 10) It is not recommended to leave the battery charging for more than 8 hours. Do not use the charger in a wet or humid environment. Only charge the tablet in a safe 3. Technical Specifications Operating System Android 15 Display 10.1" HD display Resolution 1280x800 RAM 4GB+8GB (virtual memory） ROM 64GB CPU A537 Battery 6000 mAh, Li-Ion Polymer Ports Type-C 、 / 3.5mm standard headphone jack Camera 5MP front camera, 8MP rear camera Card Slot Micro SD card slot GPS Yes Voltage 5V/2A Network Access WIFI 802.11 ac/a/b/g/n, BT5.0 4. Trouble Shooting No. Issue Fix 1 Battery is draining too fast Adjust screen brightness to a lower setting. 2 Slowness or unresponsive programs Close unused apps; clear app cache. 3 Network connectivity issues; no W i-Fi connection Reset network connection; toggle airplane mode on/off. 4 Tablet is hot or overheating Close unused apps; clear app cache. 5 App crashes Reopen app; update app through play store. 6 Unresponsive screen Restart tablet by holding power button for ~8 seconds. 7 Google Play Store crashes Clear app cache and restart. 8 Apps won't download from Play Store Clear Play Store cache; open app settings and clear local search. 9 Can't turn tablet on/off Hold power button for Power Menu options. 10 Touch screen issue; not responding to Low battery power; check for physical damage. 11 Battery does not hold a charge Check power cable; inspect power button if stuck. 12 Sound is low Check speaker port for blockage. 13 Camera or SD Card not working Corrupt Software / Reset to factory default. 14 Download issues Make sure it connect with PC properly.You’d better not to use the front USB port to connect to PC. 15 Device crashed or can't turn on Once device crashed during the running time, It can be restarted via tap the RESET button at the side of device. 16 Out of run Check the battery whether it out of charge. Checking after get connected to the power adapter. If it still can not turn on after charging, please contact the customer service center. 5.2 GHz band is restricted to indoor use only (Except when communicating with 5.2GHz high power base stations or relay stations) FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  -Reorient or relocate the receiving antenna.  -Increase the separation between the equipment and receiver.  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This Tablet PC meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Tablet PC (FCC ID: 2ASQ8-W10) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for when properly worn on the body is 0.219 W/kg. This device was tested for typical body-worn operations with the back of the Tablet kept 0mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 0mm separation distance between the user's body and the back of the Tablet. The use of belt clips, holsters and simi…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] S T L A B S SAR Dipole Performance Measurement Report EUT Type： SAR Validation Dipole and Waveguide Model Name： DIP2G450, SWG5500 Brand Name: SATIMO Test Conclusion： Pass Test Date： 11 Dec. 2024&03 Jul. 2025 Date of Issue： 03 Jul. 2025 Testing Engineer : (Xin.Liu) Technical Manager : (Shifan. Long) Authorized Signatory : (Bovey Yang) ISSUED BY Shenzhen STS Test Services Co., Ltd. Kind of Equipment Manufacturer Type No. Serial No. Last Calibration Calibrated Until PC Acer N/A N/A N/A N/A E-Field Probe MVG SSE2 SN 08/21 EPGO352 2024.09.18 2025.09.17 Dielectric Probe Kit MVG SCLMP SN 32/14 OCPG67 2024.09.18 2025.09.17 Phantom1 MVG SAM SN 32/14 SAM115 N/A N/A Phantom2 MVG SAM SN 32/14 SAM116 N/A N/A Attenuator Agilent 99899 DC-18GHz N/A N/A Directional coupler Narda 4226-20 3305 N/A N/A Network Analyzer Agilent E5071C MY46520378 2024-09-25 2025-09-26 Multi Meter Keithley Multi Meter 2000 4050073 2024-09-25 2025-09-26 Signal Generator Agilent N5182A MY50140530 2024-09-25 2025-09-26 Power Amplifier DESAY ZHL-42W 9638 2024-09-25 2025-09-26 Power Meter R&S NRP 100510 2024-09-25 2025-09-26 Power Sensor R&S NRP-Z11 101919 2024-09-25 2025-09-26 Power Sensor Keysight U2021XA MY56280002 2024-09-25 2025-09-26 Temperature hygrometer SuWei SW-108 N/A 2024.10.15 2025.10.14 Thermograph Elitech RC-4 S/N EF7176501537 2024.10.15 2025.10.14 ISSUED BY Shenzhen STS Test Services Co., Ltd. 2. <Justification of the extended calibration> Referring to KDB 865664 D01, if dipoles are verified in return loss<-20dB, (within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head 2450 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2023.07.04 -26.03 - 46.3 - 2024.07.01 -26.42 1.50 47.25 2.05 2025.07.03 -26.91 3.38 47.4 2.37 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 2450 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Head 5000 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2023.07.04 < -8.23 - - - 2024.07.01 -9.10 10.57 - - 2025.07.03 -9.70 17.86- - - The return loss is <-8dB, within 20% of prior calibration; Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 5000MHz

Page 1 of 2 FCC ID: 2ASQ8-W10 Setup photo RF Conduction Page 2 of 2 FCC ID: 2ASQ8-W10 RE (Below 1GHz) RE (Above 1GHz)

2ASQ8-W10_SAR Setup photos Body Back side(separation distance is 0mm) Body Top side(separation distance is 0mm)

深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] 规格承认书 ApprovalSheet 客户名称 Customer 美迪飞 日期 Data 2025/07/15 产品名称 Product WIFI/BT 天线 客户机型 Models W10 料号 P/N F1218A-13RB-125 客户料号 CustomerP/N 规格描述 Specifications 黑色PCB，厚度0.2mm；RF0.81三代端子黑色同轴线，L=125mm 供应商承认签印 VenderApprovedBy 客户承认签印 CustomerApprovedBy CheckedBy:CheckedBy: AuditBy:AuditBy: ApprovalBy:ApprovalBy: 文件修订履历表 版本 Version 修订内容 ReviseTheContent 修订人 Revused 核准 Approval 修订日期 Date 备注 Note 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] Content NO.ProectPageNO. 1Specification3 2AntennaPlacement4 3TestData5~~8 4AntennaAssembly9 5Notes10 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] Specification 1.1ElectricalProperties CharacteristicsSpecifications WorkingBand 2.4GWiFi/BT; 5GWiFi AntennaFromPIFA Impedance50Ω PolarizationLinear PeakEffi 47%@2.4G; 50%@5G PeakGain [email protected]; 4.26dBi@5G 1.2PhysicalProperties CharacteristicsSpecifications OperatingTemp -10°C~+60°C StorageTemp -10°C~+70°C Humidity10~95%RH 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] AntennaPlacement 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] TestData WiFiActivetestdata WIFI/BTMeasured 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] S11-VSWR&ReturnLoss EfficiencyTable （ 2.4G ） 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] EfficiencyTable （ 5G ） 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] RadiationPattern(2.4G) RadiationPattern(5G) 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] AntennaAssembly 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] Notes

Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Duty Cycle Condition Mode Frequency (MHz) On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) Max Variation (%) NVNT a 5745 2.09 2.135 97.89 0.09 0.48 0.24 NVNT a 5785 2.09 2.135 97.89 0.09 0.48 0.24 NVNT a 5825 2.09 2.135 97.89 0.09 0.48 0.25 NVNT n20 5745 4.015 4.06 98.89 0.05 0.25 / NVNT n20 5785 4.015 4.06 98.89 0.05 0.25 / NVNT n20 5825 4.02 4.065 98.89 0.05 0.25 / NVNT n40 5755 3.995 4.04 98.89 0.05 0.25 / NVNT n40 5795 3.995 4.04 98.89 0.05 0.25 / NVNT ac20 5745 4.005 4.05 98.89 0.05 0.25 / NVNT ac20 5785 4.005 4.055 98.77 0.05 0.25 / NVNT ac20 5825 4 4.05 98.77 0.05 0.25 / NVNT ac40 5755 3.98 4.03 98.76 0.05 0.25 / NVNT ac40 5795 3.98 4.025 98.88 0.05 0.25 / NVNT ax20 5745 4.01 4.06 98.77 0.05 0.25 / NVNT ax20 5785 4.01 4.055 98.89 0.05 0.25 / NVNT ax20 5825 4.005 4.055 98.77 0.05 0.25 / NVNT ax40 5755 3.98 4.025 98.88 0.05 0.25 / NVNT ax40 5795 3.98 4.03 98.76 0.05 0.25 / Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Test Graphs Duty Cycle NVNT a 5745MHz Duty Cycle NVNT a 5785MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Duty Cycle NVNT a 5825MHz Duty Cycle NVNT n20 5745MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Duty Cycle NVNT n20 5785MHz Duty Cycle NVNT n20 5825MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Duty Cycle NVNT n40 5755MHz Duty Cycle NVNT n40 5795MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Duty Cycle NVNT ac20 5745MHz Duty Cycle NVNT ac20 5785MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Duty Cycle NVNT ac20 5825MHz Duty Cycle NVNT ac40 5755MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Duty Cycle NVNT ac40 5795MHz Duty Cycle NVNT ax20 5745MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Duty Cycle NVNT ax20 5785MHz Duty Cycle NVNT ax20 5825MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Duty Cycle NVNT ax40 5755MHz Duty Cycle NVNT ax40 5795MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Maximum Conducted Output Power Condition Mode Frequency (MHz) Conducted Power (dBm) Total Power (dBm) Limit (dBm) Verdict NVNT a 5745 11.27 11.27 <=30 Pass NVNT a 5785 11.27 11.27 <=30 Pass NVNT a 5825 11.96 11.96 <=30 Pass NVNT n20 5745 11.21 11.21 <=30 Pass NVNT n20 5785 11.25 11.25 <=30 Pass NVNT n20 5825 12.43 12.43 <=30 Pass NVNT n40 5755 11.21 11.21 <=30 Pass NVNT n40 5795 11.26 11.26 <=30 Pass NVNT ac20 5745 10.96 10.96 <=30 Pass NVNT ac20 5785 11.08 11.08 <=30 Pass NVNT ac20 5825 11.65 11.65 <=30 Pass NVNT ac40 5755 11.25 11.25 <=30 Pass NVNT ac40 5795 11.27 11.27 <=30 Pass NVNT ax20 5745 11.34 11.34 <=30 Pass NVNT ax20 5785 11.37 11.37 <=30 Pass NVNT ax20 5825 12.02 12.02 <=30 Pass NVNT ax40 5755 11.75 11.75 <=30 Pass NVNT ax40 5795 11.95 11.95 <=30 Pass Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Test Graphs Power NVNT a 5745MHz Power NVNT a 5785MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Power NVNT a 5825MHz Power NVNT n20 5745MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Power NVNT n20 5785MHz Power NVNT n20 5825MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Power NVNT n40 5755MHz Power NVNT n40 5795MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Power NVNT ac20 5745MHz Power NVNT ac20 5785MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Power NVNT ac20 5825MHz Power NVNT ac40 5755MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Power NVNT ac40 5795MHz Power NVNT ax20 5745MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Power NVNT ax20 5785MHz Power NVNT ax20 5825MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Power NVNT ax40 5755MHz Power NVNT ax40 5795MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 -6dB Bandwidth Condition Mode Frequency (MHz) -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 14.05 >=0.5 Pass NVNT a 5785 15.19 >=0.5 Pass NVNT a 5825 15.03 >=0.5 Pass NVNT n20 5745 10.73 >=0.5 Pass NVNT n20 5785 13.8 >=0.5 Pass NVNT n20 5825 17.29 >=0.5 Pass NVNT n40 5755 33.73 >=0.5 Pass NVNT n40 5795 32.61 >=0.5 Pass NVNT ac20 5745 17.17 >=0.5 Pass NVNT ac20 5785 15.64 >=0.5 Pass NVNT ac20 5825 15.92 >=0.5 Pass NVNT ac40 5755 30.5 >=0.5 Pass NVNT ac40 5795 31.34 >=0.5 Pass NVNT ax20 5745 11.43 >=0.5 Pass NVNT ax20 5785 16.01 >=0.5 Pass NVNT ax20 5825 17.76 >=0.5 Pass NVNT ax40 5755 30.91 >=0.5 Pass NVNT ax40 5795 35.05 >=0.5 Pass Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Test Graphs -6dB Bandwidth NVNT a 5745MHz -6dB Bandwidth NVNT a 5785MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 -6dB Bandwidth NVNT a 5825MHz -6dB Bandwidth NVNT n20 5745MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 -6dB Bandwidth NVNT n20 5785MHz -6dB Bandwidth NVNT n20 5825MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 -6dB Bandwidth NVNT n40 5755MHz -6dB Bandwidth NVNT n40 5795MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 -6dB Bandwidth NVNT ac20 5745MHz -6dB Bandwidth NVNT ac20 5785MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 -6dB Bandwidth NVNT ac20 5825MHz -6dB Bandwidth NVNT ac40 5755MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 -6dB Bandwidth NVNT ac40 5795MHz -6dB Bandwidth NVNT ax20 5745MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 -6dB Bandwidth NVNT ax20 5785MHz -6dB Bandwidth NVNT ax20 5825MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 -6dB Bandwidth NVNT ax40 5755MHz -6dB Bandwidth NVNT ax40 5795MHz Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Occupied Channel Bandwidth Condition Mode Frequency (MHz) 99% OBW (MHz) NVNT a 5745 16.679 NVNT a 5785 16.643 NVNT a 5825 16.699 NVNT n20 5745 17.729 NVNT n20 5785 17.761 NVNT n20 5825 17.787 NVNT n40 5755 35.969 NVNT n40 5795 35.974 NVNT ac20 5745 17.731 NVNT ac20 5785 17.717 NVNT ac20 5825 17.768 NVNT ac40 5755 35.947 NVNT ac40 5795 36.022 NVNT ax20 5745 18.899 NVNT ax20 5785 18.863 NVNT ax20 5825 18.938 NVNT ax40 5755 37.459 NVNT ax40 5795 37.47 Report No.:STS2508175W04 _Appendix 5G WIFI U-NII-4 Test Graphs OBW NVNT…

Text truncated - open the document above for the full version.

Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Duty Cycle Condition Mode Frequency (MHz) On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) Max Variation (%) NVNT a 5180 2.088 2.136 97.75 0.1 0.48 0.23 NVNT a 5200 2.088 2.136 97.75 0.1 0.48 0.23 NVNT a 5240 2.088 2.136 97.75 0.1 0.48 0.24 NVNT n20 5180 4.02 4.06 99.01 0.04 0.25 / NVNT n20 5200 4.02 4.07 98.77 0.05 0.25 / NVNT n20 5240 4.01 4.06 98.77 0.05 0.25 / NVNT n40 5190 4 4.04 99.01 0.04 0.25 / NVNT n40 5230 3.99 4.04 98.76 0.05 0.25 / NVNT ac20 5180 4.005 4.05 98.89 0.05 0.25 / NVNT ac20 5200 4.005 4.05 98.89 0.05 0.25 / NVNT ac20 5240 4.005 4.05 98.89 0.05 0.25 / NVNT ac40 5190 3.98 4.03 98.76 0.05 0.25 / NVNT ac40 5230 3.98 4.03 98.76 0.05 0.25 / NVNT ax20 5180 4.005 4.055 98.77 0.05 0.25 / NVNT ax20 5200 4.01 4.03 99.5 0.02 0.25 / NVNT ax20 5240 4.005 4.055 98.77 0.05 0.25 / NVNT ax40 5190 3.985 4.035 98.76 0.05 0.25 / NVNT ax40 5230 3.98 4.01 99.25 0.03 0.25 / Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Test Graphs Duty Cycle NVNT a 5180MHz Duty Cycle NVNT a 5200MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Duty Cycle NVNT a 5240MHz Duty Cycle NVNT n20 5180MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Duty Cycle NVNT n20 5200MHz Duty Cycle NVNT n20 5240MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Duty Cycle NVNT n40 5190MHz Duty Cycle NVNT n40 5230MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Duty Cycle NVNT ac20 5180MHz Duty Cycle NVNT ac20 5200MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Duty Cycle NVNT ac20 5240MHz Duty Cycle NVNT ac40 5190MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Duty Cycle NVNT ac40 5230MHz Duty Cycle NVNT ax20 5180MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Duty Cycle NVNT ax20 5200MHz Duty Cycle NVNT ax20 5240MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Duty Cycle NVNT ax40 5190MHz Duty Cycle NVNT ax40 5230MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Maximum Conducted Output Power Condition Mode Frequency (MHz) Conducted Power (dBm) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 12.17 12.17 <=24 Pass NVNT a 5200 11.72 11.72 <=24 Pass NVNT a 5240 12 12 <=24 Pass NVNT n20 5180 12.1 12.1 <=24 Pass NVNT n20 5200 11.7 11.7 <=24 Pass NVNT n20 5240 12.79 12.79 <=24 Pass NVNT n40 5190 12.38 12.38 <=24 Pass NVNT n40 5230 12.37 12.37 <=24 Pass NVNT ac20 5180 11.75 11.75 <=24 Pass NVNT ac20 5200 11.31 11.31 <=24 Pass NVNT ac20 5240 11.54 11.54 <=24 Pass NVNT ac40 5190 12.1 12.1 <=24 Pass NVNT ac40 5230 12.1 12.1 <=24 Pass NVNT ax20 5180 11.77 11.77 <=24 Pass NVNT ax20 5200 11.35 11.35 <=24 Pass NVNT ax20 5240 11.58 11.58 <=24 Pass NVNT ax40 5190 11.8 11.8 <=24 Pass NVNT ax40 5230 11.82 11.82 <=24 Pass Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Test Graphs Power NVNT a 5180MHz Power NVNT a 5200MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Power NVNT a 5240MHz Power NVNT n20 5180MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Power NVNT n20 5200MHz Power NVNT n20 5240MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Power NVNT n40 5190MHz Power NVNT n40 5230MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Power NVNT ac20 5180MHz Power NVNT ac20 5200MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Power NVNT ac20 5240MHz Power NVNT ac40 5190MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Power NVNT ac40 5230MHz Power NVNT ax20 5180MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Power NVNT ax20 5200MHz Power NVNT ax20 5240MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Power NVNT ax40 5190MHz Power NVNT ax40 5230MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 -26dB Bandwidth Condition Mode Frequency (MHz) -26 dB Bandwidth (MHz) Verdict NVNT a 5180 23.6 Pass NVNT a 5200 24.16 Pass NVNT a 5240 24.22 Pass NVNT n20 5180 23.96 Pass NVNT n20 5200 24.26 Pass NVNT n20 5240 24.63 Pass NVNT n40 5190 42.43 Pass NVNT n40 5230 42.79 Pass NVNT ac20 5180 23.38 Pass NVNT ac20 5200 24.59 Pass NVNT ac20 5240 25.07 Pass NVNT ac40 5190 43 Pass NVNT ac40 5230 41.94 Pass NVNT ax20 5180 23.04 Pass NVNT ax20 5200 23.13 Pass NVNT ax20 5240 24.91 Pass NVNT ax40 5190 40.68 Pass NVNT ax40 5230 41.97 Pass Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Test Graphs -26dB Bandwidth NVNT a 5180MHz -26dB Bandwidth NVNT a 5200MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT a 5240MHz -26dB Bandwidth NVNT n20 5180MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT n20 5200MHz -26dB Bandwidth NVNT n20 5240MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT n40 5190MHz -26dB Bandwidth NVNT n40 5230MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT ac20 5180MHz -26dB Bandwidth NVNT ac20 5200MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT ac20 5240MHz -26dB Bandwidth NVNT ac40 5190MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT ac40 5230MHz -26dB Bandwidth NVNT ax20 5180MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT ax20 5200MHz -26dB Bandwidth NVNT ax20 5240MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 -26dB Bandwidth NVNT ax40 5190MHz -26dB Bandwidth NVNT ax40 5230MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Occupied Channel Bandwidth Condition Mode Frequency (MHz) 99% OBW (MHz) NVNT a 5180 16.711 NVNT a 5200 16.662 NVNT a 5240 16.71 NVNT n20 5180 17.707 NVNT n20 5200 17.751 NVNT n20 5240 17.797 NVNT n40 5190 35.965 NVNT n40 5230 36.015 NVNT ac20 5180 17.776 NVNT ac20 5200 17.737 NVNT ac20 5240 17.842 NVNT ac40 5190 35.992 NVNT ac40 5230 36.01 NVNT ax20 5180 18.885 NVNT ax20 5200 18.889 NVNT ax20 5240 18.921 NVNT ax40 5190 37.526 NVNT ax40 5230 37.488 Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 Test Graphs OBW NVNT a 5180MHz OBW NVNT a 5200MHz Report No.: STS2508175W04 _Appendix 5G WIFI U-NII-1 OBW NVNT a 5240MHz OBW NVN…

Text truncated - open the document above for the full version.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2508175W04 Issued for Shenzhen Mediafly Technology Co.,LTD 1F A bldg ,weixing Tech-park 268-3 Baoshi Road Shuitian community Shiyan Street, BaoAn District, ShenZhen, China Product Name: Tablet PC Brand Name: N/A Model Name: W10 Series Model(s): N/A FCC ID: 2ASQ8-W10 Test Standards: FCC Part15.407 Page 2 of 48 Report No.:STS2508175W04 TEST REPORT Applicant’s Name ................. : Shenzhen Mediafly Technology Co.,LTD Address ................................. : 1F A bldg ,weixing Tech-park 268-3 Baoshi Road Shuitian community Shiyan Street, BaoAn District, ShenZhen, China Manufacturer's Name ........... : Shenzhen Mediafly Technology Co.,LTD Address ................................. : 1F A bldg ,weixing Tech-park 268-3 Baoshi Road Shuitian community Shiyan Street, BaoAn District, ShenZhen, China Product Description Product Name ........................ : Tablet PC Brand Name ........................... : N/A Model Name .......................... : W10 Series Model(s) .................... : N/A Test Standards ..................... : FCC Part15.407 Test Procedure ............................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 27 Aug. 2025 Date (s) of performance of tests ............. : 27 Aug. 2025 ~ 04 Sept. 2025 Date of Issue .......................................... : 04 Sept. 2025 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 48 Report No.:STS2508175W04 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 11 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 13 2.6 EQUIPMENTS LIST 14 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION AND MEASUREMENT 19 4. POWER SPECTRAL DENSITY TEST 40 4.1 LIMIT 40 4.2 TEST PROCEDURE 40 4.3 DEVIATION FROM STANDARD 41 4.4 TEST SETUP 41 4.5 EUT OPERATION CONDITIONS 41 4.6 TEST RESULTS 41 5. BANDWIDTH MEASUREMENT 42 5.1 EMISSION BANDWIDTH (EBW) 26 BANDWID PROCEDURES / LIMIT 42 5.2 OCCUPIED BANDWIDTH ( 99%) TEST APPLIED PROCEDURES / LIMIT 43 5.3 MINIMUM EMISSION BANDWIDTH(6 DB) PROCEDURES / LIMIT 44 6. MAXIMUM OUTPUT POWER 45 6.1 LIMIT 45 6.2 TEST PROCEDURE 45 6.3 DEVIATION FROM STANDARD 45 6.4 TEST SETUP 45 6.5 EUT OPERATION CONDITIONS 45 6.6 TEST RESULTS 45 7. AUTOMATICALLY DISCONTINUE TRANSMISSION 46 7.1 LIMIT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 46 7.2 TEST RESULT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 46 8. ANTENNA REQUIREMENT 47 Page 4 of 48 Report No.:STS2508175W04 Table of Contents Page 8.1 STANDARD REQUIREMENT 47 8.2 EUT ANTENNA 47 APPENDIX - PHOTOS OF TEST SETUP 48 Page 5 of 48 Report No.:STS2508175W04 Revision History Rev. Issue Date Report No. Effect Page Contents 00 04 Sept. 2025 STS2508175W04 ALL Initial Issue Page 6 of 48 Report No.:STS2508175W04 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: § 15.407,KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 FCC Part 15.407 FCC standard Test Item Results 15.207 AC Conducted Emission PASS 15.407 (a) /15.407 (e) 26dB/6dB &99% Bandwidth PASS 15.407(a) Maximum Conducted Output Power PASS 15.407(b)/15.209 Radiated Emission And (bandedge Emissions) Measurement PASS 15.407(a) Power Spectral Density PASS 15.407°C Automatically Discontinue Transmission PASS 15.203/15.204 Antenna Requirement PASS Note: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 48 Report No.: STS2508175W04 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add.: 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF…

Text truncated - open the document above for the full version.
