2ASTRM1LureMate Fishing Tracker

1 / 8 USER MANUAL (Exposure Draft) Luremate Fishing Tracker 2 / 8 Preface Thank you for purchasing the Luremate Fishing Tracker. Please make sure you have read through this manual before using your Luremate to start a wonderful fishing trip. Statement The policy is one of continuous improvements and we reserve the right to change product specifications without prior notice. Illustrations are for guidance purposes only. 3 / 8 CONTENTS 1. Specifications ....................................................................................... 4 2. Instructions ........................................................................................... 5 3. Function Overview ............................................................................... 7 4 / 8 1.Specifications Product Name Luremate Fishing Tracker Net Weight 12g Product Dimensions 36*36*24mm Packaging Dimensions 58*58*30mm Battery Type button battery（CR2032） Voltage 3.0V Bluetooth Module 5.0 Working Range 10m Working Temperature -10°C~45°C Working Environment Bluetooth connection Waterproof IP51 (Splash resistant) 5 / 8 2.Instructions 2.1 RIPPTON APP Downloading Install ‘RIPPTON’ App in your mobile devices by scanning the QR code below or searching ‘RIPPTON’ in Samsung Galaxy Apps/Google Play/Huawei App Store or IOS App Store. Note: System requirements iOS 9.0+, Android 5.0+ (device compatibility may be subject to change) 2.2 Device Connection Steps Switch your mobile device on Bluetooth mode. Make sure your Luremate is turned on and in range. Follow steps below to complete device connection. 6 / 8 Step1: Enter ‘RIPPTON’ app and tap ‘Device’; slide to find ‘Luremate’ and tap ‘Enter’. Step2: Tap the Bluetooth icon on top right corner. Step3: Tap ‘Add’. Step4: Tap ‘Find My Device’ and simultaneously press Luremate once. Step5: Luremate connected. Step6: Now your Luremate is ready to go. 7 / 8 Note: Once your Luremate has been successfully connected, it remains in the Bluetooth device list, so you can simply reconnect it by tapping it. 3. Function Overview 8 3.1. Start Your Trip  Tap “Start Trip” button to establish a record for your fishing trip.  Press the button of Luremate once to record your casting without any catch of fish.  Double press the button of Luremate to record the number of you catches and post the relevant picture. 3.2. Add Waypoint By tapping ‘’, you can add and sort waypoints. 3.3. Logbook Tap ‘’to view your past fishing trips, including weather, hydrological information, historical records of casts, catch rate and etc. 3.4. Data Sync Tap “”to synchronize data. There will be a prompt of “success”, which means all local data has been uploaded to the server. By this, you can freely view all history records on any new devices by login your Rippton ID. FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

NingboPelicanSmartFishingTackleCo.,Ltd. AgentAuthorization Company:NingboPelicanSmartFishingTackleCo.,Ltd. Address:No.16,YongchangRoad,ChengdongIndustrialPark,Xiangshan County,NingboCity,ZhejiangProvince,China ProductName:LureMateFishingTracker ModelNumber(s):M1 Trademark: FCCID:2ASTRM1 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021/7/27 Name:TinaLEI Title:Manager Company:NingboPelicanSmartFishingTackleCo.,Ltd.

NingboPelicanSmartFishingTackleCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021/7/27 Subject;RequestforConfidentiality FCCID:2ASTRM1 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:TinaLEI Title:Manager

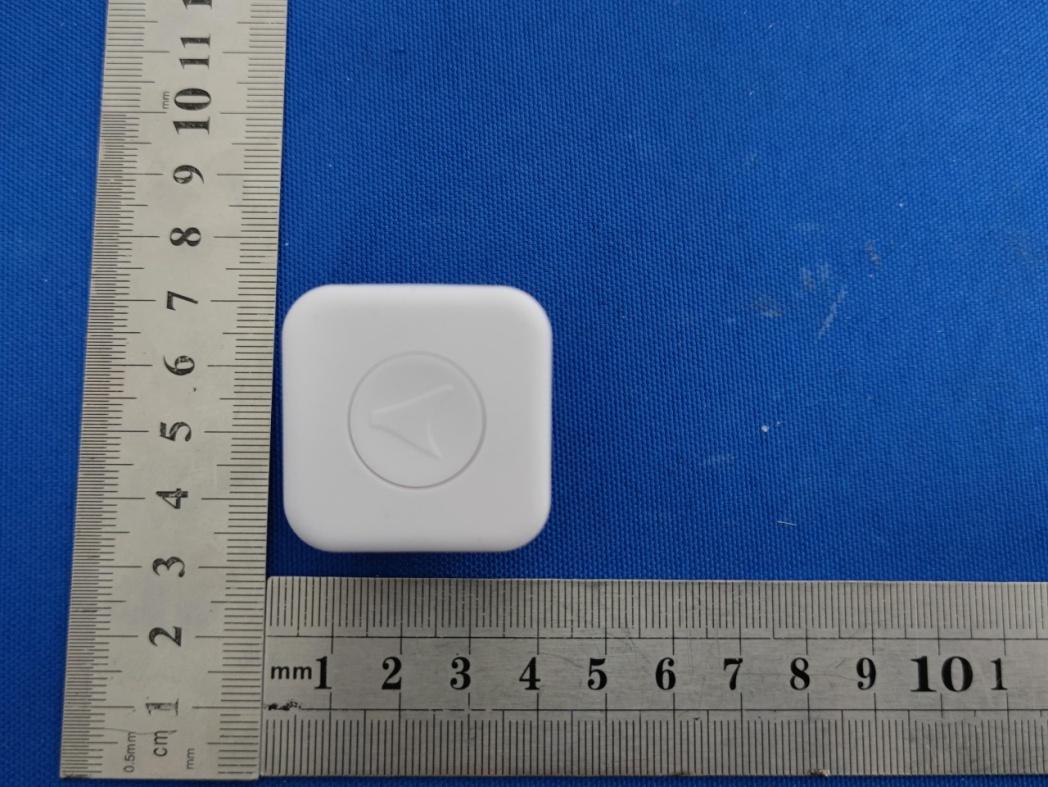

ExternalPhotos

Label&labellocation LureMateFishingTracker FCCID:2ASTRM1

InternalPhotos Antenna

RFEXPOSUREEVALUATIONMETHOD FCCID:2ASTRM1 Applicablestandard ： InaccordancewithFCC47CFRpart2(2.1093)thisdevicehasbeendefinedasaportable devicewhichisdefinedasatransmittingdevicedesignedtobeusedsothattheradiating structure(s)ofthedeviceis/arewithin20centimetersofthebodyoftheuser. PortabledevicesmustbeevaluatedusingthespecifiedinFCC47CFRpart2(2.1093)and ANSI/IEEEC95.1-1992.andhadbeentestedinaccordancewiththemeasurementmethods andproceduresspecifiedinIEEE1528-2003. PerFCCKDB447498D01v06,the1-gand10-gSARtestexclusionthresholdsfor100MHz to6GHzattestseparationdistancess50mmaredeterminedby: SARTestExclusionThresholdsfor100MHz–6GHzand≤50mm ApproximateSARTestExclusionPowerThresholdsatSelectedFrequenciesandTestSeparation DistancesareillustratedinthefollowingTable. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50 mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtest exclusion. BLE maxpossibleoutputpower(PK,conducted)：4±1dbm 1dBilogarithmictermsconverttonumericresultisnearly1.259 5dbm=3.16mW 2402MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]=3.16/5*√2.402=0.98≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm. Modulation Frequency (MHz) OutputPower (dBm) MaxAntenna Gain(dBi) GFSK1Mbps 2402 3.818 1 2440 3.382 1 2480 2.859 1 GFSK2Mbps 2402 3.793 1 2440 3.457 1 2480 2.862 1 2440MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]=3.16/5*√2.440=0.99≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm. Conclusion:NoSARisrequired. 2480MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]=3.16/5*√2.48=0.99≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm.

No.：BCTC/RF-EMC-005Page 1 of 45 Edition：A.3 TESTREPORT ShenzhenBCTCTestingCo.,Ltd. ReportNo.:BCTC2107107832E Applicant:NingboPelicanSmartFishingTackleCo.,Ltd. ProductName:LureMateFishingTracker Model/TypeRef.:M1 TestedDate:2021-07-05to2021-07-08 IssuedDate:2021-07-08 ReportNo.:BCTC2107107832E No.：BCTC/RF-EMC-005Page 2 of 45 Edition：A.3 FCCID:2ASTRM1 Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp.Thisresult(s)showninthisreport referonlytothesample(s)tested.WithoutwrittenapprovalofShenzhenBCTCTestingCo.,Ltd,thisreport can’tbereproducedexceptinfull.Thetestedsample(s)andthesampleinformationareprovidedbythe client. ProductName: LureMateFishingTracker Trademark: Model/TypeRef.:M1 PreparedFor:NingboPelicanSmartFishingTackleCo.,Ltd. Address: No.16,YongchangRoad,ChengdongIndustrialPark, XiangshanCounty,NingboCity,ZhejiangProvince,China Manufacturer:NingboPelicanSmartFishingTackleCo.,Ltd. Address: No.16,YongchangRoad,ChengdongIndustrialPark, XiangshanCounty,NingboCity,ZhejiangProvince,China PreparedBy: ShenzhenBCTCTestingCo.,Ltd. Address: 1-2/F.,BuildingB,PengzhouIndustrialPark,No.158,Fuyuan 1stRoad,Tangwei,FuhaiSubdistrict,Bao'anDistrict, Shenzhen,Guangdong,China. SampleReceivedDate:2021-07-05 SampletestedDate:2021-07-05to2021-07-08 IssueDate:2021-07-08 ReportNo.:BCTC2107107832E TestStandards FCCPart15.247 ANSIC63.10-2013 TestResultsPASS Remark:Thisis BluetoothBLE radiotestreport. Testedby:Approvedby: KelseyTan/ProjectHandlerZeroZhou/Reviewer ReportNo.:BCTC2107107832E No.：BCTC/RF-EMC-005Page 3 of 45 Edition：A.3 TABLEOFCONTENT TestReportDeclarationPage 1.VERSION ........................................................................................................................ 5 2.TESTSUMMARY .......................................................................................................... 6 3.MEASUREMENTUNCERTAINTY ............................................................................. 7 4.PRODUCTINFORMATIONANDTESTSETUP ..................................................... 8 4.1ProductInformation .................................................................................................. 8 4.2TestSetupConfiguration ......................................................................................... 8 4.3SupportEquipment ................................................................................................... 9 4.4ChannelList ............................................................................................................... 9 4.5TestMode ................................................................................................................ 10 4.6tableofparametersoftextsoftwaresetting ....................................................... 10 5.TESTFACILITYANDTESTINSTRUMENTUSED .............................................. 11 5.1TestFacility .............................................................................................................. 11 5.2TestInstrumentUsed ............................................................................................. 11 6.CONDUCTEDEMISSIONS ....................................................................................... 13 6.1BlockDiagramOfTestSetup ............................................................................... 13 6.2Limit ........................................................................................................................... 13 6.3Testprocedure ........................................................................................................ 13 6.4EUToperatingConditions ..................................................................................... 13 6.5TestResult ............................................................................................................... 13 7.RADIATEDEMISSIONS ............................................................................................ 14 7.1BlockDiagramOfTestSetup ............................................................................... 14 7.2Limit ........................................................................................................................... 15 7.3Testprocedure ........................................................................................................ 16 7.4EUToperatingConditions ..................................................................................... 17 7.5TestResult ............................................................................................................... 18 8.RADIATEDBANDEMISSIONMEASUREMENTANDRESTRICTEDBANDS OFOPERATION .............................................................................................................. 22 8.1BlockDiagramOfTestSetup ............................................................................... 22 8.2Limit ........................................................................................................................... 22 8.3Testprocedure ........................................................................................................ 23 8.4EUToperatingConditions ..................................................................................... 23 8.5TestResult ............................................................................................................... 24 9.POWERSPECTRALDENSITYTEST ..................................................................... 25 9.1BlockDiagramOfTestSetup ............................................................................... 25 9.2Limit ........................................................................................................................... 25 9.3Testprocedure ........................................................................................................ 25 9.4EUToperatingConditions ..................................................................................... 25 9.5TestResult ........................................................…

Text truncated - open the document above for the full version.

ReportNo.:BCTC2107107832E No.：BCTC/RF-EMC-005Page 40 of 45 Edition：A.3 CONDUCTEDEMISSIONMEASUREMENT GFSK1Mbps LowChannel2402MHz MiddleChannel2440MHz HighChannel2480MHz ReportNo.:BCTC2107107832E No.：BCTC/RF-EMC-005Page 41 of 45 Edition：A.3 GFSK2Mbps LowChannel2402MHz MiddleChannel2440MHz HighChannel2480MHz ReportNo.:BCTC2107107832E No.：BCTC/RF-EMC-005Page 42 of 45 Edition：A.3 13.ANTENNAREQUIREMENT 13.1Limit 15.203requirement:Forintentionaldevice,accordingto15.203:anintentionalradiator shall bedesignedtoensurethatnoantennaotherthanthatfurnishedbytheresponsibleparty shallbeusedwiththedevice. 13.2TestResult TheEUTantennaisPCBantenna,fulfilltherequirementofthissection. ReportNo.:BCTC2107107832E No.：BCTC/RF-EMC-005Page 43 of 45 Edition：A.3 14.EUTPHOTOGRAPHS EUTPhoto1 EUTPhoto2 ReportNo.:BCTC2107107832E No.：BCTC/RF-EMC-005Page 44 of 45 Edition：A.3 15.EUTTESTSETUPPHOTOGRAPHS RadiatedMeasurementPhotos ReportNo.:BCTC2107107832E No.：BCTC/RF-EMC-005Page 45 of 45 Edition：A.3 STATEMENT 1.Theequipmentlistsaretraceabletothenationalreferencestandards. 2.Thetestreportcannotbepartiallycopiedunlesspriorwrittenapprovalisissuedfromour lab. 3.Thetestreportisinvalidwithoutstampoflaboratory. 4.Thetestreportisinvalidwithoutsignatureofperson(s)testingandauthorizing. 5.ThetestprocessandtestresultisonlyrelatedtotheUnitUnderTest. 6.ThequalitysystemofourlaboratoryisinaccordancewithISO/IEC17025. 7.Ifthereisanyobjectiontoreport,theclientshouldinformissuinglaboratorywithin15 daysfromthedateofreceivingtestreport. Address: 1-2/F.,BuildingB,PengzhouIndustrialPark,No.158,Fuyuan1stRoad,Tangwei,Fuhai Subdistrict,Bao'anDistrict,Shenzhen,Guangdong,China TEL：400-788-9558 P.C.:518103 FAX：0755-33229357 Website：http://www.chnbctc.com E-Mail：[email protected] ※※※※※END※※※※※

ReportNo.:BCTC2107107832E No.：BCTC/RF-EMC-005Page 44 of 45 Edition：A.3 15.EUTTESTSETUPPHOTOGRAPHS RadiatedMeasurementPhotos
