2ASV5-ATC001Action Camera

Akaso Tech LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date:2020-07-17 Subject; Request for Long Term Confidentiality FCC ID: 2ASV5-ATC001 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sindy Chan Title: Manager

Akaso Tech LLC 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland, United States Statement Product: Action Camera Model: Brave 7 LE Additional Model: Brave 7 HDR, Brave 8, Brave 8 Pro, Brave 8 Elite, Brave 8 Plus, Brave 8 SE, Brave 8 HDR, Brave 9, Brave 9 Pro, Brave 9 plus, Brave 9 HDR, Brave 9 Elite Trademark: AKASO We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/07/17 Name: Sindy Chan Title: Manager Company Name : Akaso Tech LLC Address: 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland, United States Tel / Fax: 301-670-7335/301-859-0491 E-Mail: [email protected]

Akaso Tech LLC Agent Authorization Company: Akaso Tech LLC Address: 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland, United States Product Name: Action Camera Model Number(s): Brave 7 LE, Brave 7 HDR, Brave 8, Brave 8 Pro, Brave 8 Elite, Brave 8 Plus, Brave 8 SE, Brave 8 HDR, Brave 9, Brave 9 Pro, Brave 9 plus, Brave 9 HDR, Brave 9 Elite Product Description: Action Camera We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. i s allowed to forward all information related to the approval and certification of equipment to t he regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of o ur own. Date: 2020-07-17 Signature: Name: Sindy Chan Title: Manager Company: Akaso Tech LLC

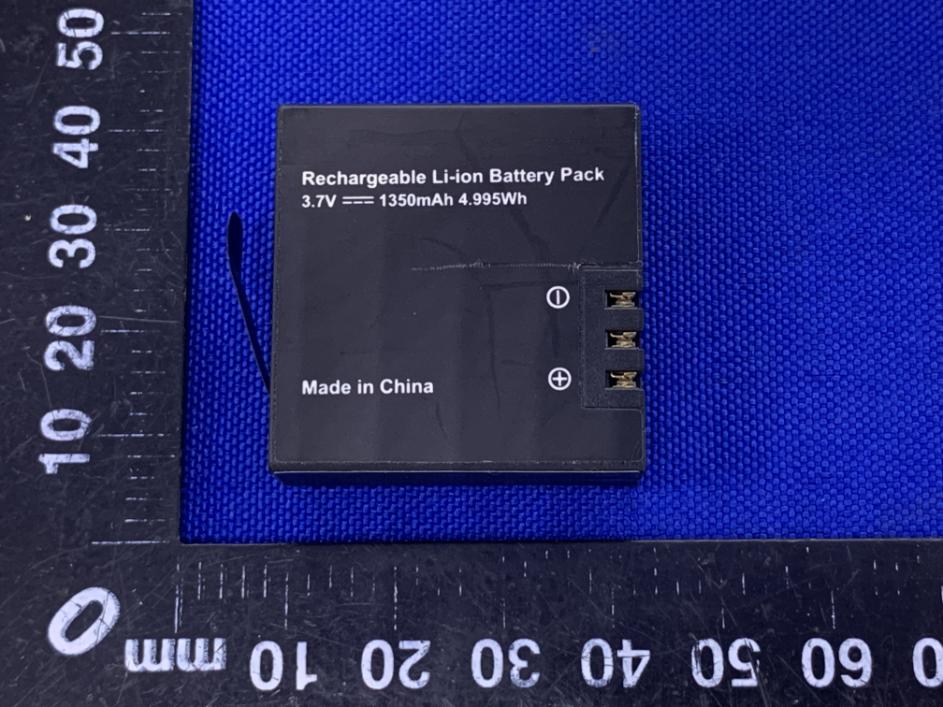

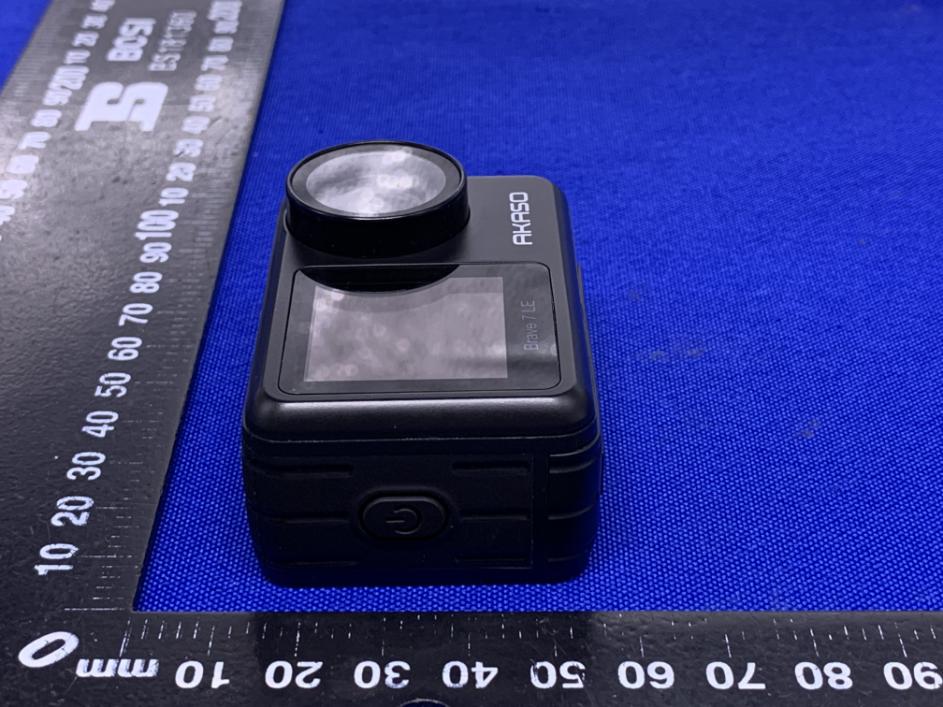

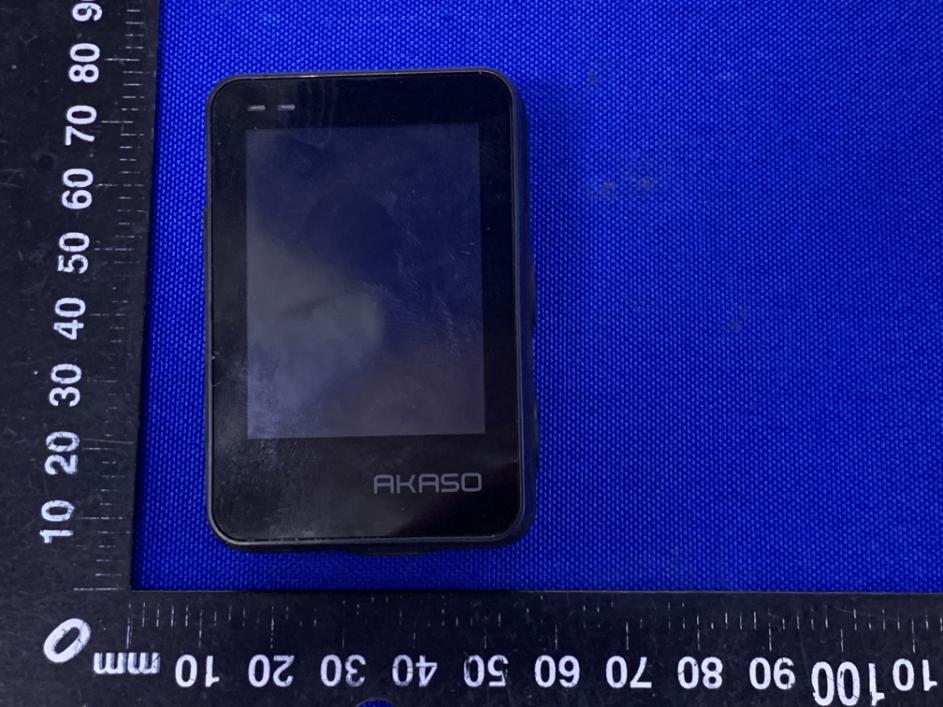

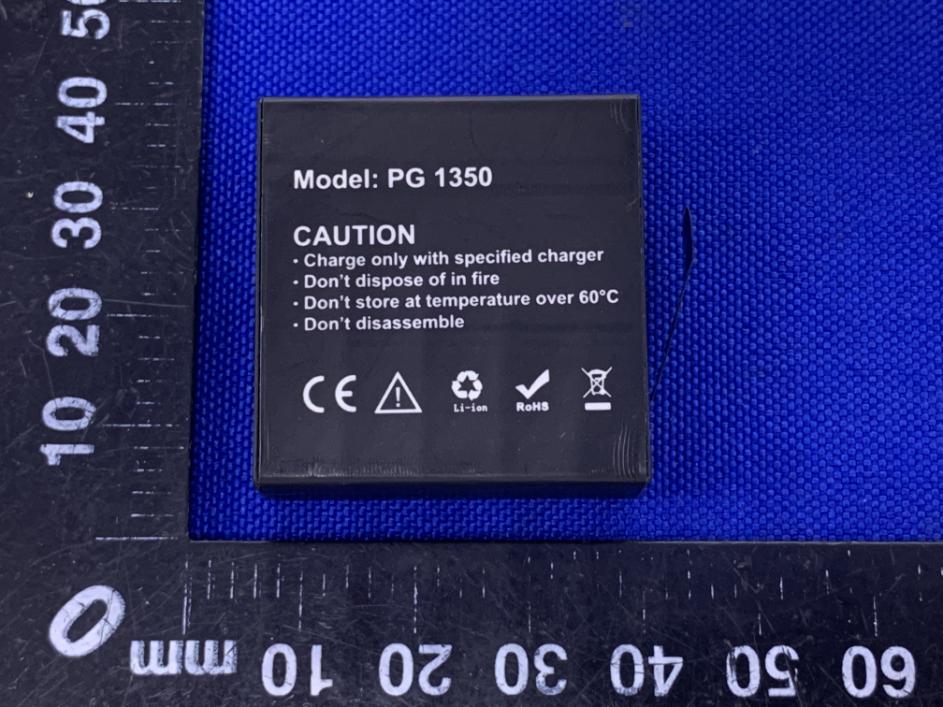

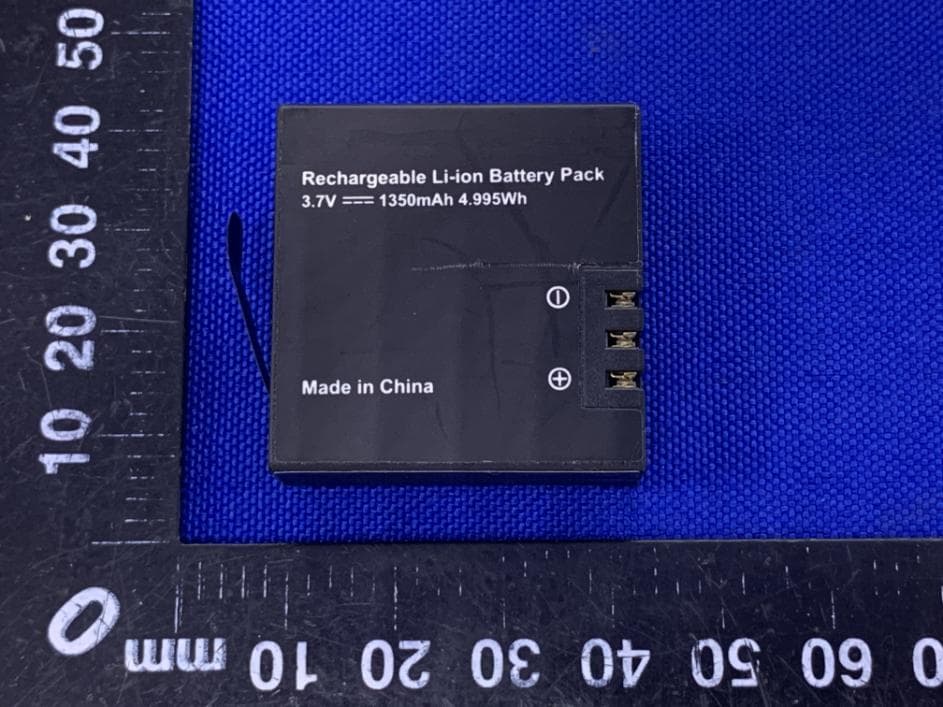

Page 1 of 5 Appendix C: Photographs of EUT Product: Action Camera Model: Brave 7 LE External Photos Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

Label Artwork and Location Model: Brave 7 LE Label: Size: L*W=16*7.5mm Model: Brave 7 LE IC: 24369-ATC001 FCC ID:2ASV5-ATC001 Location

Page 1 of 9 Appendix C: Photographs of EUT Product: Action Camera Model: Brave 7 LE Internal Photos Page 2 of 9 Page 3 of 9 Page 4 of 9 Antenna Page 5 of 9 Page 6 of 9 Page 7 of 9 Page 8 of 9 Page 9 of 9

RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison For WIFI: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 06 2.437 8.04 7.5±1 8.5 7.08 5 2.21 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2ASV5-ATC001 Product: Action Camera Model No.: Brave 7 LE Additional Model No.: Brave 7 HDR, Brave 8, Brave 8 Pro, Brave 8 Elite, Brave 8 Plus, Brave 8 SE, Brave 8 HDR, Brave 9, Brave 9 Pro, Brave 9 plus, Brave 9 HDR, Brave 9 Elite Trade Mark: AKASO Report No.: TCT200706E025 Issued Date: Jul. 14, 2020 Issued for: Akaso Tech LLC 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland, United States Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200706E025 Page 2 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations .................................................................. 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data ................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 17 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 18 6.7. Radiated Spurious Emission Measurement ...................................................... 20 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT200706E025 Page 3 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Action Camera Model No.: Brave 7 LE Additional Model No.: Brave 7 HDR, Brave 8, Brave 8 Pro, Brave 8 Elite, Brave 8 Plus, Brave 8 SE, Brave 8 HDR, Brave 9, Brave 9 Pro, Brave 9 plus, Brave 9 HDR, Brave 9 Elite Trade Mark: AKASO Applicant: Akaso Tech LLC Address: 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland, United States Manufacturer: Akaso Tech LLC Address: 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland, United States Date of Test: Jul. 07, 2020 – Jul. 13, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Jul. 13, 2020 Kevin Huang Reviewed By: Date: Jul. 14, 2020 Beryl Zhao Approved By: Date: Jul. 14, 2020 Tomsin Report No.: TCT200706E025 Page 4 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200706E025 Page 5 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Action Camera Model No.: Brave 7 LE Additional Model No.: Brave 7 HDR, Brave 8, Brave 8 Pro, Brave 8 Elite, Brave 8 Plus, Brave 8 SE, Brave 8 HDR, Brave 9, Brave 9 Pro, Brave 9 plus, Brave 9 HDR, Brave 9 Elite Trade Mark: AKASO Hardware Version: F01_Main_V2.0 Software Version: Jan 14 2020-V1.0 Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) Channel Separation: 5MHz Number of Channel: 11 for 802.11b/802.11g/802.11n(HT20) Modulation Technology (IEEE 802.11b): Direct Sequence Spread Spectrum (DSSS) Modulation Technology (IEEE 802.11g/802.11n): O…

Text truncated - open the document above for the full version.

Report No.: TCT200706E025 Page 56 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 Report No.: TCT200706E025 Page 57 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 Report No.: TCT200706E025 Page 58 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 Report No.: TCT200706E025 Page 59 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 Report No.: TCT200706E025 Page 60 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 Report No.: TCT200706E025 Page 61 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Report No.: TCT200706E025 Page 62 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 63 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result Test Mode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11G Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N20SISO Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Report No.: TCT200706E025 Page 64 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 Report No.: TCT200706E025 Page 65 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Report No.: TCT200706E025 Page 66 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462 Report No.: TCT200706E025 Page 67 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix B: Photographs of Test Setup Product: Action Camera Model: Brave 7 LE Radiated Emission Report No.: TCT200706E025 Page 68 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Emission Report No.: TCT200706E025 Page 69 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix C: Photographs of EUT Product: Action Camera Model: Brave 7 LE External Photos Report No.: TCT200706E025 Page 70 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 71 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 72 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 73 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 74 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Product: Action Camera Model: Brave 7 LE Internal Photos Report No.: TCT200706E025 Page 75 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 76 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 77 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 78 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 79 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 80 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 81 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200706E025 Page 82 of 82 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com *****END OF REPORT*****

Page 1 of 2 Appendix B: Photographs of Test Setup Product: Action Camera Model: Brave 7 LE Radiated Emission Page 2 of 2 Conducted Emission
