2ASV5-KEYCHAINAction Camera

V1 USER MANUALUSER MANUAL V1 Action Camera Keychain FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Statement This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The term “IC: “ before the certification/registration number only signifies that the Industry Canada technical specifications were met. This product meets the applicable Industry Canada technical specifications. Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation, Sciences et Développement économique Canada. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. What's in the Box Your Keychain Camera Getting Started Standalone Use Download the AKASO GO App Connecting to the App Customizing Your Keychain Camera in the “AKASO GO” App Accessories Introduction Updating Your Camera’s Software Q&A Contact Us 1 2 3 4 5 5 7 11 12 12 13 CONTENTS WHAT'S IN THE BOX AKASO Keychain Camera * 1 Type-C Charging Cable * 1 Easy Clip * 1 Pivot Stand and Pivot Stand Base * 1 Carry-on Camera Case * 1 Magnet Base * 1 Quick Start Guide * 1 Quick Start Guide 1 YOUR KEYCHAIN CAMERA Fill Light Charging Indicator, 3RZHU2Q2΍ :L)L2Q2΍ Status Indicator, )LOO/LJKW2Q2΍ Quick Capture 9LGHR2Q2΍ Lens Microphone MicroSD Card Slot Reset Button Type-C Port 2 GETTING STARTED 1. CHARGING THE BATTERY To make the most of your new camera, we recommend fully charging the battery EHIRUHȴUVWXVH 2. INSERTING/REMOVING MICROSD CARDS ȏΖQVHUWWKHFDUG QRWLQFOXGHG DWDGRZQZDUGDQJOHZLWKWKHODEHOIDFLQJGRZQ ȏ7RUHPRYHWKHFDUGSUHVVLWLQWRWKHVORWZLWK\RXUȴQJHUQDLODQGLWZLOOSRSRXW Step1:2SHQWKHGRRU Step2:&KDUJHWKHEDWWHU\XVLQJWKH86%&FDEOHLQFOXGHG Note:7KHEDWWHU\FDQQRWEHUHPRYHGIURPWKHFDPHUD 7KHFDPHUDVWDWXVOLJKWWXUQVUHGGXULQJFKDUJLQJ:KHQFKDUJLQJZLWKDFRPSXWHU EHVXUHWKDWWKHFRPSXWHULVFRQQHFWHGWRDSRZHUVRXUFHΖIWKHFDPHUDVWDWXVOLJKW GRHVQRWWXUQRQXVHDGL΍HUHQW86%SRUW 3 Please use brand name memory cards that meet these requirements: • microSD, microSDHC or microSDXC • Class 10 or UHS-I rating • Capacity up to 64GB (FAT32) Note:+DQGOHPHPRU\FDUGVZLWKFDUH$YRLGFRQWDFWZLWKOLTXLGVGXVWDQGGHEULV $VDSUHFDXWLRQSRZHUR΍WKHFDPHUDEHIRUHLQVHUWLQJRUUHPRYLQJWKHFDUG &KHFNPDQXIDFWXUHUJXLGHOLQHVUHJDUGLQJXVHLQDFFHSWDEOHWHPSHUDWXUHUDQJHV STANDALONE USE 3RZHU2Q2΍ 3UHVVDQGKROGWKH3RZHURQR΍%XWWRQIRUDWOHDVWVHFRQGVWRSRZHURQR΍WKH .H\FKDLQFDPHUDLQGLFDWHGE\WZRVKRUWYLEUDWLRQVDQGDEOXHVWDWXVLQGLFDWRU Tips: If you turn on auto shut down (1/3/5 Mins) and your Keychain camera stays in VWDQGE\PRGHIRURYHU0LQVLWZLOOVKXWGRZQDXWRPDWLFDOO\ )LOO/LJKW2Q2΍ Firstly make sure the camera is on, press and hold the Fill Light button for at least VHFRQGVWRWXUQRQRUWXUQR΍WKHȴOOOLJKW 3RZHU2Q2΍ :Lȴ2Q2΍ )LOO/LJKW2Q2΍ Quick Capture 9LGHR2Q2΍ 4 The AKASO GODSSLVDYDLODEOHRQWKH$SS6WRUHkDQG*RRJOH3OD\Ƞ DOWNLOAD THE AKASO GO APP The AKASO GO app lets you control your camera remotely using a smartphone or WDEOHW )HDWXUHVLQFOXGHFDPHUDFRQWUROOLYHSUHYLHZSOD\EDFNGRZQORDGDQGVHWWLQJV 7XUQRQWKHFDPHUD3UHVVWKH3RZHUEXWWRQWRWXUQRQ:LȴRQWKHFDPHUD 7XUQRQ:LȴRQ\RXUSKRQHVHOHFWWKH:LȴQDPHG61.&;;;;DQGHQWHUWKH SDVVZRUGRQ\RXUVPDUWSKRQH:/$1VHWWLQJ Open the AKASO GODSS7DSWKHȊ+ȋLFRQRQWKHXSSHUULJKWFRUQHU Add “KeyChain” and click the “Live Previewȋ CONNECTING TO THE APP 4XLFN&DSWXUH2Q2΍ )LUVWO\PDNHVXUHWKHFDPHUDLVRQ3UHVVWKH4XLFN&DSWXUHEXWWRQDQG\RXZLOOVHH WKHEOXHLQGLFDWRUȵDVKVKRZLQJWKDW\RXU.H\FKDLQFDPHUDKDVVWDUWHGYLGHR FDSWXUH3UHVVDJDLQWRVWRSFDSWXULQJWKHYLGHR Tips:'HIDXOWVHWWLQJLV1RUPDO9LGHR7KHFDPHUDZLOODOVRUHPHPEHUWKHYLGHR VKRRWLQJPRGH\RXVHOHFWHGLQWKHDSSODVWWLPH AKASO GO 5 6 Having successfully connected to your Keychain, you can capture photos or YLGHRVYLDWKHDSS 1. Video Setup CUSTOMIZING YOUR KEYCHAIN CAMERA IN THE “AKASO GO” APP Video Setting Record Video Loop Recording Slow Motion …

Text truncated - open the document above for the full version.

Statement Product: Action Camera Model: Keychain Additional Model: Keychain 2, Freerun Trademark: AKASO We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/12/15 Name: Sindy Chan Company Name : Akaso Tech LLC Addres s: 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland 20855, United States Tel / Fax: 301-670-7335/301-859-0491 E-Mail: [email protected]

Akaso Tech LLC 2020-12-15 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongce Testing Lab. / 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China(Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Akaso Tech LLC / 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland 20855, United States(Applicant Name and address) <Signature> Name:Sindy Chan Title: Manager Company: Akaso Tech LLC

Akaso Tech LLC 2020-12-15 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ASV5-KEYCHAIN Product Name: Action Camera Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Sindy Chan Title: Manager Company: Akaso Tech LLC

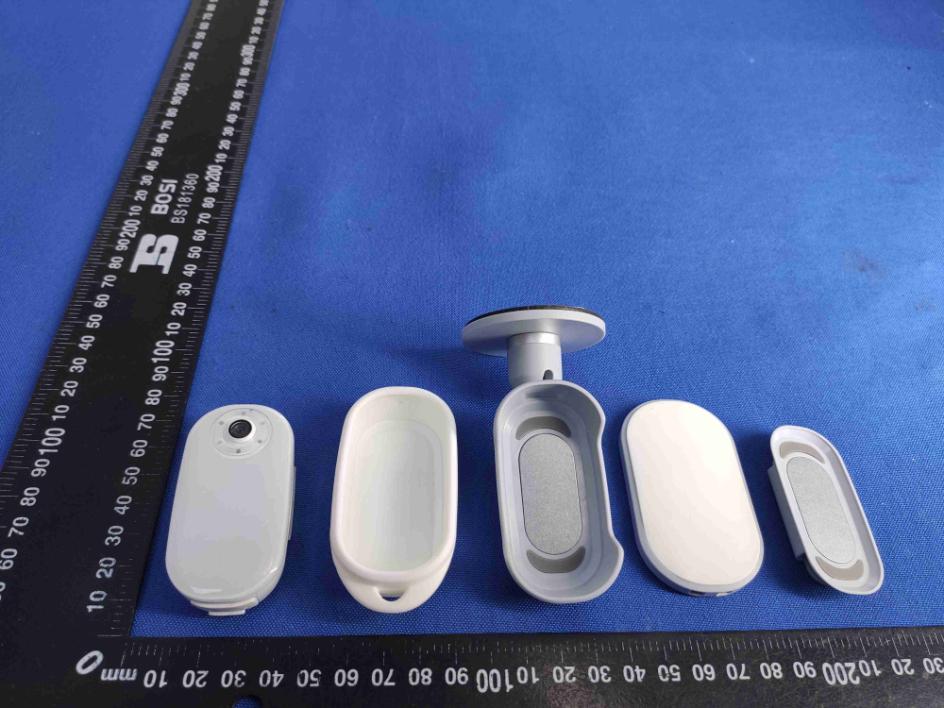

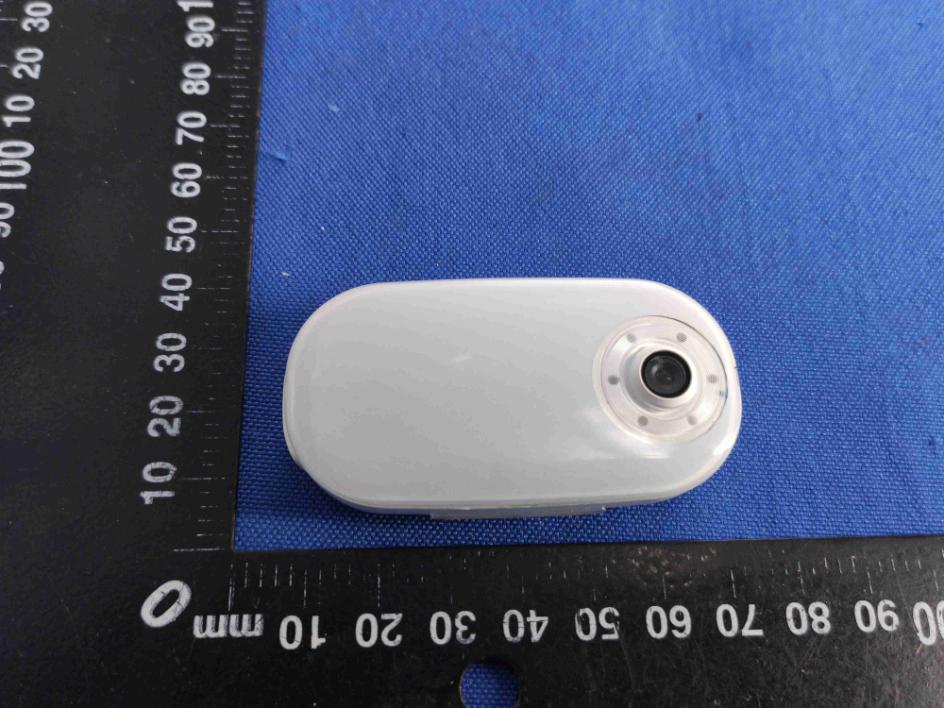

Page 1 of 4 Appendix B: Photographs of EUT Product: Action Camera Model: Keychain External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: Keychain Label: Size: L*W=25*10mm Action Camera AKASO Model No.: Keychain FCC ID: 2ASV5-KEYCHAIN Location

Page 1 of 7 Appendix B: Photographs of EUT Product: Action Camera Model: Keychain Internal Photos ANT Page 2 of 7 Page 3 of 7 Page 4 of 7 Page 5 of 7 Page 6 of 7 Page 7 of 7

RF exposure evaluation FCC ID: 2ASV5-KEYCHAIN §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison For WIFI: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 11 2.462 7.64 7.0±1 8.0 6.31 5 1.98 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2ASV5-KEYCHAIN Product: Action Camera Model No.: Keychain Additional Model No.: Keychain 2, Freerun Trade Mark: AKASO Report No.: TCT200927E004 Issued Date: Nov. 12, 2020 Issued for: Akaso Tech LLC 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland 20855, United States Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200927E004 Page 2 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations .................................................................. 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data ................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 17 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 18 6.7. Radiated Spurious Emission Measurement ...................................................... 20 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT200927E004 Page 3 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Action Camera Model No.: Keychain Additional Model: Keychain 2, Freerun Trade Mark: AKASO Applicant: Akaso Tech LLC Address: 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland 20855, United States Manufacturer: Akaso Tech LLC Address: 15726 CRABBS BRANCH WAY DERWOOD, MD 20855, DERWOOD, Maryland 20855, United States Date of Test: Sep. 28, 2020 – Nov. 11, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Nov. 11, 2020 Aaron Mo Reviewed By: Date: Nov. 12, 2020 Beryl Zhao Approved By: Date: Nov. 12, 2020 Tomsin Report No.: TCT200927E004 Page 4 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200927E004 Page 5 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Action Camera Model No.: Keychain Additional Model: Keychain 2, Freerun Trade Mark: AKASO Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) Channel Separation: 5MHz Number of Channel: 11 for 802.11b/802.11g/802.11n(HT20) Modulation Technology: (IEEE 802.11b) Direct Sequence Spread Spectrum (DSSS) Modulation Technology: (IEEE 802.11g/802.11n) Orthogonal Frequency Division Multiplexing(OFDM) Data speed (IEEE 802.11b): 1Mbps, 2Mbps, 5.5Mbps, 11Mbps Data speed (IEEE 802.11g): 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps Data speed (IEEE 802.11n): Up to 150Mbps Antenna Type: FPC Antenna Antenna Gain: 1dBi Power Supply: Rechargeable Li-ion battery DC 3.7 V Remark: All models above are identical in interior structure, electrical circuits and components, and just model names are differe…

Text truncated - open the document above for the full version.

Report No.: TCT200927E004 Page 53 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -1.60 -1.60 --- PASS 30~1000 30~1000 -67.807 <=-31.6 PASS 1000~26500 1000~26500 -42.508 <=-31.6 PASS 2437 Reference -0.91 -0.91 --- PASS 30~1000 30~1000 -68.592 <=-30.905 PASS 1000~26500 1000~26500 -43.135 <=-30.905 PASS 2462 Reference -1.14 -1.14 --- PASS 30~1000 30~1000 -68.49 <=-31.142 PASS 1000~26500 1000~26500 -42.937 <=-31.142 PASS 11G Ant1 2412 Reference -3.83 -3.83 --- PASS 30~1000 30~1000 -68.819 <=-33.83 PASS 1000~26500 1000~26500 -43.186 <=-33.83 PASS 2437 Reference -3.47 -3.47 --- PASS 30~1000 30~1000 -68.921 <=-33.467 PASS 1000~26500 1000~26500 -44.077 <=-33.467 PASS 2462 Reference -3.21 -3.21 --- PASS 30~1000 30~1000 -68.581 <=-33.21 PASS 1000~26500 1000~26500 -43.344 <=-33.21 PASS 11N20SISO Ant1 2412 Reference -6.33 -6.33 --- PASS 30~1000 30~1000 -68.915 <=-36.331 PASS 1000~26500 1000~26500 -43.388 <=-36.331 PASS 2437 Reference -5.84 -5.84 --- PASS 30~1000 30~1000 -68.849 <=-35.842 PASS 1000~26500 1000~26500 -41.871 <=-35.842 PASS 2462 Reference -5.17 -5.17 --- PASS 30~1000 30~1000 -62.497 <=-35.168 PASS 1000~26500 1000~26500 -42.944 <=-35.168 PASS Report No.: TCT200927E004 Page 54 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 Report No.: TCT200927E004 Page 55 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference Report No.: TCT200927E004 Page 56 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference Report No.: TCT200927E004 Page 57 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference Report No.: TCT200927E004 Page 58 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference Report No.: TCT200927E004 Page 59 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference Report No.: TCT200927E004 Page 60 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference Report No.: TCT200927E004 Page 61 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference Report No.: TCT200927E004 Page 62 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Report No.: TCT200927E004 Page 64 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11G Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N20SISO Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS Report No.: TCT200927E004 Page 65 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_Ant1_2412 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2437 11B_Ant1_2462 11B_Ant1_2462 Report No.: TCT200927E004 Page 66 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2437 11G_Ant1_2462 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2412 Report No.: TCT200927E004 Page 67 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2437 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N20SISO_Ant1_2462 Report No.: TCT200927E004 Page 68 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix A: Photographs of Test Setup Product: Action Camera Model: Keychain Radiated Emission Report No.: TCT200927E004 Page 69 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Emission Report No.: TCT200927E004 Page 70 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix B: Photographs of EUT Product: Action Camera Model: Keychain External Photos Report No.: TCT200927E004 Page 71 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200927E004 Page 72 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200927E004 Page 73 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200927E004 Page 74 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Product: Action Camera Model: Keychain Internal Photos Report No.: TCT200927E004 Page 75 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200927E004 Page 76 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200927E004 Page 77 of 80 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http:…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Action Camera Model: Keychain Radiated Emission Page 2 of 2 Conducted Emission
