2ASYV-K-MC1LP24GHz analog radar transceiver

K-MC1_LP RADAR TRANSCEIVER Datasheet Features LOW CURRENT 24 GHz short range transceiver 8mA @ 3.3V at same performance as K-MC1 3.3V ... 5V supply Less than 30mW power consumption High sensitivity, with integrated RF/IF amplifier Dual 30 patch antenna Buffered I/Q IF outputs Beam aperture 25°/12° Slim 6mm thickness construction Applications Battery operated equipment Traffic supervision Object speed measurement systems Industrial sensors Description K-MC1_LP is a low current, doppler module with an asymmetrical narrow beam for long distance sensors. It is ideally suited for traffic applicatons. This module includes a RF low noise amplifier and two 47dB IF pre-amplifiers for both I and Q channels. The need for external analogue electronics will be significantly reduced by this feature. K-MC1_LP needs 10 times less current than our standard K-MC1 sensor and works from 3.3V or 5V power supplies. An extremely slim construction with only 6mm depth gives you maximum flexibility in your equipment design. Powerful starter kits with signal conditioning and visualization are available. Blockdiagram Fig. 1: K-MC1_LP Blockdiagram © RFbeam Microwave GmbH, Schuppisstrasse 7, CH-9016 St. GallenPage 1/9 TxRx 24.125 GHz S&H S&H I channel Q channel 3.3V .. 5V LNA 47dB 47dB Power Supply Control 40Hz ... 16kHz K-MC1_LP RADAR TRANSCEIVER Datasheet Characteristics ParameterConditions / NotesSymbolMinTypMaxUnit Operating conditions Supply voltageV cc 3.156.0V Supply currentModule enabled (Pin 1 = V IL )I cc 7.59mA Operating temperatureT op -20+80°C Storage temperatureT st -20+80°C Transmitter Transmitter frequencyU VCO = 5V, T amb =-20°C .. +60°Cf TX 24.05024.15024.250GHz Frequency drift vs temp.V cc =5.0V, -20°C .. +60°C Note 1  f TX -1.0MHz/°C Output powerEIRP peak powerP TX +16+18+20dBm Transmitter duty cycleinternally generatedd1% Spurious emissionAccording to ETSI 300 440P spur -30dBm Receiver Antenna gainF TX =24.125GHz Note 2 G Ant 18.5dBi LNA gainF RX =24.125GHzG LNA 10dB Mixer Conversion lossf IF =500HzD mixer -1dB Receiver sensitivityf IF =500Hz, B=1kHz, S/N=6dBP RX -122dBm Overall sensitivityf IF =500Hz, B=1kHz, S/N=6dBD system -140dBc IF output IF output impedanceR IF_AC 100  IF Amplifier gainG IF_AC 47dB I/Q amplitude balancef IF =500Hz, U IF =100mV pp U IF 3dB I/Q phase shiftf IF =500Hz, U IF =100mV pp  8090100° IF frequency range-3dB Bandwidth f IF_AC 4015kHz Spurious signalsInternal regulator @ 100kHzV sp 0.3mVrms IF noise voltagef IF =1kHzU IFnoise 35 V/Hz f IF =1kHzU IFnoise -89dBV/Hz IF output offset voltageV cc = 5V, _AC outputsU os_AC 1.01.52.0V Supply rejectionRejection supply pins to _AC outputs, 500HzD supply -24dB Antenna Horizontal -3dB beamwidthE-Plane W  12° Vertical -3dB beamwidthH-Plane W  25° Horiz. sidelobe suppression D  -20dB Vert. sidelobe suppression D  -18dB Body Outline Dimensionsconnector left unconnected65*65*6mm 3 Weight50g ConnectorModule side: AMP X-338069-88pins Note 1 Transmit frequency stays within 24.050 to 24.250GHz over the specified temperature range Note 2 Theoretical value, given by Design © RFbeam Microwave GmbH, Schuppisstrasse 7, CH-9016 St. GallenPage 2/9 K-MC1_LP RADAR TRANSCEIVER Datasheet Antenna System Diagram This diagram shows module sensitivity in both azimuth and elevation directions. It combines transmitter and receiver antenna characteristics. Fig. 2: Anntenna system diagram Pin Configuration PinDescriptionTypical Value 1nc 2VCC3.3V..5V supply 3GND0V supply 4IF output Q 5IF output I 6nc 7nc 8nc Outline Dimensions Mounting instruction Mount from back side using thread marked with B: M2.5 screws, screw depth < 3.5mm Keep out zone C (tuning srcew) K-MC1_LP modules must not be used without screws in A. Fig. 3: Mechanical dimensions © RFbeam Microwave GmbH, Schuppisstrasse 7, CH-9016 St. GallenPage 3/9 A n t e n n a s i d e K-MC1_LP RADAR TRANSCEIVER Datasheet Application Notes Main Differences K-MC1_LP vs K-MC1 K-MC_LPK-MC1 Current consumption (typ.)7.5mA70mA Supply Voltage3.15V ... 6V4.75V ... 5.25V VCO Input (FMCW, FSK) not availableyes IF highspeed DC outputnot availableyes IF output DC offset (typ.)1.5V2.5V RSW rapid sleep wakeupnot available, not necessaryyes (sleep current typ 7mA) Sensitivity (typical)-140dBc-141dBc IF noise voltage (typ. @1kHz)- 91dBV/Hz-96dBV/Hz SNR Signal-to-noise ratio same signal for comparison K-MC1_LP has similar sensitivity as K-MC1 despite the higher noise level. 5dB/div → SNR = 32dB 5dB/div → SNR = 33dB Worst case 1/f Noise comparison Low current technology of K-MC1_LP requires high sensitive mixer diodes in order to get same sensitivity as K-MC1. Higher 1/f noise is caused by these diodes and by aliasing of internal switching noise. Please note, that higher K-MC1_LP noise does not significantly affect the SNR (signal-to-noise ratio). See diagrams above for SNR. K-MC1 sample with minimal noise floor and K-MC1_LP sample with high noise floor © RFbeam Microwave GmbH, Schuppisstrasse 7, CH-9016 St. GallenPage 4/9 dBV, measured at Bandwidth B = 5.4Hz K-MC1 K-MC1_LP K-MC1_LP RADAR TRANSCEIVER Datasheet Sensitivity and Maximum Range The values indicated here are intended to give you a 'feeling' of the attainable detection range with this module. It is not possible to define an exact RCS (radar cross section) value of real objects because reflectivity depends on many parameters. The RCS variations however influence the maximum range only by 4  . Maximum range for Doppler movement depends mainly on: - Module sensitivity S: -140dBc (@1kHz IF Bandwidth) - Carrier frequencyf 0 :24.125GHz - Radar cross section RCS ("reflectivity") of the object 1) :1m 2 approx. for a moving person >50m 2 for a moving car 1) RCS indications are very inaccurate and may vary by factors of 10 and more. The famous "Radar Equation" may be reduced for our K-band module to the following relation: 4 40 100167.0 s r Using this formula, you get an indicative detection range of > 50 meters for a moving person > 140 meters for…

Text truncated - open the document above for the full version.

PHOENIX TESTLAB GmbH Date: 25 February 2020 Product Certification Königswinkel 10 D 32825 Blomberg Attn: Reviewing Engineer Subject: REQUEST FOR FCC MODULAR TRANSMITTER APPROVAL FCC ID: 2ASYV-K-MC1LP To Whom It May Concern: We, (applicant name), hereby request ☒ a modular / ☐ limited modular approval. In CFR47 §15.212 “Modular Transmitters” and KDB 996369 D01 “Module Equip Auth Guide” there are following eight numbered requirements defined: 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. This request is fulfilled. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. This request is fulfilled. 3. The modular transmitter must have its own power supply regulation on the module. This request is fulfilled. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). This request is fulfilled, the antennas are on the module. 5. The module must demonstrate compliance in a stand-alone configuration. This request is fulfilled. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number (KDB 784748). This request is fulfilled. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. This request is fulfilled. 8. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. This request is fulfilled. Yours sincerely, Signatory PHOENIX TESTLAB GmbH Horst Dreinert, Graduated Approval Engineer

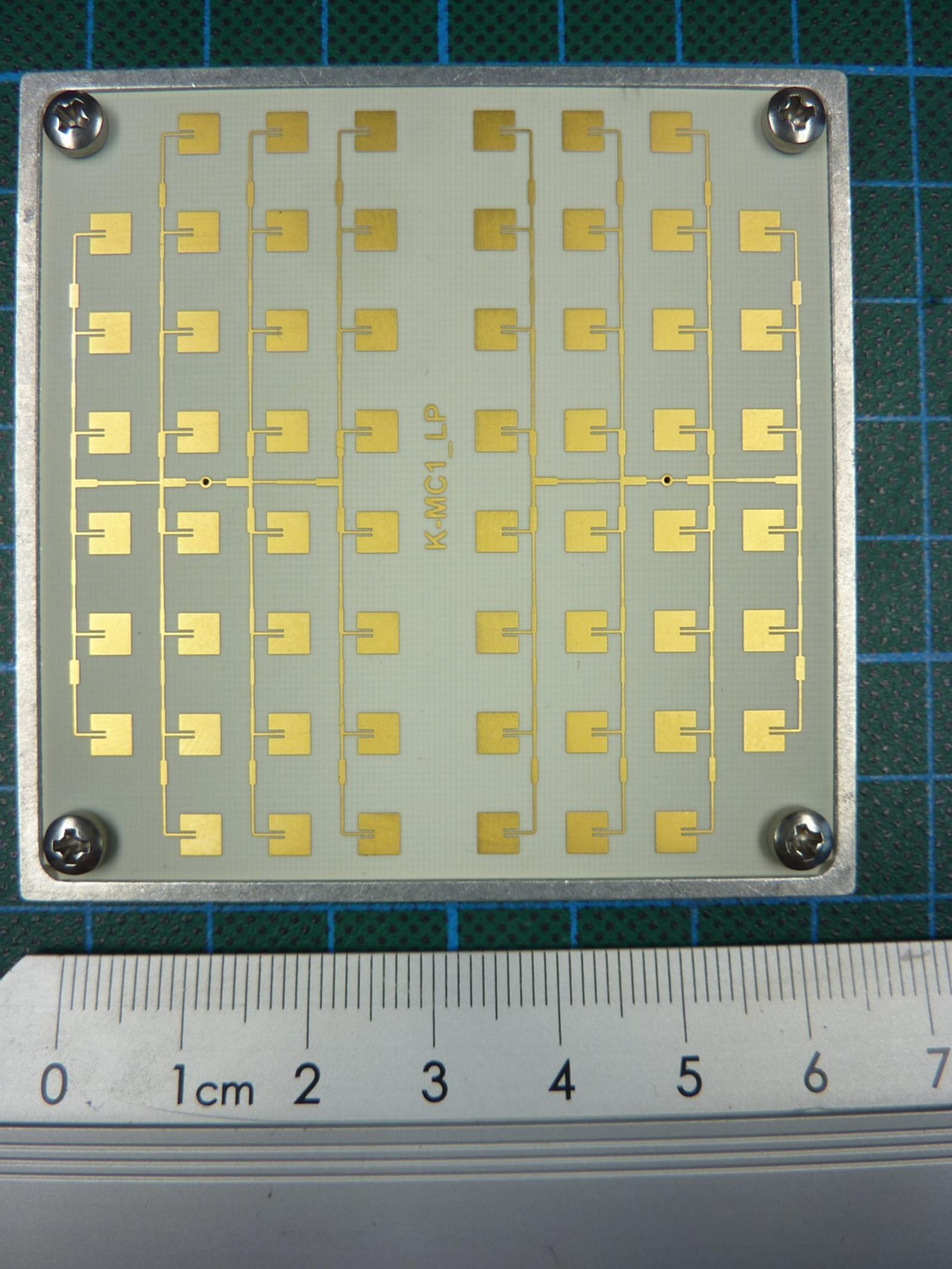

Annex B External photographs Examiner:Thomas KÜHNReport Number: F181708E1 Date of issue: 04.06.2019Order Number: 18-111708page 1 of 2 181708_g.jpg: K-MC1_LP, front view Annex B External photographs Examiner:Thomas KÜHNReport Number: F181708E1 Date of issue: 04.06.2019Order Number: 18-111708page 2 of 2 181708_f.jpg: K-MC1_LP, rear view

RFbeam Microwave GmbH K-MC1_LP analogue radar transceiver Label and Location © RFbeam Microwave GmbH, Schuppisstrasse 7, CH-9016 St. Gallen, www.rfbeam.ch Page 1/1 Label Design Label Location Permanently on the backside and in the middle of the shield cover. RFbeam Microwave GmbH K-MC1_LP K-MC1_LP-RFB-00H L2008n00001 IC: 24358-KMC1LP FCC ID: 2ASYV-K-MC1LP RFbeam Microwave GmbH K-MC1_LP K-MC1_LP-RFB-00H L2008n00001 IC: 24358-KMC1LP FCC ID: 2ASYV-K-MC1LP

Annex C Internal photographs Examiner:Thomas KÜHNReport Number: F181708E1 Date of issue: 04.06.2019Order Number: 18-111708page 1 of 2 181708_h.jpg: K-MC1_LP, rear view (shielding removed) Annex C Internal photographs Examiner:Thomas KÜHNReport Number: F181708E1 Date of issue: 04.06.2019Order Number: 18-111708page 2 of 2 181708_i.jpg: K-MC1_LP, PCB, rear view

K-MC1_LP RADAR TRANSCEIVER Datasheet Features LOW CURRENT 24 GHz short range transceiver 8mA @ 3.3V at same performance as K-MC1 3.3V ... 5V supply Less than 30mW power consumption High sensitivity, with integrated RF/IF amplifier Dual 30 patch antenna Buffered I/Q IF outputs Beam aperture 25°/12° Slim 6mm thickness construction Applications Battery operated equipment Traffic supervision Object speed measurement systems Industrial sensors Description K-MC1_LP is a low current, doppler module with an asymmetrical narrow beam for long distance sensors. It is ideally suited for traffic applicatons. This module includes a RF low noise amplifier and two 47dB IF pre-amplifiers for both I and Q channels. The need for external analogue electronics will be significantly reduced by this feature. K-MC1_LP needs 10 times less current than our standard K-MC1 sensor and works from 3.3V or 5V power supplies. An extremely slim construction with only 6mm depth gives you maximum flexibility in your equipment design. Powerful starter kits with signal conditioning and visualization are available. Blockdiagram Fig. 1: K-MC1_LP Blockdiagram © RFbeam Microwave GmbH, Schuppisstrasse 7, CH-9016 St. GallenPage 1/9 TxRx 24.125 GHz S&H S&H I channel Q channel 3.3V .. 5V LNA 47dB 47dB Power Supply Control 40Hz ... 16kHz K-MC1_LP RADAR TRANSCEIVER Datasheet Characteristics ParameterConditions / NotesSymbolMinTypMaxUnit Operating conditions Supply voltageV cc 3.156.0V Supply currentModule enabled (Pin 1 = V IL )I cc 7.59mA Operating temperatureT op -20+80°C Storage temperatureT st -20+80°C Transmitter Transmitter frequencyU VCO = 5V, T amb =-20°C .. +60°Cf TX 24.05024.15024.250GHz Frequency drift vs temp.V cc =5.0V, -20°C .. +60°C Note 1  f TX -1.0MHz/°C Output powerEIRP peak powerP TX +16+18+20dBm Transmitter duty cycleinternally generatedd1% Spurious emissionAccording to ETSI 300 440P spur -30dBm Receiver Antenna gainF TX =24.125GHz Note 2 G Ant 18.5dBi LNA gainF RX =24.125GHzG LNA 10dB Mixer Conversion lossf IF =500HzD mixer -1dB Receiver sensitivityf IF =500Hz, B=1kHz, S/N=6dBP RX -122dBm Overall sensitivityf IF =500Hz, B=1kHz, S/N=6dBD system -140dBc IF output IF output impedanceR IF_AC 100  IF Amplifier gainG IF_AC 47dB I/Q amplitude balancef IF =500Hz, U IF =100mV pp U IF 3dB I/Q phase shiftf IF =500Hz, U IF =100mV pp  8090100° IF frequency range-3dB Bandwidth f IF_AC 4015kHz Spurious signalsInternal regulator @ 100kHzV sp 0.3mVrms IF noise voltagef IF =1kHzU IFnoise 35 V/Hz f IF =1kHzU IFnoise -89dBV/Hz IF output offset voltageV cc = 5V, _AC outputsU os_AC 1.01.52.0V Supply rejectionRejection supply pins to _AC outputs, 500HzD supply -24dB Antenna Horizontal -3dB beamwidthE-Plane W  12° Vertical -3dB beamwidthH-Plane W  25° Horiz. sidelobe suppression D  -20dB Vert. sidelobe suppression D  -18dB Body Outline Dimensionsconnector left unconnected65*65*6mm 3 Weight50g ConnectorModule side: AMP X-338069-88pins Note 1 Transmit frequency stays within 24.050 to 24.250GHz over the specified temperature range Note 2 Theoretical value, given by Design © RFbeam Microwave GmbH, Schuppisstrasse 7, CH-9016 St. GallenPage 2/9 K-MC1_LP RADAR TRANSCEIVER Datasheet Antenna System Diagram This diagram shows module sensitivity in both azimuth and elevation directions. It combines transmitter and receiver antenna characteristics. Fig. 2: Anntenna system diagram Pin Configuration PinDescriptionTypical Value 1nc 2VCC3.3V..5V supply 3GND0V supply 4IF output Q 5IF output I 6nc 7nc 8nc Outline Dimensions Mounting instruction Mount from back side using thread marked with B: M2.5 screws, screw depth < 3.5mm Keep out zone C (tuning srcew) K-MC1_LP modules must not be used without screws in A. Fig. 3: Mechanical dimensions © RFbeam Microwave GmbH, Schuppisstrasse 7, CH-9016 St. GallenPage 3/9 A n t e n n a s i d e K-MC1_LP RADAR TRANSCEIVER Datasheet Application Notes Main Differences K-MC1_LP vs K-MC1 K-MC_LPK-MC1 Current consumption (typ.)7.5mA70mA Supply Voltage3.15V ... 6V4.75V ... 5.25V VCO Input (FMCW, FSK) not availableyes IF highspeed DC outputnot availableyes IF output DC offset (typ.)1.5V2.5V RSW rapid sleep wakeupnot available, not necessaryyes (sleep current typ 7mA) Sensitivity (typical)-140dBc-141dBc IF noise voltage (typ. @1kHz)- 91dBV/Hz-96dBV/Hz SNR Signal-to-noise ratio same signal for comparison K-MC1_LP has similar sensitivity as K-MC1 despite the higher noise level. 5dB/div → SNR = 32dB 5dB/div → SNR = 33dB Worst case 1/f Noise comparison Low current technology of K-MC1_LP requires high sensitive mixer diodes in order to get same sensitivity as K-MC1. Higher 1/f noise is caused by these diodes and by aliasing of internal switching noise. Please note, that higher K-MC1_LP noise does not significantly affect the SNR (signal-to-noise ratio). See diagrams above for SNR. K-MC1 sample with minimal noise floor and K-MC1_LP sample with high noise floor © RFbeam Microwave GmbH, Schuppisstrasse 7, CH-9016 St. GallenPage 4/9 dBV, measured at Bandwidth B = 5.4Hz K-MC1 K-MC1_LP K-MC1_LP RADAR TRANSCEIVER Datasheet Sensitivity and Maximum Range The values indicated here are intended to give you a 'feeling' of the attainable detection range with this module. It is not possible to define an exact RCS (radar cross section) value of real objects because reflectivity depends on many parameters. The RCS variations however influence the maximum range only by 4  . Maximum range for Doppler movement depends mainly on: - Module sensitivity S: -140dBc (@1kHz IF Bandwidth) - Carrier frequencyf 0 :24.125GHz - Radar cross section RCS ("reflectivity") of the object 1) :1m 2 approx. for a moving person >50m 2 for a moving car 1) RCS indications are very inaccurate and may vary by factors of 10 and more. The famous "Radar Equation" may be reduced for our K-band module to the following relation: 4 40 100167.0 s r Using this formula, you get an indicative detection range of > 50 meters for a moving person > 140 meters for…

Text truncated - open the document above for the full version.

Calculation: RF-Exposure for 24 GHz transmitter Type identification: K-MC1_LP In accordance to theCFR Part 47, §1.1310and RSS-102 Issue 5 S: Limit for power density according to - CFR Part 47, §1.1310:10 W/m 2 - RSS-102 Issue 5, Table 4: 10 W/m 2 Because the EUT has no antenna connector, which presents the power delivered to the antenna, the measured peak value of the field strength (refer test report F181708E1 of PHOENIX TESTLAB GmbH) was used to calculate the peak radiated power. According to ANSI C63.10-2013 this field strength value was converted to a radiated peak power with the following formula: Calculated peak radiated output power [W] = (field strength [V/m] * measuring distance [m]) 2 / 30 The peak value of the field strength was measured with 107.4 dBμV/m, which is equal to 0.234 V/m Calculated peak radiated output power = 16.4 mW = (0.234 V/m * 3 m) 2 / 30 P:16.4 mW (peak value, refer calculation above) G: 0 dBi = 1 (power is measured radiated, including antenna gain) D: Duty cycle: 100 % = 1 R: Distance in what the limit of S has to be reached: 0.2 m (refer also to the manufacturers installation / user manual) ܵ= ܲ∗ܩ∗ܦ 4∗ߨ∗ܴ ଶ →ܵ= 0.0164ܹ∗1∗1 4∗ߨ∗(0.2݉) ଶ = 0.033 ܹ ݉ ଶ The value of the power density is below the limit of CFR Part 47, §1.1310 for the “General population / Uncontrolled Exposure” and below the limit of RSS-102 Issue 5, Table 4 “General Public (uncontrolled environment)”.

Königswinkel 10 32825 Blomberg, Germany Phone: +49 (0) 52 35 / 95 00-0 Fax:+49 (0) 52 35 / 95 00-10 [email protected] www.phoenix-testlab.de Test Report Report Number: F181708E1 Equipment under Test (EUT): K-MC1_LP Applicant: RFbeam Microwave GmbH Manufacturer: RFbeam Microwave GmbH Test engineer: Thomas KÜHNReport Number:F181708E1 Date of issue: 04.06.2019Order Number:18-111708page 2 of 37 REFERENCES [1] ANSI C63.10-2013 American National Standard for Methods of Measuring of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. [2] FCC CFR 47 Part 15 Radio Frequency Devices [3] RSS-210 Issue 9 (August 2016)Licence-exempt Radio Apparatus: Category I Equipment [4] RSS-Gen Issue 5 (March 2019) Amendment 1 General Requirements for Compliance of Radio Apparatus TEST RESULT The requirements of the tests performed as shown in the overview (clause 4) were fulfilled by the equipment under test. The complete test results are presented in the following. RESERVATION This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Test engineer: Thomas KÜHN 04.06.2019 NameSignatureDate Authorized reviewer: Michael DINTER 04.06.2019 Name Signature Date Test engineer: Thomas KÜHNReport Number:F181708E1 Date of issue: 04.06.2019Order Number:18-111708page 3 of 37 Contents:Page 1Identification ........................................................................................................................................4 1.1Applicant ........................................................................................................................................4 1.2Manufacturer ..................................................................................................................................4 1.3Test laboratory ...............................................................................................................................4 1.4EUT (Equipment Under Test) .........................................................................................................5 1.5Technical data of equipment ...........................................................................................................5 1.6Dates .............................................................................................................................................6 2Operational states ...............................................................................................................................6 3Additional Information..........................................................................................................................7 4Overview .............................................................................................................................................7 5Test results .........................................................................................................................................8 5.1Transmitter timing ..........................................................................................................................8 5.1.1Method of measurement (conducted) ...................................................................................8 5.1.2Test result (transmitter timing) ..............................................................................................9 5.2Bandwidth .................................................................................................................................... 11 5.2.1Method of measurement (bandwidth) .................................................................................. 11 5.3Test results (20 dB bandwidth) ..................................................................................................... 12 5.3.1Test results (99 % bandwidth) ............................................................................................ 13 5.4Band-edge compliance ................................................................................................................. 14 5.4.1Method of measurement (band-edge compliance) .............................................................. 14 5.4.2Test results (band-edge compliance) .................................................................................. 15 5.5Radiated emissions ...................................................................................................................... 17 5.5.1Method of measurement (radiated emissions)..................................................................... 17 5.5.3Test results (radiated emissions) ........................................................................................ 26 5.5.3.1Preliminary radiated emission measurement (9 kHz to 100 GHz) ................................... 26 5.5.3.2Final radiated emission measurement (9 kHz to 30 MHz) ............................................... 32 5.5.3.3Final radiated emission measurement (30 MHz to 1 GHz) .............................................. 32 5.5.3.4Final radiated emission measurement (1 GHz to 100 GHz) ............................................ 33 5.6Conducted emissions on power supply lines (150 kHz to 30 MHz) ................................................ 34 5.6.1Method of measurement ..................................................................................................... 34 5.6.2Test results (conducted emissions on power supply lines) ....................................…

Text truncated - open the document above for the full version.

Annex A Test setup photographs Examiner:Thomas KÜHNReport Number: F181708E1 Date of issue: 04.06.2019Order Number: 18-111708page 1 of 6 181708_10.jpg: K-MC1_LP, test setup fully anechoic chamber Annex A Test setup photographs Examiner:Thomas KÜHNReport Number: F181708E1 Date of issue: 04.06.2019Order Number: 18-111708page 2 of 6 181708_11.jpg: K-MC1_LP, test setup fully anechoic chamber Annex A Test setup photographs Examiner:Thomas KÜHNReport Number: F181708E1 Date of issue: 04.06.2019Order Number: 18-111708page 3 of 6 181708_12.jpg: K-MC1_LP, test setup fully anechoic chamber Annex A Test setup photographs Examiner:Thomas KÜHNReport Number: F181708E1 Date of issue: 04.06.2019Order Number: 18-111708page 4 of 6 181708_13.jpg: K-MC1_LP, test setup fully anechoic chamber Annex A Test setup photographs Examiner:Thomas KÜHNReport Number: F181708E1 Date of issue: 04.06.2019Order Number: 18-111708page 5 of 6 181708_14.jpg: K-MC1_LP, test setup fully anechoic chamber Annex A Test setup photographs Examiner:Thomas KÜHNReport Number: F181708E1 Date of issue: 04.06.2019Order Number: 18-111708page 6 of 6 181708_15.jpg: K-MC1_LP, test setup shielded chamber
