2AT9T-3103Mobile Phone

1 User Guide GQ3103 2 Contents I. CAUTIONS ON MOBILE PHONE USE ............................................................................................................... 4 1.1 INTERFERENCE ......................................................................................................................................... 4 1.2 REASONABLE USE .................................................................................................................................... 4 1.3 QUALIFIED MAINTENANCE SERVICE .......................................................................................................... 4 1.4 WATER-RESISTANCE ................................................................................................................................. 4 1.5 EMERGENCY CALLS .................................................................................................................................. 4 2 PRECAUTIONS FOR USE OF BATTERY ........................................................................................................... 4 3 CAUTIONS FOR CHILDREN ............................................................................................................................ 4 3.1 TO INSERT SIM CARD(S): ......................................................................................................................... 5 3.2 CHARGE THE BATTERY ............................................................................................................................. 5 IV. BASIC FUNCTIONS ..................................................................................................................................... 6 1. LOCK AND UNLOCK THE SCREEN ................................................................................................................ 6 2. MAKE IT YOURS .......................................................................................................................................... 8 3. SWITCH TO RECENTLY USED APPLICATION .............................................................................................. 14 4. MAKE A CALL ........................................................................................................................................... 15 5. CALL LOG ................................................................................................................................................. 16 6. ANSWERING PHONE CALLS AND REJECTION ............................................................................................. 17 7. ADD A CONTACT ....................................................................................................................................... 18 3 8. SEND AND RECEIVE MESSAGE(S) ............................................................................................................. 19 9. BROWSER THE WEB ................................................................................................................................. 21 10. ENJOY MUSIC ......................................................................................................................................... 21 11. DOWNLOAD APPLICATIONS FROM PLAY STORE ...................................................................................... 22 12. MANAGE APPLICATIONS ......................................................................................................................... 23 13. APPLICATIONS & UTILITIES ............................................................................................................ 24 14. SETTINGS ............................................................................................................................................... 24 4 I. Cautions on mobile phone use 1.1 Interference All phones may be interfered, which affect phone calls. 1.2 Reasonable use Use only in the normal position. Do not touch the antenna area unnecessarily. 1.3 Qualified maintenance service Only qualified personnel may install or repair this product. 1.4 Water-resistance Your device is non water-resistant. Keep it dry. 1.5 Emergency calls Ensure the phone is switched on and in service. Enter the emergency number and press the Dialer icon. 2 Precautions for use of battery 2.1 Do not dispose of batteries near or in a fire to avoid dangers. 2.2 Do not dispose of batteries in the garbage. Dispose of batteries to assigned battery recycling center. 3 Cautions for children Keep your device out the reach of children in case of accidental injury caused by incorrect use of the device as toys. 5 3.1 To insert SIM card(S): Insert the SIM card correctly in the card slot(s) (See figure below), suggest switch off the phone when you insert SIM card. Insert the Micro SD card into the slot with the correct direction (See figure below), suggest switch off the phone when you insert SIM card. Note: Use only compatible memory cards with this device. Incompatible memory cards may damage the card or the device and corrupt the data stored in the card. 3.2 Charge the battery During charging, the battery indicator on the phone is a thunder icon. If the device is switched off during charging, there will still be a charging indication on the screen that shows the phone is being charged. If the device is overused when the battery is low, the charging icon might take some time to appear. When the battery indicator on the screen display 'Battery is full', thunder icon will disappear, which means the completion of charging. If the phone is switched off during charging, the screen will display ' Battery is full '. It generally takes 4 hours to charge the battery. During charging, the battery, the device and the charger will get hot. This is normal. Unplug the charger from the AC electrical outlet and disconnect the wiring between the phone and the charger after charging. . Cautions: Charge the phone in a well ventilated place in which the temperature is between -10°C to …

Text truncated - open the document above for the full version.

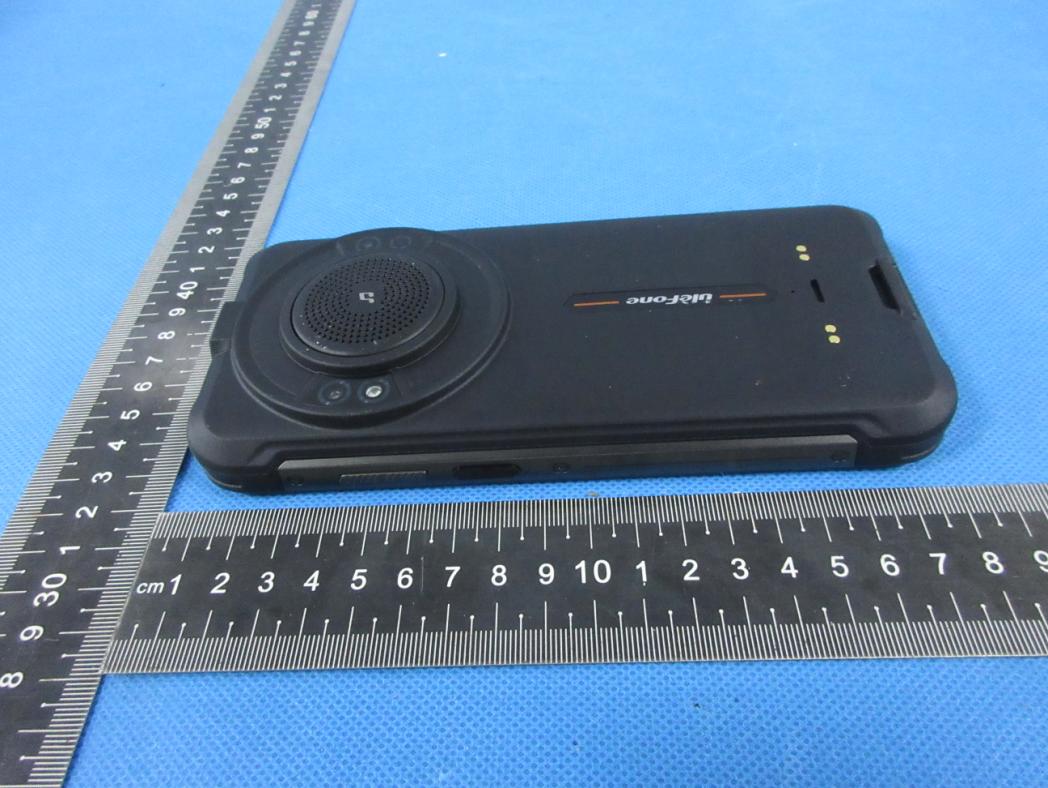

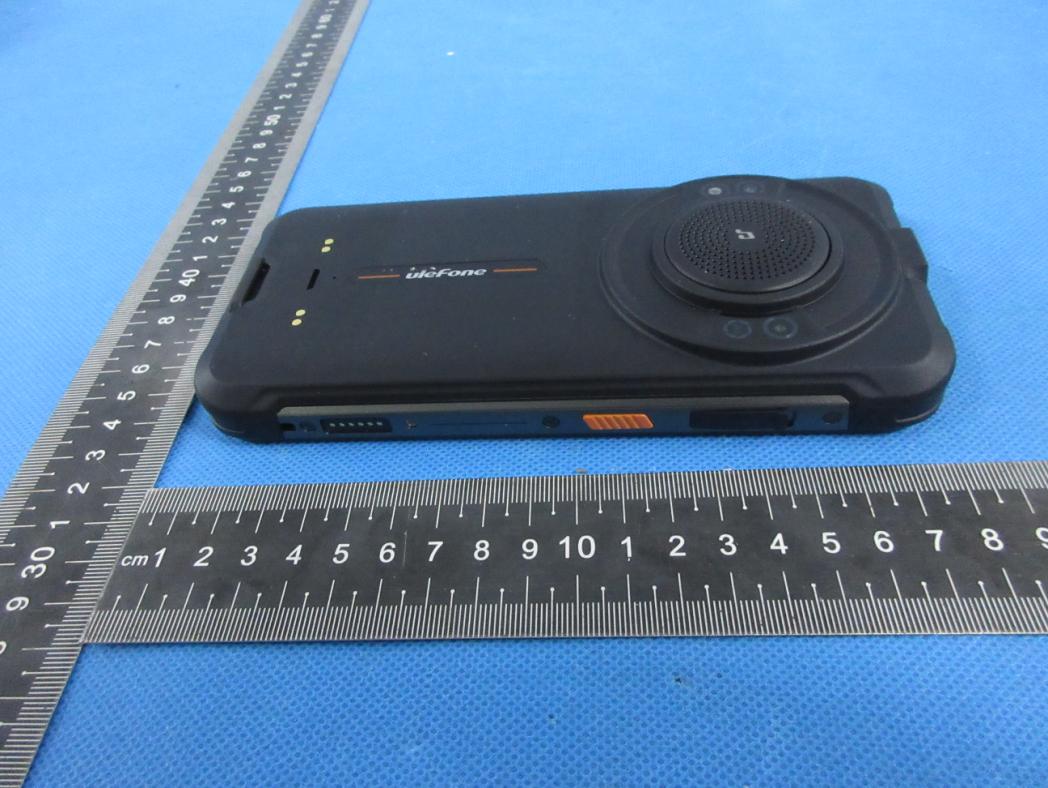

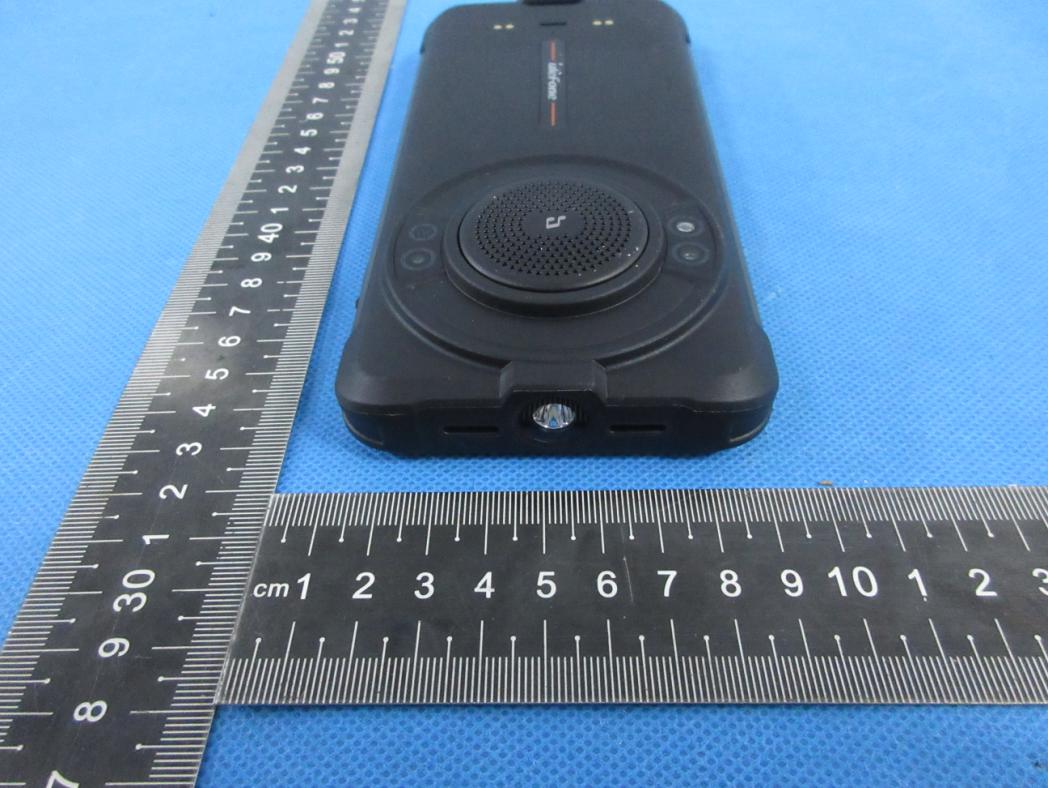

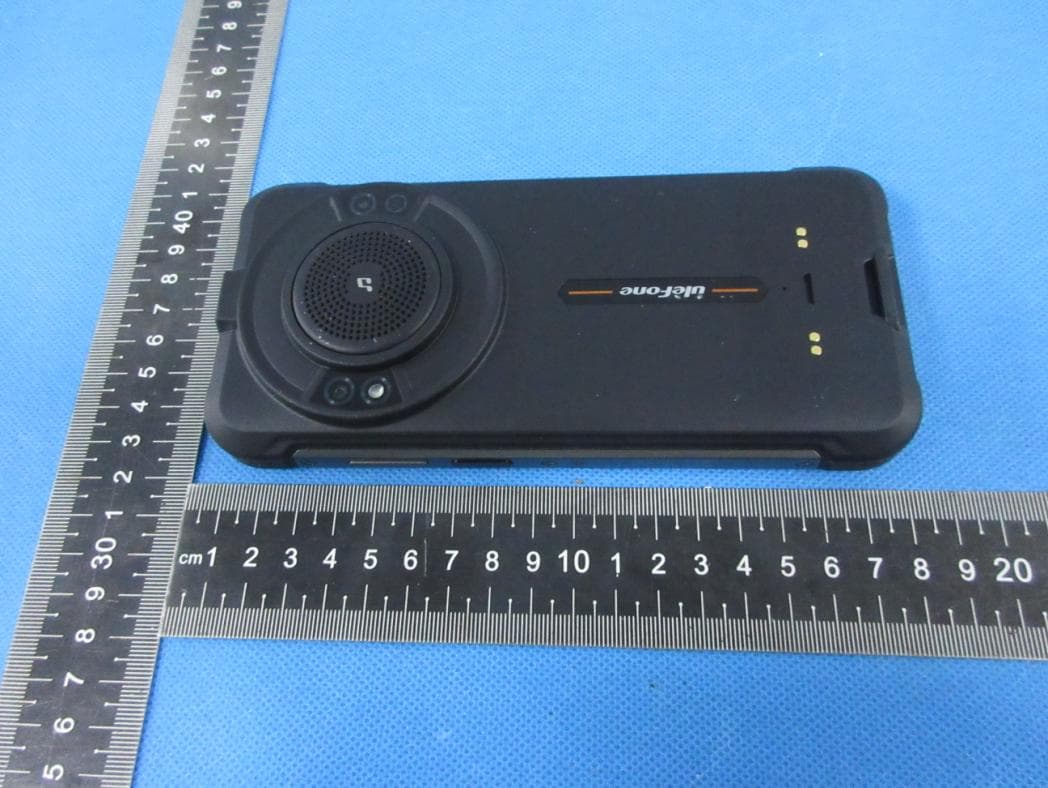

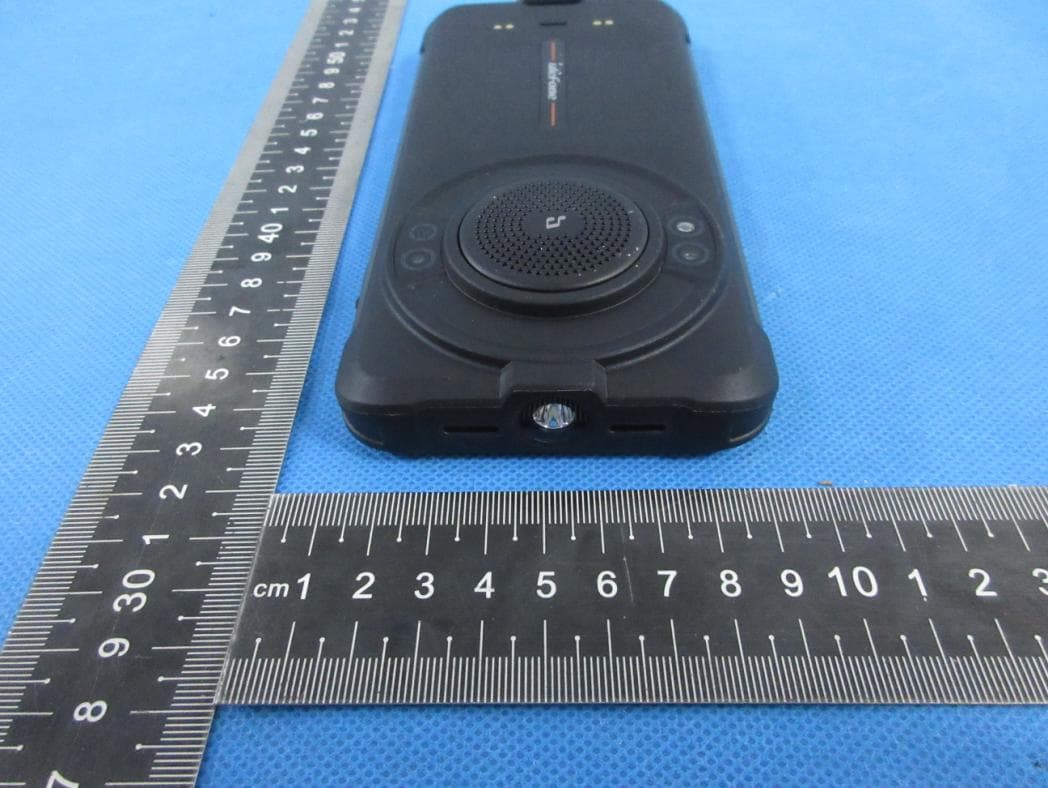

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

Mobile Phone Model Name: GQ3103 FCC ID: 2AT9T-3103 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 LTE AUX ANT GSM/WCDMA/LTE Main ANT Photo 17 Photo 18 NFC ANT BT/WIFI ANT

Shenzhen Ulefone Technology Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: GQ3103,Power Armor 16 Pro, Power Armor 16, Power Armor 16S, Power Armor 16E, Power Armor 16P, Power Armor 16 Plus, Power Armor 16 Lite FCC ID: 2AT9T-3103 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna 1: N/A Type of antenna: PIFA Antenna Frequency range & gain: 2402 - 2480 MHz, 1.5dBi Frequency range & gain: 5180 - 5240MHz, 5745-5825 MHz, 1.5 dBi Model No. of antenna 2: N/A Type of antenna: Induction coil Antenna Frequency range & gain: 13.56 - 13.56 MHz, N/A dBi Model No. of antenna 3: N/A Type of antenna: PIFA Antenna Frequency range & gain: 824.2M - 848.8MHz, 1.2 dBi Frequency range & gain: 1850.2 -1909.8MHz, 1.2 dBi Frequency range & gain: 1710 - 1755MHz, 1.2 dBi Frequency range & gain: 2500 - 2570MHz, 1.2 dBi Frequency range & gain: 699 - 716MHz, 1.2 dBi Frequency range & gain: 704 - 716MHz, 1.2 dBi The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Ulefone Technology Co., Ltd. Address: 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, City: Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: 2022-08-29 Signature:

Page 1 of 229 Report No.: STR220705005008E FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Mobile Phone Brand Name： ulefone Model Name： GQ3103 Family Model： Power Armor 16 Pro, Power Armor 16, Power Armor 16S, Power Armor 16E, Power Armor 16P, Power Armor 16 Plus, Power Armor 16 Lite Report No.： STR220705005008E FCC ID： 2AT9T-3103 Prepared for Shenzhen Ulefone Technology Co., Ltd. 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 229 Report No.: STR220705005008E TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Ulefone Technology Co., Ltd. Address .................................. : 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Manufacturer's Name .......... : Shenzhen Ulefone Technology Co., Ltd. Address .................................. : 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Product description Product name ........................ : Mobile Phone Brand Name ......................... : ulefone Model and/or type reference : GQ3103 Family Model ......................... : Power Armor 16 Pro, Power Armor 16, Power Armor 16S, Power Armor 16E, Power Armor 16P, Power Armor 16 Plus, Power Armor 16 Lite Standards ............................. : FCC 47 CFR Part 2(2.1093);ANSI/IEEE C95.1-1992;IEEE Std 1528-2013;Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................. : T220705002R003 Date of Test Date (s) of performance of tests .............. : Jul. 06, 2022 ~ Jul. 28, 2022 Date of Issue ........................................... : Aug. 08, 2022 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 229 Report No.: STR220705005008E ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Aug. 08, 2022 Jacob Chen Page 4 of 229 Report No.: STR220705005008E TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results ........................................…

Text truncated - open the document above for the full version.

Page 151 of 229 Report No.: STR220705005008E Page 152 of 229 Report No.: STR220705005008E Page 153 of 229 Report No.: STR220705005008E Page 154 of 229 Report No.: STR220705005008E Page 155 of 229 Report No.: STR220705005008E Page 156 of 229 Report No.: STR220705005008E Page 157 of 229 Report No.: STR220705005008E Page 158 of 229 Report No.: STR220705005008E Page 159 of 229 Report No.: STR220705005008E Page 160 of 229 Report No.: STR220705005008E Page 161 of 229 Report No.: STR220705005008E Page 162 of 229 Report No.: STR220705005008E Page 163 of 229 Report No.: STR220705005008E Page 164 of 229 Report No.: STR220705005008E Page 165 of 229 Report No.: STR220705005008E Page 166 of 229 Report No.: STR220705005008E Page 167 of 229 Report No.: STR220705005008E Page 168 of 229 Report No.: STR220705005008E Page 169 of 229 Report No.: STR220705005008E Page 170 of 229 Report No.: STR220705005008E Page 171 of 229 Report No.: STR220705005008E Page 172 of 229 Report No.: STR220705005008E Page 173 of 229 Report No.: STR220705005008E Page 174 of 229 Report No.: STR220705005008E Page 175 of 229 Report No.: STR220705005008E Page 176 of 229 Report No.: STR220705005008E Page 177 of 229 Report No.: STR220705005008E Page 178 of 229 Report No.: STR220705005008E Page 179 of 229 Report No.: STR220705005008E Page 180 of 229 Report No.: STR220705005008E Page 181 of 229 Report No.: STR220705005008E Page 182 of 229 Report No.: STR220705005008E Page 183 of 229 Report No.: STR220705005008E Page 184 of 229 Report No.: STR220705005008E Page 185 of 229 Report No.: STR220705005008E

Page 186 of 229 Report No.: STR220705005008E Page 187 of 229 Report No.: STR220705005008E Page 188 of 229 Report No.: STR220705005008E Page 189 of 229 Report No.: STR220705005008E Page 190 of 229 Report No.: STR220705005008E Page 191 of 229 Report No.: STR220705005008E Page 192 of 229 Report No.: STR220705005008E Page 193 of 229 Report No.: STR220705005008E Page 194 of 229 Report No.: STR220705005008E Page 195 of 229 Report No.: STR220705005008E Page 196 of 229 Report No.: STR220705005008E Page 197 of 229 Report No.: STR220705005008E Page 198 of 229 Report No.: STR220705005008E Page 199 of 229 Report No.: STR220705005008E Page 200 of 229 Report No.: STR220705005008E Page 201 of 229 Report No.: STR220705005008E Page 202 of 229 Report No.: STR220705005008E Page 203 of 229 Report No.: STR220705005008E Page 204 of 229 Report No.: STR220705005008E Page 205 of 229 Report No.: STR220705005008E Page 206 of 229 Report No.: STR220705005008E Page 207 of 229 Report No.: STR220705005008E Page 208 of 229 Report No.: STR220705005008E Page 209 of 229 Report No.: STR220705005008E Page 210 of 229 Report No.: STR220705005008E Page 211 of 229 Report No.: STR220705005008E Page 212 of 229 Report No.: STR220705005008E Page 213 of 229 Report No.: STR220705005008E Page 214 of 229 Report No.: STR220705005008E Page 215 of 229 Report No.: STR220705005008E Page 216 of 229 Report No.: STR220705005008E Page 217 of 229 Report No.: STR220705005008E Page 218 of 229 Report No.: STR220705005008E Page 219 of 229 Report No.: STR220705005008E Page 220 of 229 Report No.: STR220705005008E Page 221 of 229 Report No.: STR220705005008E Page 222 of 229 Report No.: STR220705005008E <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.80 - 56.4 - Mar. 01, 2021 -23.642 0.66 56.998 0.598 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 223 of 229 Report No.: STR220705005008E <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 224 of 229 Report No.: STR220705005008E <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.85 - 47.90 - Mar. 01, 2021 -28.545 1.06 47.809 0.091 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 225 of 229 Report No.: STR220705005008E <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.79 - 50.80 - Mar. 01, 2021 -24.518 1.10 50.516 0.284 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 226 of 229 Report No.: STR220705005008E <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 227 of 229 Report No.: STR220705005008E <Head 2600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -21.15 - 52.70 - Mar. 01, 2021 -21.248 0.46 53.053 0.353 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 228 of 229 Report No.: STR220705005008E <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.15 - 21.17 - Mar. 01, 2021 -9.1819 0.35 21.191 0.021 Feb. 28, 2022 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 229 of 229 Report No.: STR220705005008E <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -14.30 - 54.74 - Mar. 01, 2021 -14.349 0.34 55.115 0.375 Feb. 28, 2022 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _______________________________________END _____________________________________

Report No.: STR220705005009E Version.1.2 Page 1 of 19 FCC Test Report FCC ID: 2AT9T-3103 Product: Mobile Phone Trade Mark: ulefone Model Number: GQ3103 Family Model: Power Armor 16 Pro, Power Armor 16, Power Armor 16S, Power Armor 16E, Power Armor 16P, Power Armor 16 Plus, Power Armor 16 Lite Report No.: STR220705005009E Prepared for Shenzhen Ulefone Technology Co., Ltd. 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website:http://www.ntek.org.cn Report No.: STR220705005009E Version.1.2 Page 2 of 19 TEST RESULT CERTIFICATION Applicant’s name.................. : Shenzhen Ulefone Technology Co., Ltd. Address .................................. : 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Manufacturer's Name ........... : Shenzhen Ulefone Technology Co., Ltd. Address .................................. : 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Product description Product name ......................... : Mobile Phone Model and/or type reference : GQ3103 Family Model .......................... : Power Armor 16 Pro, Power Armor 16, Power Armor 16S, Power Armor 16E, Power Armor 16P, Power Armor 16 Plus, Power Armor 16 Lite Standards .............................. : FCC Part15B ANSI C63.4:2014 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with Part 15 of FCC Rules. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Test Sample Number................: T220705002R003 Date of Test ........................................... : Date (s) of performance of tests ............. : Jul 06, 2022 ~ Aug 09, 2022 Date of Issue .......................................... : Aug 10, 2022 Test Result .............................................. : Pass Testing Engineer : (Allen Liu) Authorized Signatory : (Alex Li) Report No.: STR220705005009E Version.1.2 Page 3 of 19 Table of Contents Page 1 . TEST SUMMARY 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST SETUP 8 2.3 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 9 2.4 MEASUREMENT INSTRUMENTS LIST 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION 11 3.1.2 TEST PROCEDURE 12 3.1.3 TEST SETUP 12 3.1.4 EUT OPERATING CONDITIONS 12 3.1.5 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 15 3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 15 3.2.2 TEST PROCEDURE 15 3.2.3 TEST SETUP 16 3.2.4 TEST RESULTS 17 3.2.5 TEST RESULTS(1000~18000MHz) 19 Report No.: STR220705005009E Version.1.2 Page 4 of 19 1. TEST SUMMARY Test procedures according to the technical standards: EMC Emission Standard Test Item Limit Judgment Remark FCC Part15B ANSI C63.4: 2014 Conducted Emission Class B PASS Radiated Emission Class B PASS NOTE: (1) ’N/A’ denotes test is not applicable in this Test Report (2) For client’s request and manual description, the test will not be executed. Report No.: STR220705005009E Version.1.2 Page 5 of 19 1.1 TEST FACILITY Shenzhen NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China. IC-Registration The Certificate Registration Number is 9270A. CAB identifier:CN0074 FCC- Accredited Test Firm Registration Number: 463705. Designation Number: CN1184 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. A. Conducted Measurement : Test Site Method Measurement Frequency Range U,(dB) NOTE NTEKC01 ANSI 150 KHz ~ 30MHz ±2.80dB B. Radiated Measurement : Test Site Method Measurement Frequency Range U,(dB) NOTE NTEKA01 ANSI 30MHz~1000MHz ±2.64dB 1GHz~6GHz ±2.40dB 6GHz~26.5GHz ±2.52dB Report No.: STR220705005009E Version.1.2 Page 6 of 19 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Mobile Phone Trade Mark ulefone Model Name GQ3103 Family Model Power Armor 16 Pro, Power Armor 16, Power Armor 16S, Power Armor 16E, Power Armor 16P, Power Armor 16 Plus, Power Armor 16 Lite Model Difference All models are the same circuit and RF module, except the model name. Product Description Connecting I/O port: Micro USB, Earphone Operation Frequency: 5.825GHz Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Adapter Model: HJ-FC038K7-US Input: 100-240V~50/60Hz 0.6A Output: 5V3.0A OR 9V2.0A OR 12V1.5A Battery DC 3.85V, 9600mAh Power supply DC 3.85V from battery or DC 5V from Adapter. HW Version F7_01 SW Version Power Armor 16 Pro_SH1_EEA_V01 Report No.: STR220705005009E Version.1.2 Page 7 of 19 2.1.1 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Model 1 USB Data Transmission Model 2 TF card Playing Model 3 REC Model 4 FM Model 5 GPS Mode 6 BT Link…

Text truncated - open the document above for the full version.

Radiated Measurement Photos AC Conducted Measurement Photos

Test Positions Left Cheek Left Tilt 15 Degree Right Cheek Right Tilt 15 Degree Front Side (Separation distance of 10mm) Back Side (Separation distance of 10mm) Left Side (Separation distance of 10mm) Right Side (Separation distance of 10mm) Top Side (Separation distance of 10mm) Bottom Side (Separation distance of 10mm) END
