Report No.: S25062002107004 Page 1 of 554 5.2G WIFI Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5180 Ant1 89.81 0.47 0.71 NVNT a 5200 Ant1 90.24 0.45 0.72 NVNT a 5240 Ant1 90.34 0.44 0.72 NVNT a 5180 Ant2 89.4 0.49 0.72 NVNT a 5200 Ant2 90.24 0.45 0.72 NVNT a 5240 Ant2 90.23 0.45 0.71 NVNT n20 5180 Ant1 89.21 0.5 0.77 NVNT n20 5200 Ant1 89.61 0.48 0.77 NVNT n20 5240 Ant1 89.74 0.47 0.77 NVNT n20 5180 Ant2 88.86 0.51 0.77 NVNT n20 5200 Ant2 89.72 0.47 0.77 NVNT n20 5240 Ant2 89.63 0.48 0.77 NVNT n40 5190 Ant1 80.8 0.93 1.56 NVNT n40 5230 Ant1 81.4 0.89 1.56 NVNT n40 5190 Ant2 80.87 0.92 1.56 NVNT n40 5230 Ant2 81.4 0.89 1.54 NVNT ac20 5180 Ant1 89.2 0.5 0.77 NVNT ac20 5200 Ant1 89.62 0.48 0.76 NVNT ac20 5240 Ant1 89.65 0.47 0.76 NVNT ac20 5180 Ant2 89.21 0.5 0.76 NVNT ac20 5200 Ant2 89.65 0.47 0.76 NVNT ac20 5240 Ant2 89.8 0.47 0.76 NVNT ac40 5190 Ant1 80.97 0.92 1.54 NVNT ac40 5230 Ant1 80.5 0.94 1.54 NVNT ac40 5190 Ant2 81.01 0.91 1.54 NVNT ac40 5230 Ant2 81.55 0.89 1.52 NVNT ac80 5210 Ant1 67.02 1.74 3.13 NVNT ac80 5210 Ant2 68.39 1.65 3.03 NVNT ax20 5180 Ant1 86.69 0.62 0.98 NVNT ax20 5200 Ant1 87.21 0.59 0.98 NVNT ax20 5240 Ant1 87.1 0.6 0.99 NVNT ax20 5180 Ant2 86.59 0.63 0.98 NVNT ax20 5200 Ant2 87.12 0.6 0.99 NVNT ax20 5240 Ant2 87.23 0.59 0.98 NVNT ax40 5190 Ant1 77.69 1.1 1.89 Report No.: S25062002107004 Page 2 of 554 NVNT ax40 5230 Ant1 78.28 1.06 1.85 NVNT ax40 5190 Ant2 77.6 1.1 1.85 NVNT ax40 5230 Ant2 78.35 1.06 1.89 NVNT ax80 5210 Ant1 65.62 1.83 3.57 NVNT ax80 5210 Ant2 65.49 1.84 3.57 Test Graphs Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report No.: S25062002107004 Page 3 of 554 Report No.: S25062002107004 Page 4 of 554 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT a 5180MHz Ant2 Report No.: S25062002107004 Page 5 of 554 Duty Cycle NVNT a 5200MHz Ant2 Duty Cycle NVNT a 5240MHz Ant2 Report No.: S25062002107004 Page 6 of 554 Duty Cycle NVNT n20 5180MHz Ant1 Duty Cycle NVNT n20 5200MHz Ant1 Report No.: S25062002107004 Page 7 of 554 Duty Cycle NVNT n20 5240MHz Ant1 Duty Cycle NVNT n20 5180MHz Ant2 Report No.: S25062002107004 Page 8 of 554 Duty Cycle NVNT n20 5200MHz Ant2 Duty Cycle NVNT n20 5240MHz Ant2 Report No.: S25062002107004 Page 9 of 554 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Report No.: S25062002107004 Page 10 of 554 Duty Cycle NVNT n40 5190MHz Ant2 Duty Cycle NVNT n40 5230MHz Ant2 Report No.: S25062002107004 Page 11 of 554 Duty Cycle NVNT ac20 5180MHz Ant1 Duty Cycle NVNT ac20 5200MHz Ant1 Report No.: S25062002107004 Page 12 of 554 Duty Cycle NVNT ac20 5240MHz Ant1 Duty Cycle NVNT ac20 5180MHz Ant2 Report No.: S25062002107004 Page 13 of 554 Duty Cycle NVNT ac20 5200MHz Ant2 Duty Cycle NVNT ac20 5240MHz Ant2 Report No.: S25062002107004 Page 14 of 554 Duty Cycle NVNT ac40 5190MHz Ant1 Duty Cycle NVNT ac40 5230MHz Ant1 Report No.: S25062002107004 Page 15 of 554 Duty Cycle NVNT ac40 5190MHz Ant2 Duty Cycle NVNT ac40 5230MHz Ant2 Report No.: S25062002107004 Page 16 of 554 Duty Cycle NVNT ac80 5210MHz Ant1 Duty Cycle NVNT ac80 5210MHz Ant2 Report No.: S25062002107004 Page 17 of 554 Duty Cycle NVNT ax20 5180MHz Ant1 Duty Cycle NVNT ax20 5200MHz Ant1 Report No.: S25062002107004 Page 18 of 554 Duty Cycle NVNT ax20 5240MHz Ant1 Duty Cycle NVNT ax20 5180MHz Ant2 Report No.: S25062002107004 Page 19 of 554 Duty Cycle NVNT ax20 5200MHz Ant2 Duty Cycle NVNT ax20 5240MHz Ant2 Report No.: S25062002107004 Page 20 of 554 Duty Cycle NVNT ax40 5190MHz Ant1 Duty Cycle NVNT ax40 5230MHz Ant1 Report No.: S25062002107004 Page 21 of 554 Duty Cycle NVNT ax40 5190MHz Ant2 Duty Cycle NVNT ax40 5230MHz Ant2 Report No.: S25062002107004 Page 22 of 554 Duty Cycle NVNT ax80 5210MHz Ant1 Duty Cycle NVNT ax80 5210MHz Ant2 Report No.: S25062002107004 Page 23 of 554 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 6.51 24 Pass NVNT a 5200 Ant1 6.5 24 Pass NVNT a 5240 Ant1 7.07 24 Pass NVNT a 5180 Ant2 7.27 24 Pass NVNT a 5200 Ant2 7.28 24 Pass NVNT a 5240 Ant2 7.23 24 Pass NVNT n20 5180 Ant1 6.34 24 Pass NVNT n20 5200 Ant1 6.52 24 Pass NVNT n20 5240 Ant1 6.94 24 Pass NVNT n20 5180 Ant2 7.08 24 Pass NVNT n20 5200 Ant2 7.19 24 Pass NVNT n20 5240 Ant2 7.18 24 Pass NVNT n40 5190 Ant1 6.85 24 Pass NVNT n40 5230 Ant1 7.19 24 Pass NVNT n40 5190 Ant2 7.32 24 Pass NVNT n40 5230 Ant2 7.08 24 Pass NVNT ac20 5180 Ant1 6.45 24 Pass NVNT ac20 5200 Ant1 6.4 24 Pass NVNT ac20 5240 Ant1 7.11 24 Pass NVNT ac20 5180 Ant2 6.96 24 Pass NVNT ac20 5200 Ant2 7 24 Pass NVNT ac20 5240 Ant2 6.95 24 Pass NVNT ac40 5190 Ant1 6.64 24 Pass NVNT ac40 5230 Ant1 7.06 24 Pass NVNT ac40 5190 Ant2 7.39 24 Pass NVNT ac40 5230 Ant2 7.09 24 Pass NVNT ac80 5210 Ant1 6.34 24 Pass NVNT ac80 5210 Ant2 6.71 24 Pass NVNT ax20 5180 Ant1 6.58 24 Pass NVNT ax20 5200 Ant1 6.55 24 Pass NVNT ax20 5240 Ant1 7.22 24 Pass NVNT ax20 5180 Ant2 7.33 24 Pass NVNT ax20 5200 Ant2 7.35 24 Pass NVNT ax20 5240 Ant2 7.23 24 Pass NVNT ax40 5190 Ant1 6.93 24 Pass NVNT ax40 5230 Ant1 7.46 24 Pass NVNT ax40 5190 Ant2 7.71 24 Pass NVNT ax40 5230 Ant2 7.51 24 Pass NVNT ax80 5210 Ant1 6.9 24 Pass NVNT ax80 5210 Ant2 7.24 24 Pass Report No.: S25062002107004 Page 24 of 554 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 27.576 Pass NVNT a 5200 Ant1 26.457 Pass NVNT a 5240 Ant1 19.83 Pass NVNT a 5180 Ant2 26.004 Pass NVNT a 5200 Ant2 26.49 Pass NVNT a 5240 Ant2 19.311 Pass NVNT n20 5180 Ant1 29.871 Pass NVNT n20 5200 Ant1 23.019 Pass NVNT n20 5240 Ant1 21.09 Pass NVNT n20 5180 Ant2 23.988 Pass NVNT n20 5200 Ant2 21.816 Pass NVNT n20 5240 Ant2 20.328 Pass NVNT n40 5190 Ant1 55.374 Pass NVNT n40 5230 Ant1 40.596 Pass NVNT n40 5190 Ant2 55.368 Pass NVNT n40 5230 Ant2 40.818 Pass NVNT ac20 5180 Ant1 28.125 Pass NVNT ac20 5200 Ant1 27.834 Pass NVNT ac20 5240 Ant1 21.273 Pass NVNT ac20 5180 Ant2 25.605 Pass NVNT ac20 5200 Ant2 26.01 Pass NVNT …

Text truncated - open the document above for the full version.

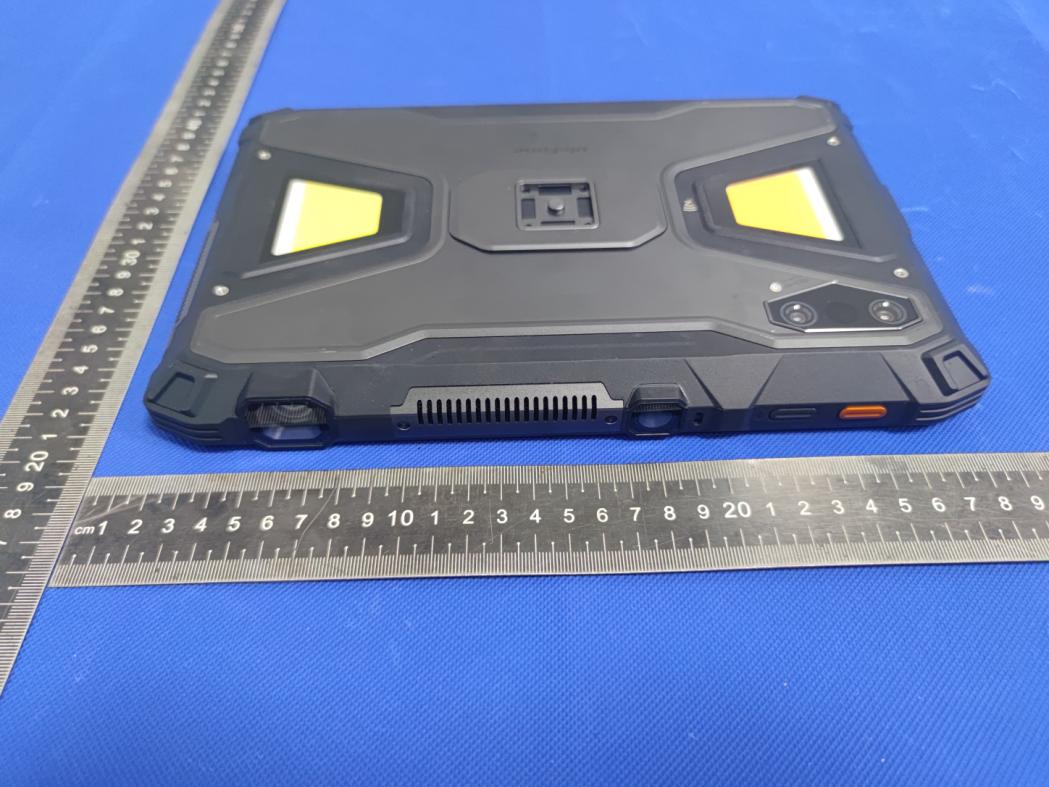

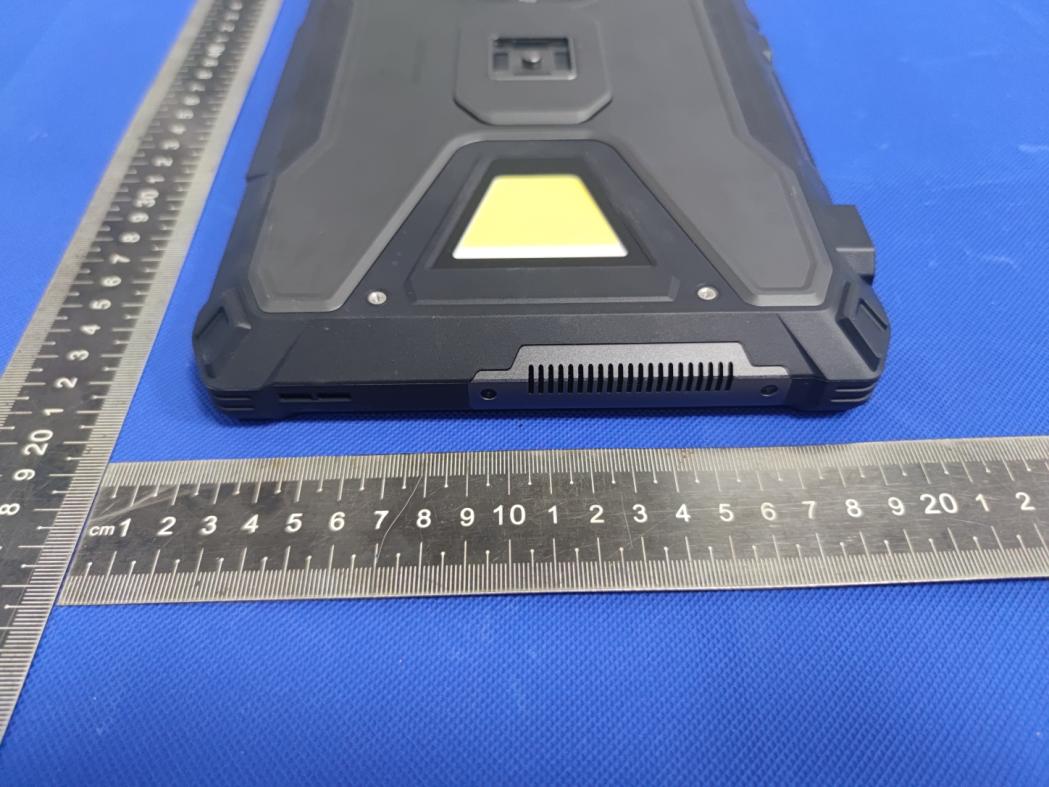

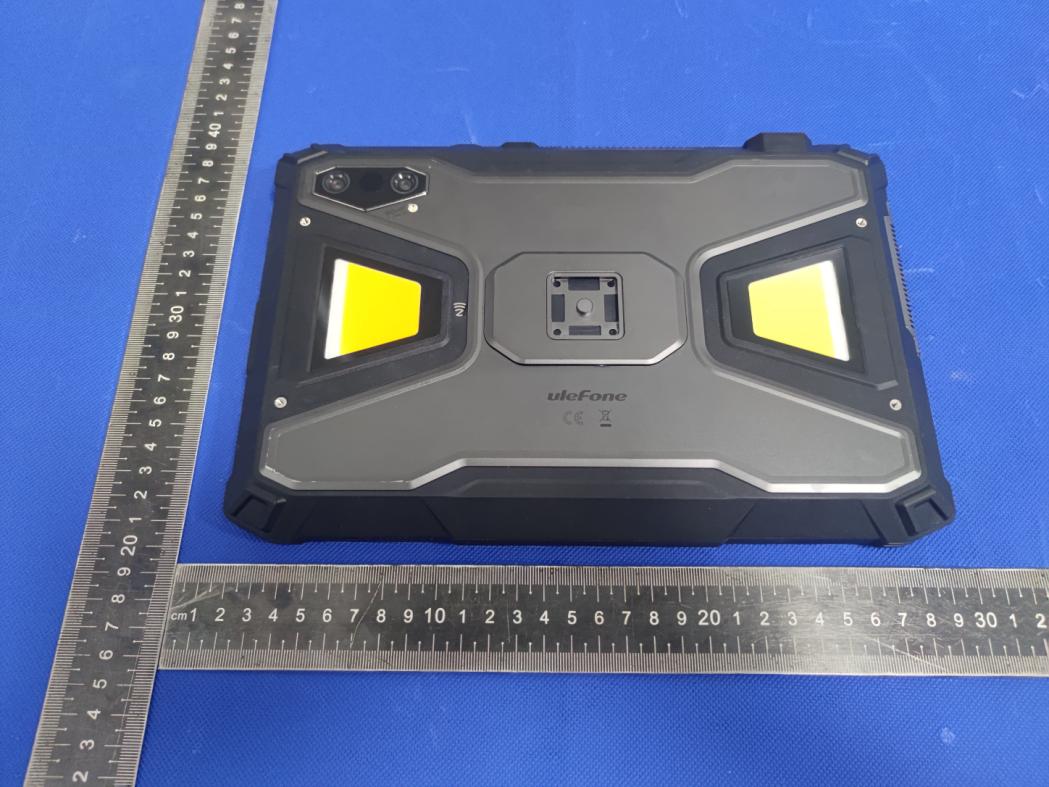

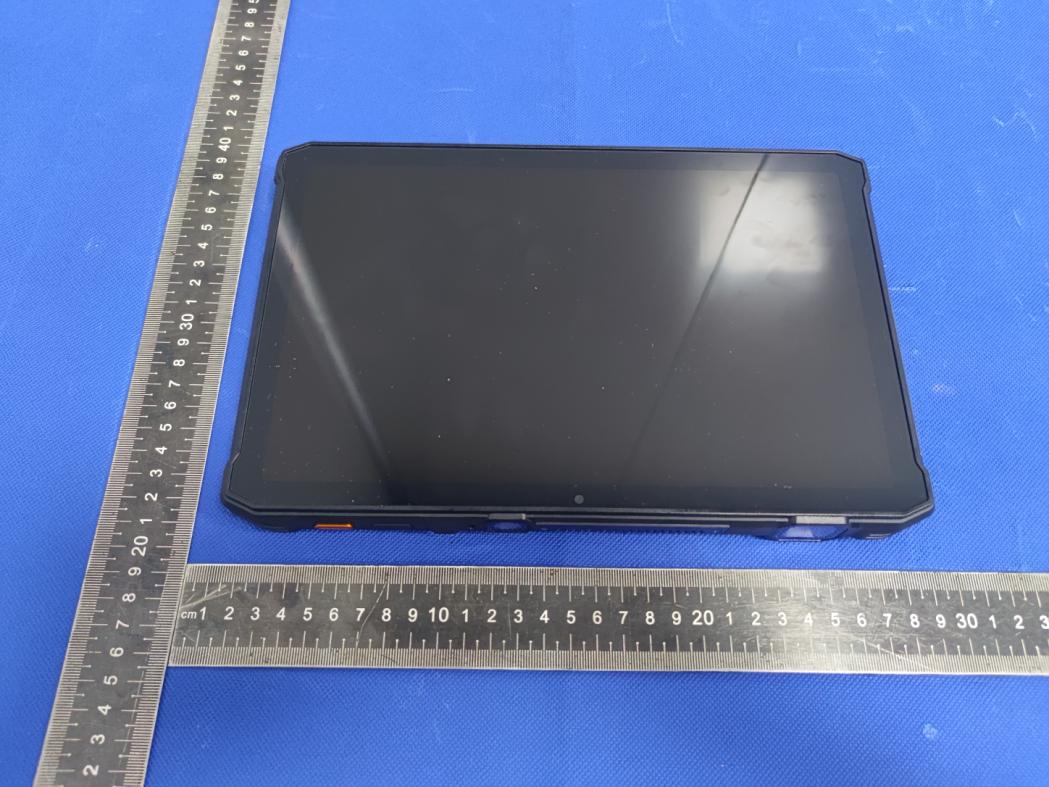

Report No.: S25062002107004 Version.1.2 Page 1 of 81 FCC RADIO TEST REPORT FCC ID: 2AT9T-8000 Product: Tablet Trade Mark: ulefone Model No.: Armor Pad 5 Ultra Family Model: GQ8000, Armor Pad 5 Pro, Armor Pad 5, Armor Pad 5E, Armor Pad 5S, Armor Pad 5 Lite, Armor Pad 5 Pro+, Armor Pad 5s, Armor Pad 5s Pro Report No.: S25062002107004 Issue Date: Aug. 21, 2025 Prepared for Shenzhen Ulefone Technology CO., LTD. 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website: http://www.ntek.org.cn Report No.: S25062002107004 Version.1.2 Page 2 of 81 TEST RESULT CERTIFICATION Applicant’s name ...................... : Shenzhen Ulefone Technology CO., LTD. Address ....................................... : 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Manufacturer's Name ................ : Shenzhen Gotron Electronic CO.,LTD. Address ....................................... : 7B01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Product description Product name .............................. : Tablet Trademark ............................ : ulefone Model and/or type reference ..... : Armor Pad 5 Ultra Family Model ............................... : GQ8000, Armor Pad 5 Pro, Armor Pad 5, Armor Pad 5E, Armor Pad 5S, Armor Pad 5 Lite, Armor Pad 5 Pro+, Armor Pad 5s, Armor Pad 5s Pro Test Sample Number ................... S250620021007 Standards ................................... : FCC Part15.407 Test procedure ................................. : ANSI C63.10-2013 KDB 789033 D02 General UNII Test Procedures New Rules v02r01 KDB 905462 D03 Client Without DFS New Rules v01r02 KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 KDB 662911 D01 Multiple Transmitter Output v02r01 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ................................................... : Date (s) of performance of tests .................... : Jun. 20, 2025 ~ Aug. 21, 2025 Date of Issue .................................................. : Aug. 21, 2025 Test Result ...................................................... : Pass Prepared By : Reviewed By : Approved By : Allen Liu (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Report No.: S25062002107004 Version.1.2 Page 3 of 81 Table of Contents Page 1. SUMMARY OF TEST RESULTS 7 1.1 FACILITIES AND ACCREDITATIONS 8 1.2 MEASUREMENT UNCERTAINTY 8 2. GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 DESCRIPTION OF TEST MODES 12 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 14 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 15 3. EMC EMISSION TEST 17 3.1 CONDUCTED EMISSION MEASUREMENT 17 3.1.1 APPLICABLE STANDARD 17 3.1.2 CONFORMANCE LIMIT 17 3.1.3 TEST CONFIGURATION 17 3.1.4 TEST PROCEDURE 18 3.1.5 TEST RESULTS 19 3.2 RADIATED EMISSION MEASUREMENT 25 3.2.1 APPLICABLE STANDARD 25 3.2.2 CONFORMANCE LIMIT 25 3.2.3 MEASURING INSTRUMENTS 26 3.2.4 TEST CONFIGURATION 27 3.2.5 TEST PROCEDURE 28 3.2.6 TEST RESULTS (9KHZ – 30 MHZ) 29 3.2.7 TEST RESULTS (30MHZ – 1GHZ) 30 3.2.8 TEST RESULTS (1GHZ-18GHZ) 36 3.2.9 TEST RESULTS (18GHZ-40GHZ) 39 4 POWER SPECTRAL DENSITY TEST 53 4.1 APPLIED PROCEDURES / LIMIT 53 4.2 TEST PROCEDURE 54 4.3 DEVIATION FROM STANDARD 54 4.4 TEST SETUP 54 4.5 EUT OPERATION CONDITIONS 54 4.6 TEST RESULTS 55 5. 26DB & 99% EMISSION BANDWIDTH 56 5.1 APPLIED PROCEDURES / LIMIT 56 5.2 TEST PROCEDURE 56 5.3 EUT OPERATION CONDITIONS 57 Report No.: S25062002107004 Version.1.2 Page 4 of 81 Table of Contents Page 5.4 TEST RESULTS 57 6. MINIMUM 6 DB BANDWIDTH 58 6.1 APPLIED PROCEDURES / LIMIT 58 6.2 EST PROCEDURE 58 6.3 DEVIATION FROM STANDARD 58 6.4 TEST SETUP 58 6.5 EUT OPERATION CONDITIONS 58 6.6 TEST RESULTS 59 7. MAXIMUM CONDUCTED OUTPUT POWER 60 7.1 PPLIED PROCEDURES / LIMIT 60 7.6 TEST RESULTS 62 8. OUT OF BAND EMISSIONS 63 8.1 APPLICABLE STANDARD 63 8.2 TEST PROCEDURE 63 8.3 DEVIATION FROM STANDARD 64 8.4 TEST SETUP 64 8.5 EUT OPERATION CONDITIONS 64 8.6 TEST RESULTS 65 9. FREQUENCY STABILITY MEASUREMENT 66 9.1 LIMIT 66 9.2 TEST PROCEDURES 66 9.3 TEST SETUP LAYOUT 66 9.4 EUT OPERATION DURING TEST 66 9.5 TEST RESULTS 67 10. DYNAMIC FREQUENCY SELECTION(DFS) 76 10.1 APPLICABILITY OF DFS REQUIREMENTS 76 10.2 INTERFERENCE THRESHOLD VALUES, MASTER OR CLIENT INCORPORATING IN-SERVICE MONITORING 76 10.3 DFS RESPONSE REQUIREMENT VALUES 77 10.4 SHORT PULSE RADAR TEST WAVEFORMS 77 10.5 CALIBRATION SETUP AND DFS TEST RESULTS 78 10.6 CONDUCTED CALIBRATION SETUP 78 10.7 RADAR WAVEFORM CALIBRATION RESULT 78 10.8 IN-SERVICE MONITORING: CHANNEL MOVE TIME, CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD 79 10.9 RESULT OF CHANNEL MOVE TIME, CHANNEL CLOSING TRANSMISSION TIME Report No.: S25062002107004 Version.1.2 Page 5 of 81 Table of Contents Page AND NON-OCCUPANCY PERIOD FOR CLIENT BEACON TEST 80 11. ANTENNA REQUIREMENT 81 11.1 STANDARD REQUIREMENT 81 11.2 EUT ANTENNA 81 Report No.: S25062002107004 Version.1.2 Page 6 of 81 Revision History Report No. Version Description Issued Date S25062002107004 Rev.01 Initial issue of report Aug. 21, 2025 Report No.: S25062002107004 Version.1.2 Page 7 of 81 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item…

Text truncated - open the document above for the full version.

Report No.: S25062002107004 Page 537 of 554 Tx. Spurious NVNT ax20 5745MHz Ant1 Emission Tx. Spurious NVNT ax20 5745MHz Ant2 Emission Report No.: S25062002107004 Page 538 of 554 Tx. Spurious NVNT ax20 5785MHz Ant1 Emission Tx. Spurious NVNT ax20 5785MHz Ant2 Emission Report No.: S25062002107004 Page 539 of 554 Tx. Spurious NVNT ax20 5825MHz Ant1 Emission Tx. Spurious NVNT ax20 5825MHz Ant2 Emission Report No.: S25062002107004 Page 540 of 554 Tx. Spurious NVNT ax40 5755MHz Ant1 Emission Tx. Spurious NVNT ax40 5755MHz Ant2 Emission Report No.: S25062002107004 Page 541 of 554 Tx. Spurious NVNT ax40 5795MHz Ant1 Emission Tx. Spurious NVNT ax40 5795MHz Ant2 Emission Report No.: S25062002107004 Page 542 of 554 Tx. Spurious NVNT ax80 5775MHz Ant1 Emission Tx. Spurious NVNT ax80 5775MHz Ant2 Emission Report No.: S25062002107004 Page 543 of 554 Tx. Spurious NVNT n20 5745MHz Ant1 Emission Tx. Spurious NVNT n20 5745MHz Ant2 Emission Report No.: S25062002107004 Page 544 of 554 Tx. Spurious NVNT n20 5785MHz Ant1 Emission Tx. Spurious NVNT n20 5785MHz Ant2 Emission Report No.: S25062002107004 Page 545 of 554 Tx. Spurious NVNT n20 5825MHz Ant1 Emission Tx. Spurious NVNT n20 5825MHz Ant2 Emission Report No.: S25062002107004 Page 546 of 554 Tx. Spurious NVNT n40 5755MHz Ant1 Emission Tx. Spurious NVNT n40 5755MHz Ant2 Emission Report No.: S25062002107004 Page 547 of 554 Tx. Spurious NVNT n40 5795MHz Ant1 Emission Tx. Spurious NVNT n40 5795MHz Ant2 Emission Report No.: S25062002107004 Page 548 of 554 DFS Calibration 5290MHz ac80 DFS_FCC_T0 5290MHz ax80 DFS_FCC_T0 5310MHz n40 DFS_FCC_T0 Report No.: S25062002107004 Page 549 of 554 5320MHz a DFS_FCC_T0 Report No.: S25062002107004 Page 550 of 554 Non-Occupancy 5290MHz ac80 Non-Occupancy 5290MHz ax80 Non-Occupancy 5310MHz n40 Non-Occupancy Report No.: S25062002107004 Page 551 of 554 5320MHz a Non-Occupancy Report No.: S25062002107004 Page 552 of 554 Shutdown Time Mode Frequency (MHz) Channel Move Time (s) Limit Channel Move Time (s) Close Transmission Time (s) Limit Close Transmission Time (s) Close Transmission Time after 200ms(s) Limit Close Transmission Time after 200ms (s) Verdict ac80 5290 0.366 10 0.0096 0.26 0.0008 0.06 Pass ax80 5290 0.0648 10 0.0036 0.26 0 0.06 Pass n40 5310 0.41 10 0.004 0.26 0.0024 0.06 Pass a 5320 0.4284 10 0.0084 0.26 0.002 0.06 Pass 5290MHz ac80 Shutdown 5290MHz ax80 Shutdown Report No.: S25062002107004 Page 553 of 554 5310MHz n40 Shutdown 5320MHz a Shutdown Report No.: S25062002107004 Page 554 of 554

Report No.: S25062002107004 Page 498 of 554 PSD NVNT ac20 5825MHz Ant1 PSD NVNT ac20 5825MHz Ant2 Report No.: S25062002107004 Page 499 of 554 PSD NVNT ac40 5755MHz Ant1 PSD NVNT ac40 5755MHz Ant2 Report No.: S25062002107004 Page 500 of 554 PSD NVNT ac40 5795MHz Ant1 PSD NVNT ac40 5795MHz Ant2 Report No.: S25062002107004 Page 501 of 554 PSD NVNT ac80 5775MHz Ant1 PSD NVNT ac80 5775MHz Ant2 Report No.: S25062002107004 Page 502 of 554 PSD NVNT ax20 5745MHz Ant1 PSD NVNT ax20 5745MHz Ant2 Report No.: S25062002107004 Page 503 of 554 PSD NVNT ax20 5785MHz Ant1 PSD NVNT ax20 5785MHz Ant2 Report No.: S25062002107004 Page 504 of 554 PSD NVNT ax20 5825MHz Ant1 PSD NVNT ax20 5825MHz Ant2 Report No.: S25062002107004 Page 505 of 554 PSD NVNT ax40 5755MHz Ant1 PSD NVNT ax40 5755MHz Ant2 Report No.: S25062002107004 Page 506 of 554 PSD NVNT ax40 5795MHz Ant1 PSD NVNT ax40 5795MHz Ant2 Report No.: S25062002107004 Page 507 of 554 PSD NVNT ax80 5775MHz Ant1 PSD NVNT ax80 5775MHz Ant2 Report No.: S25062002107004 Page 508 of 554 PSD NVNT n20 5745MHz Ant1 PSD NVNT n20 5745MHz Ant2 Report No.: S25062002107004 Page 509 of 554 PSD NVNT n20 5785MHz Ant1 PSD NVNT n20 5785MHz Ant2 Report No.: S25062002107004 Page 510 of 554 PSD NVNT n20 5825MHz Ant1 PSD NVNT n20 5825MHz Ant2 Report No.: S25062002107004 Page 511 of 554 PSD NVNT n40 5755MHz Ant1 PSD NVNT n40 5755MHz Ant2 Report No.: S25062002107004 Page 512 of 554 PSD NVNT n40 5795MHz Ant1 PSD NVNT n40 5795MHz Ant2 Report No.: S25062002107004 Page 513 of 554 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Limit (dBm) Verdict NVNT ac20 5745 Ant1 -30.46 -27 Pass NVNT ac20 5745 Ant2 -30.17 -27 Pass NVNT ac20 5825 Ant1 -29.21 -27 Pass NVNT ac20 5825 Ant2 -29.36 -27 Pass NVNT ac40 5755 Ant1 -30.07 -27 Pass NVNT ac40 5755 Ant2 -30.9 -27 Pass NVNT ac40 5795 Ant1 -29.37 -27 Pass NVNT ac40 5795 Ant2 -28.31 -27 Pass NVNT ac80 5755 Ant1 -29.35 -27 Pass NVNT ac80 5755 Ant2 -29.27 -27 Pass NVNT ac80 5755 Ant1 -30.29 -27 Pass NVNT ac80 5755 Ant2 -31.25 -27 Pass NVNT ax20 5745 Ant1 -30.43 -27 Pass NVNT ax20 5745 Ant2 -30.58 -27 Pass NVNT ax20 5825 Ant1 -29.09 -27 Pass NVNT ax20 5825 Ant2 -28.89 -27 Pass NVNT ax40 5755 Ant1 -30.76 -27 Pass NVNT ax40 5755 Ant2 -31.04 -27 Pass NVNT ax40 5795 Ant1 -29.1 -27 Pass NVNT ax40 5795 Ant2 -29.1 -27 Pass NVNT ax80 5755 Ant1 -29.03 -27 Pass NVNT ax80 5755 Ant2 -28.38 -27 Pass NVNT ax80 5755 Ant1 -30.92 -27 Pass NVNT ax80 5755 Ant2 -29.63 -27 Pass NVNT n20 5745 Ant1 -30.74 -27 Pass NVNT n20 5745 Ant2 -30.69 -27 Pass NVNT n20 5825 Ant1 -29.31 -27 Pass NVNT n20 5825 Ant2 -28.56 -27 Pass NVNT n40 5755 Ant1 -30.63 -27 Pass NVNT n40 5755 Ant2 -30.88 -27 Pass NVNT n40 5795 Ant1 -28.85 -27 Pass NVNT n40 5795 Ant2 -28.51 -27 Pass Report No.: S25062002107004 Page 514 of 554 Test Graphs Band Edge NVNT ac20 5745MHz Low Ant1 Band Edge NVNT ac20 5745MHz Low Ant2 Report No.: S25062002107004 Page 515 of 554 Band Edge NVNT ac20 5825MHz High Ant1 Band Edge NVNT ac20 5825MHz High Ant2 Report No.: S25062002107004 Page 516 of 554 Band Edge NVNT ac40 5755MHz Low Ant1 Band Edge NVNT ac40 5755MHz Low Ant2 Report No.: S25062002107004 Page 517 of 554 Band Edge NVNT ac40 5795MHz High Ant1 Band Edge NVNT ac40 5795MHz High Ant2 Report No.: S25062002107004 Page 518 of 554 Band Edge NVNT ac80 5755MHz High Ant1 Band Edge NVNT ac80 5755MHz High Ant2 Report No.: S25062002107004 Page 519 of 554 Band Edge NVNT ac80 5755MHz Low Ant1 Band Edge NVNT ac80 5755MHz Low Ant2 Report No.: S25062002107004 Page 520 of 554 Band Edge NVNT ax20 5745MHz Low Ant1 Band Edge NVNT ax20 5745MHz Low Ant2 Report No.: S25062002107004 Page 521 of 554 Band Edge NVNT ax20 5825MHz High Ant1 Band Edge NVNT ax20 5825MHz High Ant2 Report No.: S25062002107004 Page 522 of 554 Band Edge NVNT ax40 5755MHz Low Ant1 Band Edge NVNT ax40 5755MHz Low Ant2 Report No.: S25062002107004 Page 523 of 554 Band Edge NVNT ax40 5795MHz High Ant1 Band Edge NVNT ax40 5795MHz High Ant2 Report No.: S25062002107004 Page 524 of 554 Band Edge NVNT ax80 5755MHz High Ant1 Band Edge NVNT ax80 5755MHz High Ant2 Report No.: S25062002107004 Page 525 of 554 Band Edge NVNT ax80 5755MHz Low Ant1 Band Edge NVNT ax80 5755MHz Low Ant2 Report No.: S25062002107004 Page 526 of 554 Band Edge NVNT n20 5745MHz Low Ant1 Band Edge NVNT n20 5745MHz Low Ant2 Report No.: S25062002107004 Page 527 of 554 Band Edge NVNT n20 5825MHz High Ant1 Band Edge NVNT n20 5825MHz High Ant2 Report No.: S25062002107004 Page 528 of 554 Band Edge NVNT n40 5755MHz Low Ant1 Band Edge NVNT n40 5755MHz Low Ant2 Report No.: S25062002107004 Page 529 of 554 Band Edge NVNT n40 5795MHz High Ant1 Band Edge NVNT n40 5795MHz High Ant2 Report No.: S25062002107004 Page 530 of 554 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT ac20 5745 Ant1 -27.63 -27 Pass NVNT ac20 5745 Ant2 -27.97 -27 Pass NVNT ac20 5785 Ant1 -27.55 -27 Pass NVNT ac20 5785 Ant2 -28.58 -27 Pass NVNT ac20 5825 Ant1 -27.73 -27 Pass NVNT ac20 5825 Ant2 -27.81 -27 Pass NVNT ac40 5755 Ant1 -27.64 -27 Pass NVNT ac40 5755 Ant2 -27.22 -27 Pass NVNT ac40 5795 Ant1 -27.75 -27 Pass NVNT ac40 5795 Ant2 -27.33 -27 Pass NVNT ac80 5775 Ant1 -27.53 -27 Pass NVNT ac80 5775 Ant2 -28.3 -27 Pass NVNT ax20 5745 Ant1 -27.06 -27 Pass NVNT ax20 5745 Ant2 -28.14 -27 Pass NVNT ax20 5785 Ant1 -27.78 -27 Pass NVNT ax20 5785 Ant2 -28.43 -27 Pass NVNT ax20 5825 Ant1 -28.3 -27 Pass NVNT ax20 5825 Ant2 -27.75 -27 Pass NVNT ax40 5755 Ant1 -37.37 -27 Pass NVNT ax40 5755 Ant2 -37.09 -27 Pass NVNT ax40 5795 Ant1 -28.34 -27 Pass NVNT ax40 5795 Ant2 -27.88 -27 Pass NVNT ax80 5775 Ant1 -27.86 -27 Pass NVNT ax80 5775 Ant2 -28.24 -27 Pass NVNT n20 5745 Ant1 -28.01 -27 Pass NVNT n20 5745 Ant2 -27.19 -27 Pass NVNT n20 5785 Ant1 -27.39 -27 Pass NVNT n20 5785 Ant2 -28.21 -27 Pass NVNT n20 5825 Ant1 -28.15 -27 Pass NVNT n20 5825 Ant2 -27.78 -27 Pass NVNT n40 5755 Ant1 -27.65 -27 Pass NVNT n40 5755 Ant2 -27.29 -27 Pass NVNT n40 5795 Ant1 -28.46 -27 Pass NVNT n40 5795 Ant2 -27.97 -27 Pass …

Text truncated - open the document above for the full version.

Report No.: S25062002107004 Page 459 of 554 Band Edge NVNT ac20 5745MHz Low Ant2 Band Edge NVNT ac20 5825MHz High Ant2 Report No.: S25062002107004 Page 460 of 554 Band Edge NVNT ac40 5755MHz Low Ant1 Band Edge NVNT ac40 5795MHz High Ant1 Report No.: S25062002107004 Page 461 of 554 Band Edge NVNT ac40 5755MHz Low Ant2 Band Edge NVNT ac40 5795MHz High Ant2 Report No.: S25062002107004 Page 462 of 554 Band Edge NVNT ac80 5755MHz High Ant1 Band Edge NVNT ac80 5755MHz Low Ant1 Report No.: S25062002107004 Page 463 of 554 Band Edge NVNT ac80 5755MHz High Ant2 Band Edge NVNT ac80 5755MHz Low Ant2 Report No.: S25062002107004 Page 464 of 554 Band Edge NVNT ac80 5775MHz Low Ant2 Band Edge NVNT ax20 5745MHz Low Ant1 Report No.: S25062002107004 Page 465 of 554 Band Edge NVNT ax20 5825MHz High Ant1 Band Edge NVNT ax20 5745MHz Low Ant2 Report No.: S25062002107004 Page 466 of 554 Band Edge NVNT ax20 5825MHz High Ant2 Band Edge NVNT ax40 5755MHz Low Ant1 Report No.: S25062002107004 Page 467 of 554 Band Edge NVNT ax40 5795MHz High Ant1 Band Edge NVNT ax40 5755MHz Low Ant2 Report No.: S25062002107004 Page 468 of 554 Band Edge NVNT ax40 5795MHz High Ant2 Band Edge NVNT ax80 5755MHz High Ant1 Report No.: S25062002107004 Page 469 of 554 Band Edge NVNT ax80 5755MHz Low Ant1 Band Edge NVNT ax80 5755MHz High Ant2 Report No.: S25062002107004 Page 470 of 554 Band Edge NVNT ax80 5755MHz Low Ant2 Report No.: S25062002107004 Page 471 of 554 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5745 Ant1 -31.66 -27 Pass NVNT a 5785 Ant1 -32.09 -27 Pass NVNT a 5825 Ant1 -32.23 -27 Pass NVNT a 5745 Ant2 -33.92 -27 Pass NVNT a 5785 Ant2 -33.62 -27 Pass NVNT a 5825 Ant2 -32.93 -27 Pass NVNT n20 5745 Ant1 -32.13 -27 Pass NVNT n20 5785 Ant1 -32.41 -27 Pass NVNT n20 5825 Ant1 -31.28 -27 Pass NVNT n20 5745 Ant2 -33.7 -27 Pass NVNT n20 5785 Ant2 -33.77 -27 Pass NVNT n20 5825 Ant2 -32.98 -27 Pass NVNT n40 5755 Ant1 -32.1 -27 Pass NVNT n40 5795 Ant1 -32.25 -27 Pass NVNT n40 5755 Ant2 -33.63 -27 Pass NVNT n40 5795 Ant2 -33.79 -27 Pass NVNT ac20 5745 Ant1 -32.62 -27 Pass NVNT ac20 5785 Ant1 -30.92 -27 Pass NVNT ac20 5825 Ant1 -32.4 -27 Pass NVNT ac20 5745 Ant2 -33.67 -27 Pass NVNT ac20 5785 Ant2 -33.68 -27 Pass NVNT ac20 5825 Ant2 -33.48 -27 Pass NVNT ac40 5755 Ant1 -32.03 -27 Pass NVNT ac40 5795 Ant1 -32.38 -27 Pass NVNT ac40 5755 Ant2 -33.82 -27 Pass NVNT ac40 5795 Ant2 -34.24 -27 Pass NVNT ac80 5775 Ant1 -31.67 -27 Pass NVNT ac80 5775 Ant2 -34.54 -27 Pass NVNT ax20 5745 Ant1 -31.93 -27 Pass NVNT ax20 5785 Ant1 -32.48 -27 Pass NVNT ax20 5825 Ant1 -32.53 -27 Pass NVNT ax20 5745 Ant2 -34.37 -27 Pass NVNT ax20 5785 Ant2 -33.74 -27 Pass NVNT ax20 5825 Ant2 -34.46 -27 Pass NVNT ax40 5755 Ant1 -31.58 -27 Pass NVNT ax40 5795 Ant1 -31.86 -27 Pass NVNT ax40 5755 Ant2 -34.14 -27 Pass NVNT ax40 5795 Ant2 -34.06 -27 Pass NVNT ax80 5775 Ant1 -32.44 -27 Pass NVNT ax80 5775 Ant2 -33.79 -27 Pass Report No.: S25062002107004 Page 472 of 554 Test Graphs Tx. Spurious NVNT a 5745MHz Ant1 Emission Tx. Spurious NVNT a 5785MHz Ant1 Emission Report No.: S25062002107004 Page 473 of 554 Tx. Spurious NVNT a 5825MHz Ant1 Emission Tx. Spurious NVNT a 5745MHz Ant2 Emission Report No.: S25062002107004 Page 474 of 554 Tx. Spurious NVNT a 5785MHz Ant2 Emission Tx. Spurious NVNT a 5825MHz Ant2 Emission Report No.: S25062002107004 Page 475 of 554 Tx. Spurious NVNT n20 5745MHz Ant1 Emission Tx. Spurious NVNT n20 5785MHz Ant1 Emission Report No.: S25062002107004 Page 476 of 554 Tx. Spurious NVNT n20 5825MHz Ant1 Emission Tx. Spurious NVNT n20 5745MHz Ant2 Emission Report No.: S25062002107004 Page 477 of 554 Tx. Spurious NVNT n20 5785MHz Ant2 Emission Tx. Spurious NVNT n20 5825MHz Ant2 Emission Report No.: S25062002107004 Page 478 of 554 Tx. Spurious NVNT n40 5755MHz Ant1 Emission Tx. Spurious NVNT n40 5795MHz Ant1 Emission Report No.: S25062002107004 Page 479 of 554 Tx. Spurious NVNT n40 5755MHz Ant2 Emission Tx. Spurious NVNT n40 5795MHz Ant2 Emission Report No.: S25062002107004 Page 480 of 554 Tx. Spurious NVNT ac20 5745MHz Ant1 Emission Tx. Spurious NVNT ac20 5785MHz Ant1 Emission Report No.: S25062002107004 Page 481 of 554 Tx. Spurious NVNT ac20 5825MHz Ant1 Emission Tx. Spurious NVNT ac20 5745MHz Ant2 Emission Report No.: S25062002107004 Page 482 of 554 Tx. Spurious NVNT ac20 5785MHz Ant2 Emission Tx. Spurious NVNT ac20 5825MHz Ant2 Emission Report No.: S25062002107004 Page 483 of 554 Tx. Spurious NVNT ac40 5755MHz Ant1 Emission Tx. Spurious NVNT ac40 5795MHz Ant1 Emission Report No.: S25062002107004 Page 484 of 554 Tx. Spurious NVNT ac40 5755MHz Ant2 Emission Tx. Spurious NVNT ac40 5795MHz Ant2 Emission Report No.: S25062002107004 Page 485 of 554 Tx. Spurious NVNT ac80 5775MHz Ant1 Emission Tx. Spurious NVNT ac80 5775MHz Ant2 Emission Report No.: S25062002107004 Page 486 of 554 Tx. Spurious NVNT ax20 5745MHz Ant1 Emission Tx. Spurious NVNT ax20 5785MHz Ant1 Emission Report No.: S25062002107004 Page 487 of 554 Tx. Spurious NVNT ax20 5825MHz Ant1 Emission Tx. Spurious NVNT ax20 5745MHz Ant2 Emission Report No.: S25062002107004 Page 488 of 554 Tx. Spurious NVNT ax20 5785MHz Ant2 Emission Tx. Spurious NVNT ax20 5825MHz Ant2 Emission Report No.: S25062002107004 Page 489 of 554 Tx. Spurious NVNT ax40 5755MHz Ant1 Emission Tx. Spurious NVNT ax40 5795MHz Ant1 Emission Report No.: S25062002107004 Page 490 of 554 Tx. Spurious NVNT ax40 5755MHz Ant2 Emission Tx. Spurious NVNT ax40 5795MHz Ant2 Emission Report No.: S25062002107004 Page 491 of 554 Tx. Spurious NVNT ax80 5775MHz Ant1 Emission Tx. Spurious NVNT ax80 5775MHz Ant2 Emission Report No.: S25062002107004 Page 492 of 554 5.8G WIFI MIMO Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT ac20 5745 Ant1 7.38 30.00 Pass NVNT ac20 5745 Ant2 8.76 30.00 Pass NVNT ac20 5745 Sum 11.13 30.00 Pass NVNT ac20 5785 Ant1 8.13 30.00 Pass NVNT ac20 5785 Ant2 8.97 30.00 Pass NVNT ac20 5785 Sum 11.58 30.00 Pass …

Text truncated - open the document above for the full version.

Report No.: S25062002107004 Page 420 of 554 OBW NVNT ac20 5785MHz Ant2 OBW NVNT ac20 5825MHz Ant2 Report No.: S25062002107004 Page 421 of 554 OBW NVNT ac40 5755MHz Ant1 OBW NVNT ac40 5795MHz Ant1 Report No.: S25062002107004 Page 422 of 554 OBW NVNT ac40 5755MHz Ant2 OBW NVNT ac40 5795MHz Ant2 Report No.: S25062002107004 Page 423 of 554 OBW NVNT ac80 5775MHz Ant1 OBW NVNT ac80 5775MHz Ant2 Report No.: S25062002107004 Page 424 of 554 OBW NVNT ax20 5745MHz Ant1 OBW NVNT ax20 5785MHz Ant1 Report No.: S25062002107004 Page 425 of 554 OBW NVNT ax20 5825MHz Ant1 OBW NVNT ax20 5745MHz Ant2 Report No.: S25062002107004 Page 426 of 554 OBW NVNT ax20 5785MHz Ant2 OBW NVNT ax20 5825MHz Ant2 Report No.: S25062002107004 Page 427 of 554 OBW NVNT ax40 5755MHz Ant1 OBW NVNT ax40 5795MHz Ant1 Report No.: S25062002107004 Page 428 of 554 OBW NVNT ax40 5755MHz Ant2 OBW NVNT ax40 5795MHz Ant2 Report No.: S25062002107004 Page 429 of 554 OBW NVNT ax80 5775MHz Ant1 OBW NVNT ax80 5775MHz Ant2 Report No.: S25062002107004 Page 430 of 554 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 -10.14 0.44 -9.7 30 Pass NVNT a 5785 Ant1 -9.95 0.45 -9.5 30 Pass NVNT a 5825 Ant1 -10.53 0.11 -10.42 30 Pass NVNT a 5745 Ant2 -10.65 0.44 -10.21 30 Pass NVNT a 5785 Ant2 -9.27 0.44 -8.83 30 Pass NVNT a 5825 Ant2 -9.94 0.44 -9.5 30 Pass NVNT n20 5745 Ant1 -10.93 0.47 -10.46 30 Pass NVNT n20 5785 Ant1 -9.81 0.47 -9.34 30 Pass NVNT n20 5825 Ant1 -9.71 0.12 -9.59 30 Pass NVNT n20 5745 Ant2 -11.48 0.47 -11.01 30 Pass NVNT n20 5785 Ant2 -9.89 0.47 -9.42 30 Pass NVNT n20 5825 Ant2 -10.42 0.47 -9.95 30 Pass NVNT n40 5755 Ant1 -16.43 0.32 -16.11 30 Pass NVNT n40 5795 Ant1 -11.1 0.24 -10.86 30 Pass NVNT n40 5755 Ant2 -13.12 0.9 -12.22 30 Pass NVNT n40 5795 Ant2 -12.63 0.89 -11.74 30 Pass NVNT ac20 5745 Ant1 -10.73 0.47 -10.26 30 Pass NVNT ac20 5785 Ant1 -9.54 0.47 -9.07 30 Pass NVNT ac20 5825 Ant1 -10.68 0.47 -10.21 30 Pass NVNT ac20 5745 Ant2 -10.63 0.47 -10.16 30 Pass NVNT ac20 5785 Ant2 -9.88 0.47 -9.41 30 Pass NVNT ac20 5825 Ant2 -9.77 0.47 -9.3 30 Pass NVNT ac40 5755 Ant1 -16.35 0.89 -15.46 30 Pass NVNT ac40 5795 Ant1 -17.47 0.89 -16.58 30 Pass NVNT ac40 5755 Ant2 -14.98 0.89 -14.09 30 Pass NVNT ac40 5795 Ant2 -16.67 0.89 -15.78 30 Pass NVNT ac80 5775 Ant1 -25.43 1.69 -23.74 30 Pass NVNT ac80 5775 Ant2 -25.06 1.61 -23.45 30 Pass NVNT ax20 5745 Ant1 -12.43 0.59 -11.84 30 Pass NVNT ax20 5785 Ant1 -10.14 0.59 -9.55 30 Pass NVNT ax20 5825 Ant1 -12.4 0.59 -11.81 30 Pass NVNT ax20 5745 Ant2 -11.59 0.59 -11 30 Pass NVNT ax20 5785 Ant2 -11.62 0.6 -11.02 30 Pass NVNT ax20 5825 Ant2 -10.98 0.59 -10.39 30 Pass NVNT ax40 5755 Ant1 -19.35 1.06 -18.29 30 Pass NVNT ax40 5795 Ant1 -18.58 1.07 -17.51 30 Pass NVNT ax40 5755 Ant2 -17.72 1.06 -16.66 30 Pass NVNT ax40 5795 Ant2 -17.83 1.07 -16.76 30 Pass NVNT ax80 5775 Ant1 -26.91 1.78 -25.13 30 Pass NVNT ax80 5775 Ant2 -27.37 1.77 -25.6 30 Pass Report No.: S25062002107004 Page 431 of 554 Test Graphs PSD NVNT a 5745MHz Ant1 PSD NVNT a 5785MHz Ant1 Report No.: S25062002107004 Page 432 of 554 PSD NVNT a 5825MHz Ant1 PSD NVNT a 5745MHz Ant2 Report No.: S25062002107004 Page 433 of 554 PSD NVNT a 5785MHz Ant2 PSD NVNT a 5825MHz Ant2 Report No.: S25062002107004 Page 434 of 554 PSD NVNT n20 5745MHz Ant1 PSD NVNT n20 5785MHz Ant1 Report No.: S25062002107004 Page 435 of 554 PSD NVNT n20 5825MHz Ant1 PSD NVNT n20 5745MHz Ant2 Report No.: S250620021070…
