2AT9T-ARMORWATCHPROsmart watch



Shenzhen Ulefone Technology Co., Ltd. 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/11/21 U.S. Agent Designation Shenzhen Ulefone Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AT9T-ARMORWATCHPRO): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Ulefone Technology Co., Ltd. Shenzhen Ulefone Technology Co., Ltd. with the FRN [0028717809] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Chen Hongchi Manager Shenzhen Ulefone Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

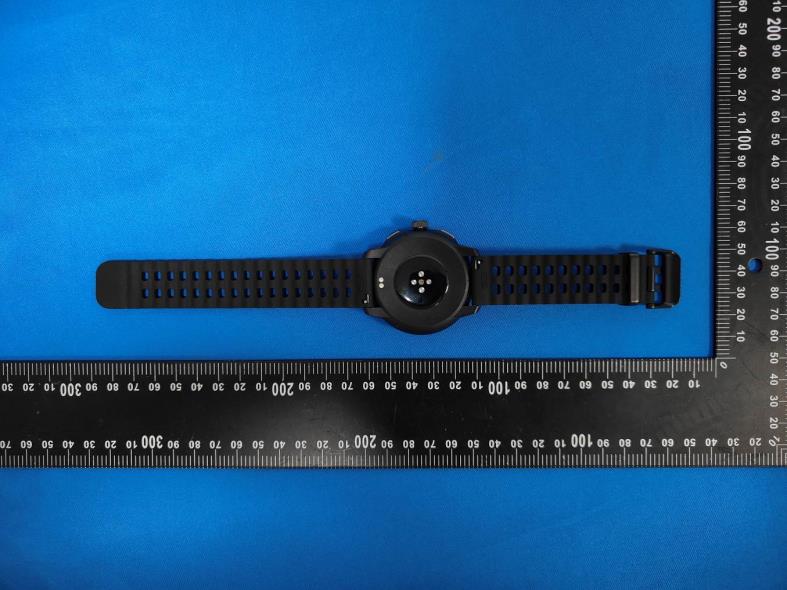

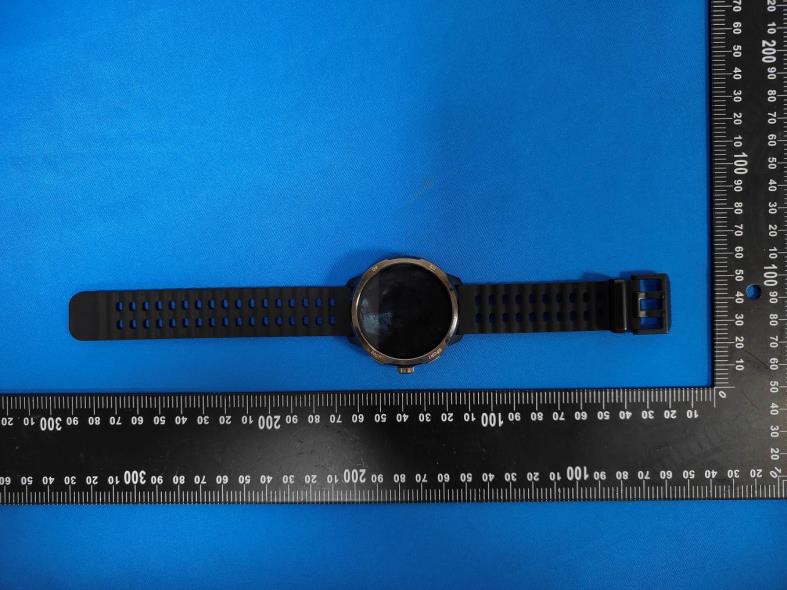

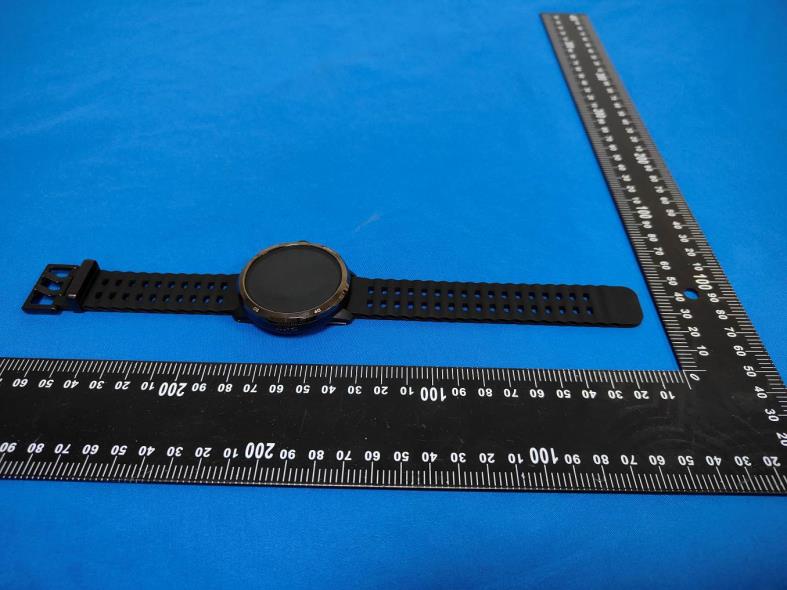

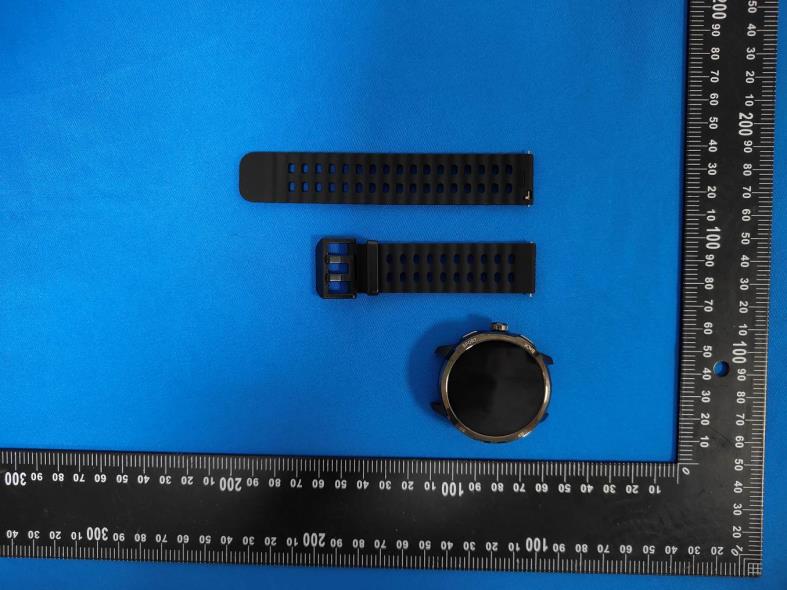

FCC ID: 2AT9T-ARMORWATCHPRO External Photos of the EUT FCC ID: 2AT9T-ARMORWATCHPRO FCC ID: 2AT9T-ARMORWATCHPRO

Label and Location Size: L: 1.0cm*W: 0.3cm Label and Location FCC ID : 2AT9T-ARMORWATCHPRO

FCC ID: 2AT9T-ARMORWATCHPRO Internal Photos of the EUT Antenna FCC ID: 2AT9T-ARMORWATCHPRO FCC ID: 2AT9T-ARMORWATCHPRO

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. .................... : FCC ID. ........................................... : CTA25102200102 2AT9T-ARMORWATCHPRO Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 27, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Ulefone Technology Co., Ltd. Address ........................................... : 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : smart watch Trade Mark ........................................ N/A Manufacturer .................................... : Shenzhen Gotron Electronic CO.,Ltd Model/Type reference ...................... : Armor Watch Pro Listed Models ................................... : N/A Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25102200102 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : smart watch Model /Type : Armor Watch Pro Listed Models : N/A Applicant : Shenzhen Ulefone Technology Co., Ltd. Address : 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Manufacturer : Shenzhen Gotron Electronic CO.,Ltd Address : 7B01,Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25102200102 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25102200102 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-te…

Text truncated - open the document above for the full version.

服 务 创 新 开 拓 Customer Name: Shenzhen Ulefone Technology CO.,Ltd Project Name: Armor Watch Pro Required frequency band: GPS R&D Engineering: Liao Xianming Completion date: August 11, 2025 Shenzhen Tianweixun Wireless Technology Co., Ltd Antenna Design and Data Report Product image (steel shell) Antenna circuit matching description Eleme nt ElementValueVender RF E1(0402) 5.6NH E2(0402) 3.3PF E3(0402) NC E4(0402)100PF 地脚地脚 0.6NH Modify the matching of GPS antenna according to the above circuit GPS antenna matchingcircuitdescription: GPS antenna field measurement data The above data was tested on the rooftop of our company during rainy weather. GPS antenna test data GPS antenna test data Hand model antenna efficiency Environmental treatment 1. As shown in Figure 1, a piece of conductive sponge is attached to the motherboard shielding cover and grounded to the conductive cloth on the screen. The size of the conductive sponge is modified to 10 * 10mm (note: the conductive cloth on the speaker and shielding cover has been removed). 2. As shown in Figure 2, attach a piece of conductive cotton or cloth to the horn and ground it to the steel plate on top; The battery needs to be fully covered with conductive cloth shielding treatment. Environmental treatment 3. As shown in Figure 3, connect the battery to the steel plate on the horn with a conductive cloth for grounding; The side key steel sheet should also be attached with conductive cloth to connect with the battery, and the horn wire should be wound into a Fried Dough Twists shape. 4. As shown in Figure 4, place a piece of conductive cloth on the screen to shield the interference between the screen and TP. The conductive cloth can be 0.5-1mm smaller than the screen. Note that the conductive cloth around the components should not be lifted. Lifting the conductive cloth will interfere with the signal. Environmental treatment 5. As shown in Figure 5, the bottom of the motherboard should be insulated with high-temperature adhesive. 6. As shown in Figure 6, try to press the speaker wire and battery wire under the motherboard as much as possible; The MIC cable can be placed on top of two FPC boards and cannot protrude to the edge of the screen. Environmental treatment 7. According to the diagram, the steel plate of the screen cable socket is bonded with a piece of conductive foam and grounded with the conductive cloth of the screen. Thank you for your patient reading! If you have any questions, please contact us! Daily service hours: Monday to Friday 9:00-18:00 Saturday 9:00-12:00 Switchboard hotline: 0755-29361726 Fax: 0755-85268343 Website: www.tianweixun. com Address:6th Floor, Building T2B South Zone, Shenzhen High-tech Industrial Park Nanshan District Shenzhen, Guangdong Province China

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25102200101 2AT9T-ARMORWATCHPRO Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Oct. 27, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Shenzhen Ulefone Technology Co., Ltd. Address ...........................................: 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : smart watch Trade Mark ......................................: N/A Manufacturer ...................................: Shenzhen Gotron Electronic CO.,Ltd Model/Type reference .....................: Armor Watch Pro Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: DC 3.7V From battery and DC 5.0V From external circuit Result ..............................................: PASS Report No.: CTA25102200101 Page 2 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : smart watch Model /Type : Armor Watch Pro Listed Models : N/A Applicant : Shenzhen Ulefone Technology Co., Ltd. Address : 7A01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Manufacturer : Shenzhen Gotron Electronic CO.,Ltd Address : 7B01,Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25102200101 Page 3 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results ............…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2AT9T-ARMORWATCHPRO Company : Shenzhen Ulefone Technology Co., Ltd. EUT : smart watch Model Number : Armor Watch Pro Report No. : CTA25102200101 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.660 2401.676 2402.336 0.5 PASS 2440 0.648 2439.688 2440.336 0.5 PASS 2480 0.636 2479.692 2480.328 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0038 2401.5170 2402.5208 --- --- 2440 1.0044 2439.5168 2440.5212 --- --- 2480 1.0045 2479.5161 2480.5206 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -0.11 ≤30 PASS 2440 -0.31 ≤30 PASS 2480 -0.19 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.68 ≤8.00 PASS 2440 -15.70 ≤8.00 PASS 2480 -15.83 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -0.51 -51.82 ≤-20.51 PASS High 2480 -0.59 -51.63 ≤-20.59 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -1.42 -1.42 --- PASS 30~1000 -1.42 -67.85 ≤-21.42 PASS 1000~26500 -1.42 -42.72 ≤-21.42 PASS 2440 Reference -2.33 -2.33 --- PASS 30~1000 -2.33 -68.1 ≤-22.33 PASS 1000~26500 -2.33 -43.8 ≤-22.33 PASS 2480 Reference -1.79 -1.79 --- PASS 30~1000 -1.79 -67.35 ≤-21.79 PASS 1000~26500 -1.79 -42.28 ≤-21.79 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

FCC ID: 2AT9T-ARMORWATCHPRO Test Setup Photos of the EUT FCC ID: 2AT9T-ARMORWATCHPRO
