2ATEV-BL1206-PBroadLink

Features 125MHzARMCortexM4MCU 256KBSRAM/2MBFLASH SupportAES，MD5，SHA1 SupportXIP Workingvoltage:DC4.5~24V Wi-Firelatedfeatures Support802.11b/g/nwith20M and40Mbandwidth SupportstationandsoftAP SupportSmartConfigandAP configuration SupportWEP/WPA2 Supportmultiplecloudservices Integratedbalun/PA/LNA TCP/IPstackoptimizedforIoT application PCBantenna Peripheral 2xUART 2xI2C 1xSPI 5xPWM Upto10xGPIOs Workingtemperature:-10°Cto+80°C StampstyleSMDforsurfacemounting production Applications Smarttransportation Smarthome/appliances Instruments Healthcare Industrialautomation Intelligentsecurity Smartenergy Model ModelAntennatypeNote BL1206-P PCBantennaDefault Embedded Version：1.2Releasedate：May13,2020 -2- Content 1.Overview ............................................................................................................................. -3- 2.BasicSpecifications ............................................................................................................. -3- 2.1.PowerConsumption .................................................................................................... -3- 2.2.WorkingEnvironment .................................................................................................. -4- 3.RadioSpecifications ............................................................................................................ -4- 3.1.BasicRadioSpecification ............................................................................................. -4- 3.2.RadioPerformance ...................................................................................................... -5- 3.2.1.IEEE802.11b ......................................................................................................... -5- 3.2.2.IEEE802.11g ......................................................................................................... -6- 3.2.3IEEE802.11n ........................................................................................................... -7- 3.2.4TestingDataforOTA .............................................................................................. -8- RefertoTable1fortestingdata. ........................................................................................ -8- 4.BL1206-PHardwareInformation ........................................................................................ -9- 4.1.PINSequence ............................................................................................................... -9- 4.2.PINDefinitions ........................................................................................................... -10- 4.3.PCBAntenna .............................................................................................................. -11- 4.4.MechanicalDimensions ............................................................................................. -13- 5.ReferenceDesign .............................................................................................................. -14- 5.1.UARTInterfaceDesign ............................................................................................... -14- 5.2.PowerSupplyRequirement ....................................................................................... -15- RevisionHistory .................................................................................................................... -18- Copyrights ............................................................................................................................. -19- ContactUs ............................................................................................................................. -19- -3- 1.Overview BL1206-Pisacost-effectiveembeddedWi-FimoduledesignedbyBroadLink,which integratesanARMCortex-M4Fprocessorspeedupto125MHz,256KBSRAMand2MBflashwith 3.3Vsinglepowersupply. Themoduleintegratesradiotransceiver,MAC,baseband,allWi-Fiprotocols,configurations andnetworkstack.Itcanbewidelyusedinapplicationslikesmarthomedevices,remote monitoringdevicesandmedicalcareinstruments. 2.BasicSpecifications 2.1.PowerConsumption PleaserefertoTable1forpowerconsumptiondata. Table1BL1206-PPowerConsumptionData SpecificationsMin.Typ.Max.Units VDD4.51224V VIL(inputlowvoltage)00.4V VIH(inputhighvoltage)45.5V VOL(outputlowvoltage)00.4V VOH(outputhighvoltage)45.5V Standby(SPmini)60mA pulsecurrent@TX [email protected] 178mA pulsecurrent@TX 11g@14dBm54Mbps 178mA pulsecurrent@TX 11n@14dBm65Mbps 170mA -4- 2.2.WorkingEnvironment PleaserefertoTable2forworkingenvironmentdata. Table2BL1206-PWorkingEnvironmentData SymbolDescriptionMin.Max.Units TsStoragetemperature-40125 °C T A Ambientoperatingtemperature-1080 °C VddSupplyvoltage3.03.6V VioVoltageonIOpin03.3V 3.RadioSpecifications 3.1.BasicRadioSpecification PleaserefertoTable3forradiospecification. Table3BL1206-PRadioSpecification Radiorange2.412GHz-2.462GHz WirelessstandardsIEEE802.11b/g/n Radiooutput(conductive) 802.11b:16 ± 1.5dBm@11Mbps 802.11b:16 ± 1.5dBm@1Mbps 802.11g:14 ± 1.5dBm@54Mbps 802.11g:16 ± 1.5dBm@6Mbps 802.11n:14 ± 1.5dBm@MCS7/HT20 802.11n:16 ± 1.5dBm@MCS0/HT20 802.11n:13.5 ± 1.5dBm@MCS7/HT40 802.11n:16 ± 1.5dBm@MCS0/HT40 Antennatype Internal:PCBantenna External:Notsupported Receivingsensitivity 802.11b<-88dBm@11Mbps 802.11g<-75dBm@54Mbps 802.11n/HT20<-72dBm@MCS7 -5- 802.11n/HT40<-69dBm@MCS7 StackIPv4,TCP/UDP/FTP/HTTP/HTTPS/TLS/mDNS Datarate(max)[email protected],[email protected],[email protected] Security Encryptionstandard:Open/WEP-Open/WPA/WPA2 Encryptionalgorithm:WEP64/WEP128/TKIP/AES NetworktypesSTA/AP/STA+AP/WIFIDirect 3.2.RadioPerformance 3.2.1.IEEE802.11b Table4BasicspecificationsunderIEEE802.11b ITEMSpecification ModulationTypeDSSS/CCK Frequencyrange 2412MHz~2462MHz ChannelCH1toCH11 Datarate 1,2,5.5,11Mbps Table5TransmittingperformanceunderIEEE802.11b TXCharacteristicsMin.TypicalMax.Unit Power@11Mbps 16dBm FrequencyError -10+10ppm EVM@11Mbps -17dB Transmitspectrummask Pass - 6 - Table…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hangzhou BroadLink Technology Co.,Ltd Address Unit C,Building 1,No.57 Jiang'er Road,Changhe Street,Binjiang District,Hangzhou,Zhejiang,China Grantee Code 2ATEV FCC ID 2ATEV-BL1206-P Authorized Contact Name mengjiao.yan Contact Email [email protected] Contact Phone 18058715209 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2020-6-17 Print Name: mengjiao.yan Title: PM *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hangzhou BroadLink Technology Co., Ltd. Date: 6/17/2020 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding FCC ID: 2ATEV-BL1206-P To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hangzhou BroadLink Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): mengjiao.yan Title:PM Signature: On behalf of Company: Hangzhou BroadLink Technology Co.,Ltd Telephone: 18058715209

Hangzhou BroadLink Technology Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou BroadLink Technology Co., Ltd. Unit C,Building 1,No.57 Jiang'er Road, Changhe Street,Binjiang District Hangzhou,Zhejiang China Regarding: Confidentiality Request regarding application for FCC ID:2ATEV-BL1206-P LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name : Mengjiao Yan Title : PM Company Name : Hangzhou BroadLink Technology Co., Ltd.

Hangzhou BroadLink Technology Co.,Ltd. 6/17/2020 To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States Dear Sir/Madam, Re: Request for FCC module certification FCC ID: 2ATEV-BL1206-P We hereby request a Modular certification for the FCC ID referenced above. The device meets the requirements below. • The module has metal case covering top and sides as its own RF shielding. The shielding at bottom is implemented by the GND copper plane in PCB substrate. Answer： Please see External Photo.pdf • The module has buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer： ARM Cortex-M4F processor speed up to 125MHz, 256KB SRAM and 2MB flash as an embedded processor to buffer the data. It's controlled by the chip RTL8710. • The module has power supply regulation on the module; Answer： It is a buck convertor or step down convertor. The input voltage to the DC can be in the range 4.5V to 24V. Outputs from the convertor provides 3.3V which is required by the RTL8710; • The module has demonstrated compliance in a stand-alone configuration; Answer：please see test report • The module has a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer：The antenna is Integral Antenna. please see test report & Internal Photos. • The module will be labeled with its permanently affixed FCC ID label. Answer：Please see the Label & Location.pdf • The module does comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer：The module is compliant with all applicable FCC rules. Detail instructions are given in the User Manual • The module does comply with RF exposure requirements. Answer：Please see MPE Report. pdf Sincerely, Name: mengjiao.yan Title: PM Company: Hangzhou BroadLink Technology Co.,Ltd. Telephone: 18058715209 Hangzhou BroadLink Technology Co.,Ltd. FCC Modular definitions, From FCC KDB 996369 D01 Module Equip Auth Guide v01r04 A. Single-modular transmitter is a self-contained, physically delineated, component for which compliance can be demonstrated independent of the host operating conditions, and which complies with all eight requirements of Section 15.212(a)(1) as summarized below. See Section 15.212 for more detailed information, and Section 2.901 (and sub- sections that follow) for general certification requirements. B. Limited single-modular transmitter is a transmitter that does not meet all eight requirements listed in Section 15.212(a) (1), and compliance can be demonstrated only for specific host and applicable operating conditions in which the transmitter will be used. For example, manufacturers have flexibility with respect to requirements such as module shielding, buffered modulation/data inputs and power supply regulation. If one or more of these functions (shielding, buffered modulation/data inputs and power supply regulation) are provided by a specific host or hosts, then the module can be granted as a limited module that is limited to that specific host or hosts. The responsible party must demonstrate how it will retain control over the final installation of the device, such that compliance of the product is ensured by limiting the installation to a specific host or hosts, for example. Hangzhou BroadLink Technology Co.,Ltd.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 2 Page 1 of 2 External Photos Applicant: Hangzhou BroadLink Technology Co., Ltd. Address of Applicant: Room 101,1/F,Unit C,Building 1,No.57 Jiang'er Road,Changhe Street,Binjiang District,Hangzhou,Zhejiang,P.R.China Equipment Under Test (EUT): Product Name: BroadLink Model No.: BL1206-P SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 2 Page 2 of 2 End

Remark：The product is small to place the FCC statement on the product and it be placed in the user manual which the device is marketed. Label Location

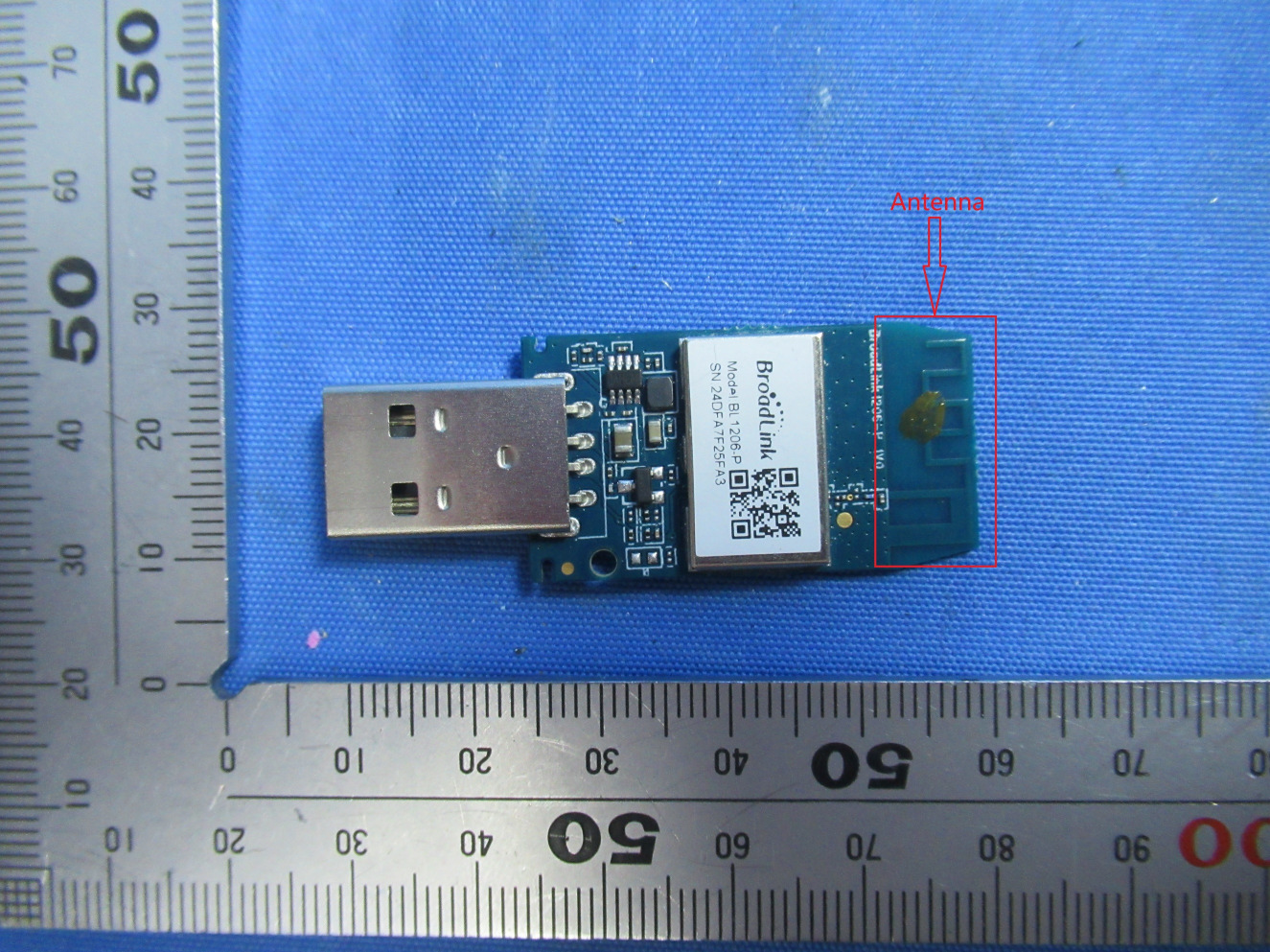

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 2 Page 1 of 2 Internal Photos Applicant: Hangzhou BroadLink Technology Co., Ltd. Address of Applicant: Room 101,1/F,Unit C,Building 1,No.57 Jiang'er Road,Changhe Street,Binjiang District,Hangzhou,Zhejiang,P.R.China Equipment Under Test (EUT): Product Name: BroadLink Model No.: BL1206-P SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 2 Page 2 of 2 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200600476602 Page: 1 of 8 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure Evaluation Report Application No.: SHEM2006004766CR FCC ID: 2ATEV-BL1206-P IC: 25062-BL1206P Applicant: Hangzhou BroadLink Technology Co., Ltd. Address of Applicant: Room 101,1/F,Unit C,Building 1,No.57 Jiang'er Road,Changhe Street,Binjiang District,Hangzhou,Zhejiang,P.R.China Manufacturer: Hangzhou BroadLink Technology Co., Ltd. Address of Manufacturer: Room 101,1/F,Unit C,Building 1,No.57 Jiang'er Road,Changhe Street,Binjiang District,Hangzhou,Zhejiang,P.R.China Factory: Hangzhou Gubei Intelligent Manufacturing Co., Ltd. Address of Factory: D218,Phase II,Hangzhou Xiaoshan (China)Hardware Machinery Science and Technology Innovation Park,Liansan Cun,Yiqiao Zhen,,XIaoshan District,Hangzhou,Zhejiang,P.R.China Equipment Under Test (EUT): EUT Name: BroadLink Model No.: BL1206-P Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 RSS-102 Issue 5 (March 2015) Date of Receipt: 2020-06-16 Date of Test: 2020-06-17 to 2020-07-02 Date of Issue: 2020-07-03 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200600476602 Page: 2 of 8 Revision Record Version Description Date Remark 00 Original 2020-07-03 / Authorized for issue by: Bill Wu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200600476602 Page: 3 of 8 2 Contents Page 1 COVER PAGE................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION .......................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 4 3.2 TECHNICAL SPECIFICATIONS ................................................................................................................... 4 3.3 TEST LOCATION ....................................................................................................................................... 5 3.4 TEST FACILITY .......................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ......................................................................... 6 4.2 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ............................................................................. 6 5 MEASUREMENT AND CALCULATION .................................................................................................... 7 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 7 5.2 MPE CALCULATION ................................................................................................................................. 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200600476602 Page: 4 of 8 3 General Information 3.1 General Description of E.U.T. Power supply: DC4.5V ~24V Serial Number: 24DFA7F25FA3 Firmware Version: 1206-P IV0 3.2 Technical Specifications Antenna Gain: 1dBi Antenna Type: PCB Antenna Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Data Rate: 802.11b:1/2/5.5./11Mbps 802.11g:6/9/12/18/24/36/48/54Mbps 802.11n:MCS0-MCS7 Number of Channels: 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200600476602 Page: 5 of 8 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • NVLAP (LAB CODE: 201034-0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP). • FCC (Designation Number: CN5033) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been recognized as an accredited testing laboratory. • ISED (CAB Identifier: CN0020) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. EMC Laboratory has bee…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Appendix A for SHEM200600476601 1.6dB Bandwidth Test ModeTest ChannelAntEBW[MHz]LimitVerdict 11B2412Ant110.070.5PASS 11B2437Ant110.070.5PASS 11B2462Ant110.070.5PASS 11G2412Ant116.550.5PASS 11G2437Ant116.540.5PASS 11G2462Ant116.560.5PASS 11N20SISO2412Ant117.670.5PASS 11N20SISO2437Ant117.770.5PASS 11N20SISO2462Ant117.720.5PASS 11N40SISO2422Ant136.350.5PASS 11N40SISO2437Ant136.340.5PASS 11N40SISO2452Ant136.330.5PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11B_2412_Ant1 6dB Bandwidth_11B_2437_Ant1 6dB Bandwidth_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11G_2412_Ant1 6dB Bandwidth_11G_2437_Ant1 6dB Bandwidth_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N20SISO_2412_Ant1 6dB Bandwidth_11N20SISO_2437_Ant1 6dB Bandwidth_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N40SISO_2422_Ant1 6dB Bandwidth_11N40SISO_2437_Ant1 6dB Bandwidth_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 2.Occupied Bandwidth Test ModeTest ChannelAntOBW[MHz]Limit[MHz]Verdict 11B2412Ant114.90---PASS 11B2437Ant114.88---PASS 11B2462Ant114.87---PASS 11G2412Ant116.83---PASS 11G2437Ant116.79---PASS 11G2462Ant116.81---PASS 11N20SISO2412Ant117.88---PASS 11N20SISO2437Ant117.87---PASS 11N20SISO2462Ant117.87---PASS 11N40SISO2422Ant135.89---PASS 11N40SISO2437Ant135.87---PASS 11N40SISO2452Ant135.86---PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11B_2412 Occupied Bandwidth_11B_2437 Occupied Bandwidth_11B_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11G_2412 Occupied Bandwidth_11G_2437 Occupied Bandwidth_11G_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N20SISO_2412 Occupied Bandwidth_11N20SISO_2437 Occupied Bandwidth_11N20SISO_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N40SISO_2422 Occupied Bandwidth_11N40SISO_2437 Occupied Bandwidth_11N40SISO_2452 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 3.Maximum conducted (average) output power Test Mode Test Channel Ant Level [dBm] 10log(1/x) Factor[dB] Power [dBm] Limit [dBm] Verdict 11B2412Ant116.410.0016.4130PASS 11B2437Ant116.810.0016.8130PASS 11B2462Ant116.850.0016.8530PASS 11G2412Ant114.810.0014.8130PASS 11G2437Ant115.230.0015.2330PASS 11G2462Ant115.390.0015.3930PASS 11N20SISO2412Ant114.730.0014.7330PASS 11N20SISO2437Ant115.130.0015.1330PASS 11N20SISO2462Ant115.370.0015.3730PASS 11N40SISO2422Ant113.960.0013.9630PASS 11N40SISO2437Ant114.170.0014.1730PASS 11N40SISO2452Ant114.260.0014.2630PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11B_2412_Ant1 Maximum conducted (average) output power_11B_2437_Ant1 Maximum conducted (average) output power_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11G_2412_Ant1 Maximum conducted (average) output power_11G_2437_Ant1 Maximum conducted (average) output power_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N20SISO_2412_Ant1 Maximum conducted (average) output power_11N20SISO_2437_Ant1 Maximum conducted (average) output power_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N40SISO_2422_Ant1 Maximum conducted (average) output power_11N40SISO_2437_Ant1 Maximum conducted (average) output power_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 4.Maximum(average) power spectral density Test Mode Test Channel Ant Level [dBm/3kHz] 10log(1/x) Factor[dB] PSD[dBm/3kHz]Limit[dBm/3kHz]Verdict 11B2412Ant1-16.430.00-16.438.00PASS 11B2437Ant1-15.950.00-15.958.00PASS 11B2462Ant1-15.900.00-15.908.00PASS 11G2412Ant1-19.780.00-19.788.00PASS 11G2437Ant1-19.460.00-19.468.00PASS 11G2462Ant1-19.290.00-19.298.00PASS 11N20SISO2412Ant1-20.300.00-20.308.00PASS 11N20SISO2437Ant1-19.850.00-19.858.00PASS 11N20SISO2462Ant1-19.670.00-19.678.00PASS 11N40SISO2422Ant1-23.950.00-23.958.00PASS 11N40SISO2437Ant1-23.770.00-23.778.00PASS 11N40SISO2452Ant1-23.690.00-23.698.00PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11B_2412_Ant1 Maximum(average) power spectral density_11B_2437_Ant1 Maximum(average) power spectral density_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11G_2412_Ant1 Maximum(average) power spectral density_11G_2437_Ant1 Maximum(average) power spectral density_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11N20SISO_2412_Ant1 Maximum(average) power spectral density_11N20SISO_2437_Ant1 Maximum(average) power spectral density_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11N40SISO_2422_Ant1 Maximum(average) power spectral density_11N40SISO_2437_Ant1 Maximum(average) power spectral density_11N40SISO_2452_Ant1

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 5.Band-edge for RF Conducted Emissions Test Mode Test Channel Ant Carrier Power[dBm] Max. Spurious Level [dBm] Limit [dBm] Verdict 11B2412Ant16.56-34.30-23.44PASS 11B2462Ant17.11-52.16-22.89PASS 11G2412Ant10.58-30.39-29.42PASS 11G2462Ant11.15-44.30-28.85PASS 11N20SISO2412Ant10.98-31.13-29.02PASS 11N20SISO2462Ant11.36-42.24-28.64PASS 11N40SISO2422Ant1-3.24-39.95-33.24PASS 11N40SISO2452Ant1-2.83-41.58-32.83PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11B_2412_Ant1 Band-edge for RF Conducted Emissions_11B_2462_Ant1 Band-edge for RF Conducted Emissions_11G_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11G_2462_Ant1 Band-edge for RF Conducted Emissions_11N20SISO_2412_Ant1 Band-edge for RF Conducted Emissions_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11N40SISO_2422_Ant1 Band-edge for RF Conducted Emissions_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6.RF Conducted Spurious Emissions Test Mode Test Channel Ant StartFre [MHz] StopFre [MHz] RBW [kHz] VBW [kHz] Pref[dBm] Max. Level [dBm] Limit [dBm] Verdict 11B2412Ant130100001003006.45-36.06 <- 23.55 PASS 11B2412Ant1 10000260001003006.454-44.683 <- 23.546 PASS 11B2437Ant130100001003007.01-35.30 <- 22.99 PASS 11B2437Ant1 10000260001003007.009-44.262 <- 22.991 PASS 11B2462Ant130100001003007.02-37.01 <- 22.98 PASS 11B2462Ant1 10000260001003007.018-43.917 <- 22.982 PASS 11G2412Ant130100001003000.49-40.10 <- 29.51 PASS 11G2412Ant1 10000260001003000.494-44.372 <- 29.506 PASS 11G2437Ant130100001003000.94-39.91 <- 29.06 PASS 11G2437Ant1 10000260001003000.944-43.365 <- 29.056 PASS 11G2462Ant130100001003001.13-43.74 <- 28.87 PASS 11G2462Ant1 10000260001003001.129-44.512 <- 28.871 PASS 11N20SISO2412Ant130100001003000.81-41.46 <- 29.19 PASS 11N20SISO2412Ant1 10000260001003000.81-43.504 <- 29.19 PASS 11N20SISO2437Ant130100001003001.22-40.43 <- 28.79 PASS 11N20SISO2437Ant1 10000260001003001.215-43.808 <- 28.785 PASS 11N20SISO2462Ant130100001003001.55-43.36 <- 28.45 PASS 11N20SISO2462Ant1 10000260001003001.546-43.732 <- 28.454 PASS 11N40SISO2422Ant13010000100300-3.19-40.56 <- 33.19 PASS 11N40SISO2422Ant1 1000026000100300-3.191-41.971 <- 33.191 PASS 11N40SISO2437Ant13010000100300-3.11-41.98 <- 33.11 PASS 11N40SISO2437Ant…

Text truncated - open the document above for the full version.
