2ATI7STK-7033SNSWITCH WIRELESS GAMEPAD

First Time to Pair & Connect 首次配对与连接回连 调整振动强度 出厂水平校准 摇杆校准 Reconnect
(HOME)Amiibo Touchpoint NFC功能 PC X-Input function Adjust Vibration Intensity Adjust Turbo Speed Pair & Connect: Press Y+HOME button (Power on your N-S console, then follow the steps to pair and connect your controller.) Step 1:Find Controllers Option.-Image1 Step 2:Click Change Grip/Order.-Image2 Step 3:Press Y+HOME button power on gamepad,4 LED lights blink in turn,waiting for the connection to complete.-Image3 *
Please make sure turn off the Airplane Mode when you connect controller to N-S console. Reconnect: Press HOME Button If your controller was once paired and connected to your N-S console, press the HOME button to rapidly connected next time. Note: For reconnecting, please turn on the N-S console firstly, does not support press HOME button to wake up the console under sleep mode. When one of the following conditions occur, please reconnect referring to first time to pair and connect. 1.Upgrade 2.Reset 3.You can not reconnect to N-S game console by pressing HOME button. Please hold the amiibo to touch the middle part of the upper panel of the controller. Connect the gamepad with the Type-C cable to computer ,after computer recognized automatically, it will work with X-Input mode on windows system. There are 3 levels of vibration intensity: weak, moderate and strong Step 1: Please make sure you connect the controller to the N-S console. Step 2: Press 4 buttons (L, ZL, R and ZR) simultaneously for 5 seconds. Step 3: Then release the 4 buttons when you feel the vibration. The vibration mode can be adjusted by repeating the above operatons. Buttons can be set to the turbo speed (is called for short function buttons): A/B/X/Y/L/ZL/R/ZR button Enable/disable the turbo speed function: Step 1: Press the Turbo button and one the function button simultaneously , to enable the Turbo speed function. Step 2: Repeat the step1,to disable the Turbo speed function. Adjust turbo speed : Press the Turbo button simultaneously the directional button Up / Right / Down, Directional button UP is the mostly fast speed. Directional button Right is the middle speed. Directional button Down is the slowly speed. Wireless Gamepad for N-S 无线游戏手柄 Use manuel 使用说明书 STK-7032SN STK-7032SN 首次配对与连接（同时按下首次配对与连接（同时按下 Y 与 与 HOME 按钮） （打开N-S 主机电源，然后按照以下步骤与手柄进行配对与连接。 步骤1 ：查找 { 手柄 } 选项。- 图片 1 步骤2 ：点击更改握法/顺序。- 图片 2 步骤3：同时按下 Y 与 HOME按键 1 秒钟，4个 LED灯依次闪烁，等待连接完 成。- 图片 3 在您将控制器与 N-S主机进行连接时，请务必确保飞行模式 飞行模式已关闭。 一旦控制器与N-S主机成功配对与连接，下一次启动时，按下HOME按键即可进行 快速连接。 注意： 如需重新连接，请先打开N-S主机控制台，注意，本产品不支持在待机模式下 按下HOME按钮唤醒主机。 如果出现以下任何一种情况 ， 请参阅 “ 首次配对与连接 ” 进行重新连接。 1. 升级 2. 复位 3. 无法通过按下 Home按钮将此控制器与 N-S主机重新连接 在游戏当中，将游戏卡带对准Saitake的LOGO位置，即可实现NFC功能，购买游 戏道具。 振动强度分为两档：弱，中，强 步骤 1：请确保将控制器与 N-S主机控制台连接。 步骤 2 ：同时按下 4 个按钮（“L”、“ZL”、“R”和“ZR”）。 步骤3 ：在感觉到振动时松开这4个按钮。振动模式可通过重复上述 振动模式可 通过重复上述操作进行调整。 步骤1：请确保您的控制器处于关机状态，然后将其置于平坦表面上。 步骤2：同时按下“-”、“B”、“HOME”3个按钮，A 组指示灯与 B 组指示 灯交替闪烁。（LED1和 LED2/LED3和 LED4） 步骤3：按下“+”按钮，4 个LED指示灯交替闪烁。 步骤4：大约 15秒后，所有指示灯熄灭，控制器校准完成。 如果游戏中的角色出现自动漂移情况，请按照以下步骤完成“摇杆校准”： 步骤1：“系统设置”-“手柄与感应器”-“校正摇杆” 步骤2 ：进入“校正摇杆”界面，按照 N-S主机控制台操作指南进行操作。 图片1 图片2 手柄 更改握法/顺序 搜索手柄 新手柄的匹配方法 关闭 请在需要使用的手柄上按下 + 键。L R 请在准备完成后，按下 键。A 质保卡 本保修卡仅供中国内陆使用 本三包服务内容解释权归本公司所有 姓名： 公司信息： 地址： 地址： 购买途径： 天猫商城淘宝商城京东商城线下实体 联系电话： 联系电话： NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Oct. 12, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2ATI7STK-7033SN Model Number: STK-7032SN, STK-7033SN To Whom It May Concern: We, The SHENZHEN SAITAKE ELECTRONIC CO.,LTD hereby declare that the model : STK-7033SN is identical with the model : STK-7032SN, except the model name and color. Except for the different above, no other modification is performed. Sincerely, Signature: SHENZHEN SAITAKE ELECTRONIC CO., LTD. Contact person: Edwards To

Agent Authorization Company: SHENZHEN SAITAKE ELECTRONIC CO.,LTD Address: NO.1 1/F&3F,BLOCK 5,TIANFU'AN INDUSTRIAL PARK,LEZHUJIAO VILLAGE, HUANGMABU COMMUNITY, HANGCHENG STREET, BAO'AN DISTRICT, SHENZHEN, CHINA Product Name: SWITCH WIRELESS GAMEPAD Model Number(s): STK-7032SN, STK-7033SN Product Description: SWITCH WIRELESS GAMEPAD We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-10-12 Name: Edwards Tong Company: SHENZHEN SAITAKE ELECTRONIC CO.,LTD

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 20 20-09-08 Subject; Request for Confidentiality FCC ID: 2ATI7STK-7033SN To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, SHENZHEN SAITAKE ELECTRONIC CO., LTD. Contact person: Edwards Tong

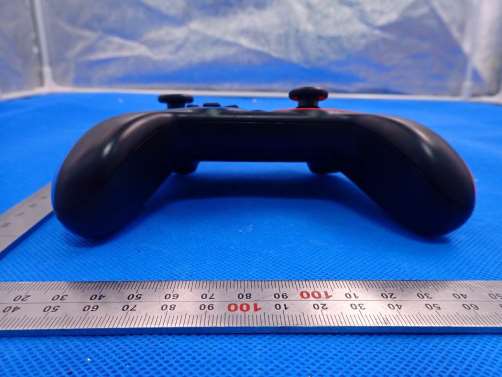

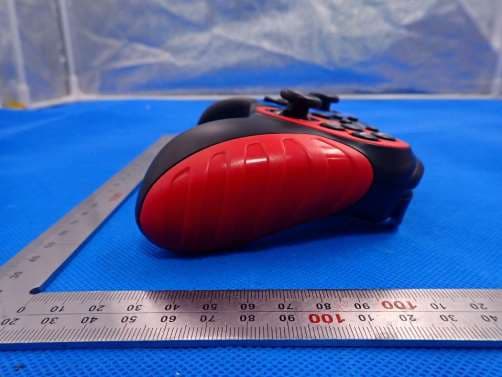

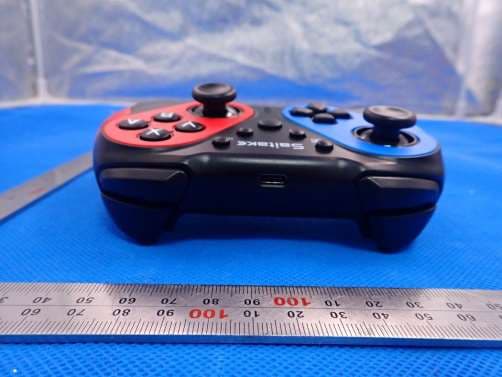

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Left VIEW OF EUT(PORT)

FCC ID Label Location FCC ID: 2ATI7STK-7033SN

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 INTERNAL VIEW OF EUT-9 INTERNAL VIEW OF EUT-10 INTERNAL VIEW OF EUT-11 INTERNAL VIEW OF EUT-12 INTERNAL VIEW OF EUT-13 INTERNAL VIEW OF EUT-14 BT Antenna BT Antenna INTERNAL VIEW OF EUT-15 INTERNAL VIEW OF EUT-16 INTERNAL VIEW OF EUT-17 INTERNAL VIEW OF EUT-18

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description SWITCH WIRELESS GAMEPAD Model Name STK-7032SN, STK-7033SN FCC ID 2ATI7STK-7033SN 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t = -1.662dBm=0.68mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.68mW /5mm) .[√2.480GHz)]=0.214<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 75 FCC Test Report Report No.: AGC00025200401FE03 FCC ID : 2ATI7STK-7033SN APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : SWITCH WIRELESS GAMEPAD BRAND NAME : N/A MODEL NAME : STK-7032SN, STK-7033SN APPLICANT : SHENZHEN SAITAKE ELECTRONIC CO.,LTD DATE OF ISSUE : Sep. 10,2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00025200401FE03 Page 2 of 75 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Sep. 10,2020 Valid Initial Release Report No.: AGC00025200401FE03 Page 3 of 75 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 2.10. ANTENNA REQUIREMENT .................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 20 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 21 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 27 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 27 Report No.: AGC00025200401FE03 Page 4 of 75 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 27 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 27 10. RADIATED EMISSION ............................................................................................................................... 37 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 37 10.2. TEST SETUP ....................................................................................................................................... 39 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 40 10.4. TEST RESULT ..................................................................................................................................... 40 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 50 11.1. MEASUREMENT PROC…

Text truncated - open the document above for the full version.

Report No.: AGC00025200401FE03 Page 49 of 75 EUT SWITCH WIRELESS GAMEPAD Model Name STK-7032SN Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC00025200401FE03 Page 50 of 75 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 11.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC00025200401FE03 Page 51 of 75 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Zero span, centered on a hopping channel. 2. RBW shall be≤channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. 3. Sweep: As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. 4. Detector function: Peak. Trace: Max hold. 5. Use the marker-delta function to determine the transmit time per hop. 6. Repeat the measurement using a longer sweep time to determine the number of hops over the period specified in the requirements. The sweep time shall be equal to, or less than, the period specified in the requirements. Determine the number of hops over the sweep time and calculate the total number of hops in the period specified in the requirements, using the following equation: (Number of hops in the period specified in the requirements) = (number of hops on spectrum analyzer) × (period specified in the requirements / analyzer sweep time) 7. The average time of occupancy is calculated from the transmit time per hop multiplied by the number of hops in the period specified in the requirements. 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 12.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 12.4. LIMITS AND MEASUREMENT RESULT Channel Time of Pulse for DH5 (ms) Number of hops in the period specified in the requirements Sweep Time (ms) Limit (ms) Low 2.894 27*4 312.552 400 Middle 2.896 27*4 312.768 400 High 2.895 27*4 312.660 400 Note: The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC00025200401FE03 Page 52 of 75 TEST PLOT OF LOW CHANNEL Report No.: AGC00025200401FE03 Page 53 of 75 TEST PLOT OF MIDDLE CHANNEL Report No.: AGC00025200401FE03 Page 54 of 75 TEST PLOT OF HIGH CHANNEL Report No.: AGC00025200401FE03 Page 55 of 75 13. FREQUENCY SEPARATION 13.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Wide enough to capture the peaks of two adjacent channels. 2. RBW: Start with the RBW set to approximately 30% of the channel spacing; adjust as necessary to best identify the center of each individual channel. 3. Video (or average) bandwidth (VBW) ≥ RBW. 4. Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. 13.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 6.2 13.3. MEASUREMENT EQUIPMENT USED The same as described in section 6.3 13.4. LIMITS AND MEASUREMENT RESULT CHANNEL CHANNEL SEPARATION LIMIT RESULT MHz Pass CH38-CH39 1.001 20 dB BW TEST PLOT FOR FREQUENCY SEPARATION Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC00025200401FE03 Page 56 of 75 14. FCC LINE CONDUCTED EMISSION TEST 14.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P. (dBμV) Average (dBμV) 150kHz~500kHz 66-56 56-46 500kHz~5MHz 56 46 5MHz~30MHz 60 50 Note: 1. The lower limit shall apply at the transition frequency. 2. The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50 MHz. 14.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST EUT & Support Units Report No.: AGC00025200401FE03 Page 57 of 75 14.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual. When the EUT is a tabletop system, a wooden table with a height of 0.8 meters is used and is placed on the ground plane as per ANSI C63.10 (see Test Facility for the dimensions of the ground plane used). When the EUT is a floor-standing equipment, it is placed on the ground plane which has a 3-12 mm non-conductive covering to insulate the EUT from the ground plane. 2. Support equipment, if needed, was placed as per ANSI C63.10. 3. All I/O cables were positioned to simulate typical actua…

Text truncated - open the document above for the full version.

Report No.: AGC00025200401FE03 Page 69 of 75 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 Report No.: AGC00025200401FE03 Page 70 of 75 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 Report No.: AGC00025200401FE03 Page 71 of 75 INTERNAL VIEW OF EUT-9 INTERNAL VIEW OF EUT-10 Report No.: AGC00025200401FE03 Page 72 of 75 INTERNAL VIEW OF EUT-11 INTERNAL VIEW OF EUT-12 Report No.: AGC00025200401FE03 Page 73 of 75 INTERNAL VIEW OF EUT-13 INTERNAL VIEW OF EUT-14 BT Antenna BT Antenna Report No.: AGC00025200401FE03 Page 74 of 75 INTERNAL VIEW OF EUT-15 INTERNAL VIEW OF EUT-16 Report No.: AGC00025200401FE03 Page 75 of 75 INTERNAL VIEW OF EUT-17 INTERNAL VIEW OF EUT-18 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
