2ATI7STK-7040RGWireless Controller

SHENZHEN SAITAKE ELECTRONIC CO., LTD. Statement Dear Sir/Madam, Added models STK-7040, STK-8040SRG, STK-8040S, Q232 basis of the original product STK-7040RG, t hese models are same to original models, only the colors are difference. Sincerely, Name: Edwards Tong Company name: SHENZHEN SAITAKE ELECTRONIC CO., LTD. Address: NO.1 1/F&3F, BLOCK 5, TIANFU'AN INDUSTRIAL PARK, LEZHUJIAO VILLAGE, HUANGMABU COMMUNITY, HANGCHENG STREET, BAO'AN DISTRICT, SHENZHEN, China

SHENZHEN SAITAKE ELECTRONIC CO., LTD. 8/11/2022 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2ATI7STK-7040RG Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Block Diagrams Theory of Operation SHORT TERM CONFIDENTIALITY FOR A PERIOD OF 180 DAYS: Internal Photos External Photos User Manual Test Set-up Photographs When the device is marketed before the requested number of days listed above, the grantee will inform the TCB to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed : Printed name: Edwards Tong Title: Manager

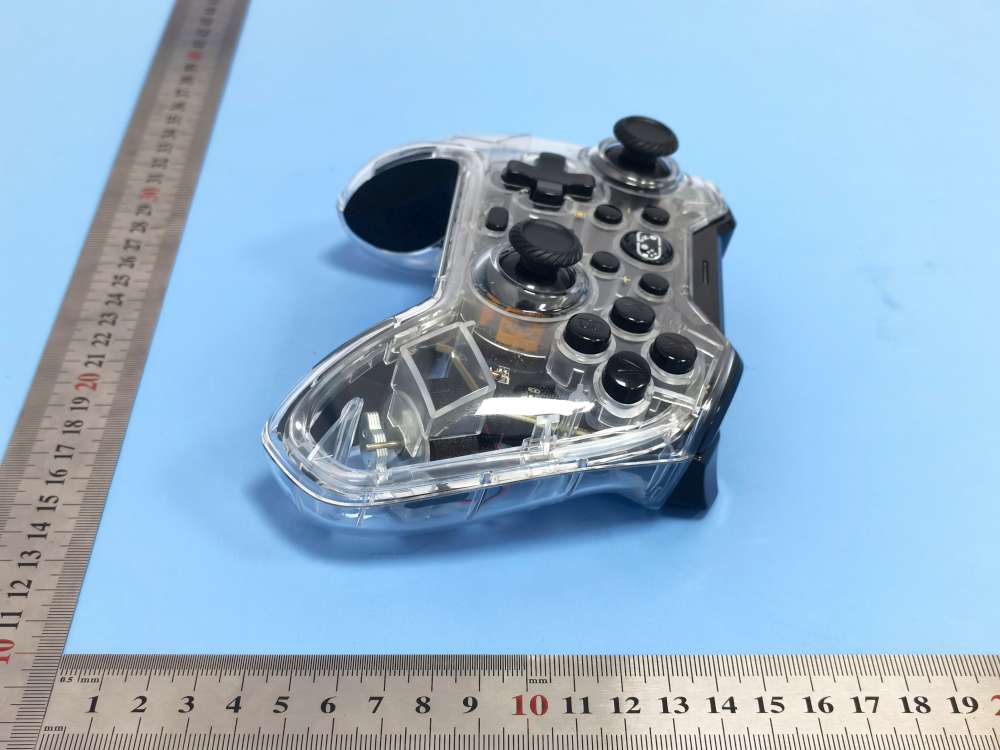

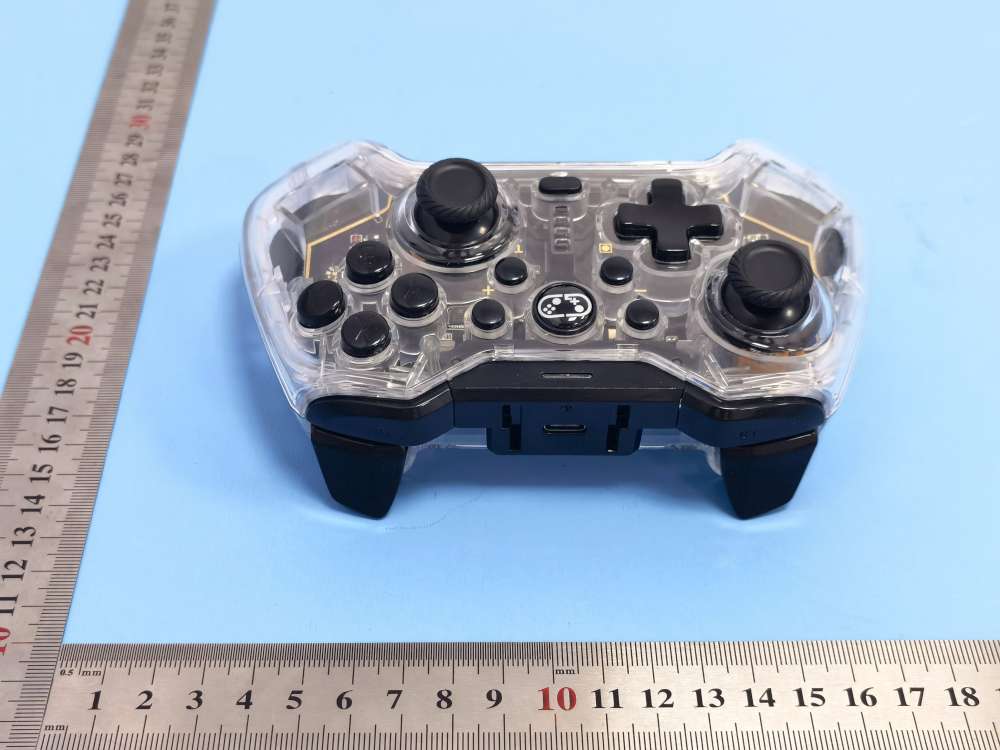

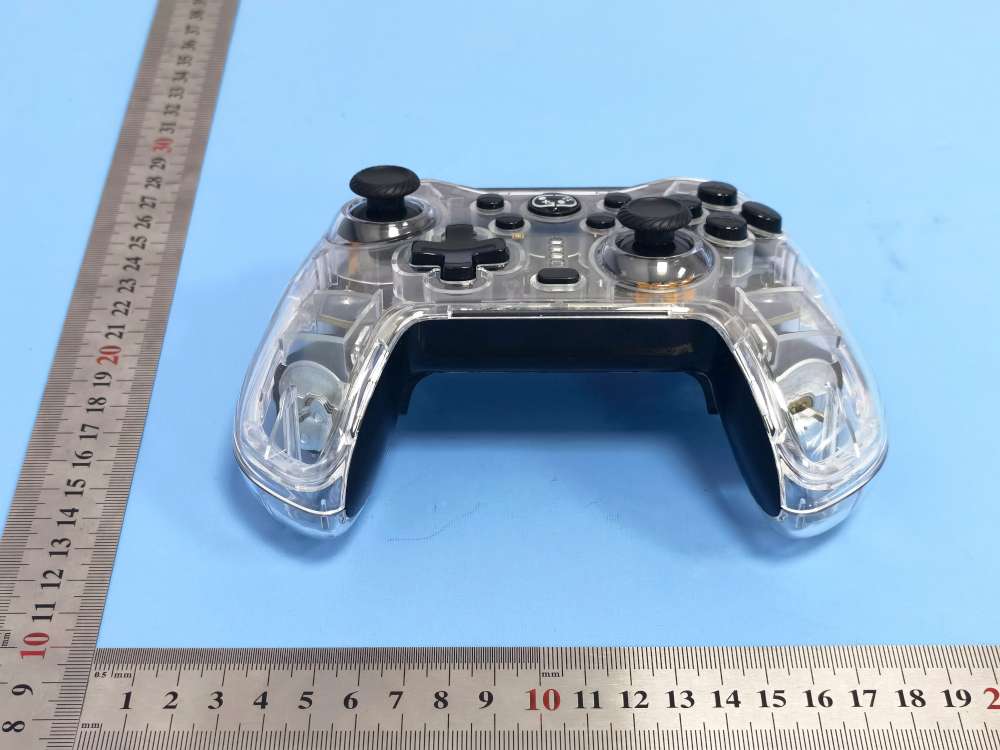

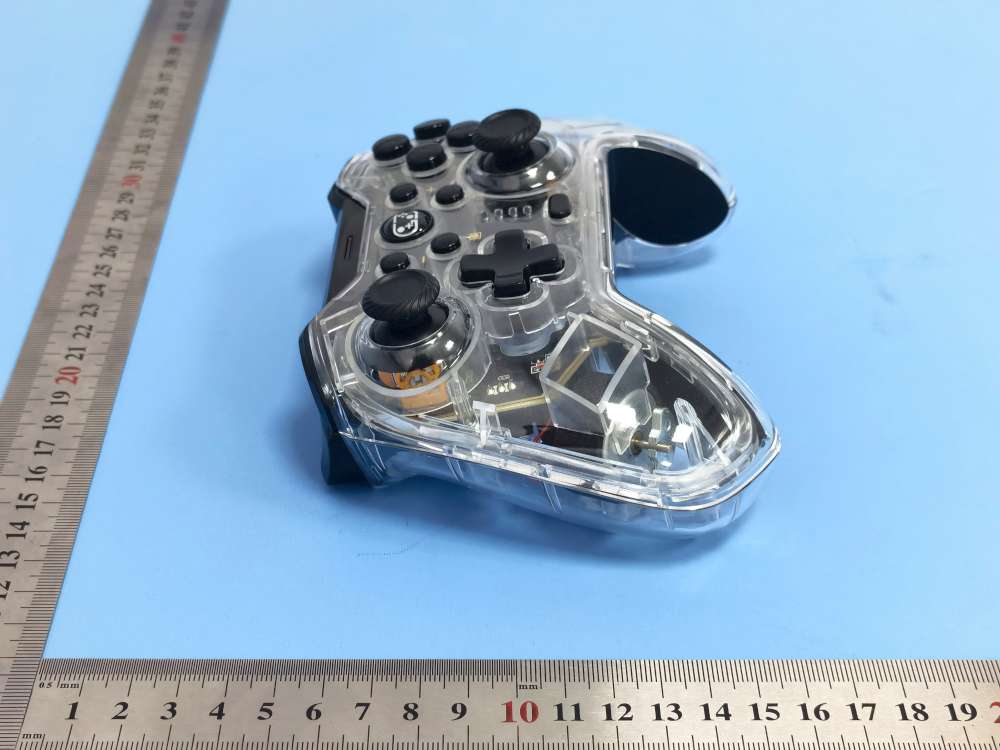

EUT PHOTO(External Photos)

FCC Test Report Page 1 of 1 Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location ***** END OF REPORT *****

EUT PHOTO(Internal Photos) BT ANT ※※※※※ END OF REPORT ※※※※※

FCC ID: 2ATI7STK-7040RG RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093， Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, For BT Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -0.97 0.8 2480 5 0.251968 3.0 So a SAR test is not required

Project No.: ZKT-220726L5226E Page 1 of 39 FCC TEST REPORT FCC ID:2ATI7STK-7040RG Report Number. ................................ : ZKT-220726L5226E Date of Test ........................................ July 29, 2022 to August 4, 2022 Date of issue .................................... : August 9, 2022 Total number of pages ...................... 39 Test Result ..................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : SHENZHEN SAITAKE ELECTRONIC CO., LTD. Address .......................................... : NO.1 1/F&3F, BLOCK 5, TIANFU'AN INDUSTRIAL PARK, LEZHUJIAO VILLAGE, HUANGMABU COMMUNITY, HANGCHENG STREET, BAO'AN DISTRICT, SHENZHEN, China Manufacturer's name ................... : SHENZHEN SAITAKE ELECTRONIC CO., LTD. Address .......................................... : NO.1 1/F&3F, BLOCK 5, TIANFU'AN INDUSTRIAL PARK, LEZHUJIAO VILLAGE, HUANGMABU COMMUNITY, HANGCHENG STREET, BAO'AN DISTRICT, SHENZHEN, China Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-111_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Wireless Controller Trademark ...................................... : -- Model/Type reference......................: STK-7040RG, STK-7040, STK-8040SRG, STK-8040S, Q232 Ratings ............................................. : Input: DC 5V/0.5A, Output: DC 3.7V by battery Project No.: ZKT-220726L5226E Page 2 of 39 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... :1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jackson Fang Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-220726L5226E Page 3 of 39 Table of Contents Page 1.VERSION 5 2. SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3. GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 4. EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 TEST PROCEDURE 13 4.1.3 DEVIATION FROM TEST STANDARD 13 4.1.4 TEST SETUP 14 4.1.5 EUT OPERATING CONDITIONS 14 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 5.RADIATED BAND EMISSION MEASUREMENT 24 5.1 TEST REQUIREMENT: 24 5.2 TEST PROCEDURE 24 5.3 DEVIATION FROM TEST STANDARD 24 5.4 TEST SETUP 25 5.5 EUT OPERATING CONDITIONS 25 5.6 TEST RESULT 26 6.POWER SPECTRAL DENSITY TEST 27 6.1 APPLIED PROCEDURES / LIMIT 27 6.2 TEST PROCEDURE 27 6.3 DEVIATION FROM STANDARD 27 6.4 TEST SETUP 27 6.5 EUT OPERATION CONDITIONS 27 6.6 TEST RESULT 28 Project No.: ZKT-220726L5226E Page 4 of 39 Table of Contents Page 7. CHANNEL BANDWIDTH 30 7.1 APPLIED PROCEDURES / LIMIT 30 7.2 TEST PROCEDURE 30 7.3 DEVIATION FROM STANDARD 30 7.4 TEST SETUP 30 7.5 EUT OPERATION CONDITIONS 30 7.6 TEST RESULT 31 8.PEAK OUTPUT POWER TEST 33 8.1 APPLIED PROCEDURES / LIMIT 33 8.2 TEST PROCEDURE 33 8.3 DEVIATION FROM STANDARD 33 8.4 TEST SETUP 33 8.5 EUT OPERATION CONDITIONS 33 8.6 TEST RESULT 34 9. CONDUCTED BAND EDGE AND SPURIOUS EMISSION 35 9.1 APPLICABLE STANDARD 35 9.2 TEST PROCEDURE 35 9.3 DEVIATION FROM STANDARD 35 9.4 TEST SETUP 35 9.5 EUT OPERATION CONDITIONS 35 10.ANTENNA REQUIREMENT 38 11. TEST SETUP PHOTO 39 12. EUT CONSTRUCTIONAL DETAILS 39 Project No.: ZKT-220726L5226E Page 5 of 39 1.VERSION Report No. Version Description Approved ZKT-220726L5226E Rev.01 Initial issue of report August 9, 2022 Project No.: ZKT-220726L5226E Page 6 of 39 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark FCC part 15.203/15.247 (c) Antenna requirement PASS FCC part 15.207 AC Power Line Conducted Emission PASS FCC part 15.247 (b)(3)Conducted Peak Output Power PASS FCC part 15.247 (a)(2)Channel Bandwidth& 99% OCB PASS FCC part 15.247 (e) Power Spectral Density PASS FCC part 15.247(d) Band Edge PASS FCC part 15.205/15.209 Spurious Emission PASS NOTE: (1)“N/A” denotes test is not applicable in this Test Report Project No.: ZKT-220726L5226E Page 7 of 39 2.1 TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 692225 Designation Number: CN1299 IC Registered No.: 27033 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by …

Text truncated - open the document above for the full version.

EUT TEST PHOTO
