2ATOT10009LEXI Smart Downlight

User Manual Item: #10009 - Downlight, Smart Color & Tunable White WELCOME TO LEXIUSER GUIDE 1. Power on your LEXI Hub ( make sure your LEXI Hub is ready to add device(s) and work properly with the LEXI App at your smart devices ) 2. Power on your light source(s), you'll see the light(s) flashing with white color 3. Select "ADD NEW DEVICE" at the LEXI App and follow the instruction to complete adding the device(s), you'll see the light stopped flashing. 4. Your devices is added to the LEXI system successfully and ready to use.5. To learn more about detail function and special effect, Please go to www.lexidevices.comWARNINGS AND CAUTIONS:a. BEFORE REPLACING, TURN OFF MAINS POWER AND LET DOWNLIGHT COOL TO AVOID ELECTRICAL SHOCK OR BURN. b. NOT FOR USE IN ENCLOSED LUMINAIRESc.To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal WARNINGS AND CAUTIONS:d. RISK OF FIRE OR ELECTRIC SHOCK. INSTATLL THIS KIT ONLY IN LUMINAIRES THAT HAVE THE CONTRUCTION FEATURE AND DIMENSION SHOWN IN THE ILLUSTRATION AND WHERE THE INPPUT RATING OF RETROFIT KIT DOES NOT EXIST THE INPUT AT AT THE RANGE 100-120V AC.e. This device is not intended for use with emergency exits.f. The Downlight is not suitable for use with dimmers g. Keep away from liquids and humidity. h. The product is for indoor use only. Do not use in wet locations, directly exposed to water or outdoors. i. This product is not a toy designed to be played with by children. j. Do not place on hot surfaces. k. For safety reasons and under the terms of the warranty, none of the enclosed devices should be opened. l. Only use the accessories supplied: using a different accessories can damage the product.j. Do not make or alter any holes in an enclosure of wiring or electrical WARRANTY: LEXI provided one-year warranty is valid if the product is used in accordance with the instructions and for its intended purpose. Claims will only be accepted on submission of the original proof of purchase (invoice, sales slip or receipt) stating the purchase date, the name of the dealer and a description of the product with product ID labeled at the products.The LEXI’s warranty lapses if: a. Anything has been changed, crossed out, deleted or rendered illegible on the purchase docket or product description. b. The failure is caused by damage, faulty connections or abuse. c. A defect is caused by extreme circumstances not inherent to the product, for example, lighting, flooding, fire, incorrect use or negligence. d. The product has been opened or disassembled. TROUBLESHOOTING- Ensure your device is within 15 meters without obstacle block the LEXI hub and lights- Ensure your smart device turned on Bluetooth and location.- Check the power On/Off switch is located at On position.- Make sure the light is screwed in the socket completely.- Confirm device is paired with LEXI Hub- Just in case, you can un-pair the lights by 6 times power cycle the light, afterwards, you'll see a cool white flashing. ( A warm white will be flashing at the 5th power cycle which is a warning signal for you. If you don't want to un-pair it, stop the power cycle. The light will go back to the last state). Then, re-pair this light as the user guide. WIRELESS SPECIFICATION: BLE Frequency: 2402-2480MHzWireless communication protocol: IEEE 802.15.4Channel: 0 -39 channelsENVIRONMENTAL SPECIFICATION: Temperature (operation): -10...40°C Temperature (storage): -25...60°C Relative humidity: 5-95% non-condensing CLEANING AND MAINTENANCE: Do not clean when the product is on and connected to mains power. To avoid scratching, the product should only be cleaned with a soft dry cloth. Do not use cleaning agents.PLEASE KEEP THIS PACKAGING FOR FUTURE REFERENCE AS IT CONTAINS IMPORTANT INFORMATION. DISPOSAL OF YOUR OLD PRODUCT:Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please find out for yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health. FCC WARNING AND CAUTION:- This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.- Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC ID : 2ATOT10009 - Shielded Cables must be used with this unit to ensure complaince with the Class B FCC limits NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turnin g the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the …

Text truncated - open the document above for the full version.

Description: 1) 100‐240V AC input is converted to 20V DC 2) 20V DC is used to drive the warm white, cold white and RGB. 3) 20V is then step down to 3.3V to supply power for CSR1010 module 4) Bluetooth 4.0 module is in charge of communication with the CSR1010 to send and request commands 5) After CSR1010 has received command from other device, it will implement signal processing as 5.1) Control RGB 5.2) Control warm white/cold white Operation frequency: 2402~2480MHz; RF channel:40; Modulation Type: GFSK; Antenna Gain: 0dBi

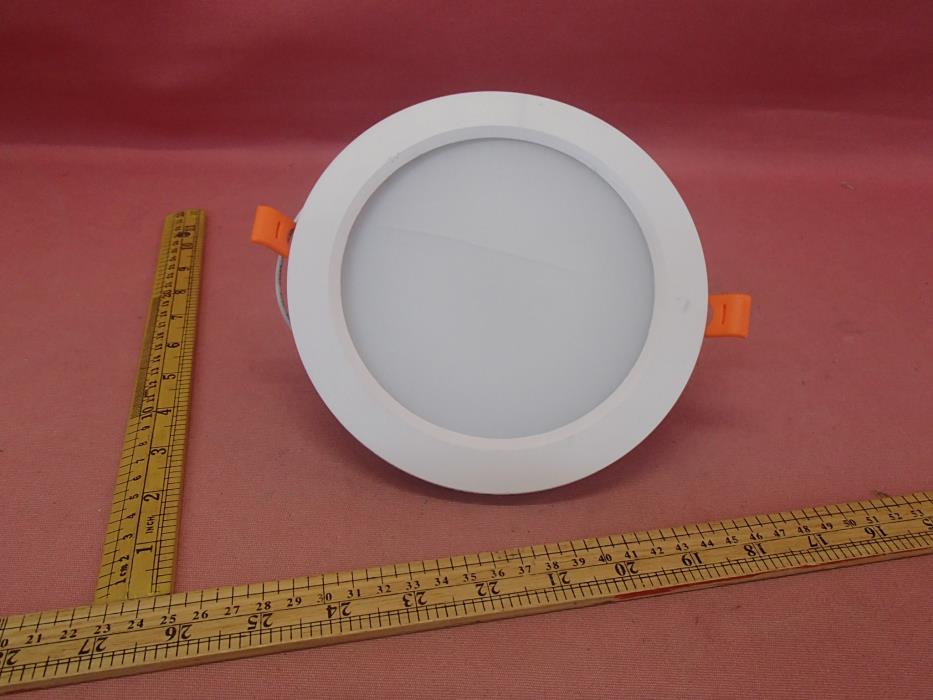

INTERTEK TESTING SERVICE Report No.:19020492HKG-001 Equipment Photographs (External)

INTERTEK TESTING SERVICE Report No.: HK19020492-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19020492-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19020492-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19020492-001 Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT) is a Bluetooth device. The EUT can operate with mobile app. The Bluetooth portion occupies frequency range of 2402MHz to 2480MHz (39 channels with channel spacing of 2MHz). Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 88.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/‐ 3dB U1 CSR1010 act as the Bluetooth module of this unit. X1 (16MHz) and X2 (32.768kHz) act as the crystal of the U1

Analysis Report Report No.: 19020492HKG-001 The Equipment Under Test (EU T) is a Bluetooth device. The EUT can operate with mobile app. The Bluetooth portion occupies frequency range of 2402MHz to 2480MHz (39 channels with channel spacing of 2MHz). Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 88.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 91.8dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.46mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.46mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Downlight Light Bulbs Circuit

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 23 TEST REPORT Report No.: 19020492HKG‐001 Lexi Devices, Inc. Application For Certification (Original Grant) FCC ID: 2ATOT10009 Transceiver Prepared and Checked by: Approved by: Signed On File Chan Cheuk Hei, Henry Assistant Engineer Lee Shui Tim, Tim Assistant Supervisor Date: December 20, 2019 TEST REPORT Lexi Devices, Inc. Intertek Report No: 19020492HKG‐001 Page 2 of 23 GENERAL INFORMATION Grantee: Lexi Devices, Inc. Grantee Address: 2342 Shattuck Ave, #260 Berkeley, CA 94704 USA Contact Person: Scott Cahill Tel: (1) 415‐420‐6426 Fax: (852) 90207263 e‐mail: [email protected] Manufacturer: Dongguan Heung Tat Photoelectric Company, Ltd. Manufacturer Address: No. 18, Shuibian Industry District, Shuibian Village, Hengli Town, Dongguan City, China. Brand Name: Downlight RGBCCT (10009); Downlight CCT only (10010) Model: 10009 Additional Model: 10010 Type of EUT: Transceiver Description of EUT: LEXI Smart Downlight Serial Number: N/A FCC ID: 2ATOT10009 Date of Sample Submitted: February 22, 2019 Date of Test: February 22, 2019to March 20, 2019 Report No.: 19020492HKG‐001 Report Date: May 08, 2019 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Lexi Devices, Inc. Intertek Report No: 19020492HKG‐001 Page 3 of 23 SUMMARY OF TEST RESULT Test Specification Reference Results Transmitter Power Line Conducted Emissions15.207 Pass Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2017 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Lexi Devices, Inc. Intertek Report No: 19020492HKG‐001 Page 4 of 23 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION .................................................................................................. 5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants ......................................................................................5 1.3 Test Methodology ....................................................................................................5 1.4 Test Facility ..............................................................................................................5 2.0 SYSTEM TEST CONFIGURATION ...................................................................................... 6 2.1 Justification ..............................................................................................................6 2.2 EUT Exercising Software ...........................................................................................6 2.3 Special Accessories ...................................................................................................6 2.4 Measurement Uncertainty .......................................................................................6 2.5 Support Equipment List and Description ..................................................................6 3.0 EMISSION RESULTS ......................................................................................................... 7 3.1 Field Strength Calculation .........................................................................................7 3.2 Radiated Emission Configuration Photograph ...........................................................8 3.3 Radiated Emission Data ............................................................................................8 3.4 Conducted Emission Configuration Photograph .......................................................8 3.5 Conducted Emission Data .........................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS ........................................................................................ 14 5.0 PRODUCT LABELLING .................................................................................................... 14 6.0 …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No:19020492HKG-001 FCC ID: Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No:19020492HKG-001 FCC ID: Configuration Photographs Worst-Case Radiated Emissions (Back View)

INTERTEK TESTING SERVICE Report No:19020492HKG-001 Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) INTERTEK TESTING SERVICE Report No:19020492HKG-001 Configuration Photographs Worst-Case Line-Conducted Emissions (Back View)
