2ATOT90010LEXI Smart Ambiance Light

User Manual LEXI- Ambiance Light 20029 Tear Drop, Small D11x20cm WELCOME TO LEXIUSER GUIDEOPERATION1. In order to add new devices to your Lexi Mobile App, first follow the instructions for connecting your Lexi Portable Hub to your wireless network. 2. Power on your light(s), you'll see the light(s) flashing with cool white color 3. Select "ADD NEW DEVICE" on the LEXI Mobile App and follow the instruction to complete adding the li ght(s). During this process you'll see the light transition to warm white flashing as it goes through the association process until it stops flashing and remains on warm white color. 4. Your light has been added to the LEXI Mobile App successfully and ready to use.5. Remember to pair the Ambiance Light one by one to the LEXI Mobile App so that they can be individually controlled afterwards. 6. To learn more about detail function and special effect, Please go to CHARGING THE AMBIANCE LIGHT1. Turn on the switch under the Ambiance light (You may see the light is flashing with white color, this is the normal state when the light has not been paired).2. Connect the DC 5V 1A adapter (provided). Plug-in the 5.5mm connector to the socket at the bottom of Ambiance light. The LED indicator light on the bottom will turn red while its charging.3. Charging will take approximately 6-8hours, once charged, indicator LED will turn green.4. Battery will charge regardless of whether the Ambiance light is in the on or off position. WARNINGS AND CAUTIONS:- Only use the adapter supplied: using a different adapter can damage the product.- Keep away from liquids and humidity. - The product is for indoor use only. Do not use in wet locations, directly exposed to water or outdoors. - This product is not a toy designed to be played with by children. - Do not place on hot surfaces. - Do not be exposed to extreme temperatures, direct sunlight and moisture.- For safety reasons and under the terms of the warranty, none of the enclosed devices should be opened. WARRANTY: LEXI provided one-year warranty is valid if the product is used in accordance with the instructions and for its intended purpose. Claims will only be accepted on submission of the original proof of purchase (invoice, sales slip or receipt) stating the purchase date, the name of the dealer and a description of the product with product ID labeled at the products.The LEXI’s warranty lapses if: a. Anything has been changed, crossed out, deleted or rendered illegible on the purchase docket or product description. b. The failure is caused by damage, faulty connections or abuse. c. A defect is caused by extreme circumstances not inherent to the product, for example, lighting, flooding, fire, incorrect use or negligence. d. The product has been opened or disassembled.e. using a different adapter other than we provided TROUBLESHOOTING- Ensure your device is within 45 feet of the Lexi Portable Hub without obstacles - Make sure the light is charged or has a good connection to the DC Adaptor (provided).- Confirm your smart phone is paired with LEXI Portable Hub- To un-pair the lights turn the light on/off 6 times in quick succession using the LEXI Mobile App. Afterwards, you'll see a cool white flashing. ( A warm white will be flashing at the 5th power cycle which is a warning signal for you. If you don't want to un-pair it, stop the power cycle. The light will go back to the last state). Then, re-pair this light in the User Guide section. WIRELESS SPECIFICATION: BLE Frequency: 2402-2480MHzWireless communication protocol: IEEE 802.15.4Channel: 0 -39 channelsENVIRONMENTAL SPECIFICATION: Temperature (operation): -5...40°C Temperature (storage): -25...60°C Relative humidity: 5-90% non-condensing CLEANING AND MAINTENANCE: Do not clean when the product is on and connected to mains power. To avoid scratching, the product should only be cleaned with a soft dry cloth. Do not use cleaning agents.PLEASE KEEP THIS PACKAGING FOR FUTURE REFERENCE AS IT CONTAINS IMPORTANT INFORMATION. DISPOSAL OF YOUR OLD PRODUCT:Your product is designed and manufactured with high quality materials and component, contains non-removable Lithium-Ion battery, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please find out for yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health. FCC WARNING AND CAUTION:- This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.- Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC ID : 2ATOT90010 - Shielded Cables must be used with this unit to ensure compla ince with the Class B FCC limits NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interf…

Text truncated - open the document above for the full version.

90mm core light System Block and Function description Description: 1) 5V DC input is used to charge the battery. 2) 3.7V battery is used to drive the warm white, cold white and RGB. 3) 3.7V is then step down to 3.3V to supply power for CSR1010 module 4) Bluetooth 4.0 module is in charge of communication with the CSR1010 to send and request commands 5) After CSR1010 has received command from other device, it will implement signal processing as 5.1) Control RGB 5.2) Control warm white/cold white Operation frequency: 2402~2480MHz; RF channel:40; Modulation Type: GFSK; Antenna Gain: 0dBi

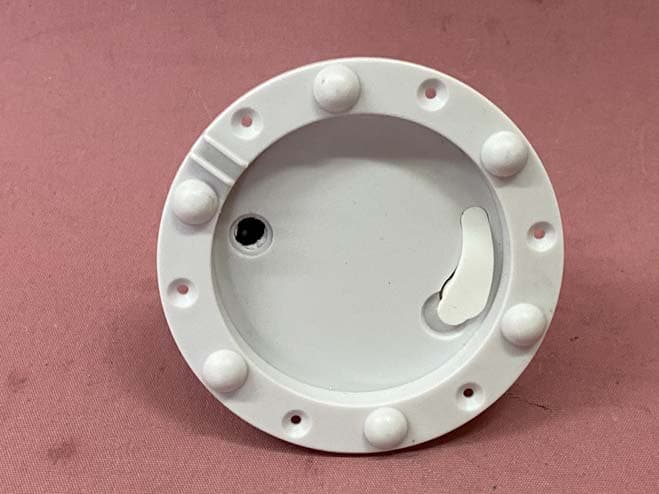

INTERTEK TESTING SERVICE Report No.: 19020252HKG-001 Equipment Photographs (External)

INTERTEK TESTING SERVICE Report No.: 19020252HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 19020252HKG-001 Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT) is a Bluetooth device. The EUT can operate with mobile app. The Bluetooth portion occupies frequency range of 2402MHz to 2480MHz (39 channels with channel spacing of 2MHz). Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 99.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/‐ 3dB U1 CSR1010 act as the Bluetooth module of this unit. X1 (16MHz) and X2 (32.768kHz) act as the crystal of the U1

Analysis Report Report No.: 19020252HKG-003 The Equipment Under Test (EU T) is a Bluetooth device. The EUT can operate with mobile app. The Bluetooth portion occupies frequency range of 2402MHz to 2480MHz (39 channels with channel spacing of 2MHz). Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 99.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 102.6dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 5.50mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 5.50mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

<Drawn By> <Checked By> <QC By> <Released By> <Drawn Date> <Checked Date> <QC Date> <Release Date> <Company Name> <Title> <Code> B <Drawing Number> <Revision> <Scale> 1 1 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED: QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY: TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: A B D DATE: 1 2 3 4 5 6 D C A B C LTR 1 AIO[2] 2 AIO[1] 3 AIO[0] 4 PIO[0]/UART_TX 5 PIO[1]/UART_RX 6 PIO[3]/SF_DIN 7 GND1 8 PIO[4]/SF_CS# 9 PO[5]/CLK 10 PIO[6]/CS# 11 PIO[7]/MOSI 12 PIO[8]/MISO 13 PIO[9] 14 PIO[10] 15 GND2 16 PIO[11] 17 SPI_PIO# 18 PIO[2] 19 I2C_SCL 20 I2C_SDA 21 WAKE 22 GND3 23 GND4 24 RF 25 GND5 26 GND6 27 VDD U1 CSR1010_MODULE U2 Q3 Q1 Q2 Q4 Q5 C3 C9 0.75p L2 2.7n TEMP PROG GND VCC CE /CHRG /STDBY BAT DIE_PAD U3 C7 10u H2 H14 + C8 10uF VIN VOUT GND U4 R17 10k R15 10k R19 10k R21 NC R23 NC R11 NC R22 NC R20 NC R12 NC R2 47R R10 47R R1 120R C4 100n C5 100n R9 1k R24 1k R13 1k C6 100n R4 2k C2 100n CSR_SPI R3 1k R7 1k R8 1k R14 2k D1 D2 3V3_BLE CSR_SPI_SCLK CSR_SPI_CS CSR_SPI_MOSI CSR_SPI_MISO CSR_SPI/PIO LED_G LED_R LED_B LED_B LED_G LED_R CSR_SPI_MISO CSR_SPI_MOSI LED_WWOUT LED_CWOUT LED_GOUT LED_ROUT 4.2V 4.2V 3V3_BLE 915_RX 915_TX CSR_SPI/PIO CSR_SPI_CS CSR_SPI_SCLK CSR_SPI_MOSI CSR_SPI_MISO LED_WW LED_CW LED_BOUT

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 23 TEST REPORT Report No.: 19020252HKG‐001 Lexi Devices, Inc. Application For Certification (Original Grant) FCC ID: 2ATOT90010 Transceiver Prepared and Checked by: Approved by: Signed On File Chan Cheuk Hei, Henry Assistant Engineer Lee Shui Tim, Tim Assistant Supervisor Date: December 20, 2019 TEST REPORT Lexi Devices, Inc. Intertek Report No: 19020252HKG‐001 Page 2 of 23 GENERAL INFORMATION Grantee: Lexi Devices, Inc. Grantee Address: 2342 Shattuck Ave, #260 Berkeley, CA 94704 USA Contact Person: Scott Cahill Tel: (1) 415‐420‐6426 Fax: (852) 90207263 e‐mail: [email protected] Manufacturer: Dongguan Yumei Plastics Technology Co., Ltd. Manufacturer Address: No. 262, Xinjia Road, Sukeng County, Changping Town, Dongguan, China Brand Name: LEXI Model: 90010 Additional Model: 20005, 20006, 20007, 20021, 20008, 20022, 20009, 20017, 20018, 20019, 20029, 20030 Type of EUT: Transceiver Description of EUT: LEXI Smart Ambiance Light Serial Number: N/A FCC ID: 2ATOT90010 Date of Sample Submitted: February 14, 2019 Date of Test: February 14, 2019 to May 21, 2019 Report No.: 19020252HKG‐001 Report Date: May 24, 2019 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Lexi Devices, Inc. Intertek Report No: 19020252HKG‐001 Page 3 of 23 SUMMARY OF TEST RESULT Test Specification Reference Results Transmitter Power Line Conducted Emissions 15.207 Pass Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2017 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Lexi Devices, Inc. Intertek Report No: 19020252HKG‐001 Page 4 of 23 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants......................................................................................5 1.3 Test Methodology....................................................................................................5 1.4 Test Facility ..............................................................................................................5 2.0 SYSTEM TEST CONFIGURATION.....................................................................................6 2.1 Justification..............................................................................................................6 2.2 EUT Exercising Software...........................................................................................6 2.3 Special Accessories...................................................................................................6 2.4 Measurement Uncertainty.......................................................................................6 2.5 Support Equipment List and Description ..................................................................6 3.0 EMISSION RESULTS.......................................................................................................7 3.1 Field Strength Calculation.........................................................................................7 3.2 Radiated Emission Configuration Photograph...........................................................8 3.3 Radiated Emission Data............................................................................................8 3.4 Conducted Emission Configuration Photograph .......................................................8 3.5 Conducted Emission Data.........................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS ......................................................................................14 5.0 PRODUCT LABELLING..................................................................................................14 6.0 TECHNICAL SPECI…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No:19020252HKG-001 FCC ID: Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No:19020252HKG-001 FCC ID: Configuration Photographs Worst-Case Radiated Emissions (Back View)

INTERTEK TESTING SERVICE Report No:19020252HKG-001 Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) INTERTEK TESTING SERVICE Report No:19020252HKG-001 Configuration Photographs Worst-Case Line-Conducted Emissions (Back View)
