2ATOW-TD-VD110XVideo Intercom Door Station

Video Intercom Door Station User Manual Please read this instruction carefully before operating the unit and keep it for further reference Safety Instruction The following symbols or words may be found in this manual. Symbols/Words Description Warning Indicates a medium or low potential hazardous situation which , if not avoided, will or could result in slight or moderate injury Caution Indicates a potential risk which, if not avoided, will or could result in device damage, data loss, lower performance or unexpected results Note Provides additional information to emphasize or supplement important points of the text. About the Manual  This manual is suitable for many models. All examples, screenshots, figures, charts, and illustrations used in the manual are for reference purpose, and actual products may be different with this Manual.  Please read this user manual carefully to ensure that you can use the device correctly and safely.  Within the maximum scope permitted by the law, the products described in this Manual (including hardware, software, firmware, etc.) are provided “AS IS”. The information in this document (including URL and other Internet site reference data) is subject to change without notice. This Manual may contain technical incorrect places or printing errors. This information will be periodically updated, and these changes will be added into the latest version of this Manual without prior notice.  In this manual, the trademarks, product names, service names and company names that are not owned by our company are the properties of their respective owners. Use of the Product  This product should not be used for illegal purposes.  The company does not allow anyone to use the Company's products to infringe the privacy, personal information, and portrait rights of others. The user shall not use this product for any illegal use or any prohibited use under these terms, conditions, and declarations. When using this product, the user shall not damage, disable, overload or obstruct any of the hardware of this product in any way, or interfere with the use of this product by any other users. Also, the user should not attempt to use the product or the software, by hacking, stealing the password, or any other means. Electrical Safety  This product is intended to be supplied by a Listed Power Unit, marked with 'Limited Power Source', 'LPS' on unit, output rated minimum 12V/2 A or POE 48V/ 350mA, no more than 2000m altitude of operation and Tma=60 Deg.C.  As for the modes with PoE function, the function of the ITE being investigated to IEC 60950-1 standard is considered not likely to require connection to an Ethernet network with outside plant routing, including campus environment and the ITE is to be connected only to PoE networks without routing to the outside plant.  Improper handling and/or installation could run the risk of fire or electrical shock.  The product must be grounded to reduce the risk of electric shock.  Warning: Wear anti-static gloves or discharge static electricity before removing the bubble or cover of the camera. Environment  Heavy stress, violent vibration or exposure to water is not allowed during transportation, storage and installation.  Avoid aiming the camera directly towards extremely bright objects, such as, sun, as this may damage the image sensor.  Keep away from heat sources such as radiators, heat registers, stove, etc.  Do not expose the product to the direct airflow from an air conditioner.  Do not block any ventilation openings and ensure proper ventilation around the camera.  Do not place the device in a damp, dusty extremely hot or cold environment, or the locations with strong electromagnetic radiation or unstable lighting.  Make sure that no reflective surface is too close to the camera lens. The IR light from the camera may reflect back into the lens, resulting in image blur. Operation and Daily Maintenance  There are no user-serviceable parts inside. Please contact the nearest service center if the product does not work properly.  Please shut down the device and then unplug the power cable before you begin any maintenance work.  Warning: All the examination and repair work should be done by qualified personnel.  Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on the lens surface.  Always use a dry soft cloth to clean the device. If there is too much dust, use a cloth cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.  Always use a dry soft cloth to clean the device. If there is too much dust, use a cloth cleaning (such as using cloth) may result in poor IR/illumination LEDs functionality and/or IR/illumination LEDs reflection.  The dome cover is an optical device, please don't touch or wipe the cover surface directly during installation and use. For dust, use an oil-free soft brush or hair dryer to remove it gently; for grease or finger print, use oil-free cotton cloth or paper soaked with detergent to wipe from the lens center outward. Change the cloth and wipe several times if it is not clean enough. Privacy Protection  When installing cameras in public areas, a warning notice shall be given in a reasonable and effective manner and clarify the monitoring range.  As the device user or data controller, you might collect the personal data of others, such as face, car plate number, etc. As a result, you shall implement reasonable and necessary measures to protect the legitimate rights and interests of other people, avoiding data leakage, improper use, including but not limited to, setting up access control, providing clear and visible notice to inform people of the existence of the surveillance area, providing required contact information and so on. Disclaimer  With regard to the product with internet access, the use of product shall be wholly at your own risks. Our company shall be irresponsible for abnormal operation, privacy leakage or other…

Text truncated - open the document above for the full version.

SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Add: 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Date: 2025/9/13 FCC ID: 2ATOW-TD-VD110X Dear Sir/Madam, We, SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number, appearances and key boards are different for these model: Product name: Video Intercom Door Station Model no.: TE-VD1100S1-CEPW, TE-VD1108S1-CEPW, TE-VD11xxyx, TE-VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) Reter to follow photos: Model number Appearance Key boards TE-VD1100S1-CEPW, TE-VD11xxyx, TE- VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) With 15 buttons SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Add: 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China TE-VD1108S1-CEPW, TE-VD11xxyx, TE- VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) With 8 buttons Sincerely, Name/Title： Bella Deng/Manager Company: SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address: 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Phone: 0755-36995888 Fax: 0755-33104777 E-Mail: [email protected]

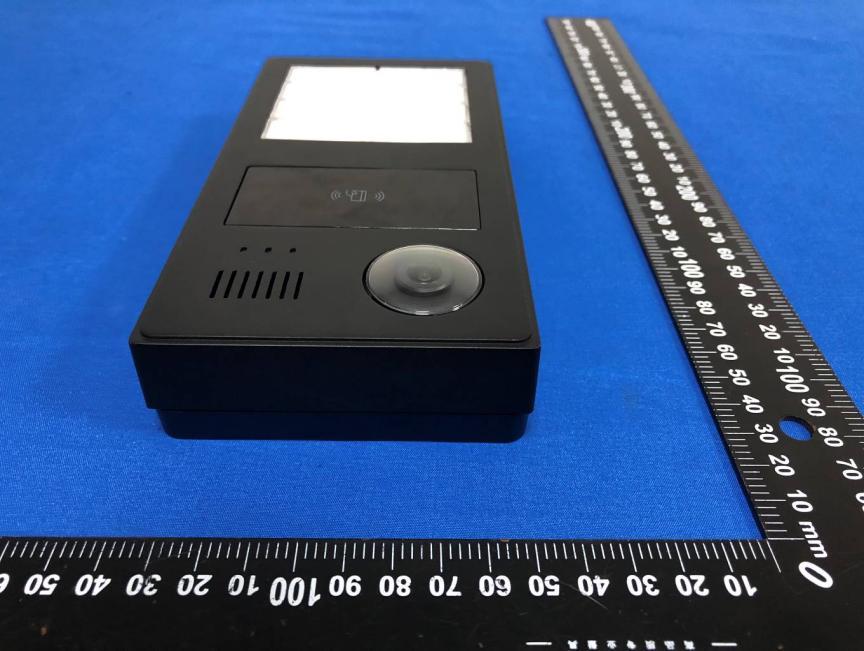

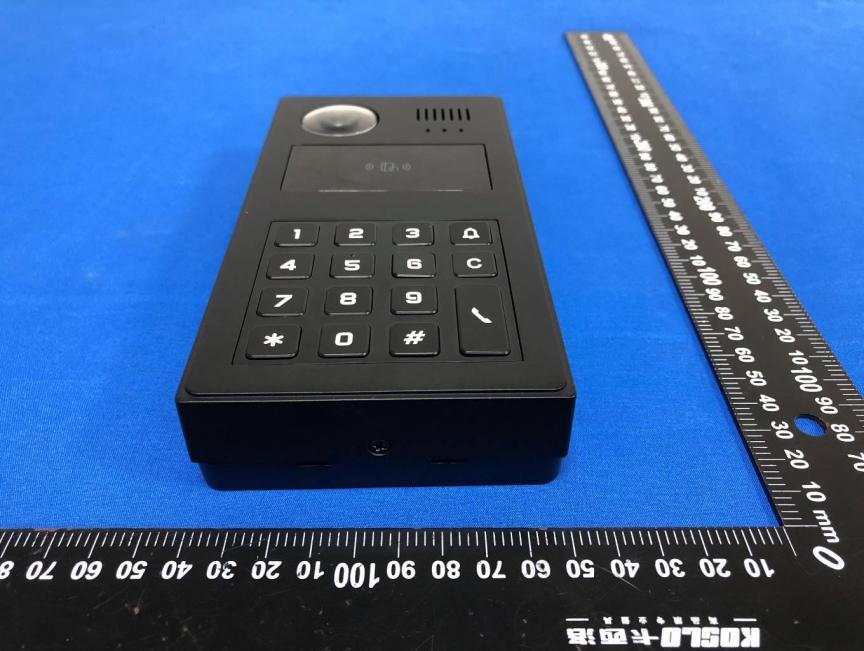

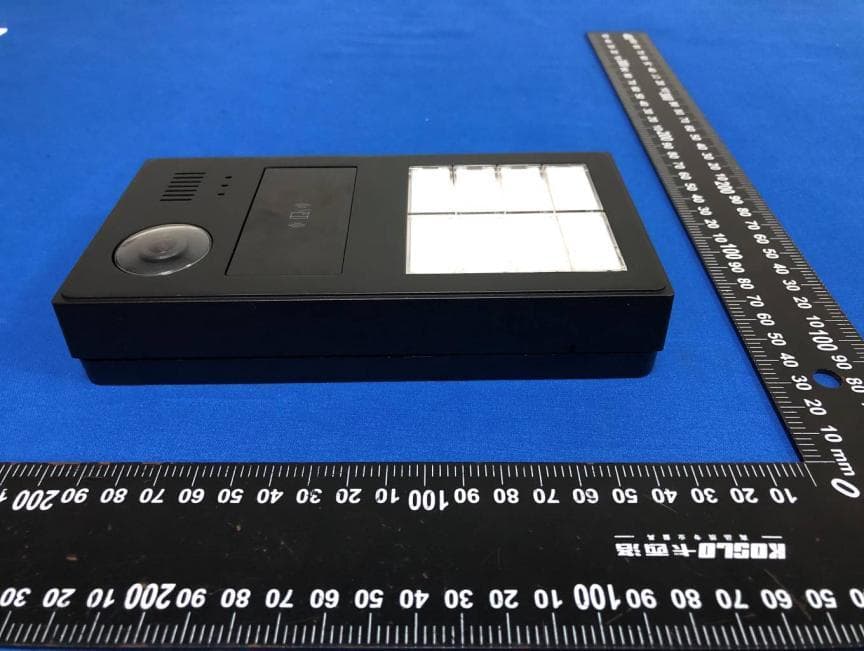

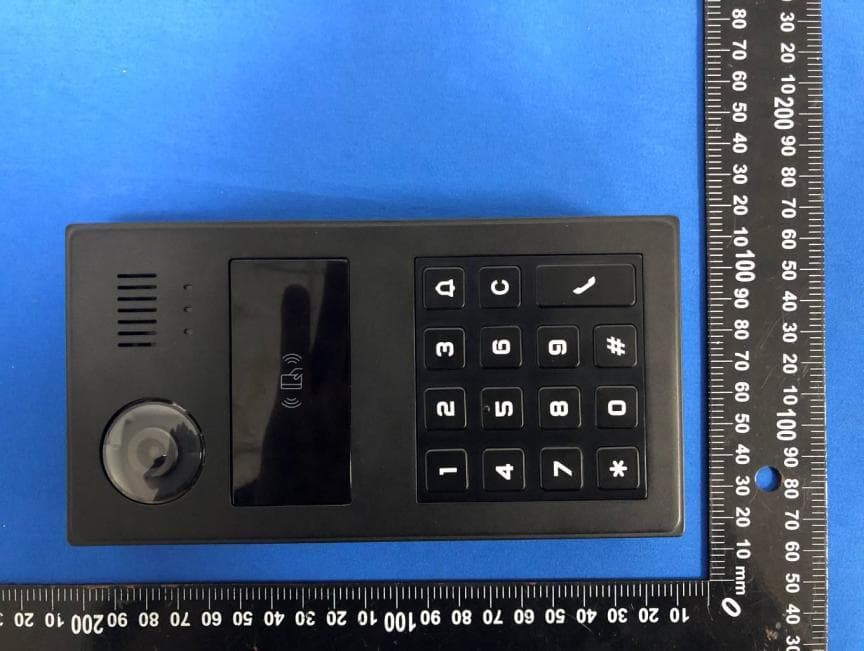

FCC ID:2ATOW-TD-VD110X External Photos of the EUT For 15 Keys:TE-VD1100S1-CEPW, TE-VD11xxyx, TE-VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X For 8 keys: TE-VD1108S1-CEPW, TE-VD11xxyx, TE-VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location

FCC ID:2ATOW-TD-VD110X Internal Photos of the EUT For 15 Keys:TE-VD1100S1-CEPW, TE-VD11xxyx, TE-VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X WIFI Antenna FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X 13.56MHz+ 125KHz ANT FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X For 8 keys: TE-VD1108S1-CEPW, TE-VD11xxyx, TE-VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X FCC ID:2ATOW-TD-VD110X

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. .................... : FCC ID. ........................................... : CTA25052100303 2ATOW-TD-VD110X Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jul. 25, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address ........................................... : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Video Intercom Door Station Manufacturer .................................... : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Trade Mark ........................................ TVT Model/Type reference ...................... : TE-VD1100S1-CEPW Listed Models .................................. : TE-VD1108S1-CEPW, TE-VD11xxyx, TE-VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) Rating ............................................... : Input: 12V 1A, or PoE 480.35A Result ............................................... : PASS Report No.: CTA25052100303 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Video Intercom Door Station Model /Type : TE-VD1100S1-CEPW Listed Models : TE-VD1108S1-CEPW, TE-VD11xxyx, TE-VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) Model difference : The circuits, structures and internal structures of mainboards are the same, but their appearances and key boards are different. Applicant : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Manufacturer : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25052100303 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 MPE Calculation Method ......................................................................................... 8 4.3 Conducted Power Results ....................................................................................... 9 4.4 Manufacturing tolerance .......................................................................................... 9 4.5 Standalone MPE Result .............................................…

Text truncated - open the document above for the full version.

1 Appendix RF Test Data for WLAN FCC ID : 2ATOW-TD-VD110X Company: : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. EUT : Video Intercom Door Station Model Number : TE-VD1100S1-CEPW, TE-VD1108S1-CEPW Report No. : CTA25052100301 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.800 2407.240 2417.040 0.5 PASS 2437 8.560 2432.480 2441.040 0.5 PASS 2462 9.520 2457.000 2466.520 0.5 PASS 11G Ant1 2412 15.720 2404.440 2420.160 0.5 PASS 2437 15.480 2429.440 2444.920 0.5 PASS 2462 15.720 2454.440 2470.160 0.5 PASS 11N20SISO Ant1 2412 16.800 2403.960 2420.760 0.5 PASS 2437 15.920 2429.440 2445.360 0.5 PASS 2462 16.200 2454.440 2470.640 0.5 PASS 11N40SISO Ant1 2422 35.440 2404.480 2439.920 0.5 PASS 2437 35.040 2419.480 2454.520 0.5 PASS 2452 35.520 2434.080 2469.600 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.295 2405.8106 2418.1056 --- --- 2437 11.551 2431.0079 2442.5589 --- --- 2462 12.861 2455.3915 2468.2525 --- --- 11G Ant1 2412 16.783 2403.7664 2420.5494 --- --- 2437 16.643 2428.8002 2445.4432 --- --- 2462 16.837 2453.6889 2470.5259 --- --- 11N20SISO Ant1 2412 17.878 2403.2453 2421.1233 --- --- 2437 17.654 2428.2781 2445.9321 --- --- 2462 18.010 2453.1608 2471.1708 --- --- 11N40SISO Ant1 2422 36.357 2404.1030 2440.4600 --- --- 2437 35.976 2419.0987 2455.0747 --- --- 2452 36.416 2433.8541 2470.2701 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 16.23 ≤30.00 PASS 2437 14.87 ≤30.00 PASS 2462 15.93 ≤30.00 PASS 11G Ant1 2412 14.91 ≤30.00 PASS 2437 14.60 ≤30.00 PASS 2462 14.01 ≤30.00 PASS 11N20SISO Ant1 2412 15.02 ≤30.00 PASS 2437 14.35 ≤30.00 PASS 2462 13.99 ≤30.00 PASS 11N40SISO Ant1 2422 14.25 ≤30.00 PASS 2437 13.79 ≤30.00 PASS 2452 14.75 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -9.08 ≤8.00 PASS 2437 -11.38 ≤8.00 PASS 2462 -9.38 ≤8.00 PASS 11G Ant1 2412 -16.51 ≤8.00 PASS 2437 -17.27 ≤8.00 PASS 2462 -17.82 ≤8.00 PASS 11N20SISO Ant1 2412 -16.98 ≤8.00 PASS 2437 -17.01 ≤8.00 PASS 2462 -17.87 ≤8.00 PASS 11N40SISO Ant1 2422 -19.65 ≤8.00 PASS 2437 -20.73 ≤8.00 PASS 2452 -20.15 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 4.27 -34.31 ≤-15.73 PASS High 2462 3.77 -48.27 ≤-16.23 PASS 11G Ant1 Low 2412 -0.73 -34.8 ≤-20.73 PASS High 2462 -1.69 -39.59 ≤-21.69 PASS 11N20SIS O Ant1 Low 2412 -0.86 -34.5 ≤-20.86 PASS High 2462 -1.73 -38.06 ≤-21.73 PASS 11N40SIS O Ant1 Low 2422 -4.35 -37.16 ≤-24.35 PASS High 2452 -4.13 -34.7 ≤-24.13 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 2.58 2.58 --- PASS 30~1000 2.58 -68.19 ≤-17.42 PASS 1000~26500 2.58 -38.13 ≤-17.42 PASS 2437 Reference 4.70 4.70 --- PASS 30~1000 4.70 -67.35 ≤-15.3 PASS 1000~26500 4.70 -36.52 ≤-15.3 PASS 2462 Reference 2.50 2.50 --- PASS 30~1000 2.50 -67.91 ≤-17.5 PASS 1000~26500 2.50 -30.38 ≤-17.5 PASS 11G Ant1 2412 Reference -0.91 -0.91 --- PASS 30~1000 -0.91 -67.98 ≤-20.91 PASS 1000~26500 -0.91 -44.68 ≤-20.91 PASS 2437 Reference -1.89 -1.89 --- PASS 30~1000 -1.89 -68.22 ≤-21.89 PASS 1000~26500 -1.89 -46.17 ≤-21.89 PASS 2462 Reference -2.85 -2.85 --- PASS 30~1000 -2.85 -67.67 ≤-22.85 PASS 1000~26500 -2.85 -44.14 ≤-22.85 PASS 11N20SISO Ant1 2412 Reference -1.65 -1.65 --- PASS 30~1000 -1.65 -67.58 ≤-21.65 PASS 1000~26500 -1.65 -50.82 ≤-21.65 PASS 2437 Reference -1.37 -1.37 --- PASS 30~1000 -1.37 -67.5 ≤-21.37 PASS 1000~26500 -1.37 -44.43 ≤-21.37 PASS 2462 Reference -1.66 -1.66 --- PASS 30~1000 -1.66 -68.2 ≤-21.66 PASS 1000~26500 -1.66 -42.55 ≤-21.66 PASS 11N40SISO Ant1 2422 Reference -4.56 -4.56 --- PASS 30~1000 -4.56 -67.68 ≤-24.56 PASS 1000~26500 -4.56 -50.04 ≤-24.56 PASS 2437 Reference -4.72 -4.72 --- PASS 30~1000 -4.72 -67.73 ≤-24.72 PASS 1000~26500 -4.72 -46.24 ≤-24.72 PASS 2452 Reference -5.06 -5.06 --- PASS 30~1000 -5.06 -67.2 ≤-25.06 PASS 1000~26500 -5.06 -49.1 ≤-25.06 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 0.71 0.85 83.53 2437 0.70 0.90 77.78 2462 0.71 0.87 81.61 11G Ant1 2412 0.11 0.27 40.74 2437 0.11 0.28 39.29 2462 0.11 0.27 40.74 11N20SISO Ant1 2412 0.11 0.27 40.74 2437 0.11 0.30 36.67 2462 0.12 0.31 38.71 11N40SISO Ant1 2422 0.08 0.28 28.57 2437 0.07 0.28 25.00 2452 0.07 0.25 28.00 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452

深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 1 页 共 10 页 电话：0755-27810060传真：0755-27810057网址：http://www.szsyjc.com CUSTOMER NAME 客户名称 同为数码 CUSTOMER P/N 客户料号 PART NAME 品 名 2.4G 黑色 FPC 内置天线，1.13黑色线 L=75MM P/ N 料 号 YJC-6N075-B99 APPROVAL REV. 版 次 A0 DELIVERY DATE 送样日期 2024 年 11 月 29 日 PREPARED BY 承 办 殷飞杰 CHECKED BY 审 核 方文锋 APPROVED BY 核 准 肖 汉 Customer Approved 客 户 承 认 Prepared By 承 办 Checked By 审 核 Approved By 核 准 Headquarters Address: Building C, Hongyu Guangming Valley, No. 11, Yaumagang Road, Matian Street, Guangming District, Shenzhen Dongguan Branch: Yingjiachuang Industrial Park, No. 2, Yinhe 3rd Road, Shishuikou, Qiaotou Town, Dongguan City Hangzhou Office: 509, Building 1, Binrun Science and Technology Innovation Park, No. 5, Zhiren Street, Puyan Street, Binjiang District, Hangzhou Mianyang Office: No. 4F-34, Wanxiang High-tech International, No. 35, Mianxing East Road, High-tech Zone, Mianyang City, Sichuan Province Shenzhen Yingjiachuang Electronic Technology Co., Ltd. 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 2 页共 10 页 目录 1、封面。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。1 2、目录。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。2 3、履历表。。。。。。。。。。。。。。。。。。。。。。。。。。。3 4、天线平面图。。。。。。。。。。。。。。。。。。。。。。。。。。。。。4 5、天线技术参数及环境性能测试。。。。。。。。。。。。。。。。。。。。。5 6、天线实物图与天线贴附位置图。。。。。。。。。。。。。。。。。。。。。6 7、天线性能测试图。。。。。。。。。。。。。。。。。。。。。。。。。。。6 8、2D.3D（2.4G）测试数据。。。。。。。。。。。。。。。。。。。。。。。。。7-8 9、OTA有源测试数据统计。。。。。。。。。。。。。。。。。。。。9 10、ROHS物料控制报告。。。。。。。。。。。。。。。。。。。。。。。。。。10 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 3 页共 10 页 履历表： 版本变更内容及更改原因日期发行 A0 初版发行 2024 年 11 月 29 日 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 4 页共 10 页 天线平面图： 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 5 页共 10 页 天线技术参数及环境测试： 电气技术参数 电性能指标 ElectricalSpecifications 频率范围2400-2500MHzFrequencyRange2400-2500MHz 电压驻波比＜1.92VSWR＜1.92 输入阻抗50ΩInputImpedance50Ω 方向全向DirectionAll 增益2.0±1dBiGain2.0±1dBi 机械指标MechanicalSpecifications 线材颜色黑色WireColorBlack 接口形式XDInputconnectorXD 线材长度75MMWireLength75MM 工作温度-20°C~+70°C Working Temperature -20°C~+70°C 工作湿度20%~80%WorkingHumidity20%~80% 环境性能测试: 项目测试条件规格 储存环境 在没有指定的情况下测试温度、湿度、气压如下： 1.温度为-20°C～+70°C 2.相对湿度为45%-85% 3.气压为86kpa-106kpa 电气机械性能正常 高低温试验 在70°C与-20°C之间进行5次循环，然后在正常条件下 1-2H，检查外观质量。 尺寸应满足规定并应满足于 机械、电气性能 耐恒定 湿热试验 相对湿度95±3%，试验温度：40°C.持续2H作用后， 试品取出后5min之内测定电气性能，试品在正常条 件下1-2H，检查外观质量 尺寸应满足规定并应满足于 机械、电气性能 振动试验 振频范围10-55HZ，位移幅值：0.35MM，加速度幅值： 50.0M/S，扫频循环次数：30次 电气机械性能正常 跌落试验1M高空按照互相垂直的轴方向自由跌落3次电气机械性能正常 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 6 页共 10 页 天线实物图： 天线性能测试图： 天 线 贴 附 位 置 图 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 7 页共 10 页 2D、3D测试数据(2.4G)： FrequencyEfficiency(%)Gain.(dBi) 2400MHz45.641.42 2410MHz44.351.22 2420MHz46.991.67 2430MHz45.641.59 2440MHz45.601.71 2450MHz49.201.69 2460MHz52.241.73 2470MHz48.671.27 2480MHz47.641.85 2490MHz46.991.71 2500MHz50.362.10 Phi02D图:Phi902D图Theta902D图 3D2400 ： 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 8 页共 10 页 3D2450 ： 3D2500 ： 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 9 页共 10 页 OTA 有源测试数据统计： MeasurementBandChannelFrequencyTotal-内置 TRPWIFI_B(11M)1241210.67 TRPWIFI_B(11M)6243710.53 TRPWIFI_B(11M)1124628.47 TIS(EIRP)WIFI_B(11M)12412-78.19 TIS(EIRP)WIFI_B(11M)62437-78.77 TIS(EIRP)WIFI_B(11M)112462-77.87 TRPWIFI_G(54M)124129.29 TRPWIFI_G(54M)624378.6 TRPWIFI_G(54M)1124626.56 TIS(EIRP)WIFI_G(54M)12412-66.61 TIS(EIRP)WIFI_G(54M)62437-66.22 TIS(EIRP)WIFI_G(54M)112462-66 TRPWIFI_N_ISM(65M)124128.8 TRPWIFI_N_ISM(65M)624378.08 TRPWIFI_N_ISM(65M)1124626.29 TIS(EIRP)WIFI_N_ISM(65M)12412-62.07 TIS(EIRP)WIFI_N_ISM(65M)62437-62.26 TIS(EIRP)WIFI_N_ISM(65M)112462-62.17 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 10 页共 10 页 ROHS 物料控制报告 兹证明向貴司交货的零組件、辅助材料所使用的原材料、以及生产工程中的添加剂等均符合RoHS限制使用有害物质指令的环保要求（RoHS指令 2011/65/EC) 关于零组件、辅助材料所使用的原材料、包装材料以及和产过程中使用的添加剂等的构成成份报告如下： 组成物料名称 Component /PartName 组成材料 Material Composition ICP报告编号 ICPreport# 测试机构 TestOrg. 测试时间 TestDate 有害物质含量(ppm) 是否合格? PASS? CdPbHgCr 6+ PBBPBDEPASS 线材 铁氟龙同轴 线缆 CANEC24002746206SGS24/02/23NDNDNDNDNDNDPASS 环保锡丝环保锡丝SHAEC24006459102SGS24/04/10ND78NDNDNDNDPASS 端子 磷青铜CANEC24000977302SGS24/01/22ND6NDNDNDNDPASS 金镀层A2240410234101001ECTI24/07/16NDNDNDNDNDNDPASS 胶芯A2240126395101003ECTI24/03/16NDNDNDNDNDNDPASS FPC 油墨ETR24902229M01SGS24/09/23NDNDNDNDNDNDPASS 3M9471LESHAEC23021627701SGS23/12/27NDNDNDNDNDNDPASS 铜箔A2240082746101006ECTI24/03/01NDNDNDNDNDNDPASS

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25052100301 2ATOW-TD-VD110X Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jul. 25, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address ............................................ : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Video Intercom Door Station Trade Mark ....................................... : TVT Manufacturer .................................... : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Model/Type reference ...................... : TE-VD1100S1-CEPW Listed Model ...................................... TE-VD1108S1-CEPW, TE-VD11xxyx, TE-VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 12V 1A, or PoE 480.35A Result ............................................... : PASS Report No.: CTA25052100301 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Video Intercom Door Station Model /Type : TE-VD1100S1-CEPW Listed Models : TE-VD1108S1-CEPW, TE-VD11xxyx, TE-VD11xxyx-yyyy (x=0-9, or blank; y=A-Z, or blank) Model difference : The circuits, structures and internal structures of mainboards are the same, but their appearances and key boards are different. Applicant : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Manufacturer : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25052100301 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................…

Text truncated - open the document above for the full version.
