2ATOW-TD-VH110XVideo Intercom Indoor Station

Video Intercom Indoor Station Quick Start Guide
Package
Overview 1 2
Touch Buttons & Cable
Connection 3 About This Manual All pictures, images, icons and snapshots in this manual are for reference only. If there is inconsistency between the manual and the actual product, the actual product shall prevail. The manual will be updated according to the product improvement and are subject to change without prior written notice. Legal Disclaimer To the maximum extent permitted by applicable law, the product described, with its hardware, software, software and firmware, is provided “as is”, with all faults and errors, and our company makes no warranties, express or implied, including particular purpose, and non-infringement of third party. In no event will our company, offices, or agents be liable to you for any special, consequential, incidental, or indirect damages, including, among others, damages for loss of business profits, business interruption, or loss of data or documentation, in connection with the use of this product, even if our company has been advised of the possibility of such damages. With regard to the product with internet access, the use of product shall be wholly at your own risks. Our company shall be irresponsible for abnormal operation, privacy leakage or other damages resulting from cyber attack, hacker attack, virus inspection, or other internet security risks; however, our company will provide timely technical support if necessary. During the use of the device, pleas strictly abide by applicable law. In the event of any conflicts between this manual and the applicable law, the later prevails. Installation and Use Please use our product according to the following safety instructions and warnings. Do not place the camera in extremely hot, cold, dusty or damp location. Do not expose it to high electromagnetic radiation. If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not be responsible for any problems caused by unauthorized repair or maintenance.) Do not drop the camera or subject it to physical shock. Keep away from liquid while in use. Do not touch the screen with sharp objects. After the installation of the device is complete, please remove the protective film. If cleaning is necessary, please use clean cloth to wipe it gently, avoiding water or alcohol. Plastic Screw Anchor ×4 Drill Template Device Quick Start Guide Tapping Screw×4 Machine Screw×1 Bracket Cables FrontBack Memory Card
Slot Speaker Alarm Input/ Output (PoE) Ethernet
Port Reset Microphone Alarm Input Alarm Output Alarm Input Device Alarm Input Device Alarm Output Device Power A1A2 A3A4 B1 B2 C1C2 Touch
Buttons 120.0 11.5 22.5 96.0 9 6 . 0 1 2 0 . 0 Touch
Buttons： Answer
the
callLive viewUnlock Mute Hang
up
the
callCustomizable
touch
button AIN1 COM ANI2 GND GND NO 1 1 2 2 3 3 4 4 5 5 6 6 + -

DC12V Power connector Network cable Place the drill template onto the wall and then drill the holes (B1) according to it. Installation 4 2 2 3 Wall
Mounting
with
Junction
Box Wall Mounting without Junction Box 1 1 Insert the screw anchors into the screw holes and then install the bracket onto the wall with two tapping screws. Install the bracket onto the junction box with two machine screws. Note: The tip of the bracket must be on the top when installing. Install the device onto the bracket and secure them with a machine screw. Tip Note: The tip of the bracket must be on the top when installing. Tip Hook the device to the bracket from the left to right. Note: Push the device from right to left to remove 2 3 Bracket Size 1 60.00 72.00 93.00 4-Ø5.00 9.00 A1A2 A3A4 B1 B2 C1C2 Network Connection 5 Wired Network
Connection ① Make sure that the device and the PC are well connected via LAN. ② Get the IP-Tool from the supplier and then install it in the computer. After that, run the IP-Tool as shown below. Device Network Search Immediate Refresh name name name IPC IPC IPC unknown unknown unknown 192.168.226.201 192.168.1.2 192.168.1.3 80 80 80 9008 9008 9008 255.255. 255.255. 255.255. Modify Network Parameter Mac Address IP Address Modify CE :98 :23 :75 :35 :22 192 .168 . 226 . 201 255 . 255 . 255 . 0 192 .168 . 226 . 1 i Tip: Enter the administrator password, and then modify the network parameters. Total Device: 3Local IP Address:192.168.1.4 Subnet Mask:255.255.255.0Gateway: 192.168.1.1DNS：210.21.196.6 Device NameDevice TypeIP AddressHttp PortData Port Subnet Product Model About Subnet Mask Gateway Restore IPC Default Configuration ③ Double-click the camera listed in the IP-Tool to open a web browser. The default IP address of this camera is 192.168.226.201. Note: Please make sure the camera and the computer are in the same local network. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authorit…

Text truncated - open the document above for the full version.

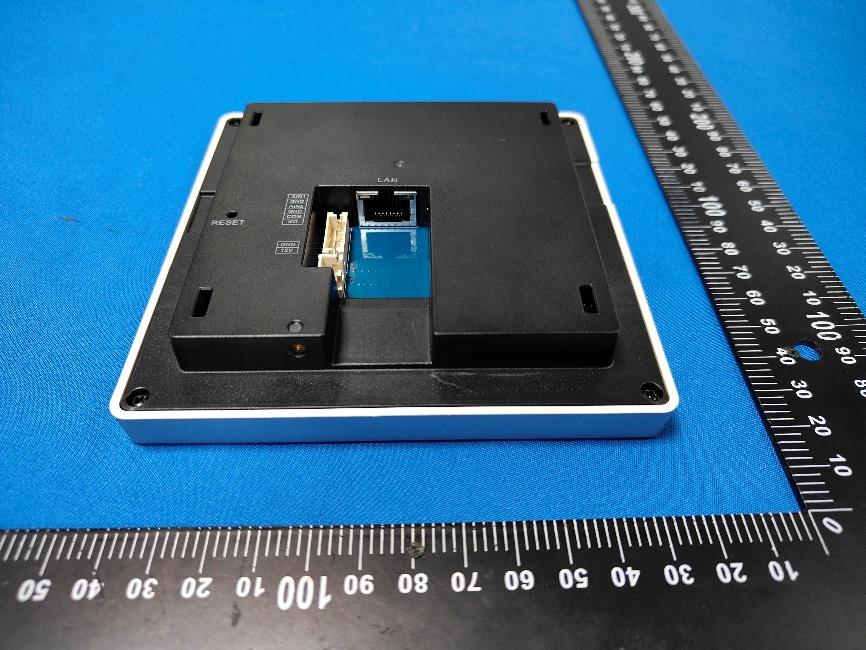

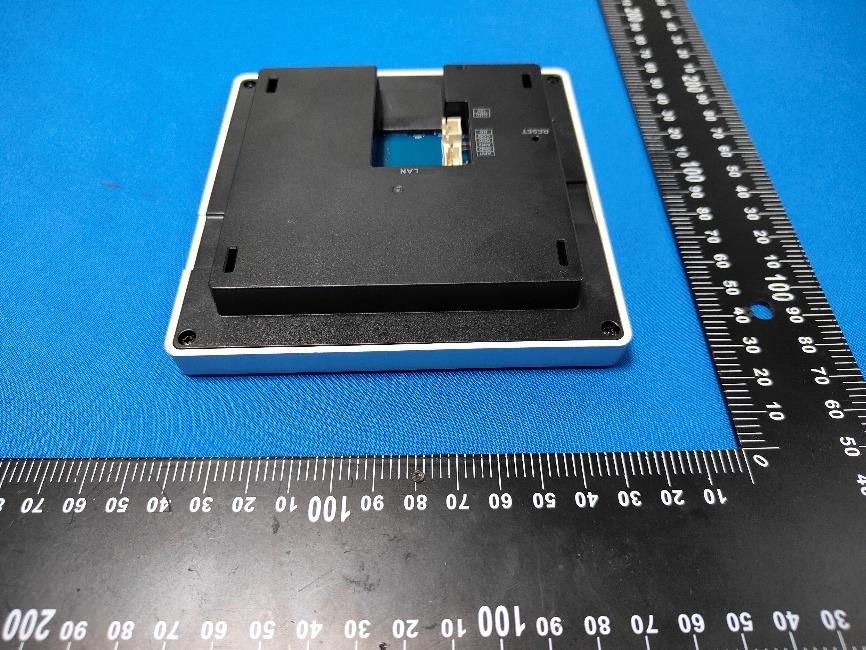

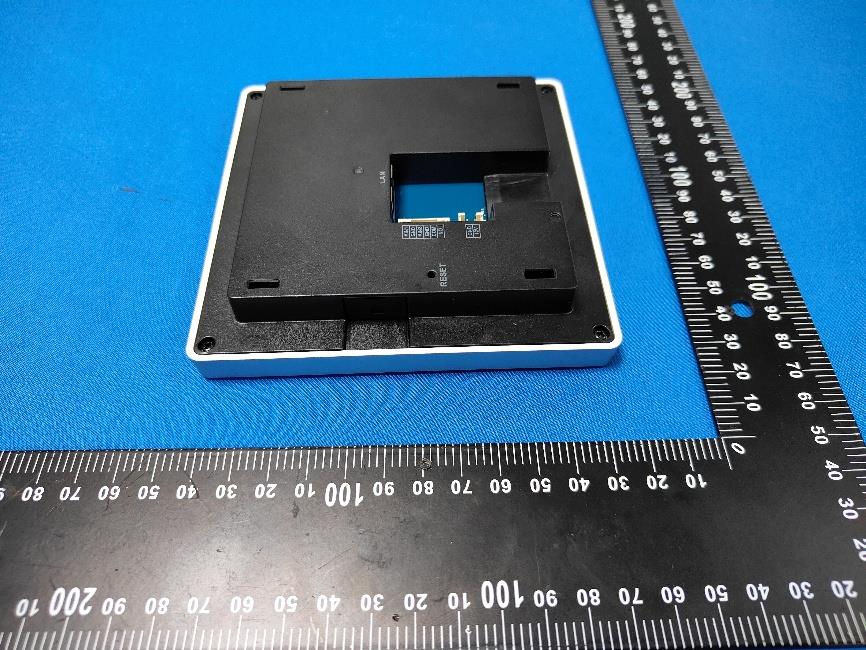

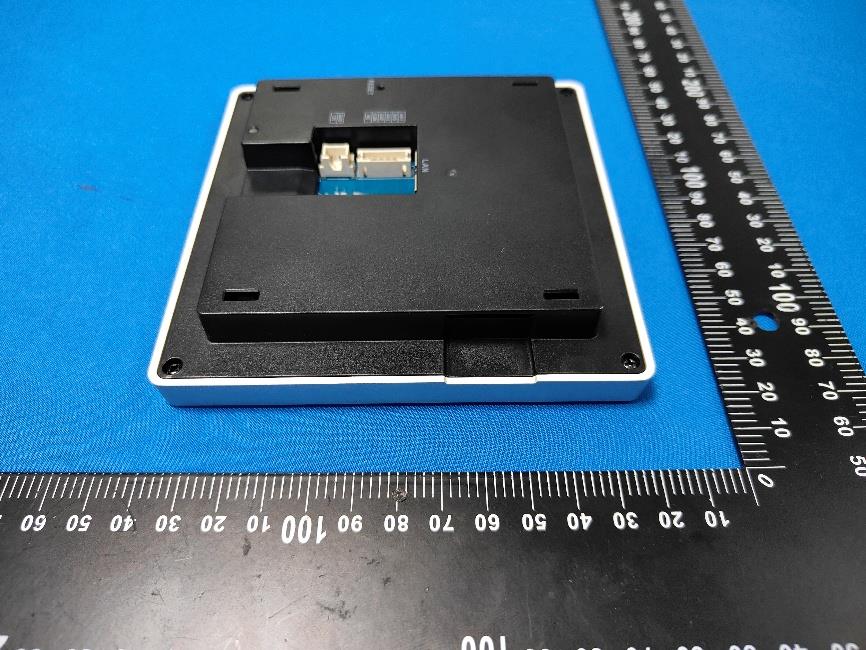

FCC ID:2ATOW-TD-VH110X External Photos of the EUT FCC ID:2ATOW-TD-VH110X FCC ID:2ATOW-TD-VH110X

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2ATOW-TD-VH110X

FCC ID:2ATOW-TD-VH110X Internal Photos of the EUT FCC ID:2ATOW-TD-VH110X ANT FCC ID:2ATOW-TD-VH110X FCC ID:2ATOW-TD-VH110X

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID. ........................................... : CTA25091300402 2ATOW-TD-VH110X Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Sep. 28, 2025 Testing Laboratory Name ..............: Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................: SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address ............................................ : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Video Intercom Indoor Station Trade Mark ........................................ TVT Manufacturer .................................... : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Model/Type reference....................... : TE-VH1104S1 Listed Models ................................... : TE-VH1104S1-PTW, TE-VH11xxxxxxxx (x=0-9, A-Z, -, or blank) Rating ............................................... : Input: 12V1A or POE 480.35A Result................................................ : PASS Report No.: CTA25091300402 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Video Intercom Indoor Station Model /Type : TE-VH1104S1 Listed Models : TE-VH1104S1-PTW, TE-VH11xxxxxxxx (x=0-9, A-Z, -, or blank) Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Manufacturer : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25091300402 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result .........................................................................................…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PIFA antenna Model TE-VH1104S1 Frequency range 2400-2500MHz Manufacturer SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China ANT Peak Gain 2dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25091300401 2ATOW-TD-VH110X Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 28, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address ............................................ : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Test specification .......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Video Intercom Indoor Station Trade Mark ....................................... : TVT Manufacturer .................................... : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Model/Type reference ...................... : TE-VH1104S1 Listed Models ................................... : TE-VH1104S1-PTW, TE-VH11xxxxxxxx (x=0-9, A-Z, -, or blank) Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 12V1A or POE 480.35A Result ............................................... : PASS Report No.: CTA25091300401 Page 2 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Video Intercom Indoor Station Model /Type : TE-VH1104S1 Listed Models : TE-VH1104S1-PTW, TE-VH11xxxxxxxx (x=0-9, A-Z, -, or blank) Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Manufacturer : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. Address : 23rd Floor, Building B4, Block 9, Shenzhen Bay Science and Technology Ecological Garden, Yuehai Subdistrict, Nanshan District, Shenzhen, P.R. China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25091300401 Page 3 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 6 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT .......................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2ATOW-TD-VH110X Company : SHENZHEN TVT DIGITAL TECHNOLOGY CO.,LTD. EUT : Video Intercom Indoor Station Model Number : TE-VH1104S1 Report No. : CTA25091300401 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.880 2407.480 2416.360 0.5 PASS 2437 8.760 2432.560 2441.320 0.5 PASS 2462 8.680 2457.560 2466.240 0.5 PASS 11G Ant1 2412 16.280 2403.920 2420.200 0.5 PASS 2437 16.280 2428.920 2445.200 0.5 PASS 2462 16.320 2453.880 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.280 2403.400 2420.680 0.5 PASS 2437 17.400 2428.360 2445.760 0.5 PASS 2462 17.440 2453.320 2470.760 0.5 PASS 11N40SISO Ant1 2422 33.680 2405.440 2439.120 0.5 PASS 2437 33.920 2420.280 2454.200 0.5 PASS 2452 33.520 2435.520 2469.040 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.959 2405.5683 2418.5273 --- --- 2437 12.982 2430.5458 2443.5278 --- --- 2462 13.007 2455.5127 2468.5197 --- --- 11G Ant1 2412 16.571 2403.7639 2420.3349 --- --- 2437 16.550 2428.7768 2445.3268 --- --- 2462 16.578 2453.7464 2470.3244 --- --- 11N20SISO Ant1 2412 17.426 2403.3443 2420.7703 --- --- 2437 17.441 2428.3301 2445.7711 --- --- 2462 17.440 2453.3068 2470.7468 --- --- 11N40SISO Ant1 2422 34.826 2404.7590 2439.5850 --- --- 2437 34.745 2419.7735 2454.5185 --- --- 2452 34.797 2434.7284 2469.5254 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.92 ≤30.00 PASS 2437 14.60 ≤30.00 PASS 2462 14.46 ≤30.00 PASS 11G Ant1 2412 13.19 ≤30.00 PASS 2437 13.51 ≤30.00 PASS 2462 13.91 ≤30.00 PASS 11N20SISO Ant1 2412 13.31 ≤30.00 PASS 2437 13.75 ≤30.00 PASS 2462 14.18 ≤30.00 PASS 11N40SISO Ant1 2422 12.51 ≤30.00 PASS 2437 12.66 ≤30.00 PASS 2452 12.78 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -15.16 ≤8.00 PASS 2437 -14.18 ≤8.00 PASS 2462 -14.77 ≤8.00 PASS 11G Ant1 2412 -21.37 ≤8.00 PASS 2437 -20.90 ≤8.00 PASS 2462 -20.55 ≤8.00 PASS 11N20SISO Ant1 2412 -20.78 ≤8.00 PASS 2437 -20.52 ≤8.00 PASS 2462 -20.41 ≤8.00 PASS 11N40SISO Ant1 2422 -22.61 ≤8.00 PASS 2437 -22.31 ≤8.00 PASS 2452 -22.53 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 0.19 -53.78 ≤-19.81 PASS High 2462 0.86 -55.73 ≤-19.14 PASS 11G Ant1 Low 2412 -7.59 -44.71 ≤-27.59 PASS High 2462 -6.49 -52.2 ≤-26.49 PASS 11N20SIS O Ant1 Low 2412 -7.51 -48.33 ≤-27.51 PASS High 2462 -6.32 -52.87 ≤-26.32 PASS 11N40SIS O Ant1 Low 2422 -10.46 -51.67 ≤-30.46 PASS High 2452 -10.57 -53.79 ≤-30.57 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -0.19 -0.19 --- PASS 30~1000 -0.19 -56.62 ≤-20.19 PASS 1000~26500 -0.19 -44.25 ≤-20.19 PASS 2437 Reference 0.76 0.76 --- PASS 30~1000 0.76 -55.3 ≤-19.24 PASS 1000~26500 0.76 -44.74 ≤-19.24 PASS 2462 Reference -1.05 -1.05 --- PASS 30~1000 -1.05 -56.01 ≤-21.05 PASS 1000~26500 -1.05 -45.26 ≤-21.05 PASS 11G Ant1 2412 Reference -8.03 -8.03 --- PASS 30~1000 -8.03 -59.68 ≤-28.03 PASS 1000~26500 -8.03 -43.7 ≤-28.03 PASS 2437 Reference -7.41 -7.41 --- PASS 30~1000 -7.41 -59.04 ≤-27.41 PASS 1000~26500 -7.41 -44.21 ≤-27.41 PASS 2462 Reference -7.26 -7.26 --- PASS 30~1000 -7.26 -58.74 ≤-27.26 PASS 1000~26500 -7.26 -44.89 ≤-27.26 PASS 11N20SISO Ant1 2412 Reference -8.12 -8.12 --- PASS 30~1000 -8.12 -59.85 ≤-28.12 PASS 1000~26500 -8.12 -43.72 ≤-28.12 PASS 2437 Reference -7.32 -7.32 --- PASS 30~1000 -7.32 -60.26 ≤-27.32 PASS 1000~26500 -7.32 -44.34 ≤-27.32 PASS 2462 Reference -6.25 -6.25 --- PASS 30~1000 -6.25 -59.55 ≤-26.25 PASS 1000~26500 -6.25 -44.92 ≤-26.25 PASS 11N40SISO Ant1 2422 Reference -11.23 -11.23 --- PASS 30~1000 -11.23 -62.43 ≤-31.23 PASS 1000~26500 -11.23 -43.81 ≤-31.23 PASS 2437 Reference -11.09 -11.09 --- PASS 30~1000 -11.09 -55.6 ≤-31.09 PASS 1000~26500 -11.09 -44.22 ≤-31.09 PASS 2452 Reference -10.67 -10.67 --- PASS 30~1000 -10.67 -61.79 ≤-30.67 PASS 1000~26500 -10.67 -44.69 ≤-30.67 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11G Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N40SISO Ant1 2422 20.00 20.00 100.00 2437 20.00 20.00 100.00 2452 20.00 20.00 100.00 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452

FCC ID:2ATOW-TD-VH110X Test Setup Photos of the EUT FCC ID:2ATOW-TD-VH110X
