2ATOY-B96Jack Bluetooth Speaker and Wireless Charging Pad

Jack Bluetooth Speaker and Wireless Charging Pad Instruction Manual 1 x Bluetooth® Speaker (7198-50) 1 x USB to Micro-USB Charging Cable 1 x Instruction Manual Playing time: up to 2.5 hrs at max volume Charging time: up to 2 hrs Pairing Name: “Jack BT” (Be sure to fully charge the speaker before using for the first time). Charging the Speaker Connect the provided charging cable to a power source and to the micro USB port on the speaker (3). The LED indicator light will glow red when charging and turn off when fully charged. Bluetooth ® Setup: Turn ON/OFF switch to the ON position, LED Indictor will flash BLUE. Turn on the Bluetooth function on mobile device, Select “Jack BT” pairing name. LED will glow BLUE if successfully paired Speaker will automatically pair if the mobile device has been paired before. Press and hold ON/OFF button to turn off the device Wireless Charging: Connect the provided charging cable to a power source, place wireless charging supported mobile device on top charging pad. Device will begin to charge automatically The unit’s full performance is achieved only after 2 or 3 completed charge and discharge cycles. To reduce the risk of injury, close supervision is necessary when the product is used near children. Do not expose the device to moisture. Do not use the device in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury. Do not use the device if damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. Do not disassemble the device. For repairs, seek a qualified service professional. Incorrect reassembly may result in a risk of fire or injury. Do not expose the device to fire or excessive temperature. Exposure to fire or temperatures above 104°F may cause explosion. Ensure that qualified service professionals use only identical replacement parts to ensure product safety WARNING-When using this product, basic precautions should always be followed: Read all the instructions before use. Never store or use this product in temperatures below 32°F(0°C) or above 115°F(45°C). Do not overcharge Phone. Unit may get hot with excessive use. Remove Phone when it is fully charged. Never charge for more than 7 hours at a time. 1. • 2. • • * • 3. • • 4. 5. 6. 7. 8. 9. 10. 11. 12. • 1. 2. 3. 1. 2. 3. 4. • • • Wireless Charging Pad Micro USB Port LED Indicator ON/OFF Switch What’s included: Functions: Tech Specifications Instructions: SAFETY PRECAUTIONS: MADE IN CHINA Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment general uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. FCC Statement: B96 The equipment has been evaluated to meet general RF exposure requirement. The device can be used in portable condition without restriction. The equipment has been evaluated to meet general RF exposure requirement. The device can be used in portable condition without restriction.

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Dongguan Fulun Electronics Co., Limited Address: 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd, Tangxia, Dongguan, China Product Name: Jack Bluetooth Speaker and Wireless Charging Pad Model Number: B96 FCC Identifier: 2ATOY-B96 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Bessie Luo Date: 8/13/2020 Title: Sales Manager Signature of applicant:

C5266091_X10_Ed.1 1/1 Dongguan Fulun Electronics Co., Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 8/13/2020 Subject: Request for Confidentiality FCC ID: 2ATOY-B96 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Bessie Luo Title: Sales Manager

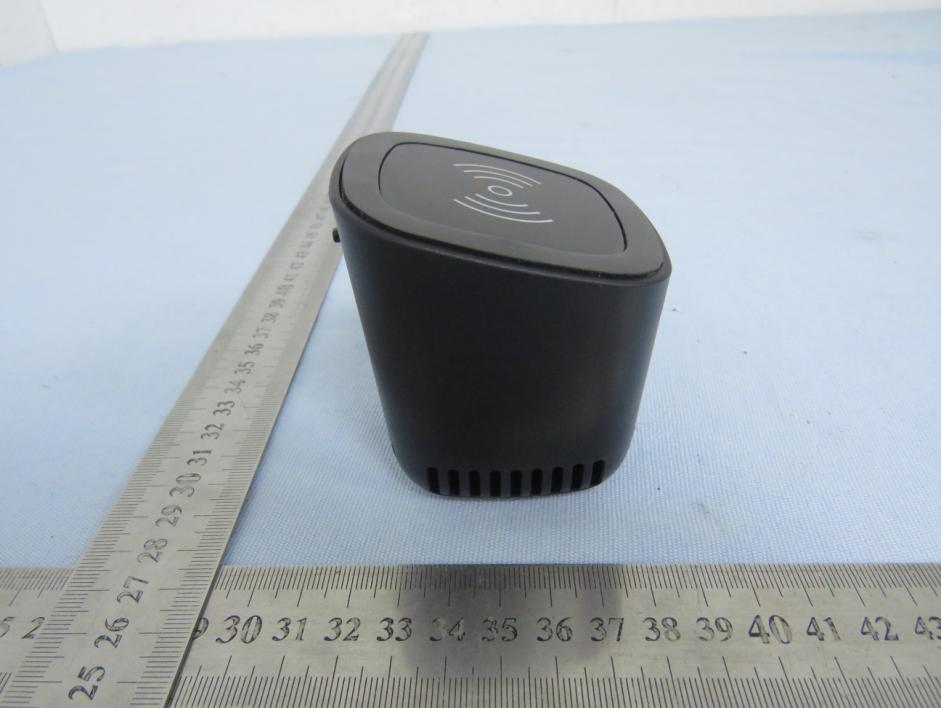

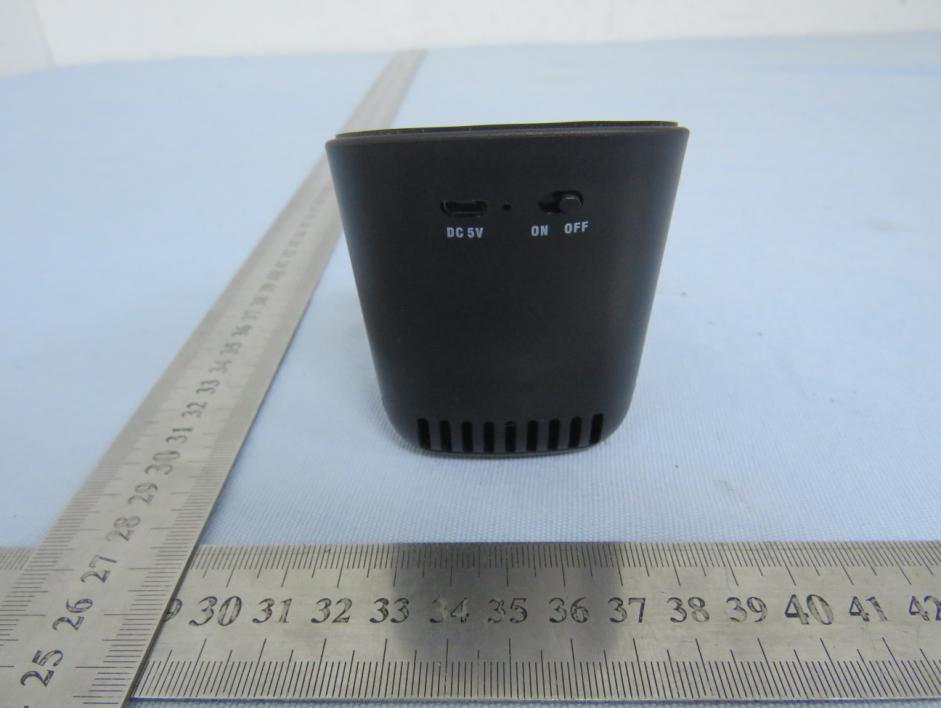

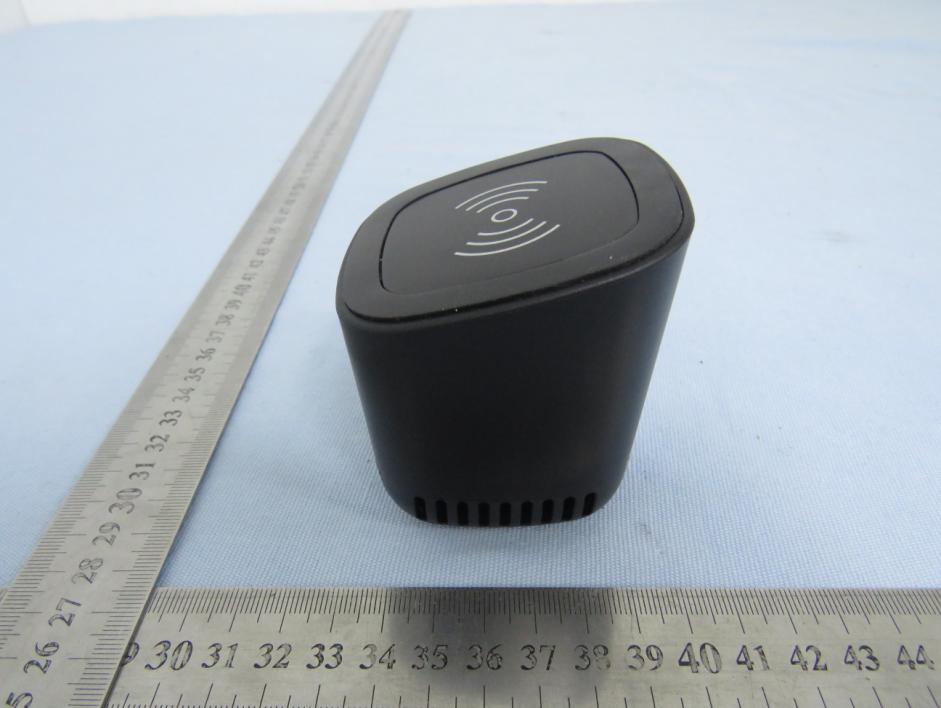

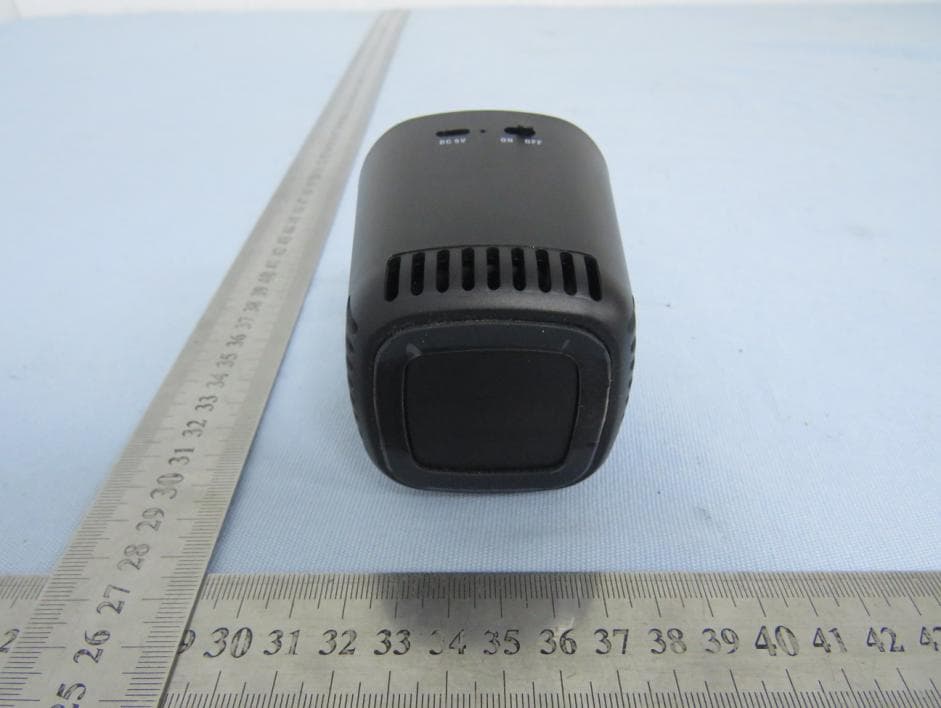

FCC ID: 2ATOY-B96 External photo FCC ID: 2ATOY-B96 FCC ID: 2ATOY-B96

FCC ID: 2ATOY-B96 Label & location Size: 4.2mm*4.2mm Label location FCC ID: 2ATOY-B96 Model number: B96 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2ATOY-B96 Internal photo Induction coil FCC ID: 2ATOY-B96 BT CHIP BK3265 FCC ID: 2ATOY-B96 BT ANT CZH-9400Z-16 FCC ID: 2ATOY-B96

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2008003F-1 FCC ID: 2ATOY-B96 Page 1 of 8 RF EXPOSURE REPORT The device described below is tested by Dongguan Nore Testing Center Co., Ltd. to determine the maximum emission levels emanating from the device, the severe levels which the device can endure and E.U.T.’s performance criterion. The test results, data evaluation, test procedures, and equipment of configurations shown in this report were made in accordance with the procedures in ANSI C63.10(2013). Applicant / Manufacturer : Dongguan Fulun Electronics Co., Limited Address : 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd, Tangxia, Dongguan, China Factory : Dongguan Fulun Electronics Co., Limited Address : 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd, Tangxia, Dongguan, China E.U.T. : Jack Bluetooth Speaker and Wireless Charging Pad Brand Name : N/A Model No. : B96 FCC ID : 2ATOY-B96 Measurement Standard : FCC PART 15 Subpart C Date of Receiver : August 04, 2020 Date of Test : Aguust 04, 2020 to August 10, 2020 Date of Report : August 10, 2020 In the configuration tested, the EUT complied with the standards specified above. This test report is for the customer shown above and their specific product only. This report applies to above tested sample only and shall not be reproduced in part without written approval of Dongguan Nore Testing Center Co., Ltd. TEL: +86-769-22022444 FAX: +86-769-22022799 Web: www.ntc-c.com Address: Building D, Gaosheng Science and Technology park, Hongtu road, Nancheng district, Dongguan city, Guangdong province, China Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2008003F-1 FCC ID: 2ATOY-B96 Page 2 of 8 1. GENERAL INFORMATION 1.1 Product Description for Equipment under Test Product name : Jack Bluetooth Speaker and Wireless Charging Pad Main model : B96 Additional model : N/A Model difference : N/A Power Supply : Input: DC 5V come from USB port or DC 3.7V li-ion battery Output: DC 5V 1A, 5W Max Test voltage : AC 120V 60Hz adapter input, D 3.7V li-ion battery Only the worst case was recorded in the report. Adapter : N/A Cable : USB Line: 0.53m unshielded Software version : V1.0 Hardware version : V1.0 Serial number : 100000 Remark : N/A Frequency Range : 110.5-205KHz Test frequency : 117.6KHz Test output : DC 5V 1A, 5W Max Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2008003F-1 FCC ID: 2ATOY-B96 Page 3 of 8 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: 2ATOY-B96 filing to comply with FCC Part 15, Subpart C Rule. 1.3 Test Facility and Location Site Description EMC Lab : Listed by CNAS, August 13, 2018 The certificate is valid until August 13, 2024 The Laboratory has been assessed and proved to be in compliance with CNAS/CL01 The Certificate Registration Number is L5795. Listed by A2LA, November 01, 2017 The certificate is valid until December 31, 2021 The Laboratory has been assessed and proved to be in compliance with ISO17025 The Certificate Registration Number is 4429.01 Listed by FCC, November 06, 2017 The Designation Number is CN1214 Test Firm Registration Number: 907417 Listed by Industry Canada, June 08, 2017 The Certificate Registration Number. Is 46405-9743 Name of Firm : Dongguan Nore Testing Center Co., Ltd. (Dongguan NTC Co., Ltd.) Site Location : Building D, Gaosheng Science & Technology Park, Zhouxi Longxi Road, Nancheng District, Dongguan City, Guangdong Province, China Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2008003F-1 FCC ID: 2ATOY-B96 Page 4 of 8 2. Measurement Uncertainty Measurement Uncertainty for a Lecel of Confidedce of 95%, U=2xUc(y) Radiated emission(9KHz~150KHz) ±3.50dB Radiated emission(150KHz~30MHz) ±3.50dB Radiated emission(30MHz~1GHz) ±3.70dB Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2008003F-1 FCC ID: 2ATOY-B96 Page 5 of 8 3. Method of measurement 3.1 Applicable standard According to 1.1307(b)(1), system operating under the provisions of this section shall be operated in amnner that ensures that the public is not exposed to radio frequency energy level in excess of the commission's guidelines. According to 1.1310 and 2.1093 RF exposure is calculated. According to KDB680106 D01V03: RF exposure wireless charging apps v03. 3.2 Test Setup 3.3 Test procedure 1. The RF exposure test was performed on 360 degree turn table in anechoic chamber; 2.The measurement probe was placed at test distance 15cm which is between the edge of the charger and 20cm between top of the charger and the geometric centre of probe. 3. The turn table was rotated 360d degree to search of highest strength. 4. The highest emission level was recorded and compared with limit as soon as measurement of each points (A,B,C,D,E) were completed. 5. The EUT were measured according to the dictates of KDB 680106D01V03 15CM Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2008003F-1 FCC ID: 2ATOY-B96 Page 6 of 8 3.4 Equipment approval considerations 1. The EUT dose comply with item 5.2 of KDB 680106D01V03 a, Power transfer frequency is less than 1MHz. YES; the device operated in the frequency range from 110.5-130KHz. b, Output power from each primary coil is less than or equal to 15 watts YES; the maximum output power of the primary coil is 10W<15W. c, The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that able to detect and allow coupling only between individual pair of coils. YES; the transfer system includes only single primary and secondary coils. d, Client device is placed directly in contact with the transmitter. YES; Client device is placed directly in contact with the transmitter. e, Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). YES; f, The aggregate H-field strengths at 15cm surrounding the device and 20cm above the top surface from all simultaneous transmitting coils are demonstrate…
