RT27 True Wireless Earbuds USER MANUAL BLUETOOTH PARING INSTRUCTION 1. Remove both earbuds from the charging case. They will begin auto-pairing to each other. You will hear 2 beeps and a “pairing” voice prompt to confirm a successful pairing. 2. Keep the earbuds within 3 feet of your smart device(for Bluetooth pairing only). Enable your device’s Bluetooth function from your device’s settings menu. Select” RT27” from the Bluetooth device list to pair the earbuds to your device. 3. You will hear “device connected” Indicating that TWS are now ready to use. 4. Each earbud can be used independently. Resetting your TWS If your TWS won’t pair to each other, place them back in the charging case. When you pick up them and it will auto-pair. FUNCTIONS Power on: Pick up two earbuds from charging case Power off: Put back two earbuds into charging case. MUSIC/CALL 1. Previous/Next song Press and hold the Left/Right earbud button for 2 seconds. 2. Play/pause Press the right/left earbud once to play/pause music. 3. Answer /End an incoming call Press the right/left earbud once to answer a call, and press again when you want to end the call. 4. Voice Assistant: Press the Right/Left earbud button twice to active/exit the Voice Assistant/Siri function. This function may not work with all devices. CHARGING (Be sure fully charge the TWS before using for the first time.) Charging the case: When the white LED light on the bottom of the case quickly flashes. The case is low on power and must be charged. Plug the Micro-USB cable into the bottom of the case to charge it. The LED will flash green while charging. Once fully charged, LED will glow solid green. Charging the earbuds: When the earbuds are low in power, you will hear “low power”. Place the earbuds into their respective slots in the charging case. The LED light will turn solid red while charging. The LED light on the bottom of the case will turn white. Once fully charged, the LEDs on earbuds and case will turn off. SPECIFICATIONS Bluetooth Version: 5.0 Battery built-in earbuds: 30mAh*2, 3.7V Charging case battery: 500mAh, 3.7V Charging time for earbuds: 1H Charging time for case: 2H Music play time: about 5H Talking time: about 5H This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. in portable exposure condition without restriction.

Difference description FCC ID: 2ATOY-RT27 Model: RT27, SOUL-2, RT27C, RT27D,7309JCP, 7310JCP, 6289MJ, 6655PS, 5761HDC, 7058WM, 7348WM, 7349WM, 5761CT, 6951NR ,6950NR, 6951, 6950, 5761HD, 5762HD The TRUE WIRELESS EARBUDS manufactured by Dongguan Fulun Electronic Co.,Limited needs to apply for FCC certification. The applied models are as list above. They are the same except for the appearance of charge base, even the principle of the circuit, the electrical structure and all key components related to safety and electromagnetic compatibility are the same. The difference does not affect the EMC or RF for FCC related rule parts. Company: Name: Bessie Luo Company: Dongguan Fulun Electronic Co.,Limited Address: 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd,Tangxia, Dongguan.CN Phone: 0086-755-25835499 Fax: 0086-755-25839320 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 3/30/2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ATOY-RT27 RT27, SOUL-2, RT27C, RT27D,7309JCP, 7310JCP, 6289MJ, 6655PS, 5761HDC, 7058WM, 7348WM, 7349WM, 5761CT, 6951NR ,6950NR, 6951, 6950, 5761HD, 5762HD For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Bessie Luo Company: Dongguan Fulun Electronic Co.,Limited Address: 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd,Tangxia, Dongguan.CN Phone: 0086-755-25835499 Fax: 0086-755-25839320 E-Mail: [email protected]

Dongguan Fulun Electronic Co.,Limited 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd,Tangxia, Dongguan.CN Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 3/30/2020 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ATOY-RT27 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Bessie Luo Sales Manager Dongguan Fulun Electronic Co.,Limited

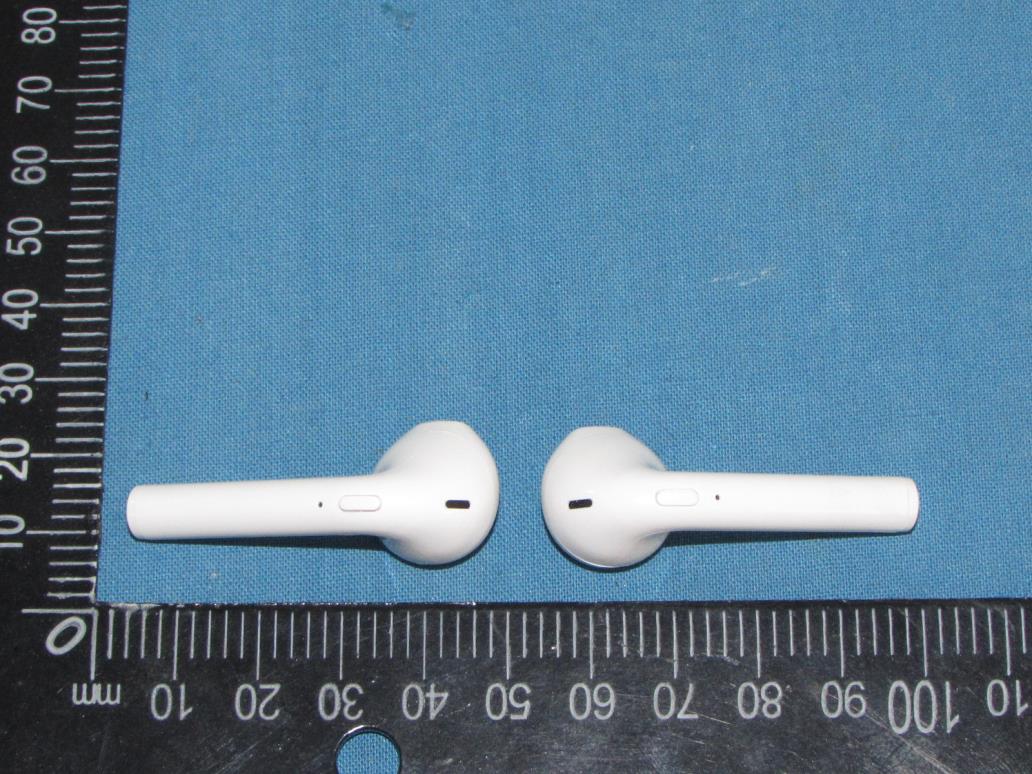

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Photos shows different RT27 RT27C RT27D

Label & Label Location Size: 20mm(L)*3mm(W) FCC ID: 2ATOY-RT27

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7 Bluetooth Antenna Bluetooth Antenna

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: Manufacturer declared that the maximum antenna gain is 0.0dBi (Max.). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 0.830 39 2441 0.951 78 2480 0.391 π/4-DQPSK 00 2402 1.715 39 2441 1.841 78 2480 1.296 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.5 0.5 0.5 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.5 1.5 1.5 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 1.5 1.5 1.4 10 2440 1.5 1.5 1.4 10 2480 1.5 1.5 1.4 10 π/4-DQPSK 2402 2.5 2.5 1.8 10 2440 2.5 2.5 1.8 10 2480 2.5 2.5 1.8 10 The antenna gain of the EUT for BT is 0.0dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 1 of 33 Appendix A RF Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: TRUE WIRELESS EARBUDS Trade Mark: SOUNDMATES Test Model: RT27 FCC ID: 2ATOY-RT27 Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen A.1 20 dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit(MHz) Verdict GFSK LCH 0.797 Not Specified PASS GFSK MCH 0.857 Not Specified PASS GFSK HCH 0.797 Not Specified PASS π/4DQPSK LCH 1.195 Not Specified PASS π/4DQPSK MCH 1.182 Not Specified PASS π/4DQPSK HCH 1.282 Not Specified PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 2 of 33 Test Graph Graphs GFSK/LCH GFSK/MCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 3 of 33 GFSK/HCH π/4DQPSK/LCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 4 of 33 π/4DQPSK/MCH π/4DQPSK/HCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 5 of 33 A.2 Dwell Time Mode Packet Chann el Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdic t GFSK DH5 LCH 2.930 106.7 0.313 0.4 PASS GFSK DH5 MCH 2.931 106.7 0.313 0.4 PASS GFSK DH5 HCH 2.933 106.7 0.313 0.4 PASS π/4DQPSK 2DH5 LCH 2.936 106.7 0.313 0.4 PASS π/4DQPSK 2DH5 MCH 2.938 106.7 0.313 0.4 PASS π/4DQPSK 2DH5 HCH 2.934 106.7 0.313 0.4 PASS Test Graph Graphs GFSK_DH5/LCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 6 of 33 GFSK_DH5/MCH GFSK_DH5/HCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 7 of 33 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 8 of 33 π/4DQPSK _2DH5/HCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 9 of 33 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.000 0.531 PASS GFSK MCH 0.999 0.571 PASS GFSK HCH 1.003 0.531 PASS π/4DQPSK LCH 1.000 0.797 PASS π/4DQPSK MCH 1.000 0.788 PASS π/4DQPSK HCH 0.997 0.855 PASS Test Graph Graphs GFSK/LCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 10 of 33 GFSK/MCH GFSK/HCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 11 of 33 π/4DQPSK/LCH π/4DQPSK/MCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 12 of 33 π/4DQPSK/HCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 13 of 33 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel[N] Limit[N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graph Graphs GFSK/Hop π/4DQPSK/Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 14 of 33 A.5 Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.830 21 PASS GFSK MCH 0.951 21 PASS GFSK HCH 0.391 21 PASS π/4DQPSK LCH 1.715 21 PASS π/4DQPSK MCH 1.841 21 PASS π/4DQPSK HCH 1.296 21 PASS Test Graph Graphs GFSK/LCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 15 of 33 GFSK/MCH GFSK/HCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 16 of 33 π/4DQPSK/LCH π/4DQPSK/MCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 17 of 33 π/4DQPSK/HCH Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 18 of 33 A.6 Band-edge for RF Conducted Emissions Type Carrier Frequency(MHz) Frequency(MHz) Carrier Frequency Power [dBm] Bandedge Peak(dBm) Upper limit(dBm) Conclusion 1DH5 2402 2398.872 0.732 -36.255 -19.268 Pass 1DH5 2480 2483.746 0.259 -46.9 -19.741 Pass 2DH5 2402 2399.713 -1.639 -35.347 -21.639 Pass 2DH5 2480 2486.272 0.08 -49.009 -19.92 Pass 1DH5-Hopping 2402 2398.08 0.754 -39.022 -19.246 Pass 1DH5-Hopping 2480 2483.62 0.624 -46.74 -19.376 Pass 2DH5-Hopping 2402 2398.35 0.576 -40.915 -19.424 Pass 2DH5-Hopping 2480 2483.5 0.54 -53.47 -19.46 Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 19 of 33 Test Graph Graphs GFSK/LCH/No Hop GFSK/HCH/No Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 20 of 33 π/4DQPSK/LCH/No Hop π/4DQPSK/HCH/No Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 21 of 33 GFSK/LCH/Hop GFSK/HCH/Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 22 of 33 π/4DQPSK/LCH/Hop π/4DQPSK/HCH/Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 23 of 33 A.7 RF Conducted Spurious Emissions Test Graph GFSK_LCH_Graphs Pref Puw Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 24 of 33 GFSK_MCH_Graphs Pref Puw Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 25 of 33 GFSK_HCH_Graphs Pref Puw Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 26 of 33 π/4DQPSK_LCH_Graphs Pref Puw Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 27 of 33 π/4DQPSK_MCH_Graphs Pref Puw Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 28 of 33 π/4DQPSK_HCH_Graphs Pref Puw Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT27 Report No.: TZ191201200-E Page 29 of 33 A.8 Restrict-band band-edge measurements Type Carrier Frequency(M Hz) Gain Ground Factor Peak Value(dBm) E Limit Conclusion Frequency [dBuV/m] [dBuV/m] (MHz) 1DH5 2402 2387.512 2.00 0.00 -36.276 60.924 74 Pass 1DH5 2480 2484.832 2.00 0.00 -30.167 67.033 74 Pass 2DH5 2402 2389.288 2.00 0.00 -37.532 59.668 74 Pass 2DH5 2480 2484.918 2.00 0.00 -33.412 63.788 74 Pass Type Carrier Frequency…
