2ATYCHMX03HIPCAM

INDOOR MAX USER MANUAL (12X19 cm) COVER INTERIOR LEFT INTERIOR RIGHT 〈三 M A C PVJ 川內部 re ω 叫 VJr a G ] UK n .-c 昀州河 +L- V 『 l a 41L C ] STEP 1-Download the Hipcam Smart Home Ecosystem app to your phone (Play Store or App Store) STEP 2 -Scan the QR code and follow tutorial to learn how to install your camera Hello! 回................... -lmn...................吼叫一 ......馴的 G W 一......叭叭... 回一 -ur ... JFN .........八............回 Need Help ? Contact us cusì[email protected] Quick Start Guide PANTONE SOLlD COATED BACK COVER CooL Gray 8C 2995C FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers mustbe provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. COVER G Hello! Quick Start Guide INTERIOR LEFT Start using your HIPCAM quick and easy! STEP 1-Download the Hipcam Smart Home Ecosystem app to your phone (Play Store or App Store) STEP 2 -Scan the OR code and follow tutorial to learn how to install your camera. 目..................谷".....................一............) ....................................... G WWU 川 回一......廿一...八叭叭...... vu 固 Need HeLp ? Contact us [email protected] INTERIOR RIGHT BACK COVER FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers mustbe provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Hipcam Global LLC DATE : 2021/04/07 FCC ID: 2ATYCHMX03 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Company name: BTL Inc. Address: 4F,No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist.114, Taipei, Taiwan Name: Melody Wu For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America, Inc, still resides with us. Signature FCC grantee contact person information. Name/Title: Leandro Weissmann/CFO Company Name: Hipcam Global LLC Address: 112 Capitol Trail, Newark, Delaware, 19711 TEL: +16467986464 FAX: + 16467986464 Email: [email protected]

Hipcam Global LLC DATE : 2021/04/07 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ATYCHMX03 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature FCC grantee contact person information. Name/Title: Leandro Weissmann / CFO Company Name: Hipcam Global LLC Address: 112 Capitol Trail, Newark, Delaware, 19711 TEL: +16467986464 FAX: +1646798646 4 Email: [email protected]

Hipcam Global LLC DATE : 2021/04/07 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ATYCHMX03 Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: l Test Setup Photos l External Photos l Internal Photos l User Manual These documents contain detailed system and equipment description and related information about the product which
Hipcam Global LLC considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve,
Hipcam Global LLCconsiders this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market. This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available 180 days after date of grant. Signature FCC grantee contact person information. Name/Title: Leandro Weissmann/CFO Company Name: Hipcam Global LLC Address: 112 Capitol Trail, Newark, Delaware, 19711 TEL: +16467986464 FAX: +16467986464 Email: [email protected]

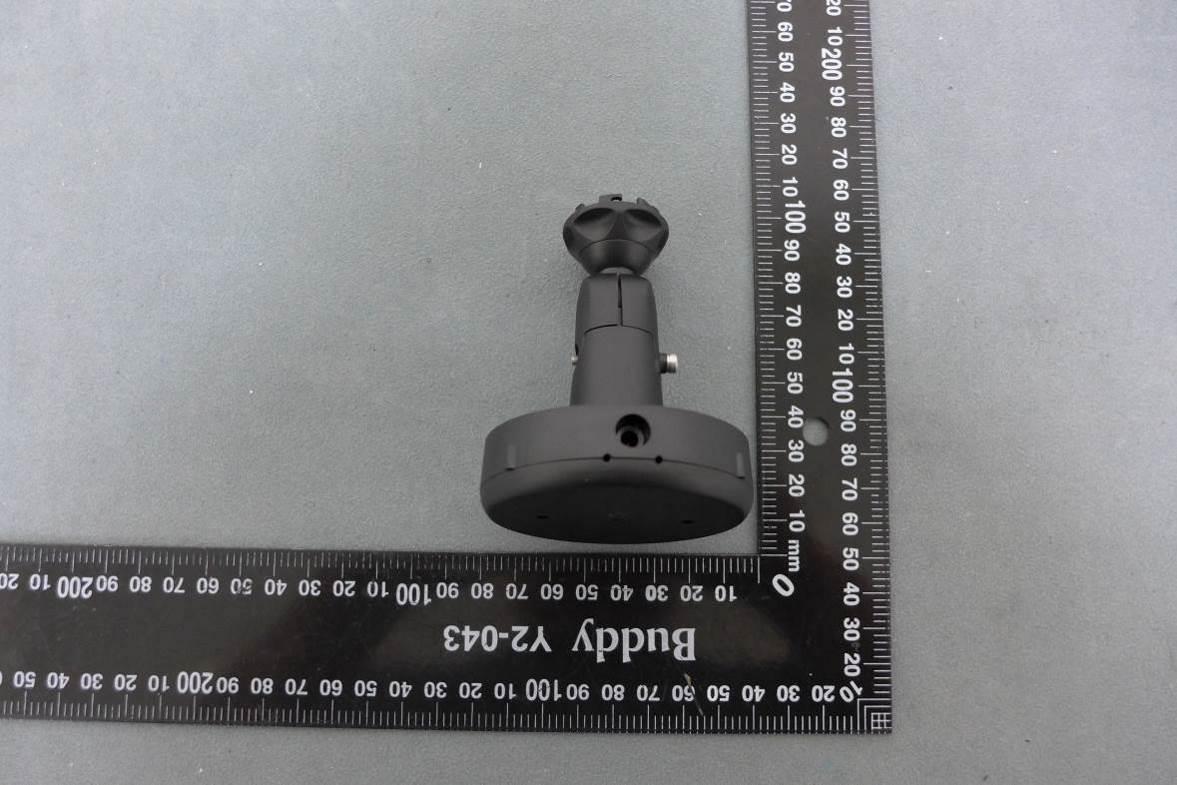

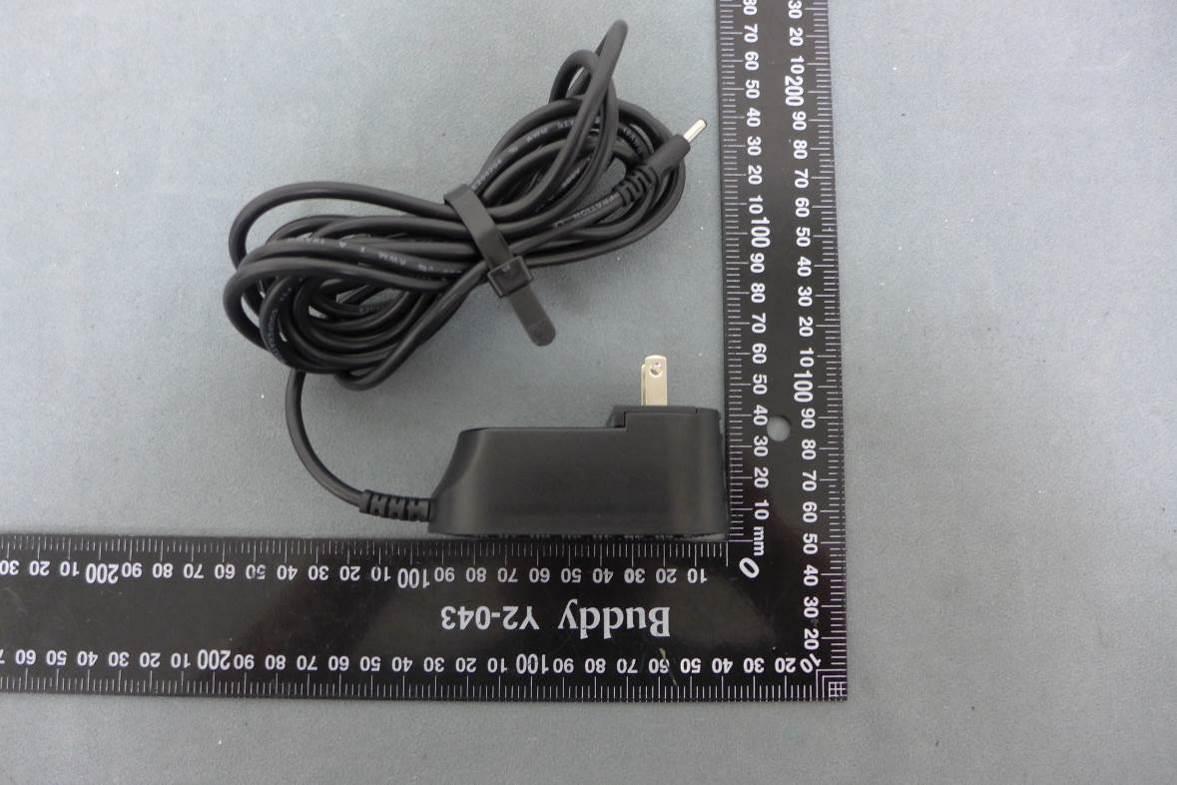

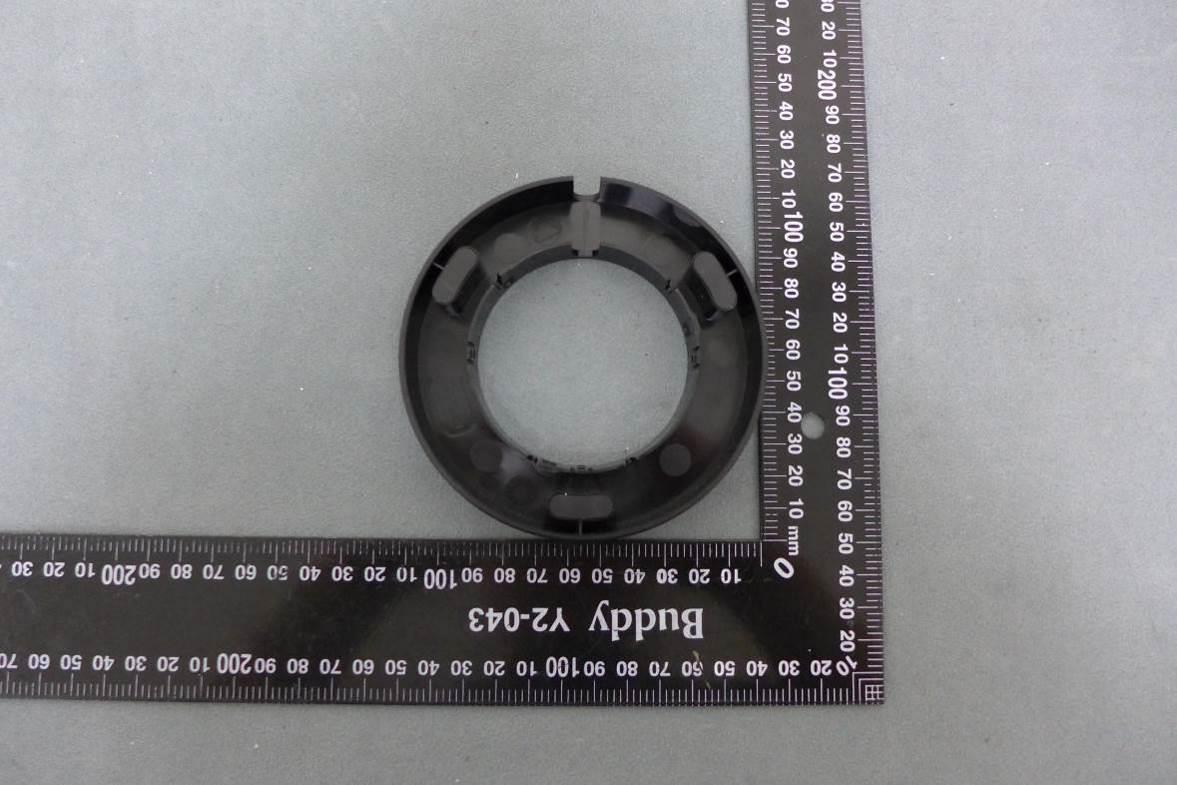

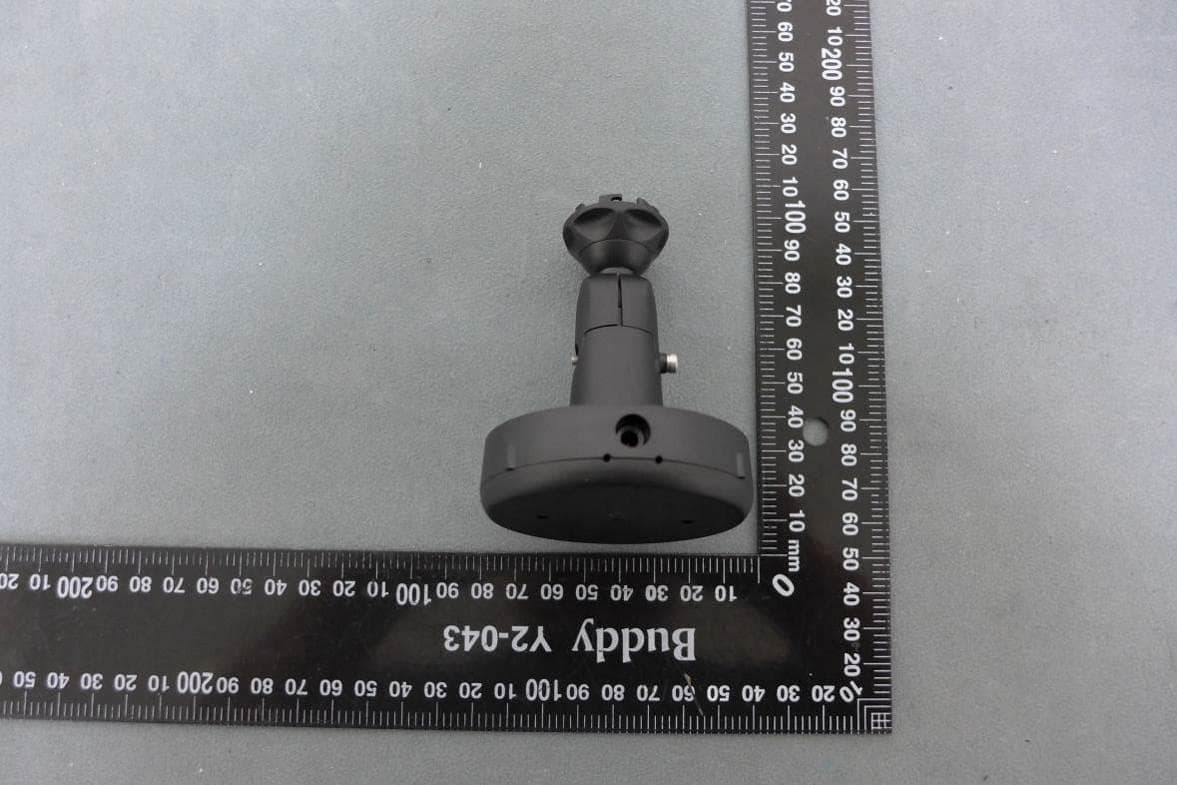

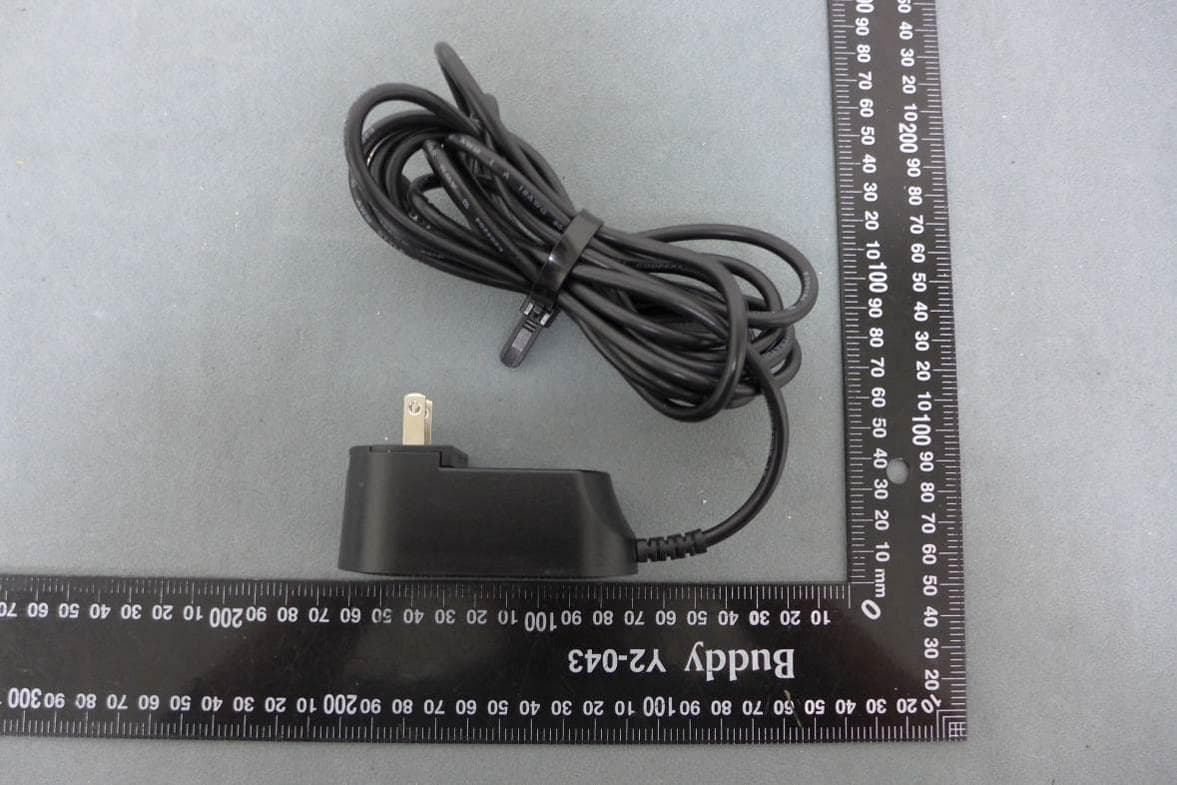

Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 1 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 2 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 3 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 4 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 5 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 6 of 22 Adapter / SK03T-1200200Z Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 7 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 8 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 9 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 10 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 11 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 12 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 13 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 14 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 15 of 22

20210413 FCC ID: XXXXXXXXXXXXX IC ID: XXXXX-XXXXXXXX R胶75#珠光合成纸 Model Name: Indoor Camera Max Power Input: 12 VDC / 2A 24W FCC ID: 2ATYCHMX03 Address: 112 Capitol Trail, Newark, Delaware, United States, 19711 Model Name: Indoor Camera Max Power Input: 12 VDC / 2A 24W FCC ID: XXXXXXXXXXXXX IC ID: XXXXX-XXXXXXXX HW:DVT2 Address: 29 S. Central Ave, Valley Stream, New York, United States, 11580 Model Name: Indoor Camera Max Power Input: 12 VDC / 2A 24W FCC ID: XXXXXXXXXXXXX IC ID: XXXXX-XXXXXXXX Address: 29 S. Central Ave, Valley Stream, New York, United States, 11580 Model Name: Indoor Camera Max Power Input: 12 VDC / 2A 24W FCC ID: 2ATYCHMX03 Address: 112 Capitol Trail, Newark, Delaware, United States, 19711 S/N: XXXXXXXXXXXXXXXXXXX HW: XXXX

Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 16 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 17 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 18 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 19 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 20 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 21 of 22 Appendix No.: EP-2101T110-1 APPENDIX-EUT PHOTOS Project No.: 2101T110 Page 22 of 22

Report No.: BTL-FCCP-6-2101T110 Project No.: 2101T110 Page 1 of 5 Report Version: R01 Maximum Permissible Exposure Report FCC ID: 2ATYCHMX03 Report No. : BTL-FCCP-6-2101T110 Equipment : HIPCAM Model Name : Indoor Camera Max Brand Name : HIPCAM Applicant : Hipcam Global LLC Address : 112 Capitol Trail, Newark, Delaware, 19711 United States Manufacturer : Goldtek Technology Co., Ltd. Address : 16F., No.166, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) FCC Rule Part(s) : FCC CFR Title 47, Part 2 (2.1091) FCC Guidelines for Human Exposure IEEE C95.1 Date of Receipt : 2021/2/2 Date of Test : 2021/2/2 ~ 2021/3/17 Issued Date : 2021/4/16 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Peter Chen, Engineer Approved by : Scott Hsu, Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCCP-6-2101T110 Project No.: 2101T110 Page 2 of 5 Report Version: R01 REVISON HISTORY Report No. Version Description Issued Date BTL-FCCP-6-2101T110 R00 Original Report. 2021/4/9 BTL-FCCP-6-2101T110 R01 Revised report to address TCB’s comments. 2021/4/16 Report No.: BTL-FCCP-6-2101T110 Project No.: 2101T110 Page 3 of 5 Report Version: R01 Table for Filed Antenna For LoRa: Ant. Manufacture Product Type Connector Frequency Range (MHz) Gain (dBi) 1 Lora US915 FPCB N/A 902-928 0.67 For BLE: Ant. Manufacture Product Type Connector Frequency Range (MHz) Gain (dBi) 1 Wi-Fi Ant. PCB N/A 2400-2500 3.91 For 2.4GHz WLAN: Ant. Manufacture Product Type Connector Frequency Range (MHz) Gain (dBi) 1 Wi-Fi Ant. PCB N/A 2400-2500 3.91 For 5GHz RLAN: Ant. Manufacture Product Type Connector Frequency Range (MHz) Gain (dBi) 1 Wi-Fi Ant. PCB N/A 5150-5250 4.69 5250-5350 5.40 5470-5725 5.25 5725-5850 5.25 Maximum RF OUTPUT POWER Mode Maximum Average Power (dBm) WLAN 2.4 GHz IEEE 802.11b 17.89 IEEE 802.11g 21.99 IEEE 802.11n (HT20) 22.42 RLAN 5 GHz IEEE 802.11a 13.61 IEEE 802.11n (HT20) 13.06 IEEE 802.11n (HT40) 10.44 BLE 5.16 Lora 17.78 Report No.: BTL-FCCP-6-2101T110 Project No.: 2101T110 Page 4 of 5 Report Version: R01 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna RESULTS For BLE: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power ( mW ) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.91 2.4604 5.16 3.2810 0.00160676 1 Complies For 2.4G WLAN: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power ( mW ) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.91 2.4604 22.42 174.5822 0.08549690 1 Complies For 5G RLAN: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power ( mW ) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.40 3.4674 13.61 22.9615 0.01584712 1 Complies Note: 1. The calculated distance is 20 cm. Report No.: BTL-FCCP-6-2101T110 Project No.: 2101T110 Page 5 of 5 Report Version: R01 For LoRa : Limit Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 MPE EVALUATION FORMULA where: Pd= Power density in mW/cm2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance RESULTS Frequency (MHz) Maximum Output Power (dBm) Maximum Output Power (mW) Antenna gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) 902.3 17.78 59.979 0.67 20.0 0.014 0.602 Simultaneous Transmission: Both of the Lora, Bluetooth and Wi-Fi can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + .........etc. <1 CPD: Calculation power density LPD: Limit of power density Therefore, the worst –case situation calculated as below, which the result is less than “1”. 0.00160676/1+ 0.08549690/1 + 0.01584712/1 + 0.014/1= 0.11695078 < 1 End of Test Report

Report No.: BTL-FCCP-2-2101T110 Project No.: 2101T110 Page 1 of 61 Report Version: R01 FCC Radio Test Report FCC ID: 2ATYCHMX03 Report No. : BTL-FCCP-2-2101T110 Equipment : HIPCAM Model Name : Indoor Camera Max Brand Name : HIPCAM Applicant : Hipcam Global LLC Address : 112 Capitol Trail, Newark, Delaware, 19711 United States Manufacturer : Goldtek Technology Co., Ltd. Address : 16F., No.166, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Radio Function : Bluetooth Low Energy (5.0) FCC Rule Part(s) : FCC Part15, Subpart C (15.247) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2021/2/2 Date of Test : 2021/2/2 ~ 2021/3/17 Issued Date : 2021/4/16 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Peter Chen, Engineer Approved by : Scott Hsu , Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCCP-2-2101T110 Project No.: 2101T110 Page 2 of 61 Report Version: R01 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2101T110 Project No.: 2101T110 Page 3 of 61 Report Version: R01 CONTENTS REVISON HISTORY 5 1 SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 8 1.4 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 8 1.5 DUTY CYCLE 8 2 GENERAL INFORMATION 9 2.1 DESCRIPTION OF EUT 9 2.2 TEST MODES 10 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 SUPPORT UNITS 12 3 AC POWER LINE CONDUCTED EMISSIONS TEST 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 TEST RESULT 14 4 RADIATED EMISSIONS TEST 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM TEST STANDARD 16 4.4 TEST SETUP 17 4.5 EUT OPERATING CONDITIONS 18 4.6 TEST RESULT – 30 MHZ TO 1 GHZ 18 4.7 TEST RESULT – ABOVE 1 GHZ 18 5 BANDWIDTH TEST 19 5.1 APPLIED PROCEDURES / LIMIT 19 5.2 TEST PROCEDURE 19 5.3 DEVIATION FROM STANDARD 19 5.4 TEST SETUP 19 5.5 EUT OPERATION CONDITIONS 19 5.6 TEST RESULTS 19 6 OUTPUT POWER TEST 20 6.1 APPLIED PROCEDURES / LIMIT 20 6.2 TEST PROCEDURE 20 6.3 DEVIATION FROM STANDARD 20 6.4 TEST SETUP 20 6.5 EUT OPERATION CONDITIONS 20 6.6 TEST RESULTS 20 7 POWER SPECTRAL DENSITY TEST 21 7.1 APPLIED PROCEDURES / LIMIT 21 7.2 TEST PROCEDURE 21 7.3 DEVIATION FROM STANDARD 21 7.4 TEST SETUP 21 7.5 EUT OPERATION CONDITIONS 21 7.6 TEST RESULTS 21 Report No.: BTL-FCCP-2-2101T110 Project No.: 2101T110 Page 4 of 61 Report Version: R01 8 ANTENNA CONDUCTED SPURIOUS EMISSION 22 8.1 APPLIED PROCEDURES / LIMIT 22 8.2 TEST PROCEDURE 22 8.3 DEVIATION FROM STANDARD 22 8.4 TEST SETUP 22 8.5 EUT OPERATION CONDITIONS 22 8.6 TEST RESULTS 22 9 LIST OF MEASURING EQUIPMENTS 23 10 EUT TEST PHOTO 25 11 EUT PHOTOS 25 APPENDIX A AC POWER LINE CONDUCTED EMISSIONS 26 APPENDIX B RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 31 APPENDIX C RADIATED EMISSIONS - ABOVE 1 GHZ 34 APPENDIX D BANDWIDTH 51 APPENDIX E OUTPUT POWER 54 APPENDIX F POWER SPECTRAL DENSITY TEST 56 APPENDIX G ANTENNA CONDUCTED SPURIOUS EMISSION 59 Report No.: BTL-FCCP-2-2101T110 Project No.: 2101T110 Page 5 of 61 Report Version: R01 REVISON HISTORY Report No. Version Description Issued Date BTL-FCCP-2-2101T110 R00 Original Report. 2021/4/9 BTL-FCCP-2-2101T110 R01 Revised report to address TCB’s comments. 2021/4/16 Report No.: BTL-FCCP-2-2101T110 Project No.: 2101T110 Page 6 of 61 Report Version: R01 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. FCC Part 15, Subpart C (15.247) Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions APPENDIX A Pass ------ 15.205 15.209 15.247(d) Radiated Emissions APPENDIX B APPENDIX C Pass ------ 15.247(a)(2) Bandwidth APPENDIX D Pass ------ 15.247(b)(3) Output Power APPENDIX E Pass ------ 15.247(e) Power Spectral Density APPENDIX F Pass ------ 15.247(d) Antenna conducted Spurious Emission APPENDIX G Pass ------ 15.203 Antenna Requirement ------ Pass ------ NOTE: (1) ”N/A” denotes test is not applicable in this Test Report. (2) The report format version is TP.1.1.1. Report No.: BTL-FCCP-2-2101T110 Project No.: 2101T11…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-2101T110 Project No.: 2101T110 Page 1 of 72 Report Version: R01 FCC Radio Test Report FCC ID: 2ATYCHMX03 Report No. : BTL-FCCP-3-2101T110 Equipment : HIPCAM Model Name : Indoor Camera Max Brand Name : HIPCAM Applicant : Hipcam Global LLC Address : 112 Capitol Trail, Newark, Delaware, 19711 United States Manufacturer : Goldtek Technology Co., Ltd. Address : 16F., No.166, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Radio Function : WLAN 2.4 GHz FCC Rule Part(s) : FCC Part15, Subpart C (15.247) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2021/2/2 Date of Test : 2021/2/2 ~ 2021/3/17 Issued Date : 2021/4/16 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Peter Chen, Engineer Approved by : Scott Hsu , Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCCP-3-2101T110 Project No.: 2101T110 Page 2 of 72 Report Version: R01 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-3-2101T110 Project No.: 2101T110 Page 3 of 72 Report Version: R01 CONTENTS REVISON HISTORY 5 1 SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 1.4 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 8 1.5 DUTY CYCLE 8 2 GENERAL INFORMATION 9 2.1 DESCRIPTION OF EUT 9 2.2 TEST MODES 10 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 SUPPORT UNITS 12 3 AC POWER LINE CONDUCTED EMISSIONS TEST 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 TEST RESULT 14 4 RADIATED EMISSIONS TEST 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM TEST STANDARD 16 4.4 TEST SETUP 16 4.5 EUT OPERATING CONDITIONS 17 4.6 TEST RESULT – 30 MHZ TO 1 GHZ 18 4.7 TEST RESULT – ABOVE 1 GHZ 18 5 BANDWIDTH TEST 19 5.1 LIMIT 19 5.2 TEST PROCEDURE 19 5.3 DEVIATION FROM TEST STANDARD 19 5.4 TEST SETUP 19 5.5 EUT OPERATING CONDITIONS 19 5.6 TEST RESULT 19 6 OUTPUT POWER TEST 20 6.1 LIMIT 20 6.2 TEST PROCEDURE 20 6.3 DEVIATION FROM TEST STANDARD 20 6.4 TEST SETUP 20 6.5 EUT OPERATING CONDITIONS 20 6.6 TEST RESULT 20 7 POWER SPECTRAL DENSITY 21 7.1 LIMIT 21 7.2 TEST PROCEDURE 21 7.3 DEVIATION FROM TEST STANDARD 21 7.4 TEST SETUP 21 7.5 EUT OPERATING CONDITIONS 21 7.6 TEST RESULT 21 8 ANTENNA CONDUCTED SPURIOUS EMISSIONS TEST 22 Report No.: BTL-FCCP-3-2101T110 Project No.: 2101T110 Page 4 of 72 Report Version: R01 8.1 LIMIT 22 8.2 TEST PROCEDURE 22 8.3 DEVIATION FROM TEST STANDARD 22 8.4 TEST SETUP 22 8.5 EUT OPERATING CONDITIONS 22 8.6 TEST RESULT 22 9 LIST OF MEASURING EQUIPMENTS 23 10 EUT TEST PHOTO 25 11 EUT PHOTOS 25 APPENDIX A AC POWER LINE CONDUCTED EMISSIONS 26 APPENDIX B RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 31 APPENDIX C RADIATED EMISSIONS - ABOVE 1 GHZ 34 APPENDIX D BANDWIDTH 59 APPENDIX E OUTPUT POWER 63 APPENDIX F POWER SPECTRAL DENSITY 65 APPENDIX G ANTENNA CONDUCTED SPURIOUS EMISSIONS 69 Report No.: BTL-FCCP-3-2101T110 Project No.: 2101T110 Page 5 of 72 Report Version: R01 REVISON HISTORY Report No. Version Description Issued Date BTL-FCCP-3-2101T110 R00 Original Report. 2021/4/9 BTL-FCCP-3-2101T110 R01 Revised report to address TCB’s comments. 2021/4/16 Report No.: BTL-FCCP-3-2101T110 Project No.: 2101T110 Page 6 of 72 Report Version: R01 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. FCC Part 15, Subpart C (15.247) Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions APPENDIX A Pass ------ 15.205 15.209 15.247(d) Radiated Emissions APPENDIX B APPENDIX C Pass ------ 15.247(a) Bandwidth APPENDIX D Pass ------ 15.247(b) Output Power APPENDIX E Pass ------ 15.247(e) Power Spectral Density APPENDIX F Pass ------ 15.247(d) Antenna conducted Spurious Emission APPENDIX G Pass ------ 15.203 Antenna Requirement ------ Pass ------ NOTE: (1) ”N/A” denotes test is not applicable in this Test Report. (2) The report format version is TP.1.1.1. Report No.: BTL-FCCP-3-2101T110 Project No.: 2101T110 Page 7 of 72 Report Version: R01 1.1 TEST FACILITY The test facilities used to collect th…

Text truncated - open the document above for the full version.

Appendix No.: TP-2101T110-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2101T110 Page 1 of 6 AC Power Line Conducted Emissions test photos Appendix No.: TP-2101T110-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2101T110 Page 2 of 6 Radiated emissions test photos 30 MHz to 1 GHz Orthogonal Axis: X Appendix No.: TP-2101T110-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2101T110 Page 3 of 6 Radiated emissions test photos 30 MHz to 1 GHz Orthogonal Axis: Y Appendix No.: TP-2101T110-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2101T110 Page 4 of 6 Radiated emissions test photos Above 1 GHz Orthogonal Axis: X Appendix No.: TP-2101T110-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2101T110 Page 5 of 6 Radiated emissions test photos Above 1 GHz Orthogonal Axis: Y Appendix No.: TP-2101T110-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2101T110 Page 6 of 6 DFS test photos
