2ATYCHMX05HIPCAM

F CC ID：2ATYCHMX05 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Part 15.21 information for user Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. front (11x12cm) chime

Hipcam Global LLC DATE : 2021/04/07 FCC ID: 2ATYCHMX05 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Company name: BTL Inc. Address: 4F,No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist.114, Taipei, Taiwan Name: Melody Wu For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America, Inc, still resides with us. Signature FCC grantee contact person information. Name/Title: Leandro Weissmann/CFO Company Name: Hipcam Global LLC Address: 112 Capitol Trail, Newark, Delaware, 19711 TEL: +16467986464 FAX: + 16467986464 Email: [email protected]

Hipcam Global LLC DATE : 2021/04/07 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ATYCHMX05 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature FCC grantee contact person information. Name/Title: Leandro Weissmann / CFO Company Name: Hipcam Global LLC Address: 112 Capitol Trail, Newark, Delaware, 19711 TEL: +16467986464 FAX: +1646798646 4 Email: [email protected]

Hipcam Global LLC DATE : 2021/04/07 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ATYCHMX05 Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: l Test Setup Photos l External Photos l Internal Photos l User Manual These documents contain detailed system and equipment description and related information about the product which
Hipcam Global LLC considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve,
Hipcam Global LLCconsiders this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market. This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available 180 days after date of grant. Signature FCC grantee contact person information. Name/Title: Leandro Weissmann/CFO Company Name: Hipcam Global LLC Address: 112 Capitol Trail, Newark, Delaware, 19711 TEL: +16467986464 FAX: +16467986464 Email: [email protected]

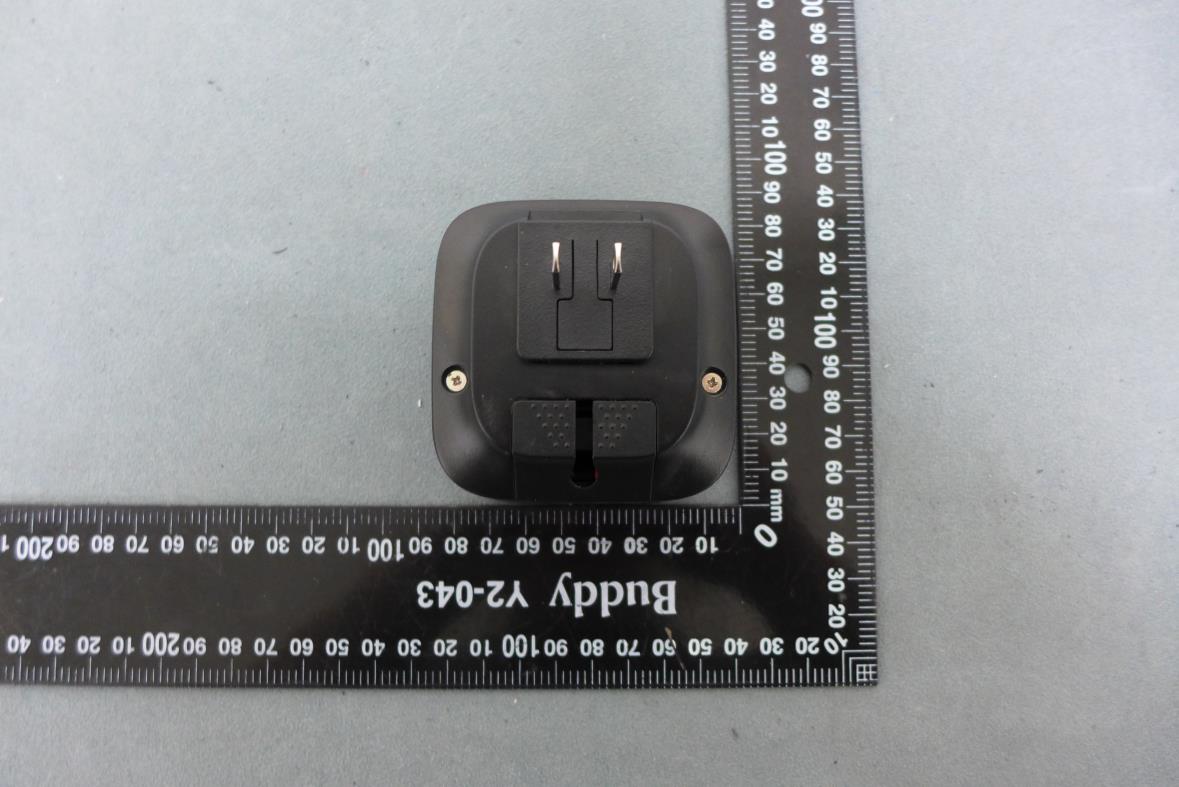

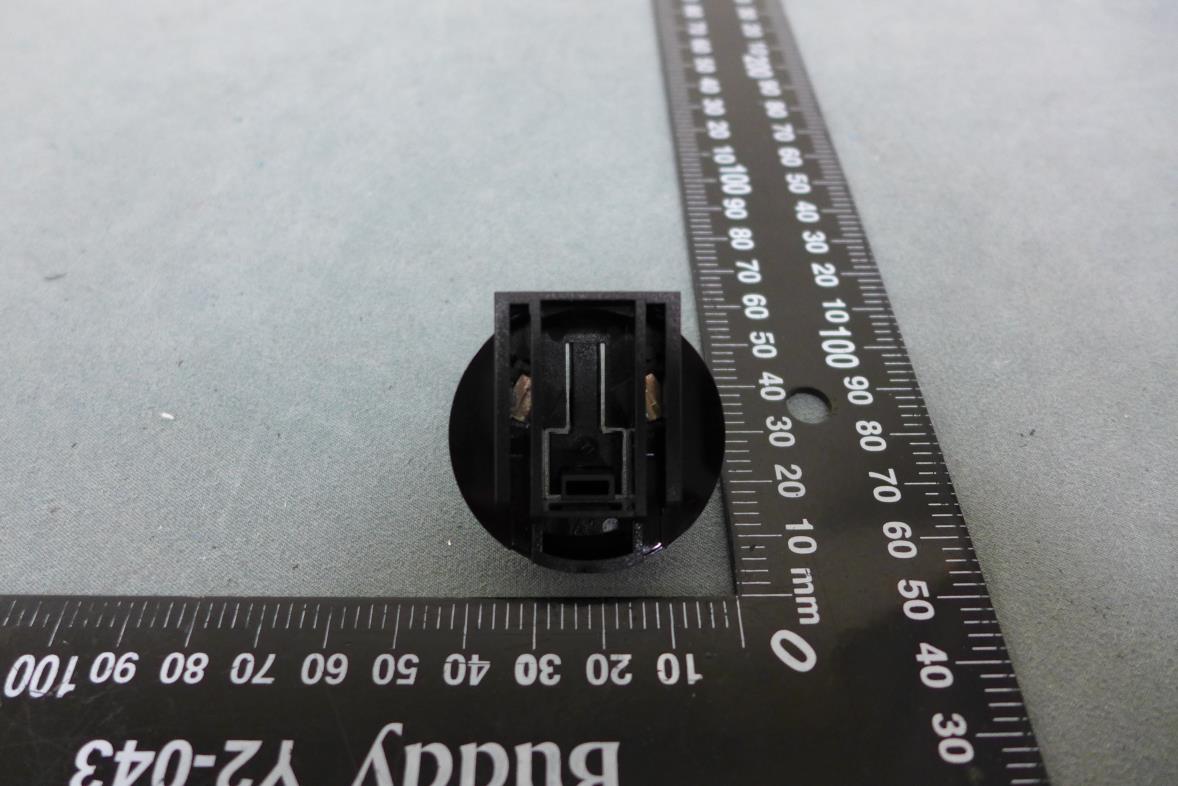

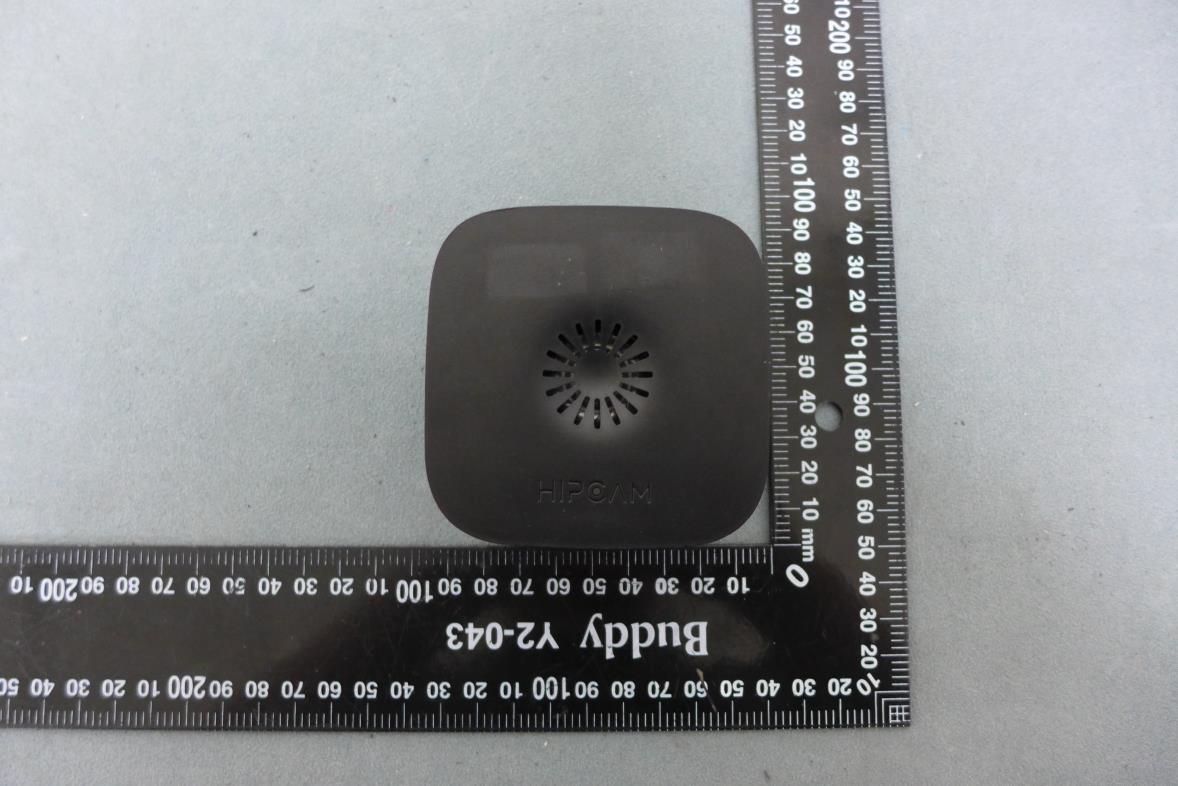

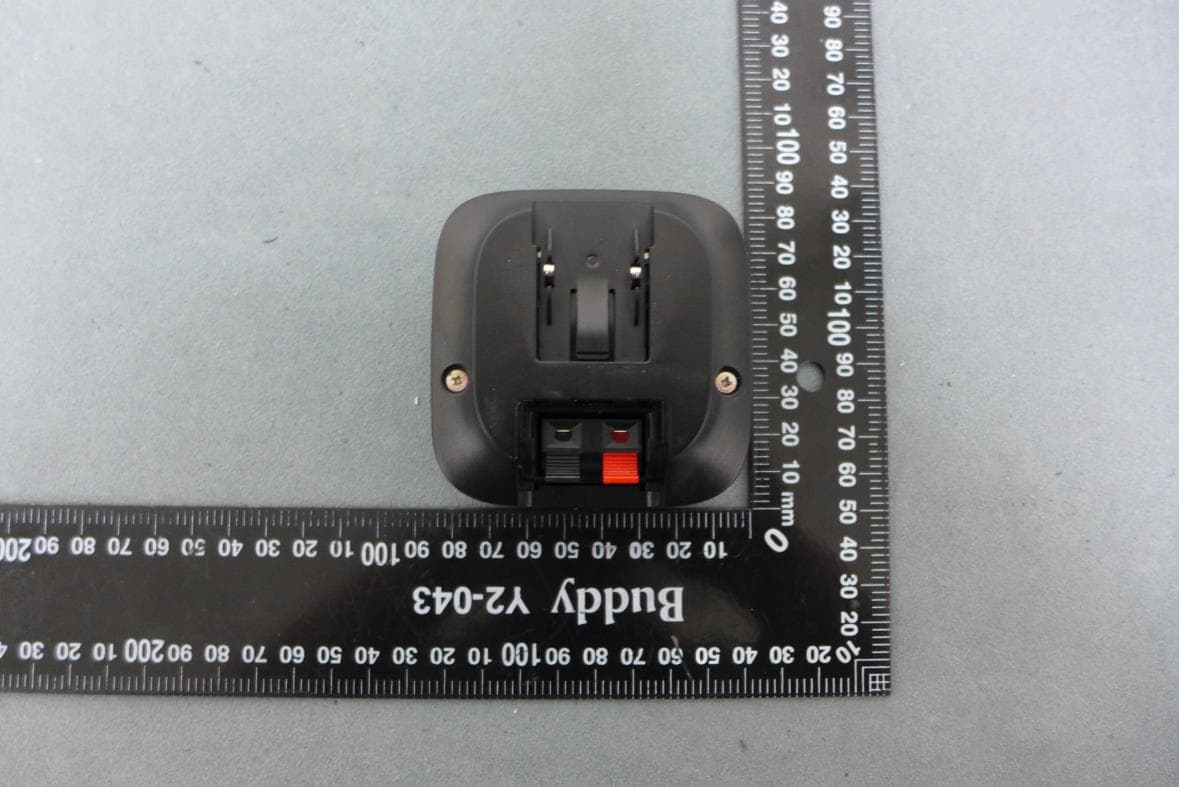

Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 1 of 14 Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 2 of 14 Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 3 of 14 Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 4 of 14 Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 5 of 14 Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 6 of 14 AU plug Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 7 of 14 EU plug Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 8 of 14 UK plug

20210413 FCC ID: XXXXXXXXXXXXX IC ID: XXXXX-XXXXXXXX EXXXXXX S/N: XXXXXXXXXXXXXXXXXXX EXXXXXX Model Name: Chime Max Input: 100-240 VAC ,50/60Hz 0.5A Output:24VDC 0.5A 12W FCC ID: 2ATYCHMX05 Address: 29 S. Central Ave, Valley Stream, New York, United States, 11580 EXXXXXX Model Name: Chime Max Input: 100-240 VAC ,50/60Hz Output:24VDC 0.5A 12W FCC ID: XXXXXXXXXXXXX IC ID: XXXXX-XXXXXXXX Address: 29 S. Central Ave, Valley Stream, New York, United States, 11580 EXXXXXX Model Name: Chime Max Input: 100-240 VAC ,50/60Hz Output:24VDC 0.5A 12W FCC ID: XXXXXXXXXXXXX IC ID: XXXXX-XXXXXXXX Address: 29 S. Central Ave, Valley Stream, New York, United States, 11580 EXXXXXX Model Name: Chime Max Input: 100-240 VAC ,50/60Hz 0.5A Output:24VDC 0.5A 12W FCC ID: 2ATYCHMX05 Address: 29 S. Central Ave, Valley Stream, New York, United States, 11580 S/N: XXXXXXXXXXXXXXXXXXXHW:XXXX

Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 9 of 14 Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 10 of 14 Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 11 of 14 Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 12 of 14 Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 13 of 14 Antenna Appendix No.: EP-2101T113-1 APPENDIX-EUT PHOTOS Project No.: 2101T113 Page 14 of 14

Report No.: BTL-FCCP-2-2101T113 Project No.: 2101T113 Page 1 of 3 Report Version: R01 Maximum Permissible Exposure Report FCC ID: 2ATYCHMX05 Report No. : BTL-FCCP-2-2101T113 Equipment : HIPCAM Model Name : Chime Max Brand Name : HIPCAM Applicant : Hipcam Global LLC Address : 112 Capitol Trail, Newark, Delaware, 19711 United States Manufacturer : Goldtek Technology Co., Ltd. Address : 16F., No.166, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) FCC Rule Part(s) : FCC CFR Title 47, Part 2 (2.1091) FCC Guidelines for Human Exposure IEEE C95.1 Date of Receipt : 2021/2/2 Date of Test : 2021/2/2 ~ 2021/3/19 Issued Date : 2021/4/27 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Peter Chen, Engineer Approved by : Scott Hsu, Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCCP-2-2101T113 Project No.: 2101T113 Page 2 of 3 Report Version: R01 REVISON HISTORY Report No. Version Description Issued Date BTL-FCCP-2-2101T113 R00 Original Report. 2021/4/9 BTL-FCCP-2-2101T113 R01 Revised report to address TCB’s comments. 2021/4/29 Report No.: BTL-FCCP-2-2101T113 Project No.: 2101T113 Page 3 of 3 Report Version: R01 Limit Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 MPE EVALUATION FORMULA where: Pd= Power density in mW/cm2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance Table for Filed Antenna Ant. Manufacture Model name Type Connector Frequency Range (MHz) Gain (dBi) 1 Chip Antenna Chip N/A 902-928 0.79 Maximum RF OUTPUT POWER Mode Maximum Average Power (dBm) Lora 17.41 RESULTS Frequency (MHz) Maximum Output Power (dBm) Maximum Output Power (mW) Antenna gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) 917.3 17.41 55.081 0.79 20.0 0.013 0.612 End of Test Report

Report No.: BTL-FCCP-1-2101T113 Project No.: 2101T113 Page 1 of 56 Report Version: R01 FCC Radio Test Report FCC ID: 2ATYCHMX05 Report No. : BTL-FCCP-1-2101T113 Equipment : HIPCAM Model Name : Chime Max Brand Name : HIPCAM Applicant : Hipcam Global LLC Address : 112 Capitol Trail, Newark, Delaware, 19711 United States Manufacturer : Goldtek Technology Co., Ltd. Address : 16F., No.166, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Radio Function : Lora (Hybrid) FCC Rule Part(s) : FCC Part15, Subpart C (15.247) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2021/2/2 Date of Test : 2021/2/2 ~ 2021/3/19 Issued Date : 2021/4/29 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Peter Chen, Engineer Approved by : Scott Hsu , Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCCP-1-2101T113 Project No.: 2101T113 Page 2 of 56 Report Version: R01 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2101T113 Project No.: 2101T113 Page 3 of 56 Report Version: R01 CONTENTS REVISON HISTORY 5 1 SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 8 1.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 8 1.5 DUTY CYCLE 9 2 GENERAL INFORMATION 10 2.1 DESCRIPTION OF EUT 10 2.2 TEST MODES 11 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.4 SUPPORT UNITS 12 3 AC POWER LINE CONDUCTED EMISSIONS TEST 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 TEST RESULT 14 4 RADIATED EMISSIONS TEST 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM TEST STANDARD 16 4.4 TEST SETUP 16 4.5 EUT OPERATING CONDITIONS 17 4.6 TEST RESULT – 30 MHZ TO 1 GHZ 18 4.7 TEST RESULT – ABOVE 1 GHZ 18 5 NUMBER OF HOPPING CHANNEL 19 5.1 LIMIT 19 5.2 TEST PROCEDURE 19 5.3 DEVIATION FROM STANDARD 19 5.4 TEST SETUP 19 5.5 EUT OPERATION CONDITIONS 19 5.6 TEST RESULTS 19 6 AVERAGE TIME OF OCCUPANCY (DWELL TIME) 20 6.1 LIMIT 20 6.2 TEST PROCEDURE 20 6.3 DEVIATION FROM STANDARD 20 6.4 TEST SETUP 20 6.5 EUT OPERATION CONDITIONS 20 6.6 TEST RESULTS 20 7 HOPPING CHANNEL SEPARATION MEASUREMENT 21 7.1 LIMIT 21 7.2 TEST PROCEDURE 21 7.3 DEVIATION FROM STANDARD 21 7.4 TEST SETUP 21 7.5 TEST RESULTS 21 8 20 DB BANDWIDTH TEST 22 Report No.: BTL-FCCP-1-2101T113 Project No.: 2101T113 Page 4 of 56 Report Version: R01 8.1 LIMIT 22 8.2 TEST PROCEDURE 22 8.3 DEVIATION FROM STANDARD 22 8.4 TEST SETUP 22 8.5 EUT OPERATION CONDITIONS 22 8.6 TEST RESULTS 22 9 OUTPUT POWER TEST 23 9.1 LIMIT 23 9.2 TEST PROCEDURE 23 9.3 DEVIATION FROM STANDARD 23 9.4 TEST SETUP 23 9.5 EUT OPERATION CONDITIONS 23 9.6 TEST RESULTS 23 10 ANTENNA CONDUCTED SPURIOUS EMISSION 24 10.1 LIMIT 24 10.2 TEST PROCEDURE 24 10.3 DEVIATION FROM STANDARD 24 10.4 TEST SETUP 24 10.5 EUT OPERATION CONDITIONS 24 10.6 TEST RESULTS 24 11 POWER SPECTRAL DENSITY TEST 25 11.1 LIMIT 25 11.2 TEST PROCEDURE 25 11.3 DEVIATION FROM STANDARD 25 11.4 TEST SETUP 25 11.5 EUT OPERATION CONDITIONS 25 11.6 TEST RESULTS 25 12 LIST OF MEASURING EQUIPMENTS 26 13 EUT TEST PHOTO 28 14 EUT PHOTOS 28 APPENDIX A AC POWER LINE CONDUCTED EMISSIONS 29 APPENDIX B RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 34 APPENDIX C RADIATED EMISSIONS - ABOVE 1 GHZ 37 APPENDIX D NUMBER OF HOPPING CHANNEL 42 APPENDIX E AVERAGE TIME OF OCCUPANCY (DWELL TIME) 44 APPENDIX F HOPPING CHANNEL SEPARATION MEASUREMENT 47 APPENDIX G 20dB BANDWIDTH 49 APPENDIX H OUTPUT POWER 51 APPENDIX I ANTENNA CONDUCTED SPURIOUS EMISSION 53 APPENDIX J POWER SPECTRAL DENSITY TEST 55 Report No.: BTL-FCCP-1-2101T113 Project No.: 2101T113 Page 5 of 56 Report Version: R01 REVISON HISTORY Report No. Version Description Issued Date BTL-FCCP-1-2101T113 R00 Original Report. 2021/4/9 BTL-FCCP-1-2101T113 R01 Revised report to address TCB’s comments. 2021/4/29 Report No.: BTL-FCCP-1-2101T113 Project No.: 2101T113 Page 6 of 56 Report Version: R01 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. FCC Part 15, Subpart C (15.247) Standard(s) Section Description Test Result Judgement Remark 15.207…

Text truncated - open the document above for the full version.

Appendix No.: TP-2101T113-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2101T113 Page 1 of 3 AC Power Line Conducted Emissions test photos Appendix No.: TP-2101T113-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2101T113 Page 2 of 3 Radiated emissions test photos 30 MHz to 1 GHz Appendix No.: TP-2101T113-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2101T113 Page 3 of 3 Radiated emissions test photos Above 1 GHz
