2ATZ4-BG2P5GRP02

Thanks for choosing UMIDIGl products BISON GT2 5G www.umidigi.com Amazon service Email:[email protected] RP02 Screen Light/Proximity Sensor Cue light 3.5 mm Headphone jack Mic 1 Dual LED Flash 64MP Main 8MP Super Wide Angle 5MP Macro Customizable Button 2 Finger print Scanner / Power Key Customizable Button 1 Barometer Pressure Relief Hole Mic 2 SIM/T-flash card Slot 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE Android is a trademark of Google LLC. 64MP+8MP+5MP Camera 24MP Camera 6.5 inch 2400x1080 Pixels 1x Phone 1x Screen Protector (pre-applied) 1x Type-C Cable 1x Power Adapter 1x SIM Tray Ejector 1x Quick Start Guide 8GB 128GB 6150mAh CPU GPU RAM Operating System ROM Battery Android™ 11 RP02 Touch ID Side-mounted Fingerprint sensor MediaTek MT6877 (Dimensity 900), 2xCortex-A78 + 6xCortex-A55, up to 2.4GHz Arm Mali-G68 MC4 Band Bluetooth 5.2 GNSSGPS, Beidou, Glonass,Galileo Type-C WIFI SIM/TF card USB Port Bluetooth Earphone Port Wi-Fi 6 (a/b/g/n/ac/ax) NFC 5G:NR N66 4G:LTE FDD B2/3/ /5 12 LTE TDD B41 3G:WCDMA:B / 2 5 2G:GSM B2/5 WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. 3GP/MPEG4,etc. Barometer, Infrared Thermometer Sensor, Proximity Sensor, Ambient Light Sensor, Accelerometer, Gyroscope, Compass. Sensor Dual Nano SIM Card Or Nano SIM and TF Card Stichwort Licht 3.5 mm Kopfhörerbuchse Mikrofon 1 Lichtsensor/ Abstandssensor Dual-LED-Blitz 64MPMain Anpassbare Schaltflâche 2 Fingerabdruck Scanner / Kraftschlüssel Anpassbare Schaltflâche 1 Barometer Druck Linderung Loch Mikrofon 2 8MP Super Weitwinkel 5MP Makro Infrarotthermometer 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE 1x Telefon 1x Displayschutzfolie (vorab angewendet) 1x Typ-C-Kabel 1x Netzteil 1x SIM-Fachauswerfer 1x Kurzanleitung 24MP Camera 64MP+8MP+5MP Camera 6.5 Zoll 2400x1080 Pixels 8GB 128GB 6150mAh CPU GPU RAM ROM Akku Betriebssystem Android™ 11 Seitlich montierter Fingerabdruck sensor RP02 MediaTek MT6877 (Dimensity 900), 2xCortex-A78 + 6xCortex-A55, up to 2.4GHz Arm Mali-G68 MC4 GNSS Type-C WIFI USB FM SIM/TF Karte Bluetooth Bluetooth 5.2 GPS, Beidou, Glonass,Galileo NFC Wi-Fi 6 (a/b/g/n/ac/ax) WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. 3GP/MPEG4,etc. Barometer, Infrarot-Thermometersensor, Näherungssensor, Umgebungslichtsensor, Beschleunigungsmesser, Gyroskop, Kompass. Dual-Nano-SIM-Karte oder Nano-SIM- und TF-Karte 5G:NR N66 4G:LTE FDD B2/3/ /5 12 LTE TDD B41 3G:WCDMA:B / 2 5 2G:GSM B2/5 Schermo Sensore luce/ distanza Segnale luminoso Jack per cuffie da 3.5 mm Microfono 1 Capsula audio Fotocamera frontale Tipo-c UsB Doppio Flash LED 64MP Principale 8MP Super Angolo ampio 5MP Macro Personali -zzabile Pulsante 2 Sensore di impronte/ Tasto Power Personalizzabile Pulsante 1 Barometro Foro di scarico della pressione Microfono 2 Altoparlante Termometro a infrarossi 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE 64MP+8MP+5MP Camera 24MP Camera 1x Telefono 1x Screen Protector (pre-applicato) 1x Cavo di tipo C. 1x Adattatore di alimentazione 1x Espulsore vassoio SIM 1x Guida rapida 6.5 Pollici 2400x1080 Pixels 8GB 128GB 6150mAh CPU GPU RAM ROM Batteria Sistema Operativo Android™ 11 Lettore d’impronte laterale RP02 MediaTek MT6877 (Dimensity 900), 2xCortex-A78 + 6xCortex-A55, up to 2.4GHz Arm Mali-G68 MC4 Type-C GNSS WIFI USB FM Scheda SIM/TF Bluetooth Bluetooth 5.0 GPS, Beidou, Glonass,Galileo NFC Wi-Fi 6 (a/b/g/n/ac/ax) WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. 3GP/MPEG4,etc. Barometro, sensore termometro a infrarossi, Sensore di prossimità, sensore di luce ambientale, Accelerometro, giroscopio, bussola. Doppia scheda Nano SIM o Nano SIM e scheda TF 5G:NR N66 4G:LTE FDD B2/3/ /5 12 LTE TDD B41 3G:WCDMA:B / 2 5 2G:GSM B2/5

Sensor de luz/ sensor de distancia Luz de señal Toma de auriculares de 3.5 mm Micrófono 1 Receptor Cámara frontal Pantalla Flash LED doble 64MP Principal 8MP Súper Gran angular 5MP Macro Personalizable Botón 2 Huella dactilar Escáner / Power Key Personalizable Botón 1 Barómetro Orificio de alivio de presión Micrófono 2 Altavoz Termómetro infrarrojo 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE 1x Teléfono 1x Protector de pantalla (preaplicado) 1x Cable tipo C 1x Adaptador de corriente 1x Eyector de bandeja SIM 1x Guía de inicio rápido 6.5 Pulgadas 2400x1080 Pixels 8GB 6150mAh CPU GPU RAM ROM Batería Sistema operativo 128GB Android™ 11 lector de heullas digital lateral RP02 MediaTek MT6877 (Dimensity 900), 2xCortex-A78 + 6xCortex-A55, up to 2.4GHz Arm Mali-G68 MC4 GNSS Type-C WIFI FM SIM/TF Tarjeta Bluetooth Bluetooth 5.2 GPS, Beidou, Glonass,Galileo NFC Wi-Fi 6 (a/b/g/n/ac/ax) WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. 3GP/MPEG4,etc. Barómetro, sensor de termómetro infrarrojo, Sensor de proximidad, sensor de luz ambiental, Acelerómetro, giroscopio, brújula. Tarjeta Nano SIM dual o tarjeta Nano SIM y TF 5G:NR N66 4G:LTE FDD B2/3/ /5 12 LTE TDD B41 3G:WCDMA:B / 2 5 2G:GSM B2/5 Lumière de queue Prise casque 3.5 mm capteur de lumière/ capteur de distance Caméra frontale Flash double LED 64MP Principale 8MP Super grande angular 5MP Macro Personnalisa -ble Bouton 2 Impressão digital lateral / Bouton d' alimentation Personnalisable Bouton 1 Barometer Trou de décompression Micro 2 Haut-parleur Thermomètre infrarouge 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE 1x téléphone 1x protecteur d'écran (pré-appliqué) 1x câble de type C 1x adaptateur secteur 1x éjecteur de plateau SIM 1x Guide de démarrage rapide 6.5 Pouces Capacitif Multi-Points 2400x1080 Pixels Batterie ROM RAM 8GB 6150mAh 128GB Android™ 11 Empreinte digitale latérale RP02 MediaTek MT6877 (Dimensity 900), 2xCortex-A78 + 6xCortex-A55, up to 2.4GHz Arm Mali-G68 MC4 Band GNSS Type-C WIFI USB FM Carte SIM/TF Bluetooth Bluetooth 5.2 GPS, Beidou, Glonass,Galileo NFC Wi-Fi 6 (a/b/g/n/ac/ax) WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. 3GP/MPEG4,etc. Baromètre, capteur de thermomètre infrarouge,Capteur de proximité, capteur de lumière ambiante,Accéléromètre, Gyroscope, Boussole. Double carte nano SIM ou carte nano SIM et TF 5G:NR N66 4G:LTE FDD B2/3/ /5 12 LTE TDD B41 3G:WCDMA:B / 2 5 2G:GSM B2/5 ファーストマイク 1 Type-C USB 指紋認証/ 電源ボタン 33 カード挿入について Nano-SIMカードの取り付け Nano-SIMカードを挿入口に入れる時は、Nano-SIMカードのチップ側を下に してください。トレイにはめ込む時は、Nano-SIMカードのカットエッジの方 向に注意してください。 注意点: 標準のNano-SIMカードを使用してください。カード挿入口とトレイが破損し たり、カード拒否状態が発生して本体が損傷したりすることがないように、 ハンドカットされた非標準カードは使用しないでください。 TFカードのICを下にして、カットエッジの方向を注意しながらトレイにはめ込 んで挿入口に挿し込みます。 TFカードを取り替える前は、本端末をオフにしてください。TFカードは本端末 についていませんので、別途ご購入ください。 Tfカードの取り付け 注意点: 本端末がオンの時は、SIMカードをトレイに挿し込んでまたは取り外してはなり ません。本体に引っかきがないように、SIMカード交換用ピンの使用をご注意し てください。 デュアルSIM管理 設定>SIMカードをタップして、4Gネットワーク用のトレイを選んでください。設 定>ネットワーク&インターネット>モバイルネットワーク>優先ネットワークタイプ をタップして、4G/3G/2Gのどちらを優先ネットワークに選んでください。 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE 34 カメラ 撮影対象をカメラに向けると、本端末は自動的にフォーカスします。また、 撮影画面をクリックすることでフォーカスしたい対象を選んで、「キャプ チャ」アイコンをクリックして写真を撮ります。ビデオ、美顔とパノラマ などの撮影モードを利用して写真またはビデオも撮れます。 デュアルカードスタンドバイについて 「デュアルカード、デュアルスタンドバイ」というのは、SIMカードを二 枚利用し、「スタンドバイ」にすることができることですが、同時に電話 をかけることができません。スタンドバイモードでは、両方のカードが電 話を受けることができますが、一方のカードはアクティブになると、もう 一方のカードは電話を受けたりかけたりすることができません。 セキュリティ情報 サードパーティアプリの取り付けおよび機能のセキュリティ情報(BS,ES, バッテリーセキュリティ情報を含む)は地域またはハードウェア仕様によ って異なっています。UMIDIGIでは、サードパーティアプリ、レジストリ の編集、OSソフトウェアの変更による性能問題または非交換性に関する免 責を保持しています。OSをカスタマイズすると、本端末およびアプリの一 部が正常に動作しなくなることがあります。 高温/低温になる場所で本体またはバッテリーを使用、保管、放置しない でください。本体の変形およびバッテリーの充電容量と耐用年数の低下に なる可能性があります。 UMIDIGIにカスタム設定、承認されたバッテリーと充電器のみを使用して ください。交換性のないバッテリーと充電器は本体に損傷を与える可能性 があります。使用済みのバッテリーと端末を処理する時は、現地の規制を 遵守してください。 本体またはバッテリーを電子レンジ、オーブンまたはラジエーターなどの 加熱調理器に置いたり入れたりしてはなりません。バッテリーが熱すぎる と爆発することがあります。 バッテリーをつぶしたり、穿孔したりしてはなりません。バッテリーが外部 から高圧にならないようにしてください。内部の短絡と過熱になることがあ ります。 35 64MP+8MP+5MP Camera 24MP Camera 8GB 6150mAh 128GB Android™ 11 側面の指紋 RP02 MediaTek MT6877 (Dimensity 900), 2xCortex-A78 + 6xCortex-A55, up to 2.4GHz Arm Mali-G68 MC4 FM GNSS Type-C Bluetooth 5.2 GPS, Beidou, Glonass,Galileo NFC Wi-Fi 6 (a/b/g/n/ac/ax) WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. 3GP/MPEG4,etc. 気圧計、赤外線温度計センサー、 近接センサー、環境光センサー、 加速度計、ジャイロスコープ、コンパス。 デュアルNanoSIMカードまたはNanoSIMとTFカード 5G:NR N66 4G:LTE FDD B2/3/ /5 12 LTE TDD B41 3G:WCDMA:B / 2 5 2G:GSM B2/5 Safety StatementSafety Statement SAR tests are conducted using standard operating positions accepted by the FCC/ISEDC with the phone transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. Before a new model phone is a available for sale to the public, it must be tested and certified to the FCC/ISEDC that it does not exceed the exposure limit established by the FCC/ISEDC, tests for each phone are performed in positions and locations as required by the FCC/ISEDC. Manufacturer: Shenzhen Youmi Intelligent Technology Co., Ltd. Add:406-407 Jinqi Zhigu Building,4/F,1 Tangling Road,Nanshan District, Shenzhen City,Guangdong Province China.

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] Date: 2022-1-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The product RP02, model: BISON GT2 5G, BISON GT2 PRO 5G, FCC ID: 2ATZ4-BG2P5G, supports GSM,WCDMA, LTE, 5G NR, 5G Wi-Fi, 2.4G Wi-Fi, Bluetooth, BLE 1M/2M and NFC function, for marketing purpose, this product only supports GSM850/PCS1900, WCDMA B2/B5, LTE band 2/5/12/41, 5G NR N66,DC_12A_n66A,5G Wi-Fi(5150-5250 MHz; 5725-5850 MHz), 2.4G Wi-Fi(2412-2472MHz), Bluetooth, BLE 1M/2M, NFC(13.56MHz), not support other bands. The other bands was disabled to use by manufacture in the software, the end user has no capability to activate it. We confirm that Ant 2,Ant 3,Ant 5,Ant 6,and Ant 8 indicated below are not used in the United States. Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2022-1-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Shenzhen Youmi Intelligent Technology Co., Ltd., the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] FCC Confidential Authorization Date: 2022-1-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ATZ4-BG2P5G In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Youmi Intelligent Technology Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts List/Tune up procedure (for licensed devices)  Software Security Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 JinqiZhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] Product Similarity Declaration Date: 2022-1-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD21046 Dear Sir/Madam, We, Shenzhen Youmi Intelligent Technology Co., Ltd., hereby declare that we have a product named as RP02(model:BISON GT2 5G, FCC ID: 2ATZ4-BG2P5G) was tested by Shenzhen Accurate Technology Co., Ltd., Meanwhile, for our marketing purpose, we would like to list a series model (BISON GT2 PRO 5G) on reports and certificate, all the models are identical in schematics.Only the model name/memory/Back cover appearance is different. No other changes are made on them. Model BISON GT2 5G BISON GT2 PRO 5G Memory 8+128G 8+256G Back cover appearance(Note: Size are the same) We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Wang Kun Manager

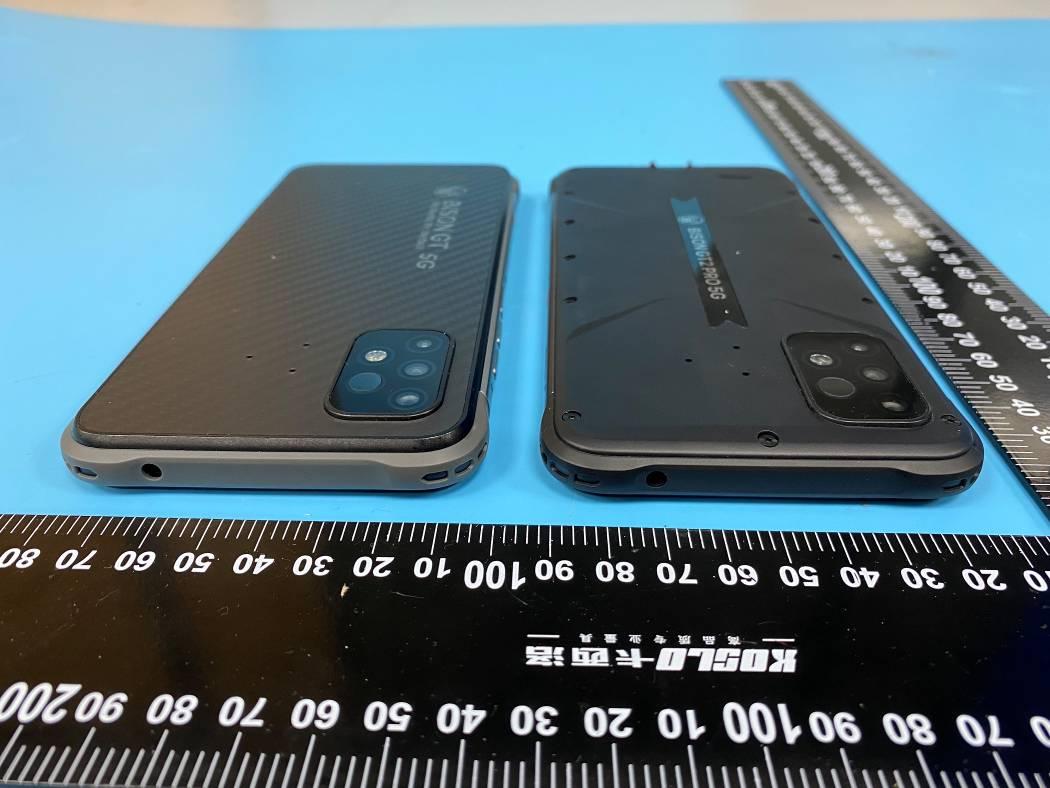

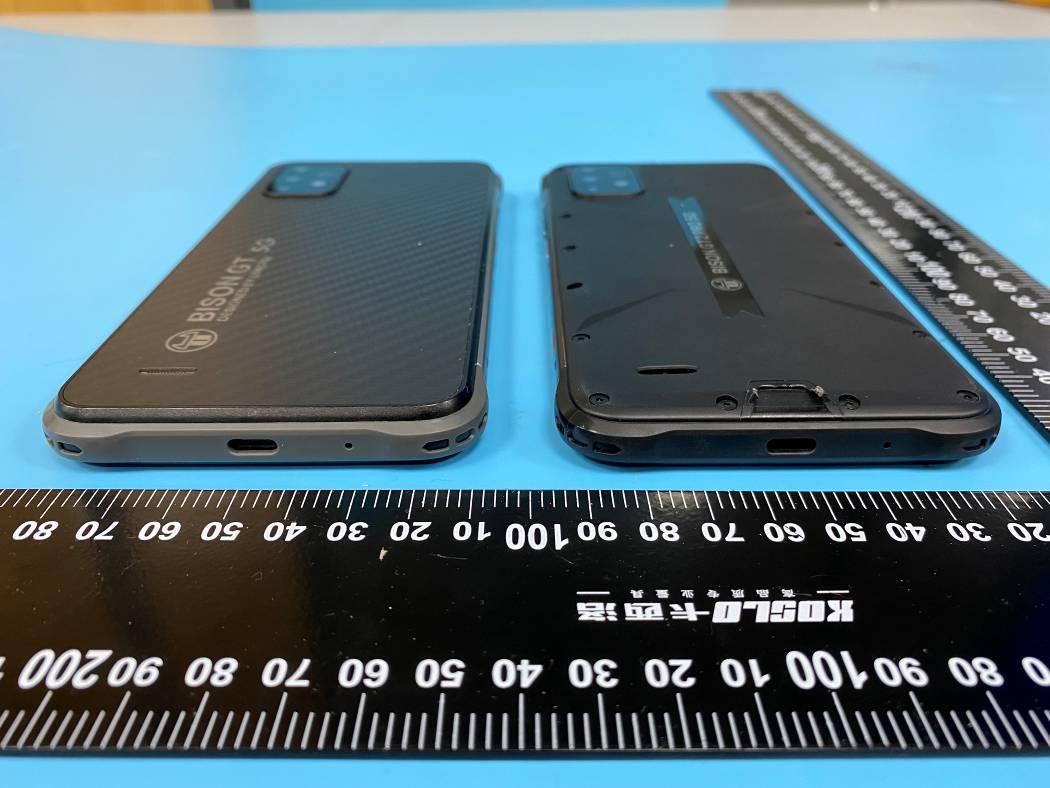

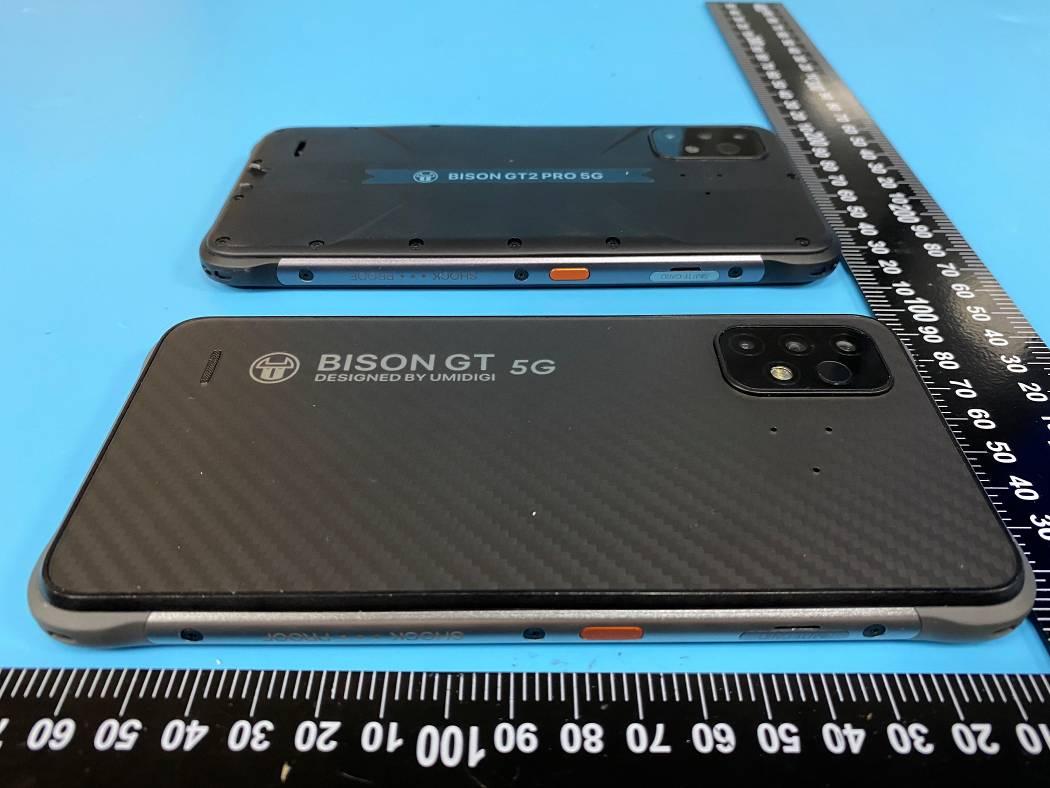

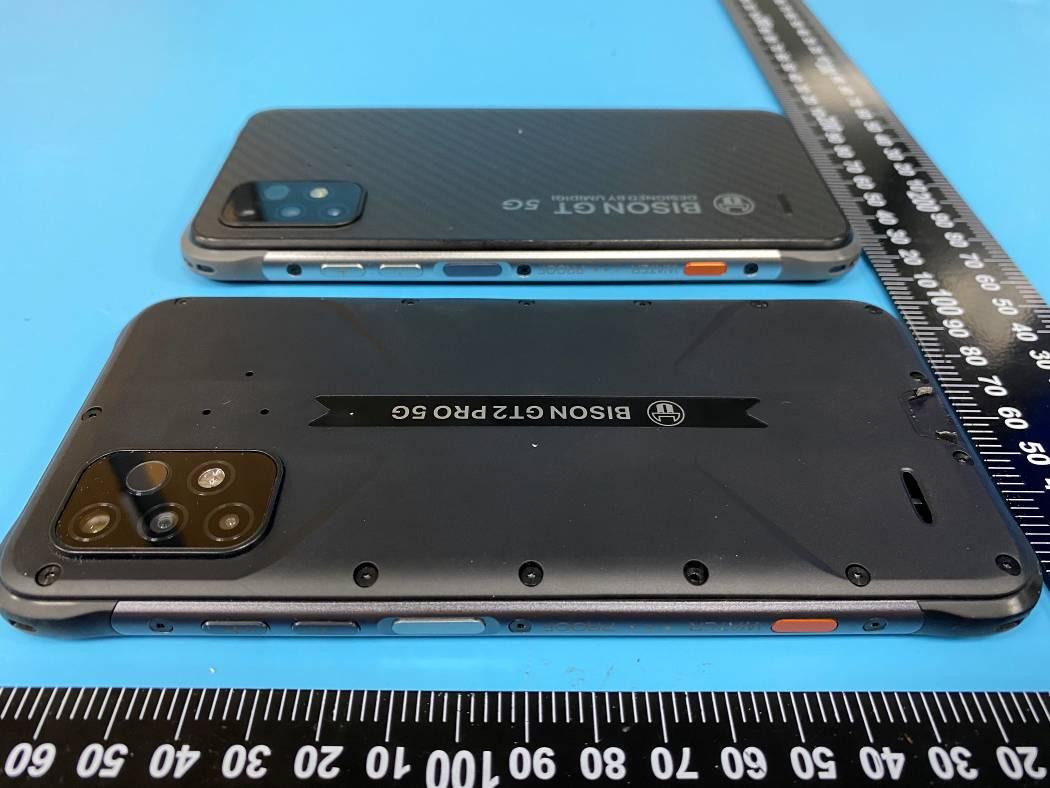

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 1 of 13 External Photos Two Models: BISON GT2 5G and BISON GT2 PRO 5G Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 2 of 13 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 3 of 13 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 4 of 13 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 5 of 13 Model: BISON GT2 5G Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 6 of 13 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 7 of 13 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 8 of 13 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 9 of 13 Model: BISON GT2 PRO 5G Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 10 of 13 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 11 of 13 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 12 of 13 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF External Photos Page 13 of 13

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF LABEL AND LOCATION Page 1 of 2 Model: BISON GT2 5G FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF LABEL AND LOCATION Page 2 of 2 Model: BISON GT2 PRO 5G FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF Internal Photos Page 1 of 9 Internal photos Model: BISON GT2 5G NFC Antenna Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF Internal Photos Page 2 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF Internal Photos Page 3 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF Internal Photos Page 4 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF Internal Photos Page 5 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF Internal Photos Page 6 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF Internal Photos Page 7 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF Internal Photos Page 8 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211130-61697E-RF Internal Photos Page 9 of 9 Antenna information Ant Description Ant 0 GSM, WCDMA,LTE(B2, B5, B12), 5G n66-Main antenna; 5G NSA DC-B12_N66-B12(NR) antenna LTE B41-Aux antenna; Ant 1 LTE B41- Main antenna LTE(B2, B5, B12)-Aux antenna; 5G NSA DC-B12_N66-B12(LTE) antenna Ant 2 LTE B2, LTE B41, 5G NR-Aux antenna; Ant 3 LTE B2, LTE B41, 5G NR-Aux antenna; Ant 4 BT/BLE/WIFI 2.4G/WIFI 5G ANT1 Ant 5 N/A(for other country band) Ant 6 N/A(for other country band) Ant 7 WIFI 2.4G/WIFI 5G ANT2 Ant 8 N/A(for other country band)

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 803: 2021-11-09 Page 1 of 117 FCC&IC SAR 5G TEST REPORT Applicant Name : Shenzhen Youmi Intelligent Technology Co., Ltd. Address : 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Report Number : SZNS211130-61697E-20 FCC ID: 2ATZ4-BG2P5G IC: 26074BG2P5G Test Standard (s) FCC Part 2.1093 RSS-102 Issue 5 Amendment 1 (February 2, 2021) Sample Description Product Type: RP02 Model No.: BISON GT2 5G Multiple Model(s) No.: BISON GT2 PRO 5G Trade Mark: UMIDIGI Date Received: 2021/12/01 Date of Test: 2022/1/16~2022/1/23 Report Date: 2022/1/25 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Lance Li Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS211130-61697E-20 Version 803: 2021-11-09 Page 2 of 117 FCC&IC SAR 5G Attestation of Test Results MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR 0.05 1. 6 1g Body SAR 0.24 PCS 1900 1g Head SAR 0.04 1g Body SAR 0.33 WCDMA Band 2 1g Head SAR 0.10 1g Body SAR 0.99 WCDMA Band 5 1g Head SAR 0.04 1g Body SAR 0.16 LTE Band 2 1g Head SAR 0.10 1g Body SAR 0.79 LTE Band 5 1g Head SAR 0.04 1g Body SAR 0.17 LTE Band 12 1g Head SAR 0.03 1g Body SAR 0.05 LTE Band 41 1g Head SAR 0.71 1g Body SAR 0.51 5G NR n66 1g Head SAR 0.21 1g Body SAR 0.93 2.4G Wi-Fi 1g Head SAR 0.28 1g Body SAR 0.11 5.2G Wi-Fi 1g Head SAR 0.35 1g Body SAR 0.06 5.8G Wi-Fi 1g Head SAR 0.35 1g Body SAR 0.24 1g Body SAR 0.98 Simultaneous 1g Head SAR 1.06 1g Body SAR 1.23 1g Head SAR 1.23 (hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RSS-102 Issue 5 Amendment 1 (February 2, 2021) Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands). RF Exposure Procedures: TCB Workshop April 2015 RF Exposure Policy Updates (5G NR FR1 NSA EN-DCUE SAR Evaluations): TCB Workshop November 2019 IEC/IEEE 62209-1528:2020 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1528: Human models, instrumentation, and procedures (Frequency range of 4 MHz to 10 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093/ RSS-102 Issue 5 Amendment 1 (February 2, 2021) and has been tested in accordance with the measurement procedures specified in IEC/IEEE 62209-1528:2020 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS211130-61697E-20 Version 803: 2021-11-09 Page 3 of 117 FCC&IC SAR 5G TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION ................................................................................................................................................... 5 TECHNICAL SPECIFICATION ............................................................................................................................................. 5 REFERENCE, STANDARDS, AND GUIDELINES ................................................................................................. 6 SAR LIMITS ..................................................................................................................................................................... 7 FACILITIES ................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION ........................................................................................................ 15 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................. 16 LIQUID VERIFICATION ................................................................................................................................................... 16 SYSTEM ACCURACY VERIFIC…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 1 of 82 APPENDIX C PROBE CALIBRATION CERTIFICATES Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 2 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 3 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 4 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 5 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 6 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 7 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 8 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 9 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 10 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 11 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 12 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 13 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 14 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 15 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 16 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 17 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 18 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 19 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 20 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 21 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 22 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 23 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 24 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 25 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 26 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 27 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 28 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 29 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 30 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 31 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 32 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 33 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 34 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 35 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 36 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 37 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 38 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 39 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 40 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 41 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 42 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 43 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 44 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 45 of 82 APPENDIX D DIPOLE CALIBRATION CERTIFICATES Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 46 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 47 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 48 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 49 of 82 Shenzhen Accurate Technology Co., Ltd Report No.:SZNS211130-61697E-20 50 of 82

Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS211130-61697E-20 Page 1 of 303 Test Plot 1#:Procedure Name: GSM 850 Mid DUT: RP02; Type: BISON GT2 5G Communication System: UID 0, Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.914 S/m; ε r = 41.735; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(10.28, 10.28, 10.28) @ 836.6 MHz; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1562; Calibrated: 2021/12/13 • Phantom: Twin SAM; Type: QD000P40CD; Serial: 1744 • Measurement SW: DASY52, Version 52.10 (4); Head Left Cheek/GSM 850 Mid/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0266 W/kg Head Left Cheek/GSM 850 Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.157 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.0330 W/kg SAR(1 g) = 0.019 W/kg; SAR(10 g) = 0.014 W/kg Maximum value of SAR (measured) = 0.0197 W/kg 0 dB = 0.0197 W/kg = -17.06 dBW/kg Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS211130-61697E-20 Page 2 of 303 Test Plot 2#:Procedure Name: GSM 850 Mid DUT: RP02; Type: BISON GT2 5G Communication System: UID 0, Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.914 S/m; ε r = 41.735; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(10.28, 10.28, 10.28) @ 836.6 MHz; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1562; Calibrated: 2021/12/13 • Phantom: Twin SAM; Type: QD000P40CD; Serial: 1744 • Measurement SW: DASY52, Version 52.10 (4); Head Left Tilt/GSM 850 Mid/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0220 W/kg Head Left Tilt/GSM 850 Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.977 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.0310 W/kg SAR(1 g) = 0.019 W/kg; SAR(10 g) = 0.014 W/kg Maximum value of SAR (measured) = 0.0199 W/kg 0 dB = 0.0199 W/kg = -17.01 dBW/kg Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS211130-61697E-20 Page 3 of 303 Test Plot 3#:Procedure Name: GSM 850 Low DUT: RP02; Type: BISON GT2 5G Communication System: UID 0, Generic GSM (0); Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.886 S/m; ε r = 41.858; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(10.28, 10.28, 10.28) @ 824.2 MHz; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1562; Calibrated: 2021/12/13 • Phantom: Twin SAM; Type: QD000P40CD; Serial: 1744 • Measurement SW: DASY52, Version 52.10 (4); Head Right Cheek/GSM 850 Low/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0514 W/kg Head Right Cheek/GSM 850 Low/Zoom Scan …
