www.umidigi.com Thanks for choosing UMIDIGl products MP08 G1 Amazon service Email:[email protected] Visit www.umidigi.com for more information UMIDIGI is registered trademark by Shenzhen Youmi Intelligent Technology Co., Ltd. All other trademarks are the property of their respective owner. Language Catalogue 1 English Screen Light/Proximity Sensor 3.5 mm Headphone jack Mic 1 Mic 2 Dual LED Flash 13MP Main Depth- of-field Power Key SIM/TF Slot 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE Android is a trademark of Google LLC. 13MP+2MP Camera 5MP Camera 6.52 inch 720x1600 Pixels WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. 3GP/MPEG4,etc. Band Bluetooth 4.2 LTE FDD:B1/2/3/4/5/7/8/12/17/20/28A/28B LTE TDD:B38/40/41 WCDMA:B1/2/4/5/8 GSM:B2/3/5/8 GNSSGPS, Beidou, Glonass,Galileo Type-C WIFI SIM/TF card USB Port Bluetooth Earphone Port IEEE802.11 ac/a/b/g/n 2 Nano SIM Card Or 1 Nano SIM and 1 TF Card 1x Phone 1x Screen Protector (pre-applied) 1x Phone Case 1x Type-C Cable 1x Power Adapter 1x SIM Tray Ejector 1x Quick Start Guide 2GB 32GB 5150mAh CPU GPU RAM Operating System ROM Battery Android™ 12 Go 4x ARM Cortex-A53 Mpcore up to 1.5GHz G1 IMG 8XE 1PPC@ 570MHz FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Product meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies.The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is1.6 W/kg averaged over one gram of this Device C1 (FCC ID: 2ATZ4-G1C1F) has been tested against this SAR limit. SAR information on this can be viewed on-line at http:// www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for search. This device was tested for typical operations 10mm from the body. To maintain compliance with FCC RF exposure requirements, 10mm separation distance should. maintained to the user's bodies NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Ho wever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Canadian regulatory statement This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L exploitation est autorisée aux deux conditions suivantes : (1) l appareil ne doit pas produire de brouillage, et (2) l utilisateur de l appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d en compromettre le fonctionnement. SAR Statement: Mobile Phone has been tested and meets applicable limits for radio frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram in Canada that set the limit averaged over 1 gram of tissue. During testing, Model:A80 (IC: 26074-G1C1F) radios are set to their highest transmission levels and placed in positions that simulate uses against the head, with no separation, and when worn or carried against the torso of the body, with 10mm separation. To reduce exposure to RF energy, use a hands-free option, such as the built-in speakerphone, the supplied headphones, or other similar accessories. Cases with metal parts may change the RF performance of the device, including its compliance with RF exposure guidelines, in a manner that has not been tested or certified. Although this device has been tested to determine SAR in each band of operation, not all bands are available in all areas. Bands are dependent on your service provider’s wireless and roaming networks. 5150-5250MHz is restricted to indoor use only. Made in China Follow UMIDIGI community.a place where you can share and discuss with UMIDIGl Manufacturer: Shenzhen Youmi Intelligent Technology Co., Ltd. Add:406-407 Jinqi Zhigu Building,4/F,1 Tangling Road, Nanshan District, Shenzhen City,Guangdong Province China

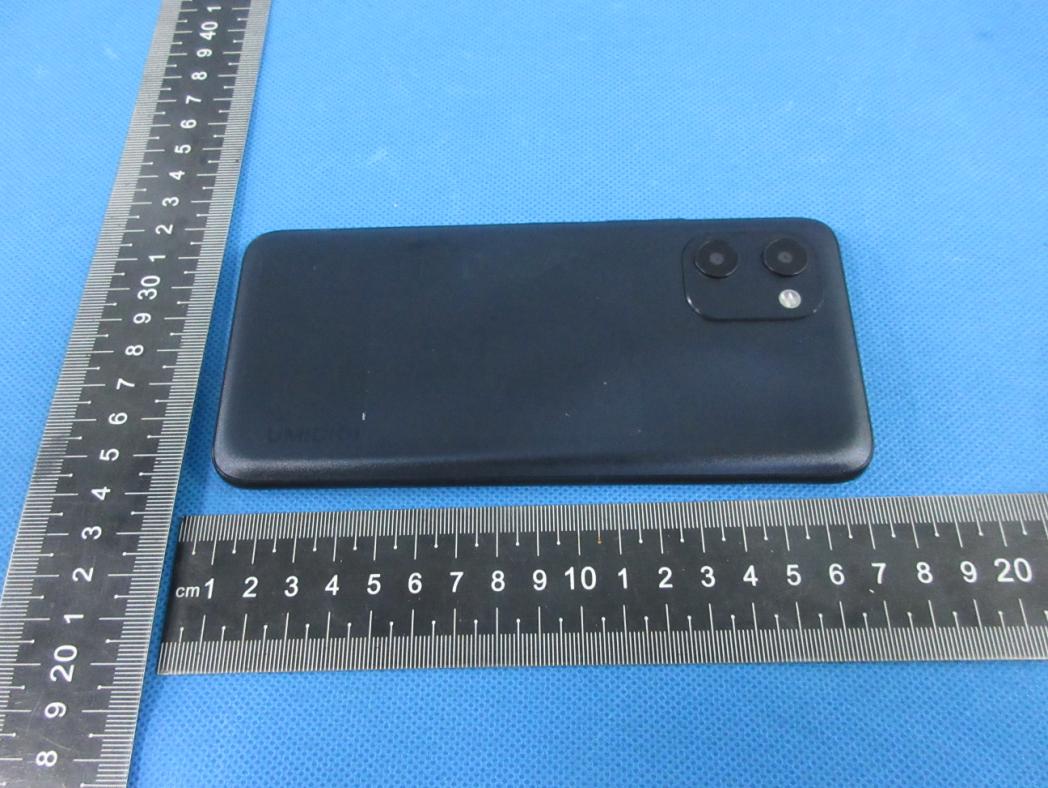

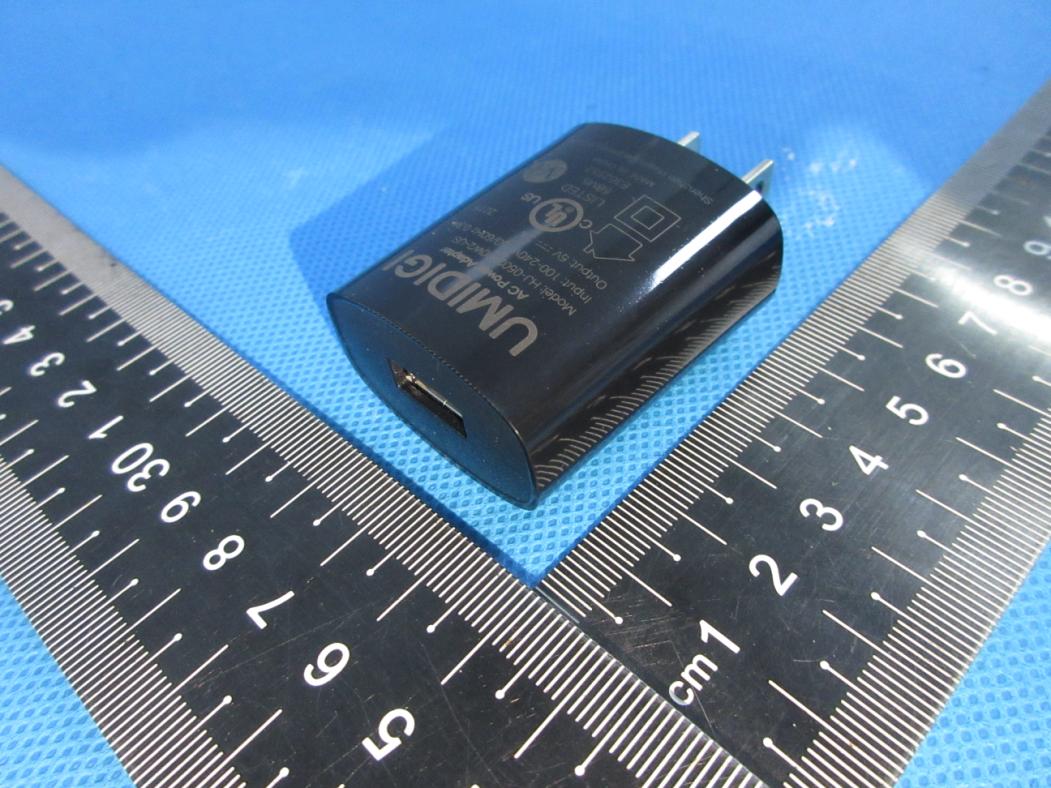

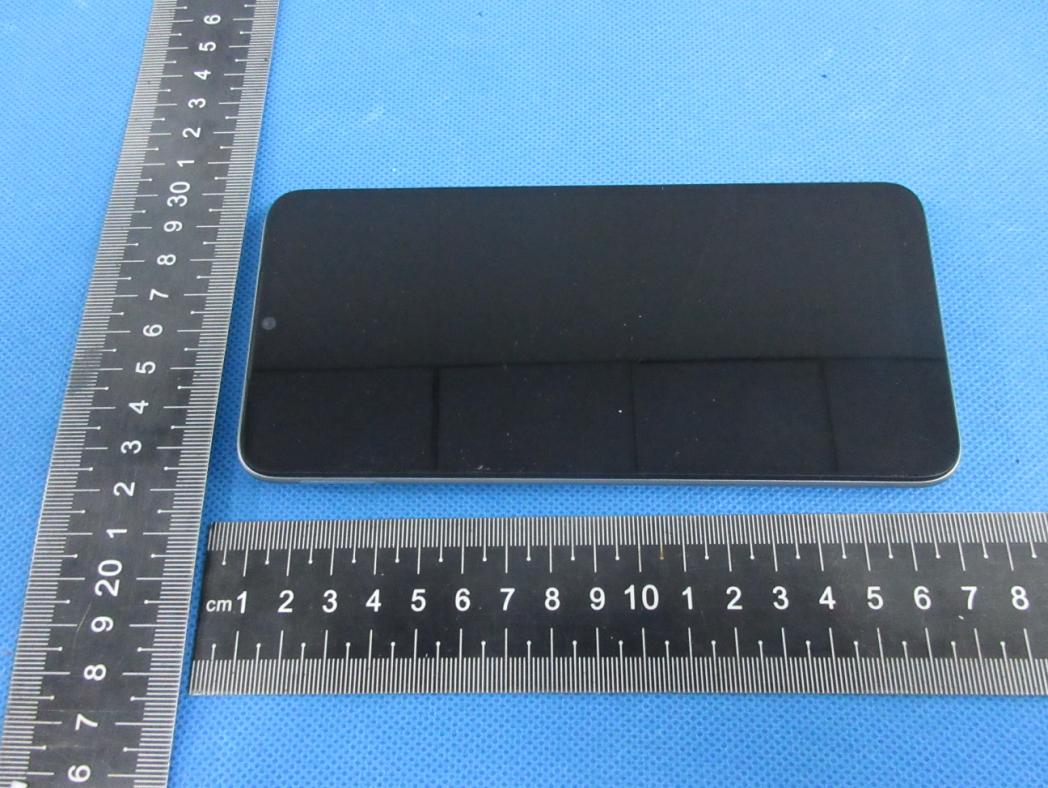

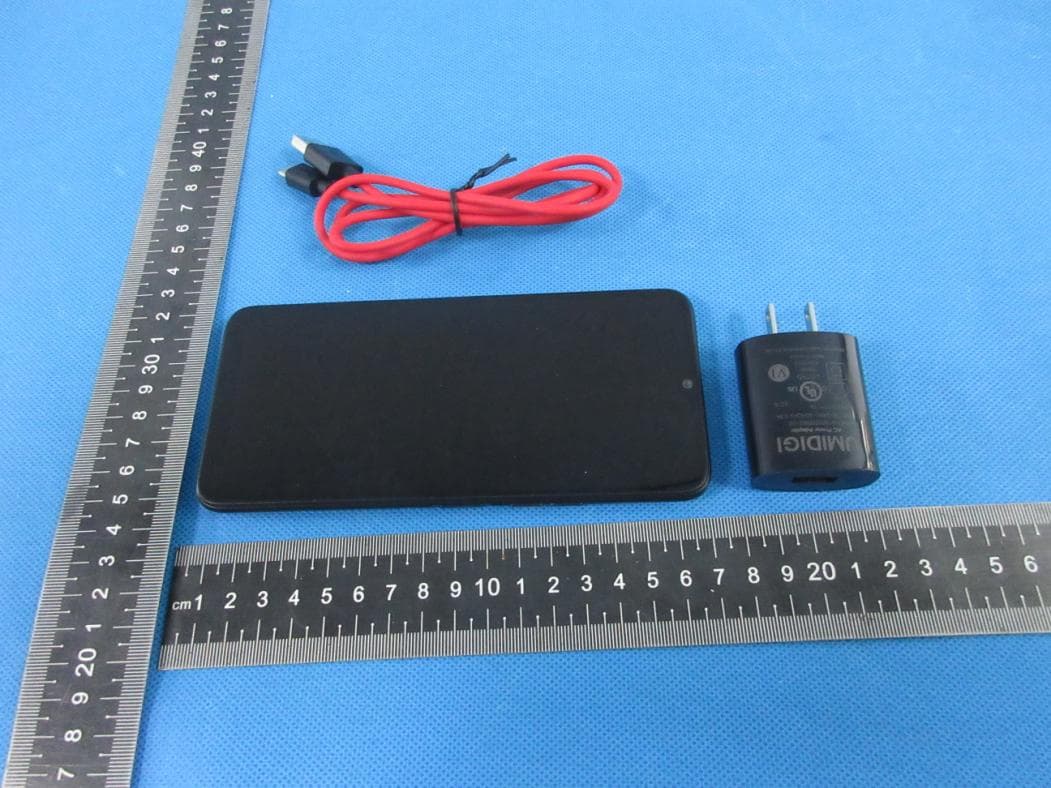

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16
ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 GSM/WCDMA/CDMA/ LTE Main ANT LTE AUX ANT Photo 17 BT/WIFI/GPS ANT
version01 Shenzhen Youmi Intelligent Technology Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: C1,G1 FCC ID: 2ATZ4-G1C1F fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PIFA Antenna Bluetooth Gain: 1.8 dBi Frequency range: 2402-2480 MHz WIFI2.4G Gain: 2 dBi Frequency range: 2412-2462MHz WIFI5G Gain: 1.1 dBi Frequency range: 5180-5240;5745-5825MHz GSM/WCDMA Gain: GSM 850: 0.3 dBi; PCS 1900: 0.6dBi; Band II: 0.7dBi; Band IV:0.6dBi ; Band V: 0.3dBi; Band BC0:0.3dBi; Band BC1:0.6dBi Frequency range: GSM850: TX824.2MHz~848.8MHz /RX869.2MHz~893.8MHz; UMTS FDD Band V: TX826.4MHz~846.6MHz /RX871.4MHz~891.6MHz; PCS1900: TX1850.2MHz~1909.8MHz /RX1930.2MHz~1989.8MHz; UMTS FDD Band II: TX1852.4MHz~1907.6MHz /RX1932.4MHz~1987.6MHz; UMTS-FDD Band IV:TX1710MHz~1755MHz /RX2110MHz~2155MHz CDMA2000 BC0: TX824.70MHz~848.31MHz /RX869MHz~894MHz; CDMA2000 BC1: TX1851.25MHz~1908.75MHz LTE Gain: Band 2: 0.6dBi, Band 4: 0.6dBi, Band 5: 0.3dBi, Band 7: 0.5dBi, Band 12: 0.2dBi, Band 17: 0.2dBi Frequency range: LTE FDD Band 2 Uplink: 1850MHz-1910MHz, Downlink: 1930MHz-1990MHz; LTE FDD Band 4 Uplink: 1710MHz-1755MHz, Downlink: 2110MHz-2155MHz; LTE FDD Band 5 Uplink: 824MHz-849MHz, Downlink: 869MHz-894MHz; LTE-FDD Band 7 Uplink: 2500MHz-2570MHz, Downlink: 2620MHz-2690MHz; LTE FDD Band 12 Uplink: 699MHz-716MHz, Downlink: 729MHz-746MHz; LTE FDD Band 17 Uplink: 704MHz-716MHz, Downlink: 734MHz-746MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, City: Shenzhen ZIP / Postal code: Country: China Place: wang kun Date: 2022/07/15 Signature:
Page 1 of 239 Report No.: STR220617013007E FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name: mobile phone Brand Name: UMIDIGI Model Name: C1 Family Model: G1 Report No.: STR220617013007E FCC ID: 2ATZ4-G1C1F Prepared for Shenzhen Youmi Intelligent Technology Co., Ltd. 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 239 Report No.: STR220617013007E TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Youmi Intelligent Technology Co., Ltd. Address .................................. : 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen, China Manufacturer's Name .......... : Shenzhen Youmi Intelligent Technology Co., Ltd. Address .................................. : 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen, China Product description Product name ........................ : mobile phone Brand Name ......................... : UMIDIGI Model and/or type reference : C1 Family Model ......................... : G1 Standards ............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests .............. : Jun. 18, 2022 ~ Jul. 02, 2022 Date of Issue ........................................... : Jul. 11, 2022 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 239 Report No.: STR220617013007E ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jul. 11, 2022 Jacob Chen Page 4 of 239 Report No.: STR220617013007E TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF Exposure Positions .........…
Text truncated - open the document above for the full version.
Page 151 of 239 Report No.: STR220617013007E Page 152 of 239 Report No.: STR220617013007E Page 153 of 239 Report No.: STR220617013007E Page 154 of 239 Report No.: STR220617013007E Page 155 of 239 Report No.: STR220617013007E Page 156 of 239 Report No.: STR220617013007E Page 157 of 239 Report No.: STR220617013007E Page 158 of 239 Report No.: STR220617013007E Page 159 of 239 Report No.: STR220617013007E Page 160 of 239 Report No.: STR220617013007E Page 161 of 239 Report No.: STR220617013007E Page 162 of 239 Report No.: STR220617013007E Page 163 of 239 Report No.: STR220617013007E Page 164 of 239 Report No.: STR220617013007E Page 165 of 239 Report No.: STR220617013007E Page 166 of 239 Report No.: STR220617013007E Page 167 of 239 Report No.: STR220617013007E Page 168 of 239 Report No.: STR220617013007E Page 169 of 239 Report No.: STR220617013007E Page 170 of 239 Report No.: STR220617013007E Page 171 of 239 Report No.: STR220617013007E Page 172 of 239 Report No.: STR220617013007E Page 173 of 239 Report No.: STR220617013007E Page 174 of 239 Report No.: STR220617013007E Page 175 of 239 Report No.: STR220617013007E Page 176 of 239 Report No.: STR220617013007E Page 177 of 239 Report No.: STR220617013007E Page 178 of 239 Report No.: STR220617013007E Page 179 of 239 Report No.: STR220617013007E Page 180 of 239 Report No.: STR220617013007E Page 181 of 239 Report No.: STR220617013007E Page 182 of 239 Report No.: STR220617013007E Page 183 of 239 Report No.: STR220617013007E Page 184 of 239 Report No.: STR220617013007E Page 185 of 239 Report No.: STR220617013007E Page 186 of 239 Report No.: STR220617013007E Page 187 of 239 Report No.: STR220617013007E Page 188 of 239 Report No.: STR220617013007E Page 189 of 239 Report No.: STR220617013007E Page 190 of 239 Report No.: STR220617013007E Page 191 of 239 Report No.: STR220617013007E Page 192 of 239 Report No.: STR220617013007E Page 193 of 239 Report No.: STR220617013007E Page 194 of 239 Report No.: STR220617013007E Page 195 of 239 Report No.: STR220617013007E Page 196 of 239 Report No.: STR220617013007E Page 197 of 239 Report No.: STR220617013007E Page 198 of 239 Report No.: STR220617013007E Page 199 of 239 Report No.: STR220617013007E Page 200 of 239 Report No.: STR220617013007E
Page 201 of 239 Report No.: STR220617013007E Page 202 of 239 Report No.: STR220617013007E Page 203 of 239 Report No.: STR220617013007E Page 204 of 239 Report No.: STR220617013007E Page 205 of 239 Report No.: STR220617013007E Page 206 of 239 Report No.: STR220617013007E Page 207 of 239 Report No.: STR220617013007E Page 208 of 239 Report No.: STR220617013007E Page 209 of 239 Report No.: STR220617013007E Page 210 of 239 Report No.: STR220617013007E Page 211 of 239 Report No.: STR220617013007E Page 212 of 239 Report No.: STR220617013007E Page 213 of 239 Report No.: STR220617013007E Page 214 of 239 Report No.: STR220617013007E Page 215 of 239 Report No.: STR220617013007E Page 216 of 239 Report No.: STR220617013007E Page 217 of 239 Report No.: STR220617013007E Page 218 of 239 Report No.: STR220617013007E Page 219 of 239 Report No.: STR220617013007E Page 220 of 239 Report No.: STR220617013007E Page 221 of 239 Report No.: STR220617013007E Page 222 of 239 Report No.: STR220617013007E Page 223 of 239 Report No.: STR220617013007E Page 224 of 239 Report No.: STR220617013007E Page 225 of 239 Report No.: STR220617013007E Page 226 of 239 Report No.: STR220617013007E Page 227 of 239 Report No.: STR220617013007E Page 228 of 239 Report No.: STR220617013007E Page 229 of 239 Report No.: STR220617013007E Page 230 of 239 Report No.: STR220617013007E Page 231 of 239 Report No.: STR220617013007E Page 232 of 239 Report No.: STR220617013007E <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.80 - 56.4 - Mar. 01, 2021 -23.642 0.66 56.998 0.598 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 233 of 239 Report No.: STR220617013007E <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 234 of 239 Report No.: STR220617013007E <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.85 - 47.90 - Mar. 01, 2021 -28.545 1.06 47.809 0.091 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 235 of 239 Report No.: STR220617013007E <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.79 - 50.80 - Mar. 01, 2021 -24.518 1.10 50.516 0.284 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 236 of 239 Report No.: STR220617013007E <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 237 of 239 Report No.: STR220617013007E <Head 2600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -21.15 - 52.70 - Mar. 01, 2021 -21.248 0.46 53.053 0.353 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 238 of 239 Report No.: STR220617013007E <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.15 - 21.17 - Mar. 01, 2021 -9.1819 0.35 21.191 0.021 Feb. 28, 2022 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 239 of 239 Report No.: STR220617013007E <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -14.30 - 54.74 - Mar. 01, 2021 -14.349 0.34 55.115 0.375 Feb. 28, 2022 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _______________________________________END _____________________________________
Report No.: STR220617013004E Page 1 of 63 5.2G: Duty Cycle Condition Mode Frequency (MHz) Duty Cycle (%) Correction Factor (dB) NVNT 802.11a 5180 97.75 0.1 NVNT 802.11a 5200 97.71 0.1 NVNT 802.11a 5240 97.74 0.1 NVNT 802.11n(HT20) 5180 97.58 0.11 NVNT 802.11n(HT20) 5200 97.57 0.11 NVNT 802.11n(HT20) 5240 97.57 0.11 NVNT 802.11n(HT40) 5190 95.36 0.21 NVNT 802.11n(HT40) 5230 95.4 0.2 Duty Cycle NVNT 802.11a 5180MHz Report No.: STR220617013004E Page 2 of 63 Duty Cycle NVNT 802.11a 5200MHz Duty Cycle NVNT 802.11a 5240MHz Report No.: STR220617013004E Page 3 of 63 Duty Cycle NVNT 802.11n(HT20) 5180MHz Duty Cycle NVNT 802.11n(HT20) 5200MHz Report No.: STR220617013004E Page 4 of 63 Duty Cycle NVNT 802.11n(HT20) 5240MHz Duty Cycle NVNT 802.11n(HT40) 5190MHz Report No.: STR220617013004E Page 5 of 63 Duty Cycle NVNT 802.11n(HT40) 5230MHz Report No.: STR220617013004E Page 6 of 63 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT 802.11a 5180 Ant 1 8.83 0.1 8.93 24 Pass NVNT 802.11a 5200 Ant 1 9.17 0.1 9.27 24 Pass NVNT 802.11a 5240 Ant 1 8.77 0.1 8.87 24 Pass NVNT 802.11n(HT20) 5180 Ant 1 8.69 0.11 8.8 24 Pass NVNT 802.11n(HT20) 5200 Ant 1 9.21 0.11 9.32 24 Pass NVNT 802.11n(HT20) 5240 Ant 1 8.89 0.11 9 24 Pass NVNT 802.11n(HT40) 5190 Ant 1 8.9 0.21 9.11 24 Pass NVNT 802.11n(HT40) 5230 Ant 1 8.78 0.2 8.98 24 Pass Report No.: STR220617013004E Page 7 of 63 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) -26 dB Bandwidth (MHz) Verdict NVNT 802.11a 5180 Ant 1 16.4664 19.264 Pass NVNT 802.11a 5200 Ant 1 16.5823 19.948 Pass NVNT 802.11a 5240 Ant 1 16.5783 24.188 Pass NVNT 802.11n(HT20) 5180 Ant 1 17.5462 19.704 Pass NVNT 802.11n(HT20) 5200 Ant 1 17.6662 21.448 Pass NVNT 802.11n(HT20) 5240 Ant 1 17.8262 26.516 Pass NVNT 802.11n(HT40) 5190 Ant 1 36.1004 53.328 Pass NVNT 802.11n(HT40) 5230 Ant 1 36.9003 78.144 Pass OBW NVNT 802.11a 5180MHz Ant1 Report No.: STR220617013004E Page 8 of 63 -26 dB BW NVNT 802.11a 5180MHz Ant1 OBW NVNT 802.11a 5200MHz Ant1 Report No.: STR220617013004E Page 9 of 63 -26 dB BW NVNT 802.11a 5200MHz Ant1 OBW NVNT 802.11a 5240MHz Ant1 Report No.: STR220617013004E Page 10 of 63 -26 dB BW NVNT 802.11a 5240MHz Ant1 OBW NVNT 802.11n(HT20) 5180MHz Ant1 Report No.: STR220617013004E Page 11 of 63 -26 dB BW NVNT 802.11n(HT20) 5180MHz Ant1 OBW NVNT 802.11n(HT20) 5200MHz Ant1 Report No.: STR220617013004E Page 12 of 63 -26 dB BW NVNT 802.11n(HT20) 5200MHz Ant1 OBW NVNT 802.11n(HT20) 5240MHz Ant1 Report No.: STR220617013004E Page 13 of 63 -26 dB BW NVNT 802.11n(HT20) 5240MHz Ant1 OBW NVNT 802.11n(HT40) 5190MHz Ant1 Report No.: STR220617013004E Page 14 of 63 -26 dB BW NVNT 802.11n(HT40) 5190MHz Ant1 OBW NVNT 802.11n(HT40) 5230MHz Ant1 Report No.: STR220617013004E Page 15 of 63 -26 dB BW NVNT 802.11n(HT40) 5230MHz Ant1 Report No.: STR220617013004E Page 16 of 63 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT 802.11a 5180 Ant 1 -0.35 11 Pass NVNT 802.11a 5200 Ant 1 -0.216 11 Pass NVNT 802.11a 5240 Ant 1 -0.061 11 Pass NVNT 802.11n(HT20) 5180 Ant 1 -1.396 11 Pass NVNT 802.11n(HT20) 5200 Ant 1 -0.686 11 Pass NVNT 802.11n(HT20) 5240 Ant 1 -1.331 11 Pass NVNT 802.11n(HT40) 5190 Ant 1 -5.054 11 Pass NVNT 802.11n(HT40) 5230 Ant 1 -5.728 11 Pass PSD NVNT 802.11a 5180MHz Ant1 Report No.: STR220617013004E Page 17 of 63 PSD NVNT 802.11a 5200MHz Ant1 PSD NVNT 802.11a 5240MHz Ant1 Report No.: STR220617013004E Page 18 of 63 PSD NVNT 802.11n(HT20) 5180MHz Ant1 PSD NVNT 802.11n(HT20) 5200MHz Ant1 Report No.: STR220617013004E Page 19 of 63 PSD NVNT 802.11n(HT20) 5240MHz Ant1 PSD NVNT 802.11n(HT40) 5190MHz Ant1 Report No.: STR220617013004E Page 20 of 63 PSD NVNT 802.11n(HT40) 5230MHz Ant1 Report No.: STR220617013004E Page 21 of 63 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Limit (dBm) Verdict NVNT 802.11a 5180 Ant 1 -41.44 -27 Pass NVNT 802.11a 5240 Ant 1 -45.59 -27 Pass NVNT 802.11n(HT20) 5180 Ant 1 -42.31 -27 Pass NVNT 802.11n(HT20) 5240 Ant 1 -45.8 -27 Pass NVNT 802.11n(HT40) 5190 Ant 1 -28.15 -27 Pass NVNT 802.11n(HT40) 5230 Ant 1 -45.62 -27 Pass Band Edge NVNT 802.11a 5180MHz Low Ant1 Report No.: STR220617013004E Page 22 of 63 Band Edge NVNT 802.11a 5240MHz High Ant1 Band Edge NVNT 802.11n(HT20) 5180MHz Low Ant1 Report No.: STR220617013004E Page 23 of 63 Band Edge NVNT 802.11n(HT20) 5240MHz High Ant1 Band Edge NVNT 802.11n(HT40) 5190MHz Low Ant1 Report No.: STR220617013004E Page 24 of 63 Band Edge NVNT 802.11n(HT40) 5230MHz High Ant1 Report No.: STR220617013004E Page 25 of 63 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 802.11a 5180 Ant 1 -36.78 -27 Pass NVNT 802.11a 5200 Ant 1 -34.95 -27 Pass NVNT 802.11a 5240 Ant 1 -30.45 -27 Pass NVNT 802.11n(HT20) 5180 Ant 1 -34.7 -27 Pass NVNT 802.11n(HT20) 5200 Ant 1 -35.94 -27 Pass NVNT 802.11n(HT20) 5240 Ant 1 -29.97 -27 Pass NVNT 802.11n(HT40) 5190 Ant 1 -35.7 -27 Pass NVNT 802.11n(HT40) 5230 Ant 1 -33.01 -27 Pass Tx. Spurious NVNT 802.11a 5180MHz Ant1 Emission Report No.: STR220617013004E Page 26 of 63 Tx. Spurious NVNT 802.11a 5200MHz Ant1 Emission Tx. Spurious NVNT 802.11a 5240MHz Ant1 Emission Report No.: STR220617013004E Page 27 of 63 Tx. Spurious NVNT 802.11n(HT20) 5180MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT20) 5200MHz Ant1 Emission Report No.: STR220617013004E Page 28 of 63 Tx. Spurious NVNT 802.11n(HT20) 5240MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT40) 5190MHz Ant1 Emission Report No.: STR220617013004E Page 29 of 63 Tx. Spurious NVNT 802.11n(HT40) 5230MHz Ant1 Emission Report No.: STR220617013004E Page 30 of 63 5.8G: Duty Cycle Condition Mode Frequency (MHz) Duty Cycle (%) Correction Factor (dB) NVNT 802.11a 5745 97.99 0.09 NVNT 802.11a 5785 97.99 0.09 NVNT 802.11a 5825 97.98 0.09 NVNT 802.11n(HT20) 5745 97.85 0.09 NVNT 802.11n(HT20) 5785 97.85 0.09 NVNT 802.11n(HT20)…
Text truncated - open the document above for the full version.
Report No.: STR220617013004E Version.1.2 Page 1 of 57 FCC RADIO TEST REPORT FCC ID: 2ATZ4-G1C1F Product: mobile phone Trade Mark: UMIDIGI Model Name: C1 Family Model: G1 Report No.: STR220617013004E Prepared for Shenzhen Youmi Intelligent Technology Co., Ltd. 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: STR220617013004E Version.1.2 Page 2 of 57 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Youmi Intelligent Technology Co., Ltd. Address ................................. : 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen, China Manufacturer's Name .......... : Shenzhen Youmi Intelligent Technology Co., Ltd. Address ................................. : 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen, China Product description Product name ........................... : mobile phone Model and/or type reference : C1 Family Model ............................. : G1 Standards ............................. : FCC Part15.407 Test procedure ............................... : ANSI C63.10-2013 and KDB 789033 D02 General UNII Test Procedures New Rules v02r01 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements/ the Industry Canada requirements.. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : Jun 17. 2022 ~ Jul 06, 2022 Date of Issue ........................................... : Jul 07, 2022 Test Result ............................................... : Pass Testing Engineer : (Allen Liu) Authorized Signatory : (Alex Li) Report No.: STR220617013004E Version.1.2 Page 3 of 57 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 FACILITIES AND ACCREDITATIONS 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPT…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15E | 5.75 GHz - 5.83 GHz | 8.90 mW |

Smart Phone
Equipment Class
JBP - Part 15 Class B Computing Device Peripheral
Smart Tablet Computer
Equipment Class
PCB - PCS Licensed Transmitter
Smart phone
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Smart phone
Equipment Class
PCE - PCS Licensed Transmitter held to ear
Smart phone
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
