2ATZ4-G5Z23Smart phone

www.umidigi.com Thanks for choosing UMIDIGl products MP38 G5A Amazon service Email:[email protected] Visit www.umidigi.com for more information UMIDIGI is registered trademark by Shenzhen Youmi Intelligent Technology Co., Ltd. All other trademarks are the property of their respective owner. Language Catalogue Deutsch 7 Italiano 13 Español 19 Français 25 日本語 31 1 English Screen Light/Proximity Sensor 3.5 mm Headphone jack Mic 1 Mic 2 Dual LED Flash 50MP Main Depth- of-field SIM/TF Slot Fingerprint Scanner & Power Button 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE Android is a trademark of Google LLC. 13MP+2MP Camera 5MP Camera WAV/MP3/AAC/AMR/MIDI,etc. 3GP/MPEG4,etc. Band Bluetooth 5.0 LTE FDD:B2/5/7/12 LTE TDD:B41 WCDMA:B2/5 GSM:B2/5 GNSSGPS, Beidou, Glonass,Galileo Type-C WIFI SIM/TF card USB Port Bluetooth Earphone Port IEEE802.11 ac/a/b/g/n 2 Nano SIM Card Or 1 Nano SIM and 1 TF Card 1x Phone 1x Screen Protector (pre-applied) 1x Phone Case 1x Type-C Cable 1x Power Adapter 1x SIM Tray Ejector 1x Quick Start Guide CPU Operating System GPU RAM ROM Battery 4GB 64GB 5000mAh G5A Android 13 Touch ID Side Fingerprint IMG PowerVR GE8300 up to 660MHz MediaTek Helio A22 Quad-Core 4x ARM Cortex-A53 Mpcore up to 2.0GHz 6.52 inch 720x1600 Pixels 3.5 mm Kopfhörerbuchse Mikrofon 1 Lichtsensor/ Abstandssensor Mikrofon 2 Dual-LED-Blitz Lautstärke+ 50MP Main SIM/TF Slot Lautstärke- Schärfen -tiefe Fingerabdruck Scanner / Kraftschlüssel 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE 13MP+2MP Camera 5MP Camera WAV/MP3/AAC/AMR/MIDI,etc. 3GP/MPEG4,etc. 1x Telefon 1x Displayschutzfolie (vorab angewendet) 1x Telefonhülle 1x Typ-C-Kabel 1x Netzteil 1x SIM-Fachauswerfer 1x Kurzanleitung Bluetooth 5.0 GNSSGPS, Beidou, Glonass,Galileo Type-C WIFI Bluetooth IEEE802.11 ac/a/b/g/n 2 Nano SIM Card Or 1 Nano SIM and 1 TF Card USB SIM/TF Karte CPU GPU RAM ROM Akku Betriebssystem 4GB 64GB 5000mAh G5A Android 13 Touch ID Seitlicher Fingerabdruck IMG PowerVR GE8300 up to 660MHz MediaTek Helio A22 Quad-Core 4x ARM Cortex-A53 Mpcore up to 2.0GHz 720x1600 Pixels 6.52 Zoll LTE FDD:B2/5/7/12 LTE TDD:B41 WCDMA:B2/5 GSM:B2/5 Sensore luce/ distanza Schermo Fotocamera frontale Capsula audio Microfono 2 Jack per cuffie da 3.5 mm Microfono 1 Tipo-c UsB Altoparlante Doppio flash LED 50MP Principale SIM/TF Slot Profondità Sensore di impronte/ Tasto Power 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE 13MP+2MP Camera 5MP Camera 1x Telefono 1x Screen Protector (pre-applicato) 1x Custodia per telefono 1x Cavo di tipo C. 1x Adattatore di alimentazione 1x Espulsore vassoio SIM 1x Guida rapida WAV/MP3/AAC/AMR/MIDI,etc. 3GP/MPEG4,etc. Scheda SIM/TF Bluetooth 5.0 GNSSGPS, Beidou, Glonass,Galileo Type-C WIFI Bluetooth IEEE802.11 ac/a/b/g/n 2 Nano SIM Card Or 1 Nano SIM and 1 TF Card USB Sistema Operativo CPU G5A Android 13 Batteria GPU RAM ROM Touch ID 4GB 64GB 5000mAh Lmpronta Digitale Laterale IMG PowerVR GE8300 up to 660MHz MediaTek Helio A22 Quad-Core 4x ARM Cortex-A53 Mpcore up to 2.0GHz 720x1600 Pixels 6.52 Pollici LTE FDD:B2/5/7/12 LTE TDD:B41 WCDMA:B2/5 GSM:B2/5

Micrófono 1 Altavoz Sensor de luz/ sensor de distancia Toma de auriculares de 3.5 mm Receptor Cámara frontal Pantalla Micrófono 2 Flash LED doble 50MP Principal SIM/TF Slot Profundidad de campo Huella- dactilar Escáner / Power Key 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE 13MP+2MP Camera 5MP Camera 1x Teléfono 1x Protector de pantalla (preaplicado) 1x Caja del teléfono 1x Cable tipo C 1x Adaptador de corriente 1x Eyector de bandeja SIM 1x Guía de inicio rápido WAV/MP3/AAC/AMR/MIDI,etc. 3GP/MPEG4,etc. SIM/TF Tarjeta Bluetooth 5.0 GNSSGPS, Beidou, Glonass,Galileo Type-C WIFI Bluetooth IEEE802.11 ac/a/b/g/n 2 Nano SIM Card Or 1 Nano SIM and 1 TF Card USB Sistema operativo CPU G5A Android 13 Batería GPU RAM ROM Touch ID 4GB 64GB 5000mAh Huella digital lateral 720x1600 Pixels 6.52 Pulgadas IMG PowerVR GE8300 up to 660MHz MediaTek Helio A22 Quad-Core 4x ARM Cortex-A53 Mpcore up to 2.0GHz LTE FDD:B2/5/7/12 LTE TDD:B41 WCDMA:B2/5 GSM:B2/5 Haut-parleur capteur de lumière/ capteur de distance Caméra frontale Prise casque 3.5 mm Flash double LED 50MP Principale SIM/TF Slot Profondeur de champ Impressão digital lateral / Bouton d' alimentation 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE 13MP+2MP Camera 5MP Camera WAV/MP3/AAC/AMR/MIDI,etc. 3GP/MPEG4,etc. 1x téléphone 1x protecteur d'écran (pré-appliqué) 1x étui de téléphone 1x câble de type C 1x adaptateur secteur 1x éjecteur de plateau SIM 1x Guide de démarrage rapide Band Bluetooth 5.0 GNSSGPS, Beidou, Glonass,Galileo Type-C WIFI Bluetooth IEEE802.11 ac/a/b/g/n 2 Nano SIM Card Or 1 Nano SIM and 1 TF Card USB Carte SIM/TF CPU G5A Android 13 GPU RAM ROM Batterie 4GB 64GB 5000mAh Empreinte Digitale Latérale IMG PowerVR GE8300 up to 660MHz MediaTek Helio A22 Quad-Core 4x ARM Cortex-A53 Mpcore up to 2.0GHz 720x1600 Pixels 6.52 Pouces LTE FDD:B2/5/7/12 LTE TDD:B41 WCDMA:B2/5 GSM:B2/5 光センサー/距離センサ ファーストマイク 1 Type-C USB接続端子 スピーカー ファーストマイク 2 デュアルフラッシュ 音量ボタン+ 音量ボタン- 50MP メインショット 深度カメラ SIM/TF Slot 指紋認証/ 電源ボタン 4G LTE Nano SIM1 4G LTE Nano SIM2 Micro-SD Nano SIM1 4G LTE 指紋認証 指紋認証機能で画面のロックを解除できます。 設定>セキュリティ＆位置情報サービス>指紋IDをタップして、画面の指 示に従って指紋情報を入力してください。 注意点: 指紋情報の入力の時は、きれいで乾燥した指で確保してください。指紋 採取のために指の腹の情報を入力してください。指紋で画面のロックを 解除する時は、約一秒間指の腹をタッチIDセンサーに置きます。 13MP+2MP Camera 5MP Camera WAV/MP3/AAC/AMR/MIDI,etc. 3GP/MPEG4,etc. Bluetooth 5.0 GNSSGPS, Beidou, Glonass,Galileo Type-C WIFI Bluetooth IEEE802.11 ac/a/b/g/n CPU G5A Android 13 GPU RAM ROM 64GB 5000mAh 4GB 側面指紋 MediaTek Helio A22 Quad-Core 4x ARM Cortex-A53 Mpcore up to 2.0GHz IMG PowerVR GE8300 up to 660MHz LTE FDD:B2/5/7/12 LTE TDD:B41 WCDMA:B2/5 GSM:B2/5 Safety Statement The E-label information To access the e-label information, in the device, Choose: Settings > About phone > Authentication information Made in China Follow UMIDIGI community.a place where you can share and discuss with UMIDIGl Manufacturer: Shenzhen Youmi Intelligent Technology Co., Ltd. Add:406-407 Jinqi Zhigu Building,4/F,1 Tangling Road, Nanshan District, Shenzhen City,Guangdong Province China

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] Date: 2023-07-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD21046 Dear Sir/Madam, The Main chip, model: MT8766V, installed in our product Smart phone, model: G5A, FCC ID: 2ATZ4-G5Z23, this chip supports LTE function, but for marketing purpose, this chip only supports LTE band 2/5/7/12/41(2535-2655MHz), not supports other LTE bands. The other LTE bands were disabled to use by manufacture in the software, the end user has no capability to activate it. The RF chip, model: MT6631N, installed in our product Smart phone, model: G5A, FCC ID: 2ATZ4-G5Z23, supports 2.4G Wi-Fi and 5G Wi-Fi function, but for marketing purpose, this chip only supports 2.4G Wi-Fi(2412-2462MHz/2422-2452MHz), 5G Wi-Fi(5150-5250MHz; 5725-5850MHz). The other 2.4G Wi-Fi and 5G Wi-Fi bands were disabled to use by manufacture in the software, the end user has no capability to activate it. Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023-07-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2ATZ4-G5Z23 Shenzhen Youmi Intelligent Technology Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Contact Person:Wang Kun Title:Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2023-07-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2ATZ4-G5Z23 Shenzhen Youmi Intelligent Technology Co., Ltd. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Contact Person:Wang Kun Title:Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2023-07-10 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2ATZ4-G5Z23 Shenzhen Youmi Intelligent Technology Co., Ltd. certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen Youmi Intelligent Technology Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China FRN: 0028652048 Tel: 86-075583220991 Email: [email protected] Signed by (printed name): Wang Kun Signature:

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2023-07-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Shenzhen Youmi Intelligent Technology Co., Ltd., the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] FCC Confidential Authorization Date: 2023-07-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ATZ4-G5Z23 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Youmi Intelligent Technology Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts List/Tune up procedure (for licensed devices)  Software Security Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Wang Kun Manager

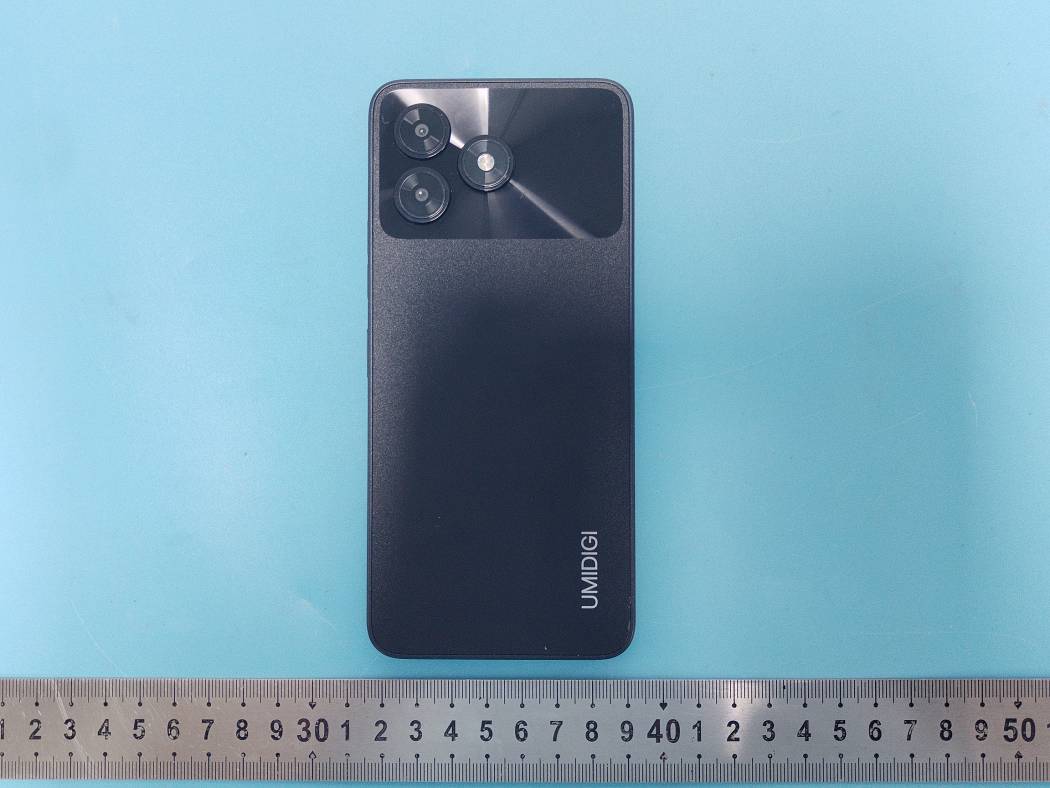

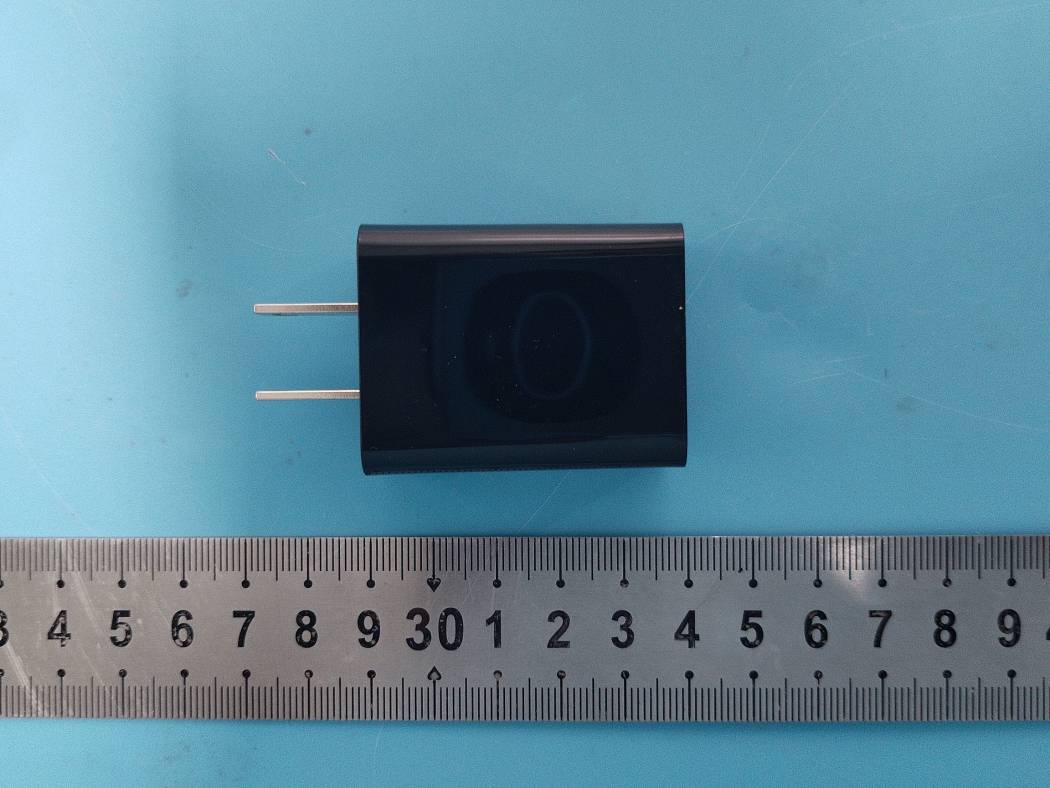

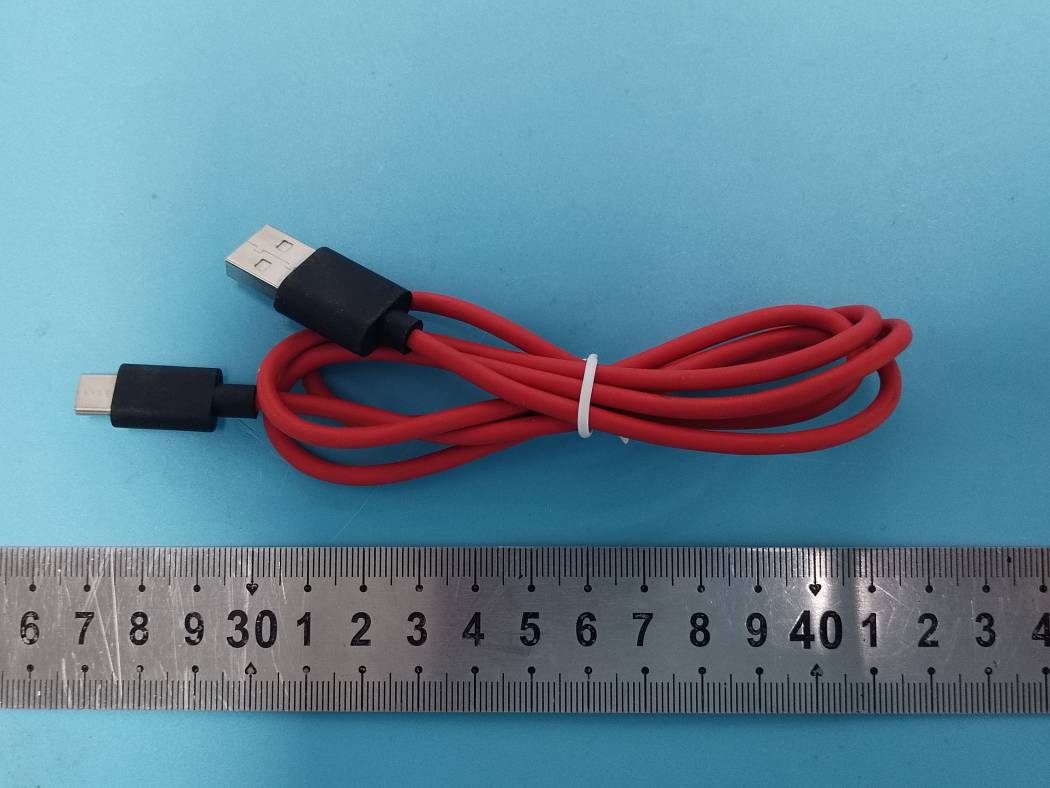

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF External Photos Page 1 of 6 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF External Photos Page 2 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF External Photos Page 3 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF External Photos Page 4 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF External Photos Page 5 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF External Photos Page 6 of 6

The E-label information To access the e-label information, in the device, Choose: Settings > About phone > Authentication information Detailed as follows: Scroll through the menu to find and select Settings Scroll down in Settings to find and select About phone Scroll down in About phone to find and select Authentication information The e-label will display Regulatory information

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Internal Photos Page 1 of 9 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Internal Photos Page 2 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Internal Photos Page 3 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Internal Photos Page 4 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Internal Photos Page 5 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Internal Photos Page 6 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Internal Photos Page 7 of 9 Main ANT (GSM850/WCDMA B5/LTE B5/B7/B12/B41 transmit on Main antenna) Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Internal Photos Page 8 of 9 DIV ANT (PCS1900/WCDMA B2/LTE B2 transmit on DIV antenna) BT/WiFi ANT Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Internal Photos Page 9 of 9

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230620-35489E-RF-00A Version 7: 2023-01-30 Page 12 of 76 FCC-BT FCC§15.247 (i), §1.1307 (b) &§2.1093 – RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b) (1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result For worst case: Mode Frequency (MHz) Max tune-up conducted power* (dBm) Max tune-up conducted power* (mW) Distance (mm) Calculated value Threshold (1-g SAR) SAR Test Exclusion BT 2402-2480 3.5 2.24 5 0.7 3.0 Yes Note: The tune-up power was declared by the applicant. Result: No Standalone SAR test is required

深圳市安威无线科技有限公司 ANWEIcommnuicationEquipmentCo.,Ltd 规格书 APPROVALSHEET 客户 Customer Youmi 规格型号 Specs G5A 安威料号 PartNumber 频段 FrequencyBand 2G:2/3/5/8 3G:1/2/4/5/8 4G:B1/2/3/4/5/7/8/12/17/20/28/66/38/40/41 颜色 Color Black 版本 Edition REV:A 销售 Salesperson Mr.Xie 设计 Design LeiYaoBo 结构 Structure QINYUNLIN 确认 Confirm 日期 Date 2023/7/10 签字日期 SigningDate 客户确认Customerconfirmation: 携手共进共创未来 Joinhandstocreatethefuture ANT Manufacturers: ANWEI commnuication Equipment Co.,Ltd Address:2nd Floor, East Block, Building 5, Yifenghua Innovation Industrial Park, Huaning Road, Dalang Street, Longhua District, Shenzhen City, Guangdong Province 项目开发环境 Projectdevelopmentenvironment  主集天线(MAINantenna) 工作频段(Workingfrequencyband)：700MHZ~2690MHZGSM850/900/1800 WCDMA1/4/5/6/8 FDD1/3/4/5/7/8/12/17/20/28A/B/66TDD38/40/41 天线匹配(Matcheingnetwork)： Thecustomerbroughttheirownmatching, whichwasnotchanged 分集天线(DIVantenna) 工作频段(Workingfrequencyband): Thecustomerbroughttheirownmatching, whichwasnotchanged 分集天线匹配(Matcheingnetwork) PCS1900/WCDMA B2/LTE B2 5GWIFI天线（5GWIFIantenna） GPS天线工作频段（WorkingfrequencybandofGPSantenna）：1559MHZ~1616MHZ 5GWIFI工作频段（Workingfrequencybandof5GWIFIantenna）：5150MHZ~5850MH 2.4GWIFI天线（2.4GWIFIantenna）（Workingfrequencybandof5GWIFIantenna）： 2400MHZ~2500MH ANWEIANTTRP&TISparameterSummaryofG5A GPS测试(GPSTest) 基本稳定2颗40以上 WIFITEST： 天线增益(Antennagain) StandardBandFrequency Gain(dbi) TDD_LTETDD_B3825801.79 TDD_LTETDD_B4023101.44 TDD_LTETDD_B4125931.79 FDD_LTEFDD_B119250.95 FDD_LTEFDD_B218550.91 FDD_LTEFDD_B317150.64 FDD_LTEFDD_B417150.64 FDD_LTEFDD_B5829-1.15 FDD_LTEFDD_B725051.78 FDD_LTEFDD_B8885-0.83 FDD_LTEFDD_B12704-1.92 FDD_LTEFDD_B17709-1.92 FDD_LTEFDD_B20837-1.24 FDD_LTEFDD_B28708-1.91 FDD_LTEFDD_B28723-1.85 FDD_LTEFDD_B6617150.64 WCDMAWCDMA_B11922.40.95 WCDMAWCDMA_B21852.40.91 WCDMAWCDMAB417150.64 WCDMAWCDMAB5826.4-1.15 WCDMAWCDMA_B8882.4-0.83 GSMGSM850824.2-1.15 GSMGSM900890.2-0.83 GSMPCS19001850.20.91 GSMDCS18001710.20.63 2.4GWIFI 2412 1.76 5GWIFI 5825 1.23 GPS15751.14 BT24001.76 TheAppleandDirectionchartsareas follows: 环境处理方式(Environmentaltreatment) Mainboard groundingwith conductive sponge Smallboardwith conductivesponge grounding LTEB12/17/28A/B LTEB5/20W5GSM850 LTEB8W8GSM900 LTEB1/2W1/2GSM1900 LTEB7/38/40/41 2.4GWIFI 5GWIFI TheEnd 此报告中所含的一切信息版权归我司所有，在未得到我司许可下，请勿散播给任何第三方

★ Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503290 Web: www.atc-lab.com Version 7: 2023-01-30 Page 1 of 76 FCC-BT TEST REPORT Applicant Name : Shenzhen Youmi Intelligent Technology Co., Ltd. Address : 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Report Number : RA230620-35489E-RF-00A FCC ID: 2ATZ4-G5Z23 Test Standard (s) FCC PART 15.247 Sample Description Product Type: Smart phone Model No.: G5A Multiple Model(s) No.: N/A Trade Mark: UMIDIGI Date Received: 2023/06/20 Report Date: 2023/07/21 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Roger Ling Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA230620-35489E-RF-00A Version 7: 2023-01-30 Page 2 of 76 FCC-BT TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC§15.247 (I), §1.1307 (B) &§2.1093 – RF EXPOSURE .......................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS .................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Test Photos Page 1 of 2 Photo of Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: RA230620-35489E-RF Test Photos Page 2 of 2 Photo of Radiated Emission Measurement (Below 1G) Photo of Radiated Emission Measurement (Above 1G)
