2ATZ4-GBD1STWS headset

Earbuds Type-C cable What’s in the Box? Product Overview 1. Multi- Function Touchpad 2. Microphone 1 3. Earbuds Charging pins 4. Trim 5. Charging Case Functions Indicator LED 6.Charging Port(Type-C) 7. Function key Open lid and pick up earbuds to power them on. On phone, search for G1 Buds and tap to connect. Power on earbuds they will auto reconnect to the last phone in connectivity records(if any), about 15 seconds later, reconnection timeout and the earbuds will enter pairing mode. Charging How to connect 61mm 86mm • Fully charge both the earbuds and the charging case before using the earbuds for the first time. • To prevent damage, use the provided USB-C cable. • You can charge the charging case by using a certified wireless charger (not provided). • Fully dry offthe earbuds and the USB port before charging. Notes What’s in the Box? Quick User Guide Charging Box Ladebox Typ-C-KabelKurzanleitung 1. Multifunktions-Touchpad 2. Mikrofon 4. Stutzen So stellen Sie eine Verbindung her Telefon in Verbindungsaufzeichnungen (falls vorhanden), etwa 15 Sekunden später, Zeitüberschreitung bei der Wiederherstellung der Verbindung und die Ohrhörer wechseln in den Pairing-Modus Notizen Notes What’s in the Box? Boîte de charge Câble de type C 1. Pavé tactile multifonction 2. Microphone 3. Écouteurs Pinse de chargement 6. Port de charge (Type-C) 7. Touche de fonction Comment se connecter Indicateur de chargeCharge: la led clignote en orangeEntièrement chargé: la led devient orange toujours allumée Chargez complètement les écouteurs et l’étui de charge avant d’utiliser les écouteurs pour la première fois. Pour éviter tout dommage, utilisez le câble USB-C fourni Vous pouvez charger le boîtier de charge en utilisant un Chargeur sans fil (non fourni) Séchez complètement les écouteurs et le port USB avantCharge. 箱の中は何ですか? イヤフォン 充電ボックス タイプCケーブル クイックユーザーガイド 1.多機能タッチパッド 2.マイク 3.イヤフォン充電ピン 5.充電ケース機能インジケータLED 6.充電ポート(タイプC) 7.ファンクションキー 接続方法 製品概要 蓋を開け、イヤフォンを手に取って電源を入れます。オン 電話でG1Budsを検索し、タップして接続します。 充電 充電インジケーター 充電中:LEDがオレンジ色に点滅フル 充電:LEDは常にオレンジ色に変わります プロンプト イヤフォンと充電ケースの両方を完全に充電します イヤフォンを初めて使用する前に。 損傷を防ぐため、付属のUSB-Cケーブルを使用してください 認定された ワイヤレス充電器(付属していません) 充電前にイヤフォンとUSBポートを完全に乾かしてください Cosa c'è nella scatola? Cavo di tipo C 1. Touchpad multifunzione 2. Microfono 1 3. Pin di ricarica degli auricolari 4. Tagliare 5. LED indicatore delle funzioni della custodia di ricarica 6. Porta di ricarica (Tipo-C) 7. Tasto funzione Apri il coperchio e prendi gli auricolari per accenderli. Su , cerca G1 Buds e tocca per connetterti. Accendi gli auricolari che si ricollegheranno automaticamente all'ultimo telefono nei record di connettività (se presenti), circa 15 secondi dopo, timeout di riconnessione e gli auricolari entreranno Modalità di associazione. Indicatore di caricaRicarica: il led lampeggia in arancioneCarica completa: il led diventerà arancione sempre acceso Note • Prima di utilizzare le cuffie per la prima volta, caricare completamente la custodia di ricarica • Per evitare danni, utilizzare il cavo USB-C in dotazione. • È possibile caricare la custodia di ricarica utilizzando un caricabatterie wireless certificato (non fornito). • Asciugare completamente gli auricolari e la porta USB prima caricamento Ouvrez le couvercle et prenez les écouteurs pour les allumer. Sur téléphone, recherchez G1 Buds et appuyez pour vous connecter Allumez les écouteurs qu’ils reconnecteront automatiquement au dernier Téléphone dans les enregistrements de connectivité (le cas échéant), environ 15 secondes plus tard, le délai de reconnexion expire et les écouteurs entreront en mode d’appariement イヤフォンの電源を入れると、最後に自動的に再接続されます 接続レコード(存在する場合)の電話、約15秒後、 再接続タイムアウトとイヤフォンがペアリングモードになります。 Step 1. Open the charging case lid to turn on the earbuds automatically Step 2. Search for "G1 Buds" and Tap "Connect" to pair the earbuds to your device. Step 3. You will hear the "Connected" tone when the earbuds and your device are connected successfully. Gesture Control Play/Pause Reject call Activate Siri or other voice assistant Answer/End a Call x2(L/R) x2(L/R) x3(L/R) x2(L/R) x2(L/R) x2(L/R) x3(L/R) x2(L/R) Gestensteuerung Wiedergabe/Pause Annehmen/Beenden eines Anrufs Anruf ablehnen Activate Siri or other voice assistant x2(L/R) x2(L/R) x3(L/R) x2(L/R) Étape 1. Ouvrez le couvercle du boîtier de charge pour allumer le écouteurs automatiquement Étape 2. Recherchez «G1 Buds» et appuyez sur «Connecter» pour coupler les écouteurs à votre appareil. Étape 3. Vous entendrez la tonalité « Connecté » lorsque leLes écouteurs et votre appareil sont connectés avec succès. Lecture/Pause Répondre/mettre fin à un appel Refuser l’appel Activer Siri ou autre assistant vocal x2(L/R) x2(L/R) x3(L/R) x2(L/R) Controllo gestuale Passo 1. Aprire il coperchio della custodia di ricarica per accendere il auricolari automaticamente Passo 2. Cerca "G1 Buds" e tocca "Connetti" per associare gli auricolari al dispositivo. Passo 3. Sentirai il tono "Connesso" quando il Gli auricolari e il dispositivo sono collegati correttamente. Riproduzione/Pausa Rispondi/riaggancia Rifiuta la chiamata Aktiwat Siri Orsser Vois Astan x2(L/R) x2(L/R) x3(L/R) x2(L/R) ジェスチャーコントロール Download and install APP Tips 1.Before using the earbuds,please read the manual carefully and keepit for future references. 2.The earbuds need to be fully charged prior to first-time use 3.lf the earbuds are left unused for over two weeks, please recharge. 4.Please use the chargers made by qualified manufacturer. G1 Buds Quick User Guide 4.飾り G1 Buds Quick User Guide G1 Buds Quick User Guide G1 Buds Quick User Guide G1 Buds Quick User Guide G1 Buds Quick User Guide Kopfhörer Was ist in dieser Box? Produktbeschreibung berechnen Contenu de la boîte Guide de démarrage rapide Description du produit Contrôle gestuel Custodia di ricarica Guida rapida Descrizione del prodotto Metodo di connessione accusa Öffnen Sie den Deckel, nehmen Sie die Ohrhörer 3. Ohrhörer-Ladestift 5. Das Ladeetui zeigt LED-Licht an 6. Ladeanschluss (Typ-C) 7. Funktionsta…

Text truncated - open the document above for the full version.

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] Date: 2023-07-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The RF chip, model AD6973D, which installed in our product TWS headset, Model: G1 Buds, FCC ID: 2ATZ4-GBD1S, supports BDR (GFSK), EDR (π/4-DQPSK, 8DPSK), and BLE 1M/2M functions. For use in America and this chip will not support/enable EDR (8DPSK) function. The EDR (8DPSK) function has been shielded by the manufacturer using the software, the end user has no capability to activate it. Sincerely Yours, Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] Declaration Date: 2023-07-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: Our product, TWS headset, Model number: G1 Buds, FCC ID: 2ATZ4-GBD1S, is a twins earbud that has a left earbud and a right earbud. We would like to declare that the left earbud and right earbud are electrically identical. So only choose the one of two earbuds to test. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023-07-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2ATZ4-GBD1S Shenzhen Youmi Intelligent Technology Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Contact Person:Wang Kun Title:Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2023-07-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2ATZ4-GBD1S Shenzhen Youmi Intelligent Technology Co., Ltd. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Contact Person:Wang Kun Title:Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2023-07-05 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2ATZ4-GBD1S Shenzhen Youmi Intelligent Technology Co., Ltd. certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen Youmi Intelligent Technology Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China FRN: 0028652048 Tel: 86-075583220991 Email: [email protected] Signed by (printed name): Wang Kun Signature:

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2023-07-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Shenzhen Youmi Intelligent Technology Co., Ltd., the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] FCC Confidential Authorization Date: 2023-07-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ATZ4-GBD1S In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Youmi Intelligent Technology Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] Date: 2023-07-05 FCC certification No. Cover Letter We, Shenzhen Youmi Intelligent Technology Co., Ltd., hereby submit justification for placing the FCC certification No. in the associated user’s manual and packaging. According to the FCC regulation, the FCC certification No. should be printed on the earbuds, but as the earbuds are too small to print the label (FCC ID: 2ATZ4-GBD1S) , it will be moved to the user manual and packaging. The details are as below: A. Side surface (A): The side surface does not provide enough physical space to fit the printing of the FCC certification No. according to below reference picture. B. Top cover (B): The top cover does not provide enough physical space to fit the printing of the FCC certification No. according to below reference picture. Conclusion: Based on the above description of area A to B, we conclude that the device is unquestionably too small for enabling the FCC certification No. to be printed onto any surface. We therefore request to move the FCC certification No. to the user’s manual and packaging. Label: Stick the label on packaging FCC certification No. is printed on the back cover of the user’s manual. Best regards, Signature: Wang Kun Manager

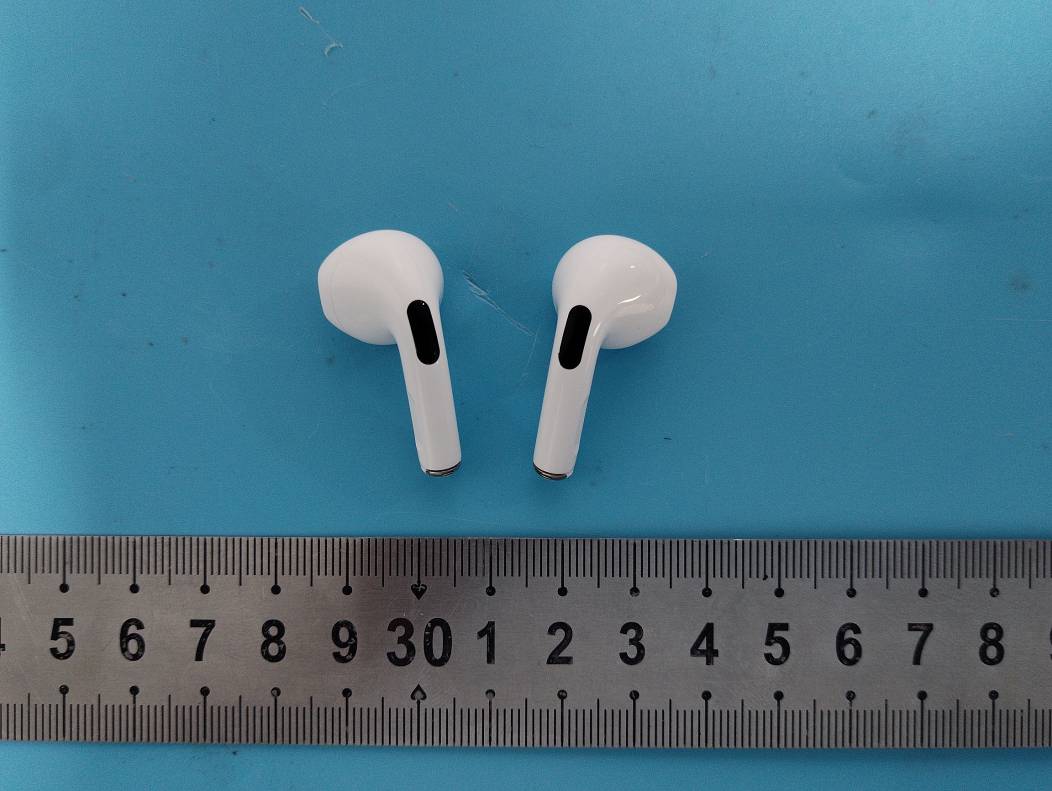

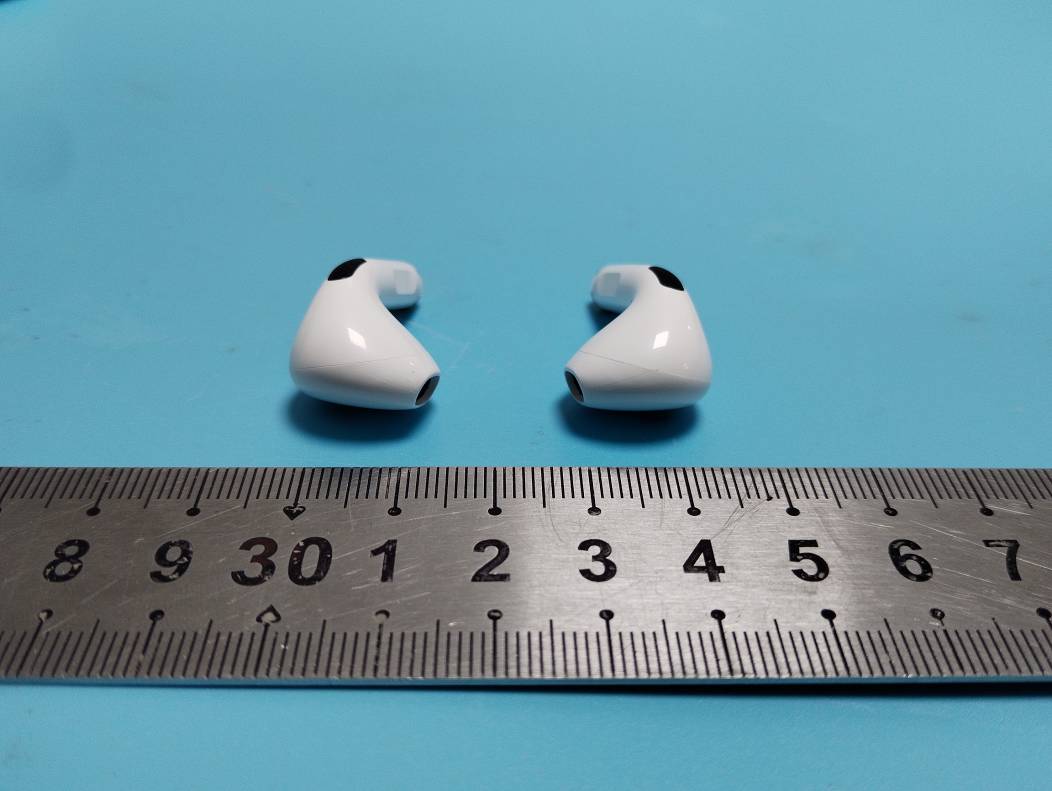

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230627-36739E-RF External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA230627-36739E-RF External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230627-36739E-RF External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230627-36739E-RF External Photos Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230627-36739E-RF Internal Photos Page 1 of 3 Internal photos Left Earbud Right Earbud Shenzhen Accurate Technology Co., Ltd. Project No.: RA230627-36739E-RF Internal Photos Page 2 of 3 Left Earbud Right Earbud Shenzhen Accurate Technology Co., Ltd. Project No.: RA230627-36739E-RF Internal Photos Page 3 of 3 ANT

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230627-36739E-RFA Version 139: 2023-01-30 Page 11 of 59 FCC-BT；RSS-BT FCC§15.247 (i), §1.1307 (b)(1)&§2.1093 – RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b)(1), systems operating under the provisions of this sectionshall be operated in a manner that ensure that the public is not exposed to radio frequency energylevel in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result For worst case: Mode Frequency (MHz) Max tune-up conducted power (dBm) Max tune-up conducted power (mW) Distance (mm) Calculated value Threshold (1-g SAR) SAR Test Exclusion BT 2402-2480 -5.0 0.32 5 0.1 3.0 Yes Result: No SAR test is required

2.4GHz 3216 Chip Antenna: RANT3216F245X02 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT3216F245X02 (A)(B)(C)(D)(E)(F) ElectricalSpecification ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 3.2x1.6mm( ± 0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=01 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain1.24dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature(°C)-40~85°C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) Dimension(mm) L 3.20±0.20 W 1.60±0.20 T 0.45±0.20 咏成國際科技有限公司電話 :13530576606 RAINInternationalTechnologyCo.,Ltd. TEL:13530576606 Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 3216 Chip Antenna: RANT3216F245X02 _ 1 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ReturnLoss Frequency(MHz) S11(dB) 2400-10.50 2450-30.62 2500-11.47 Radiation 2400MHz2450MHz2500MHz Efficiency82.52%85.26%83.01% PeakGain1.15dBi1.24dBi1.19dBi Directivity1.89dBi1.97dBi1.91dBi X Y Z 2400MHz 2450MHz 2500MHz 2.4GHz 3216 Chip Antenna: RANT3216F245X02 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 32167”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType3216 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 2.4GHz 3216 Chip Antenna: RANT3216F245X02 Reliability Table _ TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz 3216 Chip Antenna: RANT3216F245X02 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds. NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22021/02/22Add2Dradiationcharacteristic

★ Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86-755-26503290 Web: www.atc-lab.com Version 139: 2023-01-30 Page 1 of 59 FCC-BT；RSS-BT TEST REPORT Applicant Name : Shenzhen Youmi Intelligent Technology Co., Ltd. Address : 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Report Number : RA230627-36739E-RFA FCC ID: 2ATZ4-GBD1S IC: 26074-GBD1S Test Standard (s) FCC PART 15.247; RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2; RSS-247, ISSUE 2, FEBRUARY 2017 Sample Description Product Type: TWS headset Model No.: G1 Buds Multiple Model(s) No.: N/A Trade Mark: UMIDIGI Date Received: 2023/06/27 Report Date: 2023/07/10 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Dave Liang Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA230627-36739E-RFA Version 139: 2023-01-30 Page 2 of 59 FCC-BT；RSS-BT TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC§15.247 (I), §1.1307 (B)(1)&§2.1093 – RF EXPOSURE ....................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 RSS-102 § 2.5.1 –EXEMPTION LIMITS FOR ROUTINE EVALUATION-SAR EVALUATION .................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 TEST RESULT: ............................................................................................................................................................ 13 FCC §15.203 & RSS-GEN §6.8 – ANTENNA REQUIREMENT............................................................................ 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.209, §15.205 & §15.247(D) & RSS-247§ 5.5 - SPURIOUS EMISSIONS ................................................ 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230627-36739E-RF Test Photos Page 1 of 1 Photo of Radiated Emission Measurement (Below 1G) Photo of Radiated Emission Measurement (Above 1G)
