BISON X10 www.umidigi.com Model: RP01 Thanks for choosing UMIDIGl products Language Catalogue 1 Deutsch 7 Italiano 13 Español 19 Français 25 日本語 31 Visit www.umidigi.com for more information UMIDIGI is registered trademark by Shenzhen Youmi Intelligent Technology Co., Ltd. All other trademarks are the property of their respective owner. English 8MP Screen Light/Proximity Sensor Cue light 3.5 mm Headphone jack Mic 1 Dual LED Flash 20MP Main 8MP Super Wide Angle 5MP Macro Customizable Button 2 Finger print Scanner / Power Key Customizable Button 1 Volume± Barometer Pressure Relief Hole Mic 2 SIM/T-flash card Slot GSM:B2/5 Model Operating systen CPU GPU RAM ROM Battery Touch ID Bluetooth 4.2 RP01 4GB 64GB 6150mAh Side-mounted Fingerprint sensor 6.53 inch 720*1600 pixels 20MP+8MP+ Camera5MP 8MP Camera LTE FDD:B 2/4/ 12/13 LTE TDD: B41 WCDMA:B2/ 5 Build in GPS/Glonass/Beidou 3.5mm Android™ 11 MTK,Helio,P60,4xCortex-A73 2GHz, 4xCortex-A53 2GHz ARM Mali G72 MP3 800MHz 2 Nano SIM Card Or 1 Nano SIM Card and 1 TF Card 3GP/MPEG4,etc WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. Stichwort Licht 3.5 mm Kopfhörerbuchse Mikrofon 1 8MP Lichtsensor/ Abstandssensor Dual-LED-Blitz 20MP Main Anpassbare Schaltflâche 2 Fingerabdruck Scanner / Kraftschlüssel Anpassbare Schaltflâche 1 Lautstärke± Barometer Druck Linderung Loch Mikrofon 2 SIM/T-Blitz Kartenschlitz 8MP Super Weitwinkel 5MP Makro Bluetooth 4.2 4GB 64GB 6150mAh 6.53 720*1600 pixels 20MP+8MP+ Camera5MP 8MP Camera Build in GPS/Glonass/Beidou Seitlich montierter Fingerabdruck sensor 3.5mm Android™ 11 2 Nano SIM Karte oder 1 Nano SIM Karte und 1 TF-Karte CPU GPU MTK,Helio,P60,4xCortex-A73 2GHz, 4xCortex-A53 2GHz ARM Mali G72 MP3 800MHz 3GP/MPEG4,etc WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. RP01 GSM:B2/5 LTE FDD:B 2/4/ 12/13 LTE TDD: B41 WCDMA:B2/ 5 8MP Schermo Sensore luce/ distanza Segnale luminoso Jack per cuffie da 3.5 mm Microfono 1 Capsula audio Fotocamera frontale Tipo-c UsB Doppio flash LED 20MP Principale 8MP Super Angolo ampio 5MP Macro Personali -zzabile Pulsante 2 Sensore di impronte/ Tasto Power Personalizzabile Pulsante 1 Volume± Barometro Foro di scarico della pressione Microfono 2 SIM/T-flash slot per schede Altoparlante Fotocamera posteriore Fotocamera frontale da Modellino Bluetooth 4.2 4GB 64GB 6150mAh 6.53 720*1600 pixels 20MP+8MP+ Camera5MP 8MP Camera Build in GPS/Glonass/Beidou Lettore d’impronte laterale 3.5mm Android™ 11 2 schede Nano SIM o 1 scheda Nano SIM e 1 scheda TF CPU GPU MTK,Helio,P60 4xCortex-A53 2GHz ARM Mali G72 MP3 800MHz ,4xCortex-A73 2GHz, 3GP/MPEG4,etc WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. RP01 GSM:B2/5 LTE FDD:B 2/4/ 12/13 LTE TDD: B41 WCDMA:B2/ 5 8MP Sensor de luz/ sensor de distancia Luz de señal Toma de auriculares de 3.5 mm Micrófono 1 Receptor Cámara frontal Pantalla Flash LED doble 20MP Principal 8MP Súper Gran angular 5MP Macro Personalizable Botón 2 Huella dactilar Escáner / Power Ke y Personalizable Botón 1 Volume± Barómetro Orificio de alivio de presión SIM / T-flash ranura para tarjetas Micrófono 2 Altavoz Bluetooth 4.2 4GB 64GB 6150mAh 6.53 720*1600 pixels Build in GPS/Glonass/Beidou lector de heullas digital lateral 3.5mm Android™ 11 20MP+8MP+5MP 2 tarjetas Nano SIM o 1 tarjeta Nano SIM y 1 tarjeta TF CPU GPU MTK,Helio,P60 4xCortex-A53 2GHz ARM Mali G72 MP3 800MHz ,4xCortex-A73 2GHz, 3GP/MPEG4,etc WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. RP01 GSM:B2/5 LTE FDD:B 2/4/ 12/13 LTE TDD: B41 WCDMA:B2/ 5

8MP Lumière de queue Prise casque 3.5 mm capteur de lumière/ capteur de distance Caméra frontale Flash double LED 20MP Principale 8MP grande angular Super 5MP Macro Personnalisa -ble Bouton 2 Impressão digital lateral / Bouton d' alimentation Personnalisable Bouton 1 Volume± Barometer Trou de décompression Micro 2 SIM/T-flash fente pour carte Haut-parleur Bluetooth 4.2 4GB 64GB 6150mAh 6.53 720*1600 pixels Build in GPS/Glonass/Beidou Empreinte digitale latérale 3.5mm Android™ 11 2 cartes nano SIM ou 1 carte nano SIM et 1 carte TF 20MP+8MP+5MP CPU GPU MTK,Helio,P60 4xCortex-A53 2GHz ARM Mali G72 MP3 800MHz ,4xCortex-A73 2GHz, 3GP/MPEG4,etc WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. RP01 GSM:B2/5 LTE FDD:B2/4/12/13 LTE TDD: B41 WCDMA:B2/5 光センサー/距離センサ 8MP リマインダーライト ファーストマイク 1 Type-C USB接続端子 20MP メインショット 8MP 広角レンズ 5MP マクロ カスタマイズ ボタン 2 音量ボタン± バロメ ーター 圧力逃がし穴 デュアル フラッシュ SIM / Tフラ ッシュカー ド挿入口 カスタマイズ ボタン 1 スピーカー 指紋認証/ 電源ボタン ファーストマイク 2 Bluetooth 4.2 4GB 64GB 6150mAh 20MP+8MP+ 5MP 8MP Build in GPS/Glonass/Beidou 側面の指紋 3.5mm Android™ 11 2Nano SIMカードまたは1Nano SIMカードと1 TFカード 256GB CPU GPU MTK,Helio,P60 4xCortex-A53 2GHz ARM Mali G72 MP3 800MHz ,4xCortex-A73 2GHz, 3GP/MPEG4,etc WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc. RP01 GSM:B2/5 LTE FDD:B2/4/12/13 LTE TDD: B41 WCDMA:B2/5 37 8MP Датчик освещенности / приближения Микрофон 1 ТИП-C USB 38 Двойная LED Двспышка 20MP Главный 8MP супер Широкий угол 5MP Макрос Настраиваем -ая кнопка 2 Отпечаток - пальца Сканер / Кнопка питания ± Барометр Отверстие для сброса давления SIM/TF Настраиваем -ая кнопка 1 Оратор Микрофон 2 39 40 41 42 4GB 6150mAh 64GB RP01 MTK,Helio,P60,4xCortex-A73 2GHz, 4xCortex-A53 2GHz ARM Mali G72 MP3 800MHz 20MP+8MP+ Камеры5MP 8MP Камеры 2 Nano SIM-карты или 1 Nano SIM-карта и 1 TF-карта Bluetooth 4.2 Телефон x1 Кабель Type-C x1 Адаптер питания x1 Меню пользователя x1 Touch ID Боковой датчик отпечатков пальцев GSM:B2/5 LTE FDD:B2/4/12/13 LTE TDD: B41 WCDMA:B2/5 43 8MP işaret ışığı 3.5 mm Kulaklık jakı Mikrofon 1 TİP-C USB üRÜN HEX-VISION GÖRÜNTÜ 44 20MP Ana 8MP Süper Geniş açı 5MP Makro özelleştirilebilir Düğme 2 Parmak izi tarayıcı / Güç anahtarı Ses dügmesi± Barometre Basınç Tahliye Deliği SIM/TF Mikrofon 2 Çift LED flas özelleştirilebilir Düğme 1 Hoparlör 45 46 47 48 4GB 64GB RP01 MTK,Helio,P60,4xCortex-A73 2GHz, 4xCortex-A53 2GHz ARM Mali G72 MP3 800MHz Dokunmatik kimlik Yana monteli Parmak İzi sensörü 20MP+8MP+ Kamera5MP 8MP Kamera TİP-C USB Pil 6150mAh Telefon x1 Tip-C kablo x1 Güç Adaptörü x1 Kullanıcı Menüsü x1 2 Nano SIM Kart Veya 1 Nano SIM Kart ve 1 TF Kart GSM:B2/5 LTE FDD:B2/4/12/13 LTE TDD: B41 WCDMA:B2/5 Safety Statement FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. ISEDC Warning Operation of 5150-5250 MHz is restricted to indoor use only. This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s) Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le fonctionnement de 5150-5250 MHz est limité à une utilisation en intérieur uniquement. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Specific Absorption Rate (SAR) information SAR tests are conducted using standard operating positions accepted by the FCC/ISEDC with the phone transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. Before a new model phone is a available for sale to the public, it must be tested and certified to the FCC/ISEDC that it does not exceed the exposure limit established by the FCC/ISEDC, tests for each phone are performed in positions and locations as required by the FCC/ISEDC. . For body worn operation, this model phone has been tested and meets the FCC/ISEDC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 10mm from the body. Non-compliance wit…

Text truncated - open the document above for the full version.

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2021-10-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Shenzhen Youmi Intelligent Technology Co., Ltd., the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] Product Similarity Declaration Date: 2021-10-14 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Shenzhen Youmi Intelligent Technology Co., Ltd., hereby declare that we have a product named as RP01 (model: RP01, FCC ID: 2ATZ4-RP01X) was tested by Shenzhen Accurate Technology Co., Ltd., Meanwhile, for our marketing purpose, we would like to list a series model (RP03, RP04) on reports and certificate, all the models are identical in schematics. Only the model name is different. No other changes are made on them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Wang Kun Manager

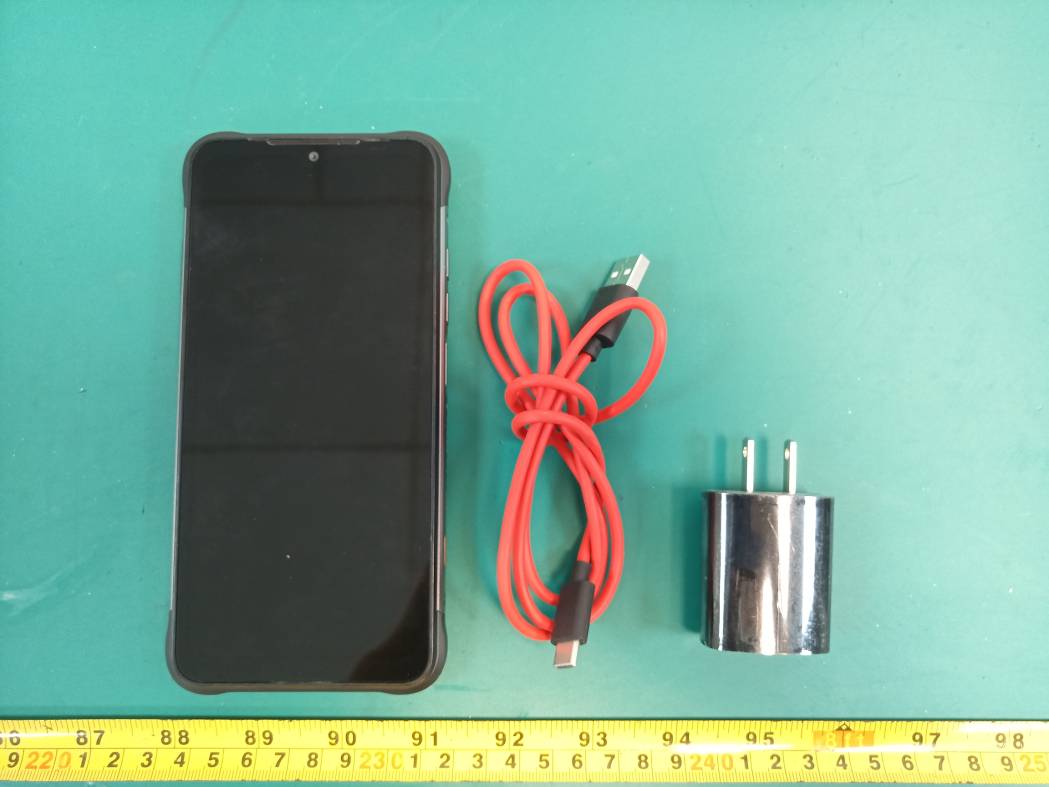

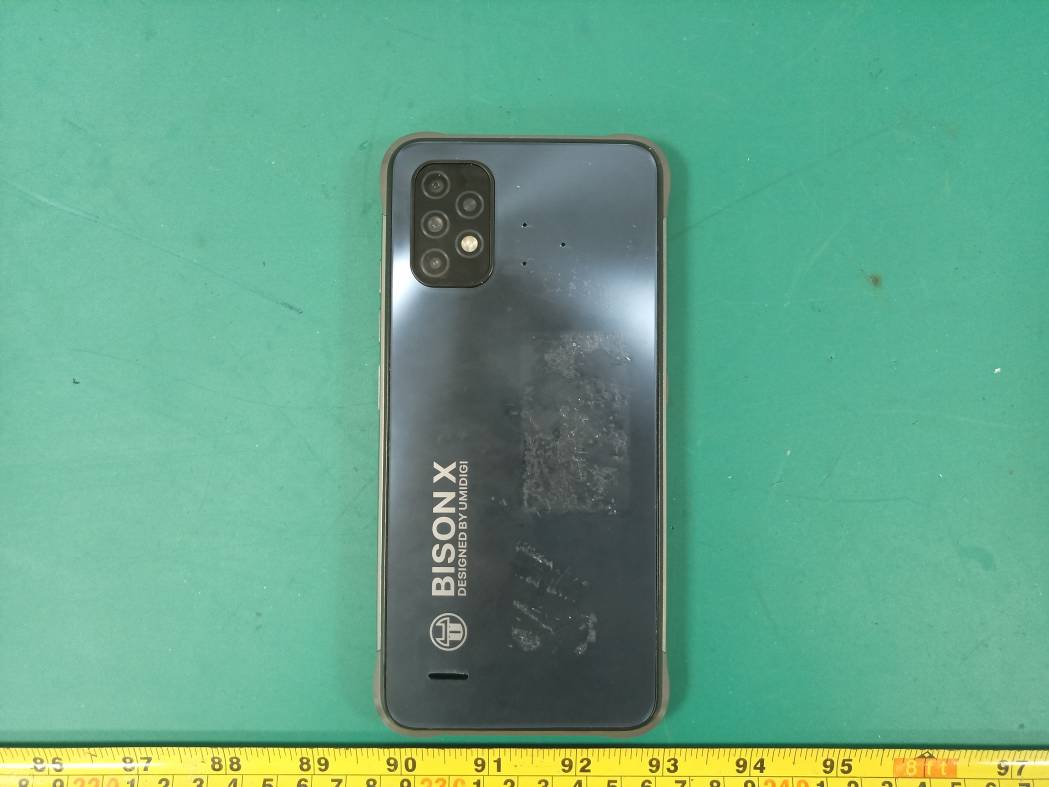

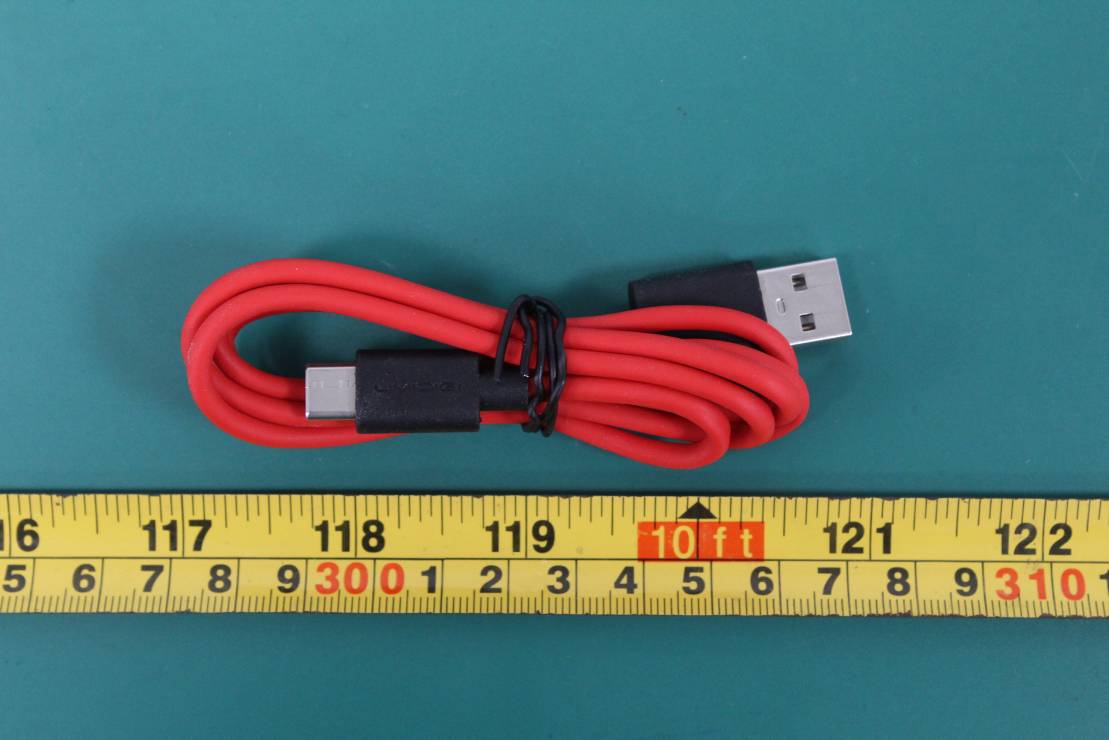

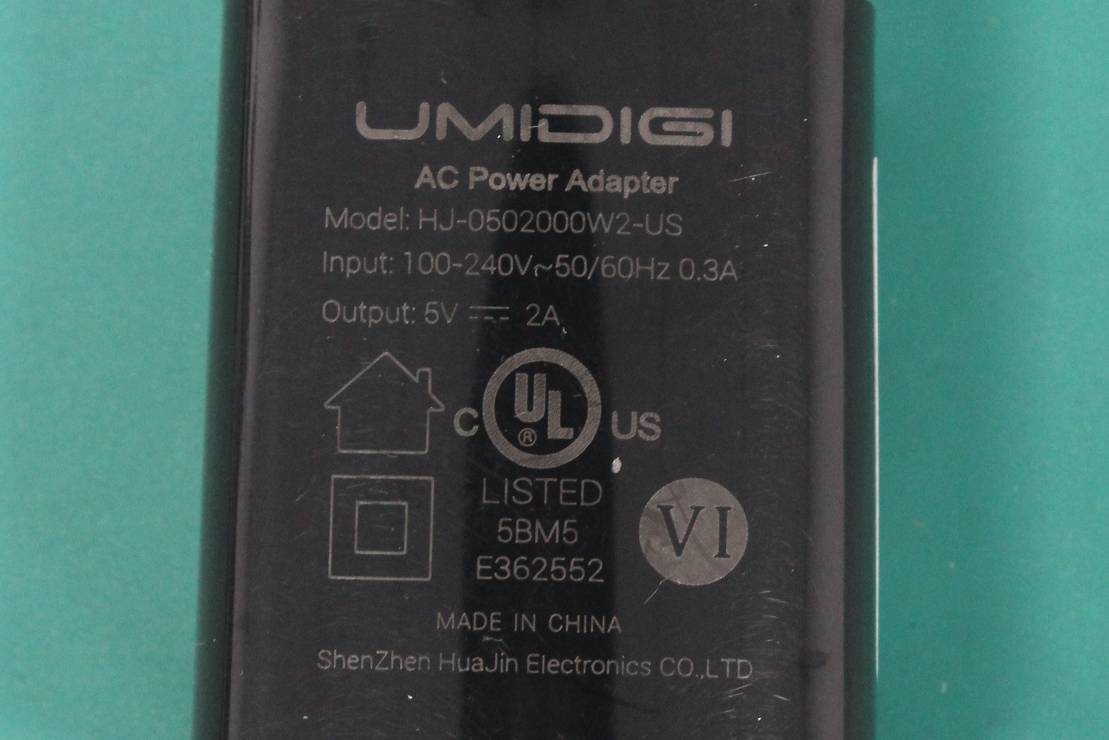

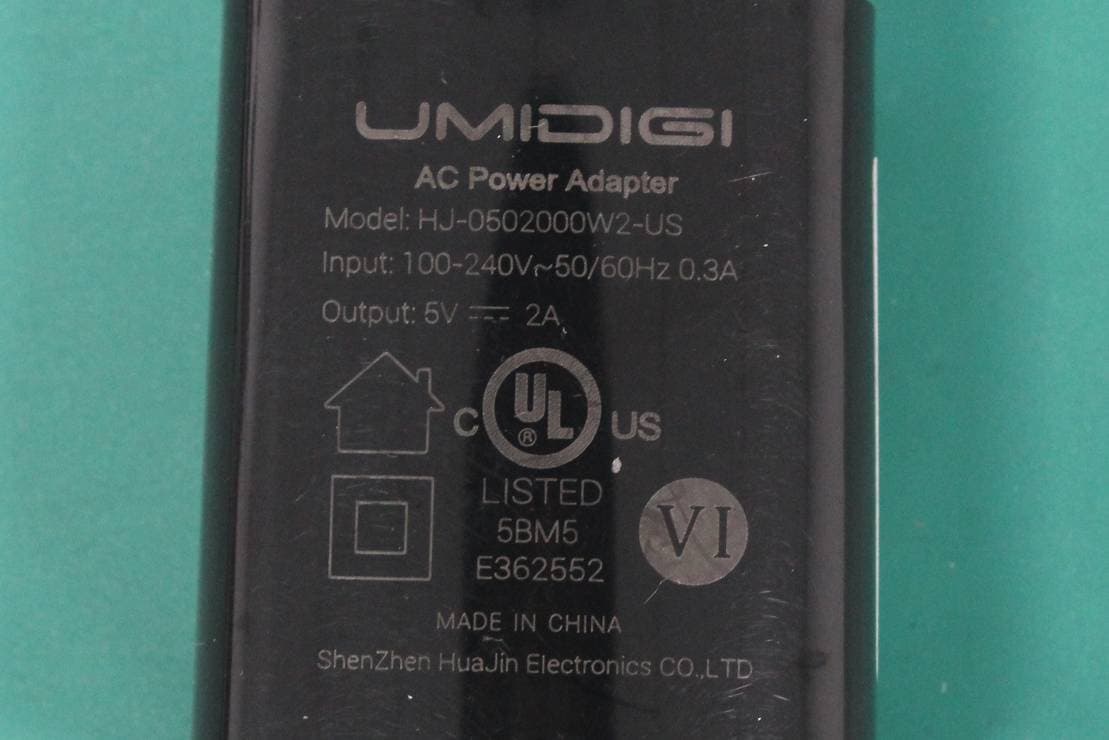

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ1210909-53551E-RF External Photos Page 1 of 5 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ1210909-53551E-RF External Photos Page 2 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ1210909-53551E-RF External Photos Page 3 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ1210909-53551E-RF External Photos Page 4 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ1210909-53551E-RF External Photos Page 5 of 5

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ1210909-53551E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 1 of 13 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 2 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 3 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 4 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 5 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 6 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 7 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 8 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 9 of 13 DIV ANT Part 1 Part 2 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 10 of 13 Main ANT Part 1 Part 2 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 11 of 13 BT&2.4G Wi-Fi Antenna 5G Wi-Fi Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 12 of 13 GPS Antenna NFC Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210909-47005E-RF Page 13 of 13 FM Antenna

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 3: 2021-11-09 Page 1 of 21 FCC Part 15.225 TEST REPORT Applicant Name : Shenzhen Youmi Intelligent Technology Co., Ltd. Address : 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Report Number : SZ1210909-53551E-RF-00E FCC ID: 2ATZ4-RP01X Test Standard (s) FCC PART 15.225 Sample Description Product Type: RP01 Model No.: RP01 Multiple Model(s) No.: RP03, RP04 Trade Mark: UMIDIGI Date Received: 2021/09/09 Date of Test: 2021/10/25~2021/11/12 Report Date: 2021/11/12 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Ting Lü Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZ1210909-53551E-RF-00E Version 3: 2021-11-09 Page 2 of 21 FCC Part 15.225 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL I/O CABLE.................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC§15.203 - ANTENNA REQUIREMENT.............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTED CONSTRUCTION ...................................................................................................................... 9 FCC §15.207 – AC LINE CONDUCTED EMISSION ............................................................................................. 10 APPLICABLE STANDARD ............................................................................................................................................ 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 10 TEST PROCEDURE ...................................................................................................................................................... 11 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC§15.225, §15.205 & §15.209 - RADIATED EMISSIONS TEST ...................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP .............................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ1210909-53551E-RF Test Photos Page 1 of 2 Photo of Conducted Emission Measurement - Front Photo of Conducted Emission Measurement - Rear Shenzhen Accurate Technology Co., Ltd. Project No.: SZ1210909-53551E-RF Test Photos Page 2 of 2 Photo of Radiated Emission Measurement (9k-30M) Photo of Radiated Emission Measurement (30M-1G)
