Ubluetooth Car Charger BC49BQ User Manual Thank you for choosing and purchasing our bluetooth hands-free car charger! In order to give full play to your functional use and normal operation of this product, please read this manual before use! NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. I. Product Profile This product is a car-specific bluetooth hands-free car charger MP3 player. Using high-performance bluetooth chip, the product can transmit MP3 music in your mobile phone to your car audio through wireless transmission, also it can make hands-free calling. You can enjoy the music and answer the call in hand-free mode without refitting your car, which ensure the driving safety while enjoying music. II. Product Appearance Diagram and Introduction III. Schematic description: 1. Air conditioning mount 2. AUX interface (audio input) 3. Ambient light display 4. Short press for previous song; long press for FM- 5. Short press for next song; long press for FM+ 6. Display window 7. Microphone 8. Muti-function button: short press pause/play, long press to activate SIRI/GOOGLE voice assistant, short press to answer/hang up the phone after bluetooth connected, double click to redial, long press to reject, turn on the phone and then press to turn privately to answer 9. Short press for color change (red, orange, yellow, green, cyan,blue, purple, breathing, turning off the lights, mode loop, etc..) 10. TF card slot 11. USB2 Qualcomm® Quick Charge3.0 output 5V/3A MAX 12. USB1 OUT 5V/2.4A 13. Power input (inserted into the car cigarette lighter) 14. Car center console fixed base. IV. Features: 1. Support FM transmission function 87.5-108.0MHZ 2. Support dot-shaped large digital tube display 3. Support U air conditioning / center console installation 4. Support TF card playing music 5. bluetooth answer, hang up, reject, redial phone and other functions 6. bluetooth stereo music play 7. Support ambient light display 8. Support Qualcomm® Quick Charge3.0 output 5V/3A MAX 9. Automatic power-off memory function 10. Support AUX input function 11. Support private answering 12. Support SIRI/GOOGLE voice assistant 13. Support MP3, WMA, WAV,FLAC format music playback 14. Support navigation voice prompts V. Operation Instructions 5.1 bluetooth mode 5.1.1.Insert the product into the car cigarette lighter, the machine automatically turns on, enters the bluetooth mode. Adjust the car radio frequency the same as frequency of the product. 5.1.2.Turn on the phone bluetooth and search pairing name “Carkit”, click the pairing name to connect bluetooth. 5.1.3 Turn on the phone music player to play music on your main phone via bluetooth, and click the phone button to control the music to pause/play. 5.1.4 When the mobile phone calls, you can short press the phone key to answer/hang up/long press and reject. Double-click to redial the main mobile phone. After connecting the phone, press and hold the mode button to switch to private answering. Note: You can only replay the on the main phone call list. 5.2 TF Card playback 5.2.1 Insert the TF card into the TF card slot and the product will switch to the TF card mode and play the music file in the TF card automatically. Pause music by clicking the phone button, and switch music through the FM button. 5.3 AUX input mode 5.3.1 inserts the 3.5MM interface audio line with MP3 music into AUX input port, and automatically switch to AUX mode to play MP3 music.Switch to other modes by long pressing the phone key. 5.4 Frequency adjustment 5.4.1 After starting up,long press the last/next song button to enter the transmission frequency adjustment. Note: Long press to fast FM addition adjustment, short press to fine tune. 5.5 Mode switch 5.5.1 Inserted the TF card/AUX(Line-in) while the bluetooth connection is successful, press the “M” key to switch the mode. Note: When mode switching and external device insertion, the product will have corresponding voice prompts to indicate the current status of the device. 5.6 Light switch 5.6.1 After powering on, press “M” to switch the color of the light. Switching sequence: red, orange, yellow, green, cyan, blue, purple, breathing light, turn off the light etc. 5.7 Siri/Google voice assistant 5.71 After bluetooth connected successfully, long press the dial key 2S to activate the voice assistant function,you can make the phone call,play music,run the navigation of mobile apps ect..(support phone model iPhone/Samsung/original android system phones) Note: Some mobile phones may not support voice assistant function 5.8. Charging recog…

Text truncated - open the document above for the full version.

Jan. 17, 2020 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ATZS-FMT Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, SHEN ZHEN LEADINWAY TECHNOLOGY CO.,LTD Contact person: Jack Yan

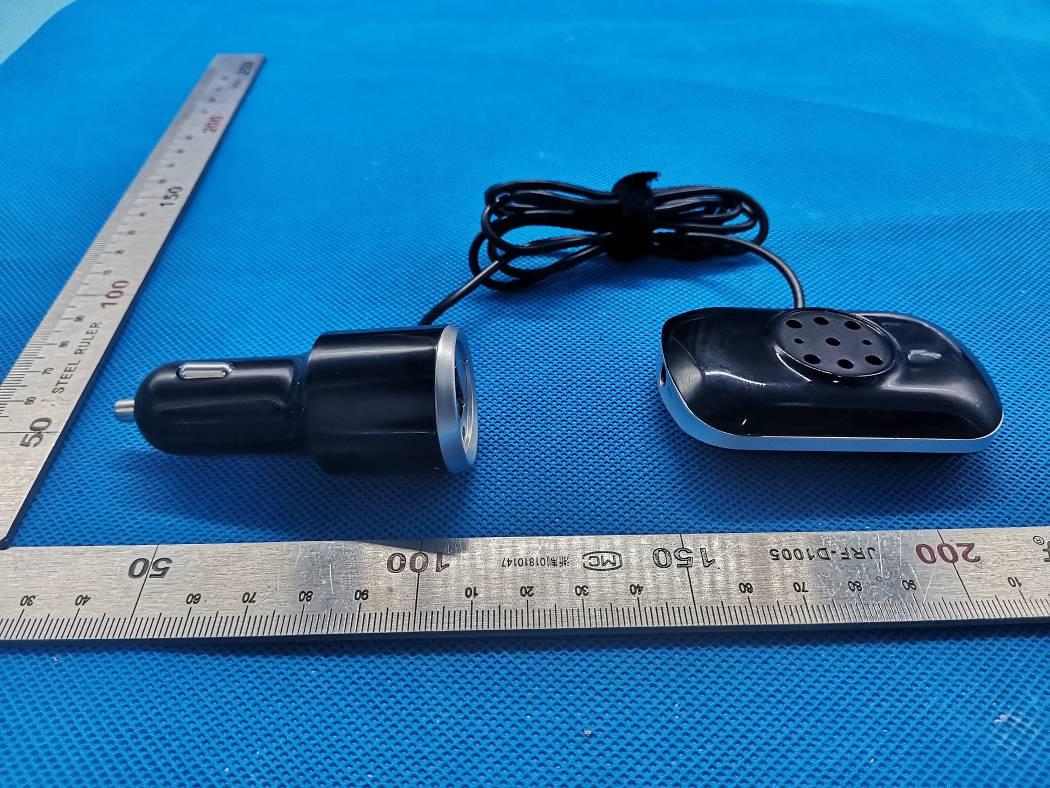

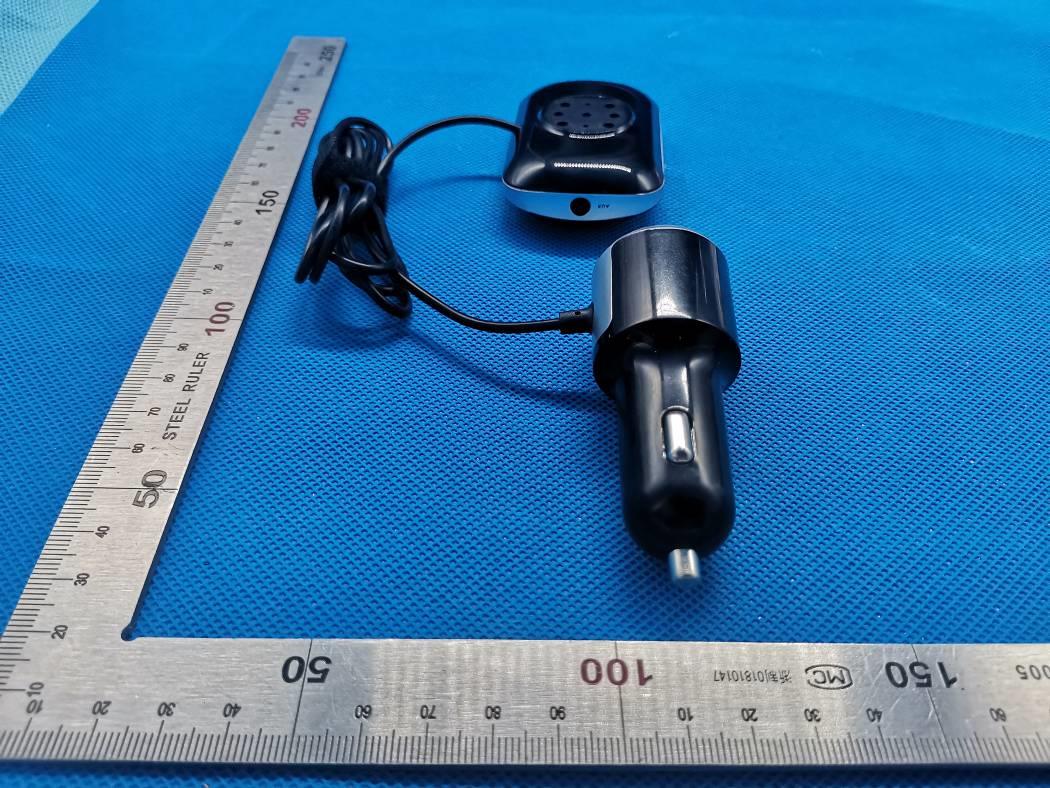

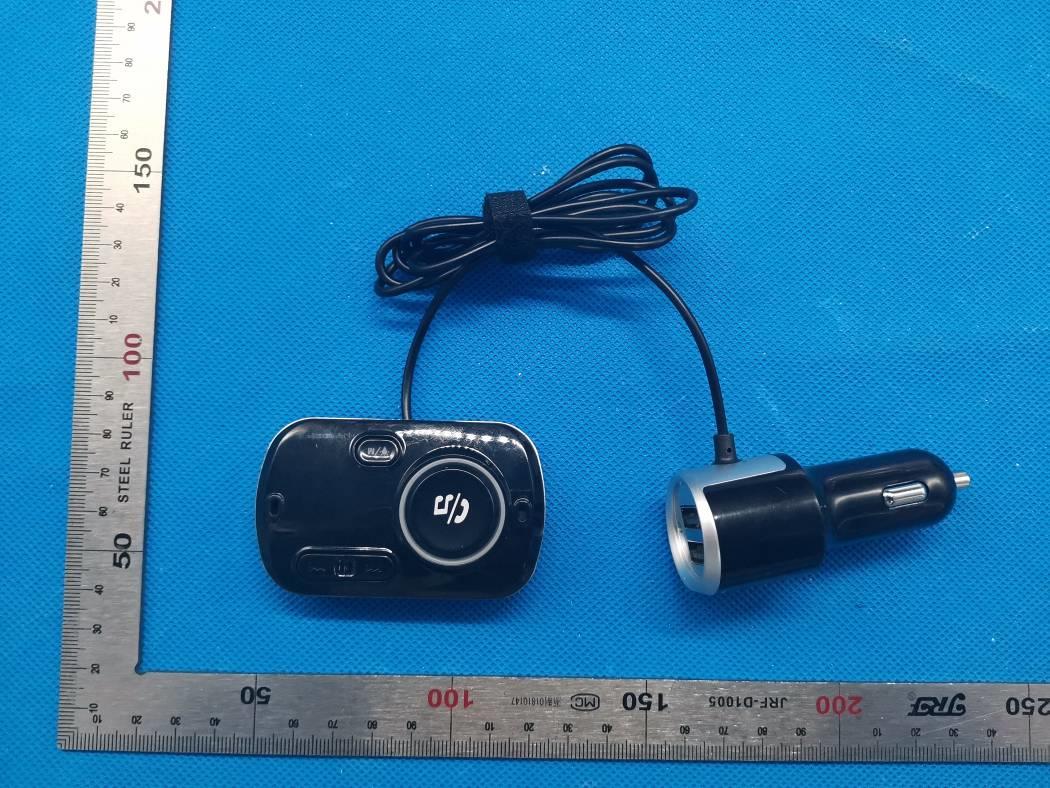

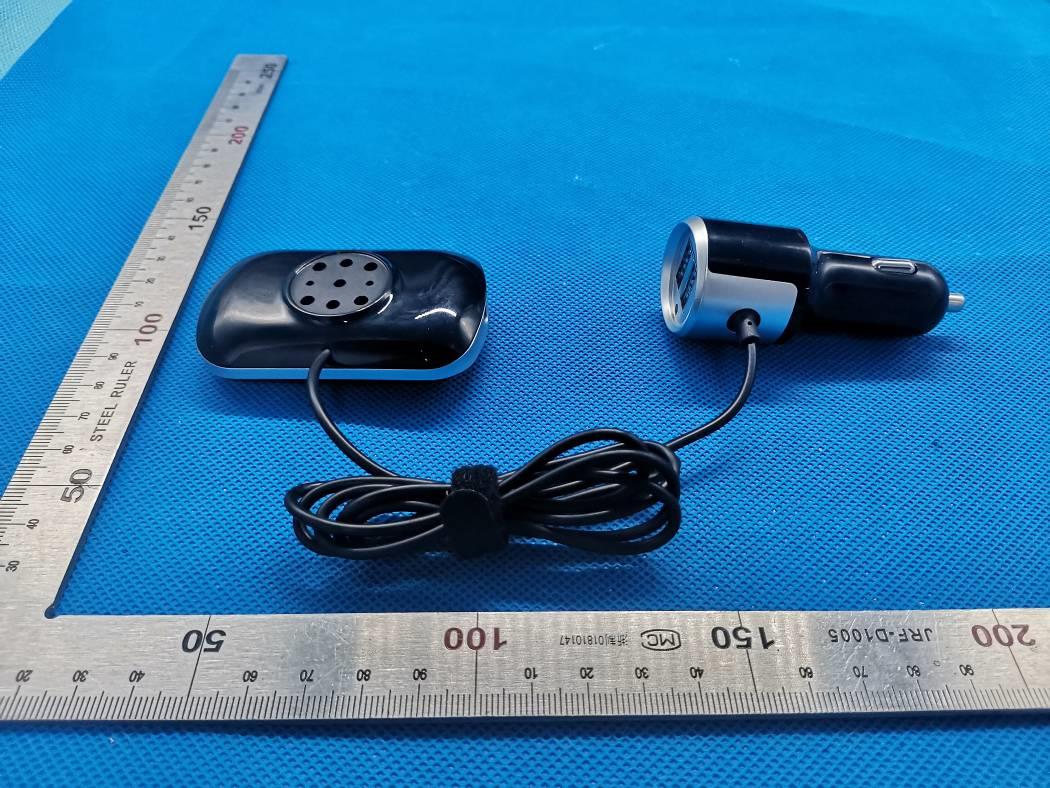

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)-1 VIEW OF EUT(PORT)-2

FCC ID Label Location FCC ID: 2ATZS-FMT

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 FM Antenna

Page 1 of 65 FCC Test Report Report No.: AGC08073191101FE03 FCC ID : 2ATZS-FMT APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Car FM Transmitter BRAND NAME : N/A MODEL NAME : BC49BQ, BC49AQ, BC49CQ, BC49DQ, BC52T, BC51T, BC55A, BC40Q, BC36AQ, TB27 APPLICANT : SHEN ZHEN LEADINWAY TECHNOLOGY CO.,LTD DATE OF ISSUE : Jan. 16, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC08073191101FE03 Page 2 of 65 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 16, 2020 Valid Initial Release Report No.: AGC08073191101FE03 Page 3 of 65 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2 EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 20 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 20 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 27 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 27 Report No.: AGC08073191101FE03 Page 4 of 65 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 27 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 27 10. RADIATED EMISSION ............................................................................................................................... 37 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 37 10.2. TEST SETUP ....................................................................................................................................... 39 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 40 10.4. TEST RESULT ..................................................................................................................................... 40 11. NUMBER OF HOPPING FREQUENCY ........................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC08073191101FE03 Page 45 of 65 EUT Car FM Transmitter Model Name BC49BQ Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4960.000 55.0174-18.99 peak 4960.000 46.3654-7.64 AVG 7440.000 47.6874-26.32 peak 7440.000 40.1954-13.81 AVG 54.790.22 46.140.22 45.042.64 37.552.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT Car FM Transmitter Model Name BC49BQ Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4960.000 52.8974-21.11 peak 4960.000 43.854-10.2 AVG 7440.000 45.1374-28.87 peak 7440.000 36.4854-17.52 AVG 52.670.22 43.580.22 42.492.64 33.842.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. RESULT: PASS Note: Other emissions from 1G to 25 GHz are considered as ambient noise. No recording in the test report. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. All test modes had been tested. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC08073191101FE03 Page 46 of 65 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT Car FM Transmitter Model Name BC49BQ Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC08073191101FE03 Page 47 of 65 EUT Car FM Transmitter Model Name BC49BQ Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC08073191101FE03 Page 48 of 65 EUT Car FM Transmitter Model Name BC49BQ Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC08073191101FE03 Page 49 of 65 EUT Car FM Transmitter Model Name BC49BQ Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. So the Amplitude of test plots is equal to Reading level plus the Factor in dB. Use the A dB(μV) to represent the Amplitude. Use the F dB(μV/m) to represent the Field Strength. So A=F. All test modes had been pre-tested. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC08073191101FE03 Page 50 of 65 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 11.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC08073191101FE03 Page 51 of 65 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Zero span, centered on a hopping channel. 2. RBW shall be≤channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. 3. Sweep: As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. 4. Detector function: Peak. Trace: Max hold. 5. Use the marker-delta function to determine the transmit time per hop. 6. Repeat the measurement using a longer sweep time to determine the number of hops over the period specified in the requirements. The sweep time shall be equal to, or less than, the period specified in the requirements. Determine the number of hops over the sweep time and calculate the total number of hops in the period specified in the requirements, using the following equation: (Number of hops in the period specified in the requirements) = (number of hops on spectrum analyzer) × (period specified in the requirements / analyzer sweep time) 7. The average time of occupancy is calculated from the transmit time per hop multiplied by the number of hops in the period specified in the requirements. 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 12.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 12.4. LIMITS AND MEASUREMENT RESULT Channel Time of Pulse for DH5 (ms) Number of hops in the period specified in the requirements Sweep Time (ms) Limit (ms) Low 2.885 26*4 300.04 400 Middle 2.882 26*4 299.73 400 High 2.889 26*4 300.46 400 Note: The 8-DPSK modulation is the worst case and recorded in the report. Report No.: AGC08073191101FE03 Page 52 of 65 TEST PLOT OF LOW CHANNEL Report No.: AGC08073191101FE03 Page 53 of 65 TEST PLOT OF MIDDLE CH…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ
