2ATZS-T3Bluetooth Transmitter and Receiver

Bluetooth transceiver T3 Manual Thank you for purchasing our Bluetooth transceiver! This product has the characteristics of low distortion, low power consumption, low delay, high fidelity, stereo and so on. I. Schematic illustration II. Product features 1.Bluetooth V5.0 2. The launch state supports two Bluetooth devices to connect and play at the same time 3. Support Bluetooth receiver/ transmitter 4. Clear all paired Bluetooth information 5. Automatically connect the paired Bluetooth device after power on 6. Five minutes no device connection, automatic shutdown 7. Music on full charge lasts about seven hours 8. Bluetooth support A2DP,AVRCP,HFP,HSP 9. Support Bluetooth DSP technology of stereo music 10.Aux audio input / output 11. Private answer III. Operating instructions 1. Launch mode TX, green light 2. Receive mode RX, blue light 3. Connect / Reset Bluetooth Pairing for the first time 3.1Long press ""3 seconds, Lights flashing(To reset Bluetooth, double-click "" to clear Bluetooth pairing information) 3.2 Double-click ""key, Turn on Bluetooth search and flash the light 3.3 Mobile phone search Bluetooth pairing name: "T3", after the pairing is successful, prompt Bluetooth connection is successful, the light is always on. 3.4 Automatic connection after use again 3.5 Connect two mobile phones. If you want to connect the second device, double-click the "" button and repeat the connection steps. 4. Use Bluetooth hands-free calling 4.1 Answering the call On the status of Bluetooth, To answer the incoming call, press “ ”to answer, Press again“ ”to hang up. 4.2 Rejecting the call When a call comes in but you don't want to answer it, long press“ ”key two seconds to reject call. 4.3 Private answer When you want to use your own phone to answer a call, long press the "" button for 2 seconds to switch between the phone and Bluetooth 5Siri/Voice assistant function When using Siri/Voice assistant after Bluetooth pairing, long press the "" button for 3 seconds to activate it.( supported mobile phone brands are: Apple mobile phone, Samsung mobile phone, native Android system mobile phone) Note: This feature is not supported on some phones. 6Automatic shutdown Bluetooth player (RX mode or TX mode) will shut down automatically without any device connection or other key operation for 5 minutes. 7Charge The red light is always on when charging under the state of shutdown. Under the starting state, the red light of RX mode charging is always on, and the blue indicator is also on. Under the starting state, the red light of TX mode charging is always on, and the green indicator is also on. The red light goes out when it is fully charged. 8 Low voltage alarm When the battery power is too low, the red light flashes and the voice prompts "low power" and other working lights go off. IV. Technology Specs: Charging voltage 5V Charging current 150mA Working current 35mA Shut off current 41uA Charging time About 2H Working time About 7H Battery capacity 280mAh Bluetooth Ver. Version 5.0 Bluetooth audio processing DSP and A2DP(Advance Audio Distribution Profile) Bluetooth frequency 2.402-2.480GHz Bluetooth transmission distance 10M Bluetooth MIC effective distance 0.5~2M Bluetooth transmission output power 6dbm V. Troubleshooting: No response on power .Toggle the RX-TX key and long press the power button again .Plug in the charging cable to charge the Bluetooth player for 5 minutes before turning it on Can't play . Make sure the connected device is working properly ·Clear bluetooth pairing and repair Bluetooth ·Is the audio cable plugged in properly Can’t charge . Please unplug the charging cable and re-insert it . Try switching to another charger No reaction on and off Long press the "on/off" button for 8 seconds to resume factory Settings and start up again VI. Warm tips: 1. Do not use this product in a dusty and humid environment with extremely high and low temperatures. 2. Do not drop the product to avoid surface damage or breakdown. 3. Do not disassemble the product,if you have any questions, please contact your dealer 4. Due to continuous improvement and enhancement of technology,changes in product performance and functionality are subject to change without notice. VII. Packaging 1. Manual 2. Main device 3. Audio line 4.Micro-USB Charging line FCC Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHEN ZHEN LEADINWAY TECHNOLOGY CO.,LTD Jan.06, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2ATZS-T3 Model Number: T3, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T17, T18, T19, T20 To Whom It May Concern: We, The SHEN ZHEN LEADINWAY TECHNOLOGY CO.,LTD hereby declare that the models are identical except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: SHEN ZHEN LEADINWAY TECHNOLOGY CO.,LTD Contact person: Jack Yan

SHEN ZHEN LEADINWAY TECHNOLOGY CO.,LTD Agent Authorization Company: SHEN ZHEN LEADINWAY TECHNOLOGY CO.,LTD Address: 29 Building, Baotian industrial District Chentian, Xixiang Town, Shenzhen, Guangdong, China Product Name: Bluetooth Transmitter and Receiver Model Number(s): T3, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T17, T18, T19, T20 Product Description: Bluetooth Transmitter and Receiver We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-06 Name: Jack Yan Company: SHEN ZHEN LEADINWAY TECHNOLOGY CO.,LTD

SHEN ZHEN LEADINWAY TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-12-23 Subject; Request for Confidentiality FCC ID: 2ATZS-T3 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely SHEN ZHEN LEADINWAY TECHNOLOGY CO.,LTD Contact person: Jack Yan

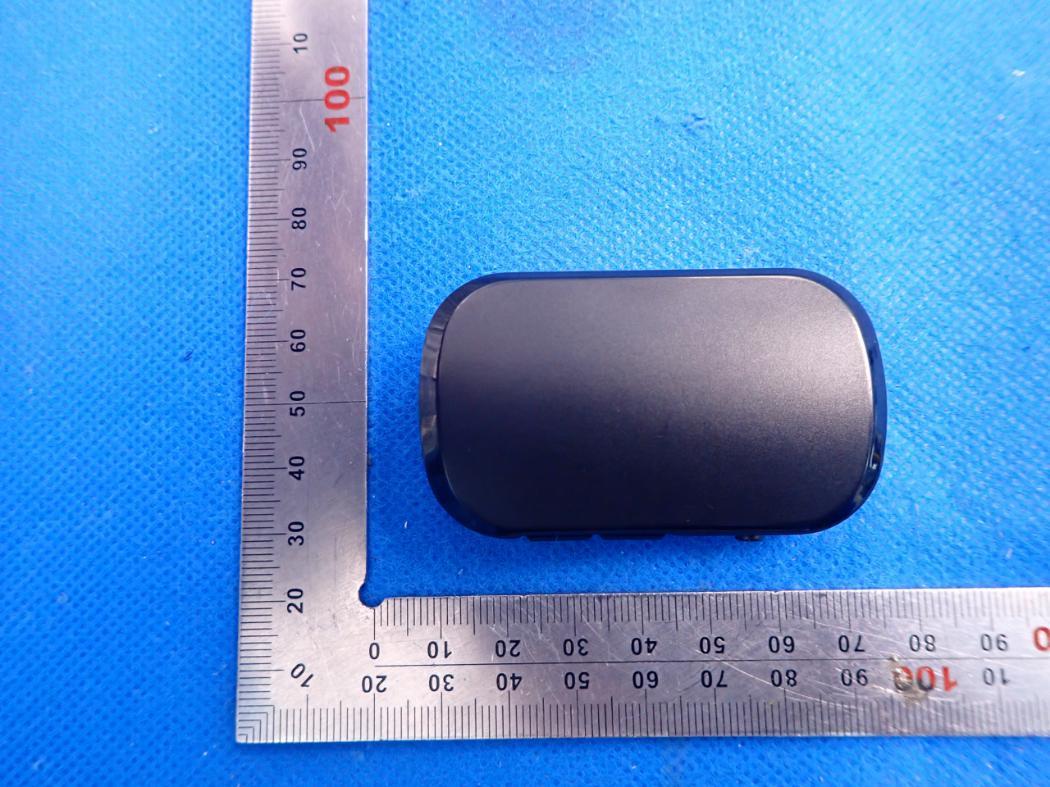

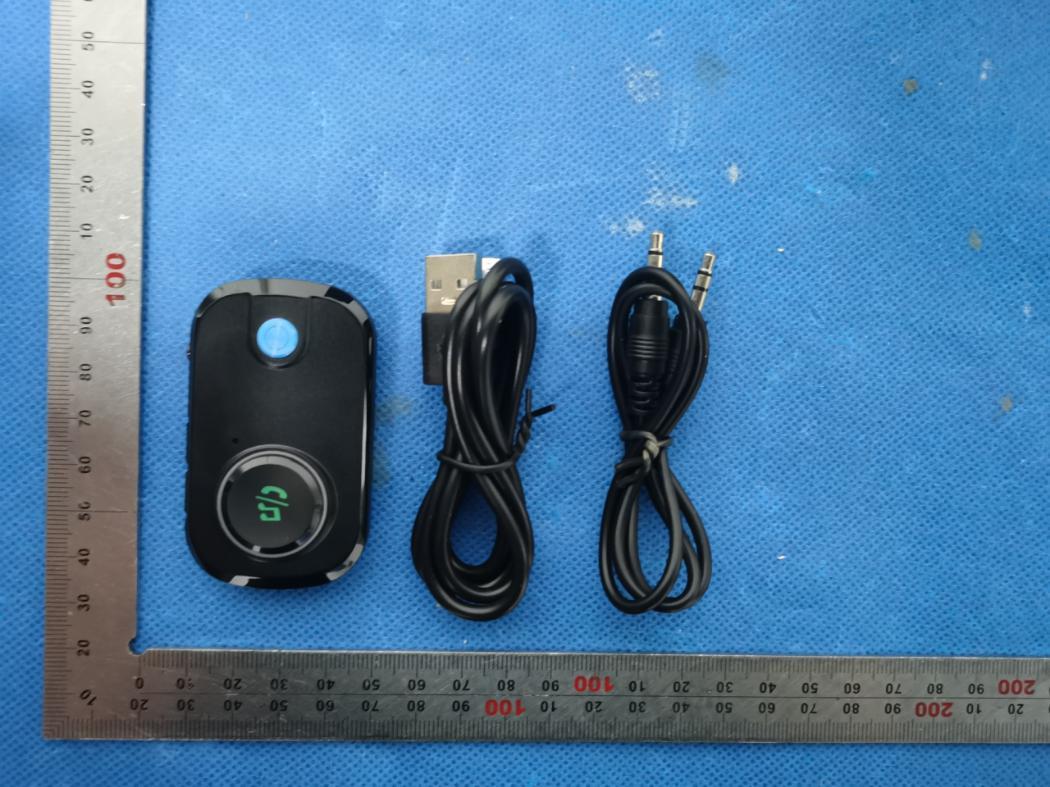

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)-1 VIEW OF EUT(PORT)-2

FCC ID Label Location FCC ID: 2ATZS-T3

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth Transmitter and Receiver Model Name T3 FCC ID 2ATZS-T3 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t =2.042dBm=1.60mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.60mW /5mm) .[√2.480GHz)]=0.50<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. BLE: P t = -5.883dBm=0.26mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.26mW /5mm) .[√2.480GHz)]= 0.08<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.
