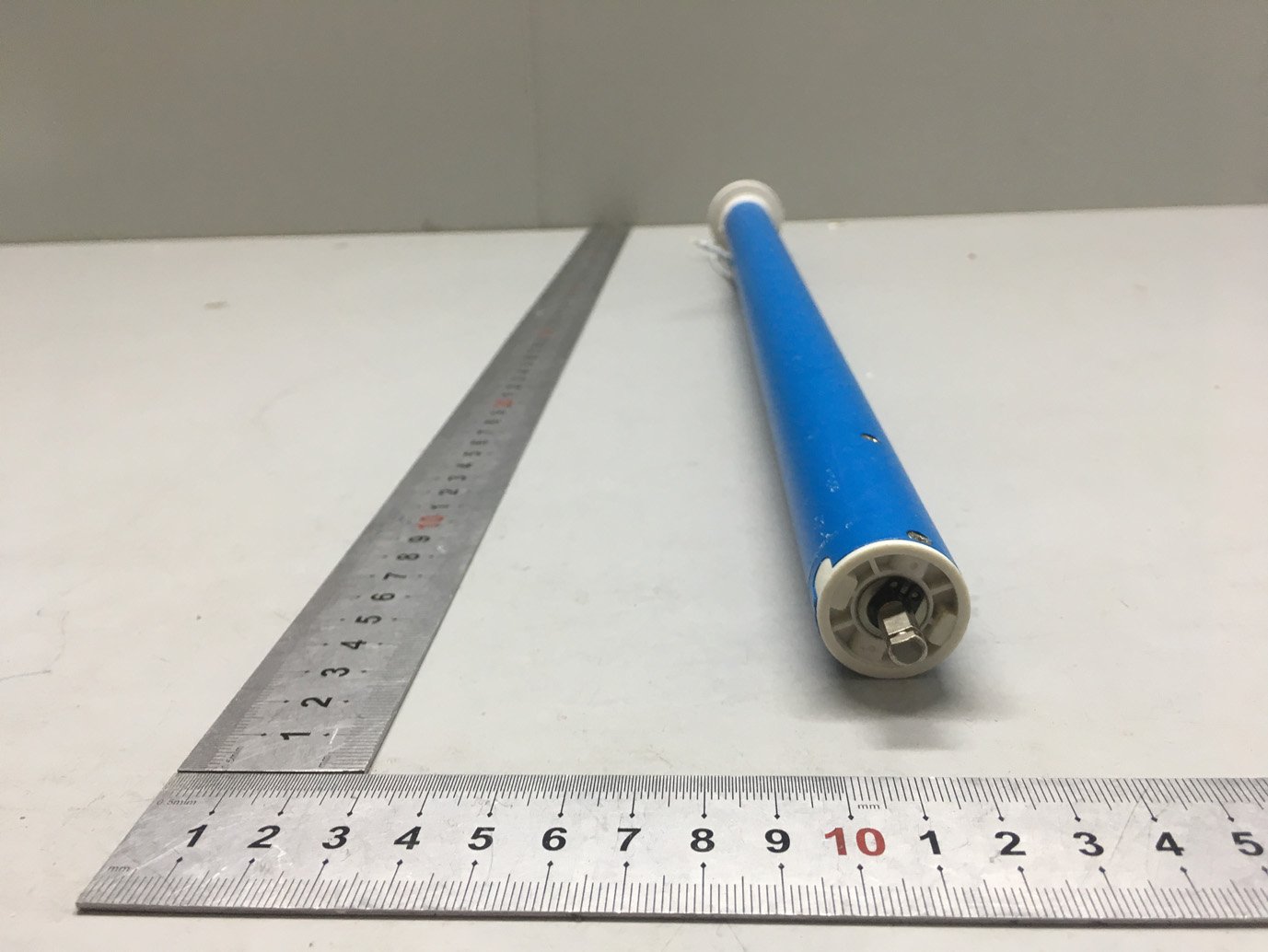

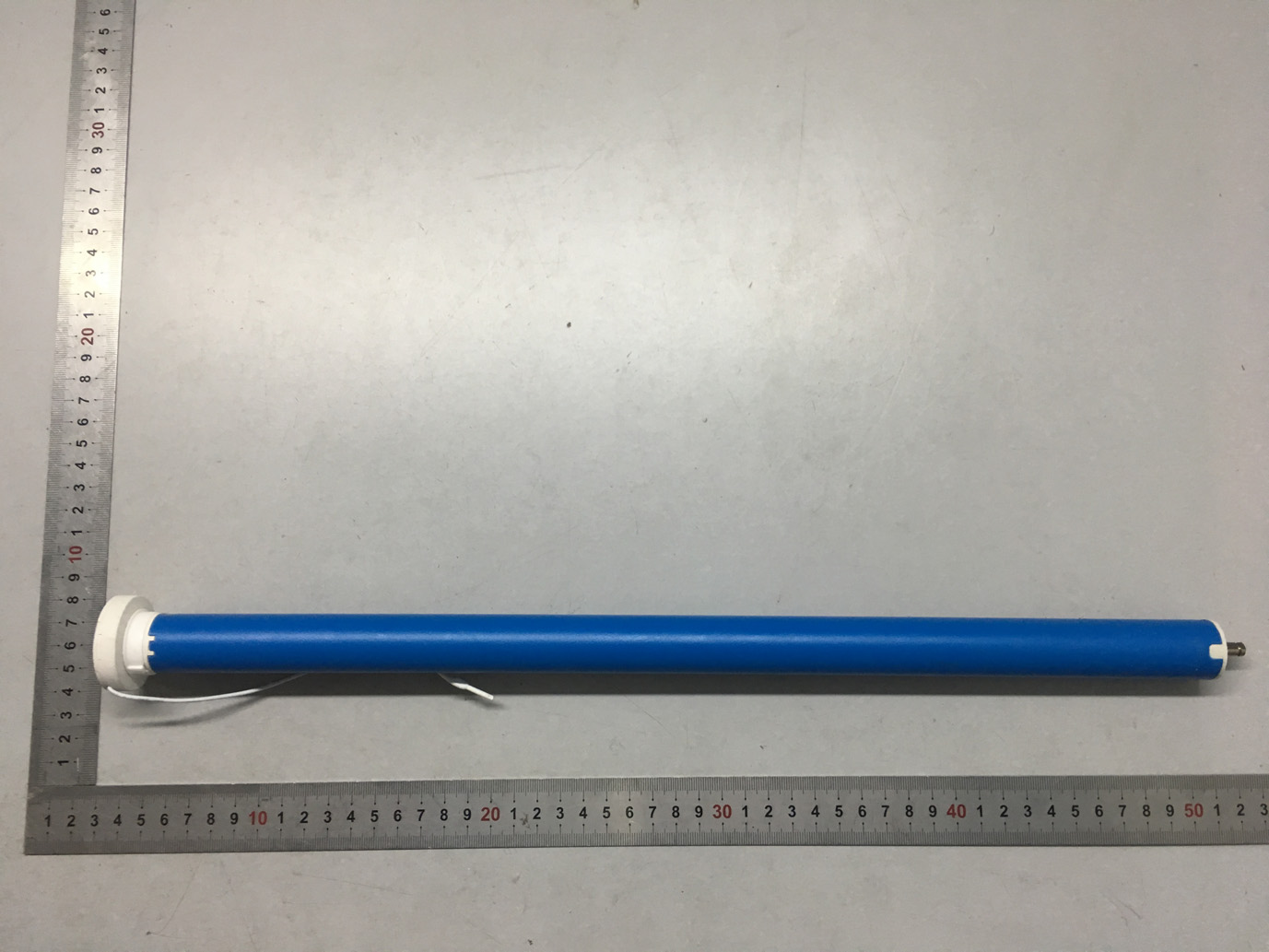

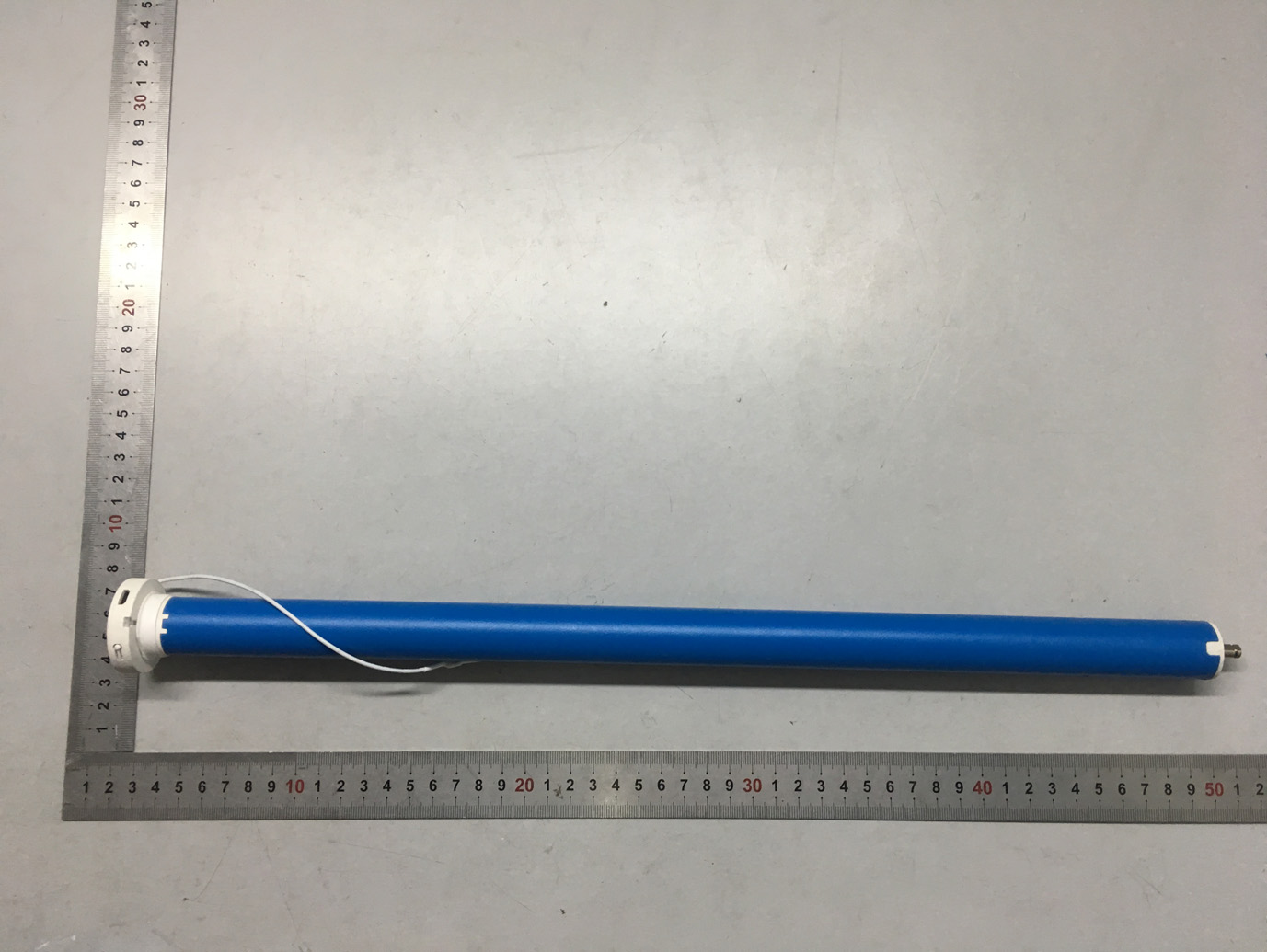

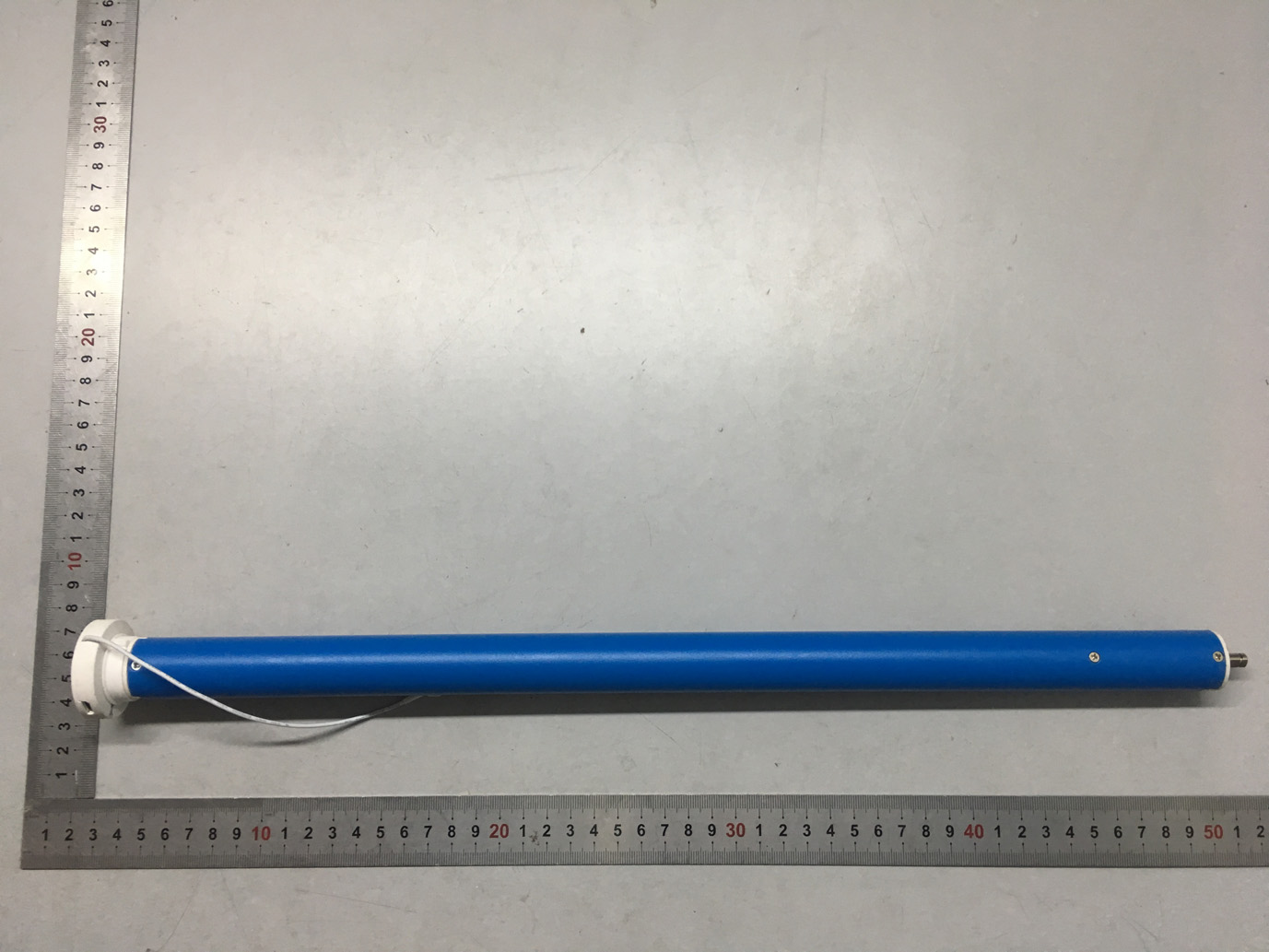

2AU29AMP28B2028DC Tubular Motor & rechargeable battery

AMP25B Instruction Attention -1- The motor is suitable for motorization of roller blinds, sheer shadings, roman shades, and zebra shades. Never drop, knock, drill or submerge the motor. Keep the power cable in right position as following. Important safety instructions to be read before installation. Incorrect installation can lead to serious injury and will void manufacturer’s liability and warranty. Declarations Do not dispose of in general waste. Please recycle batteries and damaged electrical products appropriately. -2- Safety 1. Do not expose motor to humid, damp or extreme temperature conditions. 2. Do not drill into motor. 3. Do not cut the antenna and keep it clear from metal objects. 4. Do not allow children to play with this device. 5. If power cable or connector is damaged, do not use. 6. Ensure correct crown and drive adaptor are used. 7. Ensure power cable and aerial is clear and protected from moving parts. 8. Cable routed through walls shall be properly isolated. 9. Motor is to be mounted in horizontal position only. 10. Before installation, remove unnecessary cords and disable equipment not needed for powered operation. 11. Installation and programming to be performed by a qualified professional, use or modification outside the scope of this instruction may void warranty. Features Fields of Application Specifications Following data for reference Working temperature: -10°C ~ +50°C Input Voltage: USB 5V 1A / USB 5V 2A Radio Frequency: 433.925MHz Maximum Running Time: 6 minutes Model Rated Torque (N.m) Rated Speed (rpm) Rated Power (W) AMP25B - 0.7/340.7348 AMP25B -1.1/281.1288 Charging Instructions This motor has a built in Li-ion battery pack with integrated charge management. Max power input for recharging: 5V 2A. Before first use please charge motor for 6 hours. Using 5V charger (most phones charger is 5V ) . During operation, when the motor starts, the buzzer will beep 10 times, indicating a low-voltage alarm and needs to be charged. During operation, the voltage was detected to be too low, the battery was about to run out, the battery stopped running and needed to be recharged. Rechargeable Battery Blinking red: Low battery alert Blinking green: Charging is processing Solid green: Battery has finished charging. FCC Text - text 01 Add A zoom in on the charging port P1 Button Instructions P1 button Lithium Battery Switch LED light Micro-USB Port Add visual explanation of P1 - file 02 Sheer Roller Revolve Roman shades Working temperature: -10º C ~ +50º CRadio Frequency: 433.925 MHz Input Voltage: USB 5V 1A / USB 5V 2AMaximum Running Time: 6 minutes Model Rated Torque (N.m) Rated Speed (RPM) Rated Power (W) AMP28B-2.0/28 2.02815 IssuesPossible CausesSolution Built in battery is depleted Recharge with compatible AC adaptor and check connection and positioning of solar PV panel Insufficient charging from Solar PV Panel Check connection and orientation of solar PV panel Remote control battery is dischargedReplace battery Battery is inserted incorrectly into remote control Check battery polarity The motor is not respondingRadio interference / shielding Ensure remote control is positioned away from metal objects and the aerial on motor receiver is kept straight away from metal Receiver is far away from Remote Control Move remote control to a closer position Power failureCheck power supply to motor is connected and active Incorrect wiring Check that wiring is connected correctly (refer to motor installation instructions) Motor beeps 10 times when in use Battery voltage is low / PV (solar panel issue) Recharge with AC adaptor or check connection and positioning of solar PV panel Always reserve an individual channel for programming functions SYSTEM BEST PRACTICE - Provide an extra 15 channel remote in your multi-motor projects that provides individual control for each motor for programming purposes Place all other motors into sleep mode (ref to P1 button instructions) The motor is suitable for motorization of roller shades, sheer shades, roman shades, and revolve shades. Do not dispose of in general waste. Please recycle batteries and damaged electrical products appropriately. RollerSheerRevolveRoman Cannot program a single motor (multiple motors respond) Multiple motors are paired to the same channel. SettingsSteps 1PairingP1 (hold down for 2s) > Stop (hold down for 2s) 2Switch Rotating DirectionUp + Down (hold down for 2s) 3Setting Upper & Lower Limits 4Add / Remove Favorite PositionP2 > Stop > Stop 5Roller Mode & Sheer Mode SwitchUp + Down (hold down for 5s) > Stop 6Adjust Limits 7Pair / Unpair Additional EmitterP2 (existing) > P2 (existing) > P2 (new) 8Speed Regulation Upper Limit: Up (hold down for 2s) > Up + Stop (hold down for 2s) Upper Limit: Up + Stop (hold down for 5s) > Up or Down > Up + Stop (hold down for 2s) Acceleration: P2 > Up > Up Lower Limit: Down (hold down for 2s) > Down + Stop (hold down for 2s) Lower Limit: Down + Stop (hold down for 5s) > Up or Down > Down + Stop (hold down for 2s) Decelaration: P2 > Down > Down U.S. Radio Frequency FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined b…
