2AU29AMP28BDCV2DC Tubular Motor with built-in RF control

AMP25B Instruction Attention -1- The motor is suitable for motorization of roller blinds, sheer shadings, roman shades, and zebra shades. Never drop, knock, drill or submerge the motor. Keep the power cable in right position as following. Important safety instructions to be read before installation. Incorrect installation can lead to serious injury and will void manufacturer’s liability and warranty. Declarations Do not dispose of in general waste. Please recycle batteries and damaged electrical products appropriately. -2- Safety 1. Do not expose motor to humid, damp or extreme temperature conditions. 2. Do not drill into motor. 3. Do not cut the antenna and keep it clear from metal objects. 4. Do not allow children to play with this device. 5. If power cable or connector is damaged, do not use. 6. Ensure correct crown and drive adaptor are used. 7. Ensure power cable and aerial is clear and protected from moving parts. 8. Cable routed through walls shall be properly isolated. 9. Motor is to be mounted in horizontal position only. 10. Before installation, remove unnecessary cords and disable equipment not needed for powered operation. 11. Installation and programming to be performed by a qualified professional, use or modification outside the scope of this instruction may void warranty. Features Fields of Application Specifications Following data for reference Working temperature: -10°C ~ +50°C Input Voltage: USB 5V 1A / USB 5V 2A Radio Frequency: 433.925MHz Maximum Running Time: 6 minutes Model Rated Torque (N.m) Rated Speed (rpm) Rated Power (W) AMP25B - 0.7/340.7348 AMP25B -1.1/281.1288 Charging Instructions This motor has a built in Li-ion battery pack with integrated charge management. Max power input for recharging: 5V 2A. Before first use please charge motor for 6 hours. Using 5V charger (most phones charger is 5V ) . During operation, when the motor starts, the buzzer will beep 10 times, indicating a low-voltage alarm and needs to be charged. During operation, the voltage was detected to be too low, the battery was about to run out, the battery stopped running and needed to be recharged. Rechargeable Battery Blinking red: Low battery alert Blinking green: Charging is processing Solid green: Battery has finished charging. FCC Text - text 01 Add A zoom in on the charging port P1 Button Instructions P1 button Lithium Battery Switch LED light Micro-USB Port Add visual explanation of P1 - file 02 Sheer Roller Revolve Roman shades Working temperature: -10º C ~ +50º CRadio Frequency: 433.925 MHz Input Voltage: USB 5V 1A / USB 5V 2AMaximum Running Time: 6 minutes Model Rated Torque (N.m) Rated Speed (RPM) Rated Power (W) AMP28BDC - 2.0/282.02822 SettingsSteps 1PairingP1 (hold down for 2s) > Stop (hold down for 2s) 2Switch Rotating DirectionUp + Down (hold down for 2s) 3Setting Upper & Lower Limits 4Add / Remove Favorite PositionP2 > Stop > Stop 5Roller Mode & Sheer Mode SwitchUp + Down (hold down for 5s) > Stop 6Adjust Limits 7Pair / Unpair Additional EmitterP2 (existing) > P2 (existing) > P2 (new) 8Speed Regulation IssuesPossible CausesSolution External battery pack is depleted Recharge with compatible AC adaptor and check connection and positioning of solar PV panel Insufficient charging from Solar PV Panel Check connection and orientation of solar PV panel Remote control battery is dischargedReplace battery Battery is inserted incorrectly into remote control Check battery polarity The motor is not respondingRadio interference / shielding Ensure remote control and the antenna on the motor are positioned away from metal objects Receiver is far away from Remote Control Move remote control to a closer position Power failureCheck power supply to motor is connected and active Incorrect wiring Check that wiring is connected correctly (refer to motor installation instructions) Motor beeps 10 times when in use Battery voltage is low / PV (solar panel issue) Recharge with AC adapter or check connection and positioning of solar PV panel Always reserve an individual channel for programming functions SYSTEM BEST PRACTICE - Provide an extra 15 channel remote in your multi-motor projects that provides individual control for each motor for programming purposes Place all other motors into sleep mode (ref to P1 button instructions) The motor is suitable for motorization of roller shades, sheer shades, roman shades, and revolve shades. Do not dispose of in general waste. Please recycle batteries and damaged electrical products appropriately. RollerSheerBandedRoman Upper Limit: Up (hold down for 2s) > Up + Stop (hold down for 2s) Upper Limit: Up + Stop (hold down for 5s) > Up or Down > Up + Stop (hold down for 2s) Cannot program a single motor (multiple motors respond) Multiple motors are paired to the same channel. Acceleration: P2 > Up > Up Lower Limit: Down (hold down for 2s) > Down + Stop (hold down for 2s) Lower Limit: Down + Stop (hold down for 5s) > Up or Down > Down + Stop (hold down for 2s) Deceleration: P2 > Down > Down Please scan QR code to see more AMP ™ product information 1 2 3 4 ×××× 5 Test Motor 1 2 6 10 14 Activate Pairing Mode Sleep Mode Reverse Direction Reset To Factory Settings Approx. 2 sec. Happening as you press for 2 seconds Happening as you press for 1 second Happening as you press for 6 seconds Happening as you press for 10 seconds Happening as you press for 14 seconds when released when released when released when released when released Approx. 6 sec. Approx. 10 sec. Approx. 14 sec. Until Shade: Until Shade: Motor Response: Motor Response: Motor Response: Until Shade: Until Shade: Motor Response: Beep x1 Beep x2 Jog x3 Jog x4 Jog x1 Jog x2 Beep x3 Beep x4 Less than 1 sec. Press P1 Press P1 Press P1 Press P1 Press P1 Motor Response: Wakes & Runs AMP28BDC Declarations Fields of Application Specifications Quick Index Attention Safety Instructions Troubleshooting Charging Instructions P1 Button Instructions Never drop, knock, drill or submerge the motor. Keep the power cable in t…

Text truncated - open the document above for the full version.

Turnils North America 1750 Satellite Blvd, Suite 100, Buford, Georgia 30518, United States Date: 2023-11-15 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d) (5) (i) Filing SUBJECT: FCC Application for FCC ID: 2AU29AMP28BDCV2 To Whom It May Concern: Turnils North America certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signatory [Phoenix Lin, Senior Project Manager]

Turnils North America 1750 Satellite Blvd, Suite 100, Buford, Georgia 30518, United States Date: 2023-11-15 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d) (5) (ii) Filing SUBJECT: FCC Application for FCC ID: 2AU29AMP28BDCV2 To Whom It May Concern: Turnils North America certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Signatory [Phoenix Lin, Senior Project Manager]

Turnils North America 1750 Satellite Blvd, Suite 100, Buford, Georgia 30518, United States Date: 2023-11-15 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d) (7) Filing Grantee Code: 2AU29 Turnils North America certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: Name: Turnils North America FRN: 0028959575 Address: 1750 Satellite Blvd, Suite 100, Buford, Georgia 30518, United States Contact Person: Phoenix Lin Tel.: 770-878-2281 Email: [email protected] Sincerely, Signatory [Phoenix Lin, Senior Project Manager]

Turnils North America 1750 Satellite Blvd, Suite 100, Buford, Georgia 30518, United States Date: 2023-11-15 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2AU29AMP28BDCV2 Confidentiality Request To whom it may concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. ☒ Block Diagram ☐ Tune-Up Information ☒ Operational Description ☐ Security Information ☒ Schematics ☐ Software Defined Radio (SDR) Information ☐ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); ☐ External Photos ☐ Test Setup Photos ☐ Internal Photos ☐ User Manual ☐ For 45 days, pursuant to Public Notice DA 04-1705. or ☐ For 180 days pursuant to KDB 726920 D01. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signatory [Phoenix Lin, Senior Project Manager]

Turnils North America 1750 Satellite Blvd, Suite 100, Buford, Georgia 30518, United States Date: 2023-11-15 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2AU29AMP28BDCV2 POWER OF ATTORNEY To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Turnils North America are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Signatory [Phoenix Lin, Senior Project Manager]

Turnils North America 1750 Satellite Blvd, Suite 100, Buford, Georgia 30518, United States Date: 2023-11-15 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: 2AU29AMP28BDCV2 To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the class B device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, Signatory [Phoenix Lin, Senior Project Manager]

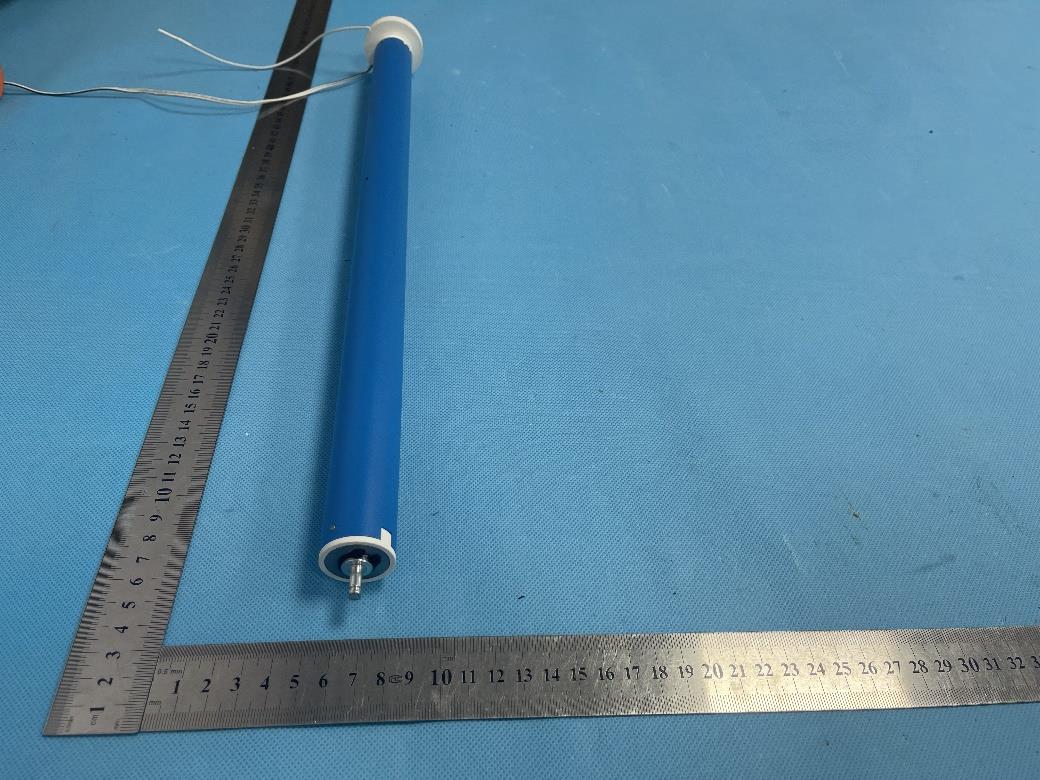

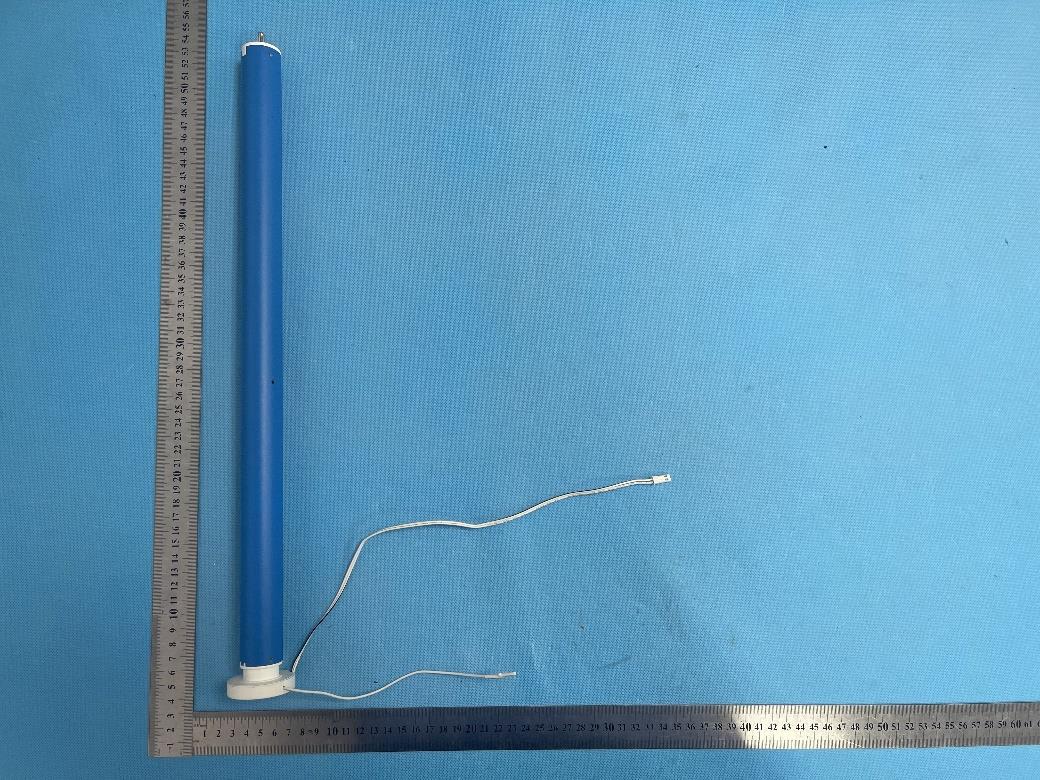

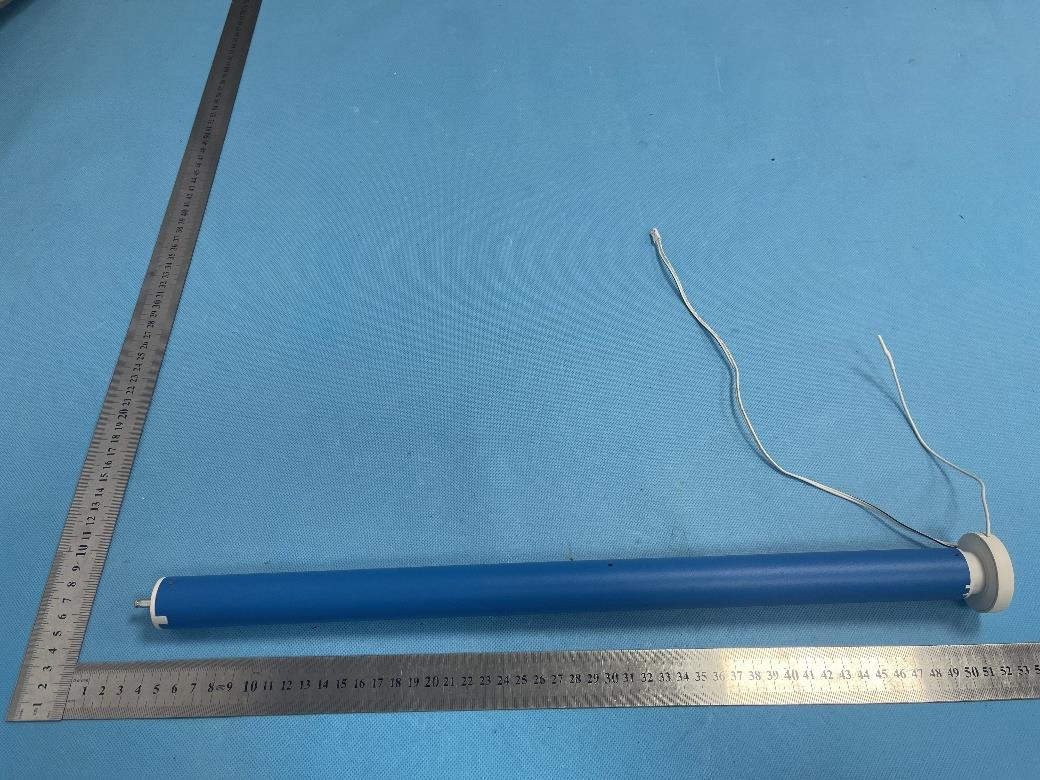

Reference No.: WTN23X09204949W001 Page 2 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTN23X09204949W001 Page 3 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTN23X09204949W001 Page 4 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTN23X09204949W001 Page 1 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTN23X09204949W001 Page 5 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTN23X09204949W001 Page 6 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTN23X09204949W001 Page 7 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Antenna View 433 Antenna

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Turnils North America Address of applicant: 1750 Satellite Blvd,Suite 100,Buford GA 30518 Manufacturer: The same as Applicant Address of manufacturer: The same as Applicant General Description of EUT: Product Name: DC Tubular Motor with built-in RF control Trade Name: / Model No.: AMP28BDC-2/28 Adding Model(s): / Rated Voltage: DC12V Power Adaptor : / Power Adapter Model: / FCC ID: 2AU29AMP28BDCV2 Equipment Type: Mobile device Technical Characteristics of EUT: Frequency Range: 433.92MHz Max. Field Strength: 73.33dBuV/m(3m) Data Rate: / Modulation: FSK Antenna Type: Line Antenna Antenna Gain: 0dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Max. Field Strength Antenna Gain Output Power Tune-Up Power ERP (MHz) (dBuV/m) (dBi) (dBm) (dBm) (dBm) SRD 433.92 73.33 0 -21.93 -21.00 -23.15 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 433.92 A / -21.00 0.01 1 0.01 Pass Note: 1. EIRP= E-104.8+20logD; Output Power=EIRP- Antenna Gain; ERP=EIRP-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail / / / / / / Result: Pass

Unit:mm

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 25 TEST REPORT Reference No. .................... : WTN23X09204949W001 FCC ID ................................ : 2AU29AMP28BDCV2 Applicant ........................... : Turnils North America Address ............................. : 1750 Satellite Blvd,Suite 100,Buford GA 30518 Manufacturer ..................... : The same as Applicant Address ............................. : The same as Applicant Product Name ................... : DC Tubular Motor with built-in RF control Model No... ......................... : AMP28BDC-2/28 Standards .......................... : FCC Part 15.231 Date of Receipt sample .... : 2023-09-18 Date of Test........................ : 2023-09-18 to 2023-10-25 Date of Issue ..................... : 2023-10-25 Test Report Form No. ....... : WTX_Part 15_231W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Gala Wang Silin Chen Reference No.: WTN23X09204949W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 25 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................. 5 1.3 TEST METHODOLOGY ........................................................................................................................................... 5 1.4 TEST FACILITY ...................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE .............................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................. 7 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 11 3. ANTENNA REQUIREMENT ................................................................................................................................. 12 3.1 STANDARD APPLICABLE ..................................................................................................................................... 12 3.2 TEST RESULT ...................................................................................................................................................... 12 4. RADIATED EMISSIONS ....................................................................................................................................... 13 4.1 STANDARD APPLICABLE ..................................................................................................................................... 13 4.2 TEST PROCEDURE .............................................................................................................................................. 14 4.3 CORRECTED AMPLITUDE & MARGIN CALCULATION ........................................................................................... 15 4.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 15 5. 20DB BANDWIDTH ............................................................................................................................................... 18 5.1 STANDARD APPLICABLE ..................................................................................................................................... 18 5.1 TEST PROCEDURE .............................................................................................................................................. 18 5.2 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 18 6. TRANSMISSION TIME .......................................................................................................................................... 20 6.1 STANDARD APPLICABLE ..................................................................................................................................... 20 6.2 TEST PROCEDURE .............................................................................................................................................. 20 6.3 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 20 7. DUTY CYCLE ......................................................................................................................................................... 22 7.1 STANDARD APPLICABLE ..................................................................................................................................... 22 7.2 TEST PROCEDURE .............................................................…
