2AUA9-RQZY004AX1800 Wi-Fi6 Smart WiFi Router

WIFI6-53B9_2.4G rockspace-WiFi6-2.4g Quick Installation Guide Technical Support: Phone: 1-833-816-6558 (EST: 9:00-17:00 / PDT: 06:00-14:00 Monday to Friday) Email: [email protected] Website: www.rockspace.cc 24hour Online After-sales Service: https: //rockspace. afterservice. vip RSD0616 Quick Installation Guide AX1800 Wi-Fi6 Smart WiFi Router Pack ag e c ont ent s Wireless router x 1 Power adapter x 1 Ethernet cable x 1 Quick installation guide x 1 Website: www.rockspace.cc I. Connect y our r out er Hello, welcome to the Rock Space. Note: 123456 单黑 书纸 骑订（2个 ） 页码出版麻烦调整下（包括右上角EN） If this is the rst time you are using a router or you are not very procient in router settings, please skip the Step 1 and start from Step 2. If you are very procient in router settings and know what is the PPPoE user name and password, you can refer to step 1 to copy them from your original router to AX1800 WiFi router. It will save you some time. 1. Q: Why can't I log in to the web UI of the router? A: Step 1: Please conrm your devices connect to the WIFI6-53B9_2.4G. Step 2: Please conrm if your IP address is 192.168.1.1. Step 3: Please conrm both the user name and password is “admin”. 2. Q: How can I reset the router? A: Method 1: Keep pressing the Reset button for about 8 seconds to restore factory settings. Method 2: Please log in to the management page and click the “Reboot”. In this interface, you can turn on WPS. 3. Q: How can I turn on WPS? A: Method 1: Keep pressing the WPS button for about 3 seconds to start the WPS . Method 2: Please log in to the management page and click the “Advanced Settings>Wireless>WPS”. 4. Q: How to change my admin password? A: Please log in to the management pa ge(IP address is 192.168.1.1.) and click the “Advanced Settings>System Tools>Admin Password”. In this interface, you can change the admin password. 5. Q: How to change my network name and password? A: Please log in to the management page(IP address is 192.168.1.1.) and click the “Wireless”. In this interface, you can change the network name and password. 6. Q: What if I forget the network password of the router? A: Please reset the router and login in the router to set it up again”. 7. Q: How can I select my connection type? A: Please log in to the management page(IP address is 192.168.1.1.) and click the “Internet”. In this interface, you can choose your connection type. 8. Q: What is the function o f USB 3.0? A: First, the router will charge your smart phone. Besides, the USB 3.0 port can connect a USB storage device, which can be either a USB drive or a portal hard disk. The USB storage device connected can function as a FTP or Samba server for le sharing and be accessed with a computer. You can also manage the resources on the USB storage device with a computer. 9. Q: How can I select the time zone? A: Please log in to the management page(IP address is 192.168.1.1.) and click the “Advanced Settings> System Tools>Time Settings”. In this interface, you can choose the time zone. 10. Q: How can I add a Virtual Server? A: Please log in to the management page(IP address is 192.168.1.1.) and click the “Advanced Settings> N at Forwarding>Virtual Servers”. In this interface, you can add a new virtual server. 11. Q: How can I turn on DHCP Server? A: Please log in to the management page(IP address is 192.168.1.1.) and click the “Advanced Settings>Network>DHCP Server”. In this interface, you can add a new virtual server. 12. Q: How can I turn on UPnP? A: Please log in to the management page(IP address is 192.168.1.1.) and click the “Advanced Settings> UPnP”. In this interface, you can turn on UPnP. 13. Q: How can I turn on DNS? A: Please log in to the management page(IP address is 192.168.1.1.) and click the “Advanced Settings> DNS”. In this interface, you can turn on DNS. 14. Q: How can I update the rmware? A: Please log in to the management page (IP address is 192.168.1.1.) and click the “Advanced Settings> System Tools>Firmware Upgrade”. In this interface, you can add the rmware le path and upgrade the rmware. 15. Q: How can I turn on DMZ? A: Please log in to the management page(IP address is 192.168.1.1.) and click the “Advanced Settings>Net Forwarding>DMZ”. In this interface, you can turn on DMZ. Dual Band Setting Please log in to the management page. The IP address is 192.168.1.1. 1.Click “Wireless”. You could customize your private network name and password here. 2.Select “Hide SSID”. You could hide the 2.4GHZ Network or the 5GHZ Network and click ”Save”. Note: The router will reboot after changing the network name and password, please reconnect by applying the new network name(SSID) and password. 3.Turn on the smart phone. Then click “Settings>WLAN>Add Network”. And ll in the network name you have hidden. Such as ”rockspace-WiFi6-2.4g”. Click “Connect”, and enter the new password. You will connect the network successfully. Step 1: Import your PPPoE user name and password from your original router. 1. Power on your original and new routers. 2. Connect the WAN port of the original router to a LAN port of the new router using an Ethernet cable. 3. When the WAN and LAN LED indicators of the new router turn solid on for 3 seconds after blinking fast, the PPPoE user name and password are imported to your new router successfully. 4. Remove the original router. Note: If the PPPoE user name and password are imported to your new router successfully, this router will auto-ll the ISP User Name and ISP Password when you select PPPoE connection type. 1. Power on the new router. 2. Connect the WAN port of the new router to the LAN port of your modem or the Ethernet jack using an Ethernet cable. The WAN LED indicator lights on. Step 2: Connect your new router to the internet. II. Connect y our devic es t o the new r out er Method 1: Connect your WiFi-enabled device (such as a smart phone) to the new router’s WiFi network using the SSIDWiFi name labeled on the bottom of the router. There is no WiFi password by defaul…

Text truncated - open the document above for the full version.

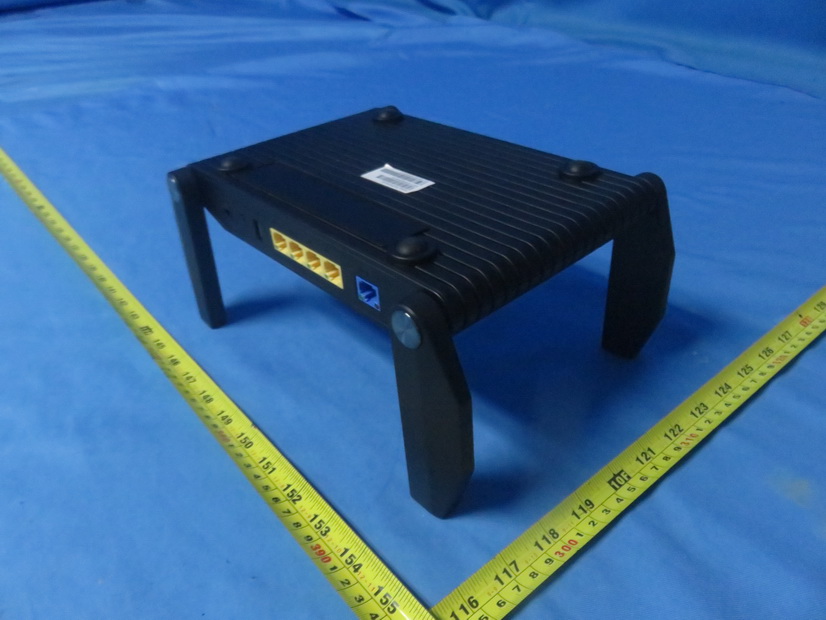

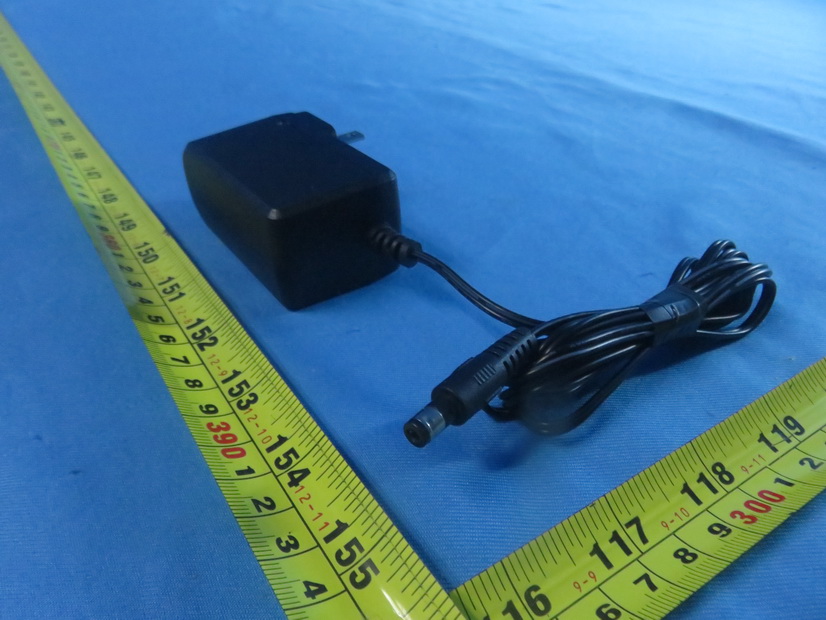

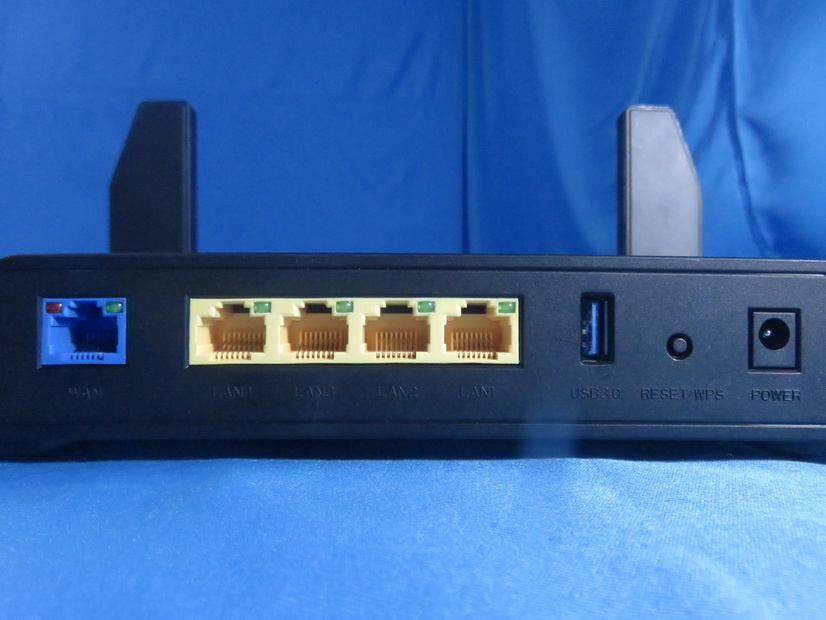

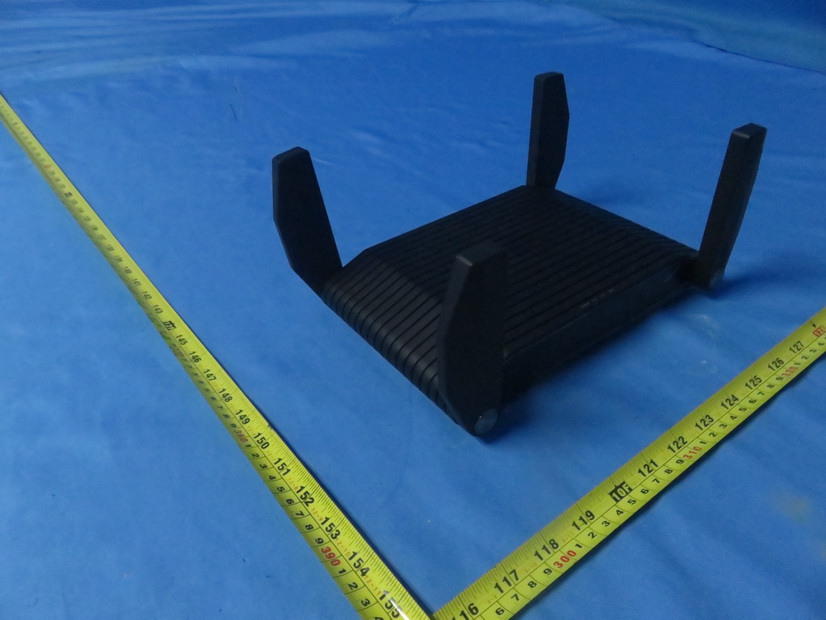

Report No.: 2005C172 Page 1 of 10 ATTACHMENT PHOTOGRAPHS OF EUT Report No.: 2005C172 Page 2 of 10 2.4G Ant. 1 5G Ant. 1 5G Ant. 2 2.4G Ant. 2 Report No.: 2005C172 Page 3 of 10 Report No.: 2005C172 Page 4 of 10 Report No.: 2005C172 Page 5 of 10

技术要求 1.尺寸：134*26.5mm；公差-0.15mm。 2.材质：80g铜版纸，过可打印雾膜，四色印刷 ，背胶。 3.材质，印刷原料，印刷工艺均能满足RoHS指令要求。 Code128码，条码高度4mm，条码下字体Arial，Regular,6pt 工厂打印 134mm 26.5mm RSD061662040xxx机身标贴 LIU 200408初版V1.0 李乔 XXXArialRegular,7pt Model: RSD0616 FCC ID: 2AUA9-RQZY004 Input: 12V 1.5A Username: admin Password: admin IP Address:192.168.1.1 MAC:XXXXXXXXXXXX 2.4G SSID: rockspace-WiFi6-2.4g 5G SSID: rockspace-WiFi6-5g Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. AX1800 Wi-Fi6 Smart WiFi Router

Report No.: 2005C172 Page 6 of 10 Report No.: 2005C172 Page 7 of 10 Report No.: 2005C172 Page 8 of 10 Report No.: 2005C172 Page 9 of 10 Report No.: 2005C172 Page 10 of 10 2.4G Ant. 2 2.4G Ant. 1 5G Ant. 2 5G Ant. 1

Report No.: BTL-FCCP-3-2005C172 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: 2AUA9-RQZY004 Project No. : 2005C172 Equipment : AX1800 Wi-Fi6 Smart WiFi Router Brand Name : ROCK, rock space Test Model : RSD0616 Series Model : N/A Applicant : Shenzhen Renqing Excellent Technology Co., Ltd. Address : 104, No.15, Longfu Industrial Zone, Tongsheng Community, Dalang Street, Dalang Street, Longhua District, Shenzhen, Guangdong , China Manufacturer : Shenzhen Renqing Excellent Technology Co., Ltd. Address : 104, No.15, Longfu Industrial Zone, Tongsheng Community, Dalang Street, Dalang Street, Longhua District, Shenzhen, Guangdong , China Date of Receipt : May 27, 2020 Date of Test : May 28, 2020 ~ Jun. 30, 2020 Issued Date : Oct. 09, 2020 Report Version : R01 Test Sample : Engineering Sample No.: DG2019120614 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2005C172 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Jul. 23, 2020 R01 Changed the product name. Oct. 09, 2020 Report No.: BTL-FCCP-3-2005C172 Page 3 of 5 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For WLAN 2.4GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A Dipole N/A 5.13 2 N/A Dipole N/A 5.13 Note: This EUT supports CDD, and all antennas have the same gain, then the Directional gain = G ANT +Array Gain, For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so the Directional gain=5.13. For power spectral density measurements, N ANT = 2, N SS = 1. So Directional gain = G ANT + Array Gain = G ANT +10log (N ANT / N SS ) dB =5.13+10log(2/1)dBi=8.14. Then, the power spectral density limit is 8-(8.14-6)=5.86. Table for Antenna Configuration: Operating Mode TX Mode 1TX 2TX IEEE 802.11b V (Ant. 2) - IEEE 802.11g - V (Ant. 1 + Ant. 2) IEEE 802.11n (HT20) - V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) - V (Ant. 1 + Ant. 2) IEEE vht20 - V (Ant. 1 + Ant. 2) IEEE vht40 - V (Ant. 1 + Ant. 2) IEEE 802.11ax (HEW20) - V (Ant. 1 + Ant. 2) IEEE 802.11ax (HEW40) - V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2005C172 Page 4 of 5 For WLAN 5GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 N/A N/A Dipole N/A 4.82 UNII-1 2 N/A N/A Dipole N/A 4.82 UNII-1 1 N/A N/A Dipole N/A 5.92 UNII-3 2 N/A N/A Dipole N/A 5.92 UNII-3 Note: This EUT supports CDD, and all antennas have the same gain, then the Directional gain = G ANT +Array Gain, a) For UNII-1: For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so the Directional gain=4.82. For power spectral density measurements, N ANT = 2, N SS = 1. So Directional gain = G ANT + Array Gain = G ANT +10log (N ANT / N SS ) dB =4.82+10log(2/1)dBi=7.83. Then, the power spectral density limit is 17-(7.83-6)=15.17. b) For UNII-3: For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so the Directional gain=5.92. For power spectral density measurements, N ANT = 2, N SS = 1. So Directional gain = G ANT + Array Gain = G ANT +10log (N ANT / N SS ) dB =5.92+10log(2/1)dBi=8.93. Then, the power spectral density limit is 30-(8.93-6)=27.07. Table for Antenna Configuration: Operating Mode TX Mode 2TX IEEE 802.11a V (Ant. 1 + Ant. 2) IEEE 802.11n (HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HEW20) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HEW40) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HEW80) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2005C172 Page 5 of 5 3. TEST RESULTS For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.14 6.5163 23.76 237.6840 0.30828 1 Complies For 5GHz UNII-1: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 7.83 6.0674 24.38 274.1574 0.33109 1 Complies For 5GHz UNII-3: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.93 7.8163 24.72 296.4831 0.46126 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.30828 0.46126 0.76954 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-1-2005C172 Page 1 of 156 FCC Radio Test Report FCC ID: 2AUA9-RQZY004 This report concerns: Original Grant Project No. : 2005C172 Equipment : AX1800 Wi-Fi6 Smart WiFi Router Brand Name : ROCK, rock space Test Model : RSD0616 Series Model : N/A Applicant : Shenzhen Renqing Excellent Technology Co., Ltd. Address : 104, No.15, Longfu Industrial Zone, Tongsheng Community, Dalang Street, Dalang Street, Longhua District, Shenzhen, Guangdong , China Manufacturer : Shenzhen Renqing Excellent Technology Co., Ltd. Address : 104, No.15, Longfu Industrial Zone, Tongsheng Community, Dalang Street, Dalang Street, Longhua District, Shenzhen, Guangdong , China Date of Receipt : May 27, 2020 Date of Test : May 28, 2020 ~ Jun. 30, 2020 Issued Date : Oct. 09, 2020 Report Version : R01 Test Sample : Engineering Sample No.: DG20200527305 for conducted, DG20200527306 for radiated. Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2005C172 Page 2 of 156 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2005C172 Page 3 of 156 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 14 2.4 DUTY CYCLE 15 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 17 2.6 SUPPORT UNITS 17 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 18 3.1 LIMIT 18 3.2 TEST PROCEDURE 18 3.3 DEVIATION FROM TEST STANDARD 18 3.4 TEST SETUP 19 3.5 EUT OPERATION CONDITIONS 19 3.6 TEST RESULTS 19 4 . RADIATED EMISSIONS TEST 20 4.1 LIMIT 20 4.2 TEST PROCEDURE 21 4.3 DEVIATION FROM TEST STANDARD 21 4.4 TEST SETUP 22 4.5 EUT OPERATION CONDITIONS 23 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 23 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 23 4.8 TEST RESULTS - ABOVE 1000 MHZ 23 5 . BANDWIDTH TEST 24 5.1 LIMIT 24 5.2 TEST PROCEDURE 24 5.3 DEVIATION FROM STANDARD 24 5.4 TEST SETUP 24 Report No.: BTL-FCCP-1-2005C172 Page 4 of 156 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 24 5.6 TEST RESULTS 24 6 . MAXIMUM OUTPUT POWER TEST 25 6.1 LIMIT 25 6.2 TEST PROCEDURE 25 6.3 DEVIATION FROM STANDARD 25 6.4 TEST SETUP 25 6.5 EUT OPERATION CONDITIONS 25 6.6 TEST RESULTS 25 7 . CONDUCTED SPURIOUS EMISSIONS 26 7.1 LIMIT 26 7.2 TEST PROCEDURE 26 7.3 DEVIATION FROM STANDARD 26 7.4 TEST SETUP 26 7.5 EUT OPERATION CONDITIONS 26 7.6 TEST RESULTS 26 8 . POWER SPECTRAL DENSITY TEST 27 8.1 LIMIT 27 8.2 TEST PROCEDURE 27 8.3 DEVIATION FROM STANDARD 27 8.4 TEST SETUP 27 8.5 EUT OPERATION CONDITIONS 27 8.6 TEST RESULTS 27 9 . MEASUREMENT INSTRUMENTS LIST 28 10 . EUT TEST PHOTO 30 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 34 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 39 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 44 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 47 APPENDIX E - BANDWIDTH 122 APPENDIX F - MAXIMUM OUTPUT POWER 129 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 138 Report No.: BTL-FCCP-1-2005C172 Page 5 of 156 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 150 Report No.: BTL-FCCP-1-2005C172 Page 6 of 156 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jul. 23, 2020 R01 Changed the product name. Oct. 09, 2020 Report No.: BTL-FCCP-1-2005C172 Page 7 of 156 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ---…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2005C172 Page 128 of 156 Test Mode TX AX-40M Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 03 2422 37.48 500 Complies 06 2437 37.51 500 Complies 09 2452 37.51 500 Complies CH03 CH06 CH09 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 03 2422 37.76 Complies 06 2437 37.76 Complies 09 2452 37.76 Complies CH03 CH06 CH09 Report No.: BTL-FCCP-1-2005C172 Page 129 of 156 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-1-2005C172 Page 130 of 156 Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 20.21 0.47 20.68 30.00 1.0000 Complies 06 2437 20.26 0.47 20.73 30.00 1.0000 Complies 11 2462 20.36 0.47 20.83 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2005C172 Page 131 of 156 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.42 0.23 16.65 30.00 1.0000 Complies 06 2437 20.31 0.23 20.54 30.00 1.0000 Complies 11 2462 16.80 0.23 17.03 30.00 1.0000 Complies Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 17.20 0.23 17.43 30.00 1.0000 Complies 06 2437 20.72 0.23 20.95 30.00 1.0000 Complies 11 2462 18.19 0.23 18.42 30.00 1.0000 Complies Test Mode TX G Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 20.07 30.00 1.0000 Complies 06 2437 23.76 30.00 1.0000 Complies 11 2462 20.79 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2005C172 Page 132 of 156 Test Mode TX N-20M Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.35 0.22 16.57 30.00 1.0000 Complies 06 2437 20.08 0.22 20.30 30.00 1.0000 Complies 11 2462 16.57 0.22 16.79 30.00 1.0000 Complies Test Mode TX N-20M Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 17.22 0.22 17.44 30.00 1.0000 Complies 06 2437 20.68 0.22 20.90 30.00 1.0000 Complies 11 2462 18.02 0.22 18.24 30.00 1.0000 Complies Test Mode TX N-20M Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 20.04 30.00 1.0000 Complies 06 2437 23.62 30.00 1.0000 Complies 11 2462 20.58 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2005C172 Page 133 of 156 Test Mode TX N-40M Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 13.75 0.43 14.18 30.00 1.0000 Complies 06 2437 15.32 0.43 15.75 30.00 1.0000 Complies 09 2452 15.07 0.43 15.50 30.00 1.0000 Complies Test Mode TX N-40M Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 14.42 0.43 14.85 30.00 1.0000 Complies 06 2437 16.19 0.43 16.62 30.00 1.0000 Complies 09 2452 15.48 0.43 15.91 30.00 1.0000 Complies Test Mode TX N-40M Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 17.54 30.00 1.0000 Complies 06 2437 19.22 30.00 1.0000 Complies 09 2452 18.72 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2005C172 Page 134 of 156 Test Mode TX vht-20M Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 15.44 0.00 15.44 30.00 1.0000 Complies 06 2437 20.01 0.00 20.01 30.00 1.0000 Complies 11 2462 17.56 0.00 17.56 30.00 1.0000 Complies Test Mode TX vht-20M Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.83 0.00 16.83 30.00 1.0000 Complies 06 2437 20.65 0.00 20.65 30.00 1.0000 Complies 11 2462 17.54 0.00 17.54 30.00 1.0000 Complies Test Mode TX vht-20M Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 19.20 30.00 1.0000 Complies 06 2437 23.35 30.00 1.0000 Complies 11 2462 20.56 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2005C172 Page 135 of 156 Test Mode TX vht-40M Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 13.77 0.13 13.90 30.00 1.0000 Complies 06 2437 15.77 0.13 15.90 30.00 1.0000 Complies 09 2452 14.88 0.13 15.01 30.00 1.0000 Complies Test Mode TX vht-40M Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 14.92 0.13 15.05 30.00 1.0000 Complies 06 2437 16.28 0.13 16.41 30.00 1.0000 Complies 09 2452 15.87 0.13 16.00 30.00 1.0000 Complies Test Mode TX vht-40M Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 17.53 30.00 1.0000 Complies 06 2437 19.18 30.00 1.0000 Complies 09 2452 18.55 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2005C172 Page 136 of 156 Test Mode TX AX-20M Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.13 0.09 16.22 30.00 1.0000 Complies 06 2437 20.21 0.09 20.30 30.00 1.0000 Complies 11 2462 14.54 0.09 14.63 30.00 1.0000 Complies Test Mode TX AX-20M Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.69 0.09 16.78 30.00 1.0000 Complies 06 2437 20.75 0.09 20.84 30.00 1.0000 Complie…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2005C172 Page 151 of 156 Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -2.02 8 Complies 06 2437 -0.95 8 Complies 11 2462 -1.87 8 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2005C172 Page 152 of 156 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -8.97 8 Complies 06 2437 -5.69 8 Complies 11 2462 -8.43 8 Complies CH01 CH06 CH11 Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -8.62 8 Complies 06 2437 -5.43 8 Complies 11 2462 -8.50 8 Complies CH01 CH06 CH11 Test Mode TX G Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.78 5.86 Complies 06 2437 -2.55 5.86 Complies 11 2462 -5.45 5.86 Complies Report No.: BTL-FCCP-1-2005C172 Page 153 of 156 Test Mode TX N-20M Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -9.73 8 Complies 06 2437 -6.35 8 Complies 11 2462 -9.28 8 Complies CH01 CH06 CH11 Test Mode TX N-20M Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -8.47 8 Complies 06 2437 -6.23 8 Complies 11 2462 -8.49 8 Complies CH01 CH06 CH11 Test Mode TX N-20M Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.04 5.86 Complies 06 2437 -3.28 5.86 Complies 11 2462 -5.86 5.86 Complies Report No.: BTL-FCCP-1-2005C172 Page 154 of 156 Test Mode TX N-40M Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -13.83 8 Complies 06 2437 -11.18 8 Complies 09 2452 -13.33 8 Complies CH03 CH06 CH09 Test Mode TX N-40M Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -13.29 8 Complies 06 2437 -10.64 8 Complies 09 2452 -13.08 8 Complies CH03 CH06 CH09 Test Mode TX N-40M Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -10.54 5.86 Complies 06 2437 -7.89 5.86 Complies 09 2452 -10.19 5.86 Complies Report No.: BTL-FCCP-1-2005C172 Page 155 of 156 Test Mode TX AX-20M Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.62 8 Complies 06 2437 -6.08 8 Complies 11 2462 -12.02 8 Complies CH01 CH06 CH11 Test Mode TX AX-20M Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.05 8 Complies 06 2437 -6.86 8 Complies 11 2462 -11.38 8 Complies CH01 CH06 CH11 Test Mode TX AX-20M Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -7.32 5.86 Complies 06 2437 -3.44 5.86 Complies 11 2462 -8.68 5.86 Complies Report No.: BTL-FCCP-1-2005C172 Page 156 of 156 Test Mode TX AX-40M Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -15.13 8 Complies 06 2437 -13.51 8 Complies 09 2452 -13.81 8 Complies CH03 CH06 CH09 Test Mode TX AX-40M Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -14.78 8 Complies 06 2437 -13.95 8 Complies 09 2452 -12.91 8 Complies CH03 CH06 CH09 Test Mode TX AX-40M Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -11.94 5.86 Complies 06 2437 -10.71 5.86 Complies 09 2452 -10.33 5.86 Complies End of Test Report

Report No.: BTL-FCCP-2-2005C172 Page 33 of 230 10. EUT TEST PHOTOS AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-2-2005C172 Page 34 of 230 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-2-2005C172 Page 35 of 230 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-2-2005C172 Page 36 of 230 Radiated Emissions Test Photos Above 1 GHz
