2AUA9-RQZY008AX1800 Dual-Band Wi-Fi 6 Router

AX1800 Dual- Band Wi-Fi 6 Router 9

QA-FR-171-A Shenzhen Renqing Excellent Technology Co., Ltd. ADD: 104, No.15, Longfu Industrial Zone Tongsheng Community, Dalang Street Longhua District, Shenzhen, Guangdong China TEL: 0755-83038515 FAX: N.A. E-mail: [email protected] FCC Confidential Authorization Date: 2021-1-20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Sub ject: Confidentiality Request regarding application for certification of FCC ID:2AUA9-RQZY008 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Shenzhen Renqing Excellent Technology Co., Ltd.) hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Shanyue Meng Title: Quality Engineer

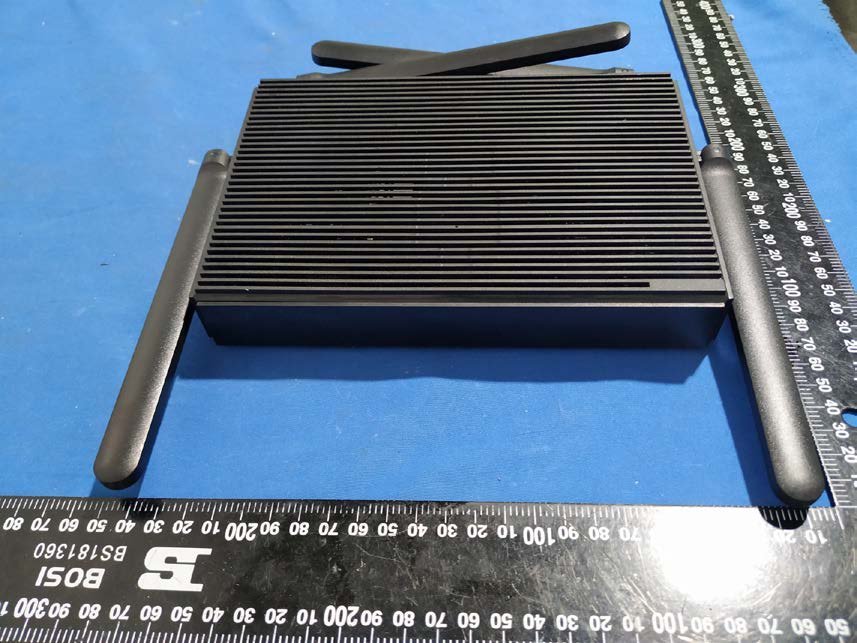

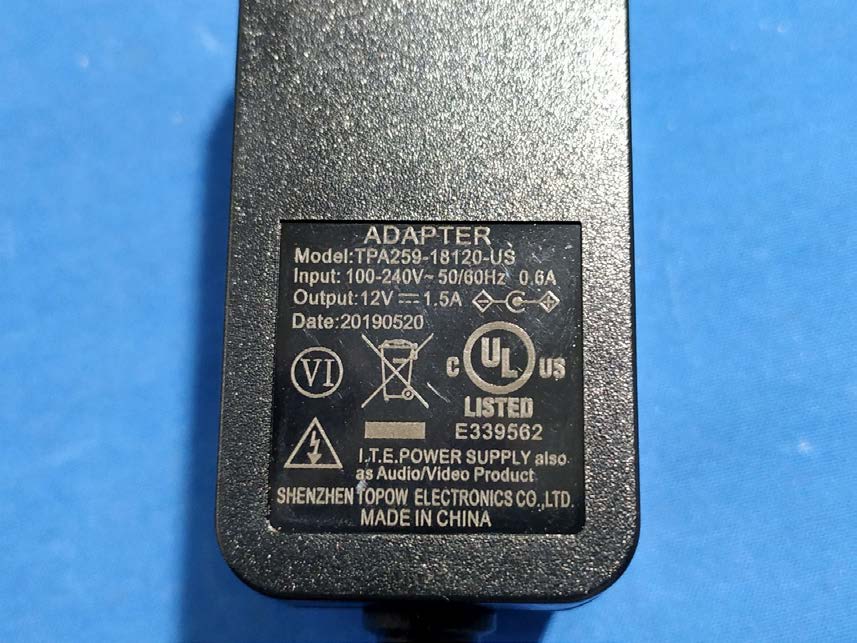

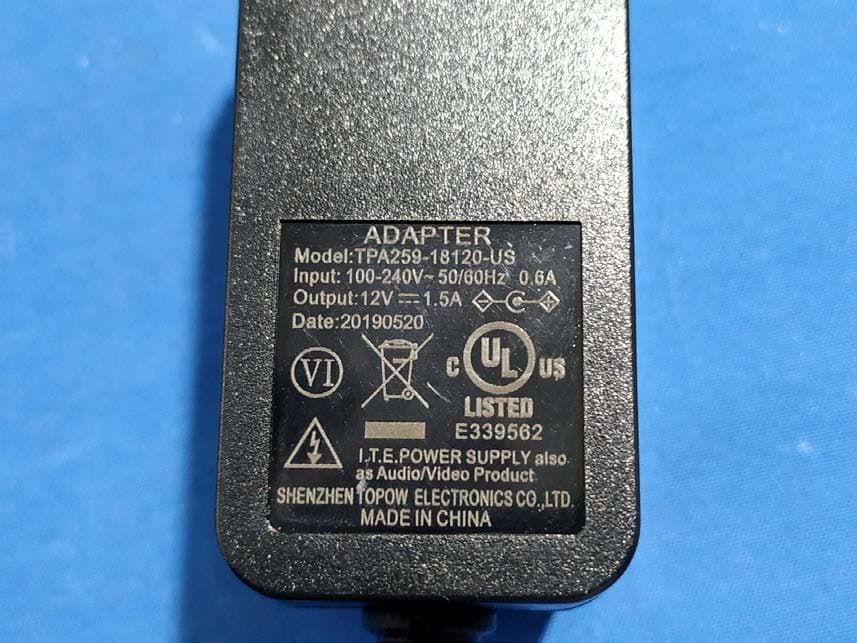

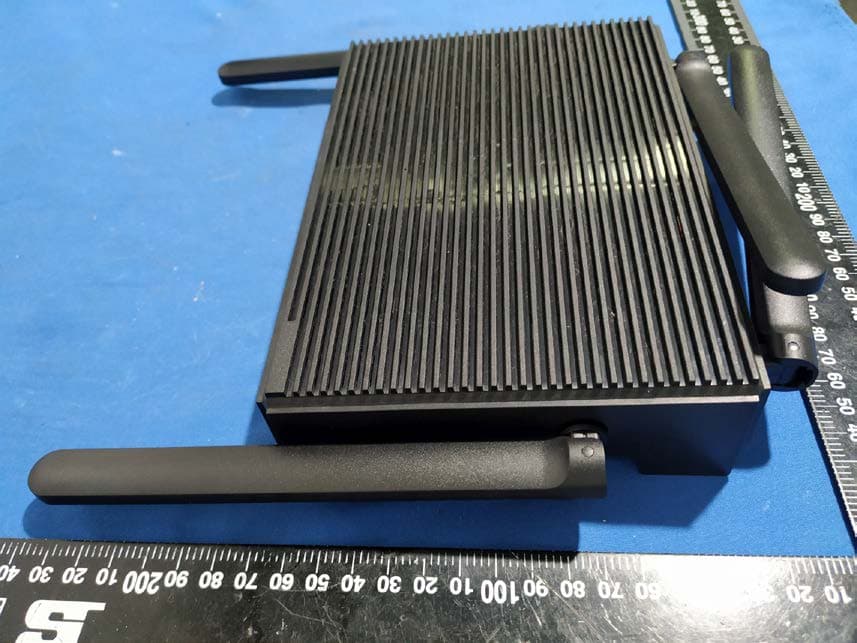

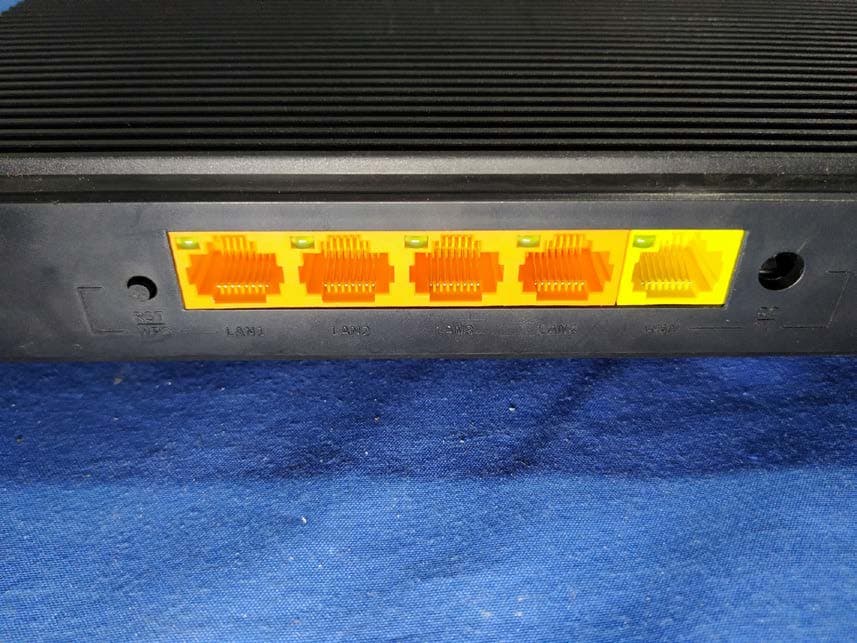

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS 2.4G Chain 0 5G Chain 0 5G Chain 1 2.4G Chain 1 Adapter#1 Adapter#2

133.5mm ／ 、 AX1800 Dual-Band Wi-Fi 6 Router IP Address: 192.168.0.1 Model: RSD0619 Input: 12V二二二1.5Aor 12V二二二1A 2.4G SSID: rockspace-wifi6-2.4G 5G SSID: rockspace-wifi6-5G FCC ID: 2AUA9-RQZY008 厂－－－ I I 厂-- - I I 33*6MM 33*6MM I I - - - J I I - - - .J 5 GHz band (W52, W53): Indoor use only Ji 范CE王 Made in China 27 . 1mm ＼ /

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG201208016-00A Page 12 of 64 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG201208016-00A Page 13 of 64 Calculated Data: Mode Frequency (MHz) Antenna Gain Conducted output power including Tune- up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) WLAN 2412-2462 5 3.16 27 501.19 20.00 0.32 1.0 WLAN 5150-5250 5 3.16 1863.10 20.00 0.04 1.0 WLAN 5725-5850 5 3.16 23 199.53 20.00 0.13 1.0 The WLAN 2.4G and 5G can transmit simultaneously: =S 2.4 /S limit-2.4 + S 5 /S limit-5 =0.32/1+0.13/1 =0.45 < 1.0 Result: The device meet FCC MPE at 20 cm distance

FCC PART 15.247 TEST REPORT For Shenzhen Renqing Excellent Technology Co., Ltd. 104, No.15, Longfu Industrial Zone, Tongsheng Community, Dalang Street, Longhua District, Shenzhen, China Report Type: Original Report Product Name: AX1800 Dual-Band Wi-Fi 6 Router Report Number: RDG201208016-00A Report Date: 2021-01-20 Reviewed By: Ivan Cao Assistant Mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID:2AUA9-RQZY008 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG201208016-00A Page 2 of 64 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 9 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS ........................................................................................................ 9 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 9 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 16 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 16 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 17 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 19 APPLICABLE STANDARD ............................................................................................................................................ 19 EUT SETUP ................................................................................................................................................................ 19 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 20 TEST PROCEDURE ...............................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz front View Radiated Emission Above 1GHz View
