2AUCH-SONARUnderwater Headphones

UNDERWATERHEADPHONES 1 YEAR WARRANTY Your Sonar Underwater headphones are warrantied by H2O Audio against defects in materials, under normal use, for one year beginning from the original date of purchase. h2oaudio.com UNDERWATERHEADPHONES WHAT’S IN THE BOX SONAR headphones and USB cable BUTTONS POWER ON/OFF: Press for 3 seconds PL AY/PAUSE music + / - BUTTONS: Click to Adjust volume up or down Double click to Skip to next song While the music is playing – Press and hold for Fast Forward or Rewind MODE BUTTON Press M Button: Switch between MP3 Mode and Bluetooth Mode 2-CLICK M BUTTON: If you have added music folders in the SONAR memory – you can advance to the next folder by double clicking M button HOW TO CHARGE BATTERY HOW TO CHARGE Attach the charger cable 4 pins to the R speaker and line up the pins. A magnetic force will pull the connector in when it is in correct place. Make sure the connector pins are clean and dry when connecting and charging the SONAR. LED light will be RED when charging. When battery is full – LED light will turn off The battery is charged with a special USB charger cable. TIP: DO NOT move the SONAR speaker when it is connected to your computer. The connection can be sensitive and moving the speaker may briefly disconnect the USB connection and confuse the computer. This may require you to restart the SONAR and computer. 1. 2. Connect the cable to the SONAR R Speaker (magnets). There are 4 pins on the R speaker. Connect the USB cable to your computer or charger. HOW TO CHARGE BATTERY USB CHARGER CABLE HOW TO CHARGE ADD MUSIC TO UPLOAD MUSIC TO THE SONAR MEMORY (8Gb): Turn Off SONAR. Connect SONAR USB cable to the SONAR R speaker and then to the computer USB port. Wait for few moments to the computer to register the device. It should appear in the File Explorer (Windows) or Finder App (MAC) as a memory drive H2O SONAR. TIP: If you are having trouble with the USB connection, disconnect the SONAR from the computer, power off SONAR and restart the computer. After your computer has done a full restart – try to connect again. You can also try a different USB port. Find the music files on your computer. The SONAR can play .MP3 and .M4A (Apple iTunes) music. Select or Copy the music files and then copy/paste or ‘drag & drop’ the files to the H2O SONAR. The file transfer will start. Do not disconnect until all files have been copied. To remove or delete files on the SONAR - simply select the files in the SONAR memory and Delete them or drag to Trash. To disconnect it from the Computer, click Eject the SONAR or simply disconnect it. HOW TO ADD MUSIC TO SONAR MEMORY HOW TO USE BLUETOOTH MODE UNIT OPERATION / BLUETOOTH PLAY Place the SONAR into Bluetooth mode by pressing the M button. Blue LED light will start blinking as it is seeking to connect. Go to your Bluetooth Settings in your phone or Smart Watch and complete the pairing by selecting ‘H2O SONAR’ LED will turn solid Blue light when connection is made. Bluetooth use with Smart Watch: For Bluetooth connection under water - you will need to keep your smart watch within few inches of the SONAR (i.e. clip the watch on your goggles or put it under your swim cap). PLEASE NOTE: Bluetooth connection has a range of approx. 10m /30ft. in air and 10cm/2 inches under water. Bluetooth does not penetrate water (due to laws of physics) SONAR PLACEMENT HOW TO WEAR T he speakers are marked L and R. Attach the swim goggle straps through the slots on the speakers. SONAR PLACEMENT For best sound experience - orient the speakers to be in front of the ear. You can try and find a location on the goggles that provides the best sound. Bone conduction sound works by the vibration of the speaker that is conducted to the inner-ear. LED LIGHTS: Red Light • Solid: Battery charging • Blinking: Low battery Green Light • Solid: Playing from memory • Slow Blinking: Music is paused Blue Light: • Solid: Bluetooth mode – Connected • Slow Blinking: Looking for Bluetooth connection h2oaudio.com SUPPORT: For any issues or questions, please contact us directly Email: [email protected] Web: h2oaudio.com WE ARE HAPPY TO HELP :) For more tips and videos – please visit the H2O Audio SONAR page: https://h2oaudio.com/pages/sonar-user-guide FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi tion s: (1) This device may not cause h armful i nterference, and (2) this device must accept any interference received, including interference that may cause und esired operati on. Any Ch anges or modificatio ns not expressly approved by the party responsible for co mpliance could void the user's authority to operate the equipment. Note: This equi pment has been tested an d fou nd to comp ly with the li mits for a Class B di gital device, pu rsuant to part 15 o f the FCC Rul es. These limits are desi gned to provide reaso nabl e protection against harmful interference in a residential installation. This equipment gen erates uses and can radi ate radio frequ en cy energy and, if not installed and used i n accordance with th e instructions, may cause harmf ul interference to radio communi catio ns. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful i nterference to radio o r telev isio n recepti on, which can be determined by tu rn ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Co nnect th e equipment into an o utl et on a ci rcuit different from th at to whi ch the recei ver is connected. -Co nsult the deal er or an experienced radi o/TV technician for help . The device has been evaluated to meet general RF exposure requirement. The device can be u sed in p ortable exposure condi tio n with out restrictio n.

Finnovate Group, LLC Agent Authorization Company: Finnovate Group, LLC Address:124E,Cliff St,Suite C-1, Solana Beach, CA 92075, US Product Name: Underwater Headphones Model Number(s):SONAR Product Description: Underwater Headphones We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-07 Name: Kristian Rauhala Title: CEO Company: Finnovate Group, LLC

Finnovate Group, LLC Authorization Letter We, (the approval holder) Company name Finnovate Group, LLC Addresss 124E,Cliff St,Suite C-1, Solana Beach, CA 92075, US declare that the following representative (agent): Name (person) Bovey Yang Company name Shenzhen STS Test Services Co., Ltd. Addresss 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Micom Labs for product certification below Product Description Underwater Headphones Type or Model(s) SONAR Tradename or Brand(s) H2O Audio Attestation: City: Date: Name: (this must be a person) Function: Signature: (or official company stamp) California 2020/11/07 Kristian Rauhala CEO

Finnovate Group, LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-11-07 Subject; Request for Confidentiality FCC ID: 2AUCH-SONAR To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Kristian Rauhala Title: CEO

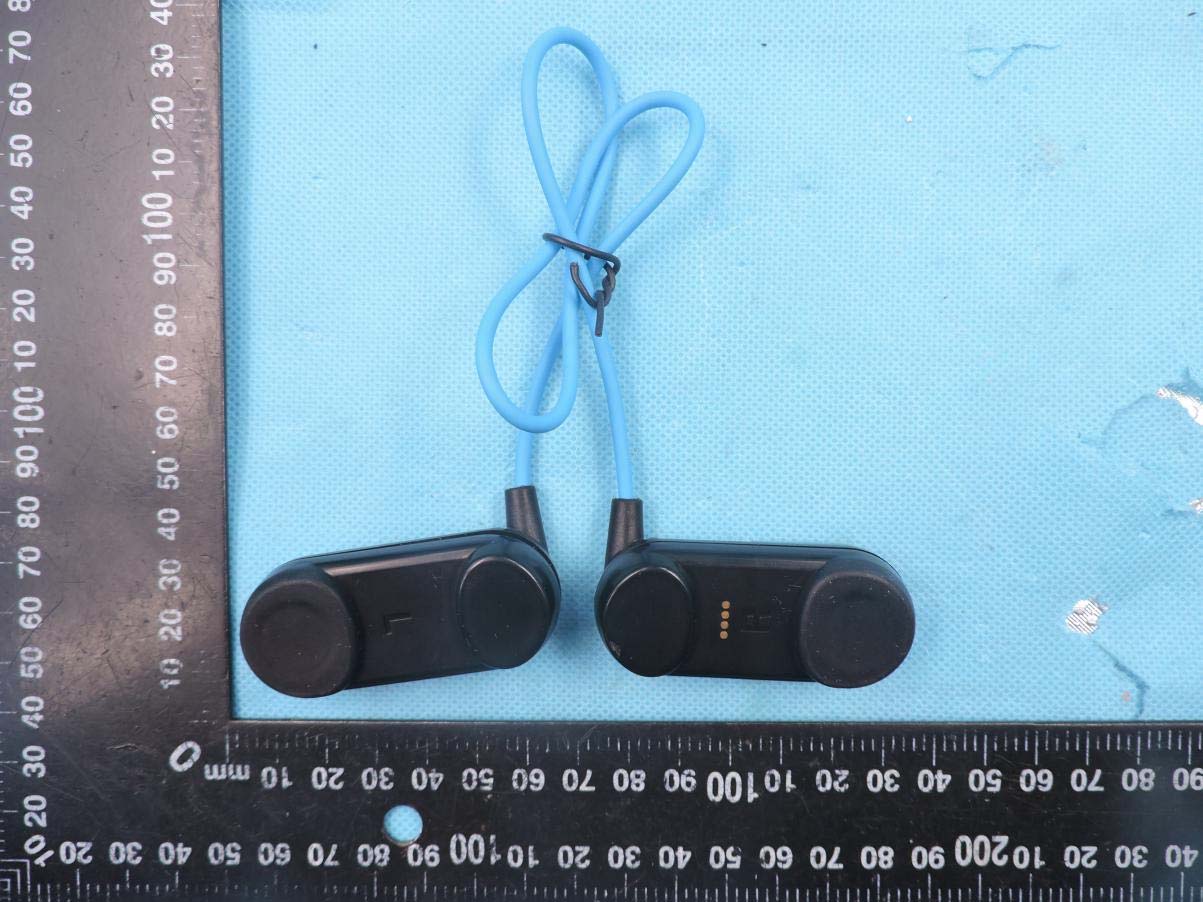

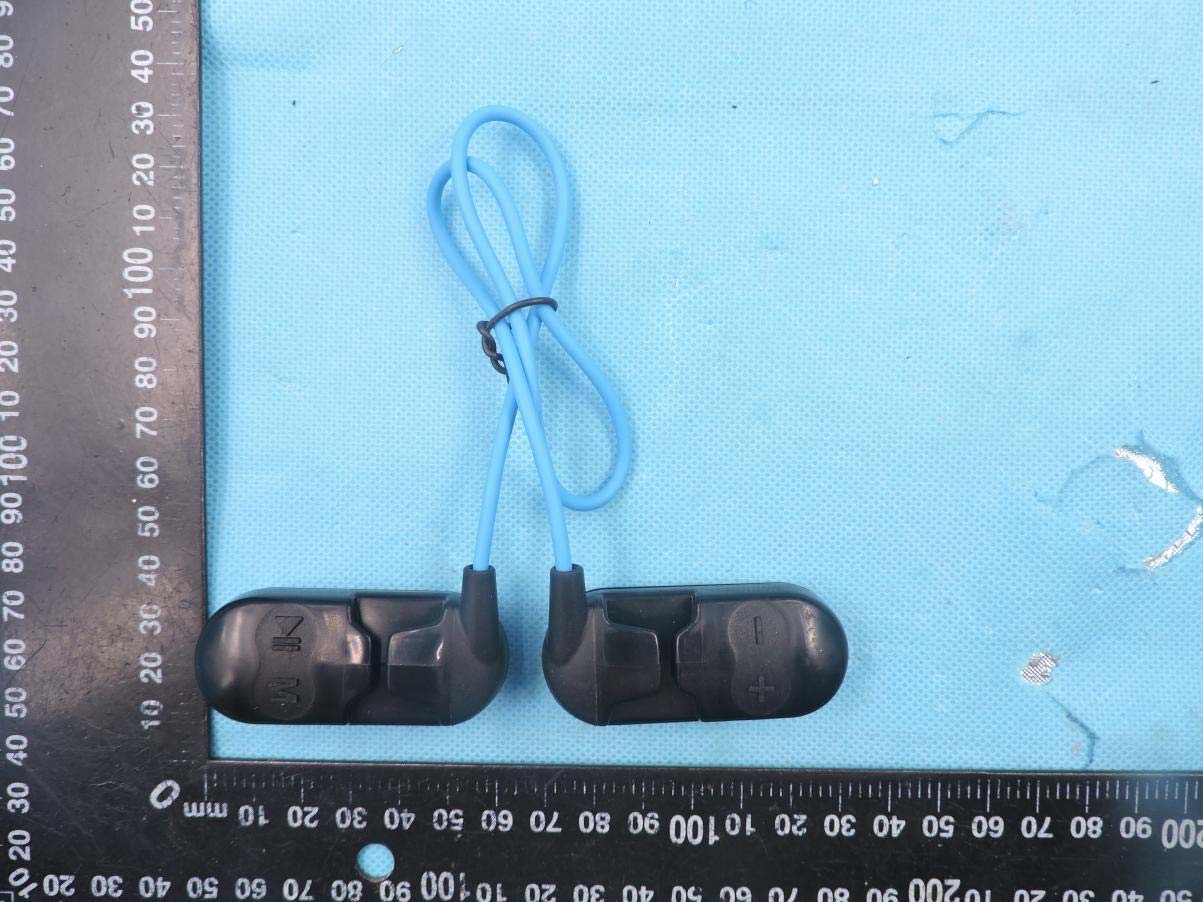

Page 1 of 4 Report No.: STS2010106 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: SONAR Photo 1 Photo 2 Page 2 of 4 Report No.: STS2010106 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2010106 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2010106 Photo 7

Location Silk screen, 20mm * 20mm

Page 1 of 7 Report No.: STS2010106 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: SONAR Photo 1 Photo 2 Page 2 of 7 Report No.: STS2010106 Photo 3 Photo 4 BT Antenna Page 3 of 7 Report No.: STS2010106 Photo 5 Photo 6 Page 4 of 7 Report No.: STS2010106 Photo 7 Photo 8 Page 5 of 7 Report No.: STS2010106 Photo 9 Photo 10 Page 6 of 7 Report No.: STS2010106 Photo 11 Photo 12 Page 7 of 7 Report No.: STS2010106 Photo 13

FCC ID :2AUCH-SONAR RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤50 mmand for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is <5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID :2AUCH-SONAR Maximum measured transmitter power. BT5.0+EDR The Worst Case Mode 2402-2480MHz Detector PEAK GFSK -2±1dBm π/4-DQPSK -2±1dBm 8DPSK -2±1dBm Remark: The worst case gain of the antenna is 0.5dBi. 0.5dBi logarithmic terms convert to numeric result is nearly 1.122 Mode frequency (GHz) Maximum Peak Conducted Output Power (dBm) Tune up Power(dBm) Tune up Power (mW) Result Limit GFSK2.441-2.29-13 π/4-DQPSK2.441-2.15-13 8DPSK2.441-1.98-13 0.7943282350.2482 0.7943282350.2482 0.7943282350.2482 Threshold at which no SAR required is 0.2482≤ 3.0 for 1-g SAR, Separation distance is 5mm.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2010106W02 Issued for Finnovate Group, LLC 124E,Cliff St,Suite C-1, Solana Beach, CA 92075, US Product Name: Underwater Headphones Brand Name: H2O Audio Model Name: SONAR Series Model: N/A FCC ID: 2AUCH-SONAR Test Standard: FCC Part 15.247 S T L A B S Page 2 of 76 Report No.: STS2010106W02 TEST RESULT CERTIFICATION Applicant’s Name ................... : Finnovate Group, LLC Address .................................. : 124E,Cliff St,Suite C-1, Solana Beach, CA 92075, US Manufacturer's Name ............. : Metaline Industrial Limited Address .................................. : B2 Building ,Huaxing Industrial Park,Buxin, Yantian,Fenggang Town,Dongguan City,Guangdong Province ,China, Product Description Product Name ........................ : Underwater Headphones Brand Name ......................... : H2O Audio Model Name ........................... : SONAR Series Model .......................... : N/A Test Standards ....................... : FCC Part15.247 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ................................ : Date of receipt of test item .......... : 20 Oct. 2020 Date (s) of performance of tests . : 20 Oct. 2020 ~ 29 Oct. 2020 Date of Issue .............................. : 29 Oct. 2020 Test Result .................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory: (Vita Li) Page 3 of 76 Report No.: STS2010106W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6
1.1 TEST FACTORY 7
1.2 MEASUREMENT UNCERTAINTY 7
2. GENERAL INFORMATION 8
2.1 GENERAL DESCRIPTION OF THE EUT 8
2.2 DESCRIPTION OF THE TEST MODES 10
2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10
2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12
2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13
2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 14
2.7 EQUIPMENTS LIST 15
3. EMC EMISSION TEST 17
3.1 CONDUCTED EMISSION MEASUREMENT 17
3.2 RADIATED EMISSION MEASUREMENT 21
4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 33
4.1 LIMIT 33
4.2 TEST PROCEDURE 33
4.3 TEST SETUP 34
4.4 EUT OPERATION CONDITIONS 34
4.5 TEST RESULTS 35
5. NUMBER OF HOPPING CHANNEL 50
5.1 LIMIT 50
5.2 TEST PROCEDURE 50
5.3 TEST SETUP 50
5.4 EUT OPERATION CONDITIONS 50
5.5 TEST RESULTS 51
6. AVERAGE TIME OF OCCUPANCY 52
6.1 LIMIT 52
6.2 TEST PROCEDURE 52
6.3 TEST SETUP 52
6.4 EUT OPERATION CONDITIONS 52
6.5 TEST RESULTS 53
7. HOPPING CHANNEL SEPARATION MEASUREMEN 59
Page 4 of 76 Report No.: STS2010106W02 Table of Contents Page 7.1 LIMIT 59
7.2 TEST PROCEDURE 59
7.3 TEST SETUP 59
7.4 EUT OPERATION CONDITIONS 59
7.5 TEST RESULTS 60
8. BANDWIDTH TEST 66
8.1 LIMIT 66
8.2 TEST PROCEDURE 66
8.3 TEST SETUP 66
8.4 EUT OPERATION CONDITIONS 66
8.5 TEST RESULTS 67
9. OUTPUT POWER TEST 73
9.1 LIMIT 73
9.2 TEST PROCEDURE 73
9.3 TEST SETUP 73
9.4 EUT OPERATION CONDITIONS 73
9.5 TEST RESULTS 74
10. ANTENNA REQUIREMENT 75
10.1 STANDARD REQUIREMENT 75
10.2 EUT ANTENNA 75
Page 5 of 76 Report No.: STS2010106W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 29 Oct. 2020 STS2010106W02 ALL Initial Issue Page 6 of 76 Report No.: STS2010106W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 76 Report No.: STS2010106W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±5.6dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±3.37dB 7 Conducted Emission (150KHz-30MHz) ±3.83dB Page 8 of 76 Report No.: STS2010106W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Underwater Headphones Trade Name H2O Audio Model Name SONAR Series Model N…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AUCH-SONAR DSS Setup photo Model name: SONAR DSS conduction DSS radiation L Page 2 of 2 FCC ID: 2AUCH-SONAR DSS radiation H
