2AUDZ-K10selfie stick tripod

User manual 温馨提醒： 本产品使用遥控操作替代原来在手机点击拍照方式，K07适配iOS与安卓系统。(安卓系统需 在手机相机设置里设置音量键为拍照功能，以确保本产品使用正常。苹果系统无需设置，连 接蓝牙即可正常使用。) The Wireless selfie stick tripod uses remote control to take photos instead of clicking on your cellphone camera app.K07 is compatible with Android and iOS smart phones.(For Android phones only:set your volume Key function as capture in camera app setting for the selfie stick to work properly) 1.长按遥控器按键开机，LED指示灯闪烁等待配对 2.打开手机蓝牙搜索蓝牙名"SelfieCom",配对成功后遥控器LED灯灭 3.遥控器开机后如果5分钟无手机配对，会自动关机 4.配对成功后，如果10分钟无操作拍照，遥控器会进入休眠模式，点击按键可以唤醒自动 回连，休眠模式下10分钟无唤醒将会自动关机 5.长按遥控器按键关机，LED快速内烁后关机灯灭 1. Long press the remote button to power on, LED indicator will blink. 2. Search and pair with BT name "SelfieCom"on your cellphone, LED indicator will stop flashing after successfully connected. Use the remote control to capture pictures, LED flash once at a time. 3. The remote control will automatically shut down in 5 mins if not paired. 4. The remote control will automatically sleep in 10 mins without any operation. and auto shut down after another 10 mins if not awaken. 5. Long press the remote button to power off, LED indicator flashes 3 times then shut down. 产品参数： 主材质：不锈钢 手机夹子尺寸：2.9‐4.0英寸 产品收缩长度：7.64英寸 产品伸展长度：27.6英寸 产品尺寸：51x35x193mm 电池：CR1632(可替换) Main Material :stainless steel mount holder:2.9‐4.0" Retracted length:7.64' Extended length:27.6' Product size:51x35x193mm Battery:CR1632(replaceable) &tĂƌŶŝŶŐ^ƚĂƚĞŵĞŶƚŚĂŶŐĞƐŽƌŵŽĚŝĨŝĐĂƚŝŽŶƐŶŽƚĞdžƉƌĞƐƐůLJĂƉƉƌŽǀĞĚďLJƚŚĞƉĂƌƚLJƌĞƐƉŽŶƐŝďůĞĨŽƌĐŽŵƉůŝĂŶĐĞĐŽƵůĚǀŽŝĚƚŚĞƵƐĞƌ͛ƐĂƵƚŚŽƌŝƚLJƚŽŽƉĞƌĂƚĞƚŚĞĞƋƵŝƉŵĞŶƚ͘dŚŝƐĞƋƵŝƉŵĞŶƚŚĂƐďĞĞŶƚĞƐƚĞĚ ĂŶĚĨŽƵŶĚƚŽĐŽŵƉůLJǁŝƚŚƚŚĞůŝŵŝƚƐĨŽƌĂůĂƐƐĚŝŐŝƚĂůĚĞǀŝĐĞ͕ƉƵƌƐƵĂŶƚƚŽWĂƌƚϭρŽĨƚŚĞ&ZƵůĞƐ͘dŚĞƐĞůŝŵŝƚƐĂƌĞĚĞƐŝŐŶĞĚƚŽƉƌŽǀŝĚĞƌĞĂƐŽŶĂďůĞƉƌŽƚĞĐƚŝŽŶĂŐĂŝŶƐƚŚĂƌŵĨƵů ŝŶƚĞƌĨĞƌĞŶĐĞŝŶĂƌĞƐŝĚĞŶƚŝĂůŝŶƐƚĂůůĂƚŝŽŶ͘dŚŝƐĞƋƵŝƉŵĞŶƚŐĞŶĞƌĂƚĞƐƵƐĞƐĂŶĚĐĂŶƌĂĚŝĂƚĞƌĂĚŝŽĨƌĞƋƵĞŶĐLJĞŶĞƌŐLJĂŶĚ͕ŝĨŶŽƚŝŶƐƚĂůůĞĚĂŶĚƵƐĞĚŝŶĂĐĐŽƌĚĂŶĐĞǁŝƚŚƚŚĞŝŶƐƚƌƵĐƚŝŽŶƐ͕ ŵĂLJĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞƚŽƌĂĚŝŽĐŽŵŵƵŶŝĐĂƚŝŽŶƐ͘,ŽǁĞǀĞƌ͕ƚŚĞƌĞŝƐŶŽŐƵĂƌĂŶƚĞĞƚŚĂƚŝŶƚĞƌĨĞƌĞŶĐĞǁŝůůŶŽƚŽĐĐƵƌŝŶĂƉĂƌƚŝĐƵůĂƌŝŶƐƚĂůůĂƚŝŽŶ͘/ĨƚŚŝƐĞƋƵŝƉŵĞŶƚĚŽĞƐĐĂƵƐĞ ŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞƚŽƌĂĚŝŽŽƌƚĞůĞǀŝƐŝŽŶƌĞĐĞƉƚŝŽŶ͕ǁŚŝĐŚĐĂŶďĞĚĞƚĞƌŵŝŶĞĚďLJƚƵƌŶŝŶŐƚŚĞĞƋƵŝƉŵĞŶƚŽĨĨĂŶĚŽŶ͕ƚŚĞƵƐĞƌŝƐĞŶĐŽƵƌĂŐĞĚƚŽƚƌLJƚŽĐŽƌƌĞĐƚƚŚĞŝŶƚĞƌĨĞƌĞŶĐĞďLJŽŶĞ ŽƌŵŽƌĞŽĨƚŚĞĨŽůůŽǁŝŶŐŵĞĂƐƵƌĞƐ͗ ϋϋZĞŽƌŝĞŶƚŽƌƌĞůŽĐĂƚĞƚŚĞƌĞĐĞŝǀŝŶŐĂŶƚĞŶŶĂ͘ ϋϋ/ ŶĐƌĞĂƐĞƚŚĞƐĞƉĂƌĂƚŝŽŶďĞƚǁĞĞŶƚŚĞĞƋƵŝƉŵĞŶƚĂŶĚƌĞĐĞŝǀĞƌ͘ ϋϋŽŶŶĞĐƚƚŚĞĞƋƵŝƉŵĞŶƚŝŶƚŽĂŶŽƵƚůĞƚŽŶĂĐŝƌĐƵŝƚĚŝĨĨĞƌĞŶƚĨƌŽŵƚŚĂƚƚŽǁŚŝĐŚƚŚĞƌĞĐĞŝǀĞƌŝƐĐŽŶŶĞĐƚĞĚ͘ ϋϋŽŶƐƵůƚƚŚĞĚĞĂůĞƌŽƌĂŶĞdžƉĞƌŝĞŶĐĞĚƌĂĚŝŽͬdsƚĞĐŚŶŝĐŝĂŶĨŽƌŚĞůƉ͘ dŚŝƐĚĞǀŝĐĞĐŽŵƉůŝĞƐǁŝƚŚƉĂƌƚϭρŽĨƚŚĞ&ZƵůĞƐ͘KƉĞƌĂƚŝŽŶŝƐƐƵďũĞĐƚƚŽƚŚĞĨŽůůŽǁŝŶŐƚǁŽĐŽŶĚŝƚŝŽŶƐ͗;ϭͿdŚŝƐĚĞǀŝĐĞŵĂLJŶŽƚĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞ͕ĂŶĚ;ϮͿƚŚŝƐĚĞǀŝĐĞ ŵƵƐƚĂĐĐĞƉƚĂŶLJŝŶƚĞƌĨĞƌĞŶĐĞƌĞĐĞŝǀĞĚ͕ŝŶĐůƵĚŝŶŐŝŶƚĞƌĨĞƌĞŶĐĞƚŚĂƚŵĂLJĐĂƵƐĞƵŶĚĞƐŝƌĞĚŽƉĞƌĂƚŝŽŶ͘

Co m Ad d Chin Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: She dress: 15C( na oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: Shen enzhen Keith (1588), Block e: selfie stick er(s): K10, K ription: self MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s guolin zhe Manager Shenzhen nzhen Keith Agen hy Innovation k C Electroni k tripod K07, GS30, G fie stick tripo bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect eng Keithy Inno hy Innovatio nt Auth n Technology ic Technolog GS40, T10, T od Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of ovation Tech on Techno horizat y Co., Ltd. gy Building, H T11, L07, L08 ourt, Pleasa certification forward all i agencies as and all acts our own. hnology Co. ology Co., L tion Huafa North 8, C01, C02 anton, Califo of above na information s required a s carried ou Date: ., Ltd. Ltd. Road, Futian ornia 94566 amed equip related to t nd to discu ut by MiCOM Feb. 04, 20 n shenzhen, 6, USA, to pment. the approva ss any M Labs on 21 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: M of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AUDZ-K om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio Tune-up r understand pondence du ents and thi zation is iss ely, ure: guolin zhe Manager Shenzh ing Techno cations Com s Road 046 for Confiden K10 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri p Procedure ding that all uring the ce s informatio sued. eng hen Keithy logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption e l measurem ertification re on will be av Innovation ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for n Technolog s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e gy Co., Ltd Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the d. Date: Feb. 457 and § 0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 04, 2021 0.459, we al dered as documents the market . ntial quipment .

Model Difference Declaration To Whom It May Concern, We,Shenzhen Keithy Innovation Technology Co., Ltd.(selfie stick tripod ) Trademark: N/A; Model Number: K10, K07, GS30, GS40, T10, T11, L07, L08, C01, C02 All model’s the function, software and electric circuit are the same, only model named different. Test sample model: K10. Please contact me if you have any question. Name: guolin zheng Date: Feb. 04, 2021 Title: Manager Signature of applicant:

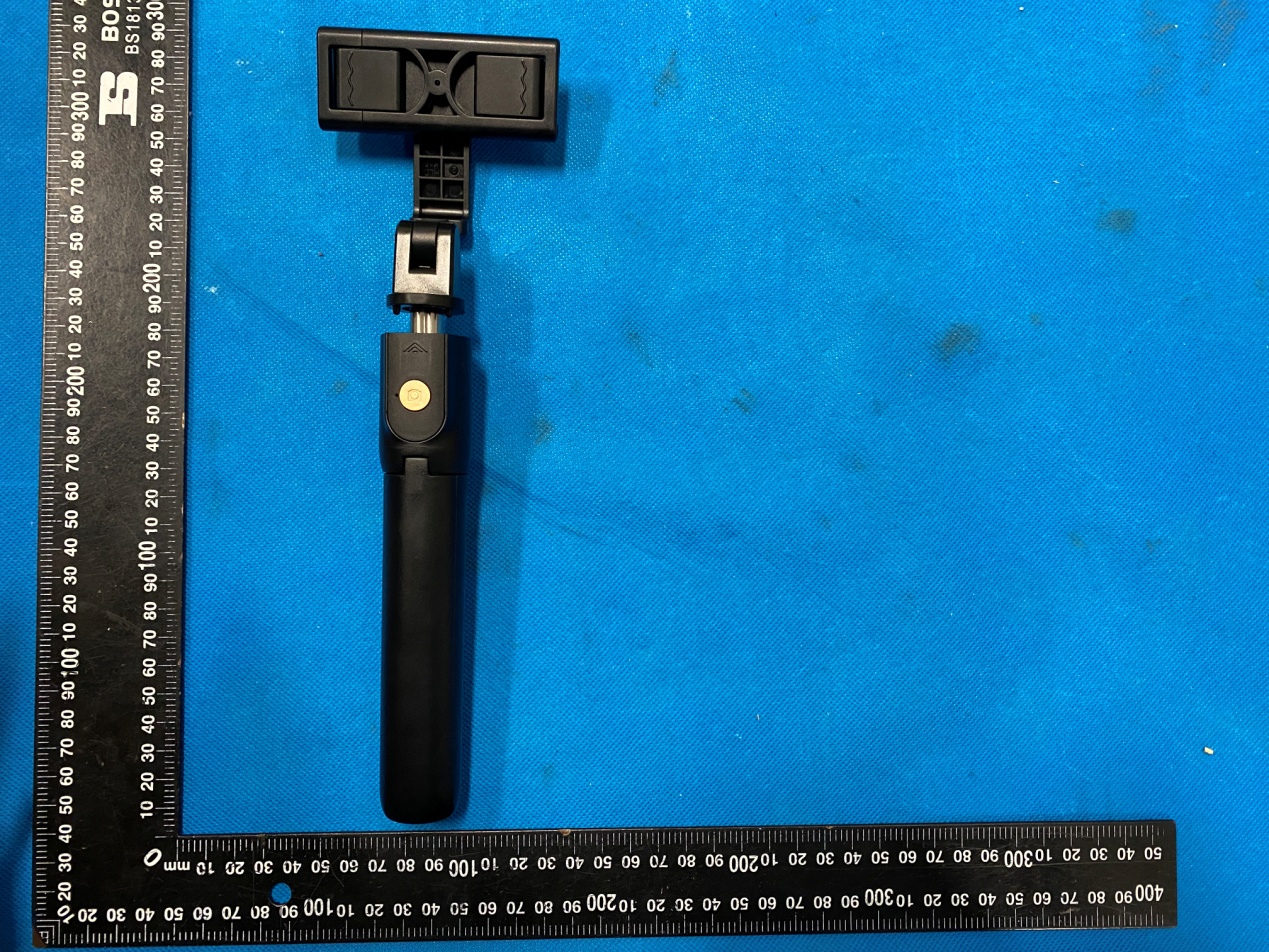

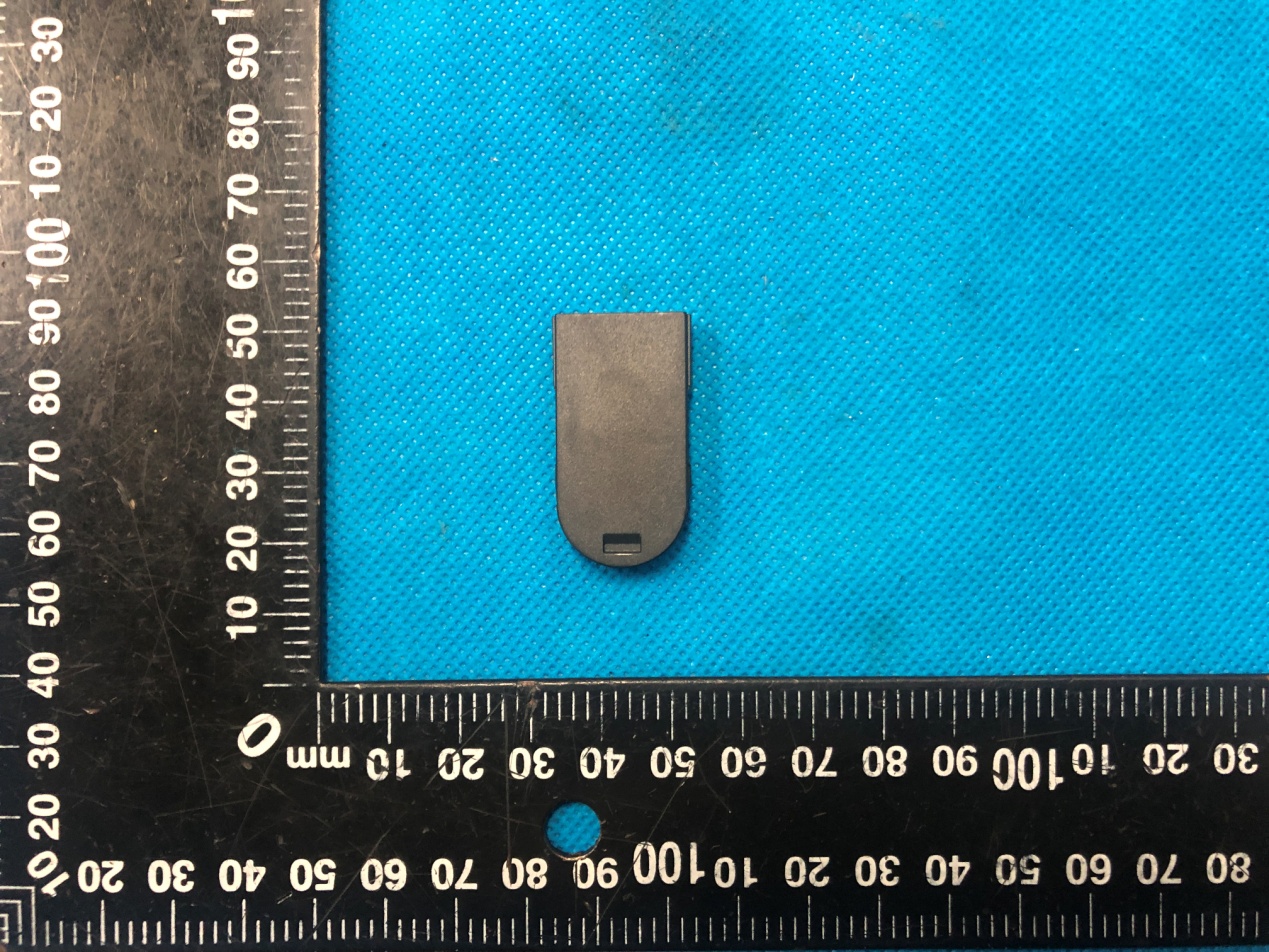

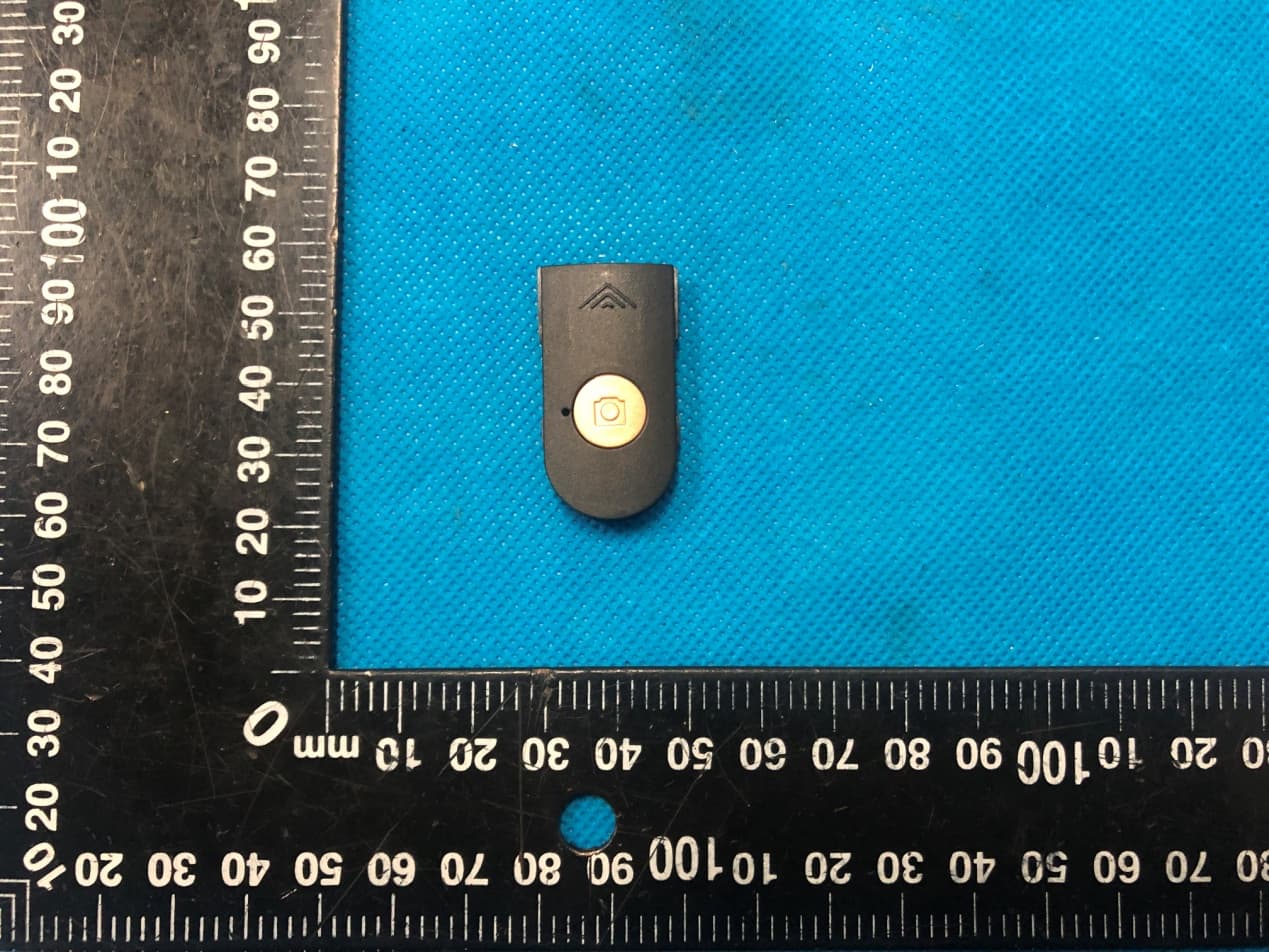

Annex A External Photos Model: K10 Page 1 of 4 Model: K10 Page 2 of 4 Model: K10 Page 3 of 4 Model: K10 Page 4 of 4

FCC ID LABEL: Ca. 8mm x 10mm Label Location FCC ID: 2AUDZ-K10

Annex B Internal Photo Model: K10 Page 1 of 2 Antenna Model: K10 Page 2 of 2

FCC RF Exposure EUT Description: selfie stick tripod Model No.: K10, K07, GS30, GS40, T10, T11, L07, L08, C01, C02 FCC ID : 2AUDZ‐K10 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]· [√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm ） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separatio n distance mm Result Limit SAR Test Exclusion BLE 2.251 2±1 3/ 2 5 0.61992 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2101260292‐E, antenna gain=2.93dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.61992which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 41 Report No.: HK2101260292-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Shenzhen Keithy Innovation Technology Co., Ltd. For selfie stick tripod Model No.: K10, K07, GS30, GS40, T10, T11, L07, L08, C01, C02 FCC ID: 2AUDZ-K10 Prepared for : Shenzhen Keithy Innovation Technology Co., Ltd. 15C(1588), Block C Electronic Technology Building, Huafa North Road, Futian shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Jan. 27, 2021 ~ Feb. 02, 2021 Date of Report: Feb. 02, 2021 Report Number: HK2101260292-E Page 2 of 41 Report No.: HK2101260292-E TEST RESULT CERTIFICATION Applicant’s name ................... : Shenzhen Keithy Innovation Technology Co., Ltd. Address .................................... : 15C(1588), Block C Electronic Technology Building, Huafa North Road, Futian shenzhen, China Manufacture's Name .............. : Shenzhen Keithy Innovation Technology Co., Ltd. Address .................................... : 15C(1588), Block C Electronic Technology Building, Huafa North Road, Futian shenzhen, China Product description Trade Mark: N/A Product name ............................. : selfie stick tripod Model and/or type reference .. : K10, K07, GS30, GS40, T10, T11, L07, L08, C01, C02 Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of performance of tests ................ : Jan. 27, 2021 ~ Feb. 02, 2021 Date of Issue ............................................. : Feb. 02, 2021 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 41 Report No.: HK2101260292-E Contents Page CONTENTS .............................................................................................................................................................. 3 1 TEST SUMMARY ............................................................................................................................................ 6 1.1 Test Description ......................................................................................................................................... 6 1.2 Measurement Uncertainty ......................................................................................................................... 7 2 TEST FACILITY ............................................................................................................................................... 8 3 GENERAL INFORMATION ............................................................................................................................. 8 3.1 General Description of EUT ...................................................................................................................... 8 3.2 Description of Test conditions ................................................................................................................. 10 3.3 Description of Test Setup ........................................................................................................................ 10 4 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................... 11 5 TEST RESULT .............................................................................................................................................. 13 5.1 Antenna Requirement.............................................................................................................................. 13 5.1.1 Standard requirement ...................................................................................................................... 13 5.1.2 EUT Antenna ................................................................................................................................... 13 5.2 Conduction Emissions Measurement ...................................................................................................... 14 5.2.1 Applied procedures / Limit ............................................................................................................... 14 5.2.2 Test procedure ................................................................................................................................. 14 5.2.3 Test setup ........................................................................................................................................ 15 5.2.4 Test results ...................................................................................................................................... 16 5.3 Radiated Emissions Measurement .......................................................................................................... 17 5.3.1 Applied procedures / Limit ............................................................................................................... 17 5.3.2 Test setup ........................................................................................................................................ 17 5.3.3 Test Result ....................................................................................................................................... 19 5.4 Maximum Output Power Measurement ................................................................................................... 26 5.4.1 L…

Text truncated - open the document above for the full version.

Test Model：K10 Radiated Emission
