2AUHEEONMK2All-IN-ONE Column PA System

DRAFT QUICKSTART GUIDE BATTERY POWERED | PORTABLE P.A. SY STEM | BLUETOOTH AUDIO | LEGENDARY JBL SOUND 2. POWER ON THE UNIT 1. Connect the power cord to the Power Receptacle (M). 2. Press the Power Button [G] for .5 of a second to engage power. 1. LISTENING CONFIGURATIONS Battery and Speaker Battery with Speaker and Spacer 3. PLUG IN THE INPUTS 1. Turn the Channel Volumes (E) all the way to the lef t before connecting any inputs. 2. Connect your devices to the Input Jacks [J] (K) (L] . 2 1 4. SET UP THE CHANNELS 1. Insert input into desired channel 2. Determine the CH1 thru CH5 (F] source. For microphone set to 3 o’clock. For line source set to 9 o’clock. 3. Slowly turn the Master /Menu Encoder (C) to the right until the desired volume is reached. 5. EDIT A CHANNEL 1. Depress the knob of the channel (E) you wish to edit 2. The CH LED (F) above the respective channel will light 3. You can now edit Bass, Treble, Mid and Reverb for that respective channel. 4. Press the knob again to return to mix mode. This device supports Bluetooth audio streaming. To connect your device: 1. Turn on Bluetooth on your source device. 2. Long press CH5. Or use LCD Display [A] to trigger BT pairing. 3. Find EON ONE MK2 on your device and select Bluetooth. 6. PAIR AUDIO DRAFT MASTER / MENU BACK MIC/LINEMIC/LINELINEAUX INMIC/LINEPASS THRUUSBUSBPOWER LIMITCH 1CH 2CH 3CH 4CH 5 GAINBASSMIDTREBLEREVERB JH IG K L Power Button LCD Display Multifunction CH LED Multifunction CH Volume USB Ports Limit LED Master/Menu Encoder Back Button XLR Male Loop Thru 6.35mm Jack 3.5mm Jack 3 combo XLR/TRS A C BD E F For complete documentation, visit http://www.jblpro.com/eononeMK2 JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 USA © 2020 Harman International Industries, Incorporated EON ONE MK2 Quickstart Guide – 10/2020 Pour la version française de ce document, veuillez visiter le site www.jblpro.com/eononeMK2 Die deutsche Version dieses Dokuments finden Sie unter www.jblpro.com/eononeMK2 Para la versión en español de este documento, por favor visite www.jblpro.com/eononeMK2 Para a versão em português deste documento, visite www.jblpro.com/eononeMK2 Per la versione italiana di questo documento, visitare www.jblpro.com/eononeMK2 이 문서의 한국어 버전은 www.jblpro.com/eononeMK2 를 방문하십시오 有關本文檔的中文版，請訪問 www.jblpro.com/eononeMK2 MASTER / MENU BACK MIC/LINEMIC/LINELINEAUX INMIC/LINEPASS THRUUSBUSBPOWER LIMITCH 1CH 2CH 3CH 4CH 5 GAINBASSMIDTREBLEREVERB Power Inlet M IMPORTANT SAFETY INSTRUCTIONS 1. READ these instructions. 2. KEEP these instructions. 3. HEED all warnings. 4. FOLLOW all instructions. 5. DO NOT use this apparatus near water. 6. CLEAN ONLY with dry cloth. 7. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. produce heat. 9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are outlet. 10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. 12. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. UNPLUG this apparatus during lightning storms or when unused for long periods of time. 14. way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. placed on the apparatus. 16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle. 17. Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. 18. 19. Product ventilation should not be impeded by covering the ventilation openings with items such as newspaper, tablecloths, curtains, etc. The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. of electrical shock to persons. WARNING: WARNING: WARNING: Equipment shall be connected to a MAINS socket outlet with a protective earthing connection. The EON ONE MK2 system covered by this manual is not intended for use in high moisture environments. Moisture can damage the speaker cone and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct moisture. degraded by long-term exposure to intense ultra-violet (UV) light. The EON ONE MK2 system can generate considerable energy. When placed on a slippery surface such as polished wood or linoleum, the speaker may move due to its acoustical energy output. Precautions should be taken to assure that the speaker does not fall off a stage or table on which it is placed. CARE & CLEANING EON ONE MK2 systems may be cleaned with a dry cloth. Do not allow moisture into any of the openings in the system. Ensure that the system is unplugged from the AC outlet before cleaning. THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR HAZARD, DO NOT REMOVE CHASSIS, MIXER MODULE, OR AC INPUT COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 1Rev. A4 HEARING DAMAGE, PROLONGED EXPOSURE TO EXCESSIVE SPL performers, production crew, and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 85 dB. EON ONE MK2 WEEE Notice The Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 14/02/2014, resulted in a major change in the treatment of electrical equipment at end-of-life. The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition…

Text truncated - open the document above for the full version.

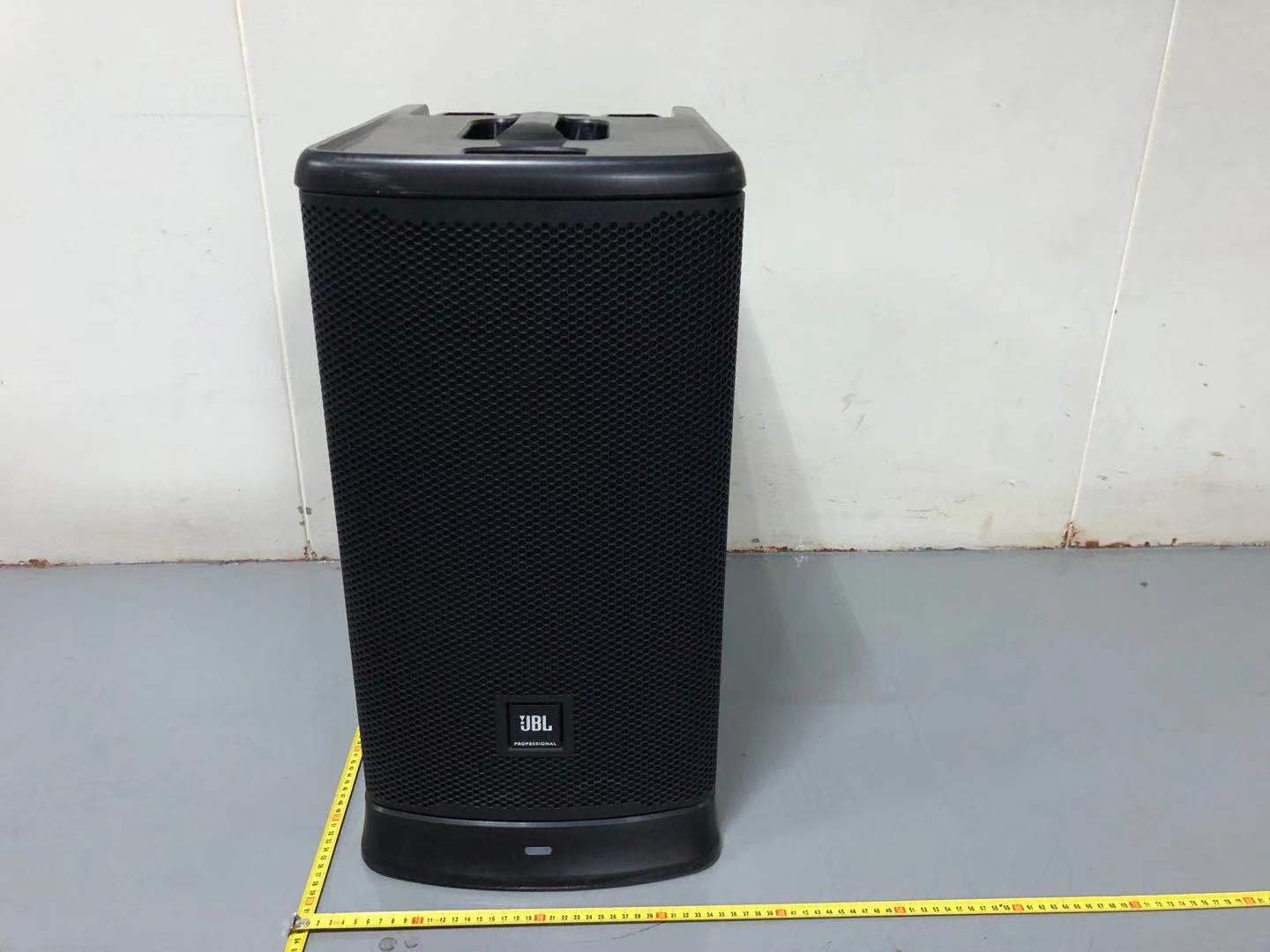

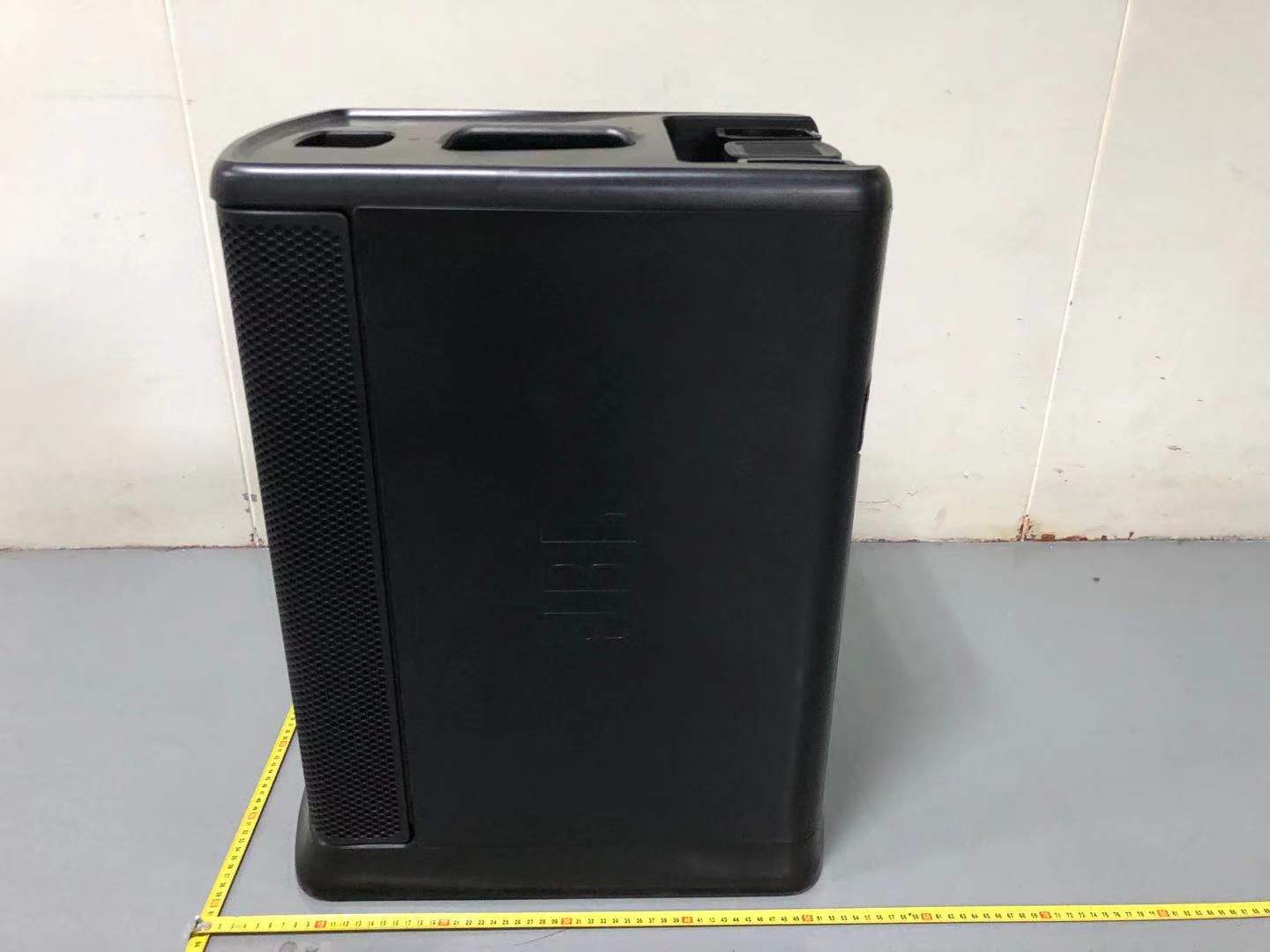

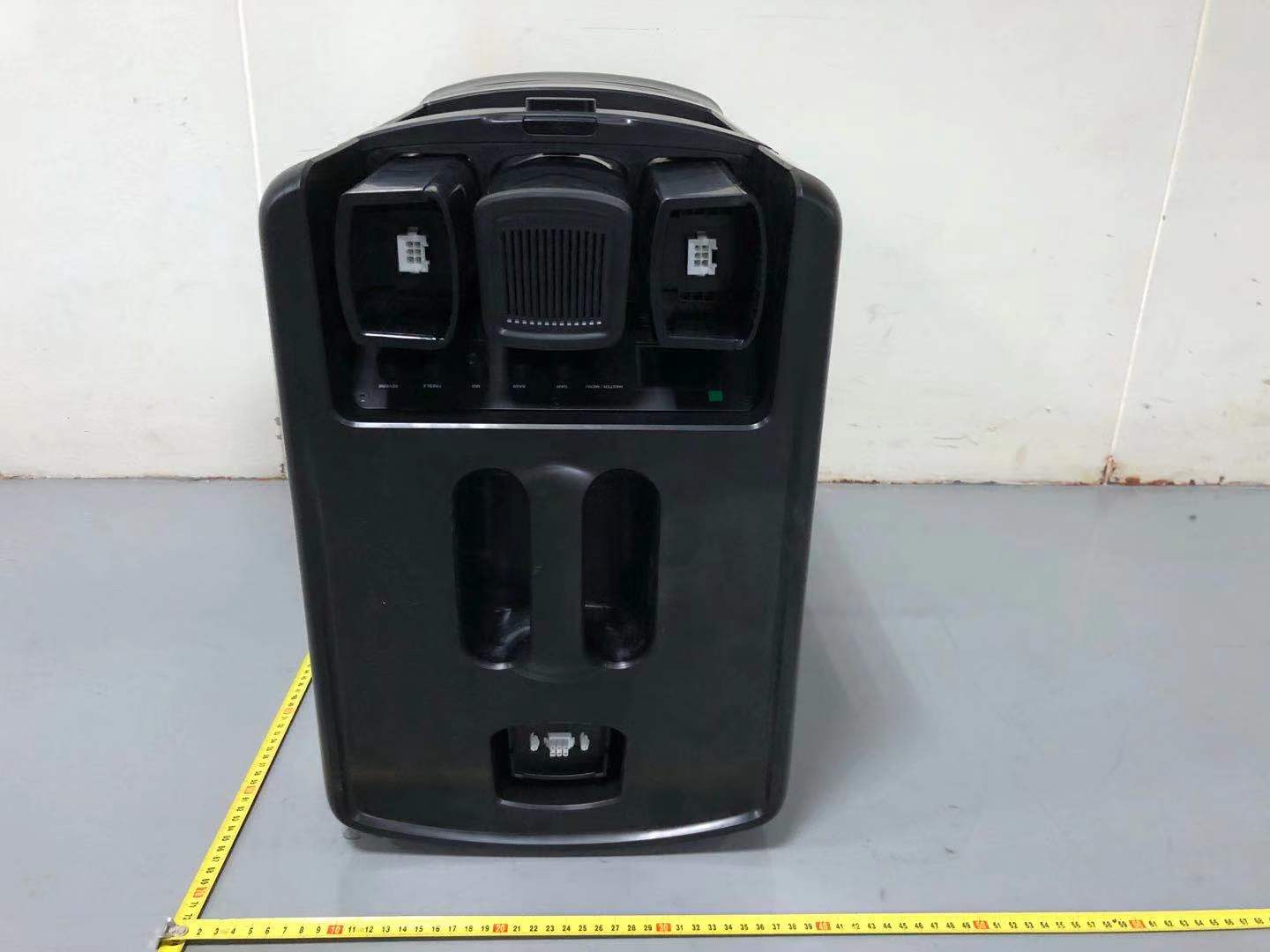

External Photos M/N: EON ONE MK2 External Photos M/N: EON ONE MK2 External Photos M/N: EON ONE MK2 External Photos M/N: EON ONE MK2 External Photos M/N: EON ONE MK2 External Photos M/N: EON ONE MK2

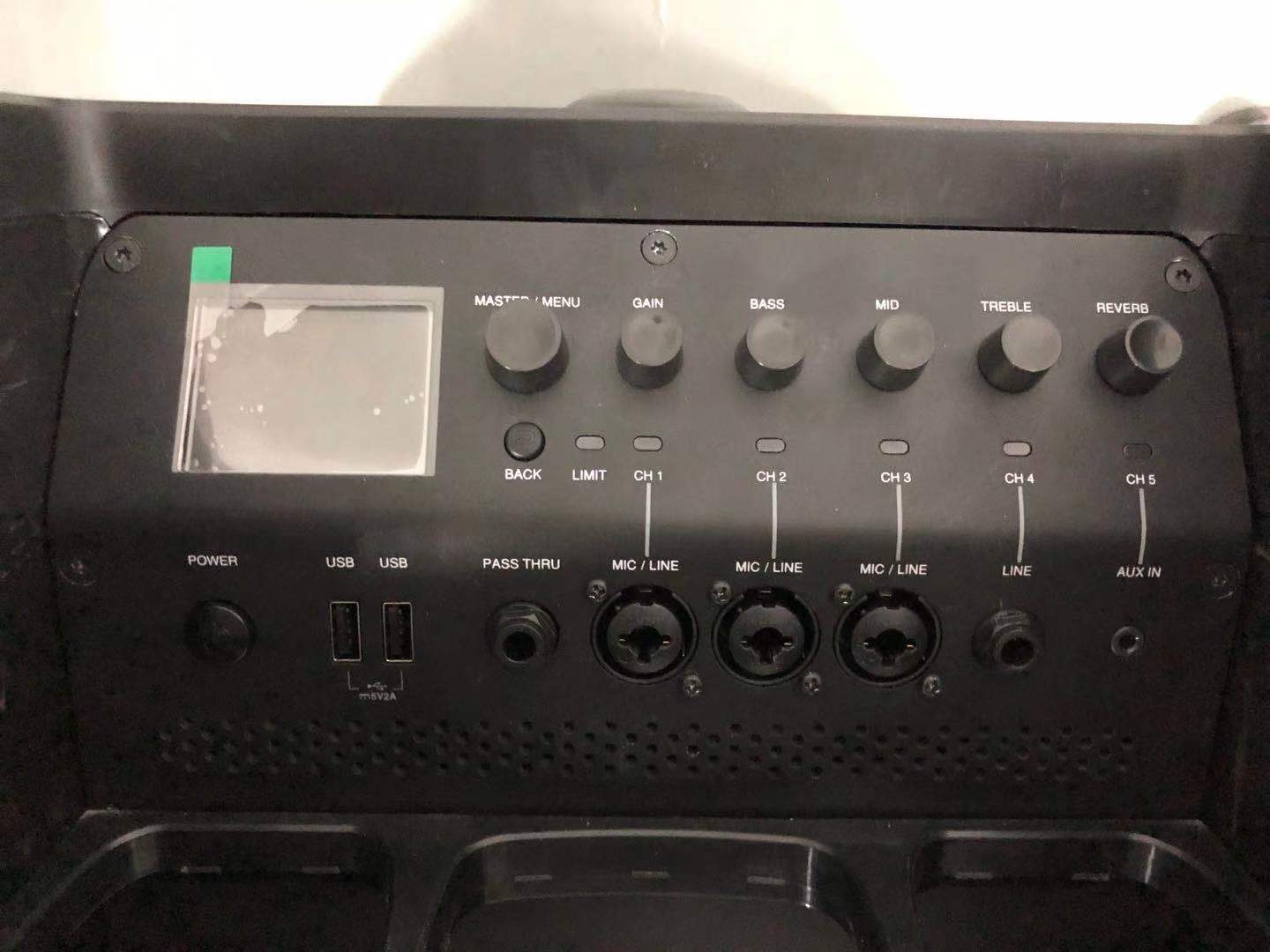

EON ONE MK2_Mix er Panel ar tworks Mix er Panel Design: Hoyean Kim Date: 2020-11-20 Units: mm M 1:1

Internal Photos M/N: EON ONE MK2 Internal Photos M/N: EON ONE MK2 Internal Photos M/N: EON ONE MK2 Bluetooth Antenna Internal Photos M/N: EON ONE MK2 Internal Photos M/N: EON ONE MK2 Internal Photos M/N: EON ONE MK2 Internal Photos M/N: EON ONE MK2 Internal Photos M/N: EON ONE MK2 Bluetooth Antenna Connector Internal Photos M/N: EON ONE MK2 Internal Photos M/N: EON ONE MK2

FCC ID: 2AUHEEONMK2 EST Technology Co. ,Ltd Report No. ESTE-R2012126 Page 1 of 4 FCC 47 CFR MPE REPORT Harman Professional, Inc. All-IN-ONE Column PA System Model Number: EON ONE MK2 FCC ID: 2AUHEEONMK2 Prepared for: Harman Professional, Inc. 8500 Balboa Blvd., Northridge, CA 91329 USA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2012126 Date of Test: Nov. 20~Dec. 16, 2020 Date of Report: Dec. 18, 2020 FCC ID: 2AUHEEONMK2 EST Technology Co. ,Ltd Report No. ESTE-R2012126 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AUHEEONMK2 EST Technology Co. ,Ltd Report No. ESTE-R2012126 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AUHEEONMK2 EST Technology Co. ,Ltd Report No. ESTE-R2012126 Page 4 of 4 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power （dBm） Antenna gain (dBi) (Linear) BT GFSK 2402 2.46 1.762 2 ±1 5 3.162 2441 2.55 1.799 2±1 5 3.162 2480 2.42 1.746 2±1 5 3.162 BT 8-DPSK 2402 5.36 3.436 5 ±1 5 3.162 2441 5.32 3.404 5±1 5 3.162 2480 5.22 3.327 5±1 5 3.162 BLE GFSK 1M 2402 -0.94 0.805 -0 ±1 5 3.162 2440 -0.97 0.800 -0±1 5 3.162 2480 -1.10 0.776 -1±1 5 3.162 BLE GFSK 2M 2402 -0.88 0.817 -0 ±1 5 3.162 2440 -0.57 0.877 -0±1 5 3.162 2480 -0.97 0.800 -0±1 5 3.162 3. Calculated Result and Limit Mode Target power （dBm） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear) 2.4G Band BT GFSK 3 5 3.162 0.00126 1 Compiles BT 8-DPSK 6 5 3.162 0.002501 Compiles BLE GFSK 1M 1 5 3.162 0.000791 Compiles BLE GFSK 2M 1 5 3.162 0.000791 Compiles End of Test Report

FCC ID: 2AUHEEONMK2 EST Technology Co., Ltd Report No. ESTE-R2012124 Page 1 of 82 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Harman Professional, Inc. All-IN-ONE Column PA System Model Number: EON ONE MK2 FCC ID: 2AUHEEONMK2 Prepared for: Harman Professional, Inc. 8500 Balboa Blvd., Northridge, CA 91329 USA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2012124 Date of Test: Nov. 20~Dec. 16, 2020 Date of Report: Dec. 18, 2020 FCC ID: 2AUHEEONMK2 EST Technology Co., Ltd Report No. ESTE-R2012124 Page 2 of 82 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipmen ................................................................................................................................ 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 18 4.1. Limit ............................................................................................................................................... 18 4.2. Test Setup ....................................................................................................................................... 18 4.3. Spectrum Analyzer Setting ............................................................................................................. 18 4.4. Test Procedure ................................................................................................................................ 18 4.5. Test Result ...................................................................................................................................... 19 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 24 5.1. Limit ............................................................................................................................................... 24 5.2. Test Setup ....................................................................................................................................... 24 5.3. Spectrum Analyzer Setting ............................................................................................................. 24 5.4. Test Procedure ................................................................................................................................ 24 5.5. Test Result ...................................................................................................................................... 25 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 30 6.1. Limit ............................................................................................................................................... 30 6.2. Test Setup ....................................................................................................................................... 30 6.3. Spectrum Analyzer Setting .....................................................................................................…
