2AUHN-GALILEOLED LIGHT

Quick Start Guide US and foreign Patent(s) Pending Thank you, and congratulations! :-) YOU JUST MADE THE BEST INVESTMENT INTO YOUR CAREER Your new Galileo is the most popular light kit in the world for content creation professionals. Read through these easy instructions so you can get setup to take your first high-quality video or photo with your phone. THANK YOU We cannot thank you enough for choosing GLAMCOR to be part of your profession. We work really hard to constantly improve our products, and you can always expect something new from us. It is our commitment to you, and we are honored to be part of your professional career. STAY IN TOUCH Share your success with us! You can reach us here: Email: [email protected] Website: www.glamcor.com Instagram: @glamcorofficial Facebook: www.facebook.com/GLAMCOR NEED SERVICE OR SUPPORT? GREAT! We have legendary service supported by a team that operates almost around the clock. No matter where you are, send us an email so we can log your support issue in our system. Include your phone number so we can text or call you if you would like! Email: [email protected] Identifying the kit components i Phone Clip Telescopic Stand Flexible Neck Accessory Mounting Arm 24V 2A Power Supply Included (not shown) Remote Control GALILEO Ring Light Carry Bag Mounting your ring light luminary - OPTION A OPTION A Direct mounting of the luminary onto the stand Attaching your Accessory Mounting Arm Slide the light down the smaller channel on the flexible arm Secure Mounting Arm by tightening knob Fold upwards to turn on light Power and function controls without the remote Brightness + Brightness - Warmer Color Cooler Color Memory 2 Digital Diffusion Memory 1 Power Using the fast-charging USB port Digital Diffusion lens frosting This pattern indicates Digital Diffusion. Press this button to frost the LED lens. Appearance when Digitally Diffused Appearance when clear Charging Insert to charge Charging your phone or other device Taking off the light from the stand Slide knob to the right to release light from the stand and lift upwards Safety Instructions ! PROPER USE This lamp is designed for illumination in dry indoor rooms. It is not suitable for use in damp rooms, e.g. bathrooms. The lamp must never be used for direct irradiation of persons, animals, or plants. Only use this product as described in this manual. RISK OF INJURY FOR CHILDREN, PERSON, AND ANIMALS • Keep children away from packaging - risk of suffocation! • Keep unsupervised children away from the lamp. • Do not look directly into the light source! Your eyes could be damaged. • The lamp is not suitable for irradiation of persons. • Keep animals away from the lamp! The lamp is not to be used for irradiation of animals, such as poultry, lambs etc. Risk of burning. LOCATION • Place the lamp at least 8” or 20 cm from flammable materials. • Always place the lamp on an even and stable surface to prevent tipping over. • Do not subject the device to extreme temperatures, severe changes in temperatures, direct sunlight, or moisture. • Do not allow the device to fall, and do not subject it to strong impacts. • Keep the lamp well away from heat sources such as stovetops or ovens. • Ensure that the device is not able to fall in water and cannot get wet. DO NOT SUBSTITUTE A POWER SUPPLY OTHER THAN THE INCLUDED APPROVED GLAMCOR BRANDED POWER SUPPLY OR GENUINE REPLACEMENT. Safety Instructions (con’t) ELECTRICITY - RISK OF ELECTRIC SHOCK • Keep the lamp away from humidity. • Connect the lamp only to outlets corresponding with the technical data of the lamp. • Check the lamp before each use for damage.The lamp is not to be used when it shows visible damage. • Do not take the lamp apart and only have it repaired at your local electrical store. • Before cleaning or if the lamp is not to be used for a long period, unplug the lamp from the main power supply. • During storms; unplug the lamp from the main power supply. When removing the plug from the socket, always pull on the plug and not the cable. • A damaged cable must only be repaired at your local electrical store. • Do not use the lamp if it is damaged or if the connecting cable shows any kind of visible damage. DAMAGES ON DEVICE AND MATERIALS • Do not cover lamp, for example with drapes or anything else. This could lead to fire. CHANGING BULBS • LED lights last for 20,000 hours. Do not attempt to change bulbs. CARE / MAINTENANCE • Keep the lamp away from humidity. • Unplug the lamp from the mains power supply. • Dust off the lamp if necessary with a dry cloth. ! Product Contents i SPECIFICATIONS • Unit: GLAMCOR Galileo • Voltage supply: Input 100-240AC, Output 5V 2A • Bulb: LED • Protection class: 1 • Weight: 4.5lbs/2kg INCLUDED IN KIT • GLAMCOR Galileo ring ligh • Flexible Neck • Accessory Mounting Arm • Phone clip • Telescopic stand • Carry bag • 5V 2A power supply • Remote control • Instruction booklet WARNING: FOR INDOOR USE ONLY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to…

Text truncated - open the document above for the full version.

GLAMCOR GLOBAL LLC 2020.08.08 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT NAME: LED LIGHT Trademark: FCC ID: 2AUHN-GALILEO MODEL : GALILEO DIGITAL DIFFUSION, GALILEO To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Erik.A.Kaiser /Manager Contact information / address: 110 Wall Street, 5th Floor, Manhattan NY10005 United States

GLAMCOR GLOBAL LLC 2020.08.08 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Erik.A.Kaiser /Manager Contact information / address: 110 Wall Street, 5th Floor, Manhattan NY10005 United States

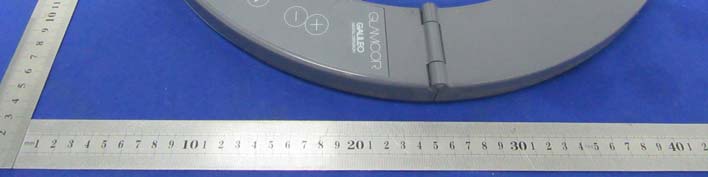

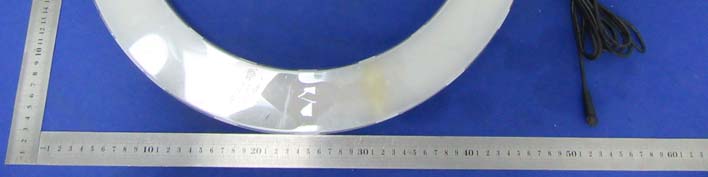

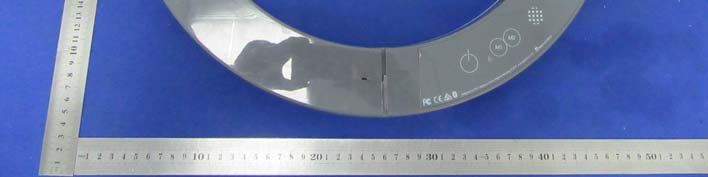

External Photos

40*20mm Label Location FCC ID: 2AUHN-GALILEO This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause und esired operation.

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2AUHN-GALILEO Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK2.402-5.800.26-5±1-4.000.40<50.123403.00YES GFSK2.440-4.850.33-5±1-4.000.40<50.124373.00YES GFSK2.480-4.450.36-5±1-4.000.40<50.125393.00YES Conclusion: For the max result : 0.12539≤3.0, the SAR testing is not required.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000611E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 42 Test Report FCC: 2AUHN-GALILEO Product Name: LED LIGHT Trademark: Model Name : GALILEO DIGITAL DIFFUSION GALILEO Prepared For : GLAMCOR GLOBAL LLC Address : 110 Wall Street, 5th Floor, Manhattan NY10005 United States Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Mar. 12, 2020 – Mar. 24, 2020 Date of Report : Mar. 24, 2020 Report No.: BCTC2003000611E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000611E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 42 TEST RESULT CERTIFICATION Applicant’s name ................. : GLAMCOR GLOBAL LLC Address ................................. : 110 Wall Street, 5th Floor, Manhattan NY10005 United States Manufacture's Name ............ : GLAMCOR GLOBAL LLC Address ................................. : 110 Wall Street, 5th Floor, Manhattan NY10005 United States Product description Product name ........................... : LED LIGHT Trademark ................................. : Model and/or type reference : GALILEO DIGITAL DIFFUSION GALILEO Standards ............................. : FCC Part15.247 ANSI C63.10:2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Willem Wang Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000611E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 42 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 DEVIATION FROM TEST STANDARD 17 3.2.4 TEST SETUP 17 3.2.5 EUT OPERATING CONDITIONS 19 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 20 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 21 3.3 RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION 24 3.3.1 TEST REQUIREMENT: 24 3.3.2 TEST PROCEDURE 24 3.3.3 DEVIATION FROM TEST STANDARD 25 3.3.4 TEST SETUP 25 3.3.5 EUT OPERATING CONDITIONS 25 4 . POWER SPECTRAL DENSITY TEST 27 4.1 APPLIED PROCEDURES / LIMIT 27 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000611E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 42 Table of Contents Page 4.1.1 TEST PROCEDURE 27 4.1.2 DEVIATION FROM STANDARD 27 4.1.3 TEST SETUP 27 4.1.4 EUT OPERATION CONDITIONS 27 4.1.5 TEST RESULTS 28 5 . BANDWIDTH TEST 30 5.1 APPLIED PROCEDURES / LIMIT 30 5.1.1 TEST PROCEDURE 30 5.1.2 DEVIATION FROM STANDARD 30 5.1.3 TEST SETUP 30 5.1.4 EUT OPERATION CONDITIONS 30 5.1.5 TEST RESULTS 31 6 . PEAK OUTPUT POWER TEST 33 6.1 APPLIED PROCEDURES / LIMIT 33 6.1.1 TEST PROCEDURE 33 6.1.2 DEVIATION FROM STANDARD 33 6.1.3 TEST SETUP 33 6.1.4 EUT OPERATION CONDITIONS 33 6.1.5 TEST RESULTS 34 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 35 7.1 APPLICABLE STANDARD 35 7.2 TEST PROCEDURE 35 7.3 DEVIATION FROM STANDARD 35 7.4 TEST SETUP 35 7.5 EUT OPERATION CONDITIONS 35 8 . ANTENNA REQUIREMENT 38 8.1 STANDARD REQUIREMENT 38 8.2 EUT ANTENNA 38 9 . EUT TEST PHOTO 39 10 . EUT PHOTO 41 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000611E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 42 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (d), 15.205 Radiated Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Restricted Band of Operation PASS 15.247(d) Band Edge (Out of Band Emissions) PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000611E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 42 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add.: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 3 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 4 Conducted Adjacent channel power U=1.38dB 5 Conducted output power uncertainty Above 1G U=1.576dB 6 Conducted ou…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Conducted Emission Shenzhen BCTC Testing Co., Ltd. Radiated Measurement Photos
