LED LIGHT - FCC ID 2AUHN-MULTIMEDIA - GLAMCOR GLOBAL LLC
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 09, 2020
Application Purpose
Original Equipment
Date of Application
Apr 09, 2020
Equipment Note
LED LIGHT
Frequency Range
2402.00000000 - 2480.00000000
Company
GLAMCOR GLOBAL LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

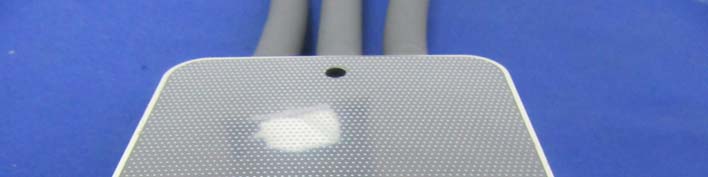

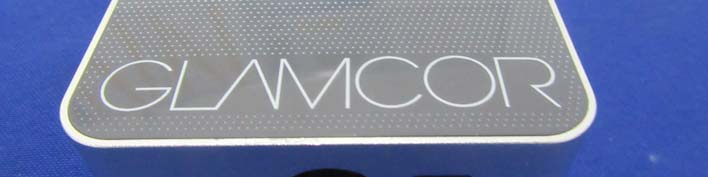

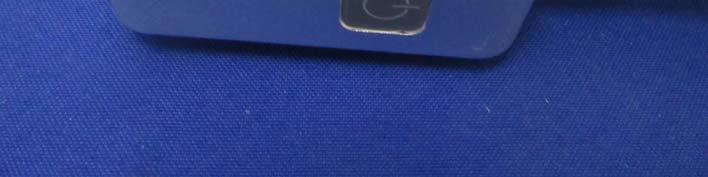

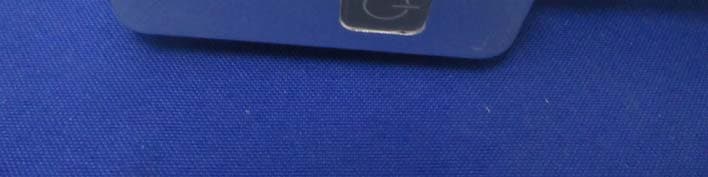

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Quick Start GuideUS and foreign Patent(s) Pending Thank you, and congratulations! :-) YOU JUST MADE THE BEST INVESTMENT INTO YOUR CAREERYour new Multimedia X with Digital Diffusion is the most popular light kit in the world for content creation professionals. Read through these easy instructions so you can get setup to take your first high-quality video or photo with your phone. THANK YOUWe cannot thank you enough for choosing GLAMCOR to be part of your profession. We work really hard to constantly improve our products, and you can always expect something new from us. It is our commitment to you, and we are honored to be part of your professional career.STAY IN TOUCHShare your success with us! You can reach us here:Email: [email protected]: www.glamcor.comInstagram: @glamcorofficialFacebook: www.facebook.com/GLAMCORNEED SERVICE OR SUPPORT? GREAT!We have legendary service supported by a team that operates almost around the clock. No matter where you are, send us an email so we can log your support issue in our system. Include your phone number so we can text or call you if you would like!Email: [email protected] Identifying the kit components Luminary Lamp Covers 24V 2A Power SupplyIncluded (not shown) Telescopic Stand i Carry Bag Press for power Digital Diffusion USB Charging Port Charging Digital Diffusion lens frosting This pattern indicates Digital Diffusion. Press this button to frost the LED lens. Digitally Diffused Clear Folding pattern for repacking your luminary Protect your lamps with the lamp covers Packing your luminary into the carry bag A Fold luminary as depicted in theillustrationB Place the folded luminary into theinside pocket in thecarry bag Safety Instructions ! PROPER USEThis lamp is designed for illumination in dry indoor rooms. It is not suitable for use in damp rooms, e.g. bathrooms. The lamp must never be used for direct irradiation of persons, animals, or plants. Only use this product as described in this manual. RISK OF INJURY FOR CHILDREN, PERSON, AND ANIMALS• Keep children away from packaging - risk of suffocation!• Keep unsupervised children away from the lamp.• Do not look directly into the light source! Your eyes could be damaged.• The lamp is not suitable for irradiation of persons.• Keep animals away from the lamp! The lamp is not to be used for irradiation of animals, such as poultry, lambs etc. Risk of burning.LOCATION• Place the lamp at least 8” or 20 cm from flammable materials.• Always place the lamp on an even and stable surface to prevent tipping over.• Do not subject the device to extreme temperatures, severe changes in temperatures, direct sunlight, or moisture.• Do not allow the device to fall, and do not subject it to strong impacts.• Keep the lamp well away from heat sources such as stovetops or ovens.• Ensure that the device is not able to fall in water and cannot get wet. DO NOT SUBSTITUTE A POWER SUPPLY OTHER THAN THE INCLUDED APPROVED GLAMCOR BRANDED POWER SUPPLY OR GENUINE REPLACEMENT. Safety Instructions (con’t) ELECTRICITY - RISK OF ELECTRIC SHOCK• Keep the lamp away from humidity.• Connect the lamp only to outlets corresponding with the technical data of the lamp.• Check the lamp before each use for damage.The lamp is not to be used when it shows visible damage.• Do not take the lamp apart and only have it repaired at your local electrical store.• Before cleaning or if the lamp is not to be used for a long period, unplug the lampfrom the main power supply.• During storms; unplug the lamp from the main power supply. When removing theplug from the socket, always pull on the plug and not the cable.• A damaged cable must only be repaired at your local electrical store.• Do not use the lamp if it is damaged or if the connecting cable shows any kind of visible damage.DAMAGES ON DEVICE AND MATERIALS• Do not cover lamp, for example with drapes or anything else. This could lead to fire.CHANGING BULBS• LED lights last for 20,000 hours. Do not attempt to change bulbs.CARE / MAINTENANCE• Keep the lamp away from humidity.• Unplug the lamp from the mains power supply.• Dust off the lamp if necessary with a dry cloth. ! Product Contents i SPECIFICATIONS• Unit: GLAMCOR Multimedia X with Digital Diffusion• Voltage supply: 100-240AC 24V 2A• Bulb: LED• Protection class: 1• Weight: 4.5lbs/2kgINCLUDED IN KIT• GLAMCOR Multimedia X with Digital Diffusion luminary• Telescopic aluminum stand• Two (2) lamp covers• 24V 2A power supply• Remote control• Instruction booklet WARNING: FOR INDOOR USE ONLYThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or…

Text truncated - open the document above for the full version.

Cover Letter(s)

Shenzhen Hengxintai Electronics Co., Ltd. Model Difference 2020-04-08 EUT NAME: LED LIGHT Trademark: FCC ID: 2AUHN-MULTIMEDIA MODEL : Multimedia X, Multimedia X Digital Diffusion All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Erik.A.Kaiser /Manager Contact information / address: 110 Wall Street, 5th Floor, Manhattan NY10005 United States

External Photos

External Photos

ID Label/Location Info

40*20mm Label Location FCC ID: 2AUHN-MULTIMEDIA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause und esired operation.

Internal Photos

Internal Photos Antenna

RF Exposure Info

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2AUHN-MULTIMEDIA RF EXPOSURE EVALUATION 1. Introduction According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b), a device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitting antenna and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 cm separation requirement. The limits to be used for MPE evaluation are specified in §1.1310. All unlicensed personal communications service (PCS) devices and unlicensed NII devices shall be subject to the limits for general population/uncontrolled exposure. 2.RF Radiation Exposure Limits According to 47 CFR §1.1310, the criteria listed in below table shall be used to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093. Notes: 1. f = frequency in MHz 2. Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided they are made aware of the potential for exposure. 3. General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Shenzhen BCTC Testing Co., Ltd. 3.MPE Assessment Method Calculations can be made to predict RF field strength and power density levels around typical RF sources. For example, in the case of a single radiating antenna, a prediction for power density in the far-field of the antenna can be made by use of the general Equations below. This equation is generally accurate in the far-field of an antenna but will over-predict power density in the near field, where they could be used for making a "worst case" or conservative prediction. Where S = Power Density, unit in mW/cm2 P = Power input to the antenna, unit in mW G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna, unit in cm EIRP = Effective isotropically radiated power 4. MPE Calculation for Standalone Operations Operation Frequency: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB antenna Antenna gain: 0dBi R=20cm mW=10^(dBm/10) =3.1416 Modulation Max conduct ed power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2) GFSK-1.56-1±10.001.001.250.000251 Conclusion: For the max result : 0.00025≤ 1.0, compliance with FCC's RF Exposure. Summary: Since the ERP (effective radiated power) operated at < 1.5 GHz is less than 1.5 watts and > 1.5 GHz is less than 3 watts, the routine environmental evaluation is not required, and the MPE result calculated for this device complies with the MPE limit as specified in 47 CFR §1.1310.

Test Report

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000285E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.:A.0 Page 1 of 42 Test Report FCC: 2AUHN-MULTIMEDIA Product Name: LED LIGHT Trademark: Model Name : Multimedia X Multimedia X Digital Diffusion Prepared For : GLAMCOR GLOBAL LLC Address : 110 Wall Street, 5th Floor, Manhattan NY10005 United States Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Mar. 03, 2020 – Mar. 10, 2020 Date of Report : Mar. 11, 2020 Report No.: BCTC2002000285E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000285E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.:A.0 Page 2 of 42 TEST RESULT CERTIFICATION Applicant’s name ................. : GLAMCOR GLOBAL LLC Address ................................. : 110 Wall Street, 5th Floor, Manhattan NY10005 United States Manufacture's Name ............ : GLAMCOR GLOBAL LLC Address ................................. : 110 Wall Street, 5th Floor, Manhattan NY10005 United States Product description Product name ........................... : LED LIGHT Trademark ................................. : Model and/or type reference : Multimedia X Multimedia X Digital Diffusion Standards ............................. : FCC Part15.247 ANSI C63.10:2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Cai Fang Zhong Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000285E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.:A.0 Page 3 of 42 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 DEVIATION FROM TEST STANDARD 17 3.2.4 TEST SETUP 18 3.2.5 EUT OPERATING CONDITIONS 19 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 20 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 21 3.3 RADIATED BAND EMISSION MEASUREMENT 24 3.3.1 TEST REQUIREMENT: 24 3.3.2 TEST PROCEDURE 24 3.3.3 DEVIATION FROM TEST STANDARD 24 3.3.4 TEST SETUP 25 3.3.5 EUT OPERATING CONDITIONS 25 4 . POWER SPECTRAL DENSITY TEST 27 4.1 APPLIED PROCEDURES / LIMIT 27 4.1.1 TEST PROCEDURE 27 4.1.2 DEVIATION FROM STANDARD 27 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000285E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.:A.0 Page 4 of 42 Table of Contents Page 4.1.3 TEST SETUP 27 4.1.4 EUT OPERATION CONDITIONS 27 4.1.5 TEST RESULTS 28 5 . BANDWIDTH TEST 30 5.1 APPLIED PROCEDURES / LIMIT 30 5.1.1 TEST PROCEDURE 30 5.1.2 DEVIATION FROM STANDARD 30 5.1.3 TEST SETUP 30 5.1.4 EUT OPERATION CONDITIONS 30 5.1.5 TEST RESULTS 31 6 . PEAK OUTPUT POWER TEST 33 6.1 APPLIED PROCEDURES / LIMIT 33 6.1.1 TEST PROCEDURE 33 6.1.2 DEVIATION FROM STANDARD 33 6.1.3 TEST SETUP 33 6.1.4 EUT OPERATION CONDITIONS 33 6.1.5 TEST RESULTS 34 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 35 7.1 APPLICABLE STANDARD 35 7.2 TEST PROCEDURE 35 7.3 DEVIATION FROM STANDARD 35 7.4 TEST SETUP 35 7.5 EUT OPERATION CONDITIONS 35 8 . ANTENNA REQUIREMENT 38 8.1 STANDARD REQUIREMENT 38 8.2 EUT ANTENNA 38 9 . EUT TEST PHOTO 39 10 . EUT PHOTO 41 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000285E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.:A.0 Page 5 of 42 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (d) Radiated Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Restricted Band of Operation PASS 15.247(d) Band Edge (Out of Band Emissions) PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000285E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.:A.0 Page 6 of 42 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add.: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U,where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 3 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 4 Conducted Adjacent channel power U=1.38dB 5 Conducted output power uncertainty Above 1G U=1.576dB 6 Conducted output power uncer…

Text truncated - open the document above for the full version.

Test Setup Photos

Shenzhen BCTC Testing Co., Ltd. Radiated Measurement Photos Shenzhen BCTC Testing Co., Ltd. Conducted Measurement Photos

Contact Information

Applicant

Erik.A. Kaiser
[email protected]+1 (212) 518-8032Fax: +1 (212) 518-8032

Technical Contact

Shenzhen BCTC Testing Co., Ltd.Alan Mei
[email protected]86-755-36882589

BCTC Bldg&1-2F,East of B Bldg,Pengzhou Industrial · Baoan District, Shenzhen · China

Test Firm

Shenzhen BCTC Testing Co., Ltd.Alan Mei
[email protected]+8675536882589

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz700.00 µW
Confidentiality
Long Term
Grant Notes
Output Power listed is conducted.
