2AUIR-IM010AXXX1IPTV Set-top box

TELECOMMUNICATION TECHNOLOGIES, LLC
IPTV Set-top box - FCC ID 2AUIR-IM010AXXX1 - TELECOMMUNICATION TECHNOLOGIES, LLC
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 11, 2020
Application Purpose
Original Equipment
Date of Application
Jun 10, 2020
Equipment Note
IPTV Set-top box
Frequency Range
2422.00000000 - 2452.00000000
Company
TELECOMMUNICATION TECHNOLOGIES, LLC
Country
Ukraine

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

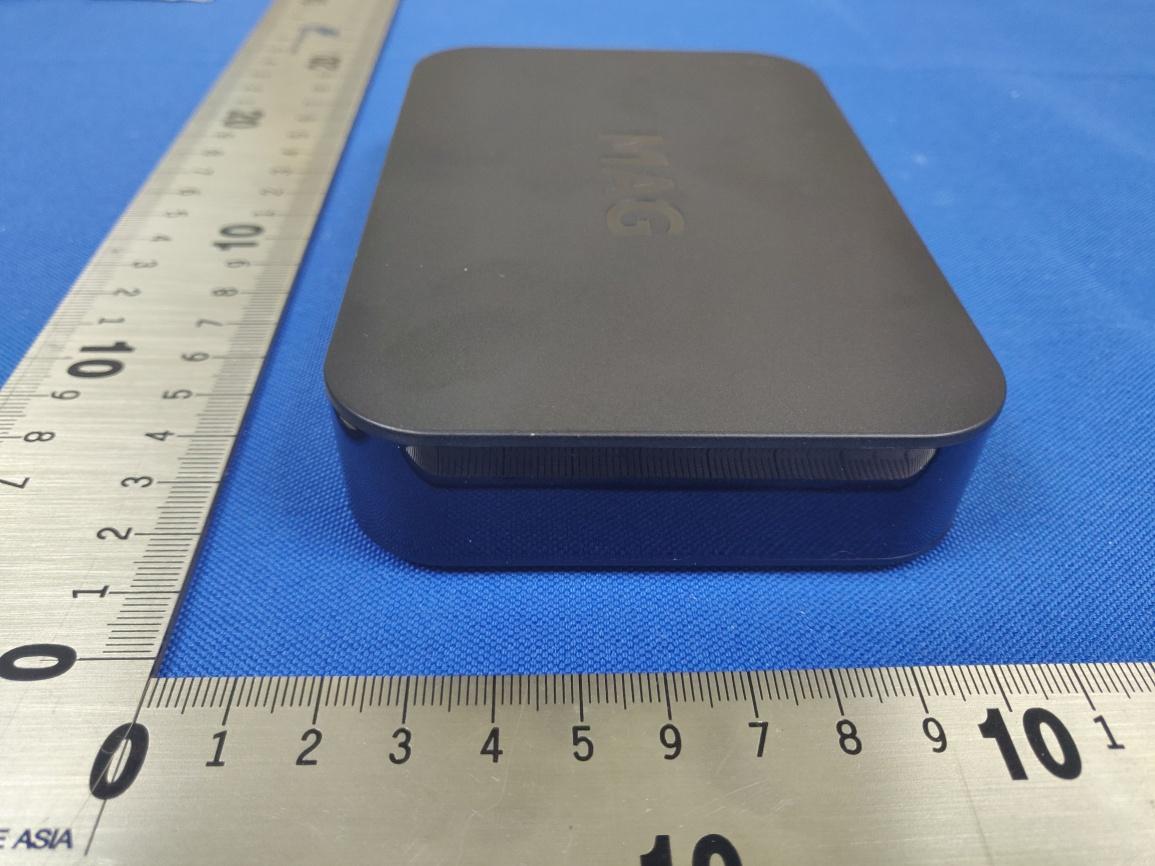

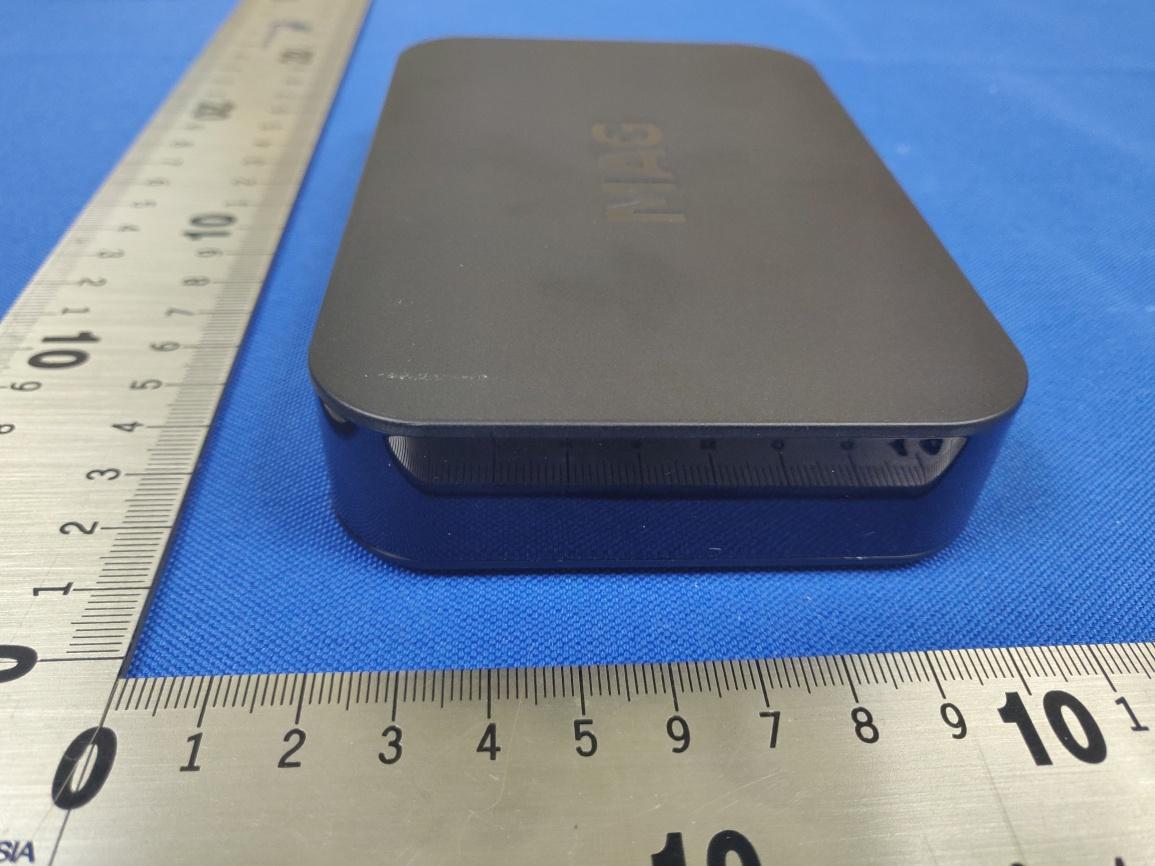

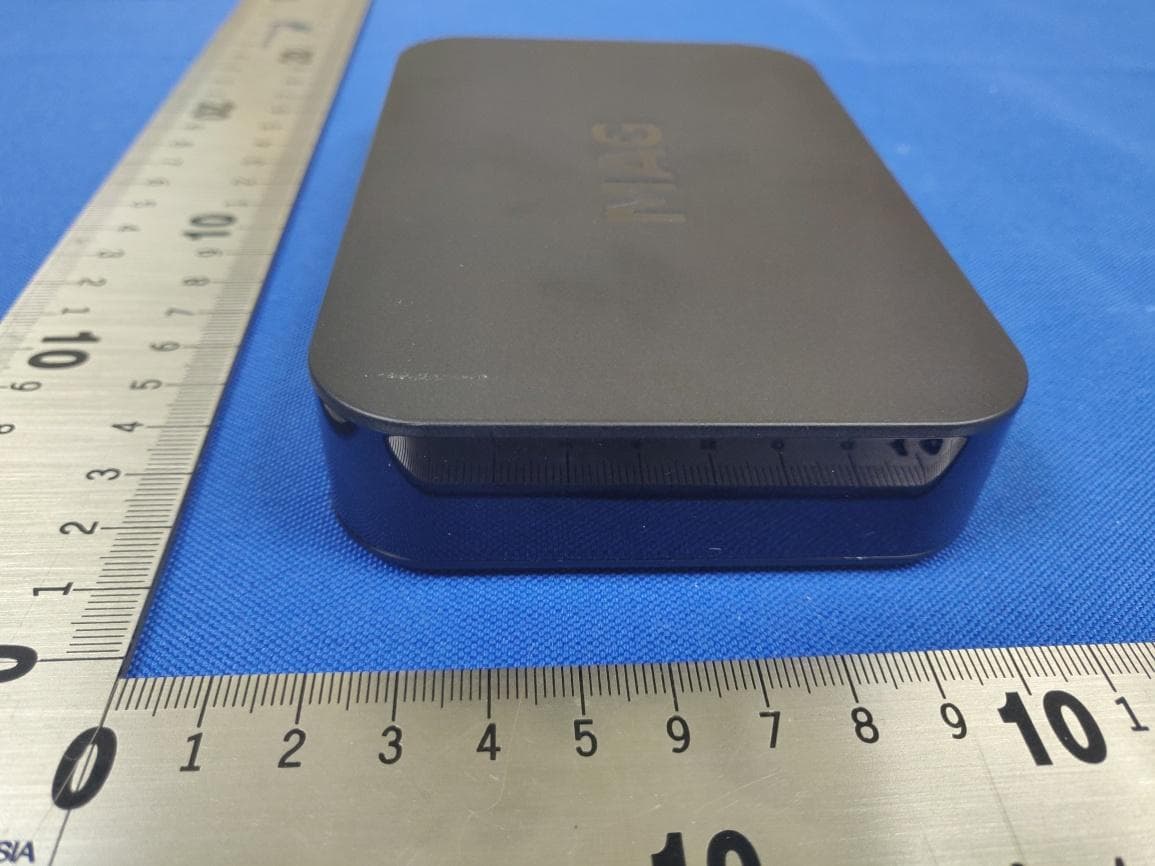

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Instruction Manual Linux based Set-Top Box MAG420 MAG420w1 Regulatory information EU This equipment has been tested and found to comply with the essential requirements of the following Directives: 2014/30/EU, 2014/35/EU, 2014/53/EU, 2009/125/EC, 2011/65/EU. This product is in accordance with Directive WEEE (2012/19/EU). Hereby, Telecommunication Technology LLC declares that MAG420w1 with the radio equipment type 802.11b/g/n is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.infomir.eu/eng/support/declarations FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Unauthorized antennas, modifications, or attachments could damage the device and violate FCC regulations. Changes or modifications not expressly approved by responsible party could void the user’s authority to operate the equipment. FCC Radiation Exposure Compliance (only for MAG420w1): This equipment complies with radio frequency (RF) exposure limits set forth by the Federal Communications Commission for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: Specifications are subject to change without notice. Infomir reserves the right to revise this publication and to make changes in its content from time to time by posting new specifications and other content at www.infomir.eu. Regulatory information Warranty term: Europe, MEASA and Oceania: 2 years from date of sale (but not more than 2,5 years from manufacture date). The USA, Americas, Russia, Ukraine and other regions: 1 year from date of sale (but not more than 1,5 years from manufacture date). See the date of manufacture at «Product Information» section. By virtue of the present Coupon, the absence of defects in manufacturing of the product and its compounds is warranted for a year-term counted since date of sale. If during the mentioned warranty term the defects of materials or operation of product will be found, the product would be repaired or its defective parts would be replaced free of charge in the warranty processing center with compliance with warranty conditions. Warranty Warranty Service Coupon (to be filled in by a shop-assistant) Date of Sale: Company-Seller: Address of Company-Seller: Place of Stamp I have no claims as to appearance and package contents. I accept the conditions of warranty service. Signature of Customer: Manufacturer: Telecommunication Technologies LLC 1 Mytna Square, Odesa, 65026, Ukraine Warranty Processing Centers List: Europe: ZLS Services GmbH Hamburger Allee 56 60486, Frankfurt am Main, Germany Tel: +49 6196 204 83 18 e-mail: [email protected] The USA, Canada and Latin America: Infomir USA 174 Bay 49 th Street Brooklyn, NY 11214 USA Tel: +1 631 482 66 36 e-mail: [email protected] MEASA and Oceania: PROGRESSIVE TECHNOLOGY F.Z.E Warehouse B1-40 Sheikh Rashid Bin Saeed Al Maktoum Street Ajman Free Zone 45573, Ajman, UAE Tel: +971 6 740 37 55 e-mail: [email protected] Russia, Belarus: Tel.: +38 048 759 09 00 e-mail: [email protected] Ukraine: Telecommunication Technologies LLC 4/D, Nebesnoi Sotni Avenue Odesa, 65121, Ukraine Tel: +38 048 759 09 00 e-mail: [email protected] Warranty processing centers Warranty conditions 1. The present warranty is only valid if the defective product is provided with property filled in Warranty Service Coupon. If date of sale is not pointed, the warranty term is counted since date of the product manufacturing which is defined under serial number. Warranty processing center reserves the right to refuse free warranty service and parts replacement in case the mentioned above documents are not presented or the filled in it information is not complete or unreadable. 2. The present warranty does not enable the right for compensation and cover of loss received as a result of rearrangement of the product. 3. The present guarantee is invalid if model or serial number of the product is altered, erased, removed or unreadable, or warranty seal is broken. 4. The present warranty does not cover the following: 4.1. Any adaptations and alterations with the aim of perfection and widening of the common scope of the product application specified in the Manual. 4.2. Devices and accessories not specified in the coupon. 4.3. Damage caused in result of: a) Improper maintenance including but not limited by following: (1) use of the product not according to its intend…

Text truncated - open the document above for the full version.

Attestation Statements

FCC model difference letter Product Name: IPTV Set-top box FCC ID: 2AUIR-IM010AXXX1 Model No.: MAG420w1, MAG420, MAG420w1 VI, MAG420 VI, MAG420w1 VO, MAG420 VO, MAG420A, MAG420A VI, MAG420A VO, MAG420Aw1, MAG420Aw1 VI, MAG420Aw1 VO, IM4411w1, IM4411, IM4411w1 VI, IM4411 VI, IM4411w1 VO, IM4411 VO, MAG422, MAG422w1, IM4414, IM4414w1, MAG422 VI, MAG422w1 VI, MAG422 VO, MAG422w1 VO, IM4414 VI, IM4414w1 VI, IM4414 VO, IM4414w1 VO, MAG422A, MAG422A VI, MAG422A VO, MAG422Aw1, MAG422Aw1 VI, MAG422Aw1 VO A ll models are electrically identical ,only model name is difference for commercial purpose. X of FCC ID is not wildcard character but fixed character.

External Photos

Model No.: MAG420w1

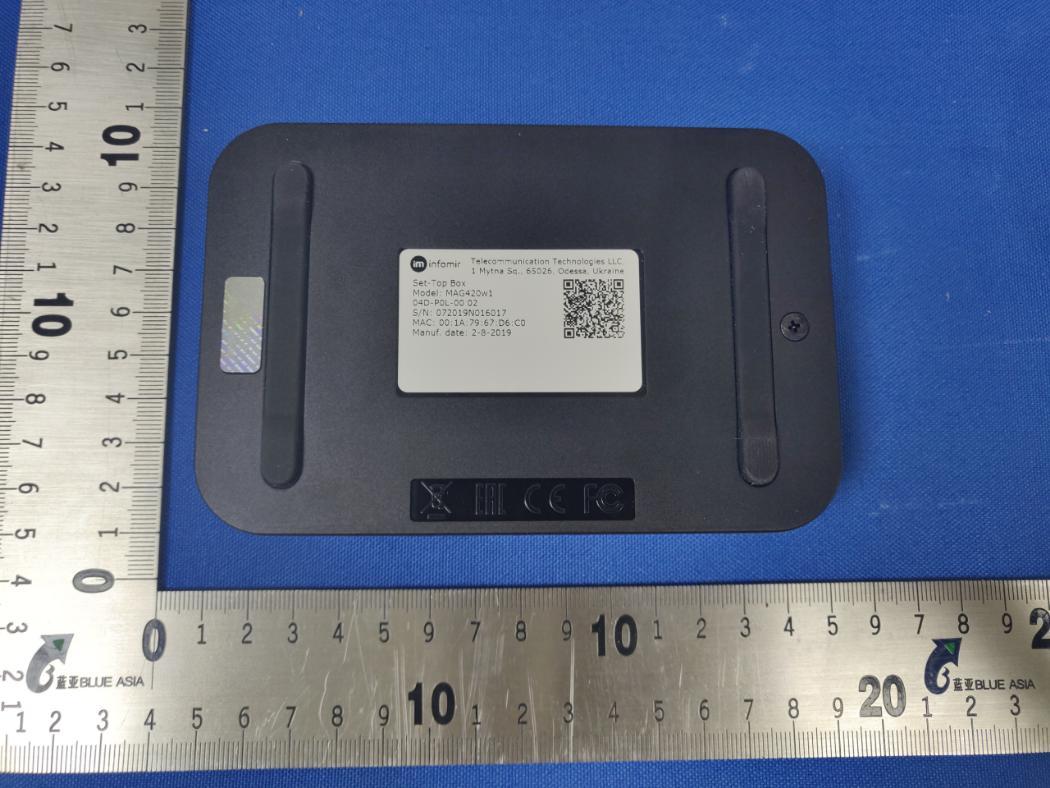

ID Label/Location Info

                !" #$ % &'() (*!+!  ,-% .-(/ &% %&%0.%%/%0  1  % 2!2! 3 4*% AUIR!IMAXXX

Internal Photos

ModelNo.:MAG420w1

RF Exposure Info

Product Name: IPTV Set-top box Model No.:MAG420w1, MAG420, MAG420w1 VI, MAG420 VI, MAG420w1 VO, MAG420 VO, MAG420A, MAG420A VI, MAG420A VO, MAG420Aw1, MAG420Aw1 VI, MAG420Aw1 VO, IM4411w1, IM4411, IM4411w1 VI, IM4411 VI, IM4411w1 VO, IM4411 VO, MAG422, MAG422w1, IM4414, IM4414w1, MAG422 VI, MAG422w1 VI, MAG422 VO, MAG422w1 VO, IM4414 VI, IM4414w1 VI, IM4414 VO, IM4414w1 VO, MAG422A, MAG422A VI, MAG422A VO, MAG422Aw1, MAG422Aw1 VI, MAG422Aw1 VO FCC ID:2AUIR-IM010AXXX1 RF Exposure Evaluation 1.1 RF Exposure Compliance Requirement 1.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3 EUT RF Exposure Evaluation Antenna Gain: 3.38dBi Ant enna Gain: The maximum Gain measured in fully anechoic chamber is 2.18 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Lowest 2412 18.51 70.96 0.03 1.0 PASS Note: Refer to report No. BLA-EMC-201909-A02-03 for EUT test Max Conducted Peak Output Power value. The distance (4th column) calculated from the Fries transmission formula is far greater than 20 cm separation Requirement

Test Report

Report No. : BLA- EMC -201909-A02-03 FCC Report (WIFI) Product Name : IPTV Set-top box Trade mark : Infomir Model No. : MAG420w1, MAG420, MAG420w1 VI, MAG420 VI, MAG420w1 VO, MAG420 VO, MAG420A, MAG420A VI, MAG420A VO, MAG420Aw1, MAG420Aw1 VI, MAG420Aw1 VO, IM4411w1, IM4411, IM4411w1 VI, IM4411 VI, IM4411w1 VO, IM4411 VO, MAG422, MAG422w1, IM4414, IM4414w1, MAG422 VI, MAG422w1 VI, MAG422 VO, MAG422w1 VO, IM4414 VI, IM4414w1 VI, IM4414 VO, IM4414w1 VO, MAG422A, MAG422A VI, MAG422A VO, MAG422Aw1, MAG422Aw1 VI, MAG422Aw1 VO FCC ID : 2AUIR-IM010AXXX1 Report Number : BLA-EMC-201909-A02-03 Date of sample receipt : 2019/8/21 Date of Test : 2019/8/21–2020/5/11 Date of Issue : 2020/6/5 Test standard : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Test result : PASS Prepared for: TELECOMMUNICATION TECHNOLOGIES, LLC 1 Mytna Sq, 65026, Odesa, Ukraine Prepared by: BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/6/5 Report No. : BLA-EMC-201909-A02-03 Page 2 of 57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 2 Version Version No. Date Description 00 2020/5/15 Original Report No. : BLA-EMC-201909-A02-03 Page 3 of 57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 TEST FACILITY ................................................................................................................................... 7 5.5 TEST LOCATION ................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSION ..................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 15 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 20 7.6 BAND EDGES .................................................................................................................................... 25 7.6.1 Conducted Emission Method ..................................................................................................... 25 7.6.2 Radiated Emission Method ........................................................................................................ 28 7.7 SPURIOUS EMISSION......................................................................................................................... 33 7.7.1 Conducted Emission Method ..................................................................................................... 33 7.7.2 Radiated Emission Method ........................................................................................................ 38 8 TEST SETUP PHOTO ............................................................................................................................ 55 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 57 Report No. : BLA-EMC-201909-A02-03 Page 4 of 57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203/15.247 (c) Pass AC Power Line Conducted Emission 15.207 Pass Conducted Peak Output Power 15.247 (b)(3) Pass Channel Bandwidth 15.247 (a)(2) Pass Power Spectral Density 15.247 (e) Pass Band Edge 15.247(d) Pass Spurious Emission 15.205/15.209 Pass Remark: Test according to ANSI C6…

Text truncated - open the document above for the full version.

Test Setup Photos

Model No.: MAG420w1

Contact Information

Applicant

Kseniya Tesleva(Certification Manager)
[email protected]+380504225043Fax: +380504225043

Test Firm

BlueAsia of Technical Services (Shenzhen)Blue Zheng
[email protected]+86 755-23059481-815

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz69.18 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode.The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
