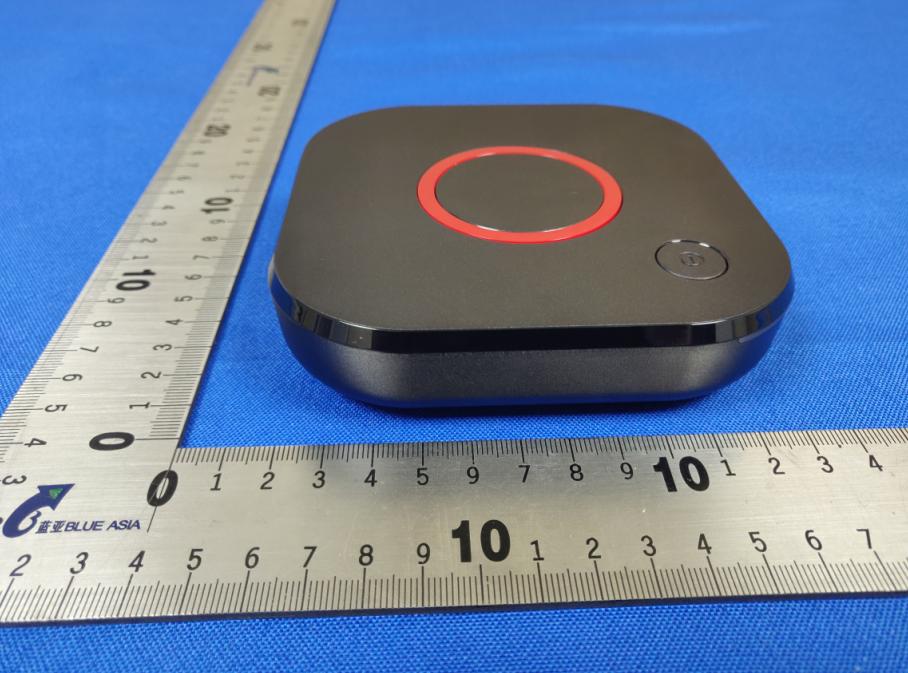

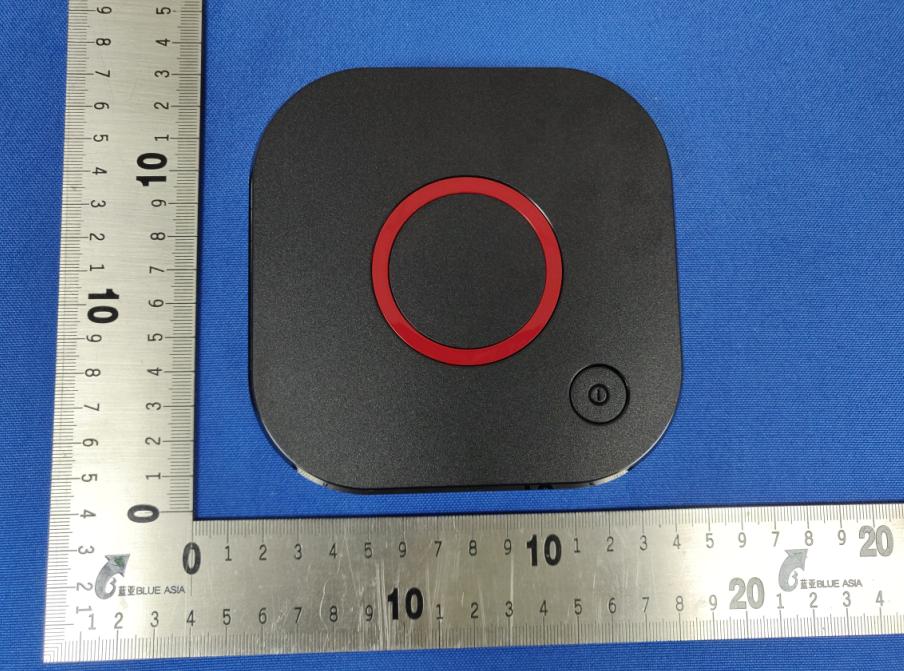

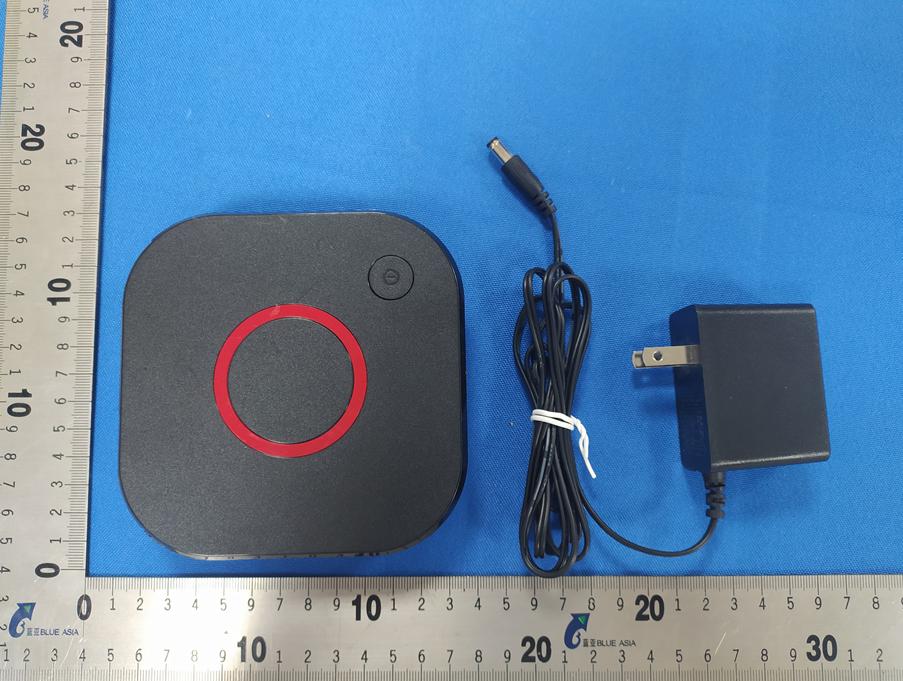

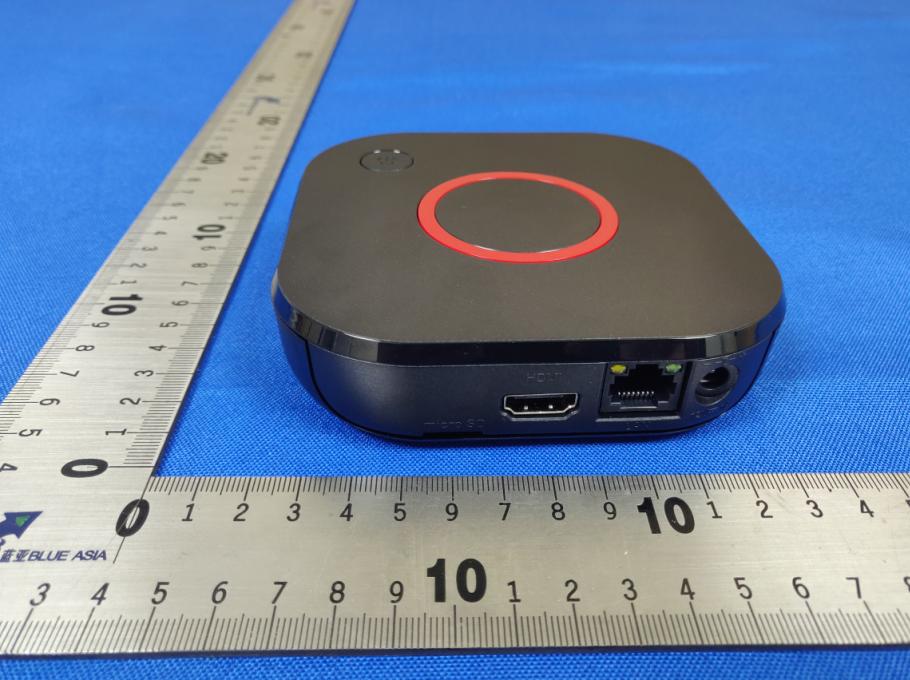

2AUIR-IM010BXXX1IPTV Set-top box

Model No.: MAG425A

Telecommunication Technologies LLC, 1 Mytna Sq., 65026, Odessa, Ukraine Set-Top Box Model: MAG425A 44D-XXX XX XX S/N: 092019N000002 MAC: 00:1A:79:2A:28:B3 Manuf. date: 3-9-2019 FCC ID: 2AUIR-IM010BXXX1

Model No.: MAG425A

Page 1 of 2 Product Name: IPTV Set-top box Model No.：MAG425A, IM4410; IM4410 VI; IM4410 VO; MAG424; MAG424 VI; MAG424 VO; MAG424A; MAG424A VI; MAG424A VO IM4410w3; IM4410w3 VI; IM4410w3 VO; MAG424Aw3; MAG424Aw3 VI; MAG424Aw3 VO; MAG424w3; MAG424w3 VI; MAG424w3 VO FCC ID：2AUIR-IM010BXXX1 RF Exposure Evaluation 1.1 RF Exposure Compliance Requirement 1.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Page 2 of 2 1.1.3 EUT RF Exposure Evaluation Antenna Gain: 2.66dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.000 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: 2.4G WIFI: 802.11n20 Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Highest 2462 17.70 58.88 0.022 1.0 PASS Note: Refer to report No. BLA-EMC-201909-A0402 for EUT test Max Conducted Peak Output Power value. The distance r (4th column) calculated from the Fries transmission formula is far greater than 20 cm separation Requirement

Report No. : BLA-EMC-201909-A0403 BlueAsia Technology Services(Shenzhen) Limited Add:No. 448, Bulong Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Cover Pa FCC REPORT Product Name : IPTV Set-top box Trade mark : Infomir Model : MAG425A Extension Model : IM4410; IM4410 VI; IM4410 VO; MAG424; MAG424 VI; MAG424 VO; MAG424A; MAG424A VI; MAG424A VO IM4410w3; IM4410w3 VI; IM4410w3 VO; MAG424Aw3; MAG424Aw3 VI; MAG424Aw3 VO; MAG424w3; MAG424w3 VI; MAG424w3 VO FCC ID : 2AUIR-IM010BXXX1 Report Number : BLA-EMC-201909-A0403 Date of sample receipt : 2019/08/21 Date of Test : 2020/09/10-2020/11/16 Date of Issue : 2020/11/16 Test standard : FCC CFR Title 47 Part 15 Subpart E Section 15.407 Test result : PASS Prepared for: TELECOMMUNICATION TECHNOLOGIES, LLC 1 MytnaSq, 65026, Odesa, Ukraine Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/11/16 Report No. : BLA-EMC-201909-A0403 Page 2 of 165 BlueAsia Technology Services(Shenzhen) Limited Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Version Version No. Date Description 00 2020/11/16 Original Report No. : BLA-EMC-201909-A0403 Page 3 of 165 BlueAsia Technology Services(Shenzhen) Limited Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Contents Page 1 TEST SUMMARY .................................................................................................................................................. 4 2 GENERAL INFORMATION .................................................................................................................................. 5 2.1 CLIENT INFORMATION ............................................................................................................................................ 5 2.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 2.3 TEST ENVIRONMENT AND MODE ............................................................................................................................ 8 2.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 8 2.5 LABORATORY LOCATION ....................................................................................................................................... 9 2.6 TEST INSTRUMENTS LIST ..................................................................................................................................... 10 3 TEST RESULTS ANDMEASUREMENT DATA ............................................................................................... 14 3.1 ANTENNA REQUIREMENT ..................................................................................................................................... 14 4 CONDUCTED EMISSION .................................................................................................................................. 15 5 CONDUCTED OUTPUT POWER ...................................................................................................................... 18 6 OCCUPY BANDWIDTH ..................................................................................................................................... 21 7 POWER SPECTRAL DENSITY ......................................................................................................................... 66 8 SPURIOUS EMISSION ..................................................................................................................................... 117 8.1.1 Unwanted Emissions in the Restricted Bands ....................................................................................... 131 8.2 FREQUENCY STABILITY ...................................................................................................................................... 160 9 TEST SETUP PHOTO ...................................................................................................................................... 163 10 EUT CONSTRUCTIONAL DETAILS .............................................................................................................. 165 Report No. : BLA-EMC-201909-A0403 Page 4 of 165 BlueAsia Technology Services(Shenzhen) Limited Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 1 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203/15.407 (g) Pass AC Power Line Conducted Emission 15.207 Pass Conducted Peak Output Power 15.407 (a) Pass 26dB Occupied Bandwidth 15.407 (a) Pass 6dB Emission Bandwidth 15.407(e) Pass Power Spectral Density 15.407 (a) Pass Band Edge 15.407(b) Pass Spurious Emission 15.205/15.209 Pass Frequency Stability 15.407(g) Pass Pass: The EUT complies with the essential requirements in the standard. Report No. : BLA-EMC-201909-A0403 Page 5 of 165 BlueAsia Technology Services(Shenzhen) Limited Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2 General Information 2.1 Client Information Applicant TELECOMMUNICATION TECHNOLOGIES, LLC Address 1 MytnaSq, 65026, Odesa, Ukraine Manufacturer TELECOMMUNICATION TECHNOLOGIES, LLC Address 1 MytnaSq, 65026, Odesa, Ukraine Factory TELECOMMUNICATION TECHNOLOGIES, LLC Address 1 MytnaSq, 65026, Odesa, Ukraine Product Name IPTV Set-top box Test Model No. MAG425A 2.2 General Description of E.U.T. Operation Frequency: Band 1 : 5180MHz-5240MHz; Band 2:5260MHz~5320MHz Band 3: 5500MHz~5700MHz; Band 4 : 5745MHz-5825MHz Operation mode: Indoor used Channel numbers: Band 1: 802.11a/802.11n(HT20)/802.11ac(HT20): 4, 802.11n(HT40)/802.11ac(HT40):2, 802.11ac(HT80): 1 Band 2: 802.11a/802.11n(HT20)/802.11ac(HT20): 4, 802.11n(HT40)/802.11ac(HT40):2, 8…

Text truncated - open the document above for the full version.

Report No. : BLA- EMC -201909-A0405 BlueAsia Technology Services(Shenzhen) Limited Add:No. 448, Bulong Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 1 Cover Page DFS TEST REPORT Product Name : IPTV Set-top box Trade mark : Infomir Model No. : MAG425A Extension Model : IM4410; IM4410 VI; IM4410 VO; MAG424; MAG424 VI; MAG424 VO; MAG424A; MAG424A VI; MAG424A VO IM4410w3; IM4410w3 VI; IM4410w3 VO; MAG424Aw3; MAG424Aw3 VI; MAG424Aw3 VO; MAG424w3; MAG424w3 VI; MAG424w3 VO FCC ID : 2AUIR-IM010BXXX1 Report Number : BLA-EMC-201909-A0405 Date of sample receipt : 2019/08/21 Date of Test : 2020/09/10-2020/11/16 Date of Issue : 2020/11/16 Test standard : FCC CFR Title 47 Part 15 Subpart E Section 15.407 Test result : PASS Prepared for: TELECOMMUNICATION TECHNOLOGIES, LLC 1 MytnaSq, 65026, Odesa, Ukraine Prepared by: BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China TEL: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/11/16 BlueAsia Technology Services(Shenzhen) Limited Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2 Version Version No. Date Description 00 2020/11/16 Original BlueAsia Technology Services(Shenzhen) Limited Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 TEST SUMMARY .................................................................................................................................................. 4 5 GENERAL INFORMATION .................................................................................................................................. 5 5.1 CLIENT INFORMATION ........................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T. ...................................................................................................................... 5 5.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 5 5.4 LABORATORY FACILITY ........................................................................................................................................ 5 5.5 LABORATORY LOCATION ...................................................................................................................................... 6 5.6 TEST INSTRUMENTS LIST ....................................................................................................................................... 6 5.7 TEST ENVIRONMENT.............................................................................................................................................. 6 6 DFS TECHNICAL REQUIREMENTS .................................................................................................................. 7 6.1 DFS PARAMETERS ............................................................................................................................................... 7 6.2 DFS TECHNICAL REQUIREMENTS ........................................................................................................................ 8 6.3 DFS THRESHOLD LEVEL ...................................................................................................................................... 9 6.4 TEST SETUP BLOCK .............................................................................................................................................. 9 6.5 EUT CONFIGURATION FOR DFS TEST ............................................................................................................... 10 7 TEST RESULT .................................................................................................................................................... 11 7.1 CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME .............................................................. 11 8 EUT CONSTRUCTIONAL DETAILS ................................................................................................................ 12 BlueAsia Technology Services(Shenzhen) Limited Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 4 Test Summary Test Items Limit Result Channel Availability Check > 60 seconds N/A UNII DetectionBandwidth > 100% of the UNII 99% transmission power bandwidth N/A Statistical Performance Check Radar type 1,2,3,4 ≧ 60% Aggregate Radar type 1~4 and 5≧80% Radar type 6 ≧70% N/A Channel Move Time < 10 seconds Pass Channel Closing Transmission Time < 20ms + aggregate of 60ms over remaining 10 second period Pass Non-Occupancy Period > 30 minutes N/A Note: “Pass” means meet the requirements, “N/A” means not applicable BlueAsia Technology Services(Shenzhen) Limited Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 5 General Information 5.1 Client Information Applicant: TELECOMMUNICATION TECHNOLOGIES, LLC Address: 1 MytnaSq, 65026, Odesa, Ukraine Manufacturer TELECOMMUNICATION TECHNOLOGIES, LLC Address: 1 MytnaSq, 65026, Odesa, Ukraine 5.2 General Description of E.U.T. Product Name: IPTV Set-top box Test Model No.: MAG425A Transmitter frequency range: 5150MHz~5250MHz, 5250MHz~5350MHz 5470MHz~5725MHz, 5725MHz~5825MHz Modulation type: OFDM WLAN Function: 802.11a/802.11n/802.11ac Band…

Text truncated - open the document above for the full version.

Model No.: MAG425A
