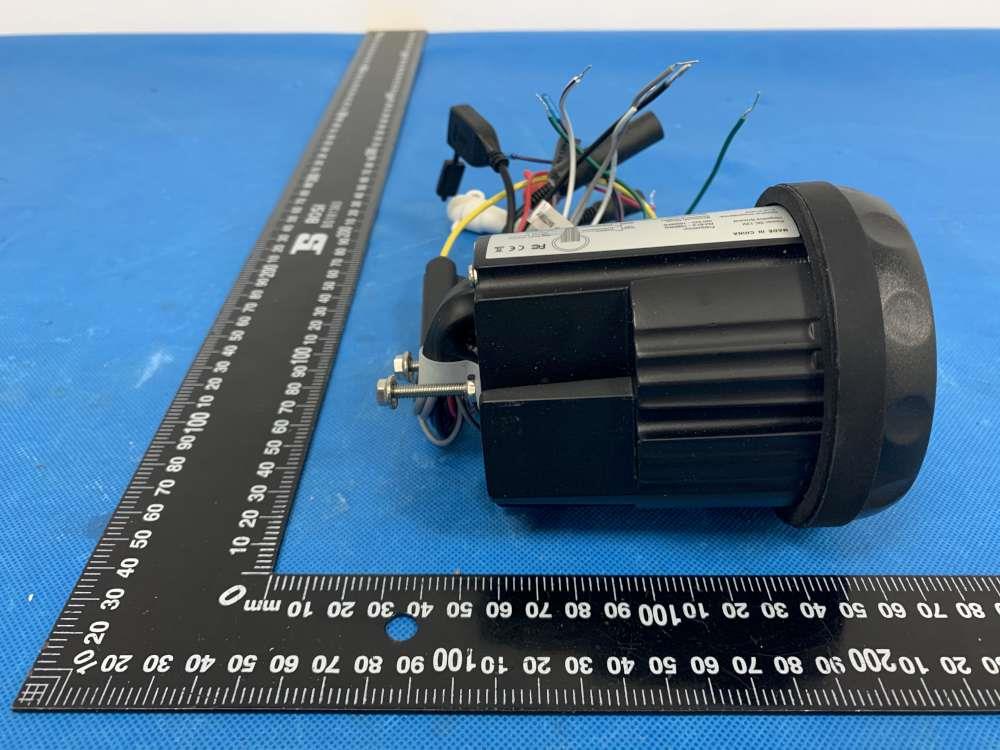

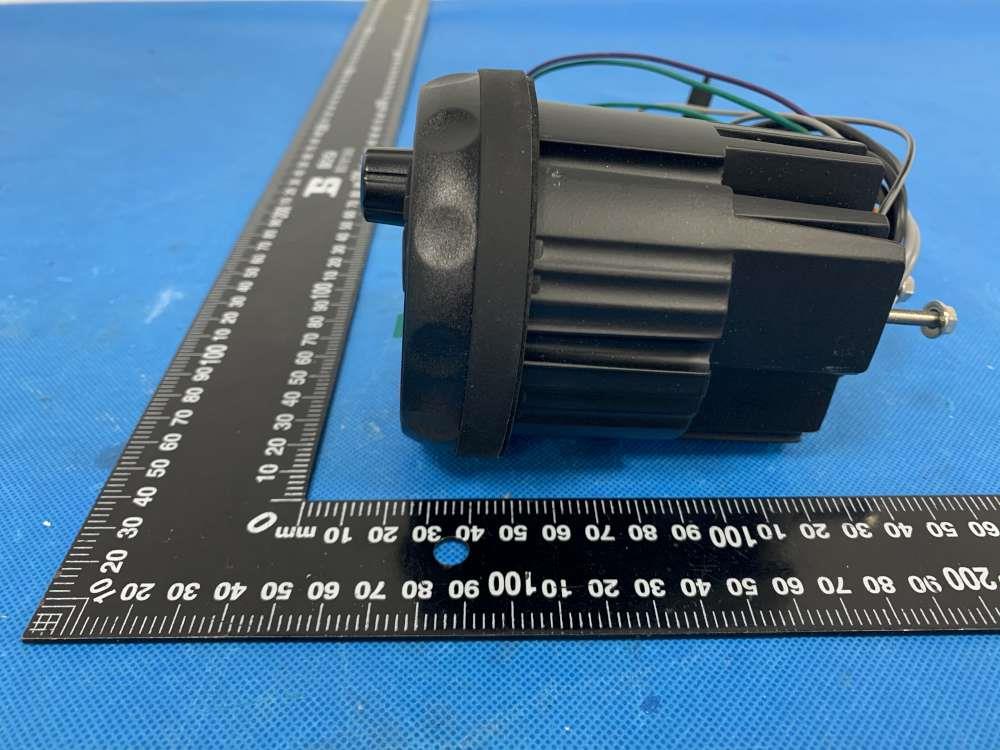

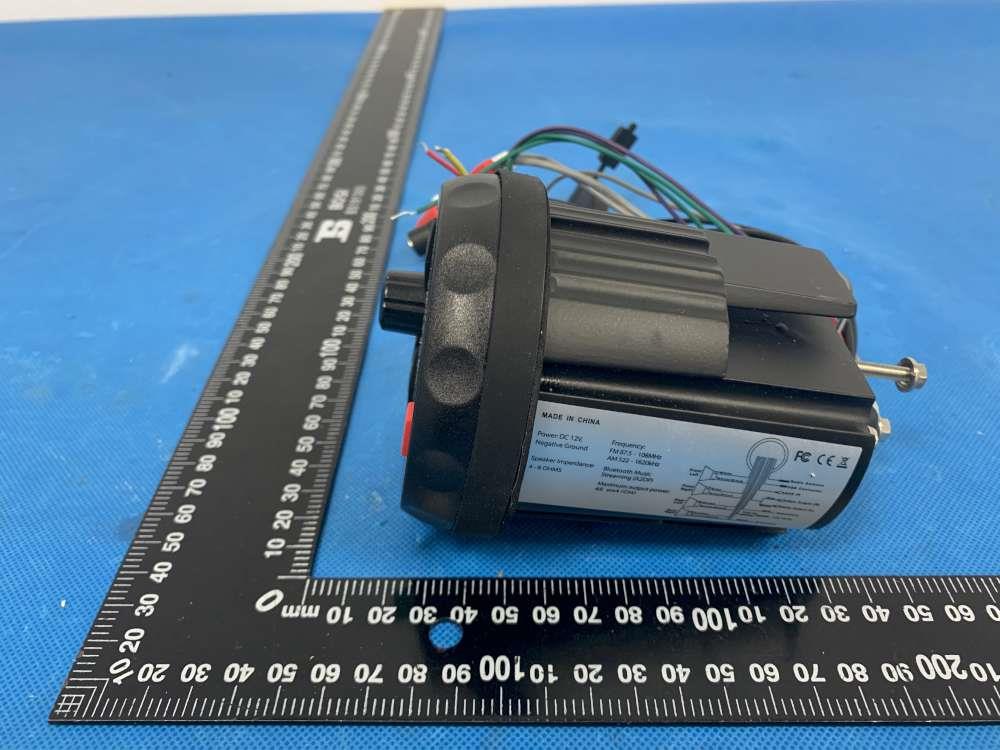

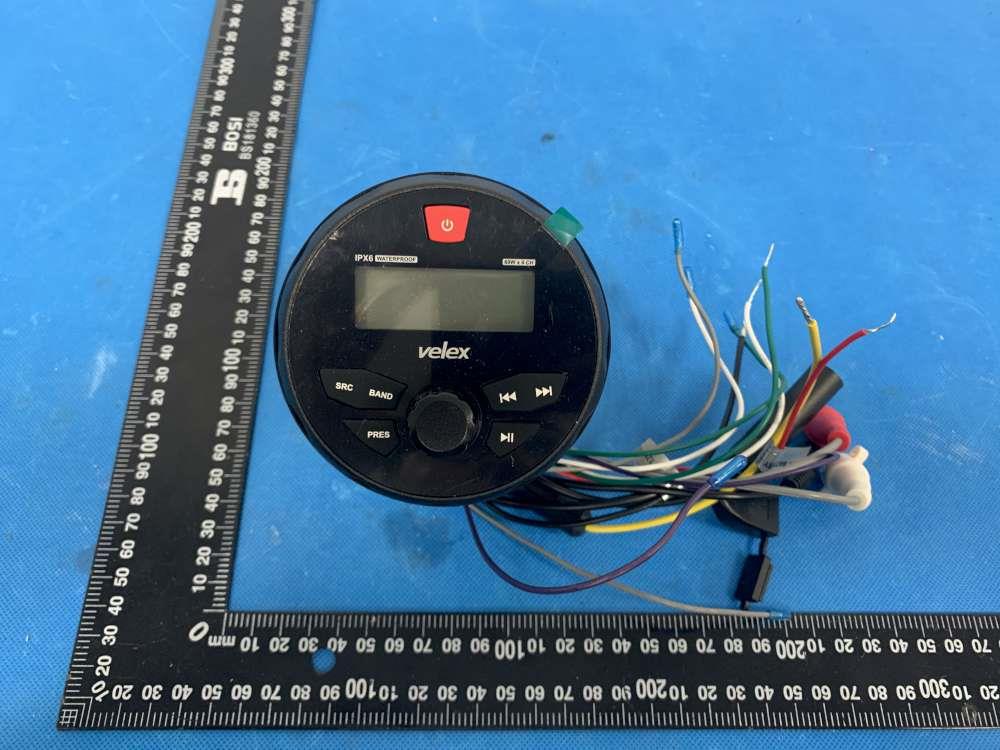

Quick Start Guide VX163/VX163D Instruction Manual For Gauge Hole Receivers Not all features listed in this QSG are available on all models. www.velextech.com THIS PACKAGE CONTAINS Marine Media Player with Bluetooth x 1 U mounting bracket (Pre-installed) x 1 Screw Posts (Pre-installed) x 2 Hex Nuts (Pre-installed) x 2 User Manual x 1 Mounting &Wiring Please read entire manual before installation. Before You Start Disconnect negative battery terminal. Consult a qualified technician for instruction. Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started Once a suitable location has been decided, drill the hole and secure the stereo using the metal mounting bracket. Color Connection Red12V Ignition / Accessory Yellow Battery Black Ground Grey Right Front (+) Grey/Black Right Front(-) White Left Front (+) White/Black Left Front (-) Violet Right Rear(+) Violet/Black Right Rear(-) Green Left Rear(+) Green/Black Left Rear(-) Tip: When a suitable ground wire is not present in the vehicle wiring harness. Connect the black ground wire to the vehicle chassis. Fuse: When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. 3.1" (79mm) DIA 3.15" (80mm) DIA 3.17" (80.5mm) DIA 0.98" (25mm) DIA 3.5" (89mm) DIA Installation Mounting the Radio 1.Choose a mounting location on the dash board or instrument panel that will allow room behind to run radio cables to the power source. Consider how you will use the AUX IN, LINE OUT and USB connectors and route the appropriate extension cables to an accessible area. 2.Cut a hole （Diameter: 80mm/3.15 inch）in the dash board using the template provided on page 8. At least 3.5 inch depth is needed to mount the radio. IMPORTANT! Do not mount this unit where it can be submerged in water. 3.Attach the included screw posts (A) to the back of the radio. 4.Place the radio in front of the dashboard opening so the wiring can be brought through the opening. 5.After completing the wiring connections(page 2), turn the radio on to confirm operation (vehicle accessary switch must be on). If the radio does not operate. Recheck all wiring until the problem is corrected. Once proper operation is achieved, turn the accessory switch off and proceed with final mounting of the radio. Refer to the wiring diagram. NOTE: Before final installation, test the wiring connections to make sure the unit is connected properly and the system works. 6.Insert the radio into the mounting hole. 7.Place the 'U' bracket (B) over the screw posts and secure the radio to the dash using the included hex nuts (C). A C B 3 Inch Hole 1 3 6 5 7 4 8 2 Control Locations - Receiver 1 Power 2 3 4 Play/Pause Tune Up/Next Track 6 7 8 Tune Down/Previous Track Source 5 Preset Volume knob (Rotate) / SEL/Confirm (Press) Band SRC BANDPRES IPX6 WATERPROOF60W x 4 CH General Operation Power on/off -- Press the ' ' button to turn the unit on. Short press to turn the unit off. Brightness -- Press ' ' to adjust the back light brightness ( High / Medium / Off). Changing Modes -- Press SRC to select between AM/FM, USB, Auxiliary and Bluetooth Music. Modes of operation are shown in the display. Volume -- Adjust volume by rotating the volume knob. Mute -- Press '>II' to silence the audio. Press '>II' again to resume listening at previous selected volume. Auxiliary InputsInsert a 3.5mm connector in the AUX port, the other end of 3.5mm connector to the headphone output of an audio device (3.5 mm audio cable sold separately ). ' ' again Audio setting Short press 'SEL' to enter into AUDIO SETTING Navigate between XBASS/ BASS / TREBLE / BALANCE / FADER Rotate the volume knob to select between EQ USER/JAZZ/POP/ CLASS/ROCK System setting Press and hold 'SEL' to enter into SYSTEM SETTING Navigate between BEEP / RESET / ABOUT / TIME AM/FM Tuner Operation 1. Press the SRC button to select TUNER 2. Press >II button to MUTE, press again to UNMUTE 3. To manual adjust frequency press >>I or |<< 4. Press the PRESET button to recall PRESETS 1-6 5. Press BAND to switch between FM1, FM2, FM3, MW1, MW2, WB; Tuner Function Setting Press and hold 'PRESET' to enter into Tuner function mode Navigate between AUTO STORE / M STORE/ LOCAL / AREA / RDS / AF / TA / PTY Press to enter setting Rotate the volume knob to select option (A-store skip this step) Press >|| button to confirm the selection (A-store skip this step) A – STORE: Automatic search the strong radio stations and store them into PRESET. M- STORE: Manual Store the Radio Station, tune to the favorite station, activate the M-STORE, the PRESET number will flashing on the LCD display, use the VOL+/VOL- button to adjust to your desired PRESET number ( P1 - P18 ) , then press >II button to manually save the station. LOCAL - ON/OFF. AREA - Select between EUROPE / AUST / USA frequency. RDS - ON/OFF; AF / TA / PTY – ON/OFF. PRES USB Operation (MP3/WMA) Playing MP3/WMA Files To play MP3/WMA files, insert a USB device (not supplied) containing MP3/WMA files. Track Select - Press >> to skip to the beginning of the next track. - Press << to return to the beginning of the previous track. Press and Pause Press >II button to temporarily stop playback. Press >II button again to resume playback. Fast forward and reverse Press and hold >> or << to fast forward or reverse a track. Folder Search Short press BND button, 'ROOT' display on the screen, enable to select between folders. Short press >> or << button ( or Rotate the VOL knob ) to select folders; Short press >II button to enter into the selected folder; After select the folder, press >> or << button ( or Rotate the VOL knob) to select the songs; Short press >II button to play the selected song; Short press PRESET button to activate 'RDM ALL(Random)' - 'RPT ALL(Repeat) ' - 'RPT SONG' and 'RPT FLD' function. Bluetooth Operation Preparation-Before using a Bluetooth devi…
