2AUVM-CIM315CContactless Card Reader Module

Subject to change without prior notice [email protected] www.abcircle.com CIM315C Compact Contactless Smart Card Reader Module User Manual CIM315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 2 of 10 Driver installation Procedure * Driver signed by Microsoft and WHQL, user can install the driver with Window Update. In case that cannot install via Window Update, please process the below steps to Manual installation Hardware requires:  CIM315C  PC with OS windows 7 or above Software requires:  CIR315 Driver Package Steps: 1. Connect CIM315C to PC 2. On PC, open “Control Panel > System” 3. Open “Device Manager” 4. Select and open “Smart card readers” if it is shown “Microsoft Usbccid ... (WUDF)”, please continue with step 5) CIM315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 3 of 10 if it is shown “CIR315 CL”, mean driver install completed 5. Right click then select “Update driver” (one by one) 6. Select “Browse my computer for driver software...” 7. 選擇 “Let me pick from a list ...” CIM315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 4 of 10 8. Select “Have Disk...” 9. Select “Browse...” Select “CIR315.inf”, then press “Open” and “OK” CIM315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 5 of 10 10. Select “CIR315 CL” then “Next” 11. Waiting until below screen shown, Press “Close” to complete 12. Double click to ensure the device changed to “CIR315 PICC” and “CIR315 SAM” 13. Done CIM315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 6 of 10 Operation Example Hardware requires:  CIM315C  PC with OS windows 7 or above  ISO14443 Test Card Software requires:  Any PCSC Application (e.g. APDU.exe) Steps: 1. Plug in the reader into the PC 2. Open “APDU.exe” 3. Click “1. Select reader”, Chose “Circle CIR315 CL 0”, then click “OK” CIM315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 7 of 10 4. Tag ISO14443 Test card on CIM315C 5. Select “T1”, Message = “90 0a 00 00 01 00 00” CIM315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 8 of 10 6. Press “2. Connect” 7. Press “3. Transmit” CIM315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 9 of 10 8. Result will be shown on the “Answer from the card:” CIM315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 10 of 10 Warning: NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help Caution Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Specific operational use conditions The end product which used the equipment have to full test and apply an original FCC ID. Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Limited modular This equipment applied as Limited single-modular transmitter, the end product which used this equipment have to full test and apply an original FCC ID. RF Exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The end product which used this equipment have to full test and apply an original FCC ID. Antennas Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. The end product which used this equipment have to full test and apply an original FCC ID. Label and compliance information The end product which used this equipment have to full test and apply an original FCC ID. Label should be included and compliance to the FCC rules with end product’s FCCID.

Long-Term Confidentiality Request

Hereby we, AB Circle Limited request modular approval for the certification of our equipment within this application, identified by: FCC ID: 2AUVM-CIM315C Modular Approval Requirement Yes / No Please provide a detailed explanation if the answer is “No.” (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. No End product which used CIM315C RFID module needed to perform a full test and apply an original FCC ID (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over- modulation. YES (iii) The modular transmitter must have its own power supply regulation. YES (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. YES (v) The modular transmitter must be tested in a stand-alone configuration YES (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. YES (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. YES (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. YES Signature: Name & title: Jonathan Tam Senior Electronic Engineer

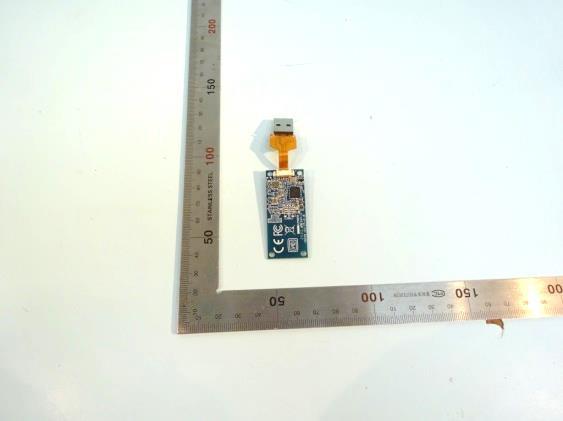

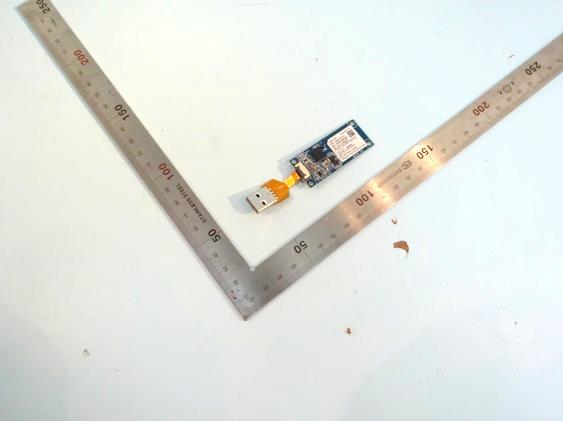

FCC ID: 2AUVM-CIM315C EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 1 of 2 FCC ID: 2AUVM-CIM315C EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 2 of 2

Test Report Date : 2020-10-16 Page 1 of 20 No. : HM20090003 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant: AB CIRCLE LIMITED Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Manufacturer: AB CIRCLE LIMITED Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Description of Sample(s): Product: Contactless Card Reader Module Brand Name: AB Circle Limited Model Number: CIM315A FCC ID: 2AUVM-CIM315A Date Sample(s) Received: 2020-09-02 Date Tested: 2020-09-09 to 2020-09-21 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2018 and ANSI C63.10:2013 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- _______________________________ Dr LEE Kam Chuen, Authorized Signatory Test Report Date : 2020-10-16 Page 2 of 20 No. : HM20090003 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 24 Content Page 2 of 20 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 20 Description of EUT operation 1.2 Description of EUT Operation 1.3 Date of Order Page 3 of 20 1.4 Submitted Sample Page 3 of 20 1.5 Test Duration Page 3 of 20 1.6 Country of Origin Page 3 of 20 2.0 Technical Details 2.1 Investigations Requested Page 4 of 20 2.2 Test Standards and Results Summary Page 4 of 20 3.0 Test Results 3.1 Emission Page 5-19 of 20 Appendix A List of Measurement Equipment Page 20 of 20 Test Report Date : 2020-10-16 Page 3 of 20 No. : HM20090003 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: Contactless Card Reader Module Manufacturer: AB CIRCLE LIMITED Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Brand Name: AB Circle Limited Model Number: CIM315A Rating: 5Vd.c. of USB port of EUT 1.2 Description of EUT Operation The Equipment Under Test (EUT) is 13.56MHz Contactless Card Reader Module, which is 13.56MHz transceiver fixed transmit at 13.56MHz, the modulation is ASK type which is provided by IC. The module RF transmission configuration is controlled by software APDU.exe. 1.3 Date of Order 2020-09-02 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2020-09-09 to 2020-09-21 1.6 Country of Origin China Test Report Date : 2020-10-16 Page 4 of 20 No. : HM20090003 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2018 Regulations and ANSI C63.10:2013 for FCC Certification. 2.2 Test Standards and Results Summary Tables Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.225(a-d) ANSI C63.10:2013 N/A The Frequency Tolerance of Carrier Signal FCC 47CFR 15.225(e) ANSI C63.10:2013 N/A 20 dB Bandwidth FCC 47CFR 15.215 ANSI C63.10:2013 N/A Radio Frequency powered Tags FCC 47CFR 15.225(f) ANSI C63.10:2013 N/A N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.10:2013 N/A Antenna requirement FCC 47CFR 15.203 N/A N/A AC power-line conducted emissions FCC 47CFR 15.207 ANSI C63.10:2013 N/A Note: N/A - Not Applicable Test Report Date : 2020-10-16 Page 5 of 20 No. : HM20090003 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 3.0 Test Results 3.1 Emission 3.1.1 Field Strength of Fundamental & Harmonics Emissions Test Requirement: FCC 47CFR 15.225 a to d Test Method: ANSI C63.10:2013 Test Date: 2020-09-18 Mode of Operation: On mode connected to PC Test Method: For emi…
