2AUVM-CIR315C-01Contactless Smart Card Reader

Subject to change without prior notice [email protected] www.abcircle.com CIR315C Contactless Smart Card Reader User Manual CIR315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 2 of 7 Driver installation Procedure * Driver signed by Microsoft and WHQL, user can install the driver with Window Update. In case that cannot install via Window Update, please process the below steps to Manual installation Hardware requires:  CIR315C  PC with OS windows 7 or above Software requires:  CIR315 Driver Package Steps: 1. Install driver by running Setup.exe 2. Follow the on-screen instructions to install the driver to the system. 3. Connect CIR315C to PC 4. If the device name under Device manager is “CIR315 CL”, it shows the driver is correctly installed CIR315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 3 of 7 Operation Example Hardware requires:  CIR315C  PC with OS windows 7 or above  Mifare 1k Test Card Software requires:  Any PCSC Application (e.g. APDU.exe) Steps: 1. Plug in the reader into the PC 2. Open “APDU.exe” CIR315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 4 of 7 3. Tag Test card on CIR315C Select “T1”, Message = “ff 82 00 00 06 ff ff ff ff ff ff” 4. Press “2. Connect” CIR315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 5 of 7 5. Press “3. Transmit” 6. Result will be shown on the “Answer from the card:” CIR315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 6 of 7 Parameter Sheet Device AB Circle’s CIR315C Contactless Smart Card Interface Standard ISO/IEC 14443 Type A & B, ISO/IEC 18092, ISO/IEC 15693 Protocol T=CL (translated to T=1 for PC/SC compliance) Operating Frequency 13.56 Mhz Supported Card Types ISO/IEC14443-4 A & 4B Cards, ISO/IEC15693-3 Cards, MIFARE series: Classic/ PLUS/ Ultralight/ Ultralight C/ DESFire/ DESFire EV1/ DESFire EV2, etc FeliCa (Standard/ Lite/ Plug), Calypso, J-LIS Cards, NFC Forum Tag type 1/2/3/4/5 Speed 106/ 212/ 424/ 848kbps (Default: 106kps) Reading Distance Up to 50 mm (depending on tag type) Extended APDU Support Physical Characteristics Dimensions 24.0 x 72.0 x 10.0 mm (no clip) Weight 13.0g (± 5 g) Casing White ABS Host Interface Power Supply USB Bus-powered Current Consumption <250 mA (Operating), <50mA (Standby) USB Standard USB 2.0 Full Speed (12 Mbps) USB Connector Type Default: Type A, Optional: Type C Human Interface LED 1 LED: Blue (Operation Status) Software and Driver Firmware Upgradeable Support, via USB Driver CCID Application Programming Interface (API) PC/SC Operating Conditions Operating Temperature -10 °C – 55 °C Operating Humidity Max. 95% (non-condensing) Storage Temperature -20 °C – 70 °C Meantime Between Failure (MTBF) 600,000 hours CIR315C – User Manual [email protected] Version 0.00.03 www.abcircle.com Page 7 of 7 Compliance/ Certifications Standards/ Systems ISO/IEC14443, ISO/IEC18092, ISO/IEC15693, ISO/IEC7816 (SAM slot), USB 2.0 Full Speed, CCID, Microsoft® WHQL Regulatory/ Environmental EN62368, CE, FCC, VCCI, MIC, RoHS3, REACH Operational Environment Supported Operating Systems Windows® 7 and above, Linux®, Mac OS® 10.12 and above, Android™ 6.0 and above Ordering Information Produce Code CIR315C-01: USB Type A Connector, CIR315C-02: USB Type C Connector (Optional) Warning:  Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

PAGE 1 OF 6 AB Circle Limited Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Date :2020-11-11 FCC ID: 2AUVM-CIR315C-01 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “AB Circle Limited” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. 1. 2. Block diagram 3. Schematics Operational description Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Sincerely, Signed & dated by the Company Representative. Jonathan Tam Senior Electronic Engineer Long-Term Confidentiality Request

PAGE 3 OF 6 Date :2020-11-11 Equipment Authorization Division Office id Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. KC Lee as agent for AB Circle Limited, Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of AB Circle Limited. Product name : Contactless Smart Card Reader Model : CIR315C-01 This authorization will expire one year from the date of this letter. _________________________ Jonathan Tam Senior Electronic Engineer

AB Circle Limited Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Date: 2020-11-19 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For CIR315C-01 2AUVM-CIR315C-01 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, AB Circle Limited requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. 1. External photographs 2. 3. 4. Test setup photos User’s manual Internal photographs These documents contain detailed system and equipment descriptions and related information about the product, which AB Circle Limited considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, AB Circle Limited feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, _________________________ Jonathan Tam Senior Electronic Engineer

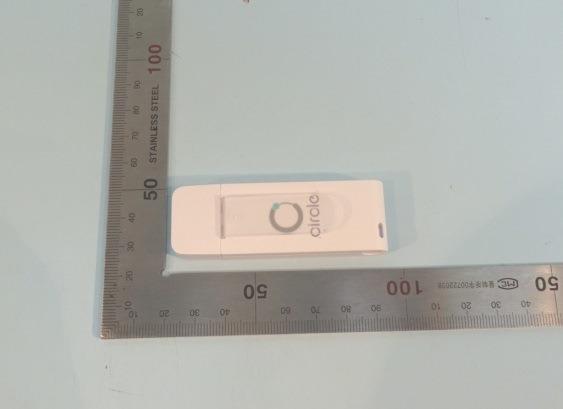

FCC ID: 2AUVM-CIR315C-01 EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 1 of 2 FCC ID: 2AUVM-CIR315C-01 EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 2 of 2

FCC ID: 2AUVM-CIR315C-01 INTERNAL PHOTOGRAPH OF THE PRODUCT Page 1 of 2 FCC ID: 2AUVM-CIR315C-01 INTERNAL PHOTOGRAPH OF THE PRODUCT Page 2 of 2

Test Report Date : 2020-10-16 Page 1 of 20 No. : HM20090030 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant: AB CIRCLE LIMITED Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Manufacturer: AB CIRCLE LIMITED Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Description of Sample(s): Product: Contactless Smart Card Reader Brand Name: AB Circle Limited Model Number: CIR315C-01 FCC ID: 2AUVM-CIR315C-01 Date Sample(s) Received: 2020-09-24 Date Tested: 2020-10-06 to 2020-10-12 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2018 and ANSI C63.10:2013 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- _______________________________ Dr. LEE Kam Chuen Authorized Signatory Test Report Date : 2020-10-16 Page 2 of 20 No. : HM20090030 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 20 Content Page 2 of 20 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 20 1.2 Description of EUT Operation 1.3 Date of Order Page 3 of 20 1.4 Submitted Sample Page 3 of 20 1.5 Test Duration Page 3 of 20 1.6 Country of Origin Page 3 of 20 2.0 Technical Details 2.1 Investigations Requested Page 4 of 20 2.2 Test Standards and Results Summary Page 4 of 20 3.0 Test Results 3.1 Emission Page 5-19 of 20 Appendix A List of Measurement Equipment Page 20 of 20 Test Report Date : 2020-10-16 Page 3 of 20 No. : HM20090030 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: Contactless Smart Card Reader Manufacturer: AB CIRCLE LIMITED Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Brand Name: AB Circle Limited Model Number: CIR315C-01 Rating: 5Vd.c. of USB port of EUT 1.2 Description of EUT Operation The Equipment Under Test (EUT) is 13.56MHz RFID Card reader, which is 13.56MHz transceiver fixed transmit at 13.56MHz, the modulation is ASK type which is provided by IC. 1.3 Date of Order 2020-09-24 1.4 Submitted Sample(s): 3 Samples 1.5 Test Duration 2020-10-06 to 2020-10-12 1.6 Country of Origin China Test Report Date : 2020-10-16 Page 4 of 20 No. : HM20090030 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2018 Regulations and ANSI C63.10:2013 for FCC Certification. 2.2 Test Standards and Results Summary Tables Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.225(a-d) ANSI C63.10:2013 N/A The Frequency Tolerance of Carrier Signal FCC 47CFR 15.225(e) ANSI C63.10:2013 N/A 20 dB Bandwidth FCC 47CFR 15.215 ANSI C63.10:2013 N/A Radio Frequency powered Tags FCC 47CFR 15.225(f) ANSI C63.10:2013 N/A N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.10:2013 N/A Antenna requirement FCC 47CFR 15.203 N/A N/A AC power-line conducted emissions FCC 47CFR 15.207 ANSI C63.10:2013 N/A Note: N/A - Not Applicable Test Report Date : 2020-10-16 Page 5 of 20 No. : HM20090030 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 3.0 Test Results 3.1 Emission 3.1.1 Field Strength of Fundamental & Harmonics Emissions Test Requirement: FCC 47CFR 15.225 a to d Test Method: ANSI C63.10:2013 Test Date: 2020-10-12 Mode of Operation: On mode connected to PC Test Method: For emission measurements at or below 1 GHz, the sample was placed 0.8m above the ground plane of semi- anechoic Chambe…
