2AUVM-CIR315BDual Interface Smart Card Reader

Subject to change without prior notice [email protected] www.abcircle.com CIR315B Dual Interface Smart Card Reader with SAM User Manual CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 2 of 12 Driver installation Procedure * Driver signed by Microsoft and WHQL, user can install the driver with Window Update. In case that cannot install via Window Update, please process the below steps to Manual installation Hardware requires:  CIR315B  PC with OS windows 7 or above Software requires:  CIR315 Driver Package Steps: 1. Connect CIR315B to PC 2. On PC, open “Control Panel > System” 3. Open “Device Manager” 4. Select and open “Smart card readers” if it is shown “Microsoft Usbccid ... (WUDF)”, please continue with step 5) CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 3 of 12 if it is shown “CIR315 Dual & 1S” mean driver install completed 5. Right click then select “Update driver” 6. Select “Browse my computer for driver software...” 7. 選擇 “Let me pick from a list ...” CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 4 of 12 8. Select “Have Disk...” 9. Select “Browse...” Select “CIR315.inf”, then press “Open” and “OK” CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 5 of 12 10. Select “CIR315 Dual & 1S” then “Next” 11. Waiting until below screen shown, Press “Close” to complete 12. Double click to ensure the device changed to “CIR315 Dual & 1S” 13. Done CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 6 of 12 Operation Example Hardware requires:  CIR315B  PC with OS windows 7 or above  ISO14443 Test Card Software requires:  Any PCSC Application (e.g. APDU.exe) Steps: 1. Plug in the reader into the PC 2. Open “APDU.exe” 3. Click “1. Select reader”, Chose “Circle CIR315 Dual & 1S PICC 0”, then click “OK” CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 7 of 12 4. Tag ISO14443 Test card on CIR315A 5. Select “T1”, Message = “90 0a 00 00 01 00 00” CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 8 of 12 6. Press “2. Connect” 7. Press “3. Transmit” CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 9 of 12 8. Result will be shown on the “Answer from the card:” CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 10 of 12 Parameter Sheet Physical Characteristics Dimensions......................................................... 66 mm x 98 mm x 11 mm Casing ................................................................ White and Grey ABS Universal Serial Bus Interface Specification ....................................................... USB 2.0 Type ................................................................... Four lines: +5V, GND, D+ and D- Speed ................................................................. USB 2.0 Full Speed Device, 12 Mbps Supply Voltage ................................................... Regulated 5V DC (Range from 4.75V to 5.25V) Supply Current ................................................... <250mA Cable Length ...................................................... 1m Contactless Interface Standard ............................................................. ISO14443, ISO18092, FeliCa®, ISO15693 Protocol .............................................................. T=CL for ISO14443-4–compliant cards, T=CL Emulation for MIFARE Classic, ISO 18092, FeliCa and NFC tags Carrier Frequency .............................................. 13.56MHz Operating Baud Rate ......................................... 106kbps, 212kbps, 424kbps Contact Smart Card Interface Standard ............................................................. ISO 7816 1/2/3/4 Protocol .............................................................. T=0 and T=1 Supply Current ................................................... Max. 50mA CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 11 of 12 Smart Card Voltage ............................................ 5V/3V/1.8V Operating Baud Rate ......................................... 9600 – 826kbps Short Circuit Protection ..................................... Fulfill JESD22-A114 Clock Frequency ................................................ 4.8 MHz Card Connector Type ......................................... Contact Card Insertion Cycles ......................................... min. 200,000 SAM Smart Card Interface Standard ............................................................. ISO 7816 3/4 Protocol Support ................................................ T=0 and T=1 Supply Current ................................................... Max. 50mA Smart Card Voltage ............................................ 5V Operating Baud Rat ........................................... 9600 – 125kbps Clock Frequency ................................................ 4.0 MHz Card Connector Type ......................................... Contact Human Interface LED .................................................................... 3 LED, 2 Blue (Operation Status), 1 Green (Power) Operating Conditions Temperature ....................................................... 0 – 60 °C Humidity ............................................................. <90% Compliances/Certifications Systems/ Standards ........................................... USB 2.0 Full Speed, CCID, Microsoft® WHQL Regulatory/ Environmental ................................. CE, FCC, VCCI Operational Environment Compatible Operating System ........................... Windows 7, 8, 10 CIR315B – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 12 of 12 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Cl…

Text truncated - open the document above for the full version.

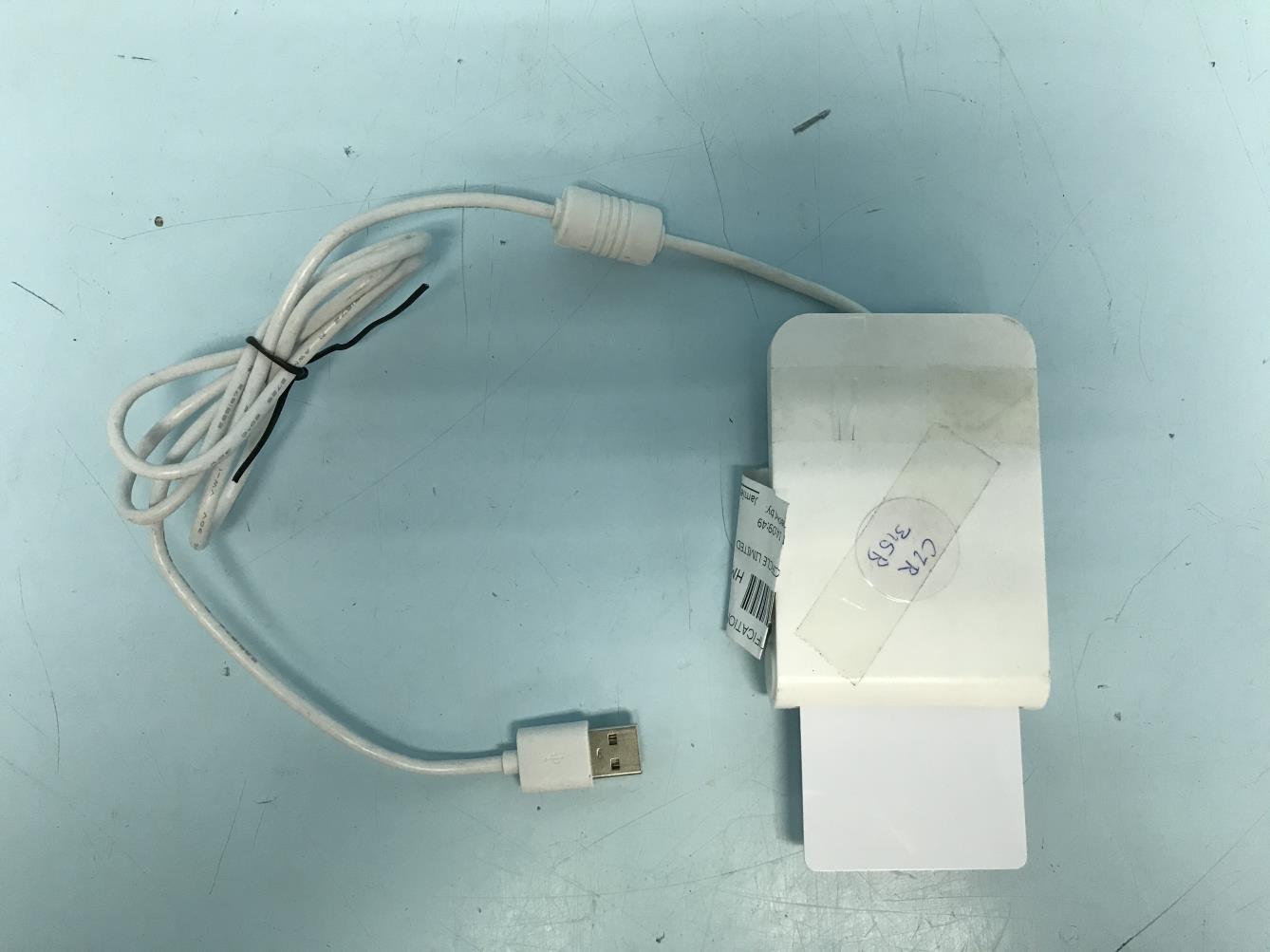

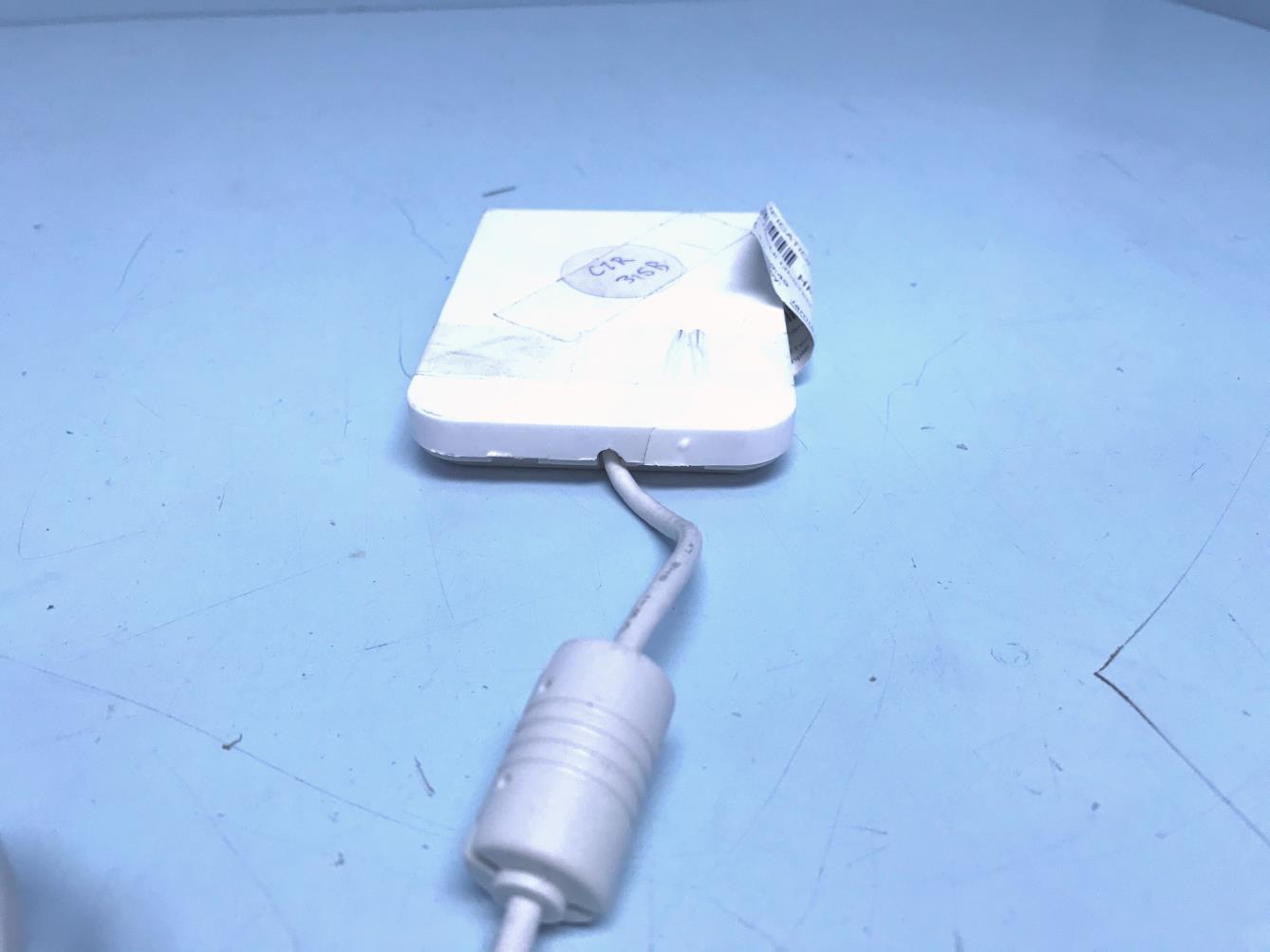

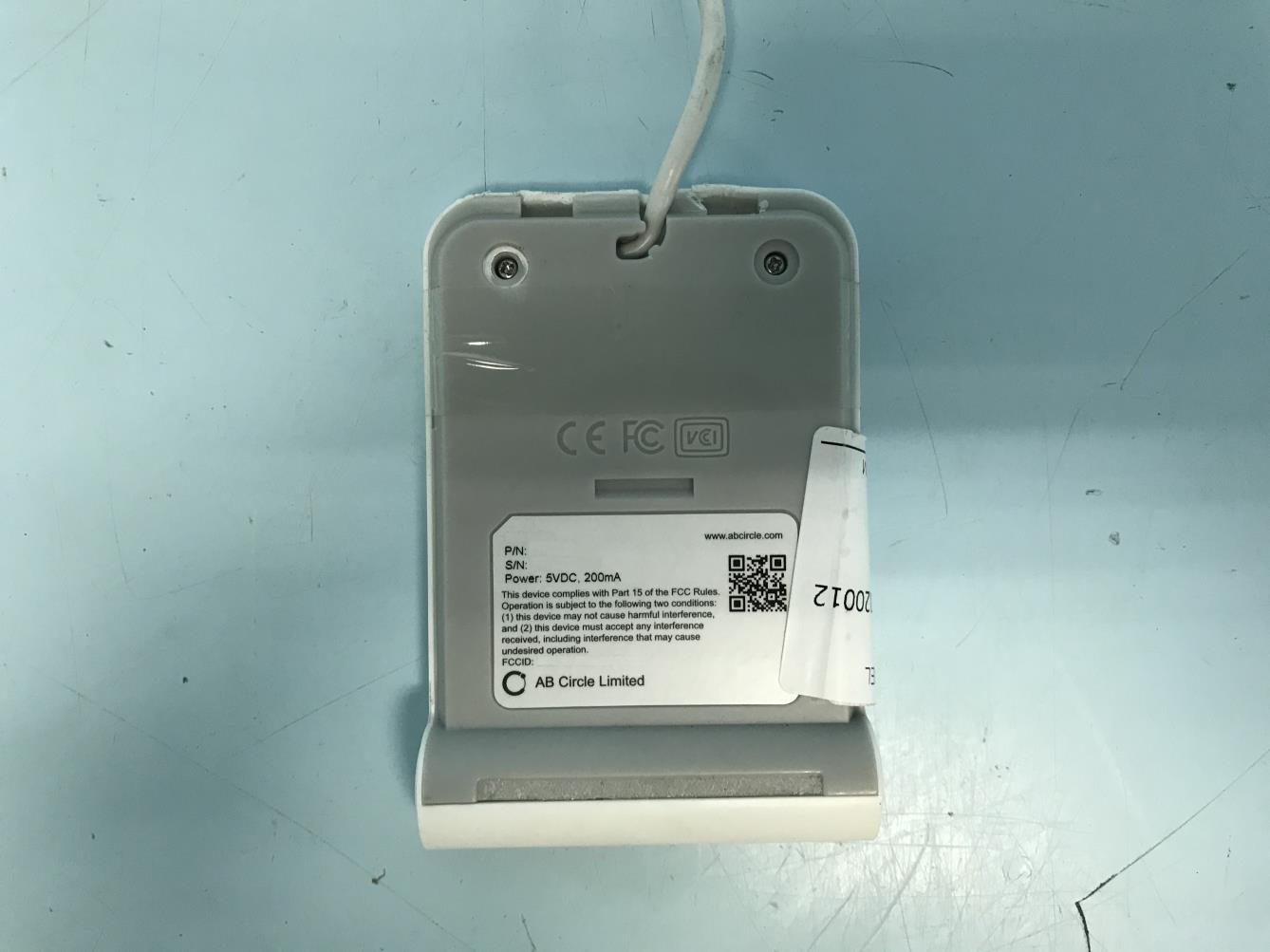

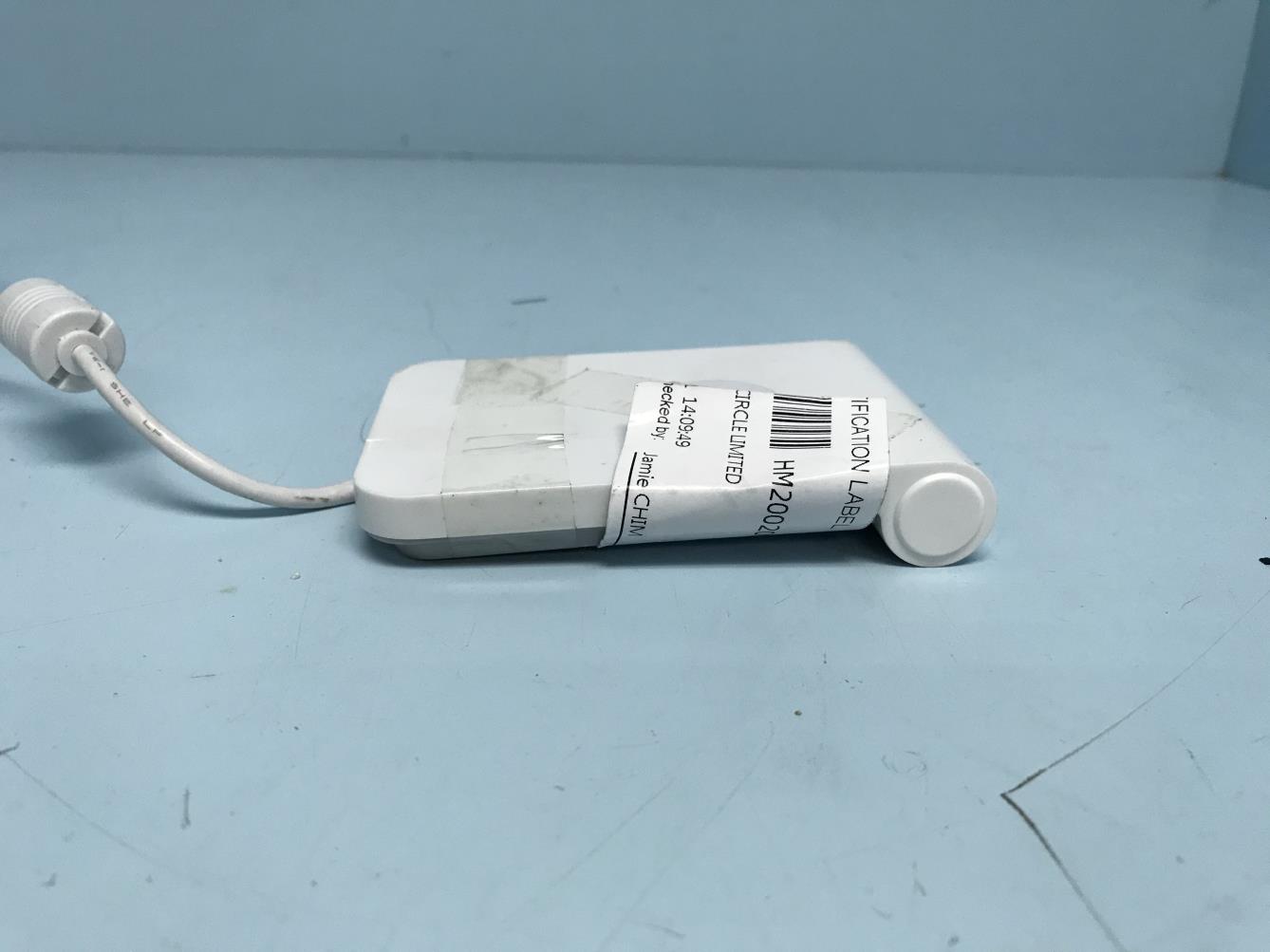

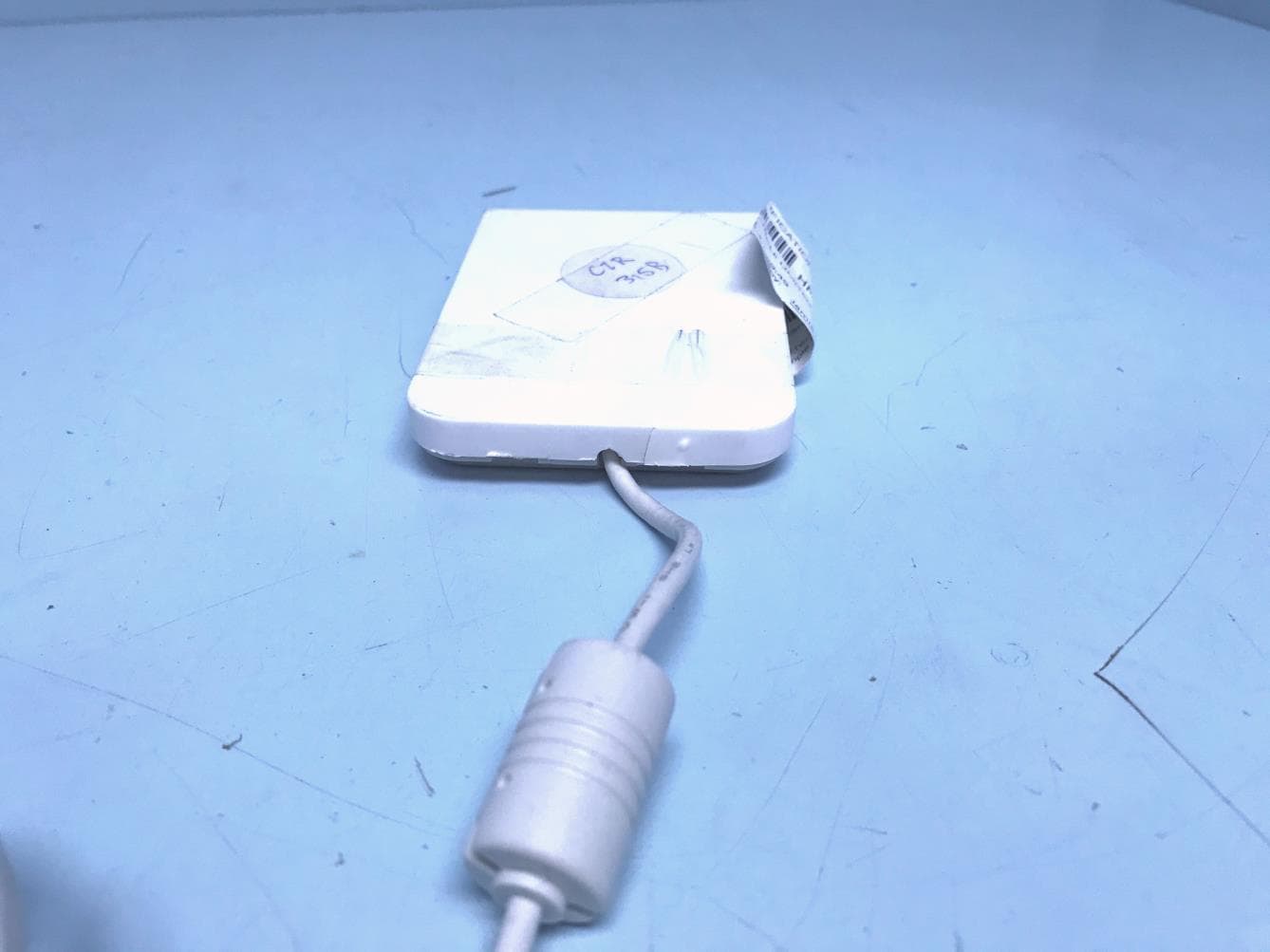

FCC ID: 2AUVM-CIR315B EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 1 of 4 FCC ID: 2AUVM-CIR315B EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 2 of 4 FCC ID: 2AUVM-CIR315B EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 3 of 4 FCC ID: 2AUVM-CIR315B EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 4 of 4

FCC ID: 2AUVM-CIR315B INTERNAL PHOTOGRAPH OF THE PRODUCT Page 1 of 2 FCC ID: 2AUVM-CIR315B INTERNAL PHOTOGRAPH OF THE PRODUCT Page 2 of 2

Test Report Date : 2020-03-09 Page 1 of 26 No. : HM20020012 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant: AB CIRCLE LIMITED Unit D, 9/F, MG Tower, 133 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Manufacturer: AB CIRCLE LIMITED Unit D, 9/F, MG Tower, 133 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Description of Sample(s): Product: Dual Interface Smart Card Reader Brand Name: AB Circle Limited Model Number: CIR315B FCC ID: 2AUVM-CIR315B Date Sample(s) Received: 2020-02-05 Date Tested: 2020-02-10 to 2020-02-19 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2017 and ANSI C63.10:2013 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- _______________________________ LEUNG Kwun Hang, Joey Authorized Signatory Test Report Date : 2020-03-09 Page 2 of 26 No. : HM20020012 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 26 Content Page 2 of 26 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 26 Description of EUT operation 1.2 Description of EUT Operation 1.3 Date of Order Page 3 of 26 1.4 Submitted Sample Page 3 of 26 1.5 Test Duration Page 3 of 26 1.6 Country of Origin Page 3 of 26 2.0 Technical Details 2.1 Investigations Requested Page 4 of 26 2.2 Test Standards and Results Summary Page 4 of 26 3.0 Test Results 3.1 Emission Page 5-20 of 26 Appendix A List of Measurement Equipment Page 21 of 26 Appendix B Photographs of EUT Page 22-26 of 26 Test Report Date : 2020-03-09 Page 3 of 26 No. : HM20020012 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: Dual Interface Smart Card Reader Manufacturer: AB CIRCLE LIMITED Unit D, 9/F, MG Tower, 133 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Brand Name: AB Circle Limited Model Number: CIR315B Rating: 5Vd.c of USB port of EUT PC=120Va.c. 1.2 Description of EUT Operation The Equipment Under Test (EUT) is 13.56MHz RFID Card reader, which is 13.56MHz transceiver fixed transmit at 13.56MHz, the modulation is ASK type which is provided by IC. The Carrier frequency of the EUT will continuous 1.3 Date of Order 2020-02-05 1.4 Submitted Sample(s): 3 Samples 1.5 Test Duration 2020-02-10 to 2020-02-19 1.6 Country of Origin China Test Report Date : 2020-03-09 Page 4 of 26 No. : HM20020012 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2017 Regulations and ANSI C63.10:2013 for FCC Certification. 2.2 Test Standards and Results Summary Tables Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.225(a-d) ANSI C63.10:2013 N/A The Frequency Tolerance of Carrier Signal FCC 47CFR 15.225(e) ANSI C63.10:2013 N/A 20 dB Bandwidth FCC 47CFR 15.215 ANSI C63.10:2013 N/A Radio Frequency powered Tags FCC 47CFR 15.225(f) ANSI C63.10:2013 N/A N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.10:2013 N/A Antenna requirement FCC 47CFR 15.203 N/A N/A AC power-line conducted emissions FCC 47CFR 15.207 ANSI C63.10:2013 N/A Note: N/A - Not Applicable Test Report Date : 2020-03-09 Page 5 of 26 No. : HM20020012 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 3.0 Test Results 3.1 Emission 3.1.1 Field Strength of Fundamental & Harmonics Emissions Test Requirement: FCC 47CFR 15.225 a to d Test Method: ANSI C63.10:2013 Test Date: 2020-02-19 Mode of Operation: On mode connected to PC Test Method: For emission measurements at or below 1 GHz, the sa…
